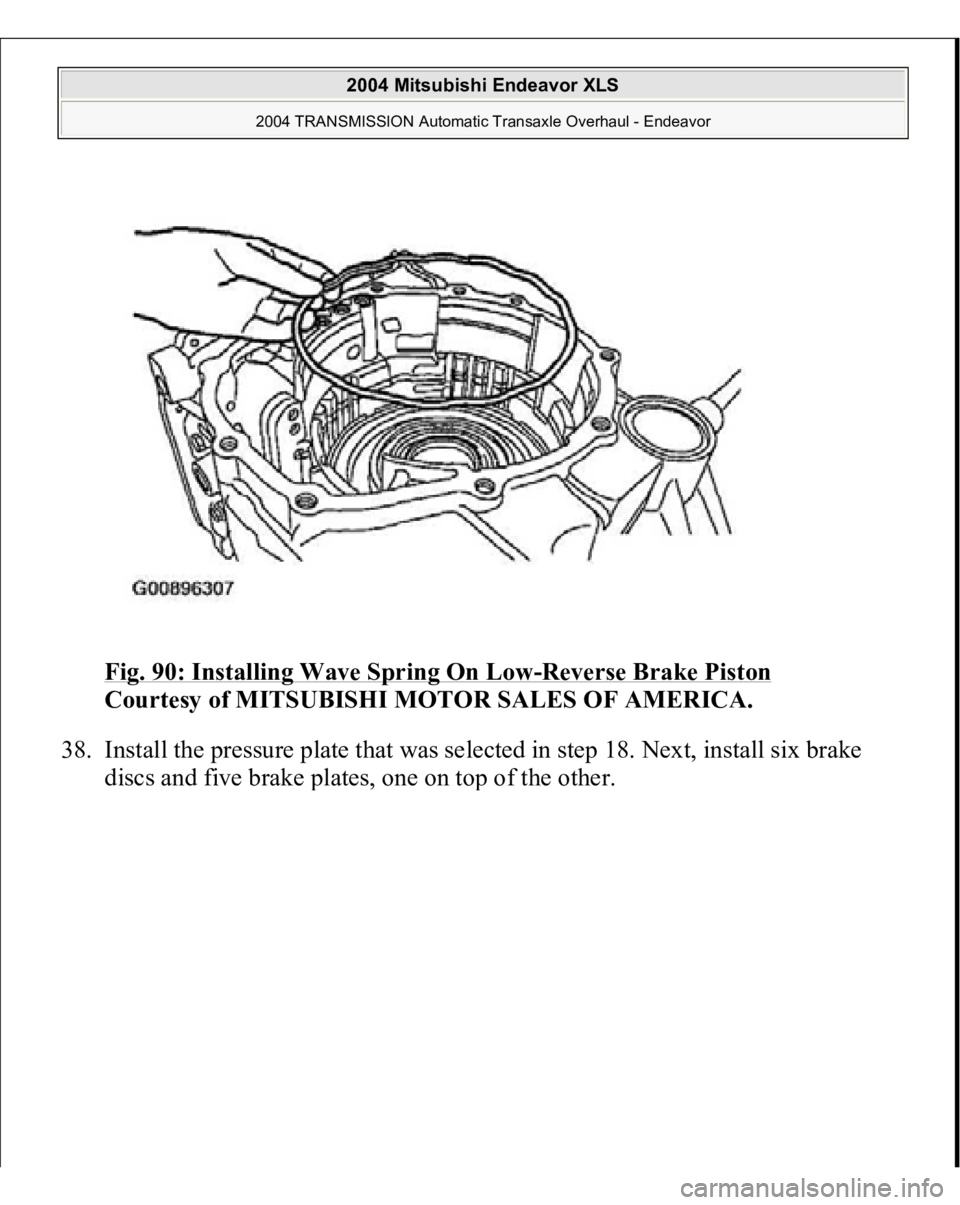

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 90: Installing Wave Spring On Low -Reverse Brake Piston Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 38. Install the pressure plate that was selected in step 18. Next, install six brake dis

Page 546 of 3870

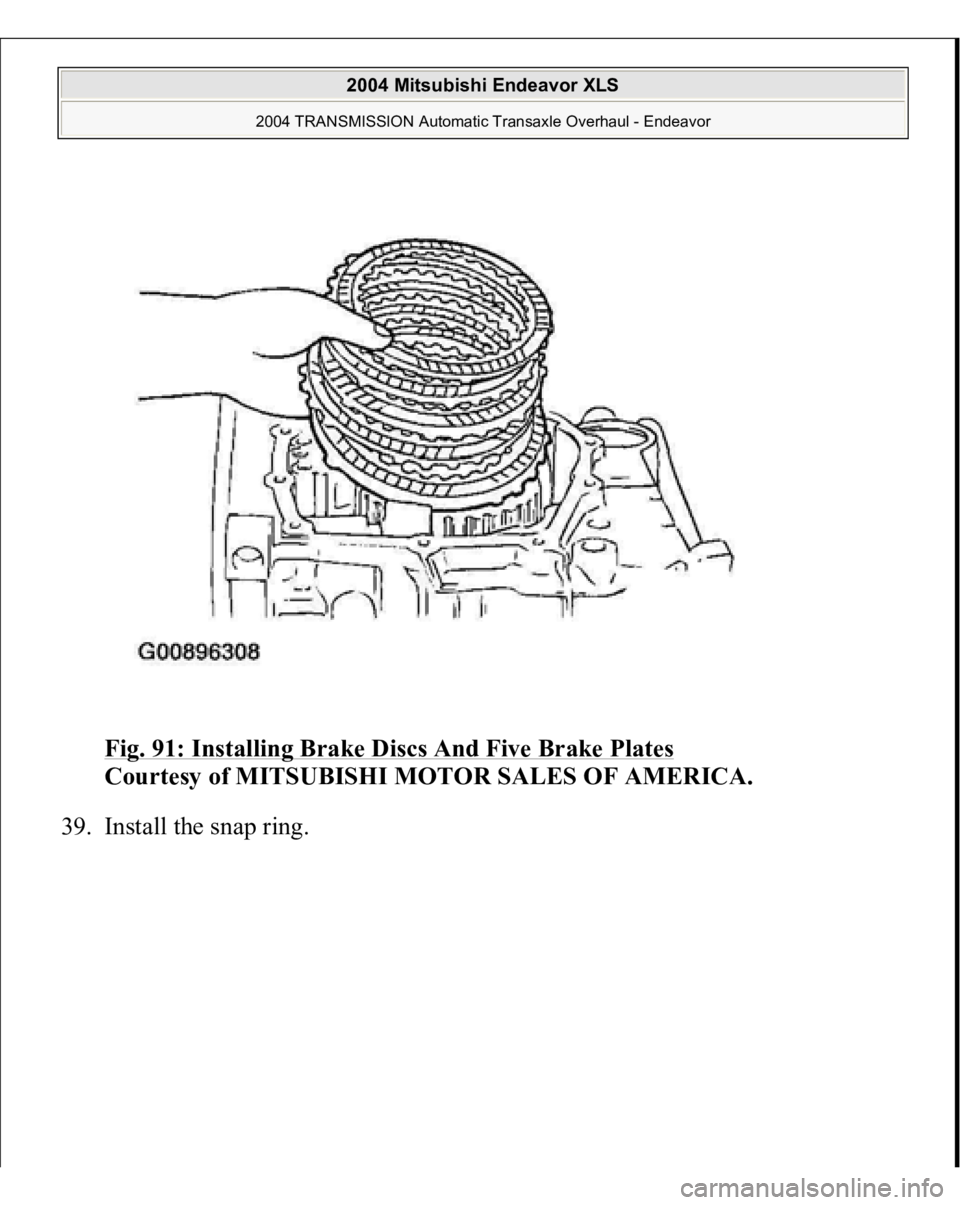

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 91: Installing Brake Discs And Five Brake Plates Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 39. Install the sna p rin g. 2004 Mitsubishi Endeavor XLS 2004 TRANSMISSION Automatic Transa

Page 547 of 3870

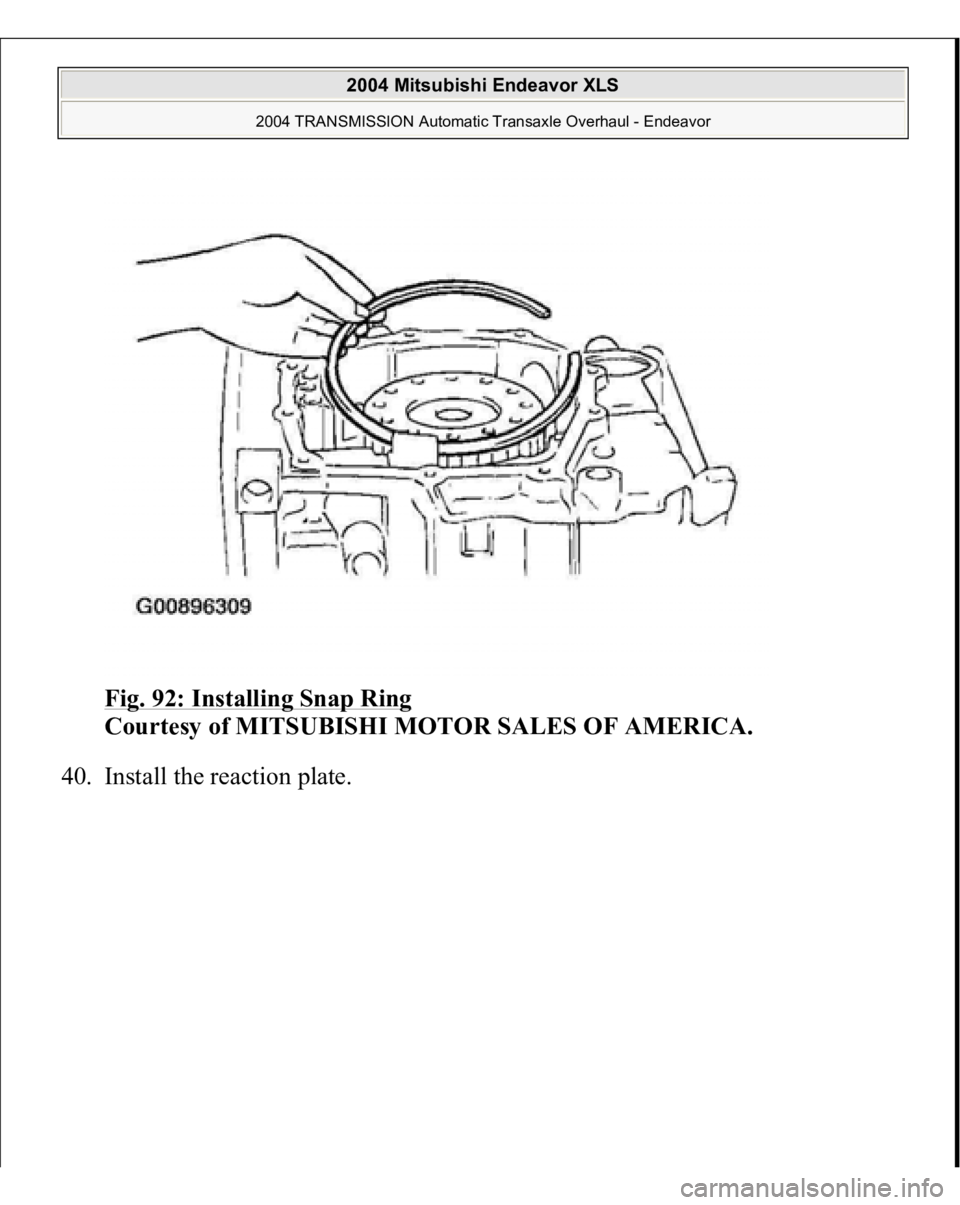

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 92: Installing Snap Ring Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 40. Install the reaction plate. 2004 Mitsubishi Endeavor XLS 2004 TRANSMISSION Automatic Transaxle Overhaul - Endeav

Page 548 of 3870

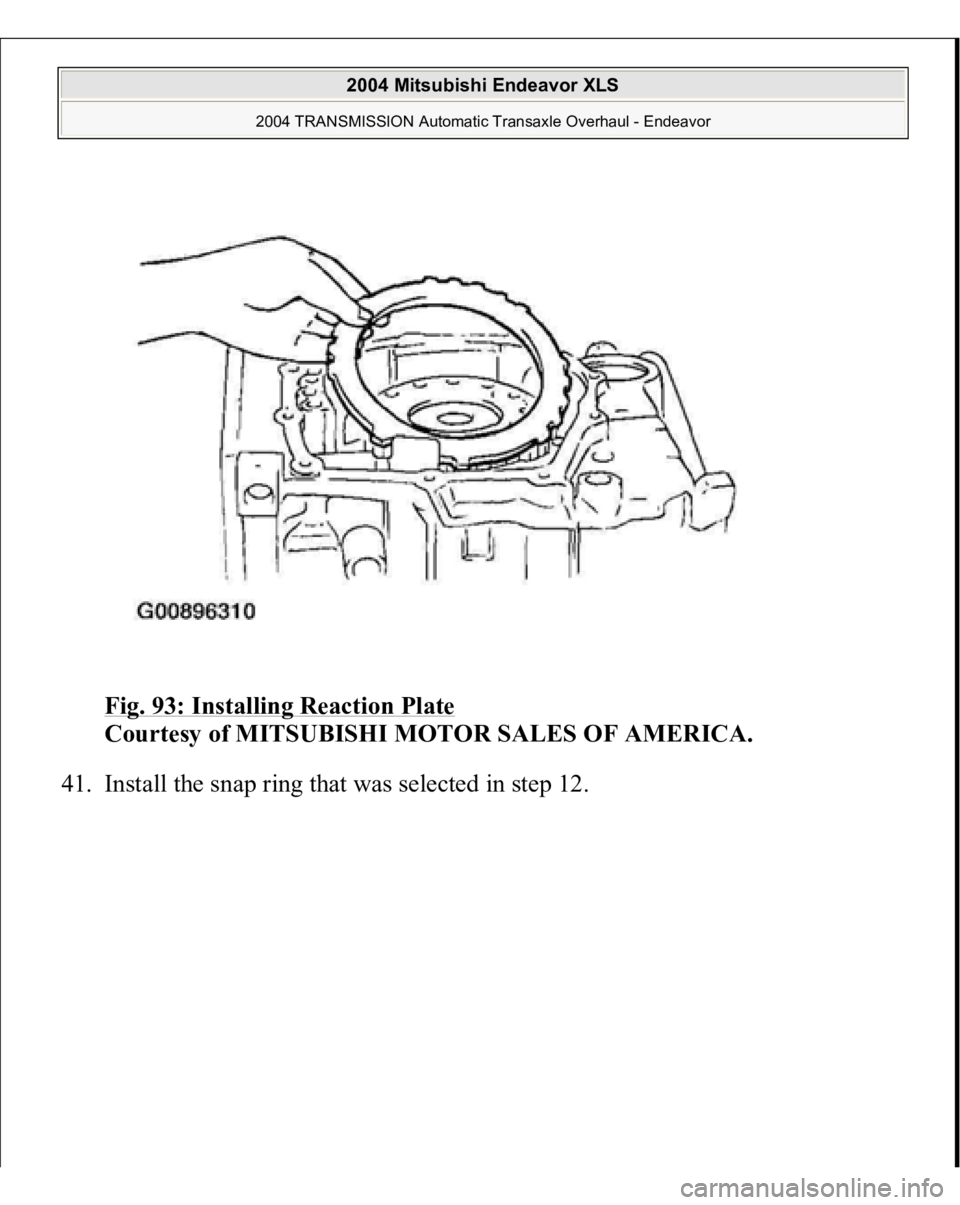

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 93: Installing Reaction Plate Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 41. Install the sna p rin g that was selected in ste p 12. 2004 Mitsubishi Endeavor XLS 2004 TRANSMISSION Autom

Page 549 of 3870

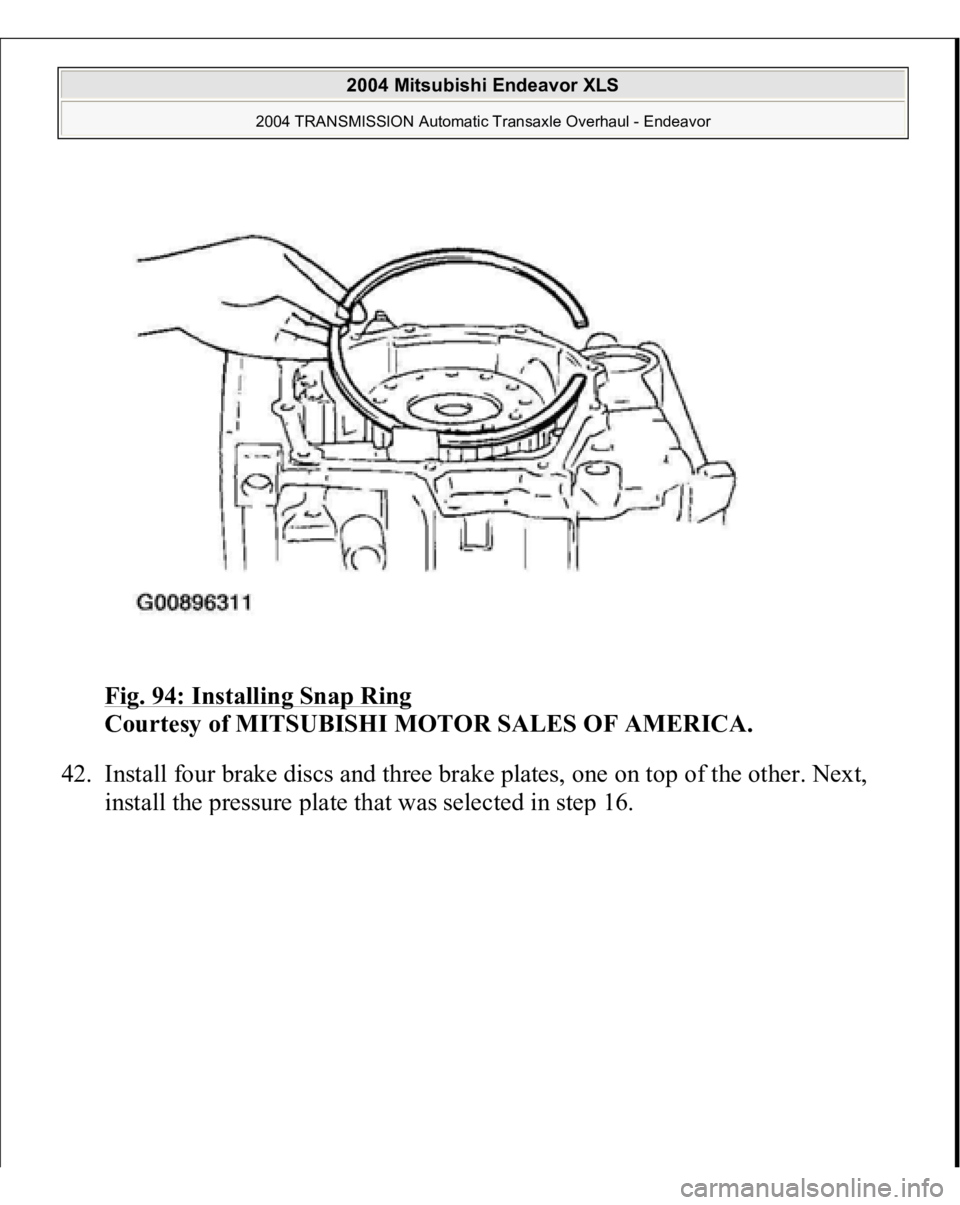

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 94: Installing Snap Ring Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 42. Install four brake discs and three brake plates, one on top of the other. Next, install the pressure plate that w

Page 550 of 3870

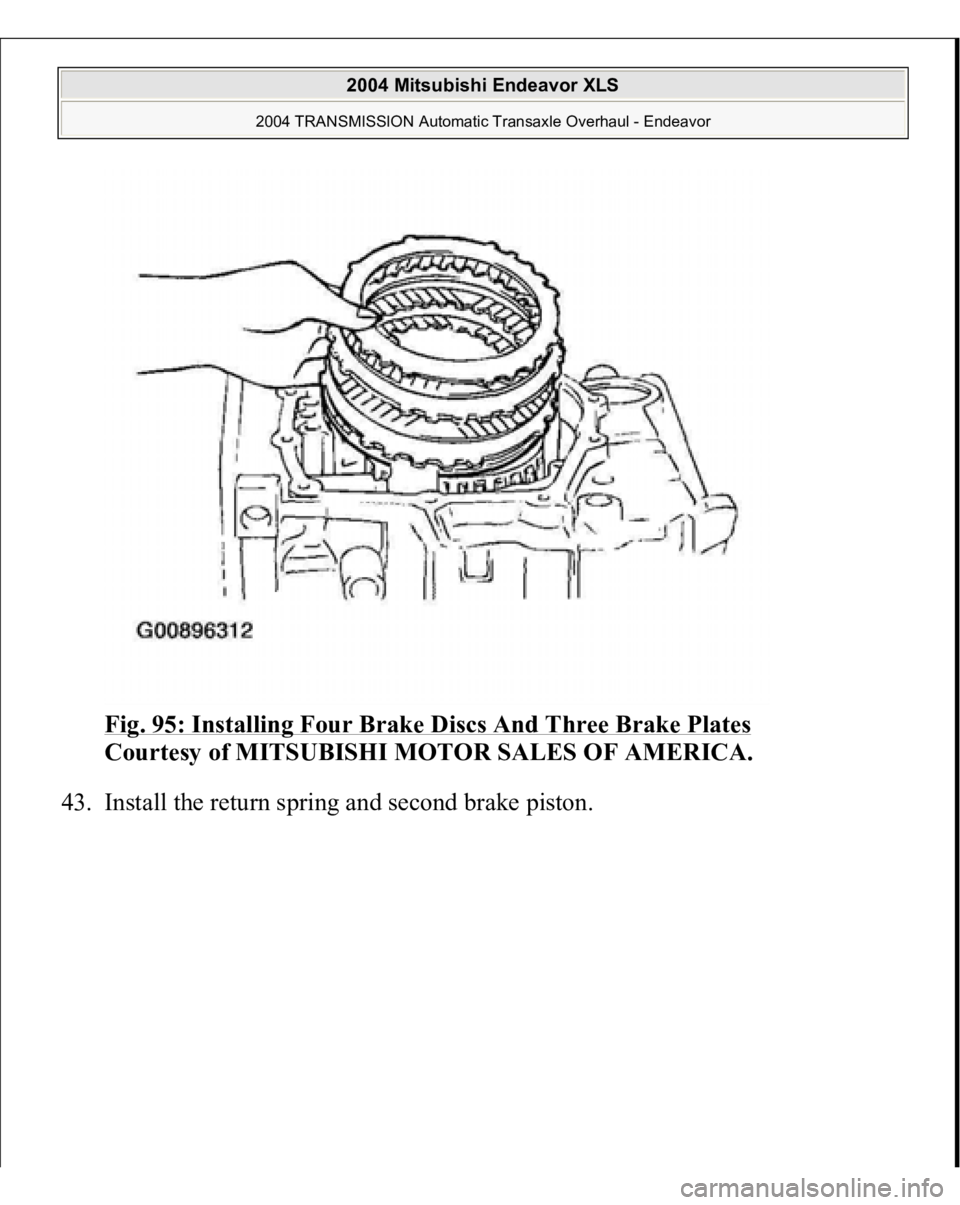

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 95: Installing Four Brake Discs And Three Brake Plates Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 43. Install the return s prin g and second brake piston. 2004 Mitsubishi Endeavor XLS

Page 551 of 3870

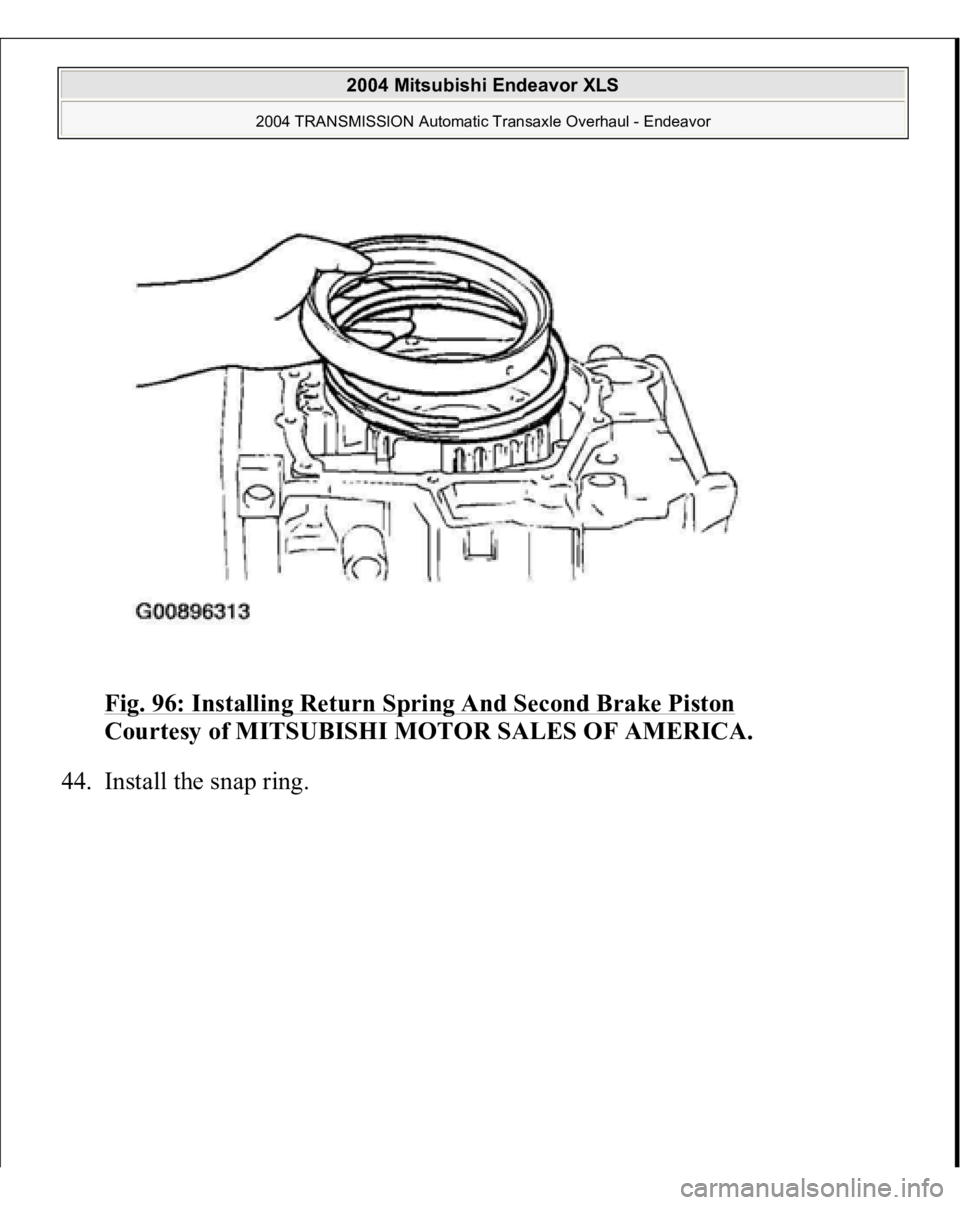

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 96: Installing Return Spring And Second Brake Piston Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 44. Install the sna p rin g. 2004 Mitsubishi Endeavor XLS 2004 TRANSMISSION Automatic Tr

Page 552 of 3870

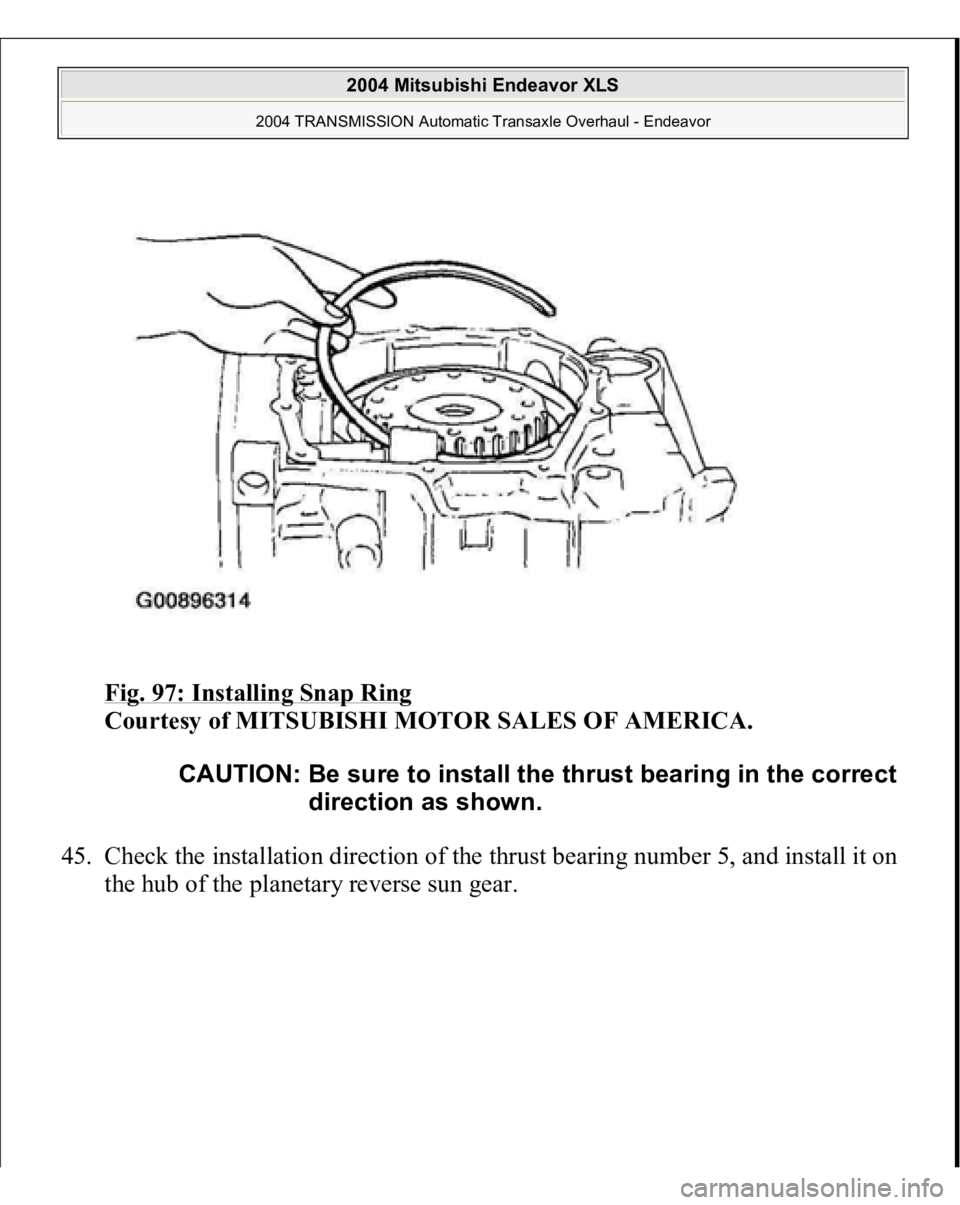

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 97: Installing Snap Ring Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 45. Check the installation direction of the thrust bearing number 5, and install it on the hub of the planetar y rever
