Page 2393 of 3870

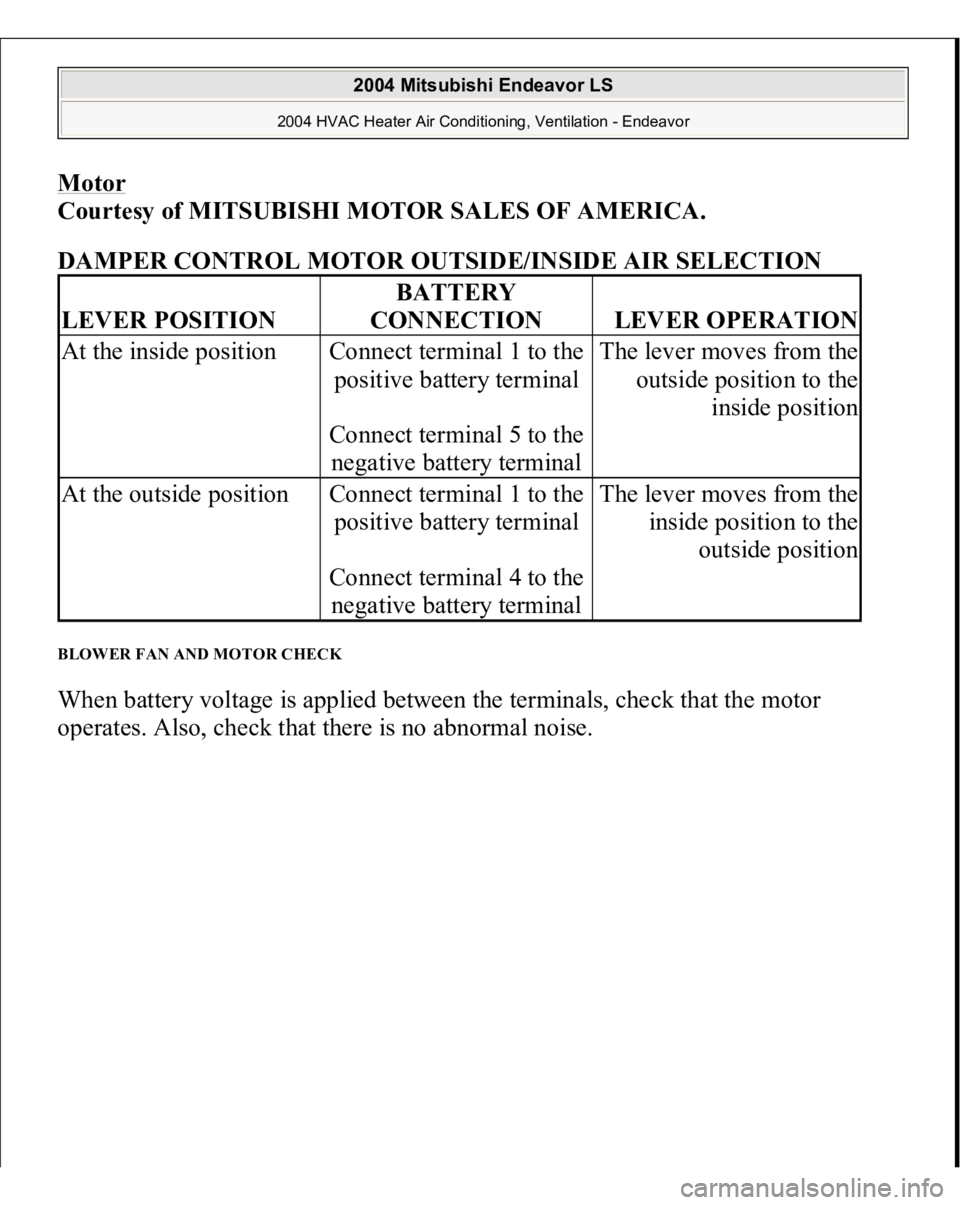

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Motor Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. DAMPER CONTROL MOTOR OUTSIDE/INSIDE AIR SELECTION BLOWER FAN AND MOTOR CHECK When battery voltage is applied between the terminals, check tha

Page 2394 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 292: Checking Blower Fan Motor Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. AMBIENT TEMPERATURE SENSOR REMOVAL AND INSTALLATION 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Condition

Page 2395 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 293: Removing And Installing Ambient Temperature Sensor Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. REMOVAL SERVICE POINT << A >> AMBIENT AIR TEMPERATURE SENSOR REMOVAL To remove the ambie

Page 2396 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 294: Identifying Ambient Air Temperature Sensor Tab Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. INSPECTION AMBIENT AIR TEMPERATURE SENSOR CHECK CAUTION: The ambient air temperature sensor

Page 2397 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Measure the resistance between the sensor terminals under at least two temperatures. The resistance values should meet the values shown. Fig. 295: Temperature Resistance Graph Courtesy of MITSUBISH

Page 2398 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 296: Pre Removal And Post Installation Operation Chart Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Fig. 297: Removing And Installing Compressor Assembly Courtesy of MITSUBISHI MOTOR SALE

Page 2399 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual To prevent the entry of dust or other foreign bodies, plug the dismantled hoses and compressor nipples. << B >> COMPRESSOR REMOVAL Take care not to spill any compressor oil when removing the compress

Page 2400 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Condenser: 15 cm 3 (0.5 fl.oz) Suction hose: 10 cm 3 (0.3 fl.oz) Receiver: 10 cm 3 (0.3 fl.oz) INSPECTION COMPRESSOR AIR CONDITIONING COMPRESSOR CLUTCH OPERATION CHECK Connect the compressor
