MITSUBISHI ENDEAVOR 2004 Service Repair Manual If the engine is started using a booster cable when the battery is completely flat, and the vehicle is then driven without waiting for the battery to be recharged, the engine may misfire and it may

Page 258 of 3870

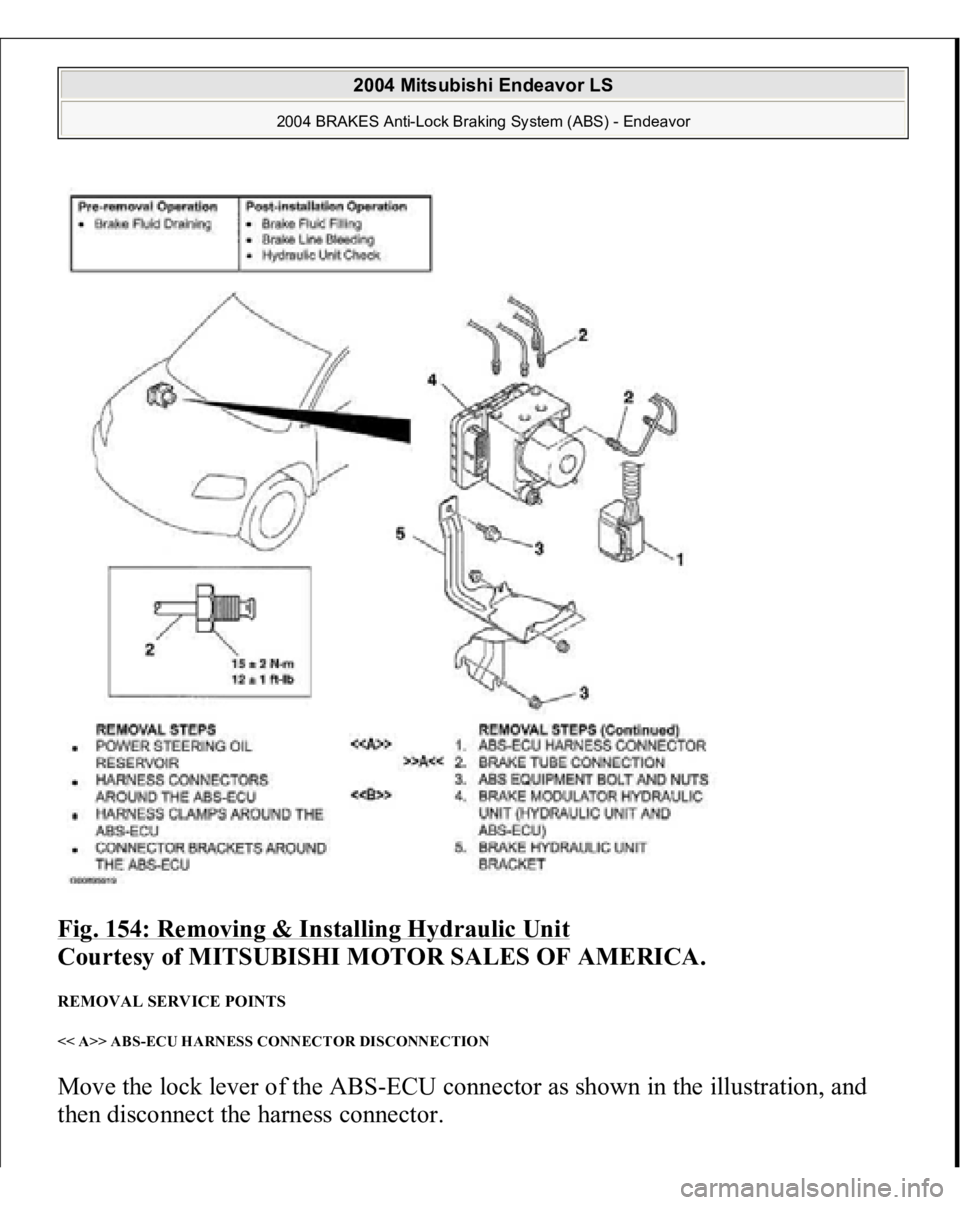

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 154: Removing & Installing Hydraulic Unit Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. REMOVAL SERVICE POINTS << A>> ABS-ECU HARNESS CONNECTOR DISCONNECTION Move the lock lever of the ABS-EC

Page 259 of 3870

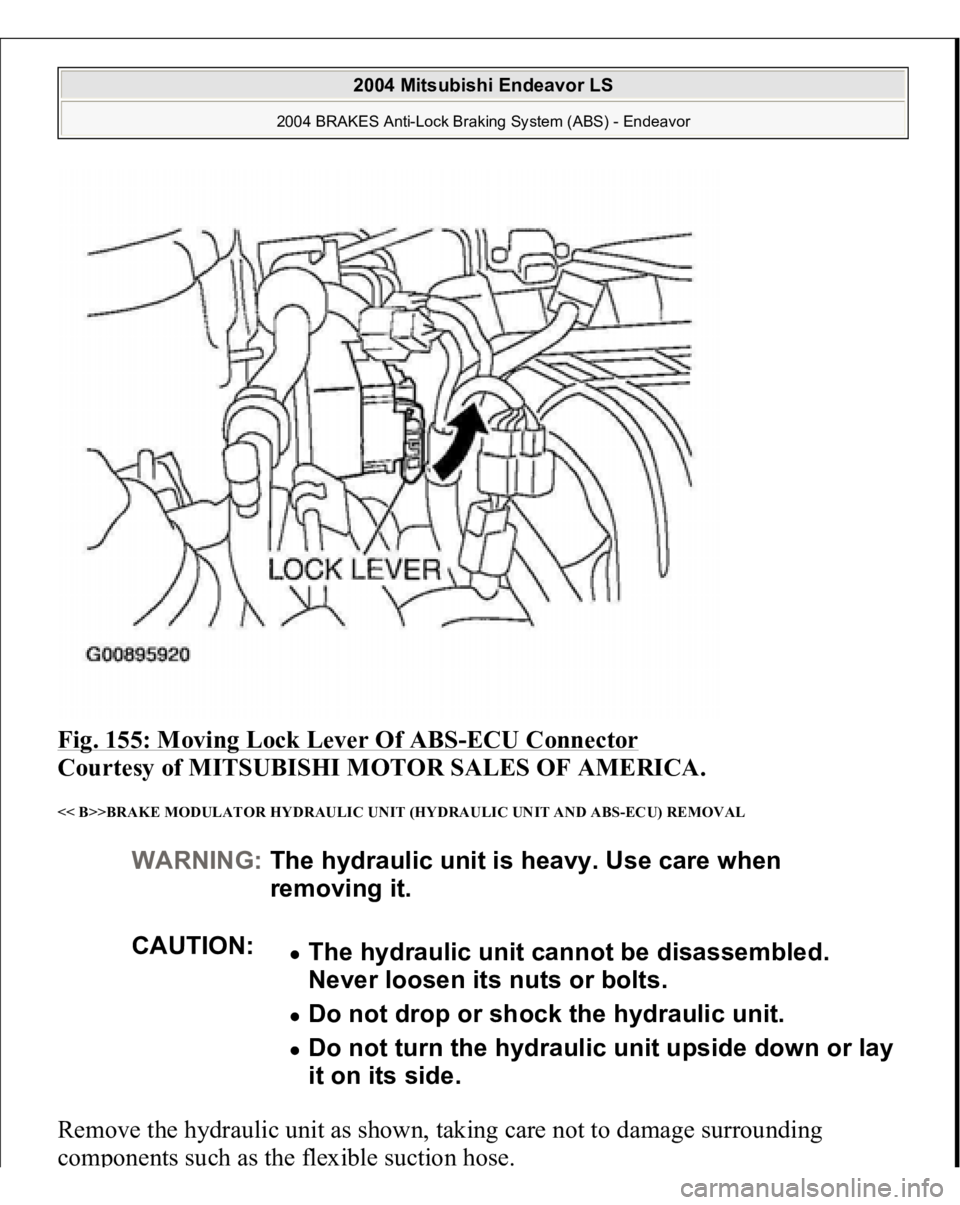

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 155: Moving Lock Lever Of ABS -ECU Connector Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. << B>>BRAKE MODULATOR HYDRAULIC UNIT (HYDRAULIC UNIT AND ABS-ECU) REMOVAL Remove the hydraulic unit

Page 260 of 3870

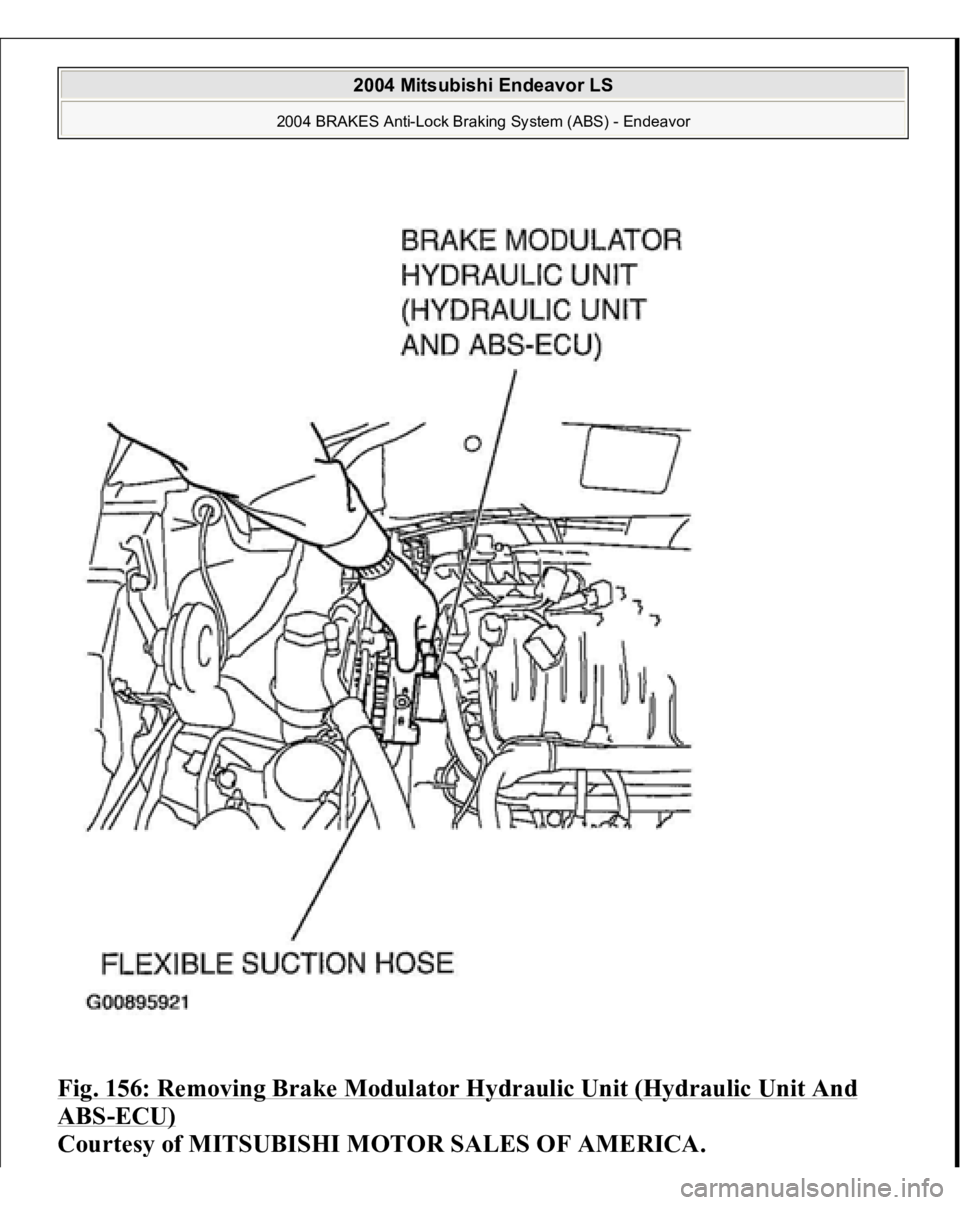

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 156: Removing Brake Modulator Hydraulic Unit (Hydraulic Unit And ABS -ECU) Courtes y of MITSUBISHI MOTOR SALES OF AMERICA . 2004 Mitsubishi Endeavor LS 2004 BRAKES Anti-Lock Braking System (

Page 261 of 3870

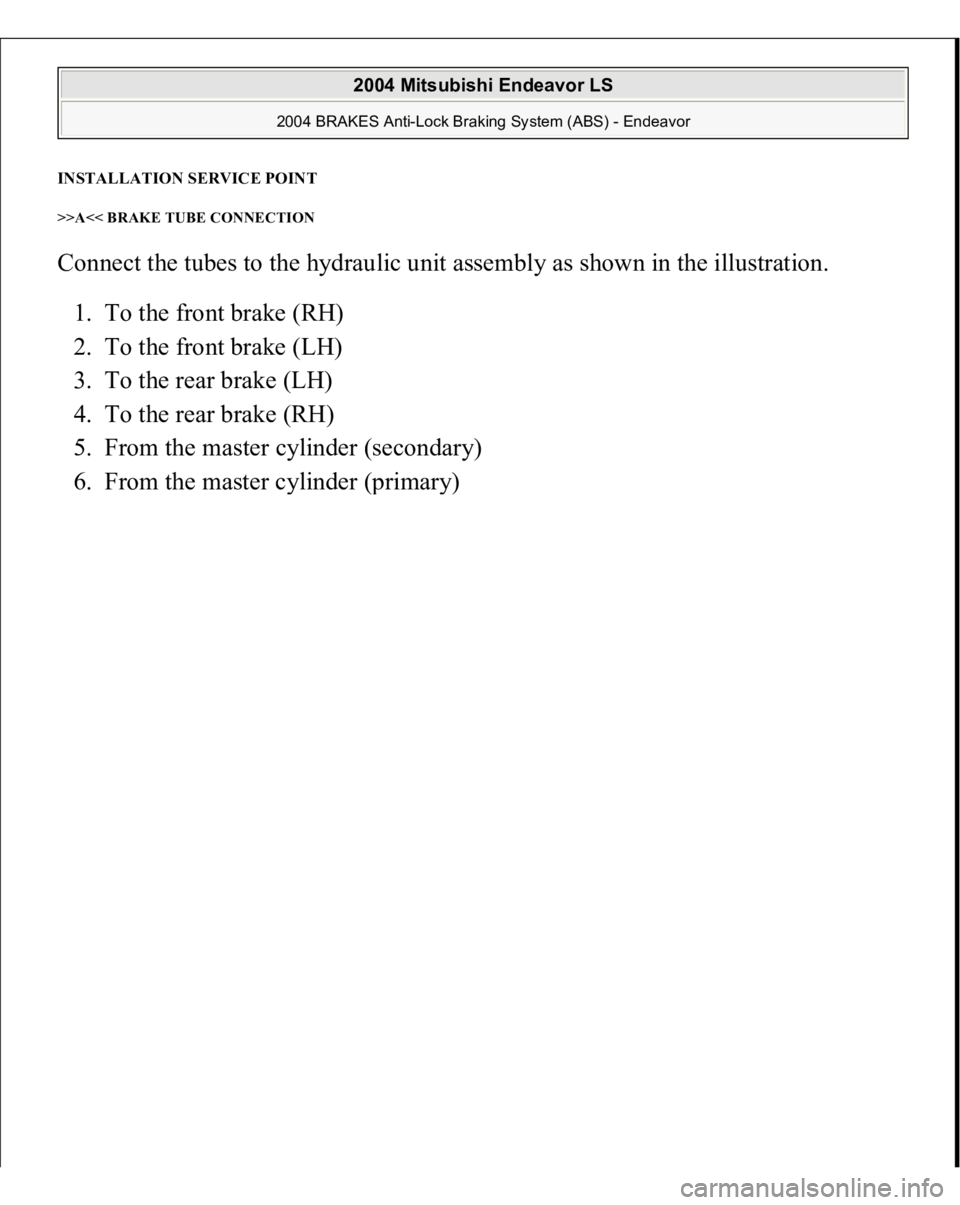

MITSUBISHI ENDEAVOR 2004 Service Repair Manual INSTALLATION SERVICE POINT>>A<< BRAKE TUBE CONNECTION Connect the tubes to the hydraulic unit assembly as shown in the illustration. 1. To the front brake (RH) 2. To the front brake (LH) 3. To th

Page 262 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 157: Identifying Brake Tube Connection Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. WHEEL SPEED SENSOR REMOVAL AND INSTALLATION 2004 Mitsubishi Endeavor LS 2004 BRAKES Anti-Lock Braking Sy

Page 263 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 158: Removing & Installing Wheel Speed Sensor Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Fig. 159: Wheel Speed Sensor Removal & Installation Legend Courtesy of MITSUBISHI MOTOR SALES OF

Page 264 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual REMOVAL SERVICE POINT << A>> FRONT ABS SENSOR/REAR ABS SENSOR REMOVAL CAUTION: Be careful when handling the projection at the tip of the ABS sensor and the toothed edge of the ABS rotor so as not t
