MITSUBISHI ENDEAVOR 2004 Service Repair Manual Place a piece of wood, etc. against the caliper body as shown. Blow compressed air through the brake hose connection hole to remove the piston boot and piston. Fig. 62: Removing Piston Boot/Caliper

Page 786 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 1. Remove the piston seal with your finger tip. 2. Clean piston surface and inner cylinder with alcohol or brake fluid DOT 3 or DOT 4. Fig. 63: Removing Piston Seal Courtesy of MITSUBISHI MOTOR

Page 787 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Attach a guide pin (with "g" on the bolt head) at the bleeder nipple side of the caliper body and a lock pin (with "l" on the bolt head) at the opposite side. INSPECTION Check the cy

Page 788 of 3870

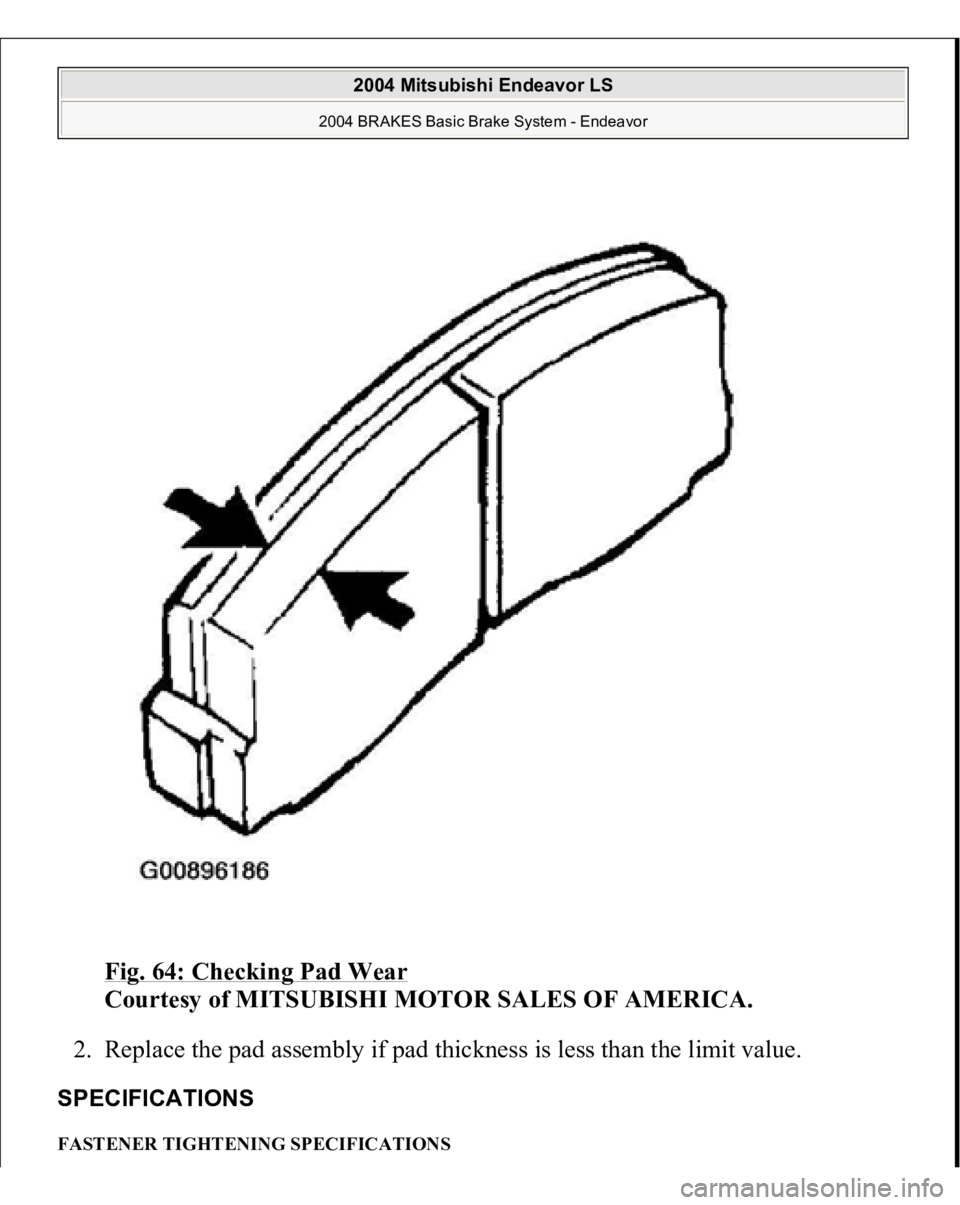

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 64: Checking Pad Wear Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2. Replace the pad assembly if pad thickness is less than the limit value. SPECIFICATIONS FASTENER TIGHTENING SPECIFICATI

Page 789 of 3870

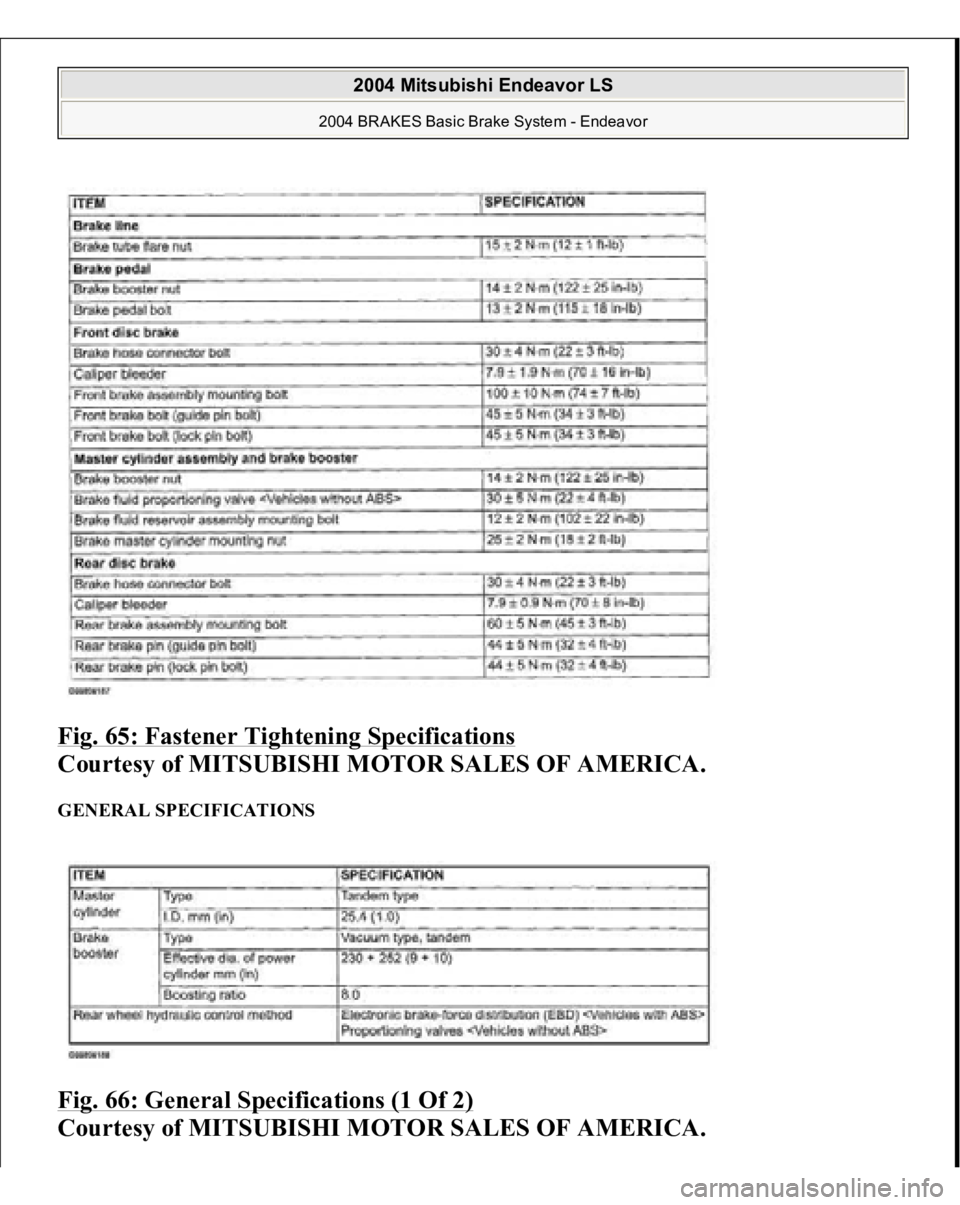

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 65: Fastener Tightening Specifications Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. GENERAL SPECIFICATIONS Fig. 66: General Specifications (1 Of 2) Courtesy of MITSUBISHI MOTOR SALES OF AM

Page 790 of 3870

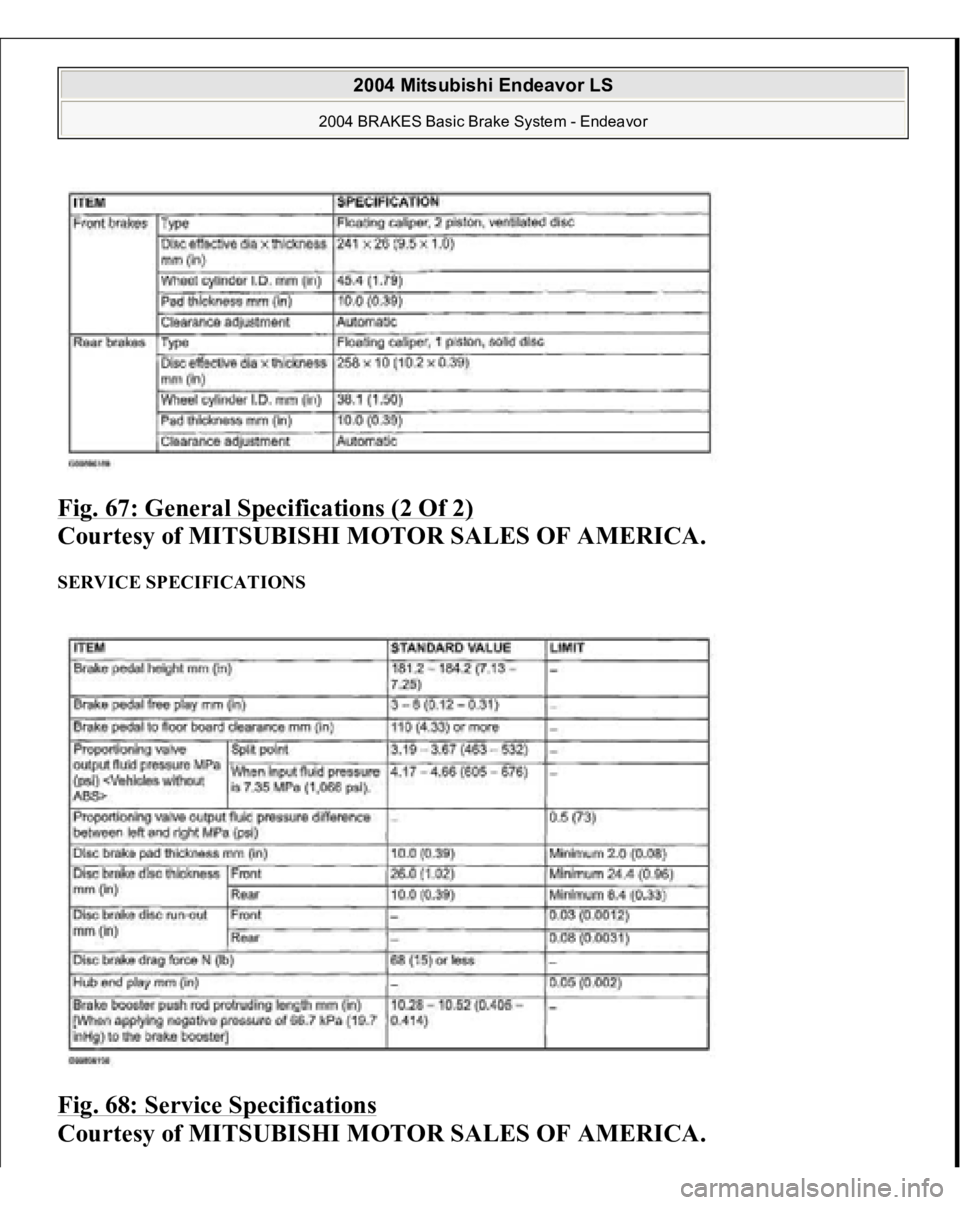

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 67: General Specifications (2 Of 2) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. SERVICE SPECIFICATIONS Fig. 68: Service Specifications Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 200

Page 791 of 3870

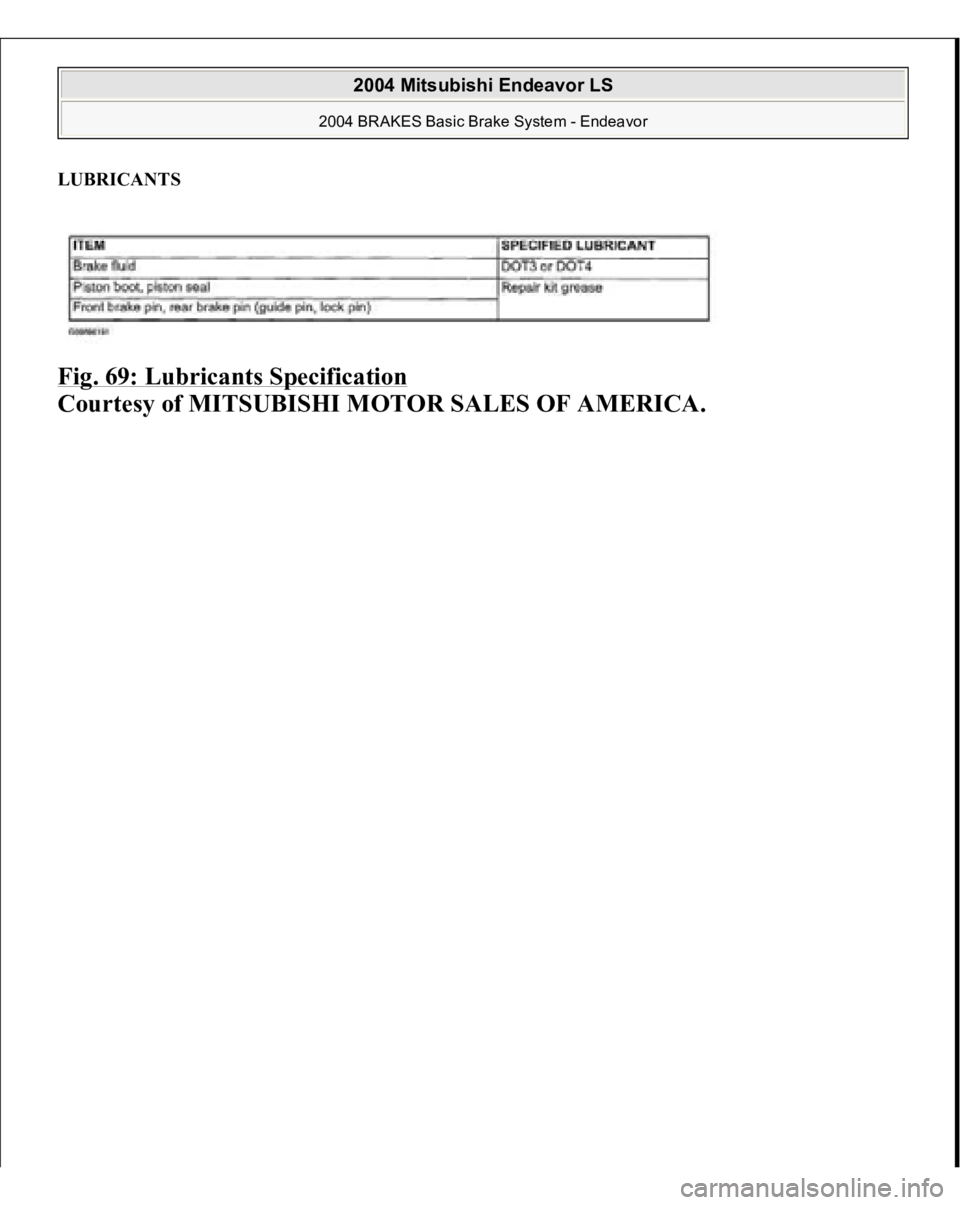

MITSUBISHI ENDEAVOR 2004 Service Repair Manual LUBRICANTS Fig. 69: Lubricants Specification Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BRAKES Basic Brake System - Endeavor

Page 792 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2004 ENGINE COOLING Electric Cooling Fans - Endeavor DESCRIPTION & OPERATION The fan control module is powered from fusible link No. 2. See Fig. 1 . The PCM judges the required revolution speed of
