Page 3153 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual DTC C1505, DTC C1506 STEERING ANGLE SENSOR, STEERING ANGLE SENSOR ERROR DTC C1505 STEERING ANGLE SENSOR (SIGNAL SEIZURE OR ABNORMAL NEUTRAL POINT) DTC C1506 STEERING ANGLE SENSOR (ABNORMAL STEERI

Page 3154 of 3870

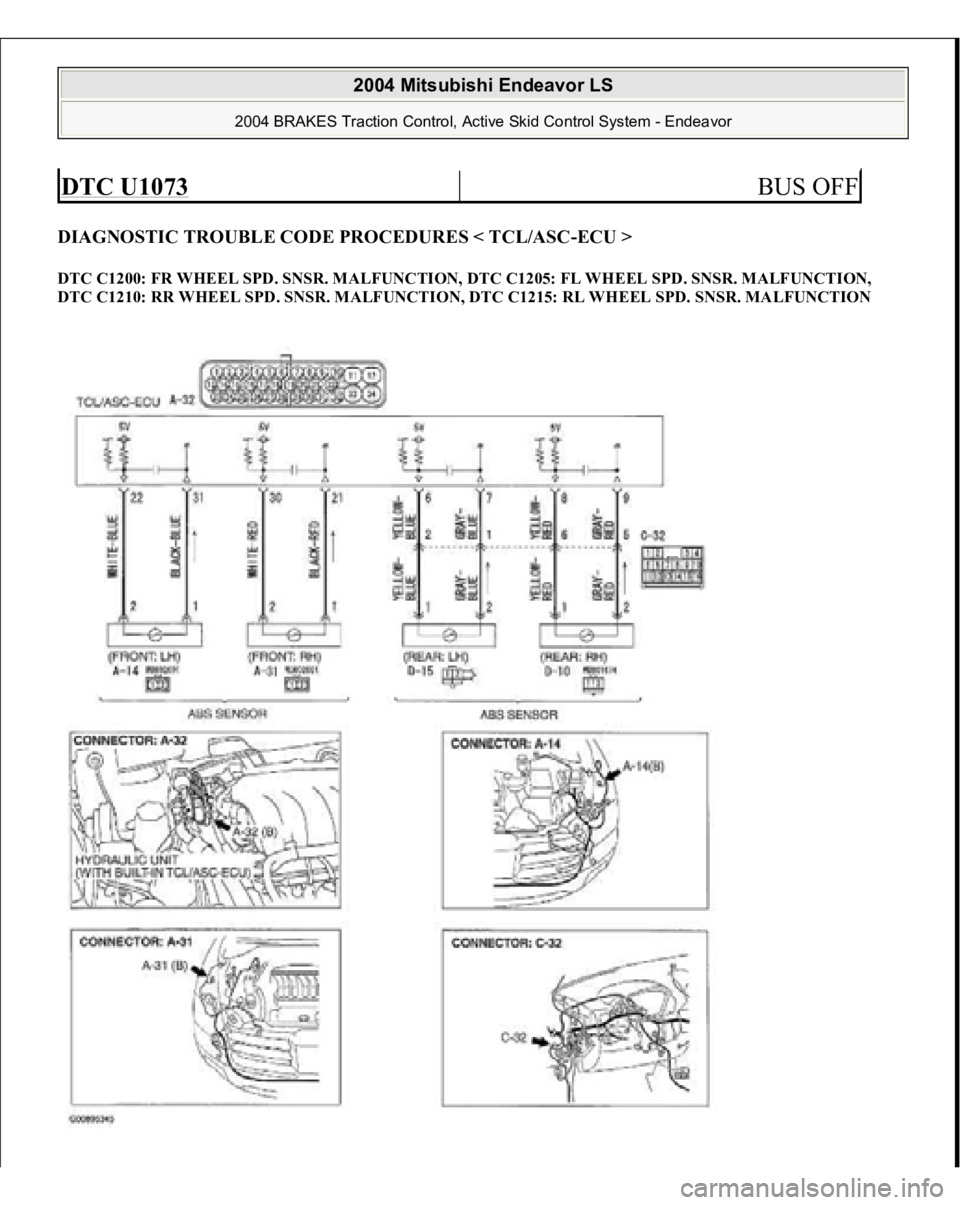

MITSUBISHI ENDEAVOR 2004 Service Repair Manual DIAGNOSTIC TROUBLE CODE PROCEDURES < TCL/ASC-ECU > DTC C1200: FR WHEEL SPD. SNSR. MALFUNCTION, DTC C1205: FL WHEEL SPD. SNSR. MALFUNCTION, DTC C1210: RR WHEEL SPD. SNSR. MALFUNCTION, DTC C1215: RL WH

Page 3155 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 40: TCL/ASC Sensor Circuit Diagram & Connector Identificatio n Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Fig. 41: Identifying Connectors: D -10, D -15 Courtesy of MITSUBISHI MOTOR SALES O

Page 3156 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual A toothed ABS rotor generates a voltage pulse as it moves across the pickup field of each ABS sensor. The amount of voltage generated at each wheel is determined by the clearance between the ABS ro

Page 3157 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual MB991952: ABS Check Harness STEP 1. Using scan tool MB991958, diagnose the CAN bus line. 1. Connect scan tool MB991958 to the data link connec tor. CAUTION: To prevent damage to scan tool MB991958

Page 3158 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 42: Connecting Scan Tool MB991958 To Data Link Connector Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BRAKES Traction Control, Active Skid Control System -

Page 3159 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2. Turn the ignition switch to the "ON" position. 3. Diagnose the CAN bus line. 4. Turn the ignition switch to the "LOCK" (OFF) position. Q: Is the CAN bus line found to be norma

Page 3160 of 3870

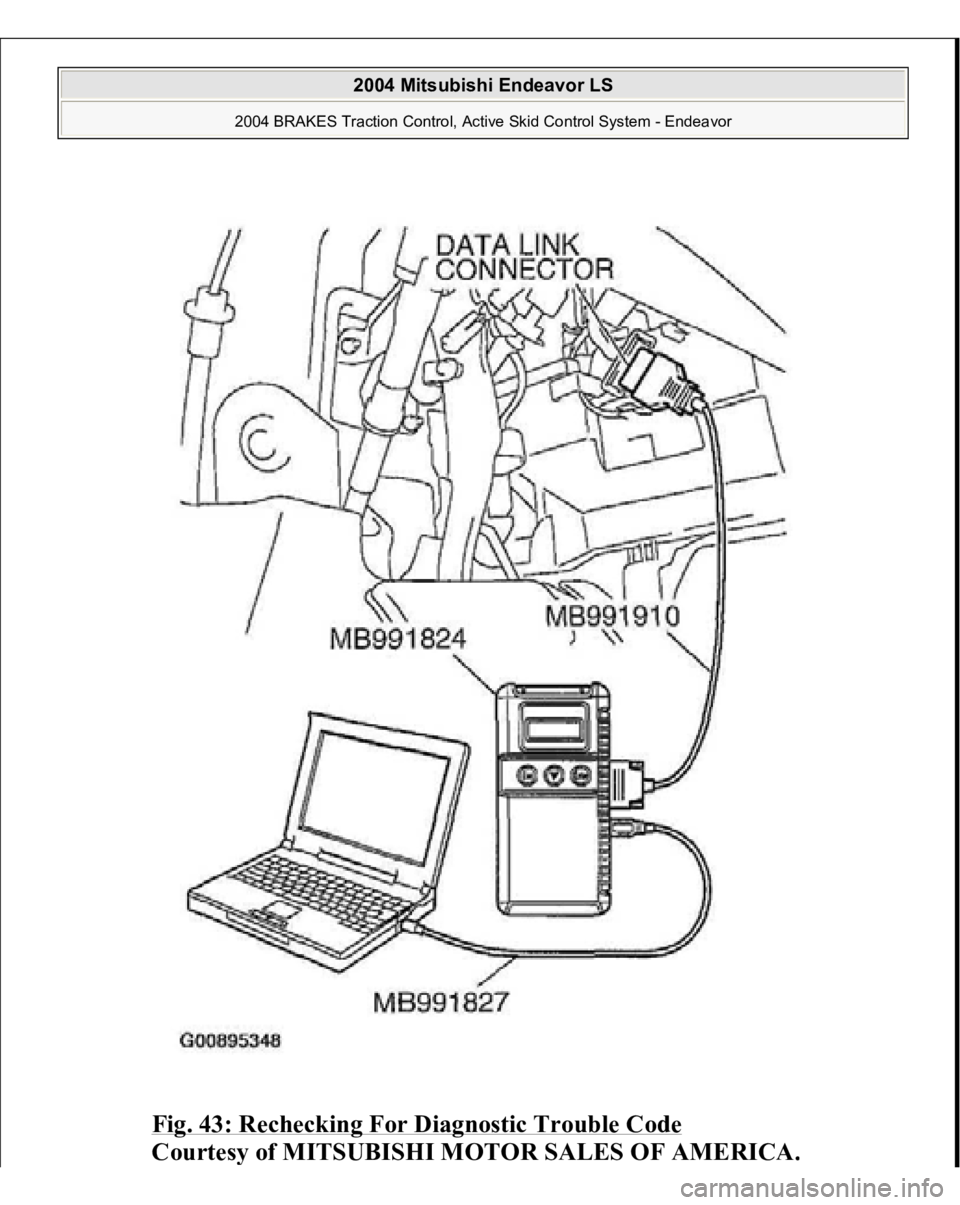

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 43: Rechecking For Diagnostic Trouble Code Courtes y of MITSUBISHI MOTOR SALES OF AMERICA . 2004 Mitsubishi Endeavor LS 2004 BRAKES Traction Control, Active Skid Control System - Endeavor
