Page 2049 of 3870

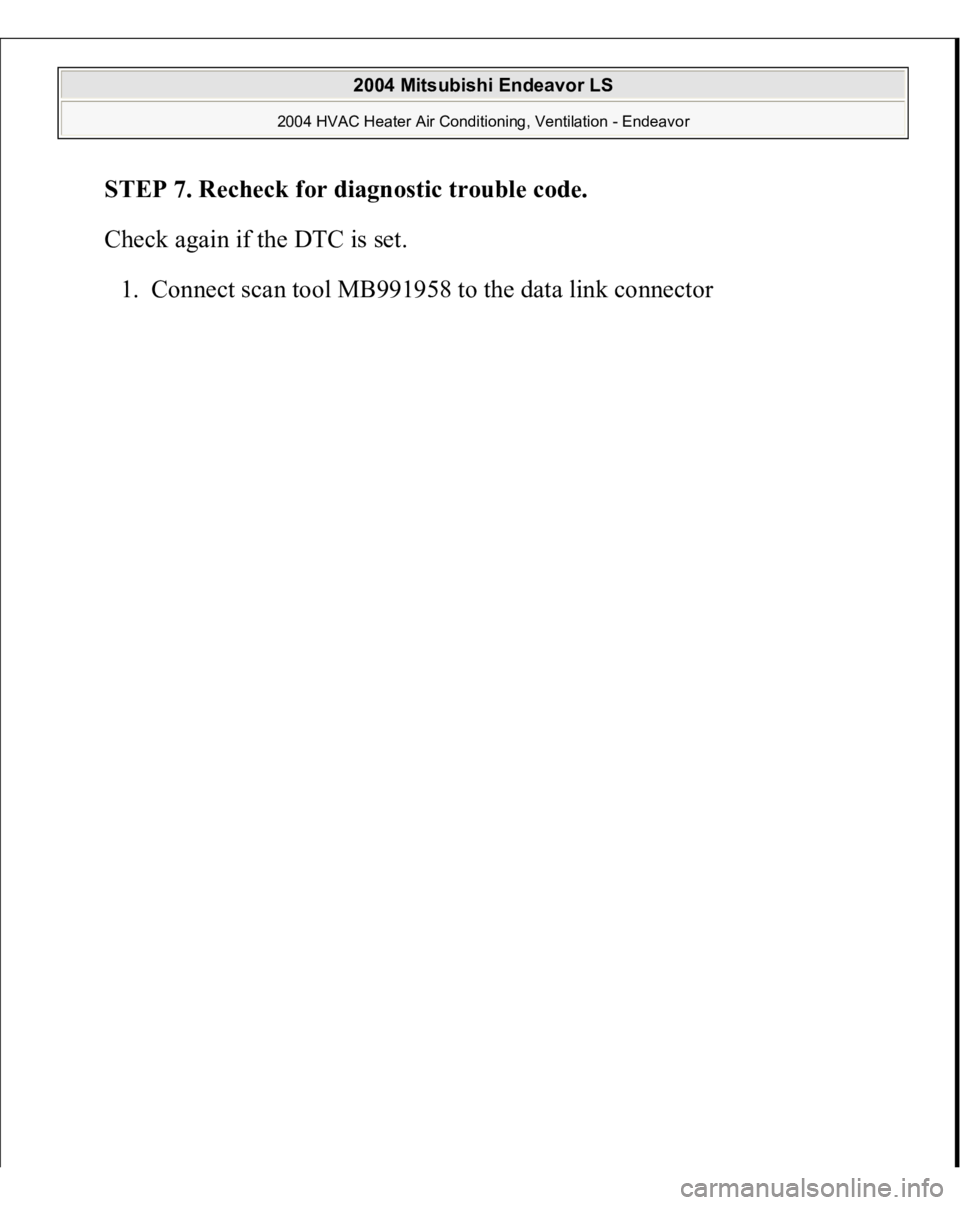

MITSUBISHI ENDEAVOR 2004 Service Repair Manual STEP 7. Recheck for diagnostic trouble code. Check again if the DTC is set. 1. Connect scan tool MB991958 to the data link connec tor 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioni

Page 2050 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 37: Connecting Scan Tool MB991958 To Data Link Connector Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Page 2051 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2. Turn the ignition switch to the "ON" position. 3. Check if the DTC is set. 4. Turn the ignition switch to the "LOCK" (OFF) position. Q: Is the check result satisfactory? YES

Page 2052 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Page 2053 of 3870

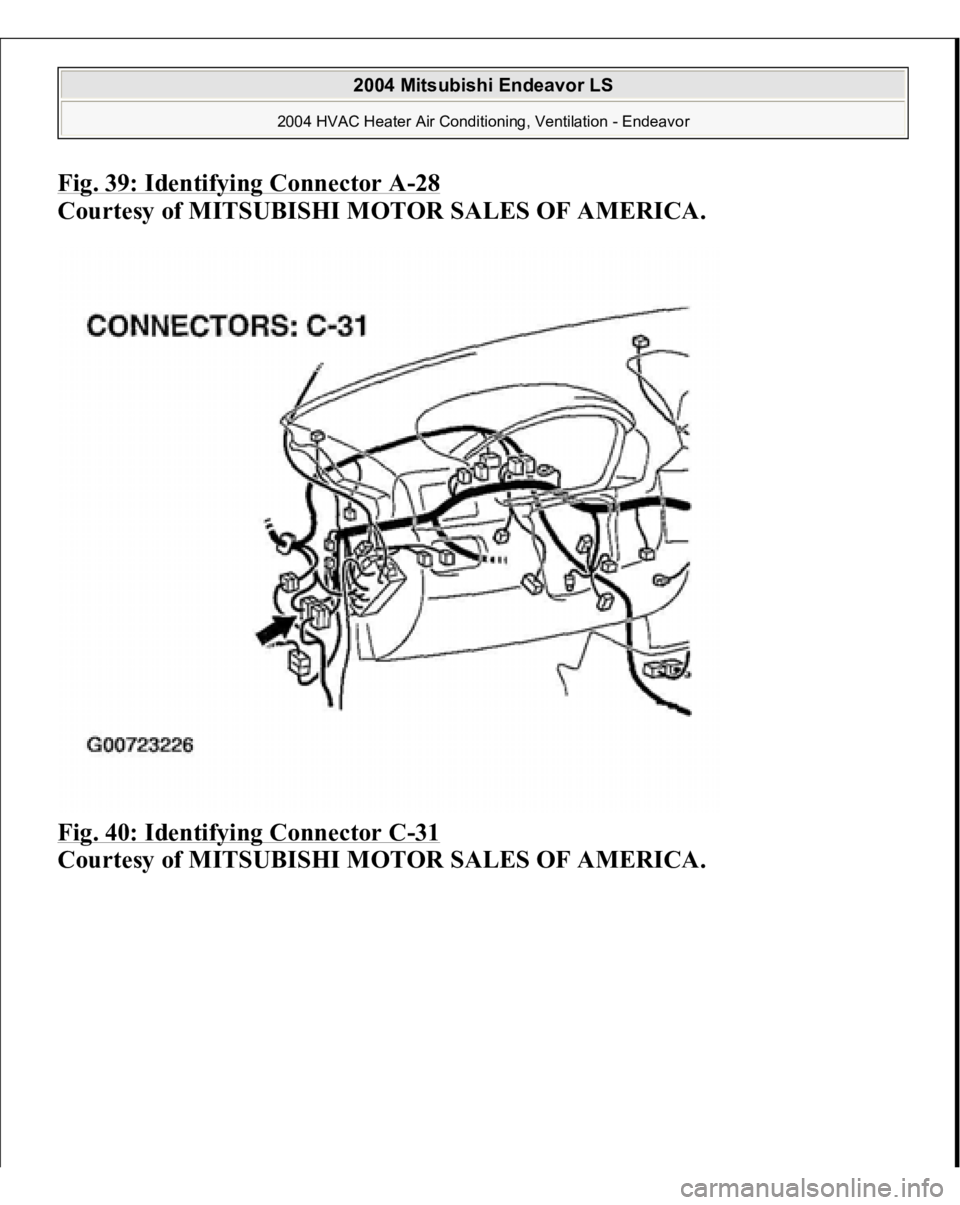

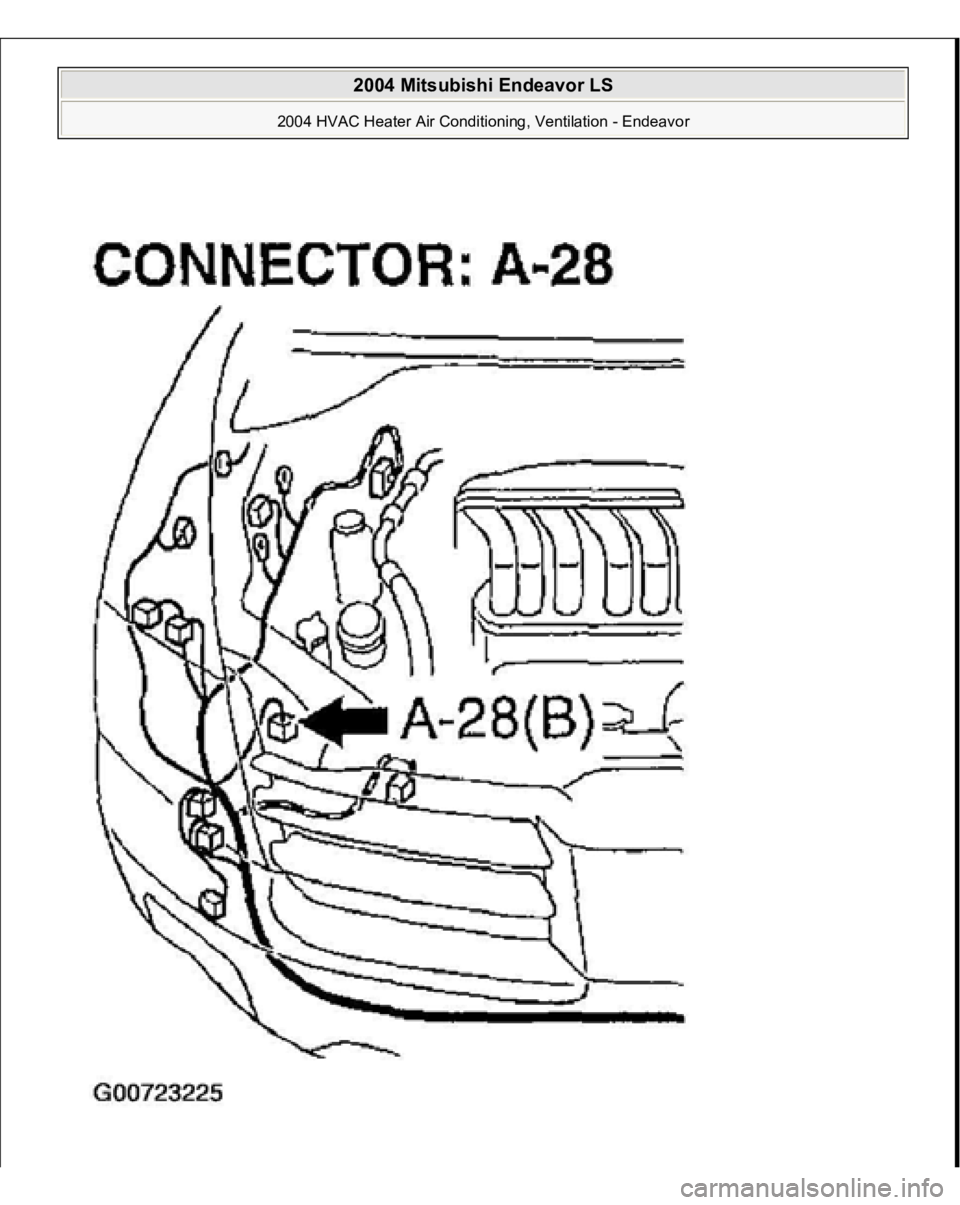

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 39: Identifying Connector A -28 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Fig. 40: Identifying Connector C -31 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS

Page 2054 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 41: Identifying Connectors C -16 And C -17 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. DTC SET CONDITION DTC B1031 is set if there is a short circuit in the A/C pressure sensor input circ

Page 2055 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual CURRENT TROUBLE The A/C-ECU, the A/C pressure sensor or the connector(s) or wiring between the two may be defective PAST TROUBLE If DTC B1031 or B1032 is stored as a past trouble, carry out diagn

Page 2056 of 3870

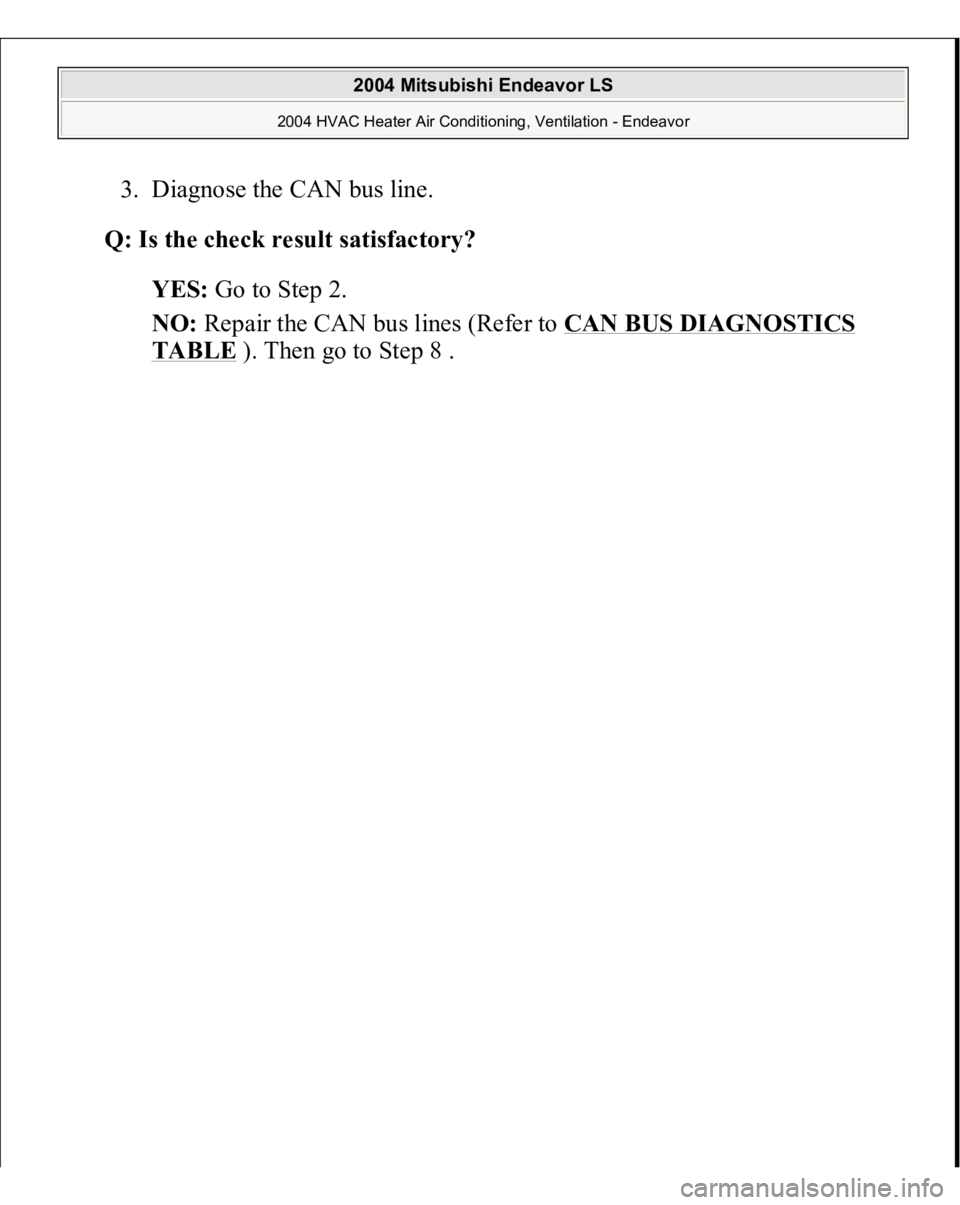

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 3. Diagnose the CAN bus line. Q: Is the check result satisfactory? YES: Go to Step 2. NO: Repair the CAN bus lines (Refer to CAN BUS DIAGNOSTICS TABLE ). Then go to Ste p 8 . 2004 Mitsu
