Page 1025 of 3870

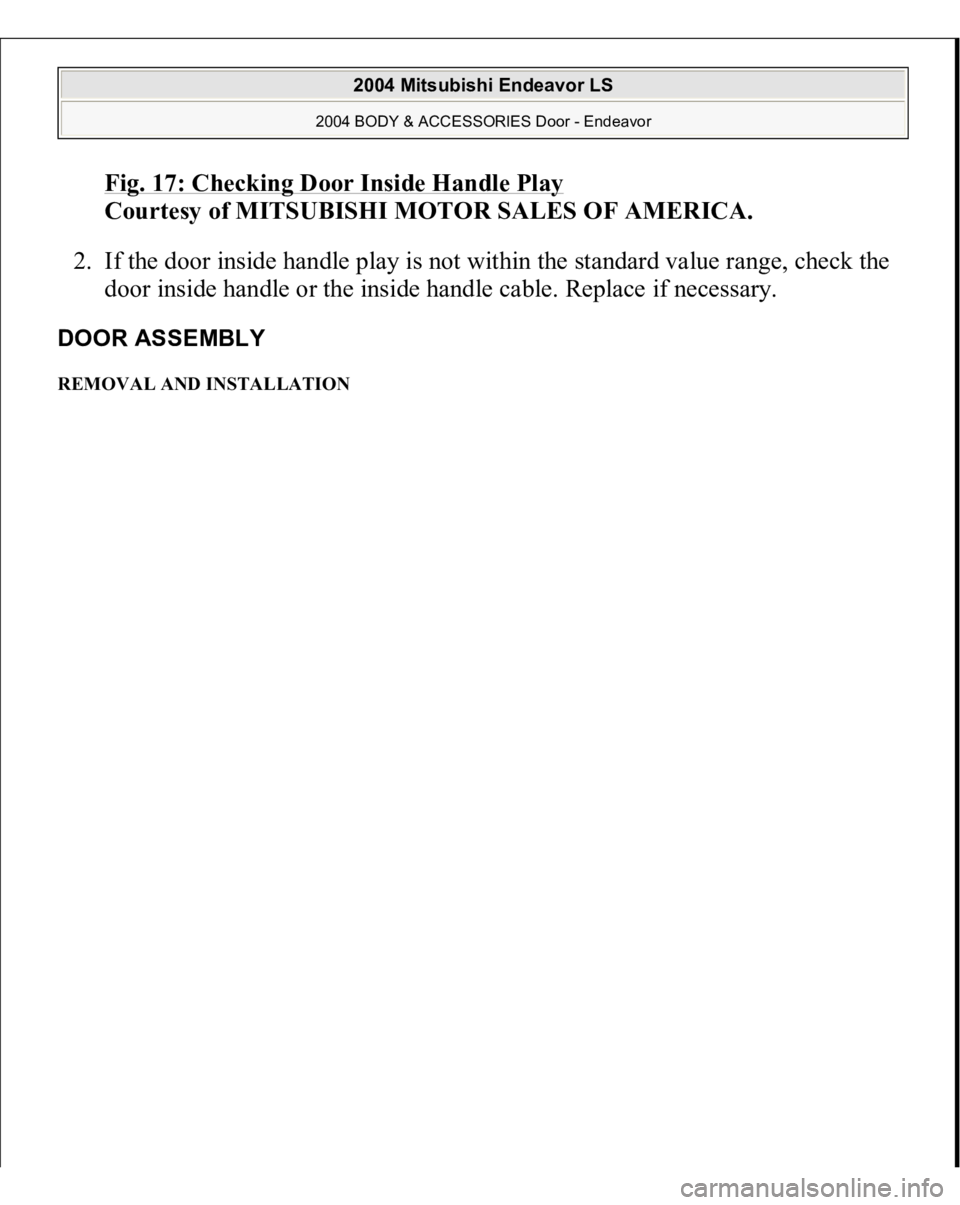

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 17: Checking Door Inside Handle Pla y Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2. If the door inside handle play is not within the standard value range, check the door inside handle or t

Page 1026 of 3870

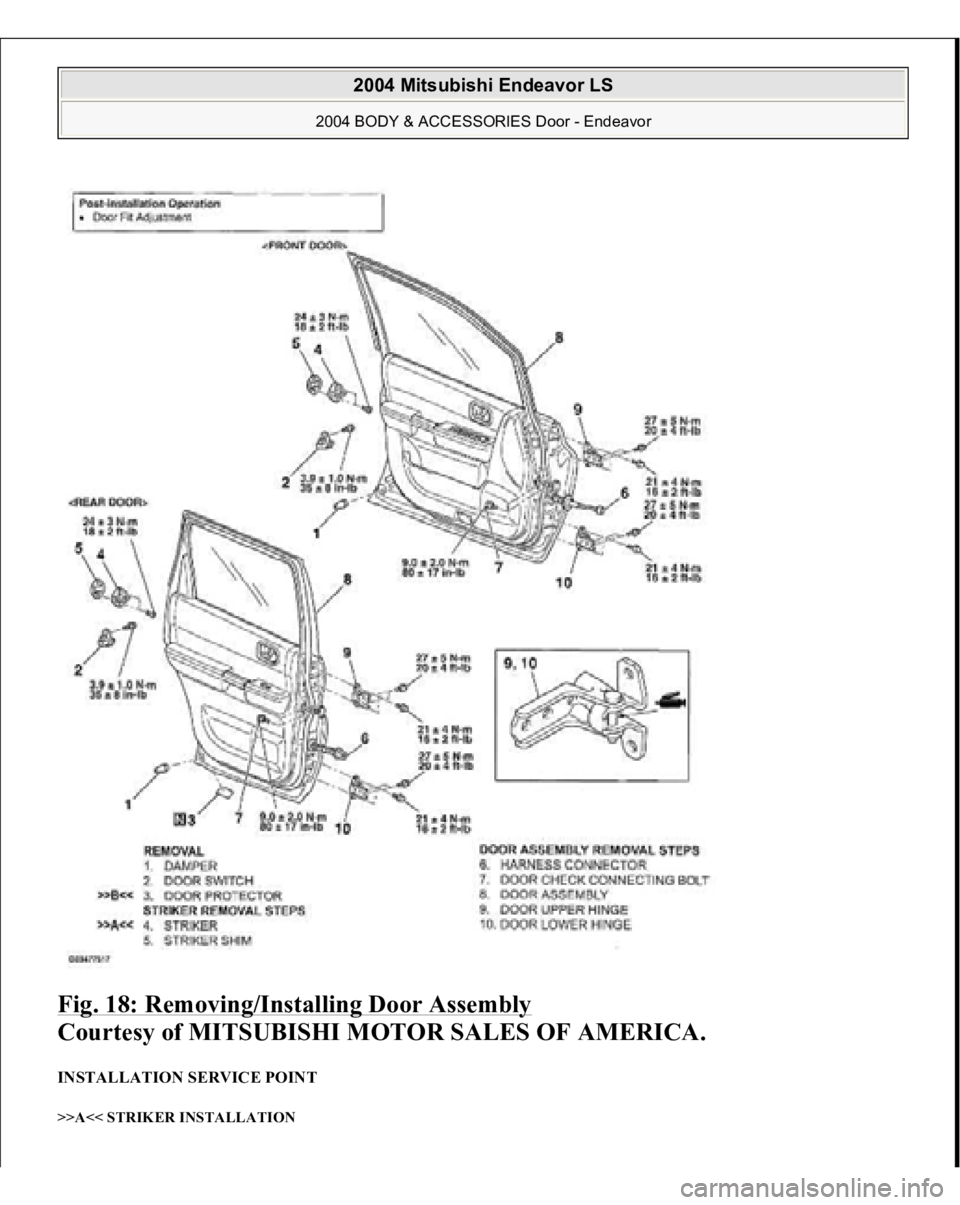

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 18: Removing/Installing Door Assembly Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. INSTALLATION SERVICE POINT >>A<< STRIKER INSTALLATION 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIE

Page 1027 of 3870

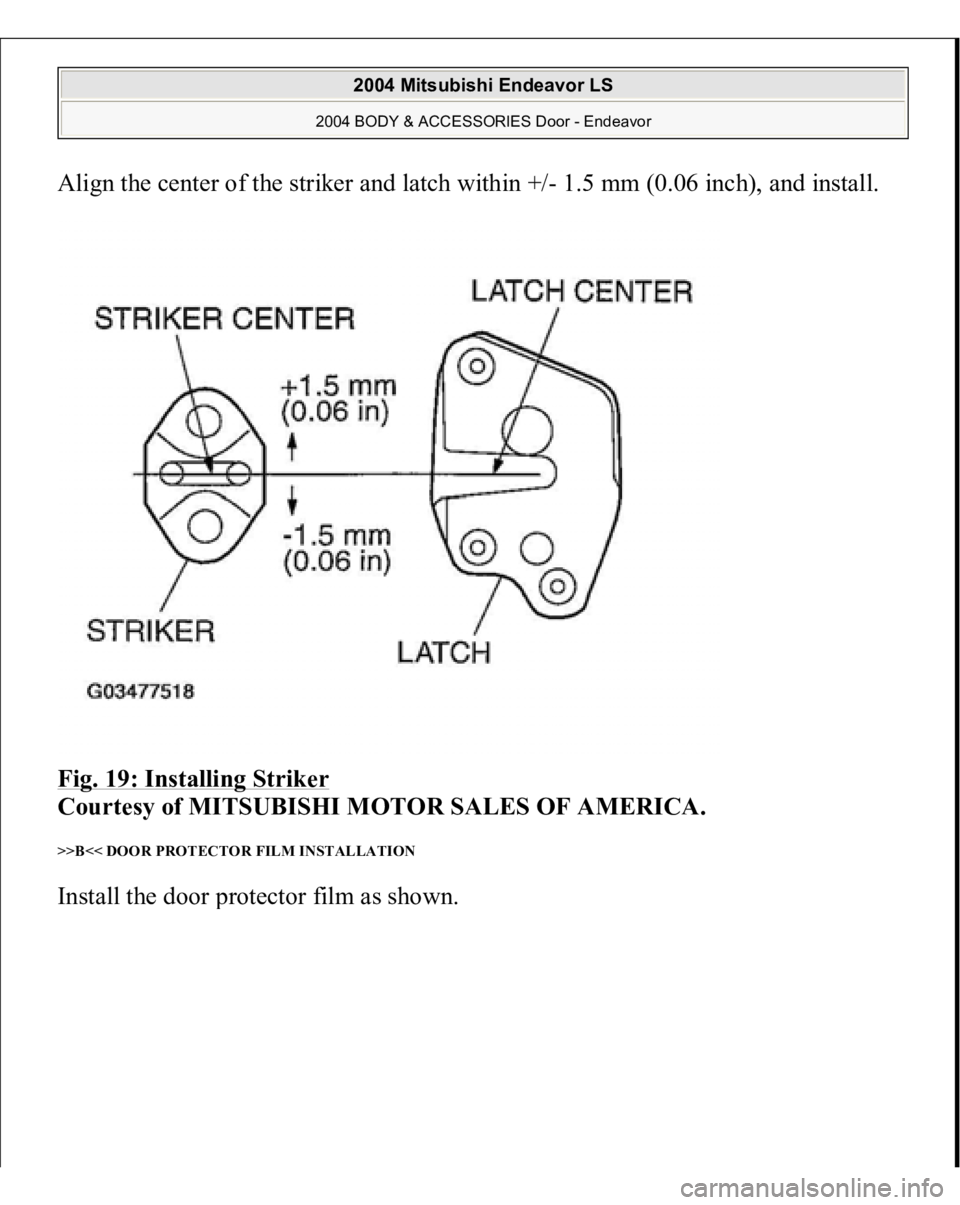

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Align the center of the striker and latch within +/- 1.5 mm (0.06 inch), and install. Fig. 19: Installing Striker Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. >>B<< DOOR PROTECTOR FILM INSTALLAT

Page 1028 of 3870

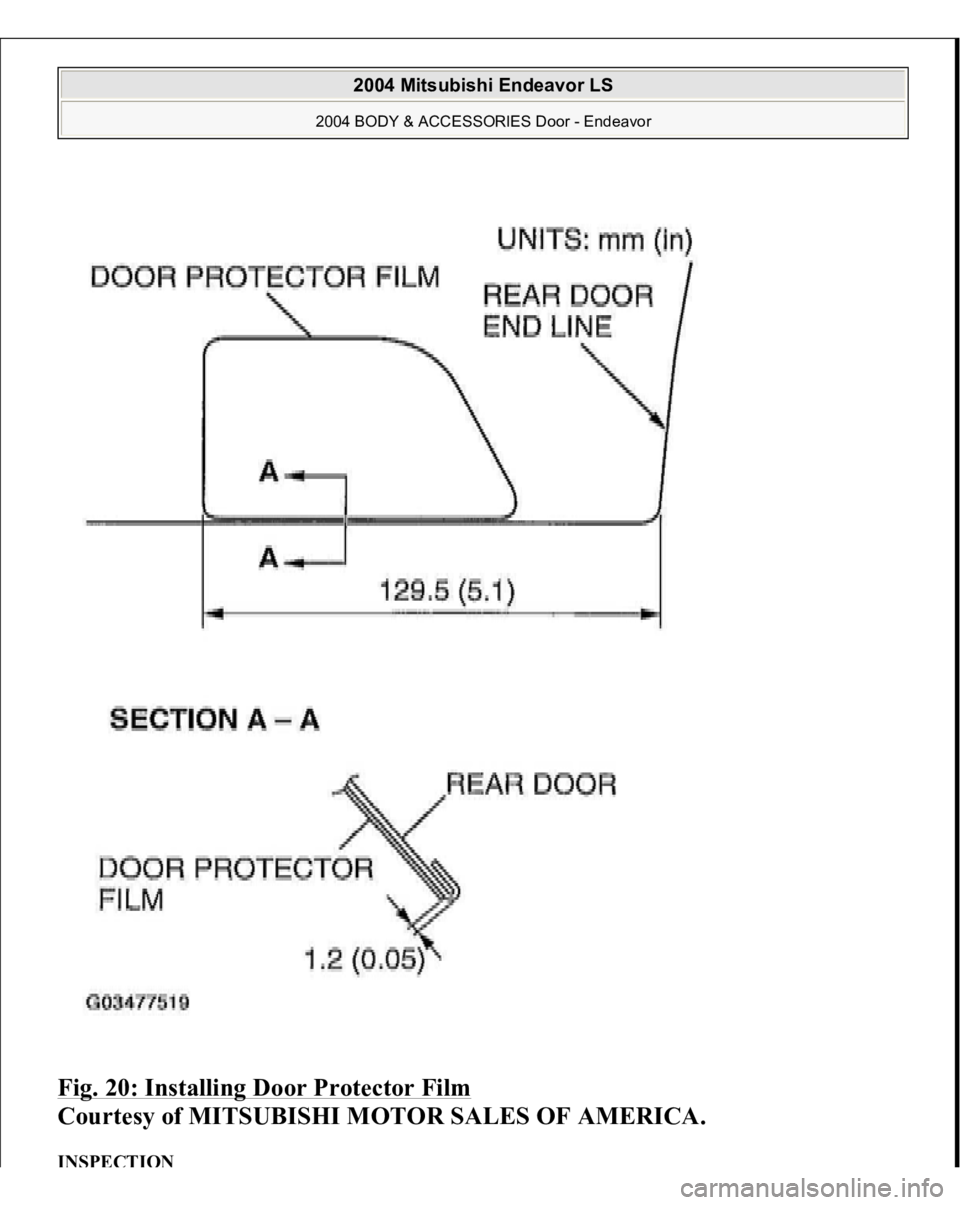

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 20: Installing Door Protector Film Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. INSPECTION 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Door - Endeavor

Page 1029 of 3870

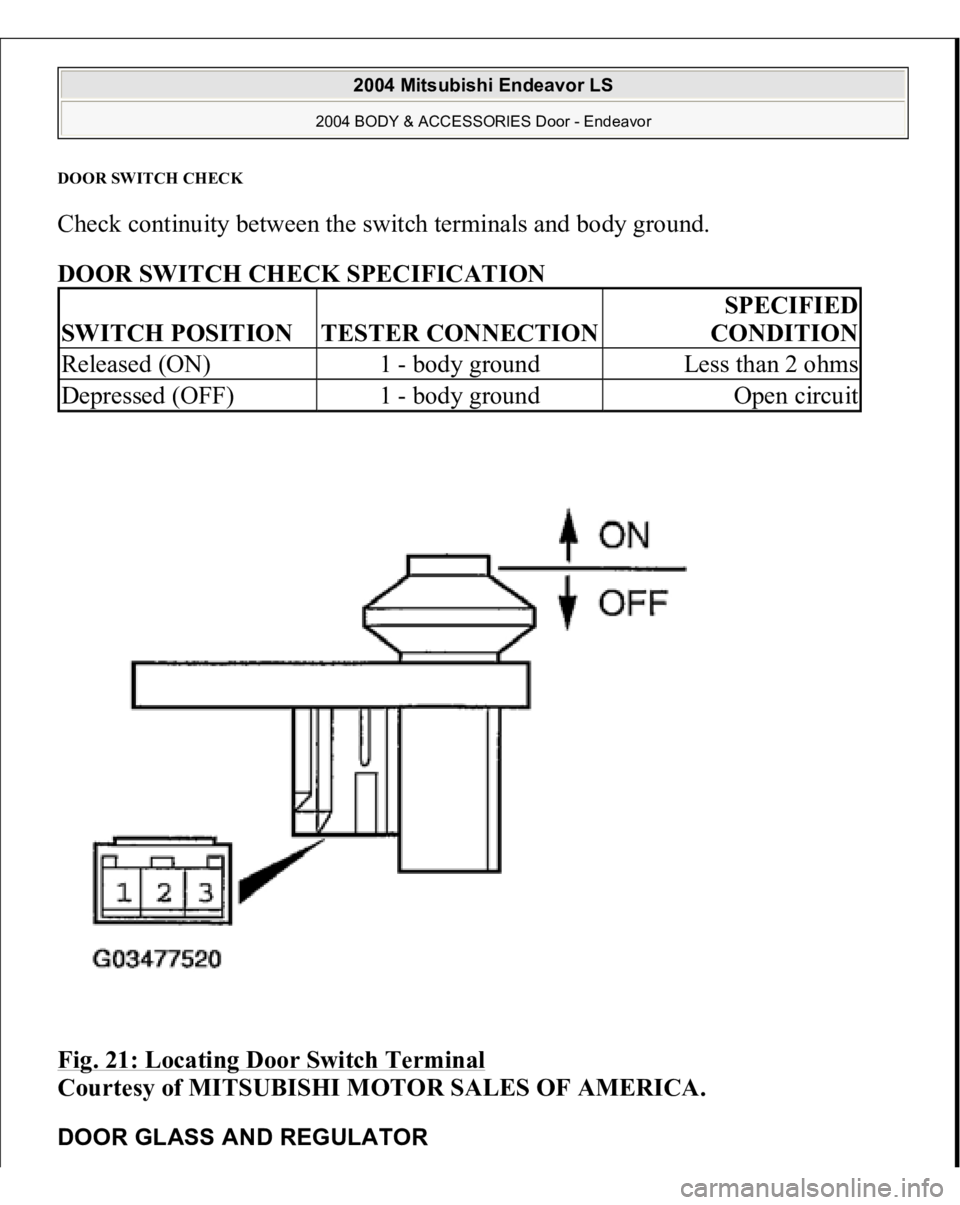

MITSUBISHI ENDEAVOR 2004 Service Repair Manual DOOR SWITCH CHEC K Check continuity between the switch terminals and body ground. DOOR SWITCH CHECK SPECIFICATION Fig. 21: Locating Door Switch Terminal Courtesy of MITSUBISHI MOTOR SALES OF AMER

Page 1030 of 3870

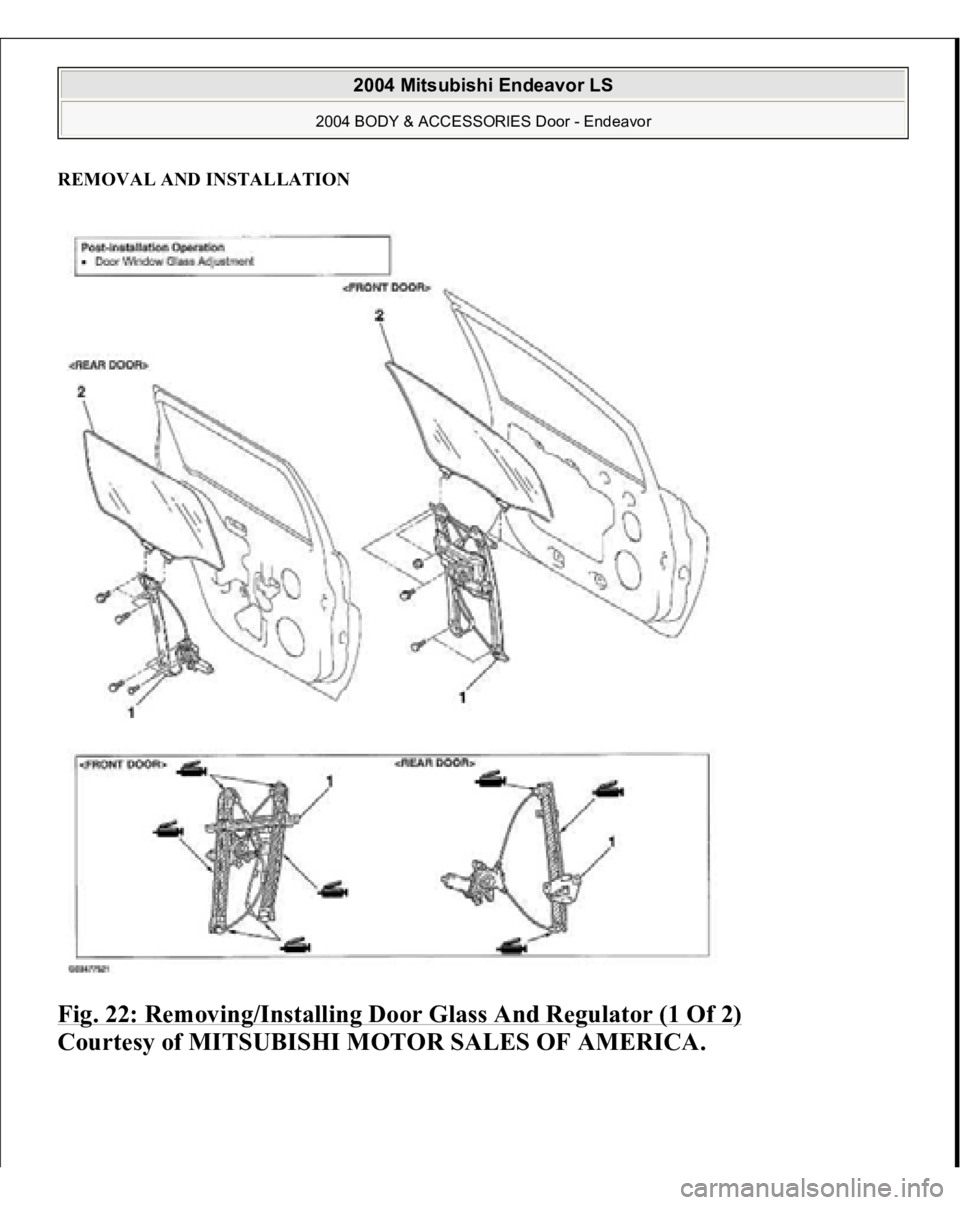

MITSUBISHI ENDEAVOR 2004 Service Repair Manual REMOVAL AND INSTALLATIONFig. 22: Removing/Installing Door Glass And Regulator (1 Of 2) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Door - En

Page 1031 of 3870

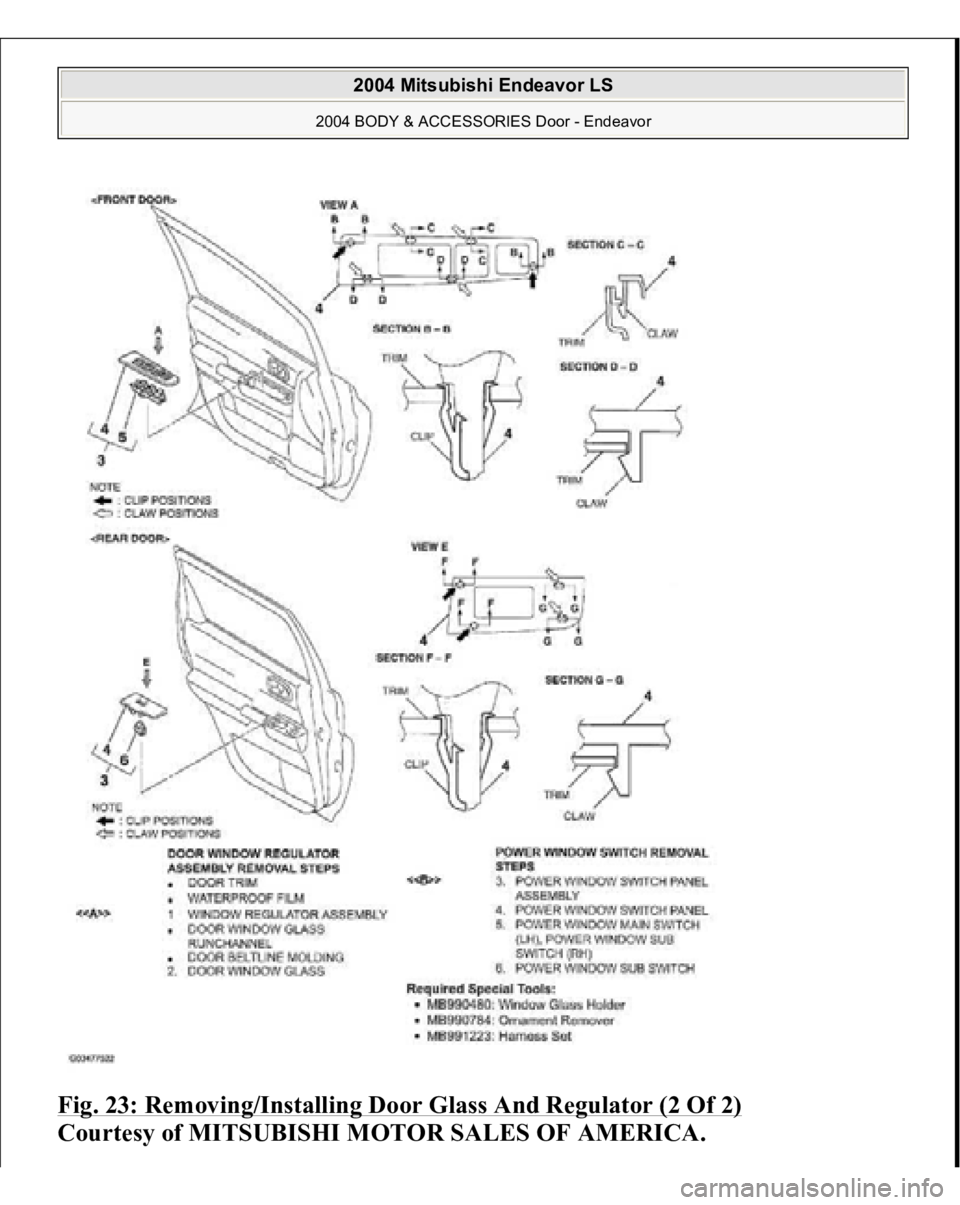

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 23: Removing/Installing Door Glass And Regulator (2 Of 2) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Door - Endeavor

Page 1032 of 3870

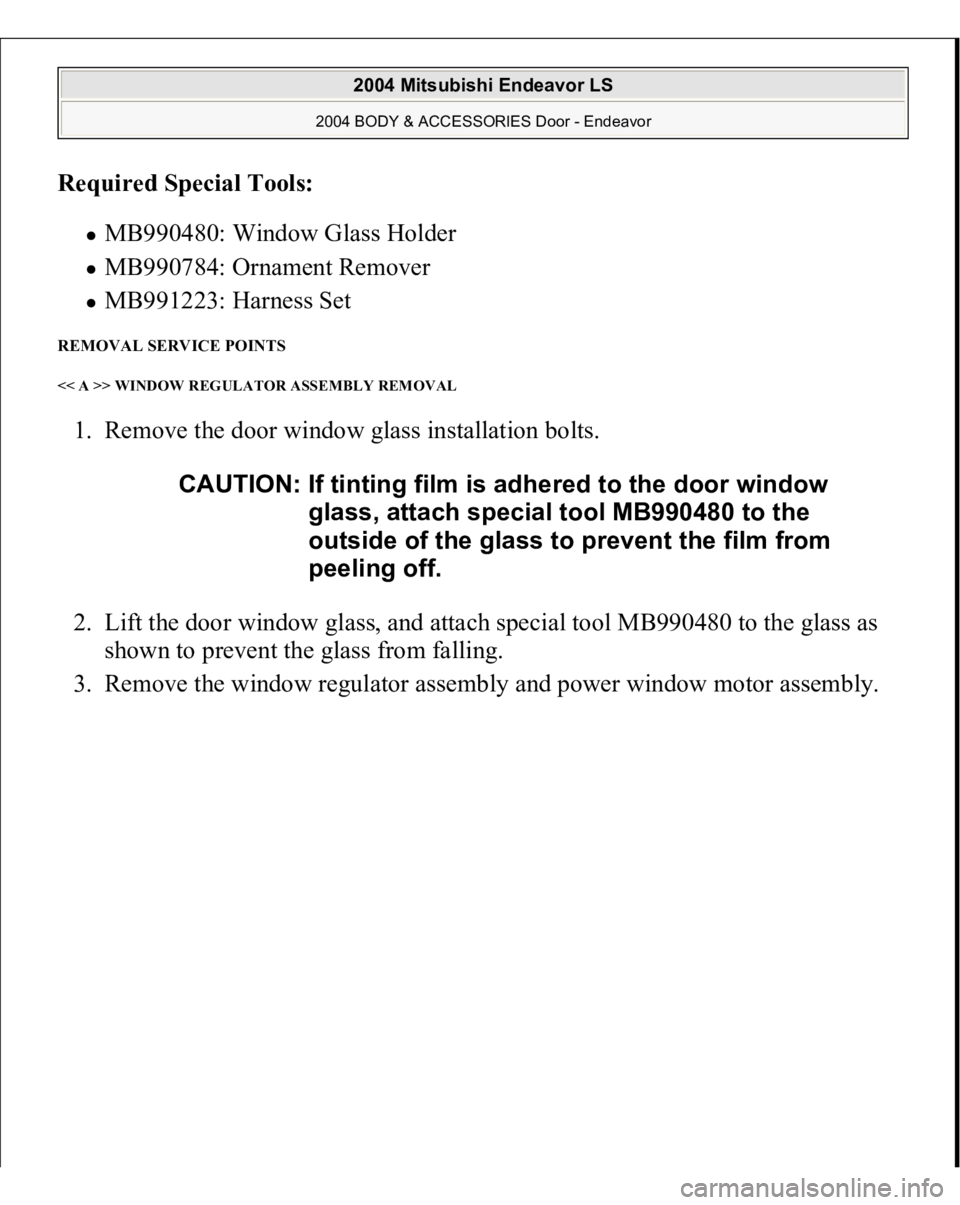

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Required Special Tools: MB990480: Window Glass Holder MB990784: Ornament Remover MB991223: Harness Set REMOVAL SERVICE POINTS << A >> WINDOW REGULATOR ASSEMBLY REMOVAL 1. Remove the door window
