Page 2065 of 3870

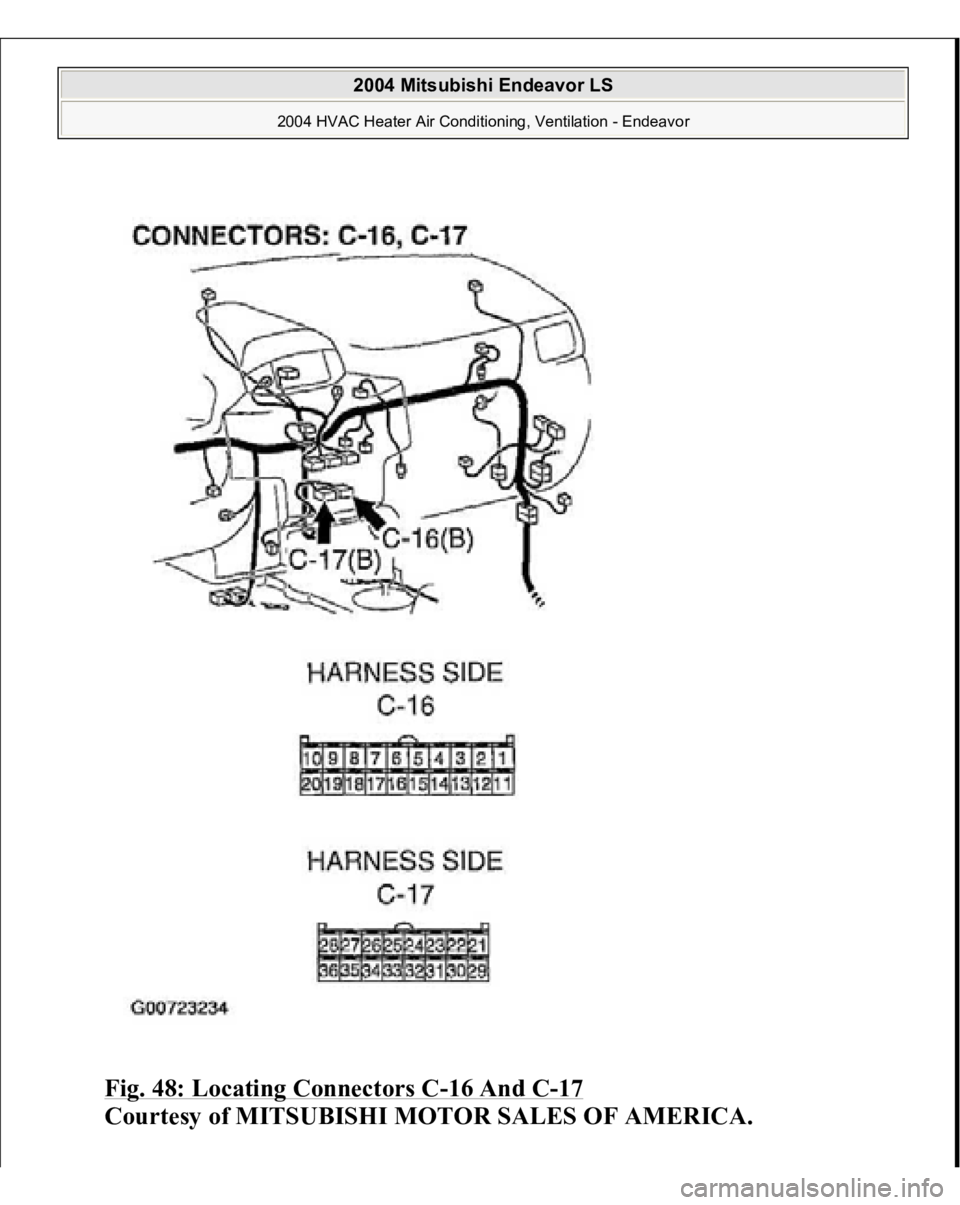

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 48: Locating Connectors C -16 And C -17 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Page 2066 of 3870

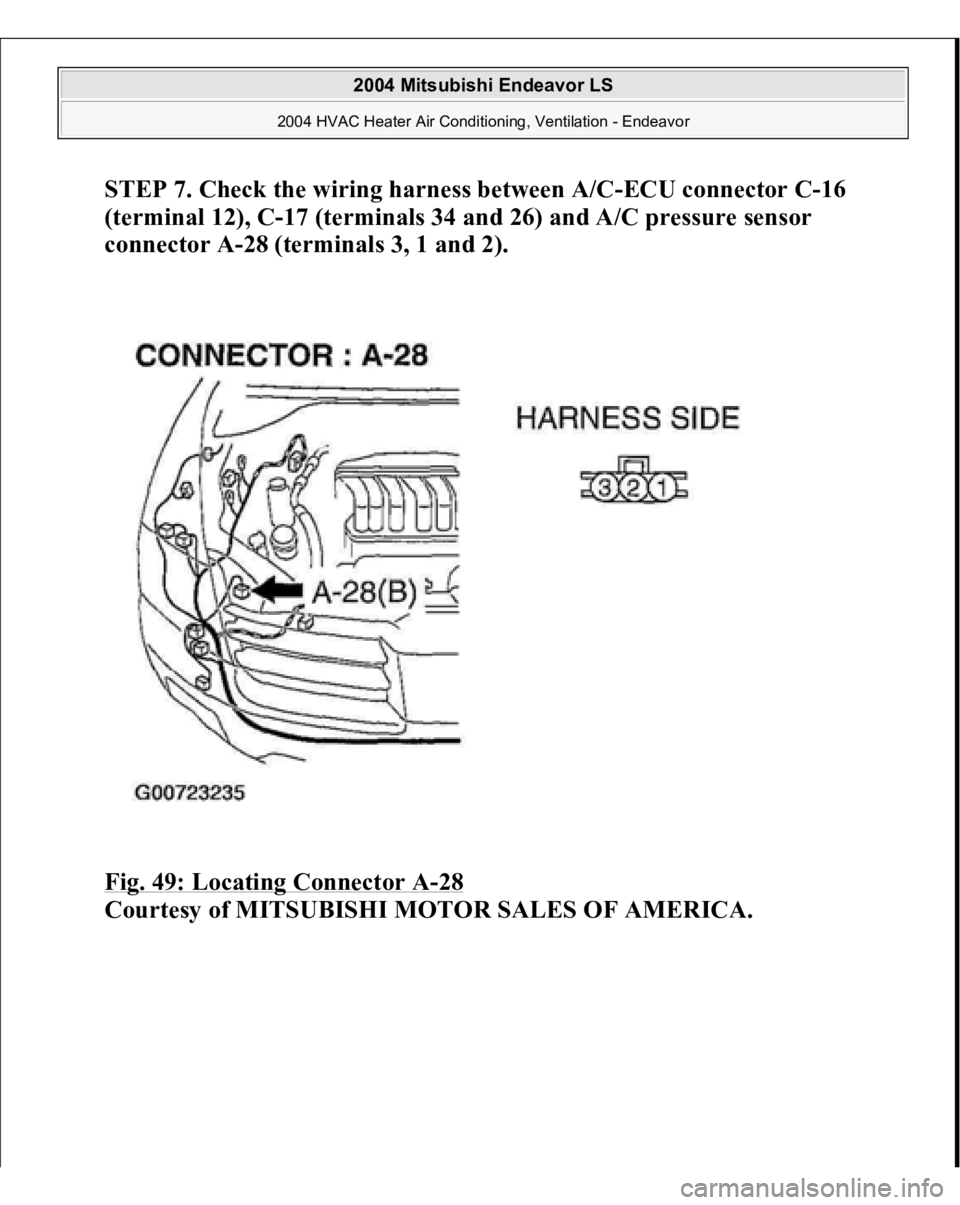

MITSUBISHI ENDEAVOR 2004 Service Repair Manual STEP 7. Check the wiring harness between A/C-ECU connector C-16 (terminal 12), C-17 (terminals 34 and 26) and A/C pressure sensor connector A-28 (terminals 3, 1 and 2). Fig. 49: Locating Connector

Page 2067 of 3870

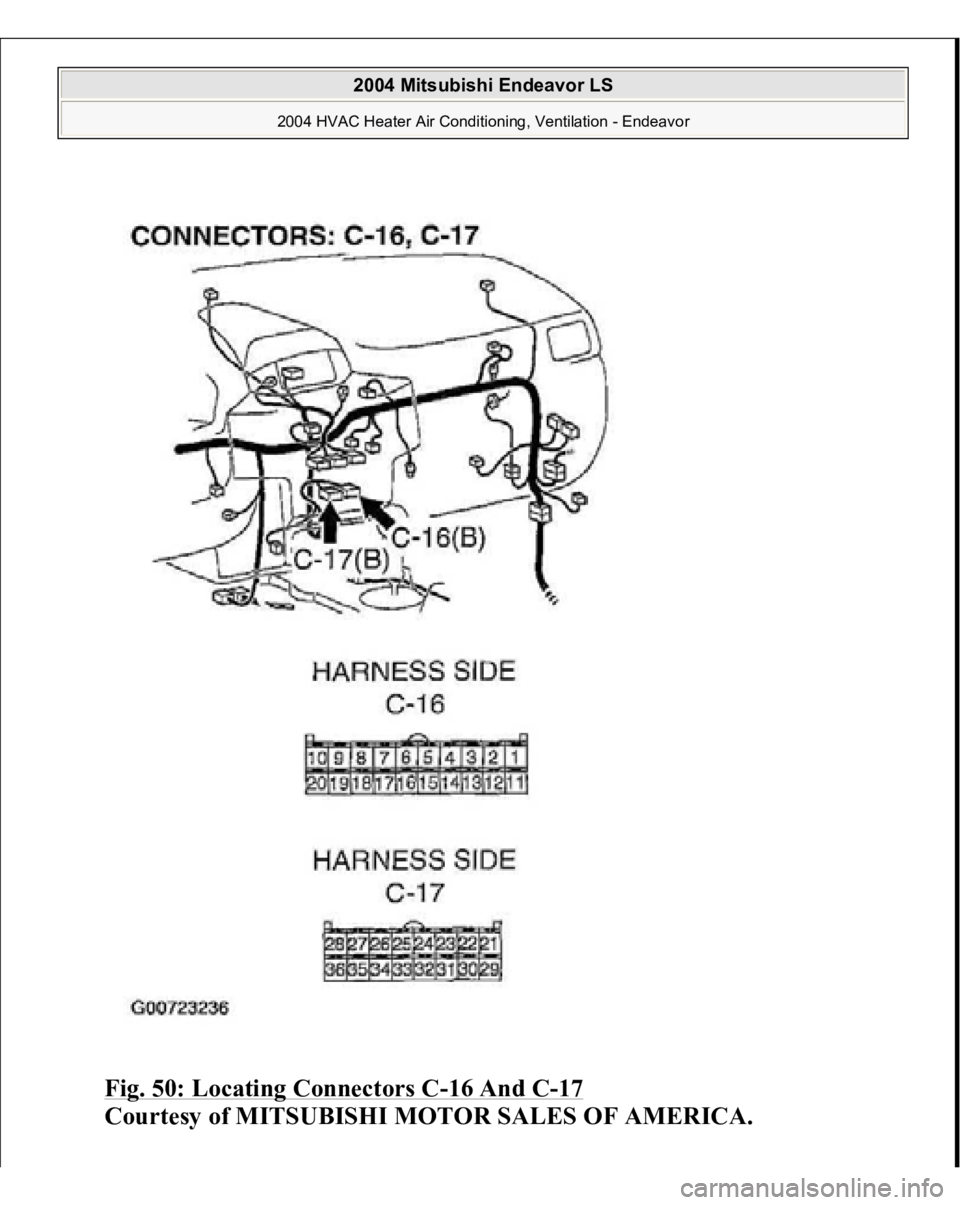

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 50: Locating Connectors C -16 And C -17 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Page 2068 of 3870

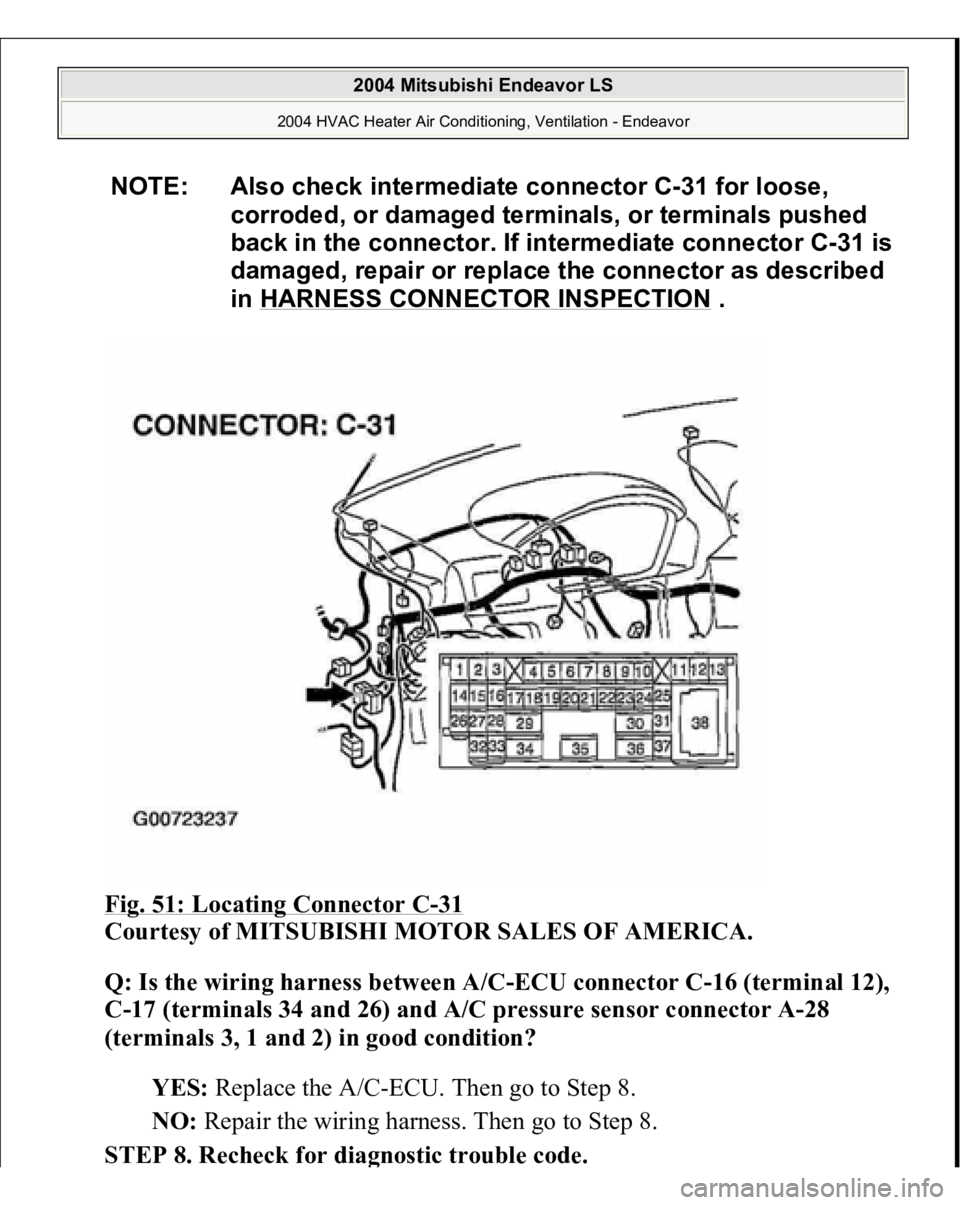

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 51: Locating Connector C -31 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Is the wiring harness between A/C-ECU connector C-16 (terminal 12), C-17 (terminals 34 and 26) and A/C pressure

Page 2069 of 3870

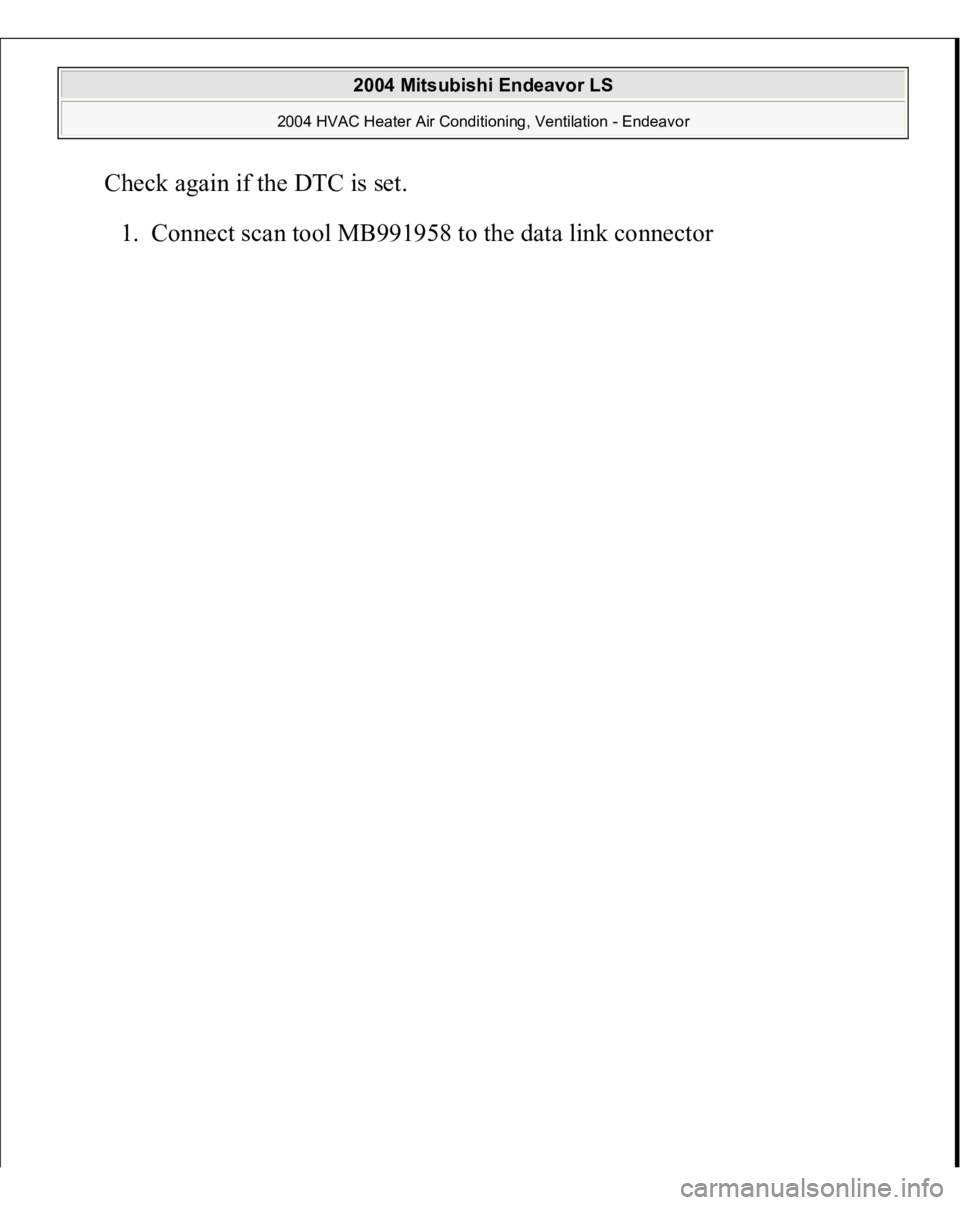

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Check again if the DTC is set. 1. Connect scan tool MB991958 to the data link connec tor 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Page 2070 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 52: Connecting Scan Tool MB991958 To Data Link Connector 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Page 2071 of 3870

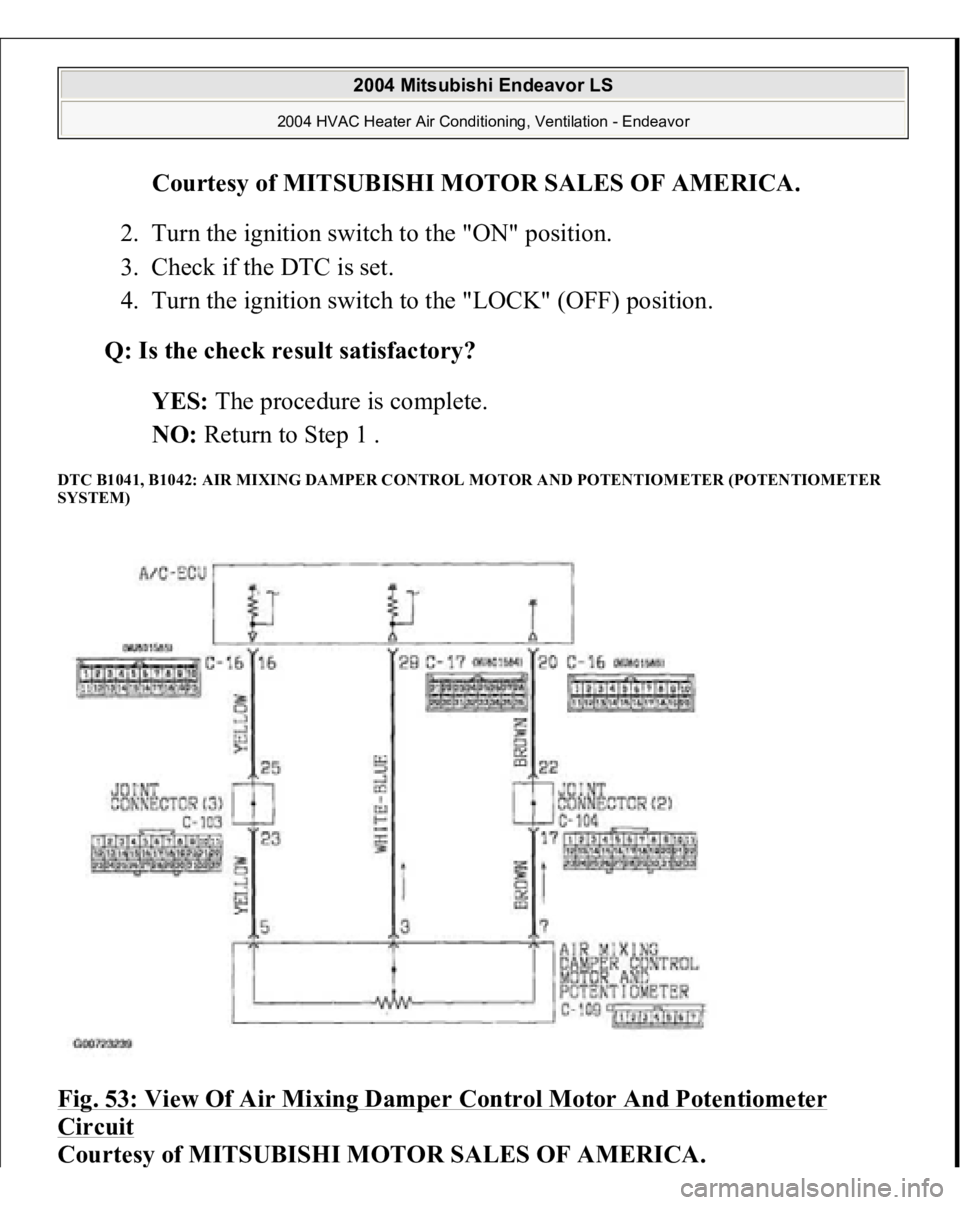

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . 2. Turn the ignition switch to the "ON" position. 3. Check if the DTC is set. 4. Turn the ignition switch to the "LOCK" (OFF) posit

Page 2072 of 3870

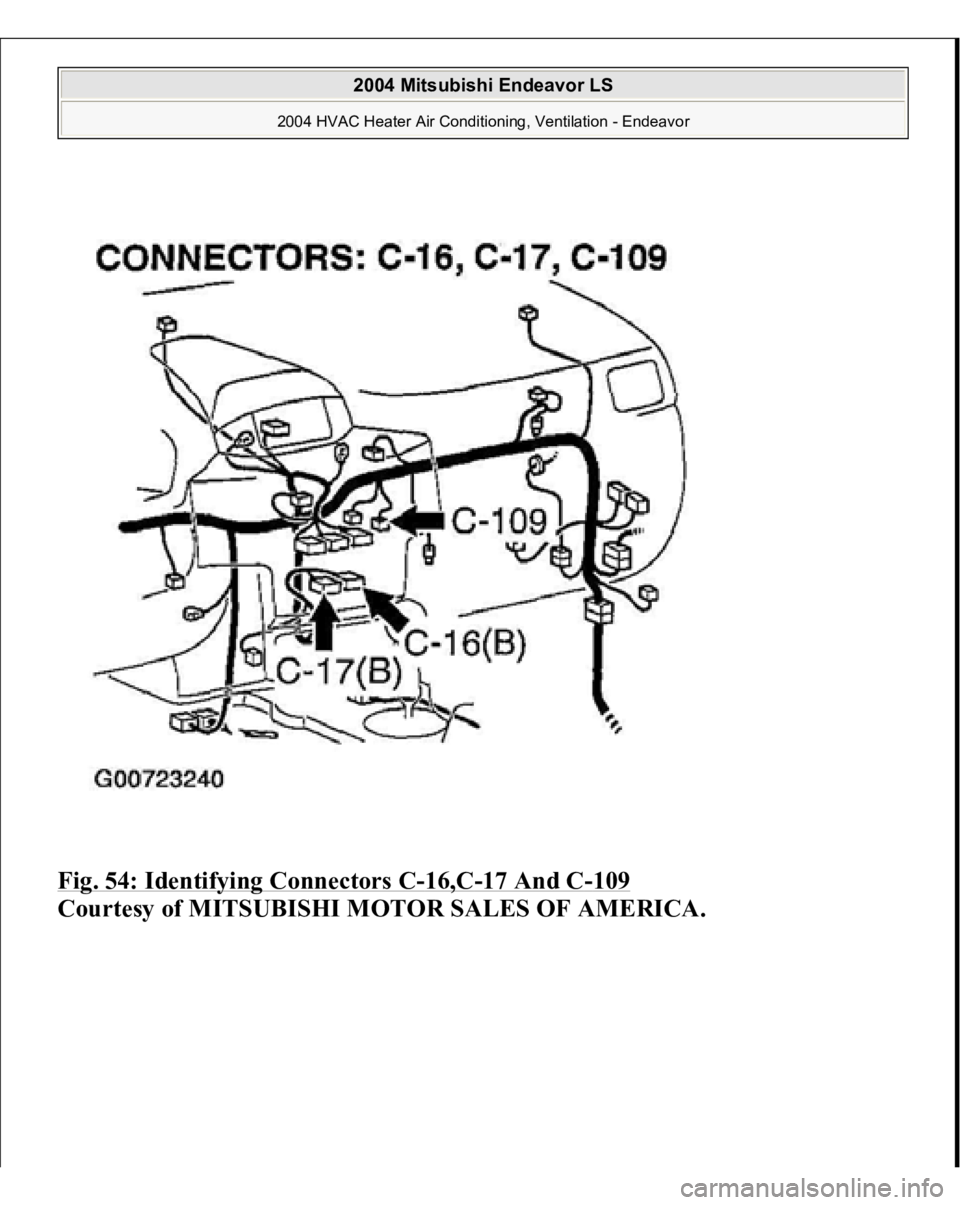

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 54: Identifying Connectors C -16,C -17 And C -109 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeavor
