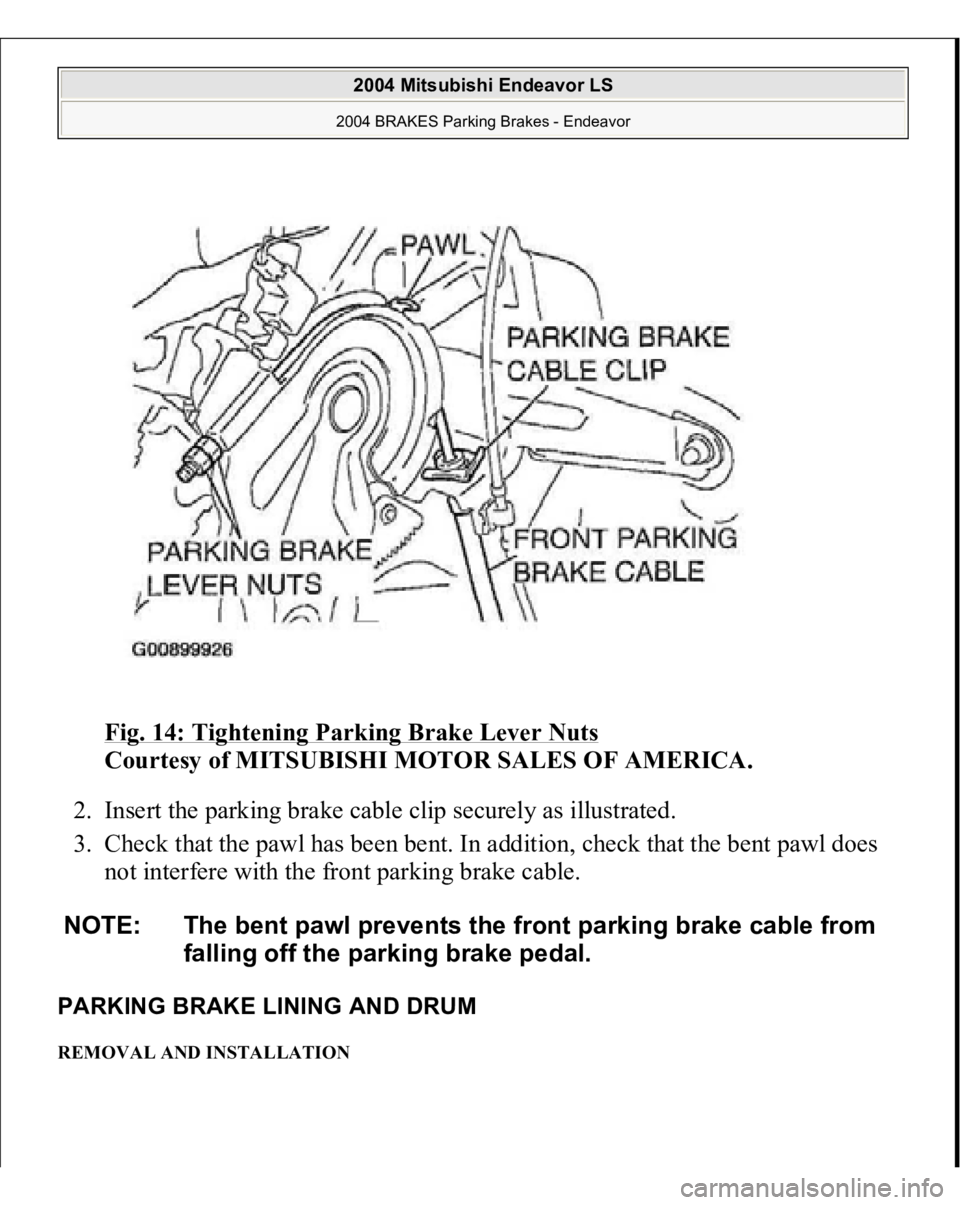

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 14: Tightening Parking Brake Lever Nuts Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2. Insert the parking brake cable clip securely as illustrated. 3. Check that the pawl has been bent. I

Page 2802 of 3870

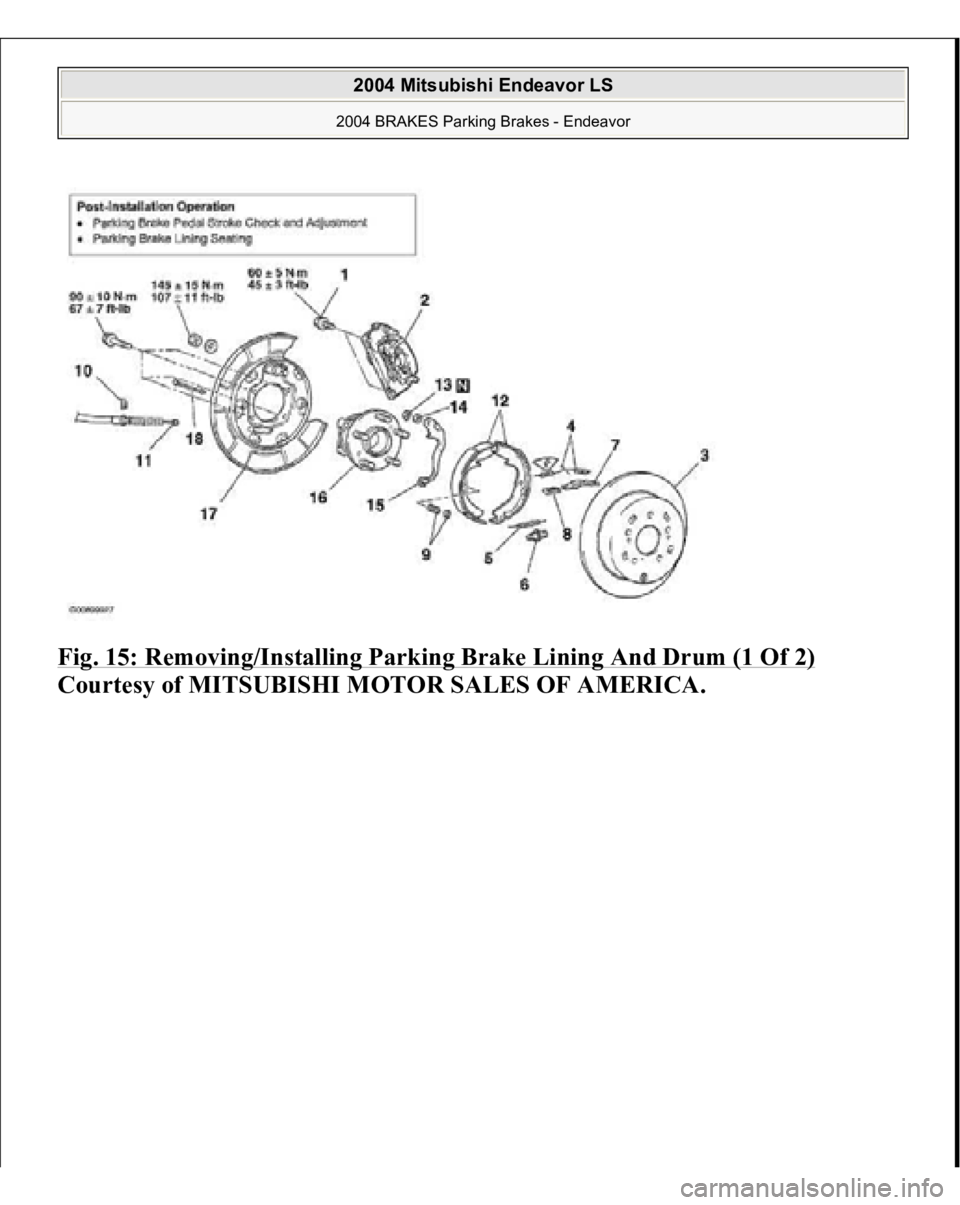

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 15: Removing/Installing Parking Brake Lining And Drum (1 Of 2) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BRAKES Parking Brakes - Endeavor

Page 2803 of 3870

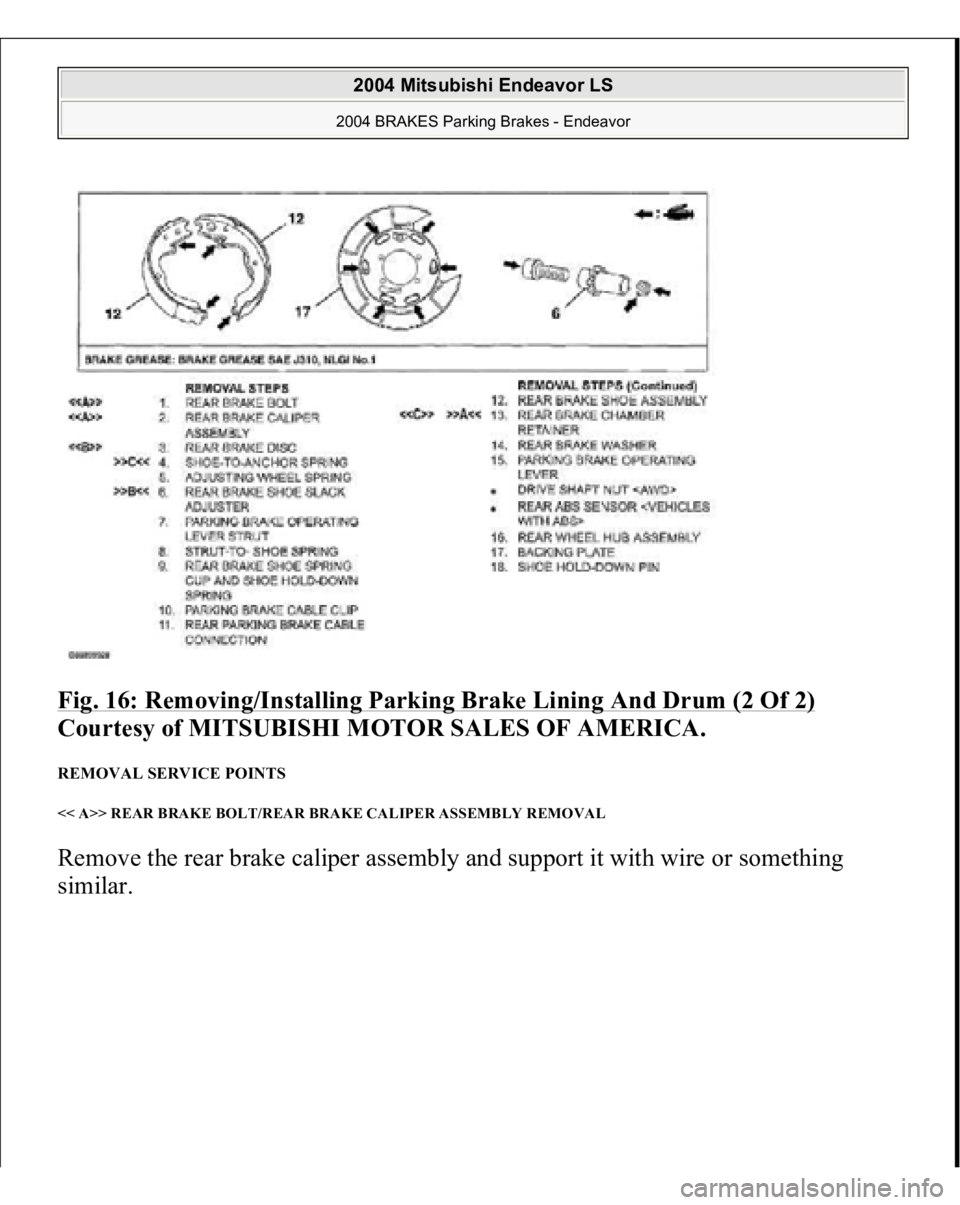

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 16: Removing/Installing Parking Brake Lining And Drum (2 Of 2) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. REMOVAL SERVICE POINTS << A>> REAR BRAKE BOLT/REAR BRAKE CALIPER ASSEMBLY REMOVAL

Page 2804 of 3870

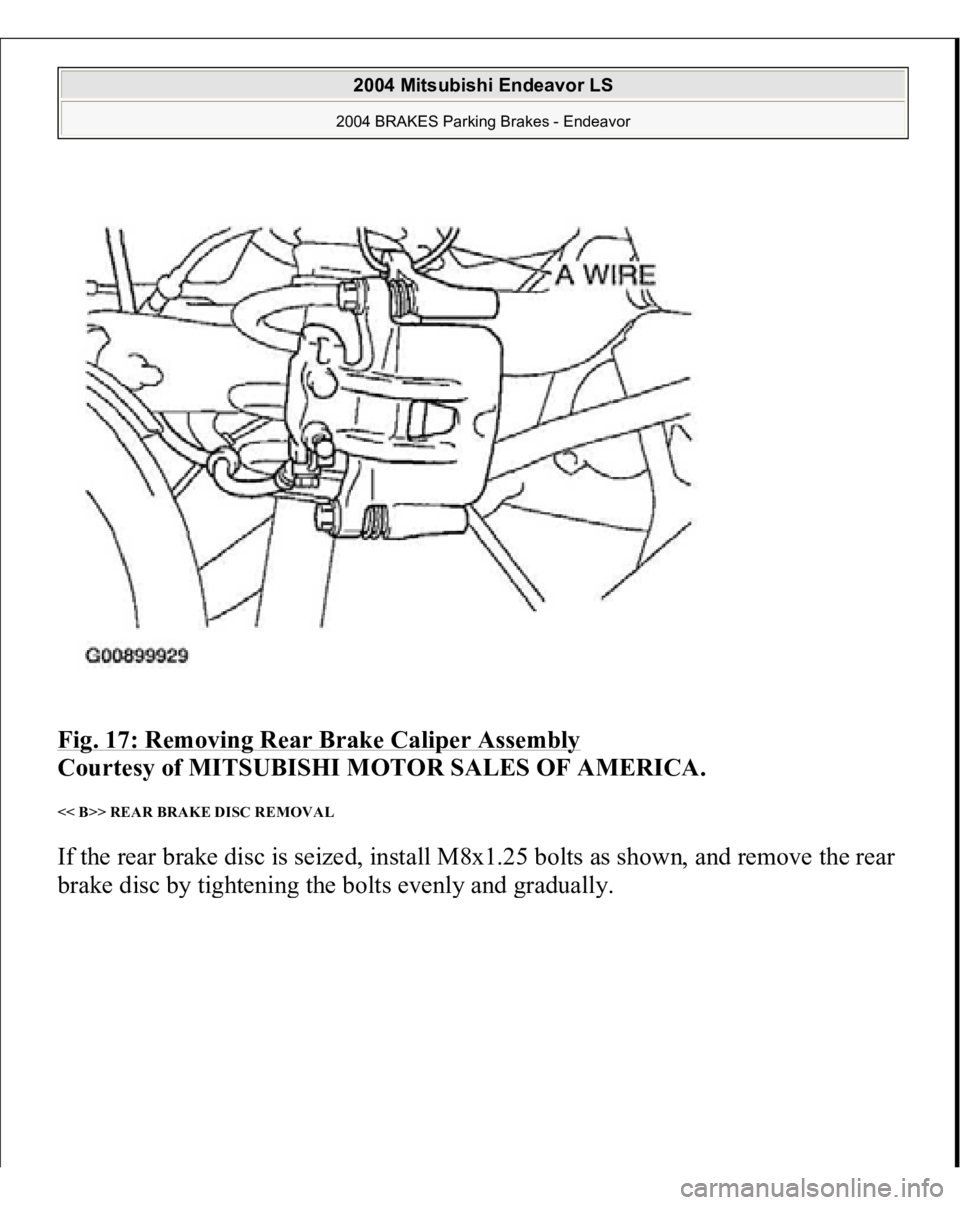

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 17: Removing Rear Brake Caliper Assembly Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. << B>> REAR BRAKE DISC REMOVAL If the rear brake disc is seized, install M8x1.25 bolts as shown, and rem

Page 2805 of 3870

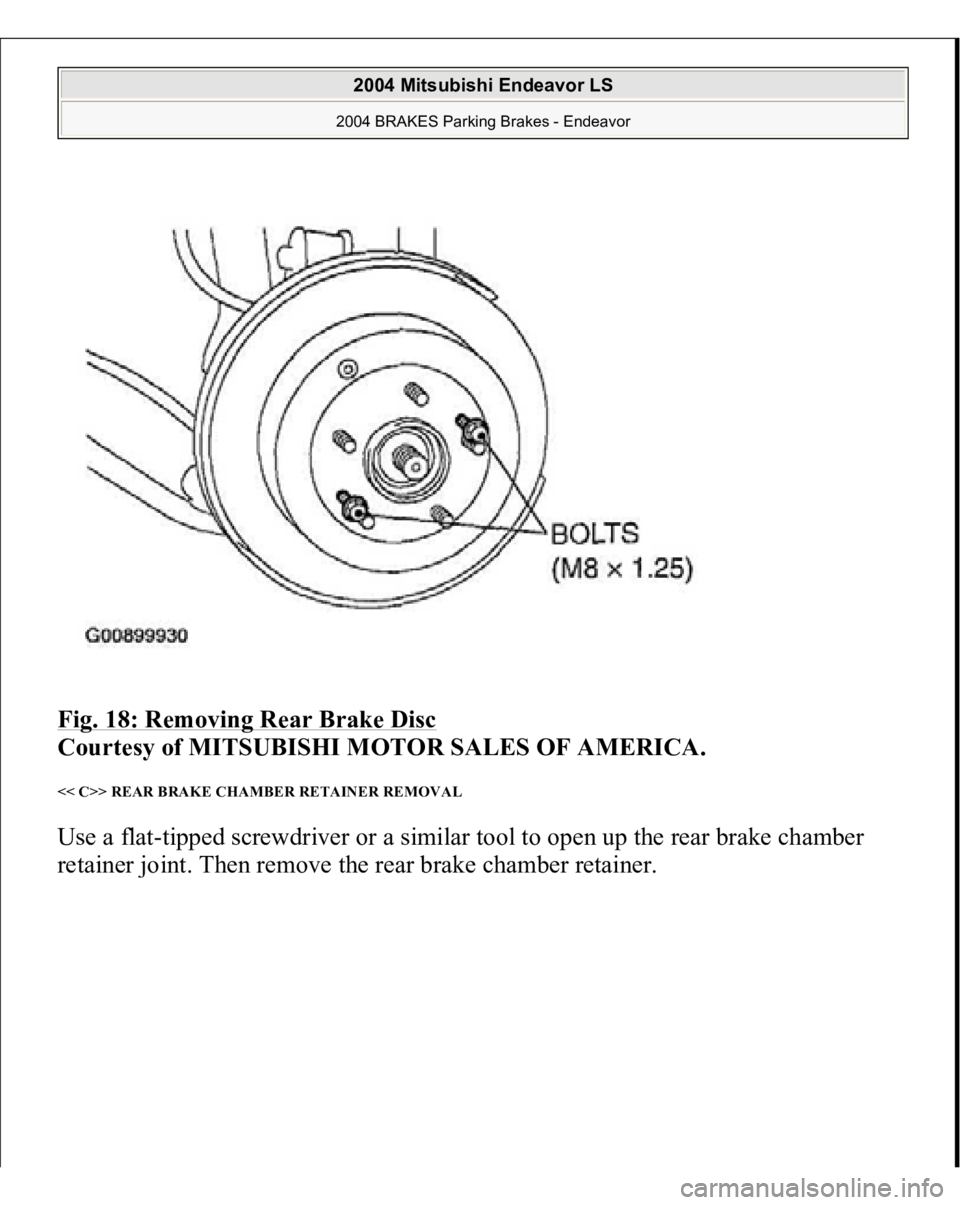

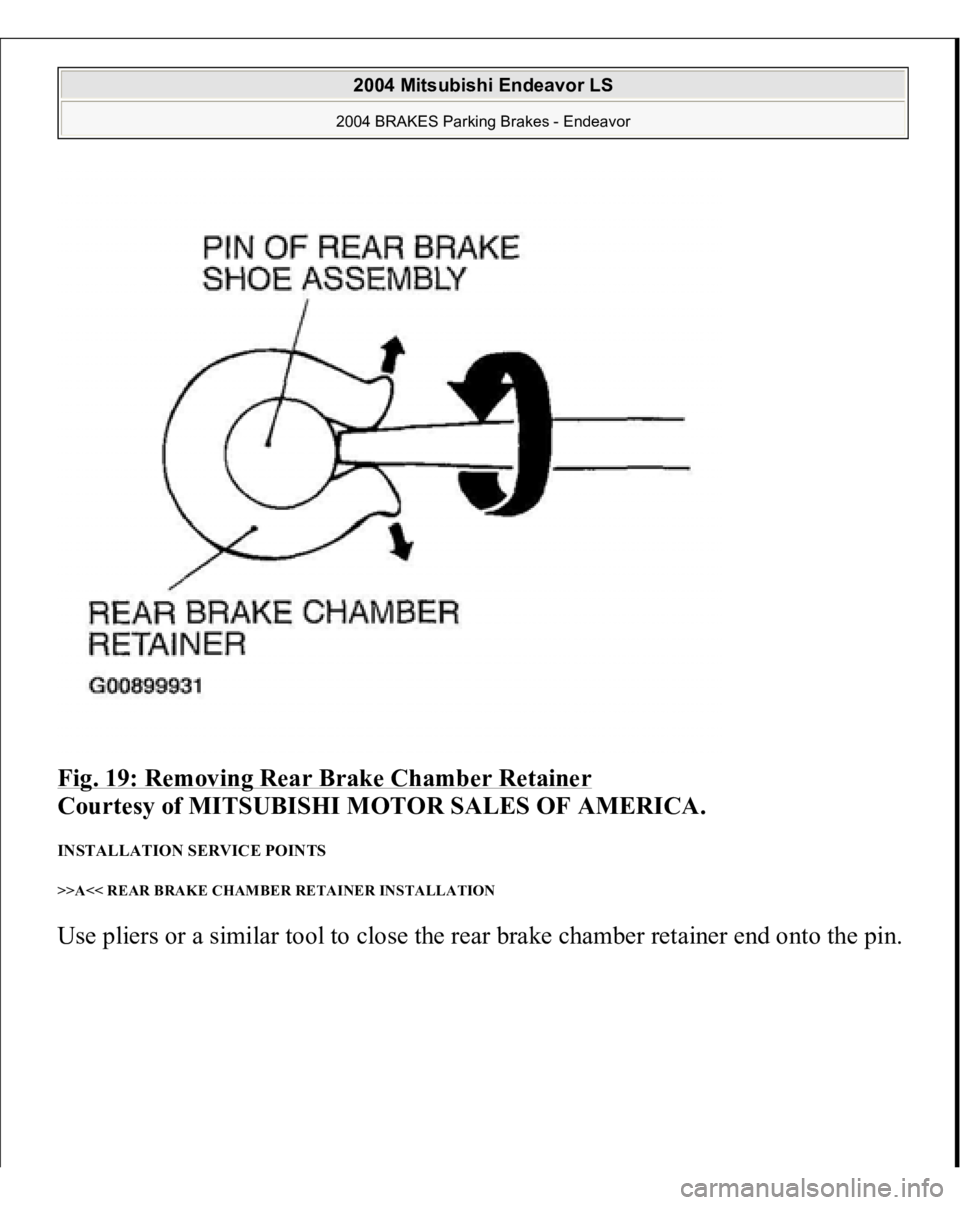

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 18: Removing Rear Brake Disc Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. << C>> REAR BRAKE CHAMBER RETAINER REMOVAL Use a flat-tipped screwdriver or a similar tool to open up the rear brake

Page 2806 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 19: Removing Rear Brake Chamber Retainer Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. INSTALLATION SERVICE POINTS >>A<< REAR BRAKE CHAMBER RETAINER INSTALLATION Use pliers or a similar tool

Page 2807 of 3870

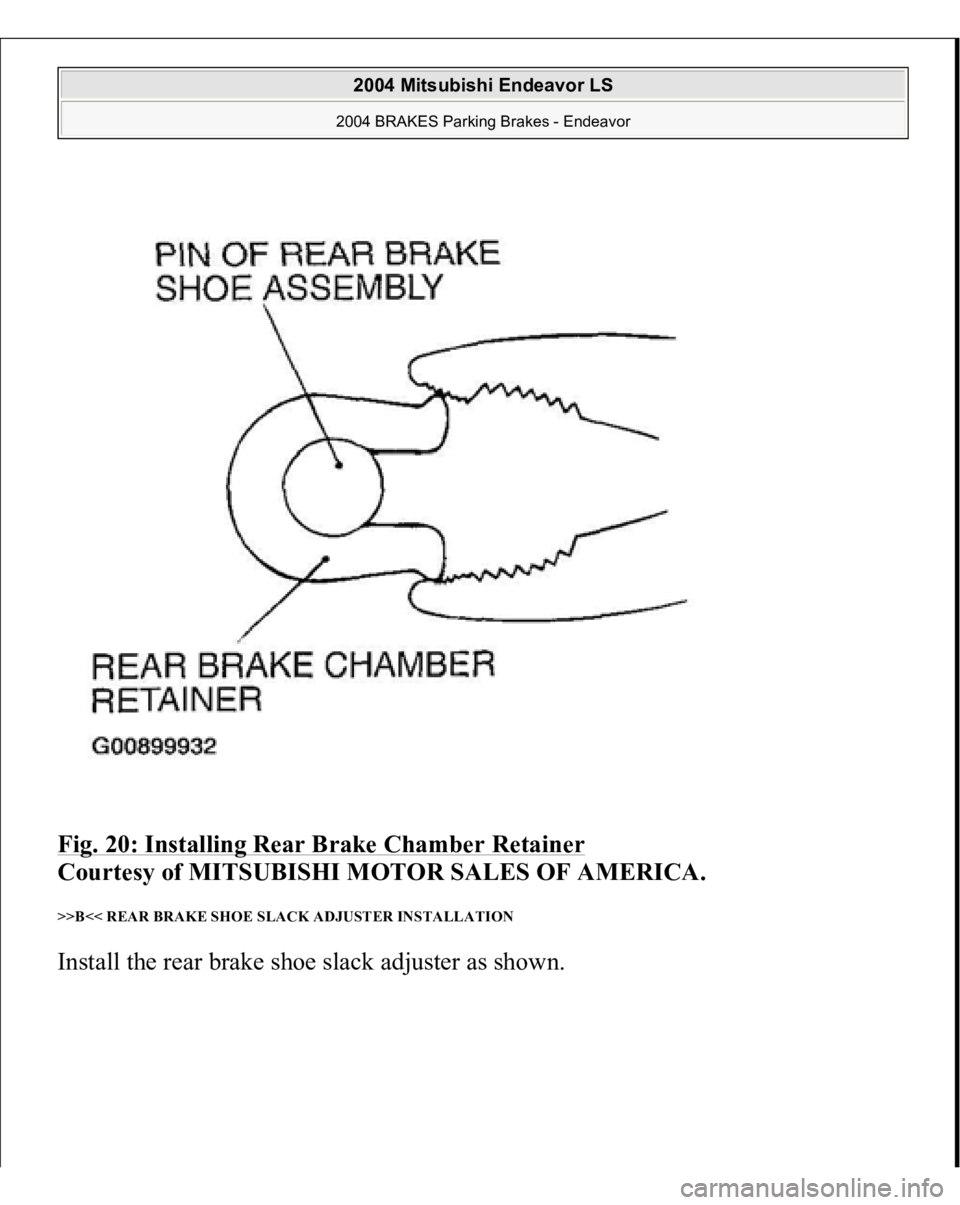

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 20: Installing Rear Brake Chamber Retainer Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. >>B<< REAR BRAKE SHOE SLACK ADJUSTER INSTALLATION Install the rear brake shoe slack ad juster as shown

Page 2808 of 3870

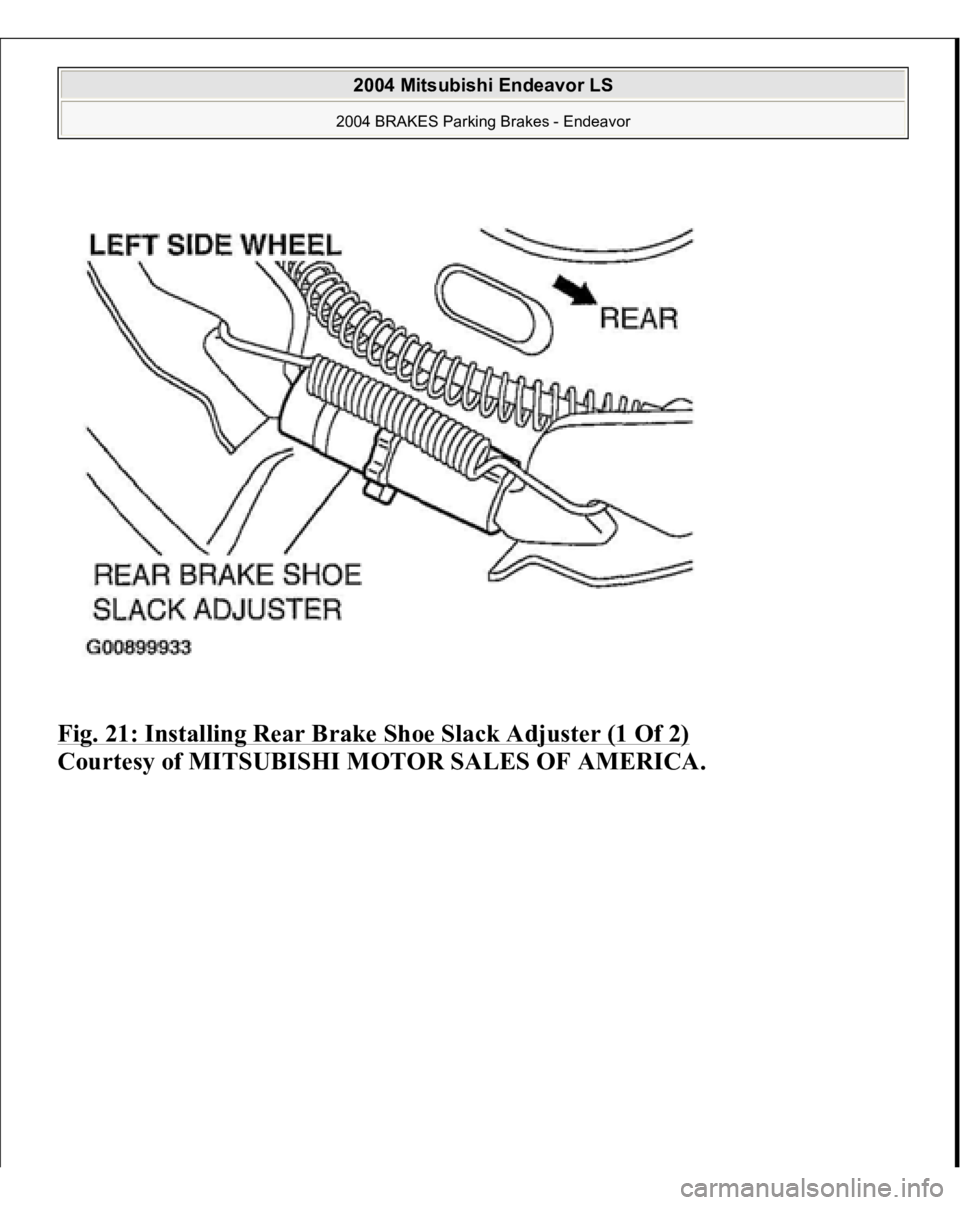

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 21: Installing Rear Brake Shoe Slack Adjuster (1 Of 2) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BRAKES Parking Brakes - Endeavor
