MITSUBISHI ENDEAVOR 2004 Service Repair Manual Removal & Installation (Dual-stage AIR Bag System)1. Before proceeding, see AIR BAG SAFETY PRECAUTIONS . Turn ignition off. Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM . 2.

Page 298 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual ADJUSTMENTS CENTERING CLOCKSPRING (DUAL-STAGE AIR BAG SYSTEM) Turn clockspring fully clockwise, then turn counterclockwise about 3 turns to align mating marks. See Fig. 17 . Clockspring is now cente

Page 299 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual TORQUE SPECIFICATIONS DIAGNOSTICS INITIAL SRS DIAGNOSTIC PROCEDURE (DUAL-STAGE AIR BAG SYSTEM) Application Ft. Lbs. (N.m) Front seatBack bolts 25-40 (34-54) Bolts 25-40 (34-54) Nuts 18-26 (24-35) Seat

Page 300 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 1. Turn ignition on. If AIR BAG warning light comes on for 7 seconds and then goes off, SRS is functioning properly. If AIR BAG warning light does not function as described, turn ignition off. If AI

Page 301 of 3870

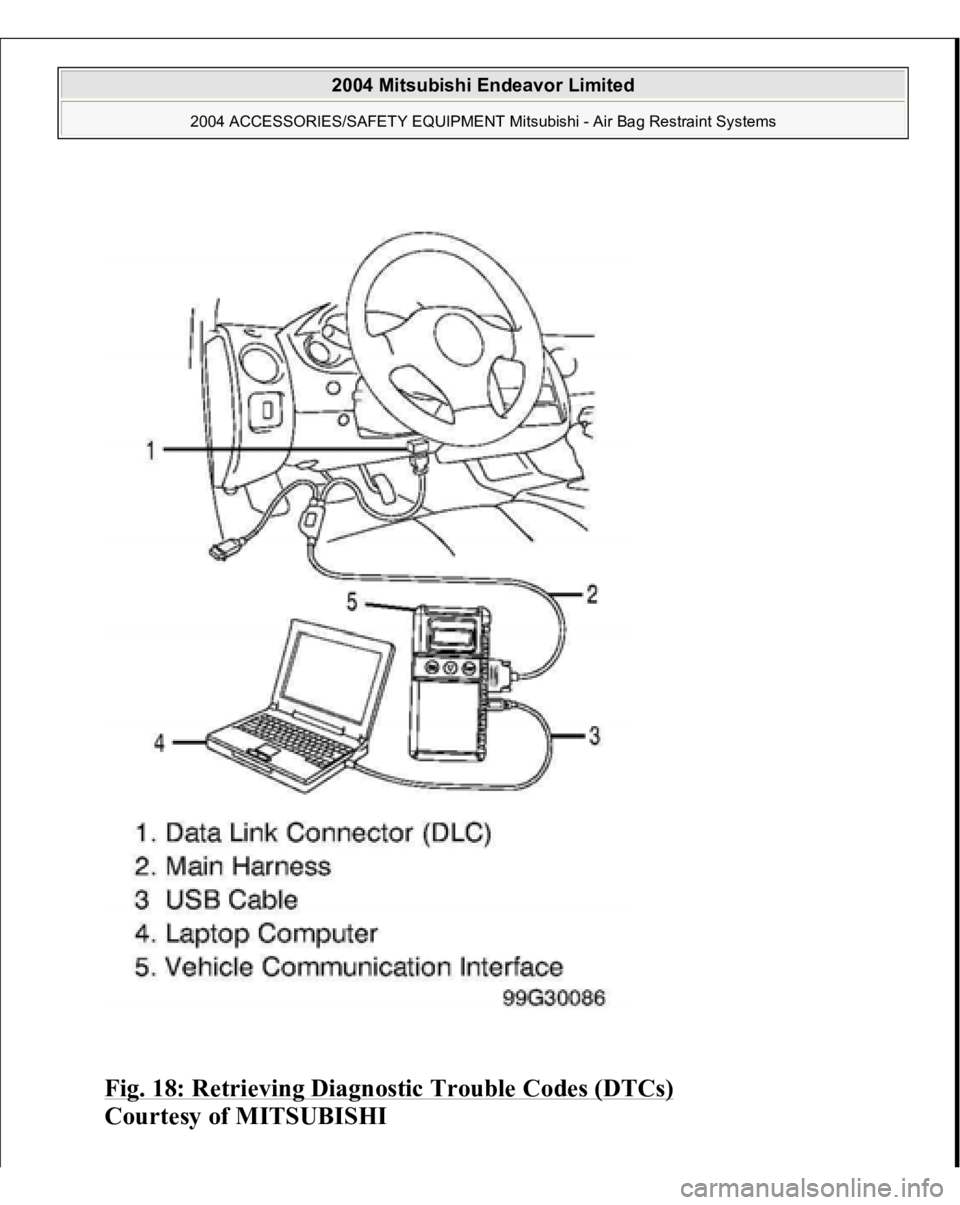

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 18: Retrieving Diagnostic Trouble Codes (DTCs) Courtesy of MITSUBISHI 2004 Mitsubishi Endeavor Limited 2004 ACCESSORIES/SAFETY EQUIPMENT Mitsubishi - Air Bag Restraint Systems

Page 302 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual SCAN TOOL COMMUNICATION SYMPTOMS (SINGLE-STAGE AI R BAG SYSTEMS) SCAN TOOL COMMUNICATION SYMPTOMS (DUAL-STAGE AIR BAG SYSTEMS) DIAGNOSTIC TROUBLE CODES (DTCS) IDENTIFICATION WITH SINGLE-STAGE AIR

Page 303 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 1A Driver-side front impact sensor short circuit 1B Driver-side front impact sensor open circuit 1C Driver-side front impact sensor short to voltage 1D Driver-side front impact sensor short to

Page 304 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual DIAGNOSTIC TROUBLE CODES (DTCS) IDENTIFICATION WITH 46 Improper SRS ECU installation 51 & 52 Driver-side air bag module 54 & 55 Passenger-side air bag module 56 Driver-side seat belt pretensioner 58
