Page 2225 of 3870

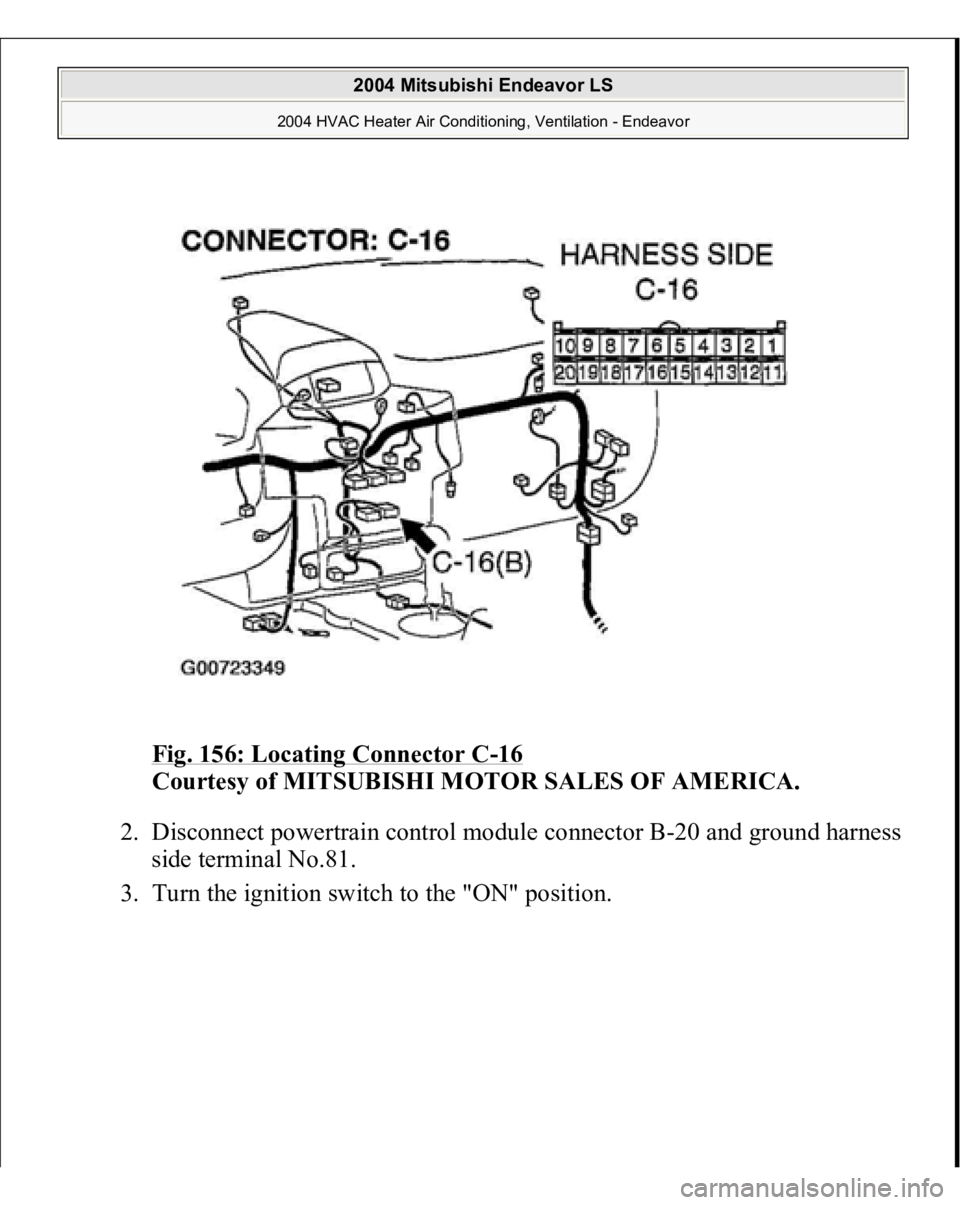

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 156: Locating Connector C -16 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2. Disconnect powertrain control module connector B-20 and ground harness side terminal No.81. 3. Turn the ignit

Page 2226 of 3870

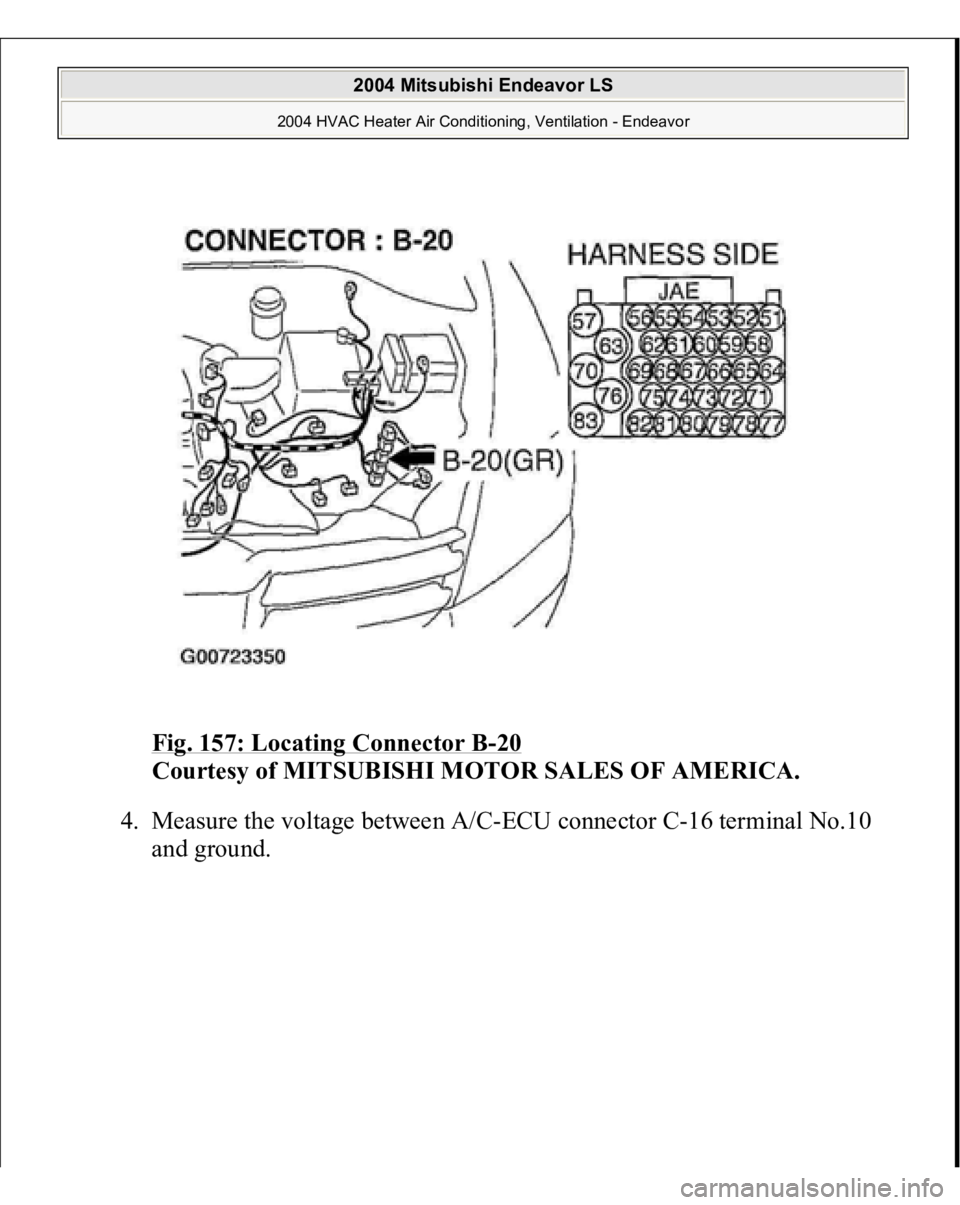

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 157: Locating Connector B -20 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 4. Measure the voltage between A/C-ECU connector C-16 terminal No.10 and ground. 2004 Mitsubishi Endeavor LS

Page 2227 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 158: Measuring Voltage Between Terminal No.10 And Ground Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. The measured value should be approximately 12 volts (battery positive voltage). Q: D

Page 2228 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 159: Measuring Voltage Between Terminal 10 And Ground Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. STEP 17. Check the wiring harness between A/C compressor clutch relay connector B-16X (te

Page 2229 of 3870

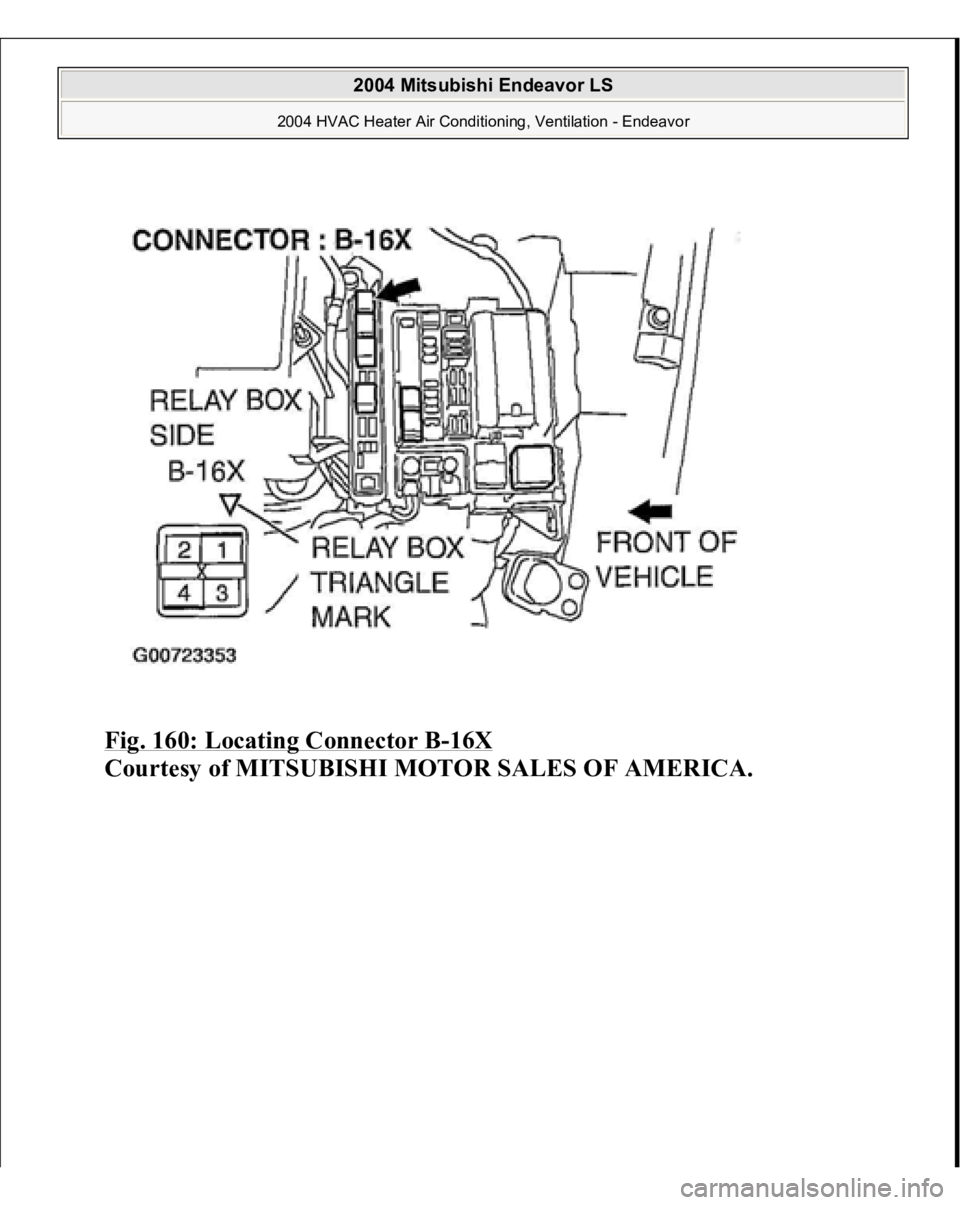

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 160: Locating Connector B -16X Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Page 2230 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 161: Locating Connector C -16 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Is the wiring harness between A/C compressor clutch relay connector B-16X (terminal 4) and A/C-ECU connector C-

Page 2231 of 3870

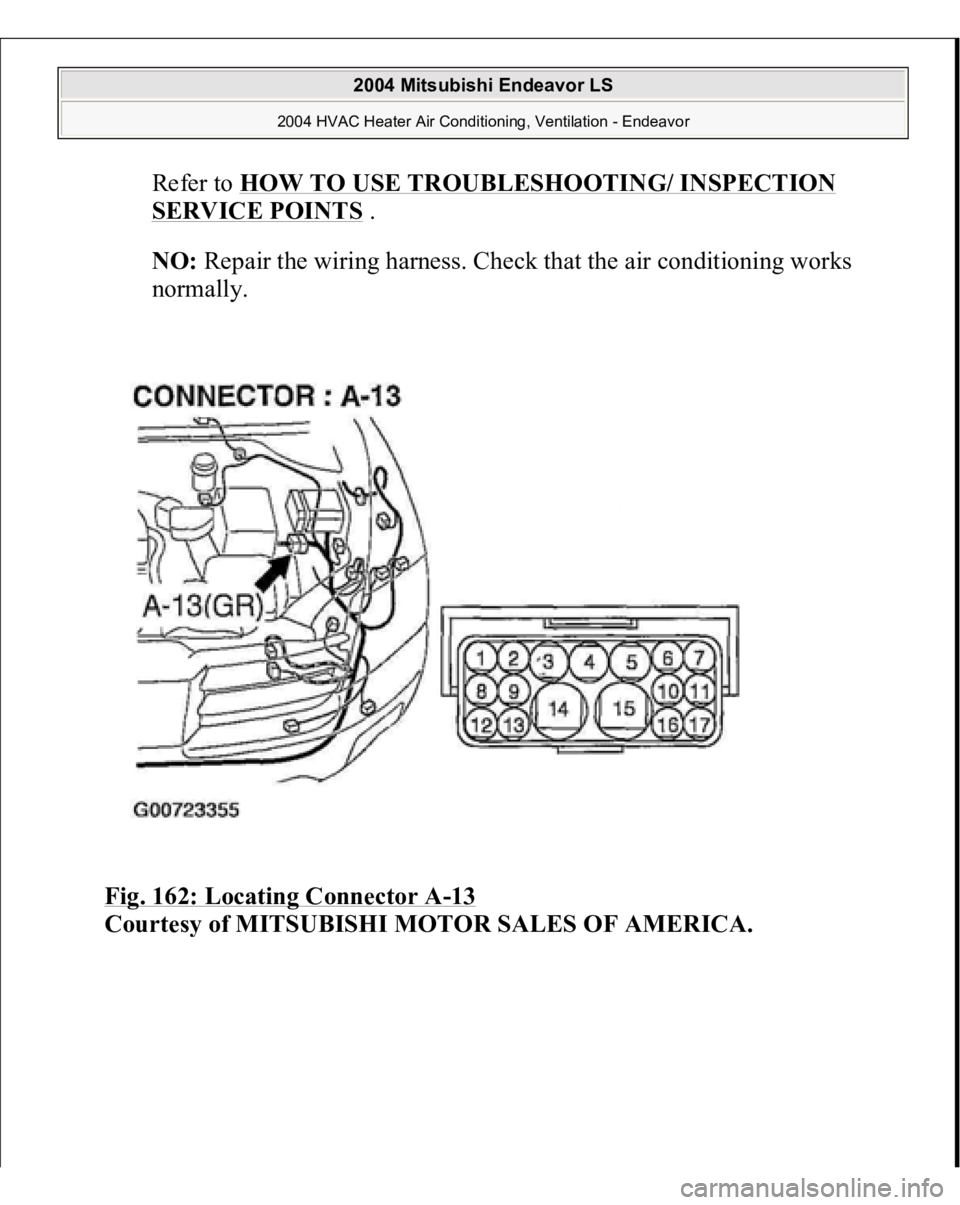

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Refer to HOW TO USE TROUBLESHOOTING/ INSPECTION SERVICE POINTS . NO: Repair the wiring harness. Check that the air conditioning works normally. Fig. 162: Locating Connector A -13 Courtes y of

Page 2232 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 163: Locating Connector C -24 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. STEP 18. Check the refrigerant temperature switch. 1. Dip the metal part of the cooling temperature switch into e
