Page 2345 of 3870

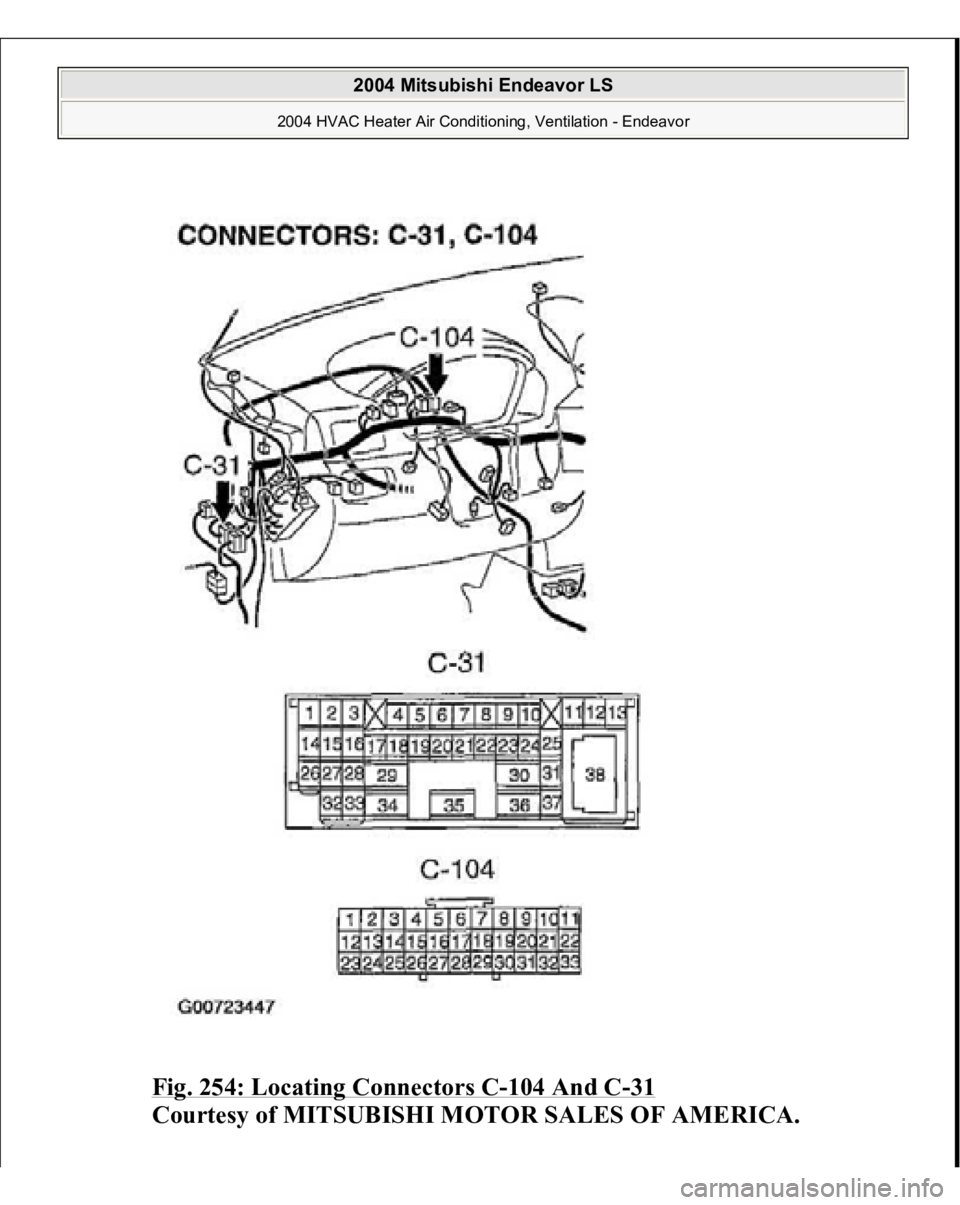

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 254: Locating Connectors C -104 And C -31 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Page 2346 of 3870

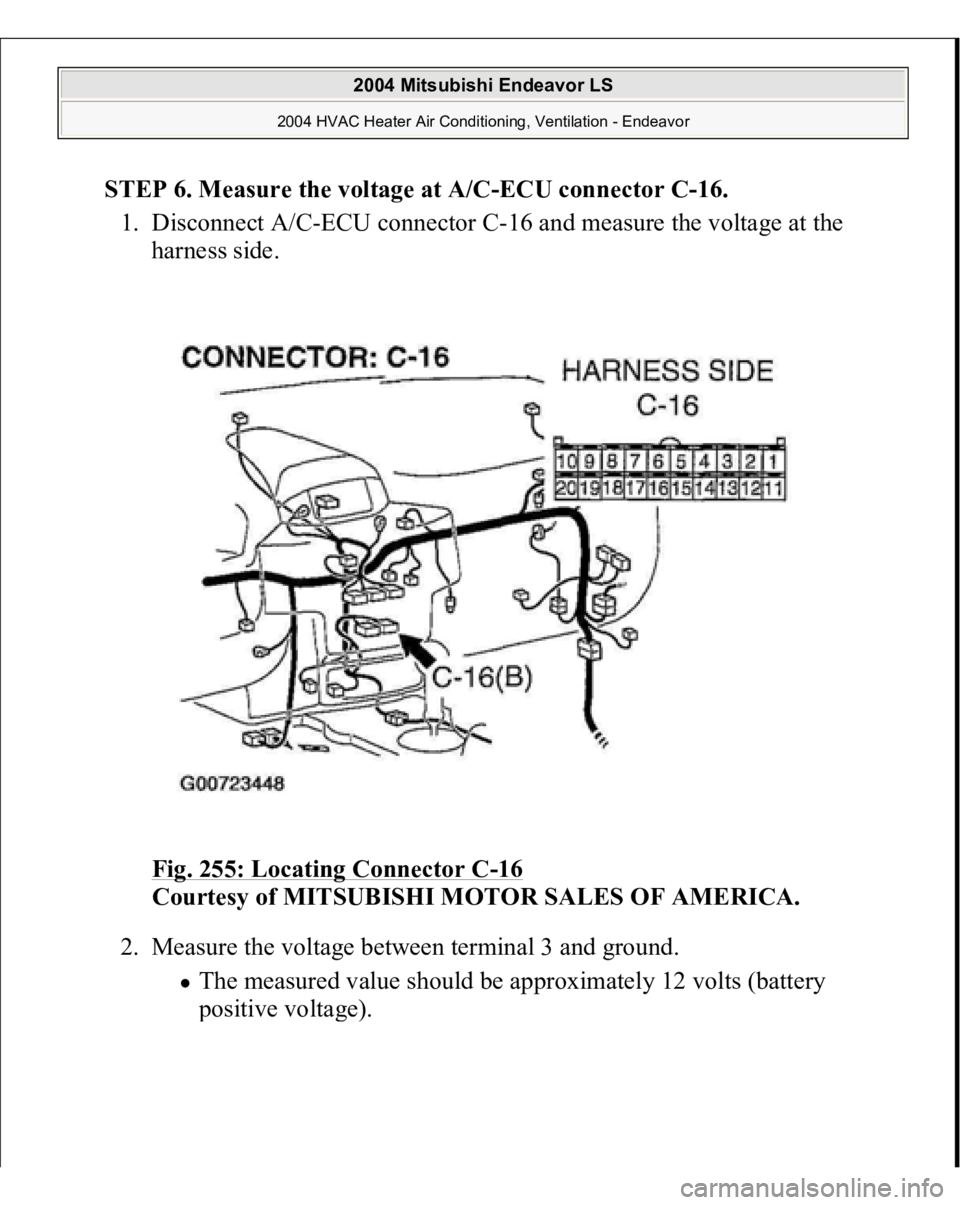

MITSUBISHI ENDEAVOR 2004 Service Repair Manual STEP 6. Measure the voltage at A/C-ECU connector C-16. 1. Disconnect A/C-ECU connector C-16 and measure the voltage at the harness side. Fig. 255: Locating Connector C -16 Courtesy of MITSUBISHI

Page 2347 of 3870

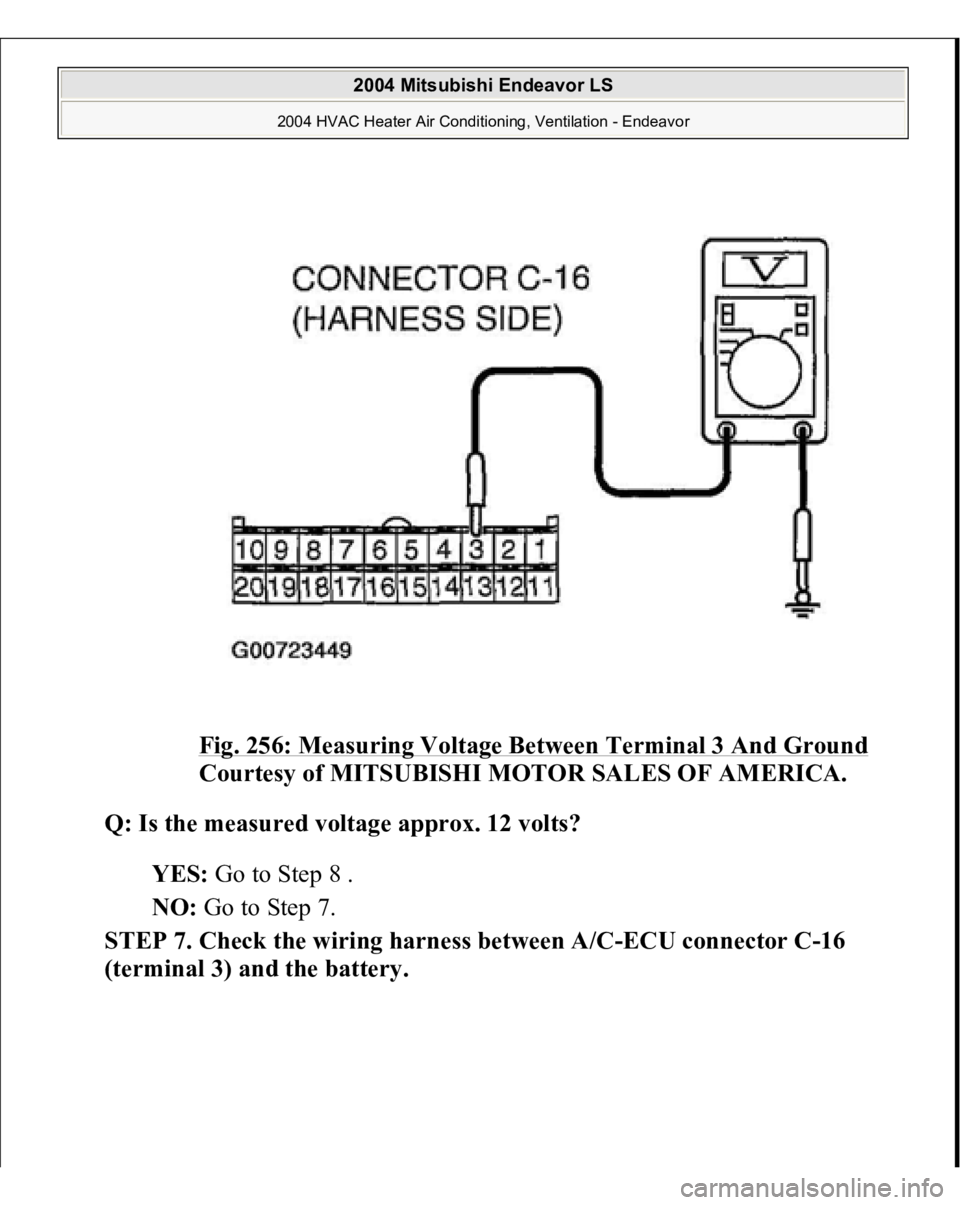

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 256: Measuring Voltage Between Terminal 3 And Ground Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Is the measured voltage approx. 12 volts? YES: Go to Step 8 . NO: Go to Step 7.

Page 2348 of 3870

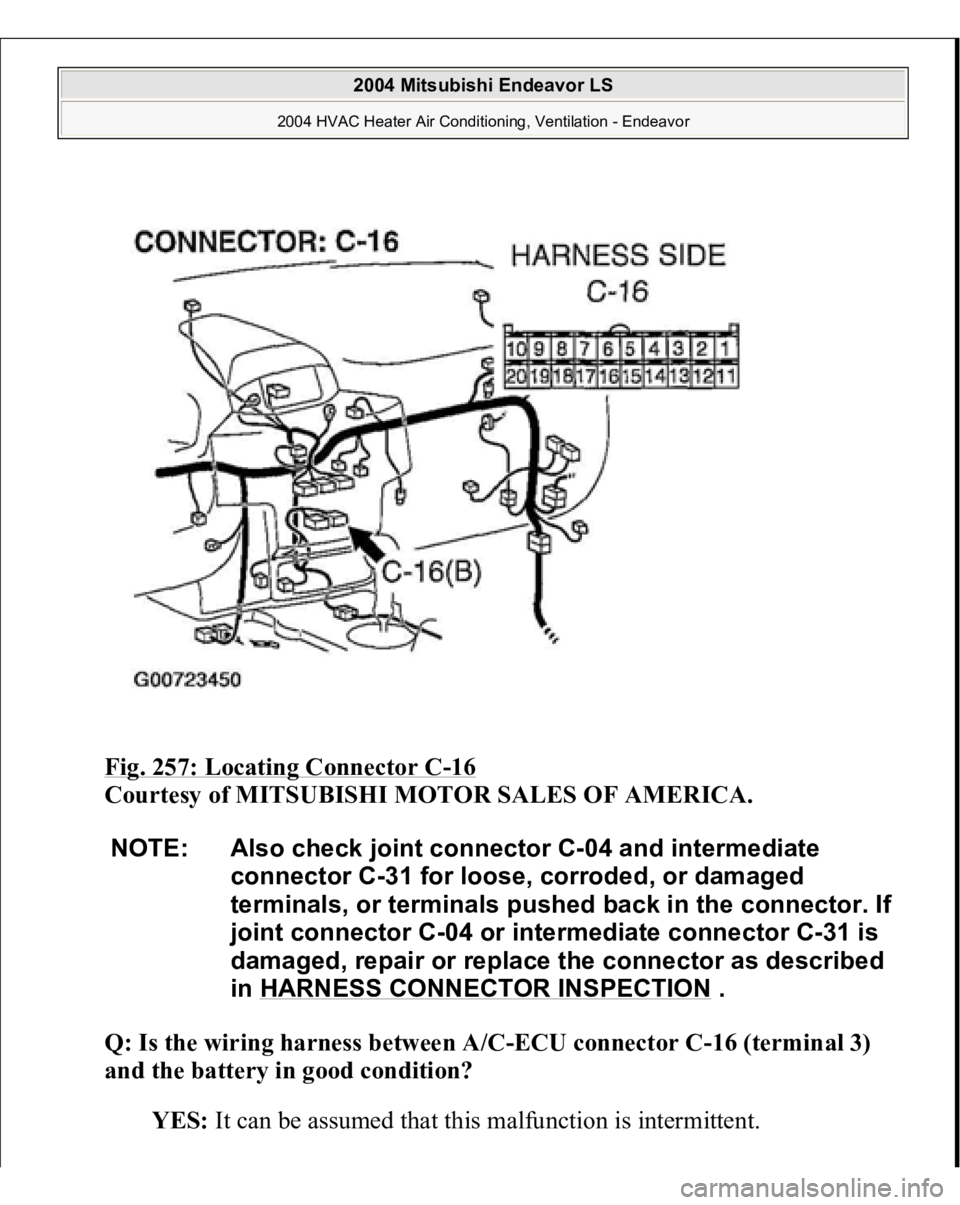

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 257: Locating Connector C -16 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Is the wiring harness between A/C-ECU connector C-16 (terminal 3) and the battery in good condition? YES: I

Page 2349 of 3870

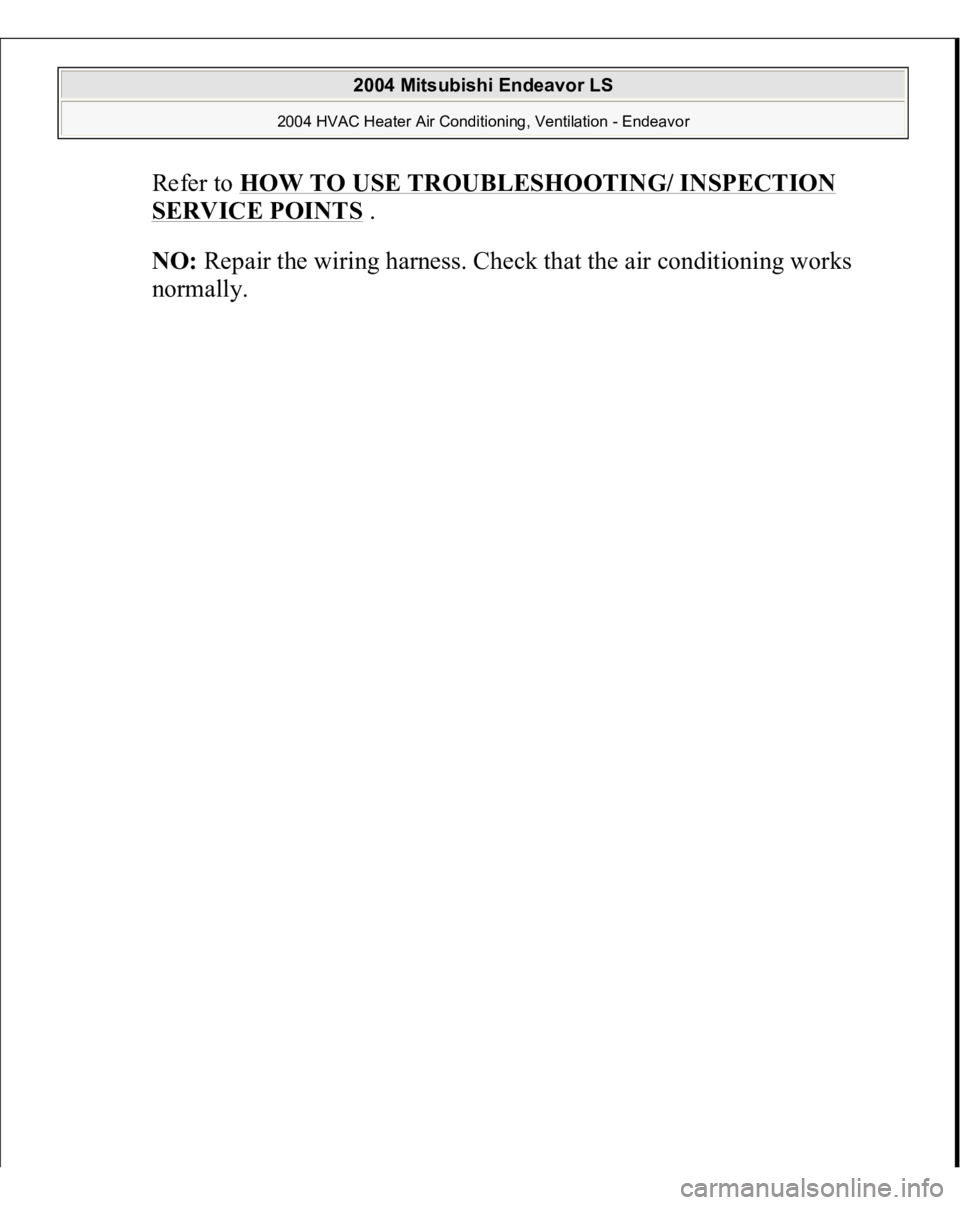

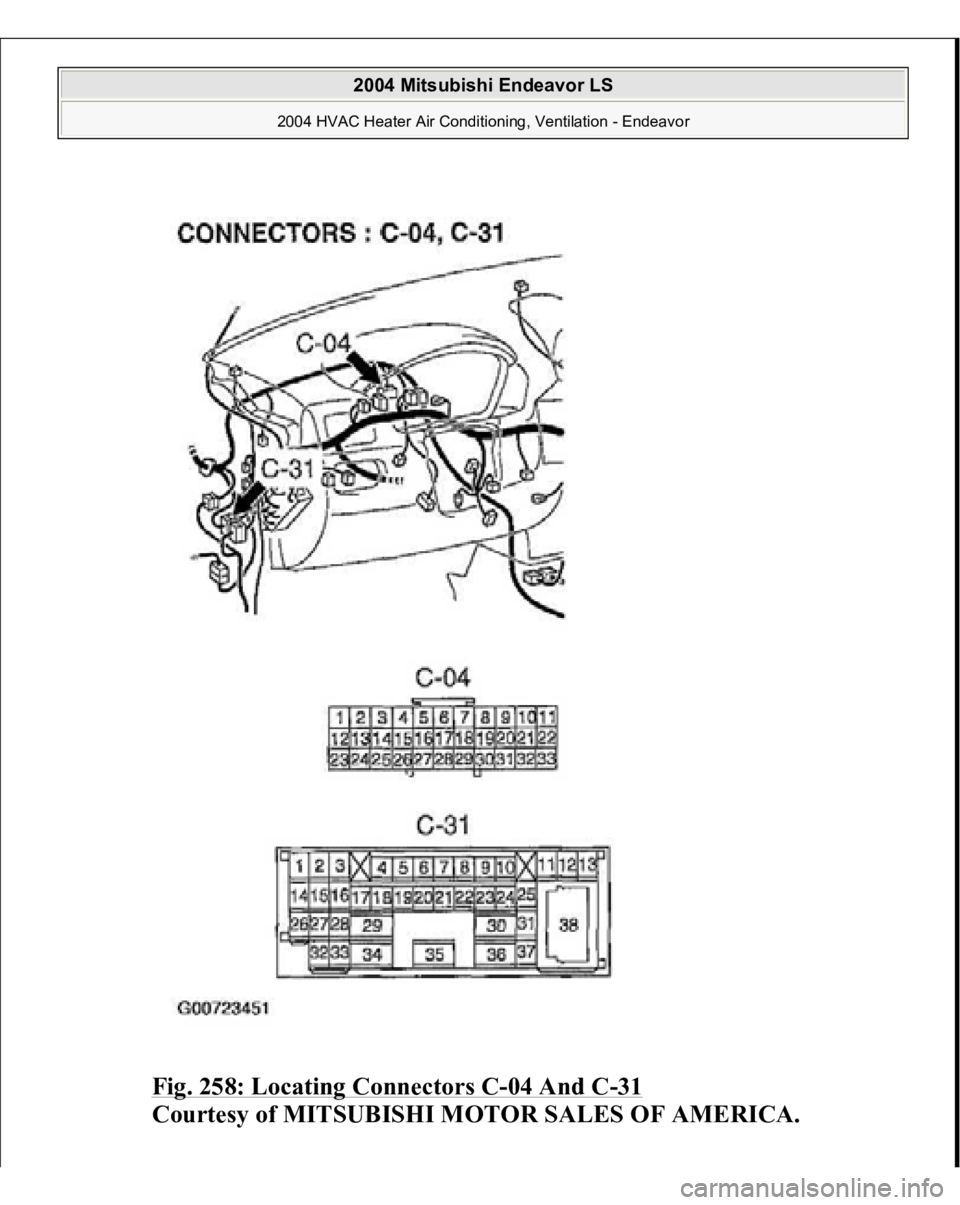

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Refer to HOW TO USE TROUBLESHOOTING/ INSPECTION SERVICE POINTS . NO: Repair the wiring harness. Check that the air conditioning works normall y. 2004 Mitsubishi Endeavor LS 2004 HVAC Heater

Page 2350 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 258: Locating Connectors C -04 And C -31 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Page 2351 of 3870

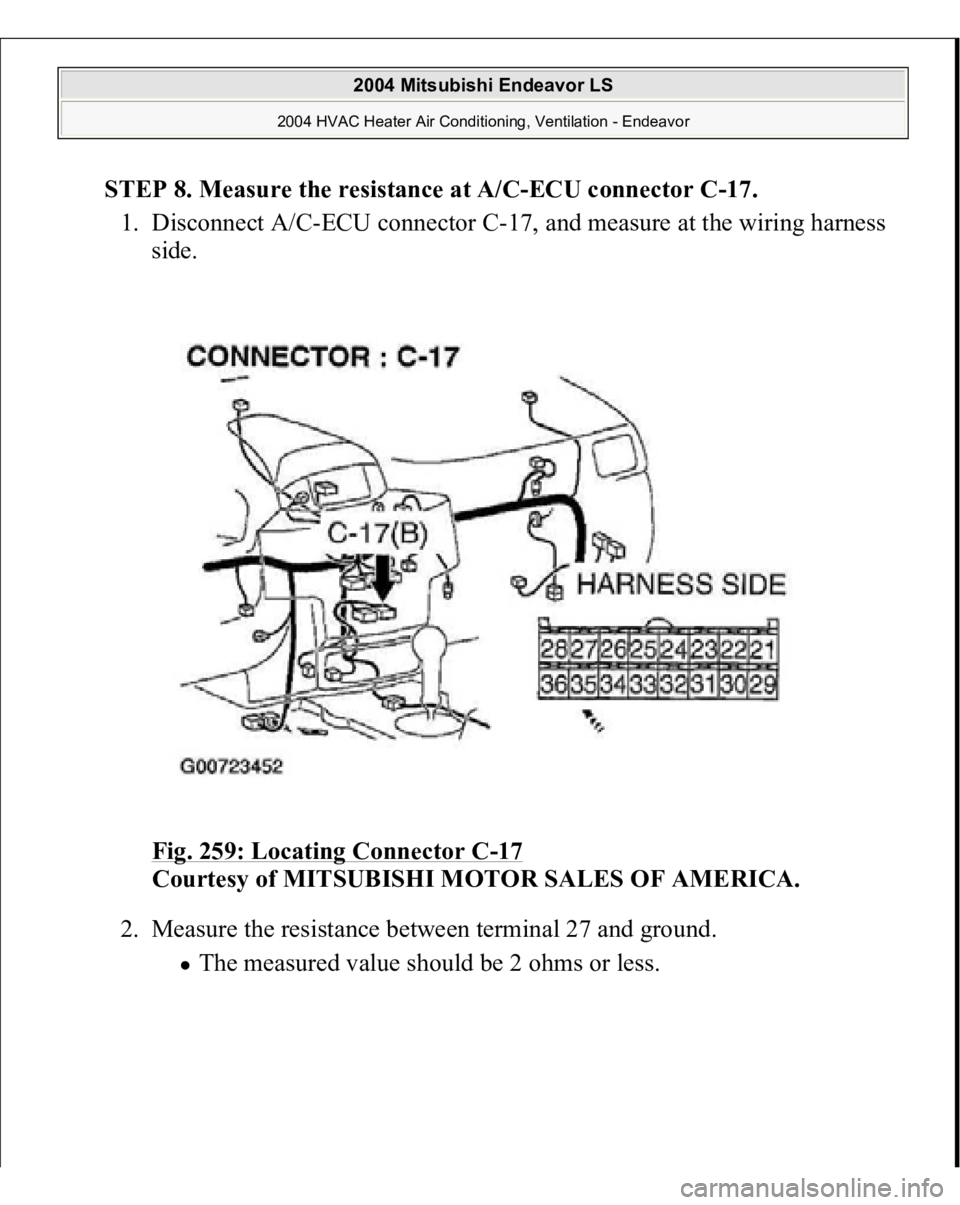

MITSUBISHI ENDEAVOR 2004 Service Repair Manual STEP 8. Measure the resistance at A/C-ECU connector C-17. 1. Disconnect A/C-ECU connector C-17, and measure at the wiring harness side. Fig. 259: Locating Connector C -17 Courtesy of MITSUBISHI M

Page 2352 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 260: Measuring Resistance Between Terminal 27 And Ground Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Does the measured resistance value correspond with this range? YES: Replace the
