Page 2321 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . STEP 12. Check the wiring harness between defogger relay connector C- 201 (terminal 4) and defogger connector F-01 (terminal 1). NOTE: Also check jun

Page 2322 of 3870

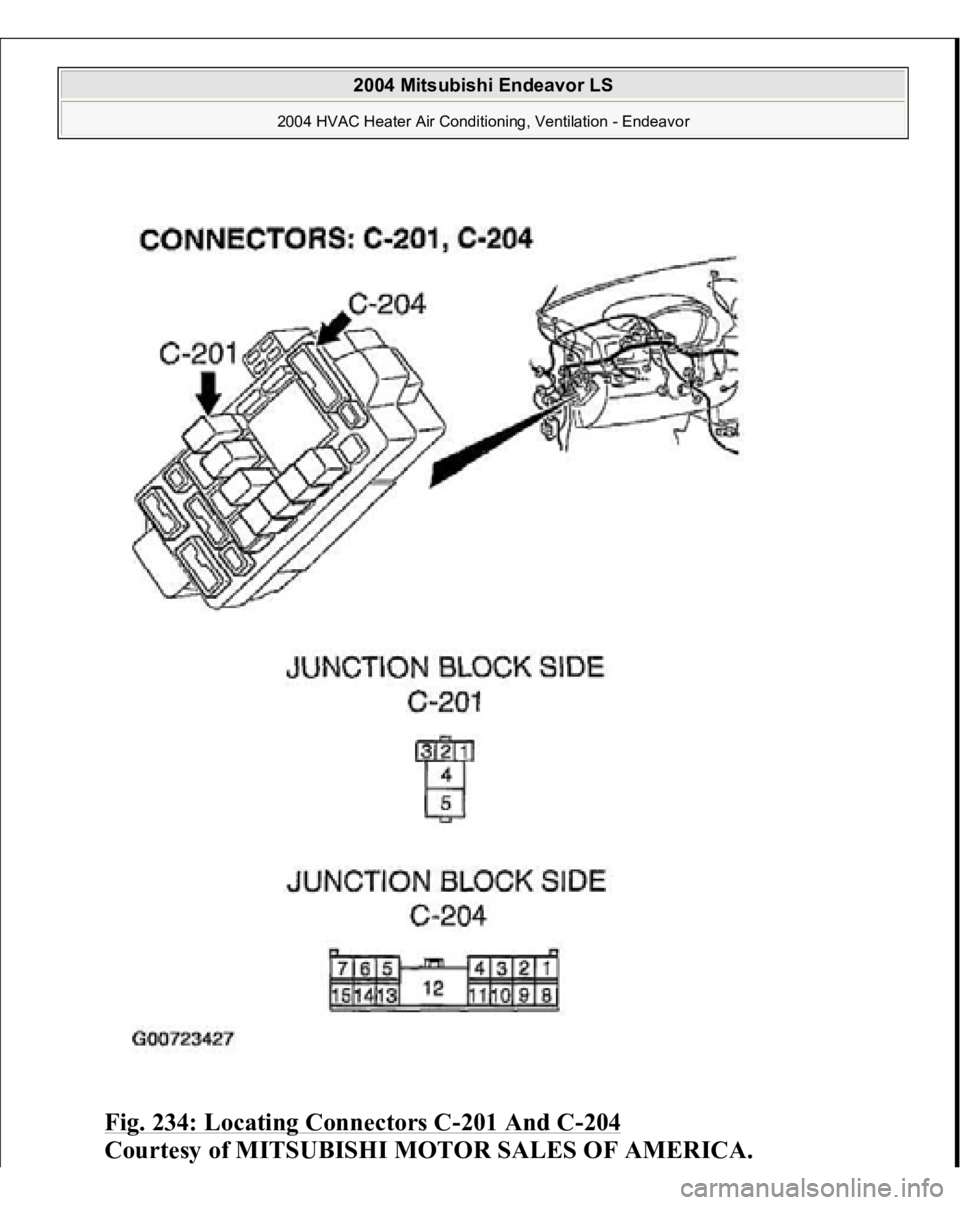

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 234: Locating Connectors C -201 And C -204 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Page 2323 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Q: Is the wiring harness between defogger relay connector C-201 (terminal 4) and defogger connector F-01 (terminal 1) in good condition? YES: Replace the A/C-ECU. The defogger should operate norm

Page 2324 of 3870

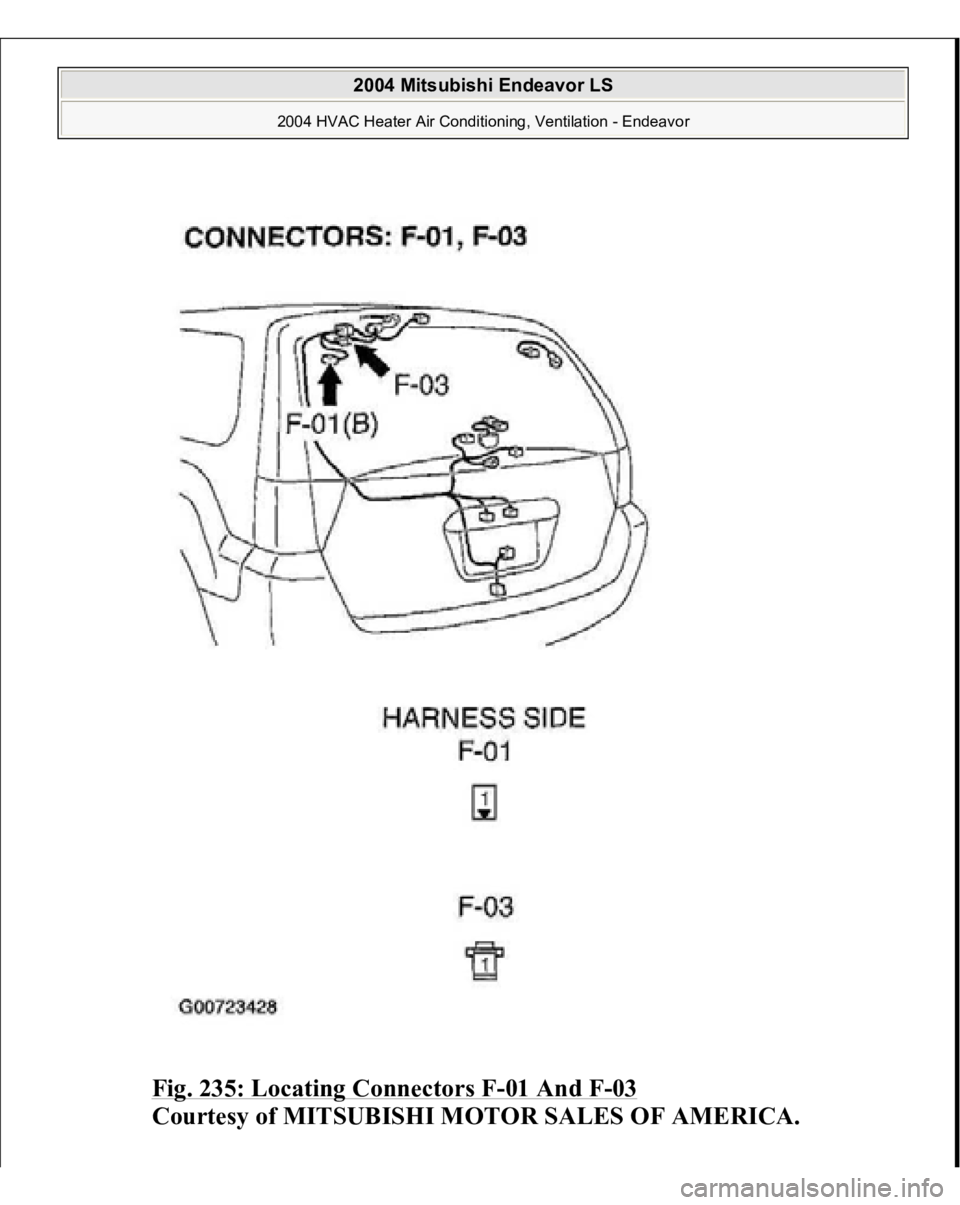

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 235: Locating Connectors F -01 And F -03 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Page 2325 of 3870

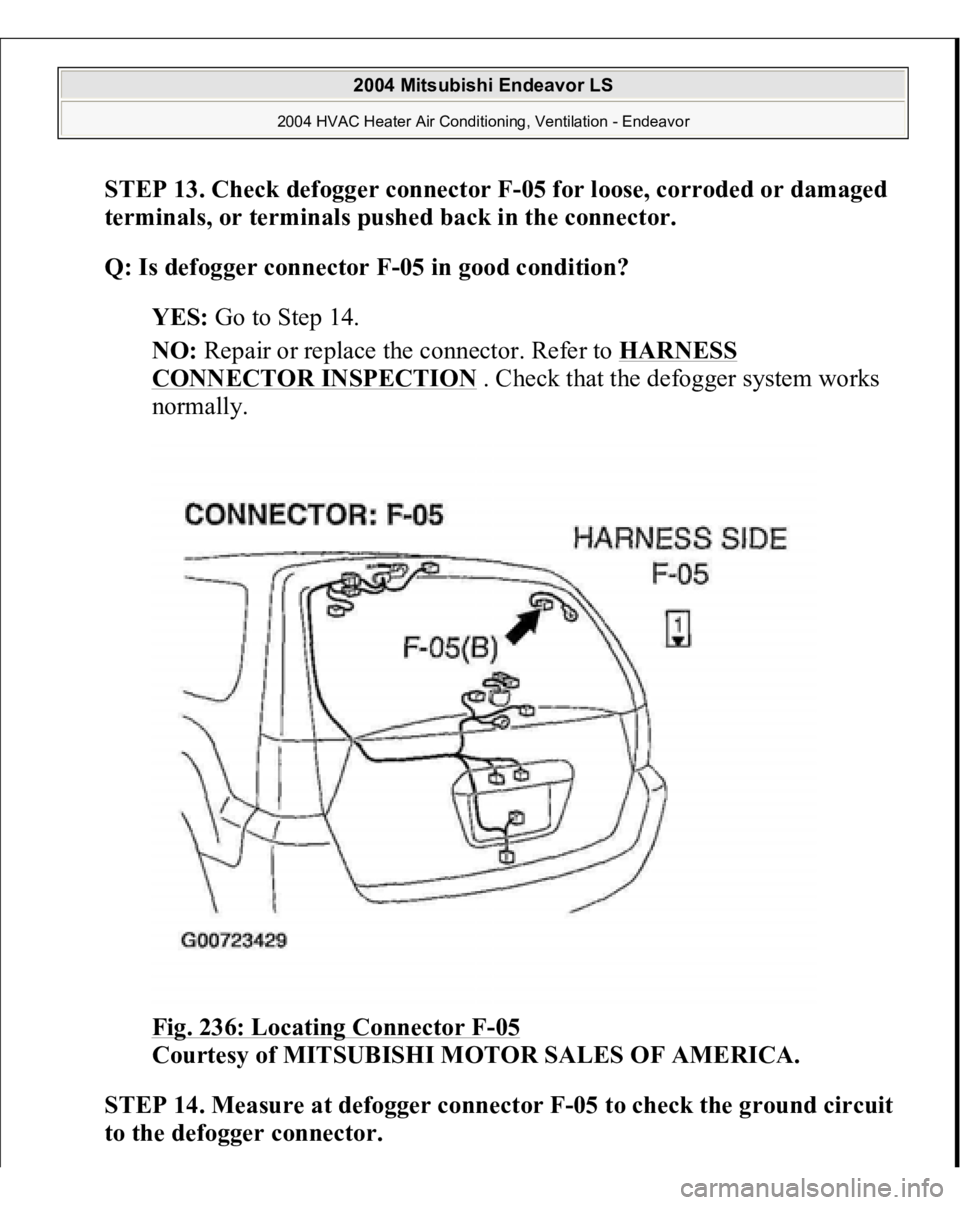

MITSUBISHI ENDEAVOR 2004 Service Repair Manual STEP 13. Check defogger connector F-05 for loose, corroded or damaged terminals, or terminals pushed back in the connector. Q: Is defogger connector F-05 in good condition? YES: Go to Step 14.

Page 2326 of 3870

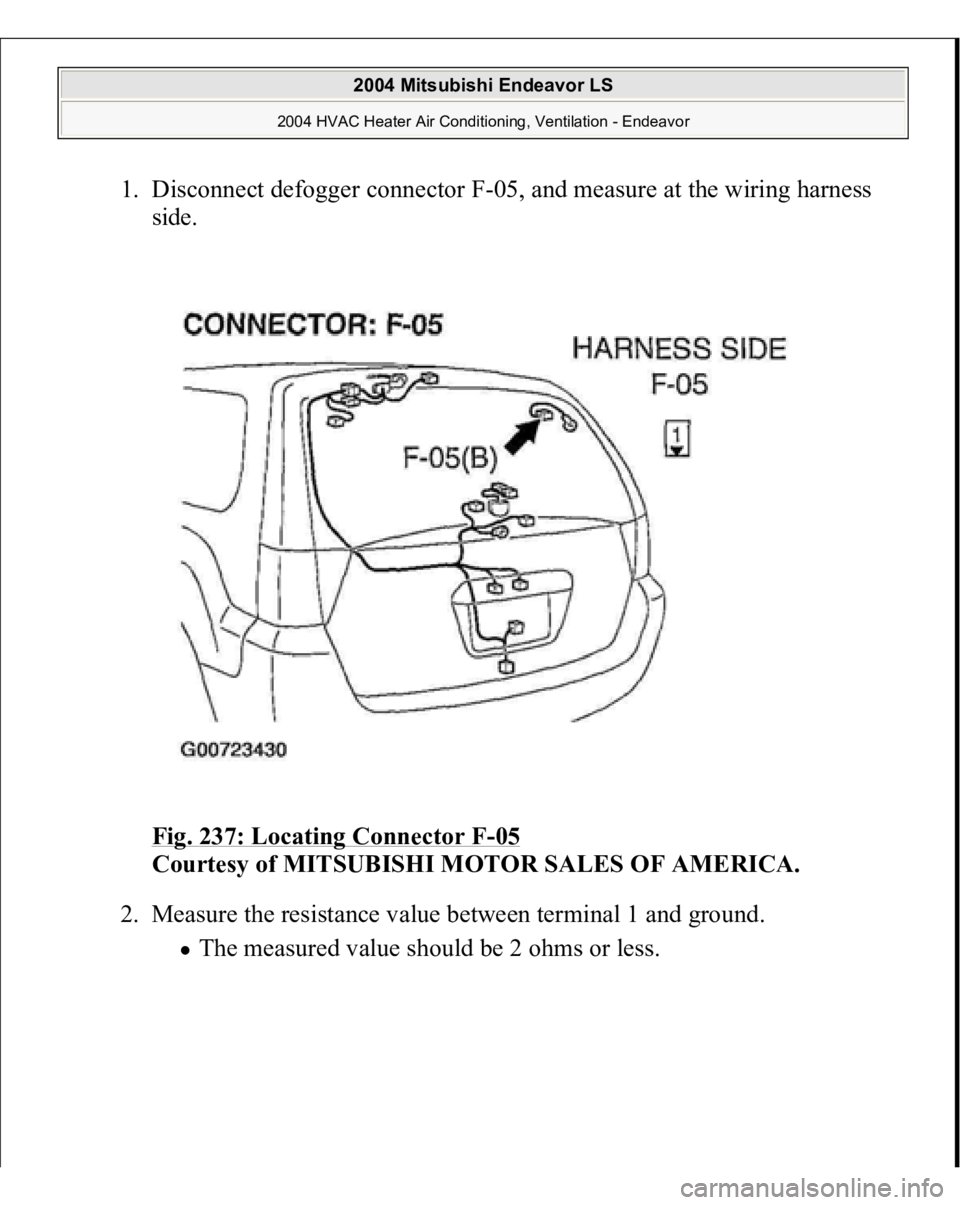

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 1. Disconnect defogger connector F-05, and measure at the wiring harness side. Fig. 237: Locating Connector F -05 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2. Measure the resistance value be

Page 2327 of 3870

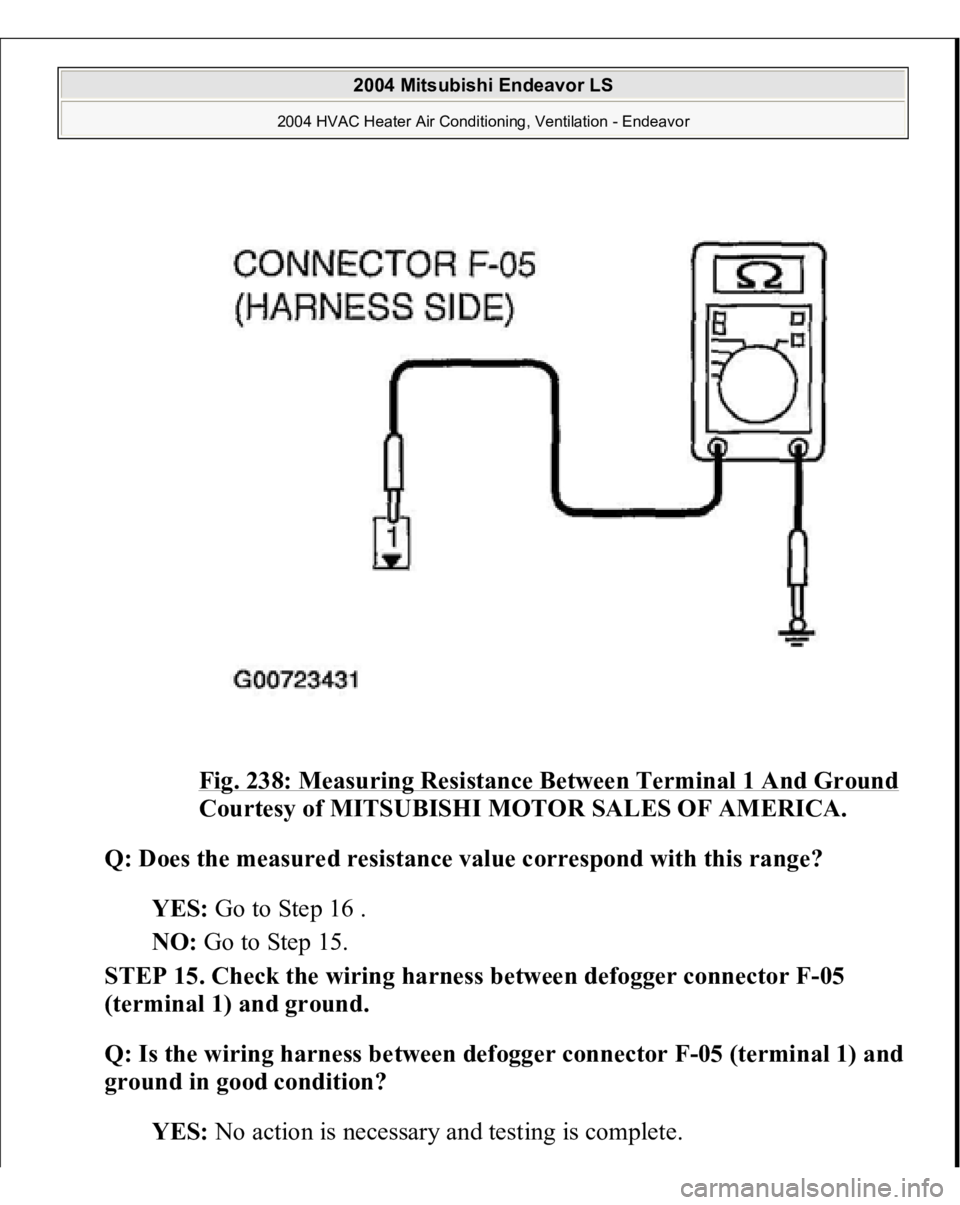

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 238: Measuring Resistance Between Terminal 1 And GroundCourtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Does the measured resistance value correspond with this range? YES: Go to Step 16 .

Page 2328 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual NO: Repair or replace the wiring harness. Refer to HARNESS CONNECTOR INSPECTION . Check that the defogger system works normally. Fig. 239: Locating Connector F -05 Courtesy of MITSUBISHI MOTOR
