Page 1177 of 3870

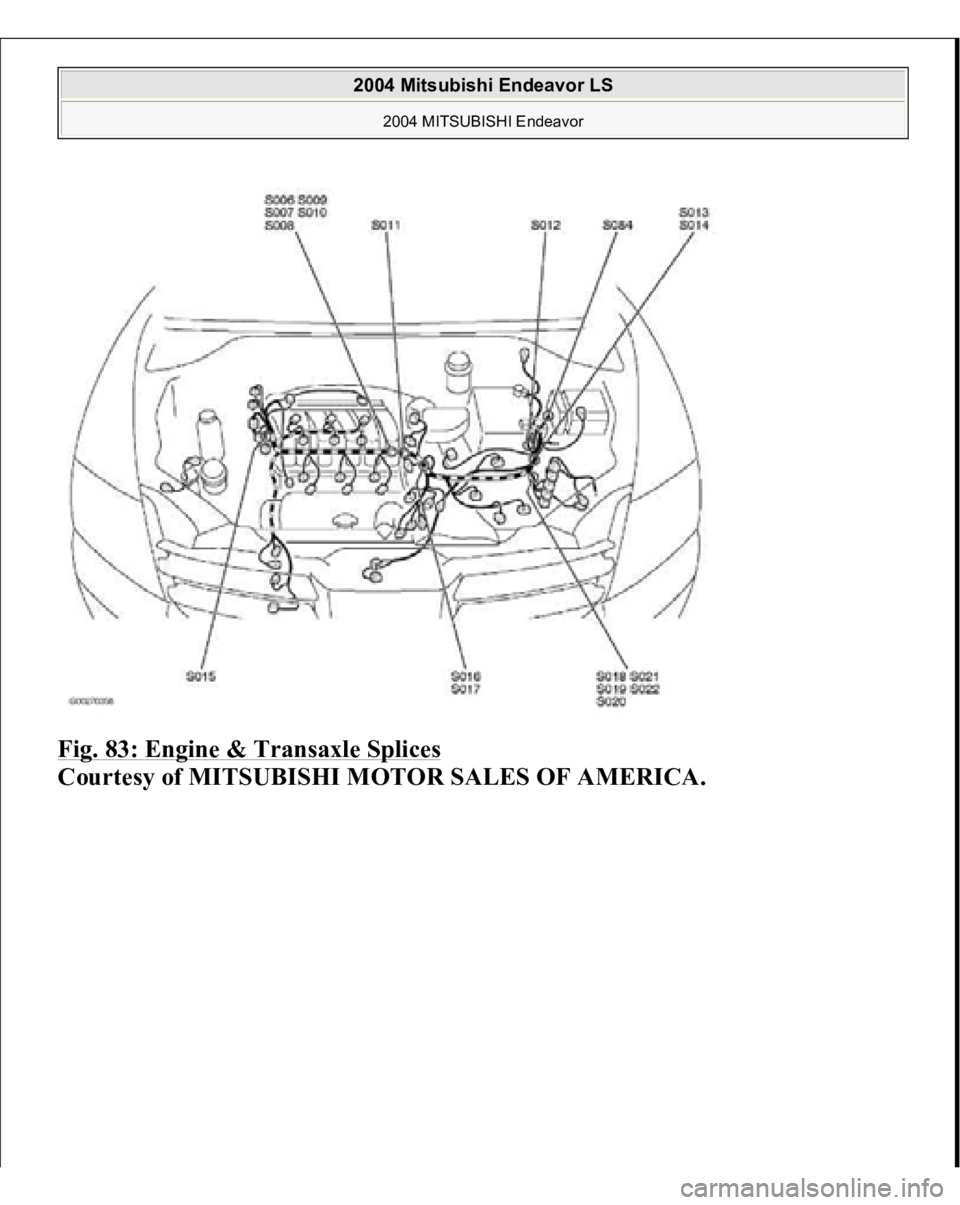

Fig. 83: Engine & Transaxle Splices
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2004 Mitsubishi Endeavor LS
2004 MITSUBISHI Endeavor
Page 1178 of 3870

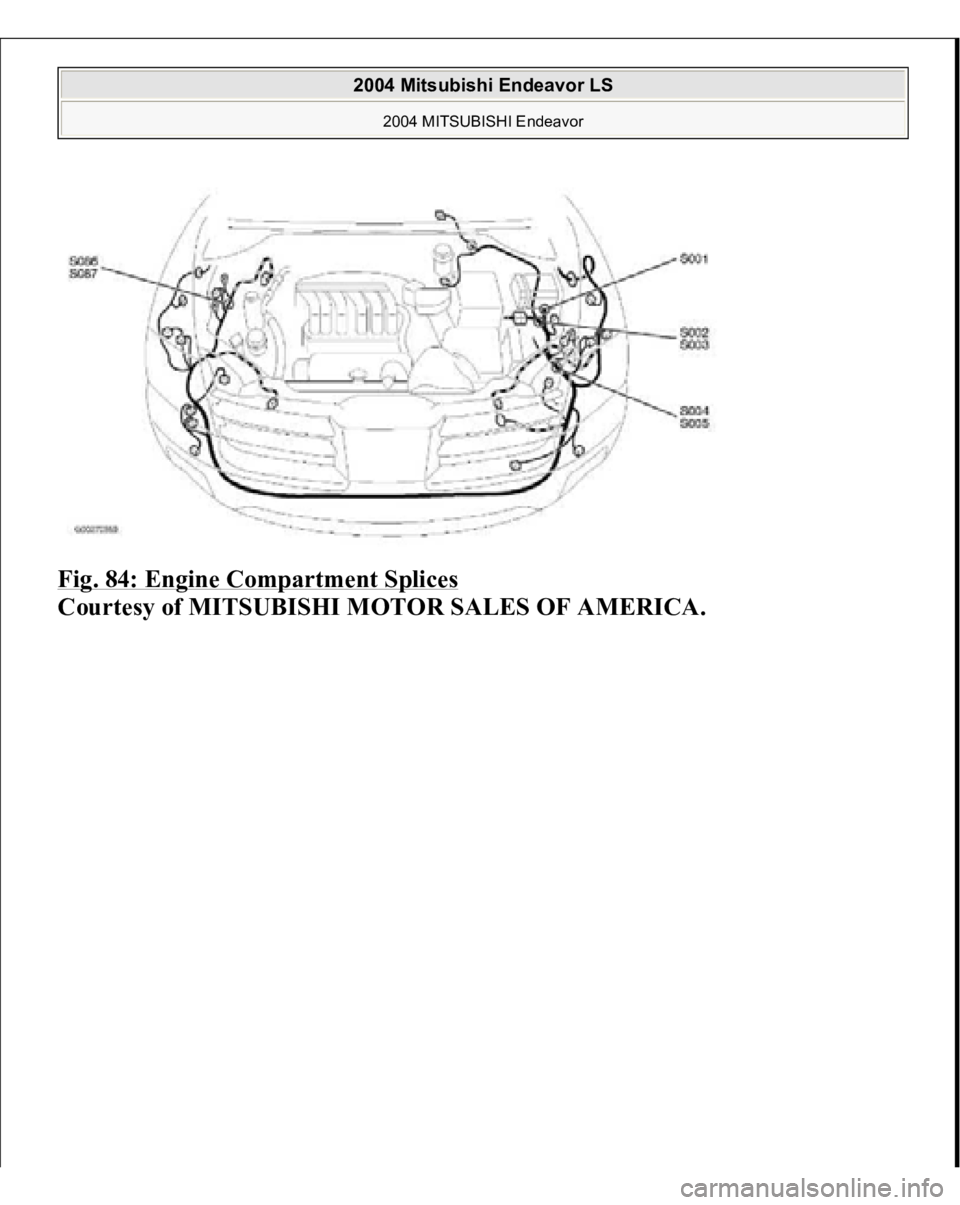

Fig. 84: Engine Compartment Splices
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2004 Mitsubishi Endeavor LS
2004 MITSUBISHI Endeavor
Page 1179 of 3870

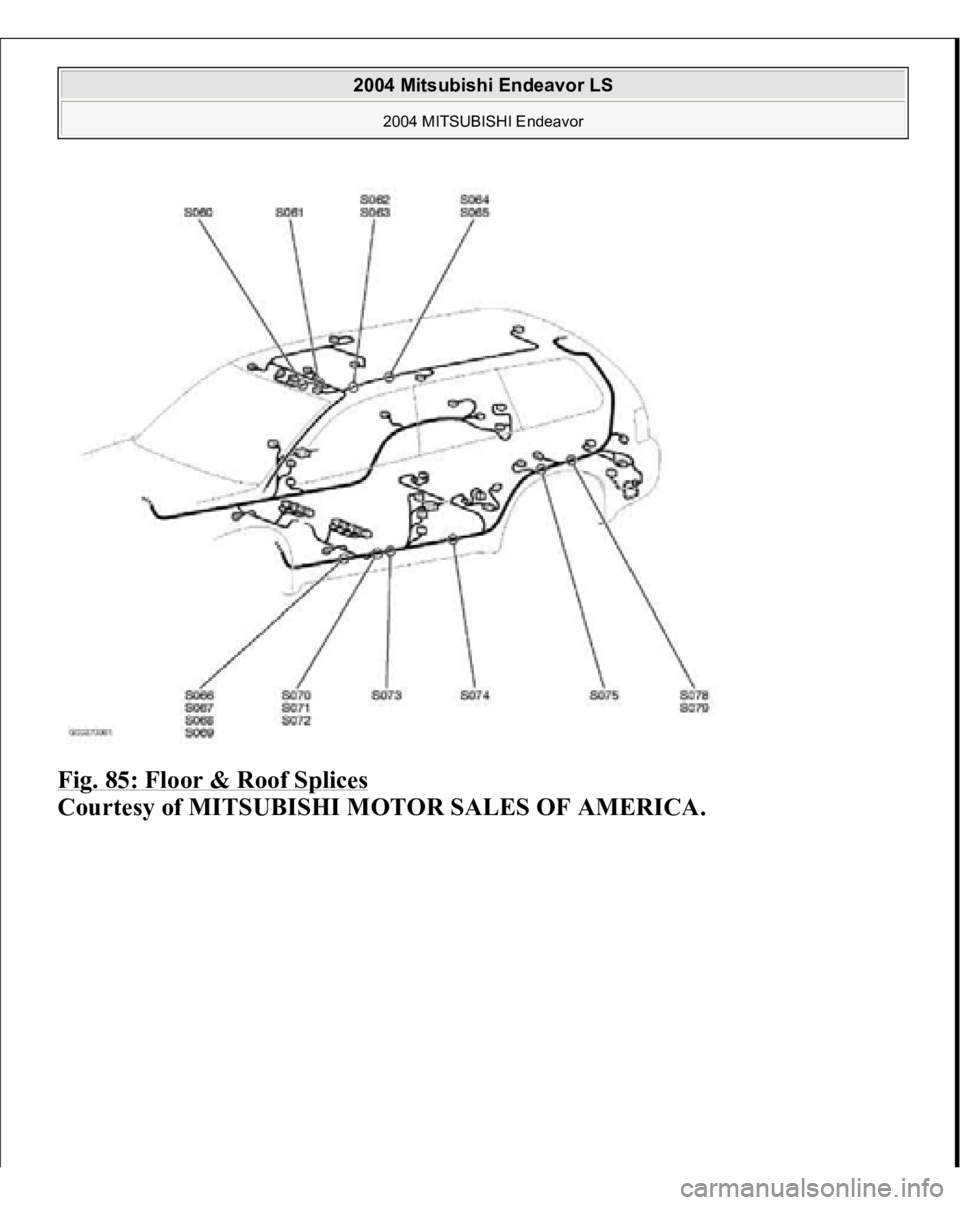

Fig. 85: Floor & Roof Splices
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2004 Mitsubishi Endeavor LS
2004 MITSUBISHI Endeavor
Page 1180 of 3870

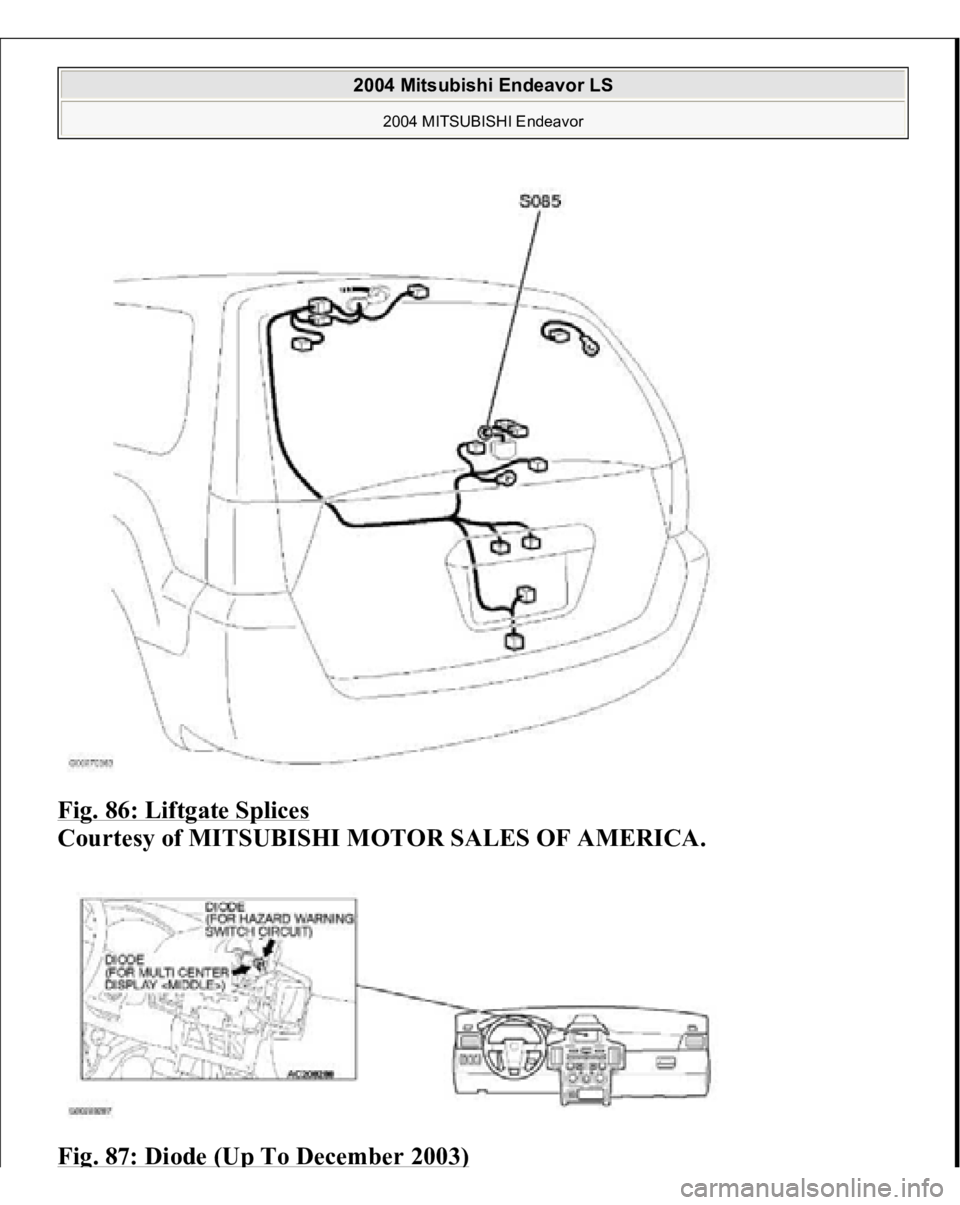

Fig. 86: Liftgate Splices
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fi
g. 87: Diode
(Up To December 2003
)
2004 Mitsubishi Endeavor LS
2004 MITSUBISHI Endeavor
Page 1181 of 3870
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.
Fig. 88: Liftgate
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2004 Mitsubishi Endeavor LS
2004 MITSUBISHI Endeavor
Page 1182 of 3870

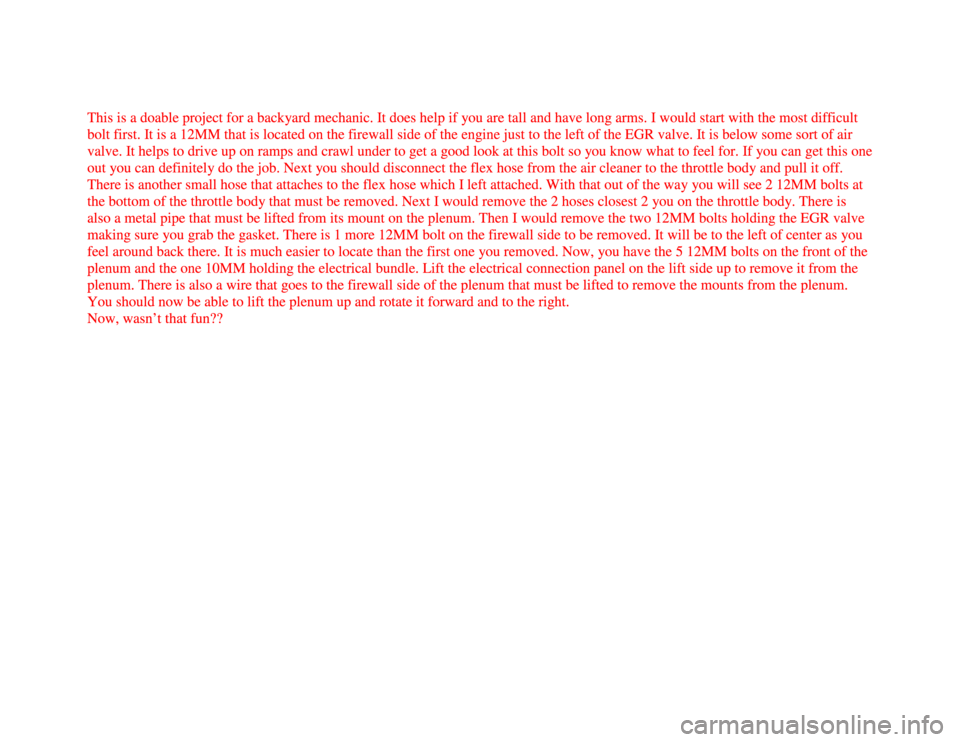

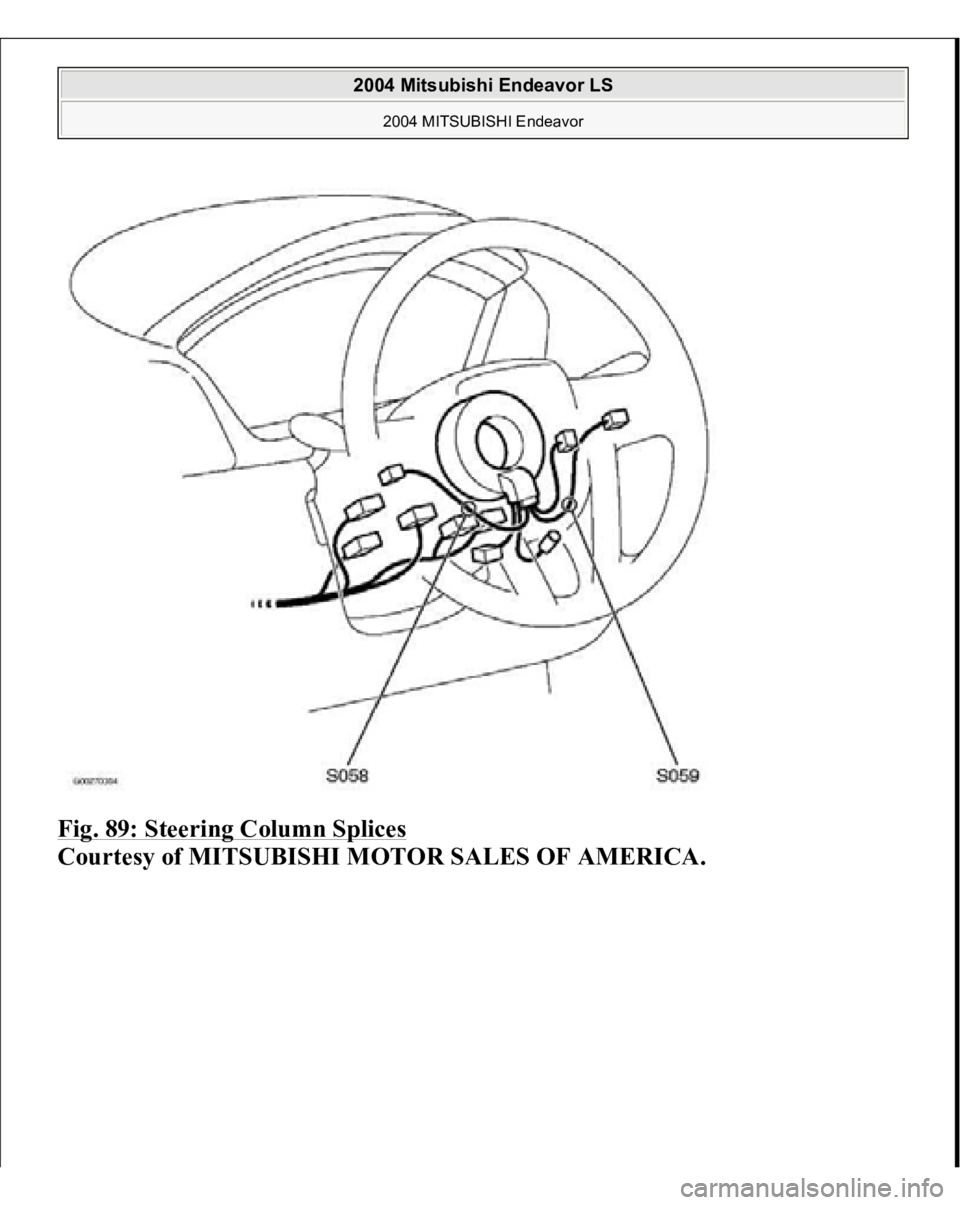

Fig. 89: Steering Column Splices
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2004 Mitsubishi Endeavor LS
2004 MITSUBISHI Endeavor
Page 1183 of 3870

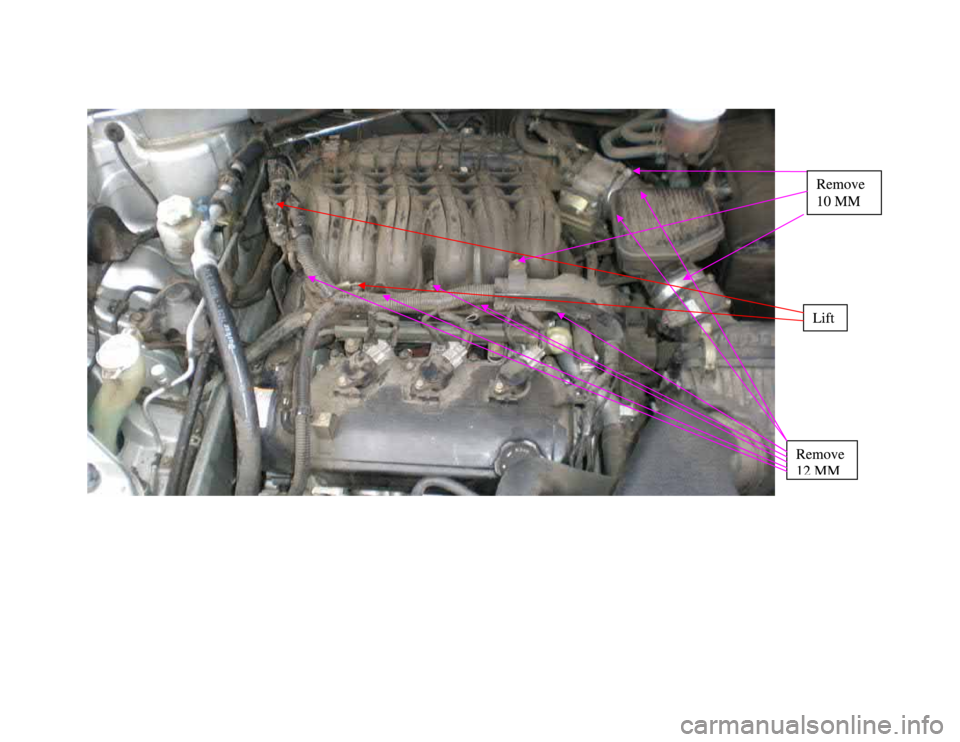

Page 1184 of 3870
