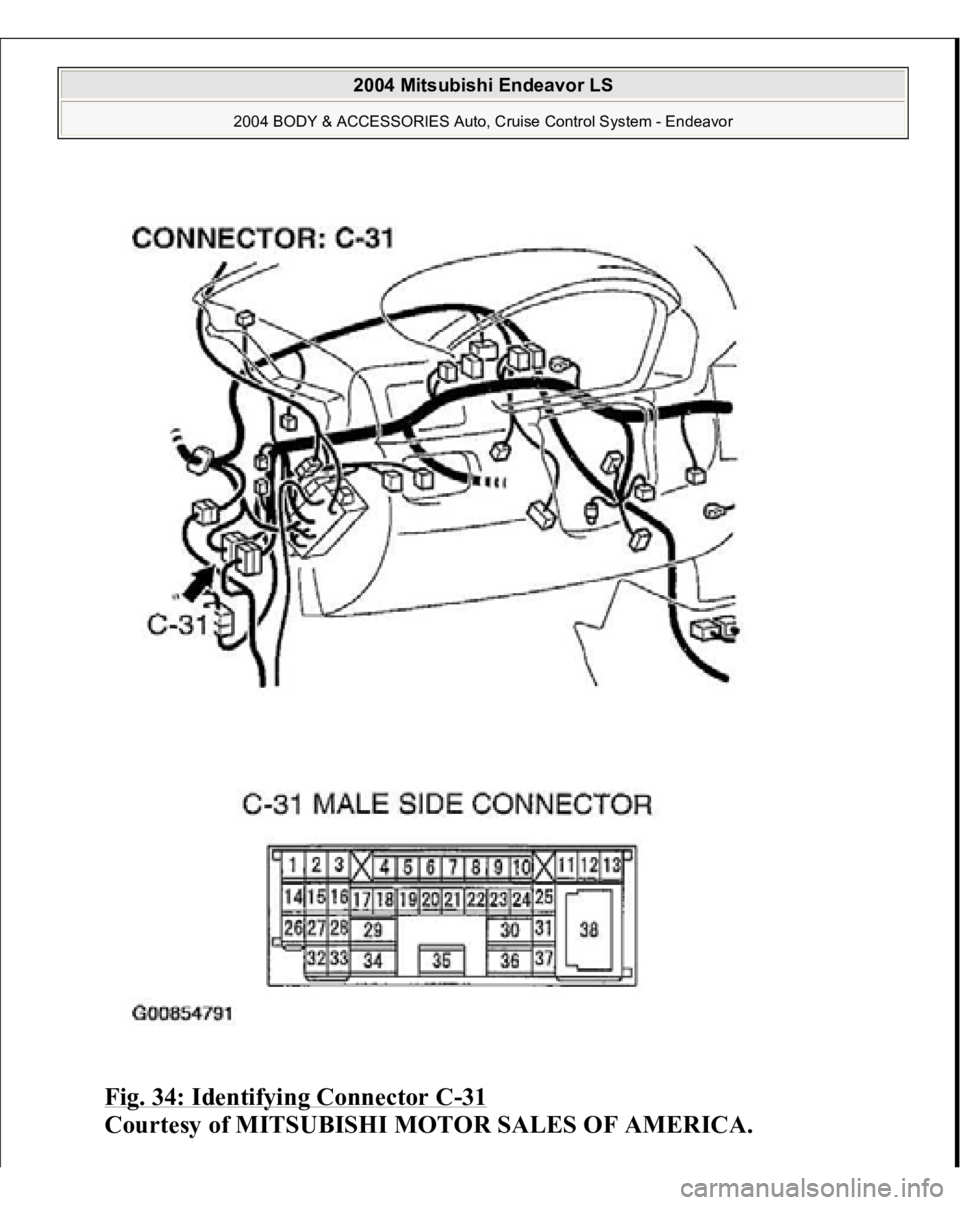

Fig. 34: Identifying Connector C
-31
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor
Page 866 of 3870
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor
Page 867 of 3870

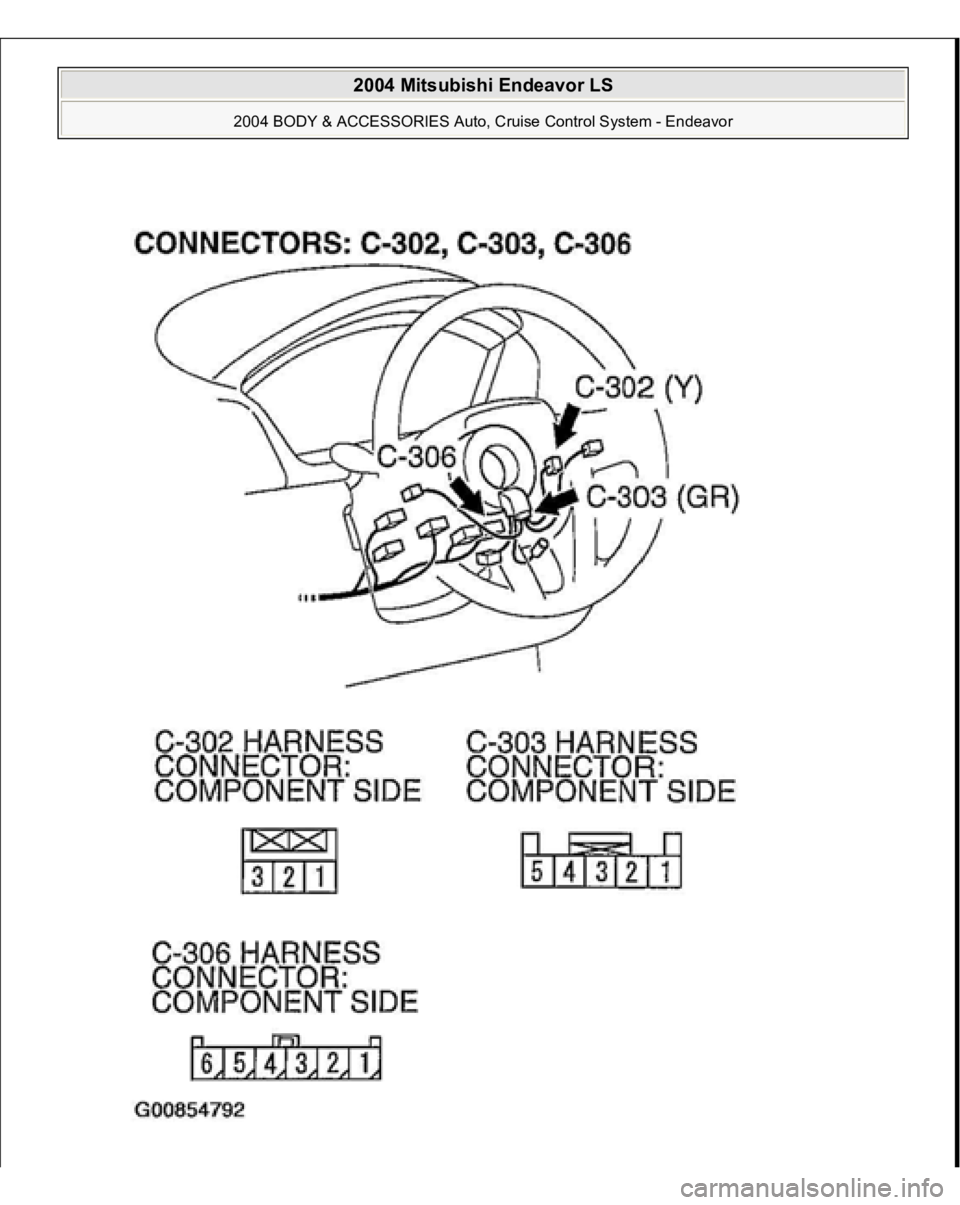

Fig. 35: Identifying Connectors C
-302, C
-303, C
-306
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Are the connectors and terminals in good condition?
YES : Go to Step 13.
NO : Repair or replace the faulty connector and install the air bag module
(driver's side). (Refer to DRIVER
-SIDE AIR BAG MODULE &
CLOCKSPRING
). Then go to Step 18 .
STEP 13. Check the harness wire between PCM connector B-19 terminal
28 and auto-cruise control switch connector C-302 terminal 3 for damage.
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor
Page 868 of 3870

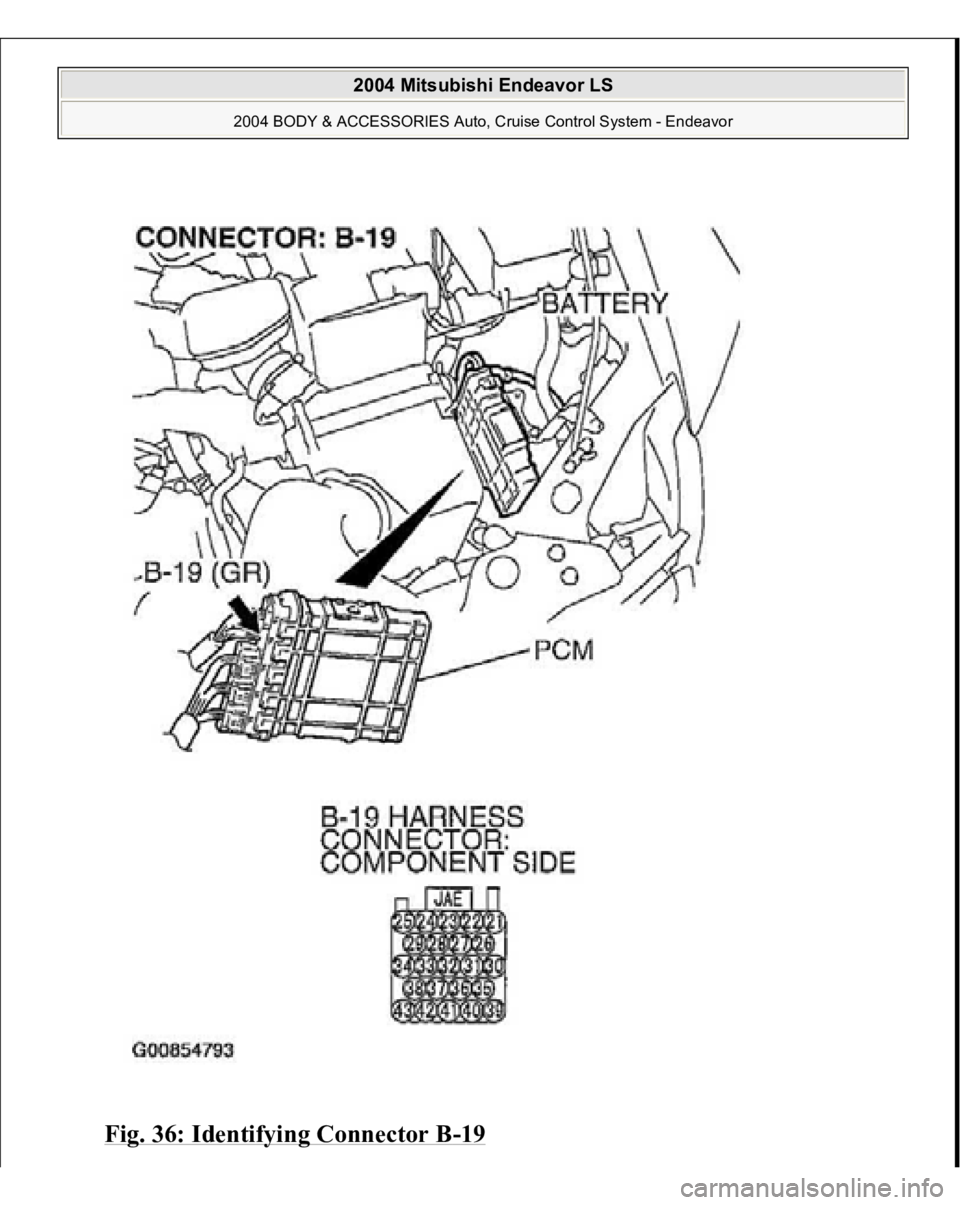

Fig. 36: Identifying Connector B
-19
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor
Page 869 of 3870
Courtes
y of MITSUBISHI MOTOR SALES OF AMERICA
.
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor
Page 870 of 3870
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor
Page 871 of 3870

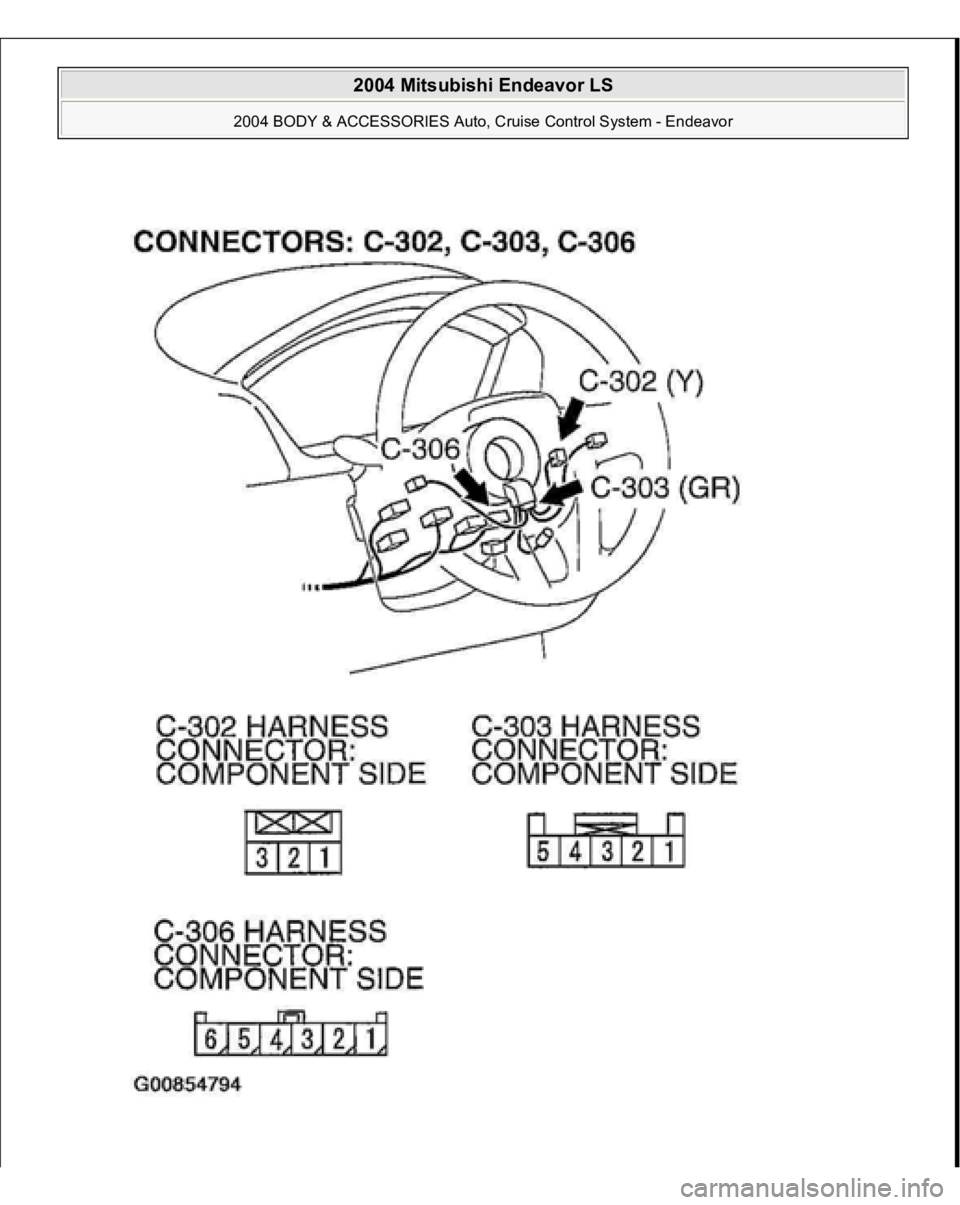

Fig. 37: Identifying Connectors C
-302, C
-303, C
-306
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the harness wire in good condition?
YES : Go to Step 14.
NO : Repair the damaged harness wire, and install the air bag module
(driver's side). (Refer to DRIVER
-SIDE AIR BAG MODULE &
CLOCKSPRING
). Then go to Step 18 .
STEP 14. Check the clock spring.
Refer to DRIVER
-SIDE AIR BAG MODULE & CLOCKSPRING
.
Q: Is the clock spring in good condition?
YES : It can be assumed that this malfunction is intermittent. (Refer to
HOW TO COPE WITH INTERMITTENT MALFUNCTIONS ).
Install the air bag module (driver's side). (Refer to DRIVER
-SIDE AIR
BAG MODULE & CLOCKSPRING
). Then go to Step 18 .
NO : Replace the clock spring and install the air bag module (driver's
side). (Refer to DRIVER
-SIDE AIR BAG MODULE &
CLOCKSPRING
). Then go to Step 18 .
STEP 15. Check PCM connector B-19 for loose, corroded or damaged
terminals, or terminals pushed back in the connector.
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor
Page 872 of 3870

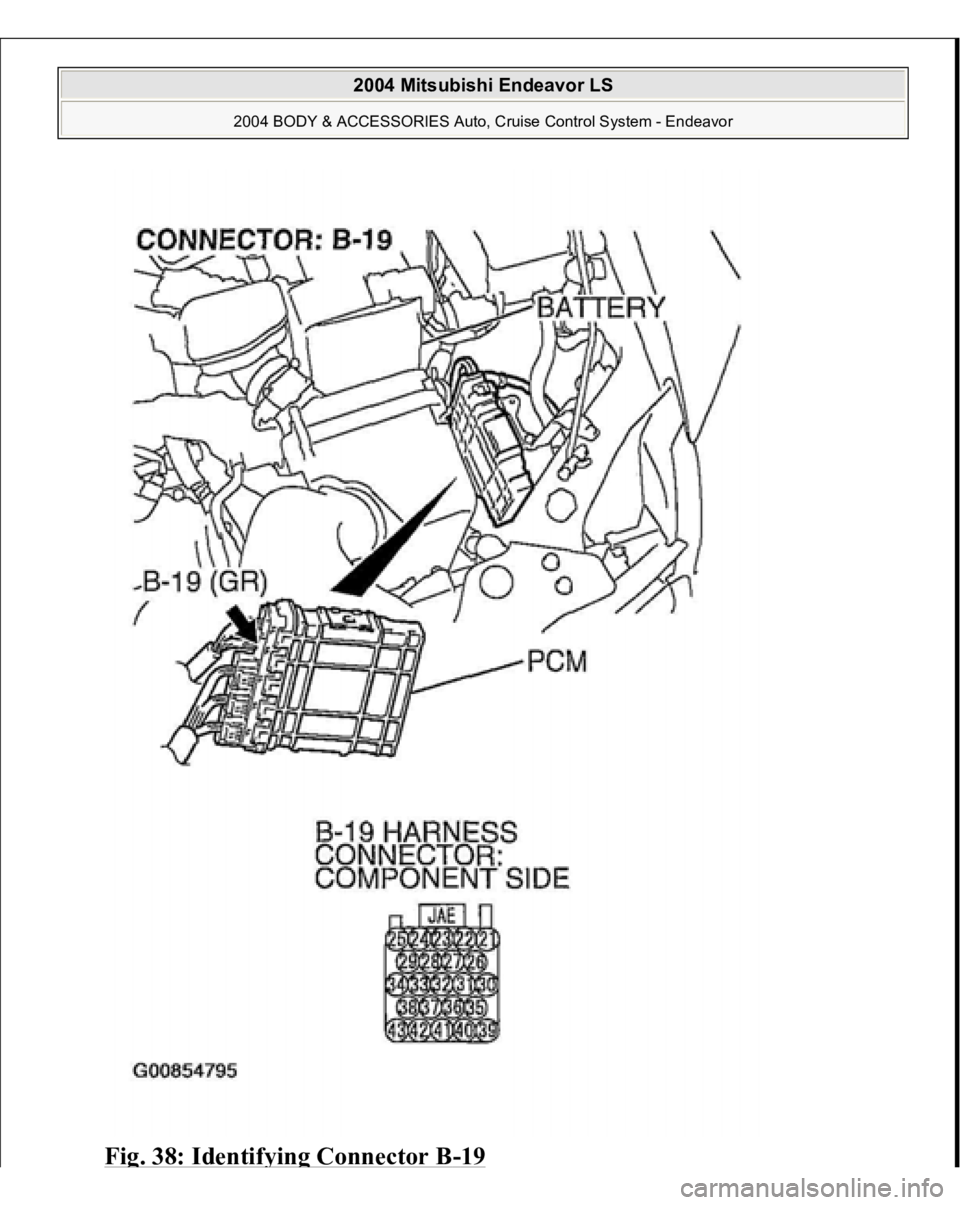

Fig. 38: Identif
ying Connector
B-19
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor
