Page 1017 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 13: Identifying Run Channel, Lower Sash And Door Sas h Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 5. If repair or adjustment is not possible, replace the door assembly. POWER WINDOW TIMER

Page 1018 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 14: Checking Power Window Fuse Voltage Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. POWER WINDOW RELAY CHECK POWER WINDOW RELAY CHECK SPECIFICATION BATTERY VOLTAGE TESTER CONNECTION SPECIFIE

Page 1019 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual terminal. 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Door - Endeavor

Page 1020 of 3870

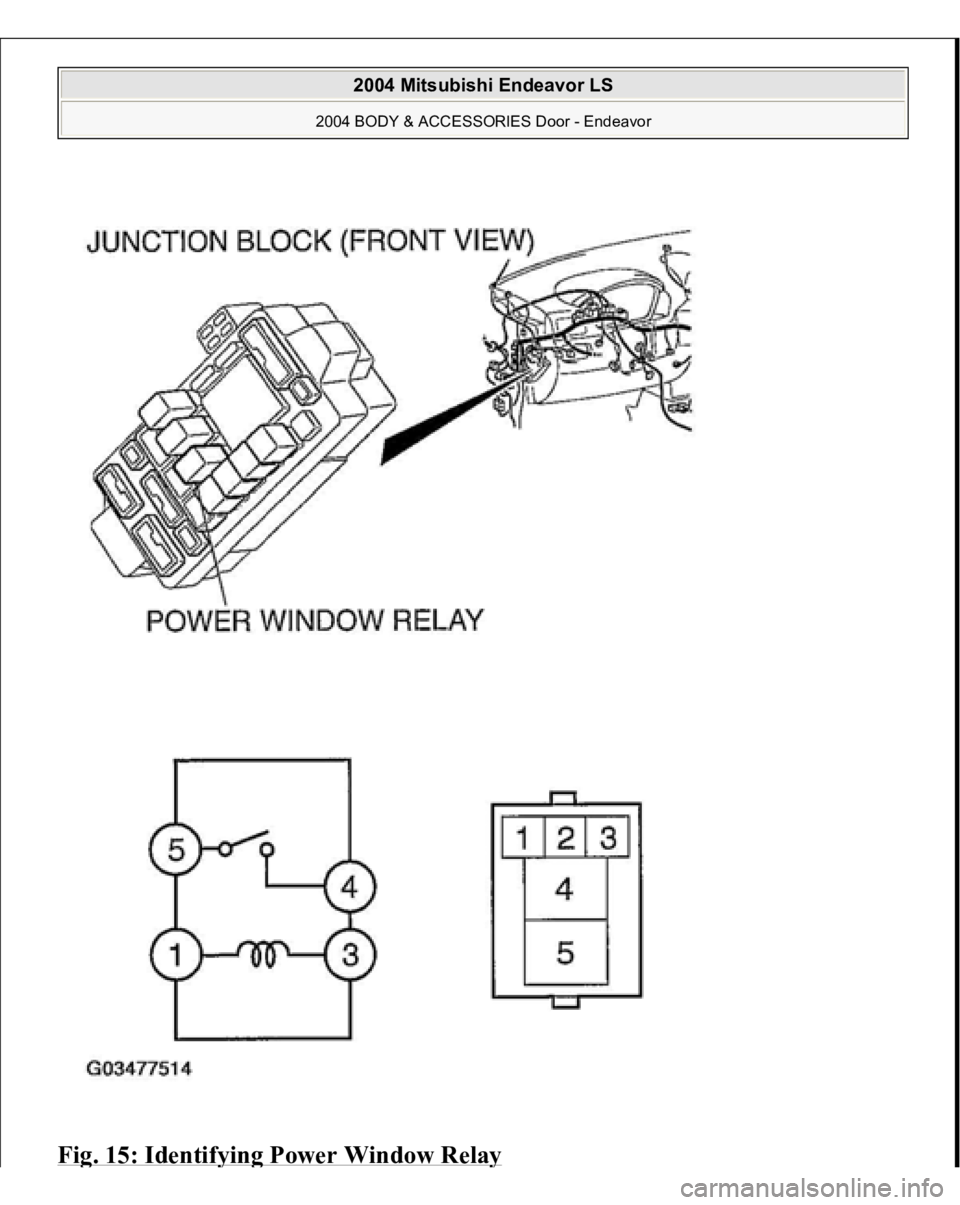

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 15: Identif ying Power Window Rela y 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Door - Endeavor

Page 1021 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . CIRCUIT BREAKER (INCORPORATED IN THE POWER WINDOW MOTOR) INSPECTION 1. Pull the power window switch to the UP position to fully close the door window

Page 1022 of 3870

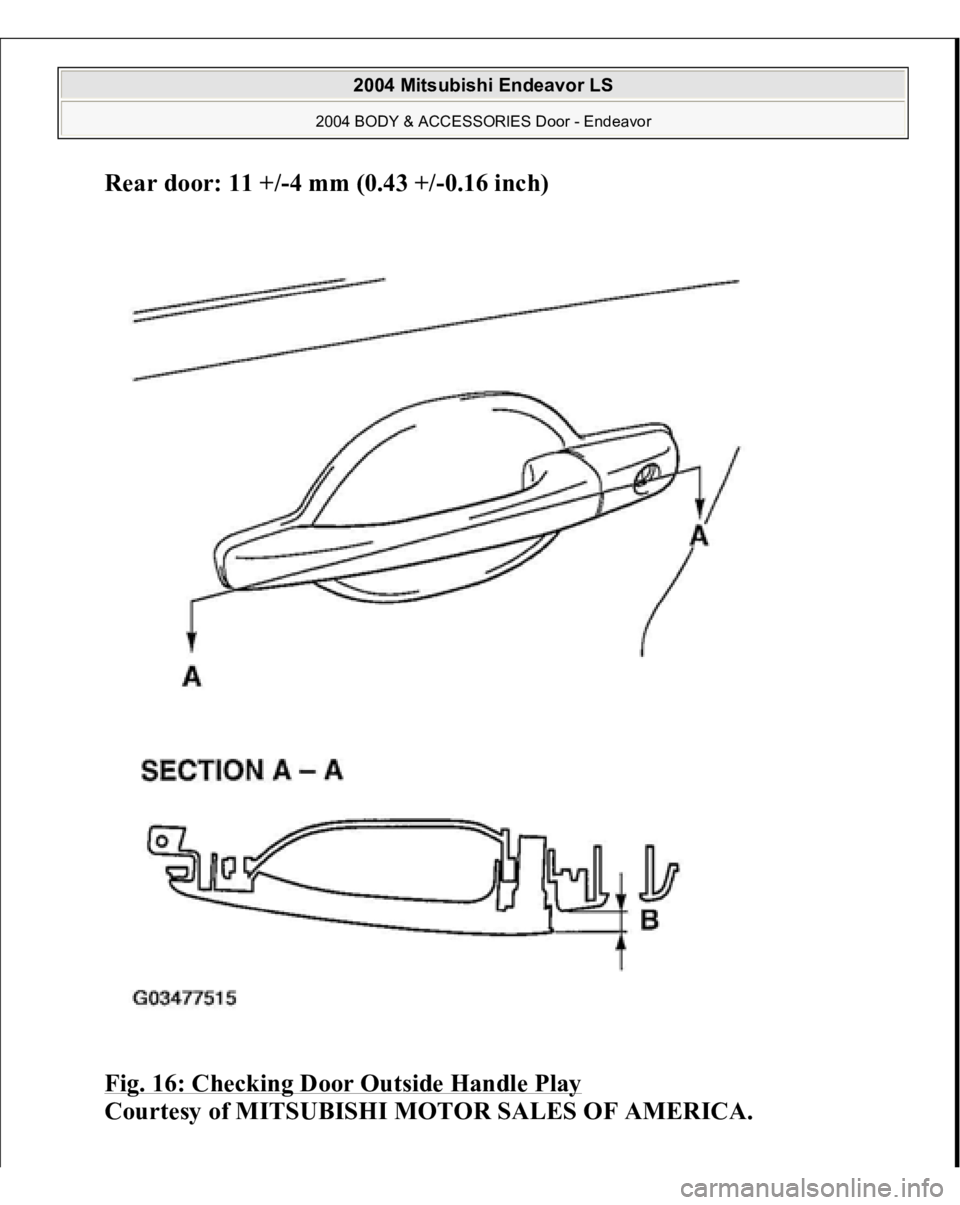

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Rear door: 11 + /-4 mm (0.43 +/-0.16 inch) Fig. 16: Checking Door Outside Handle Play Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Door - E

Page 1023 of 3870

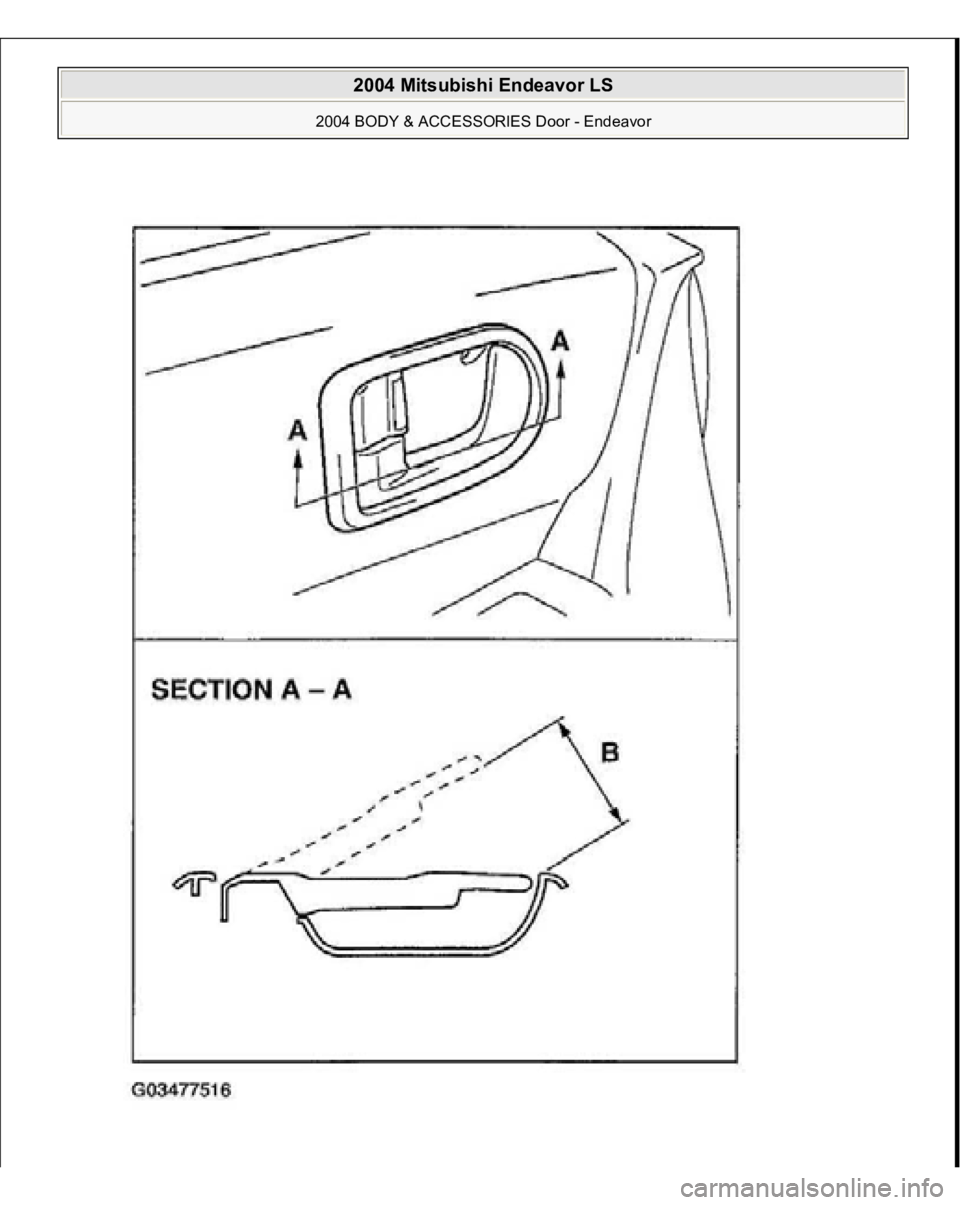

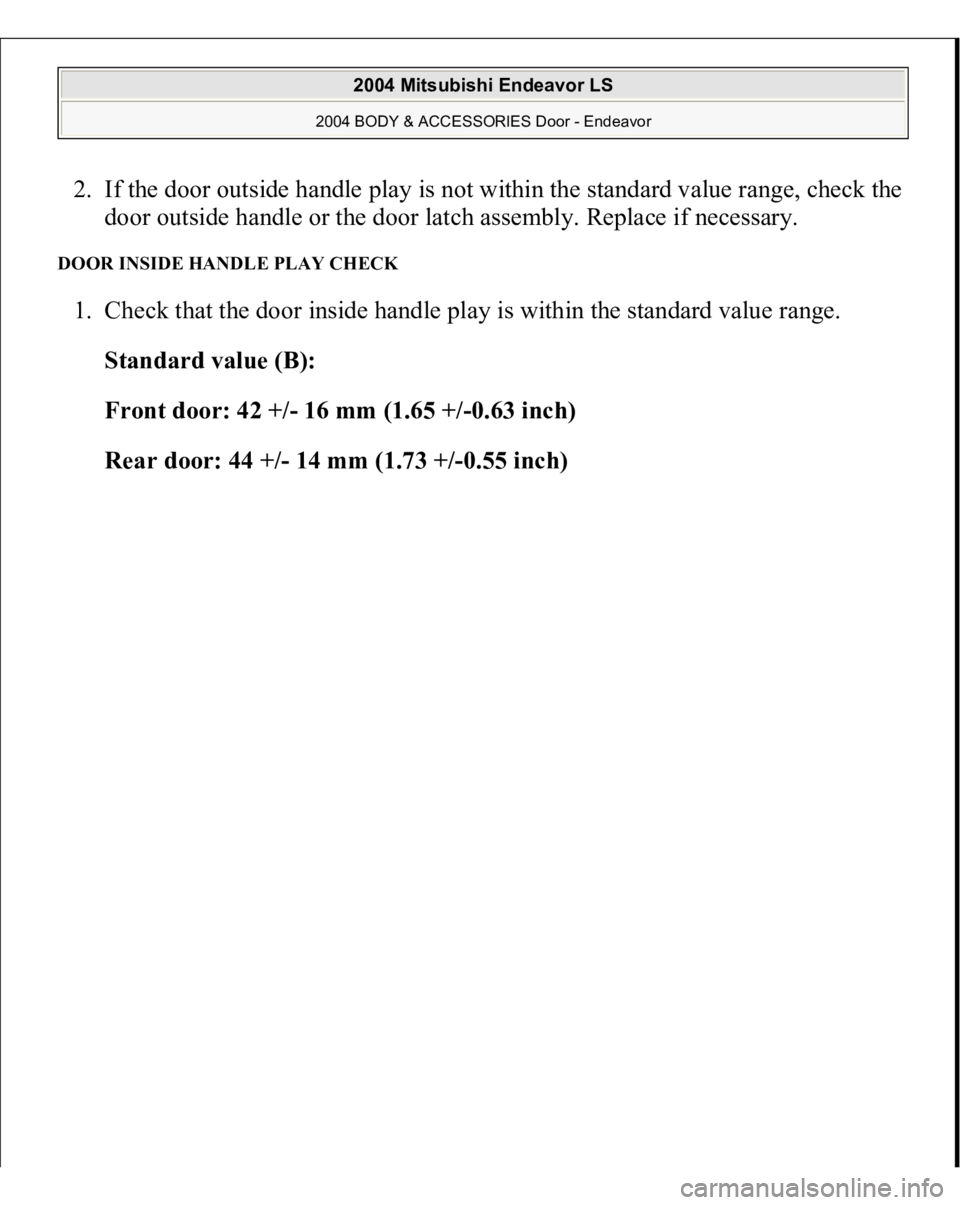

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2. If the door outside handle play is not within the standard value range, check the door outside handle or the door latch assembly. Replace if necessary. DOOR INSIDE HANDLE PLAY CHECK 1. Check that

Page 1024 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Door - Endeavor
