Page 57 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . 6. Turn the ignition switch to the "LOCK" (OFF) position. Q: Is DTC C1200, C1205, C1210 or C1215 set? YES: Repeat the troubleshooting from

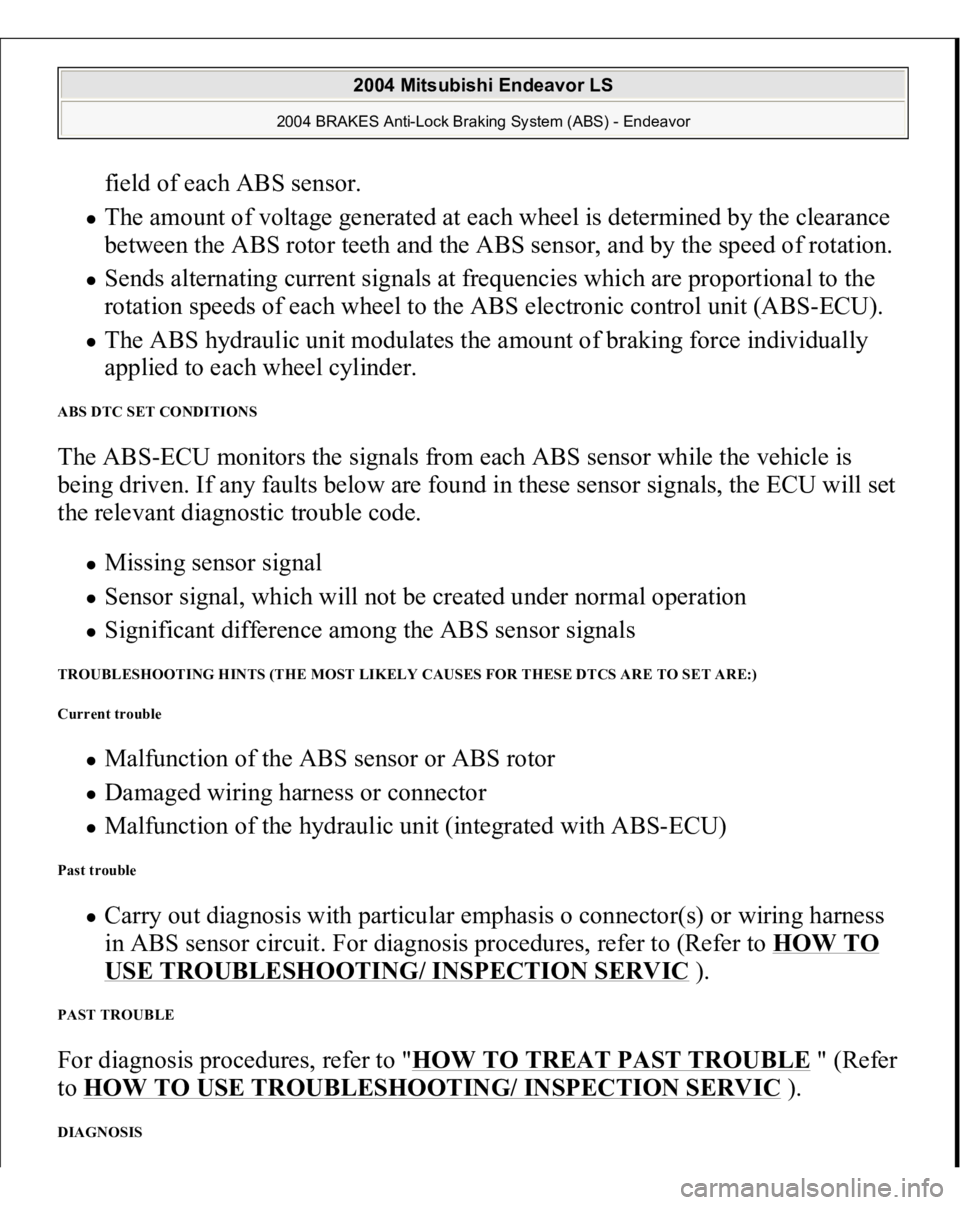

Page 58 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual field of each ABS sensor. The amount of voltage generated at each wheel is determined by the clearance between the ABS rotor teeth and the ABS sensor, and by the speed of rotation. Sends alternating

Page 59 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Required Special Tools: MB991958: Scan Tool (MUT-III Sub Assembly) MB991824: Vehicle Communication Interface (V.C.I.) MB991827: MUT-III USB Cable MB991910: MUT-III Main Harness A MB991970: ABS

Page 60 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 39: Connecting Scan Tool MB991958 To Data Link Connector 2004 Mitsubishi Endeavor LS 2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor

Page 61 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . 2. Turn the ignition switch to the "ON" position. 3. Diagnose the CAN bus line. 4. Turn the ignition switch to the "LOCK" (OFF) pos

Page 62 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 40: Rechecking For Diagnostic Trouble Code Courtes y of MITSUBISHI MOTOR SALES OF AMERICA . 2004 Mitsubishi Endeavor LS 2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor

Page 63 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 6. Turn the ignition switch to the "LOCK" (OFF) position. Q: Is DTC C1201, C1206, C1211 and C1216 set? YES: Go to Step 3. NO: The procedure is complete. STEP 3. Using scan tool MB99195

Page 64 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 41: Using Scan Tool MB991958 And Read Diagnostic Trouble Code 2004 Mitsubishi Endeavor LS 2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor
