MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

Page 842 of 3870

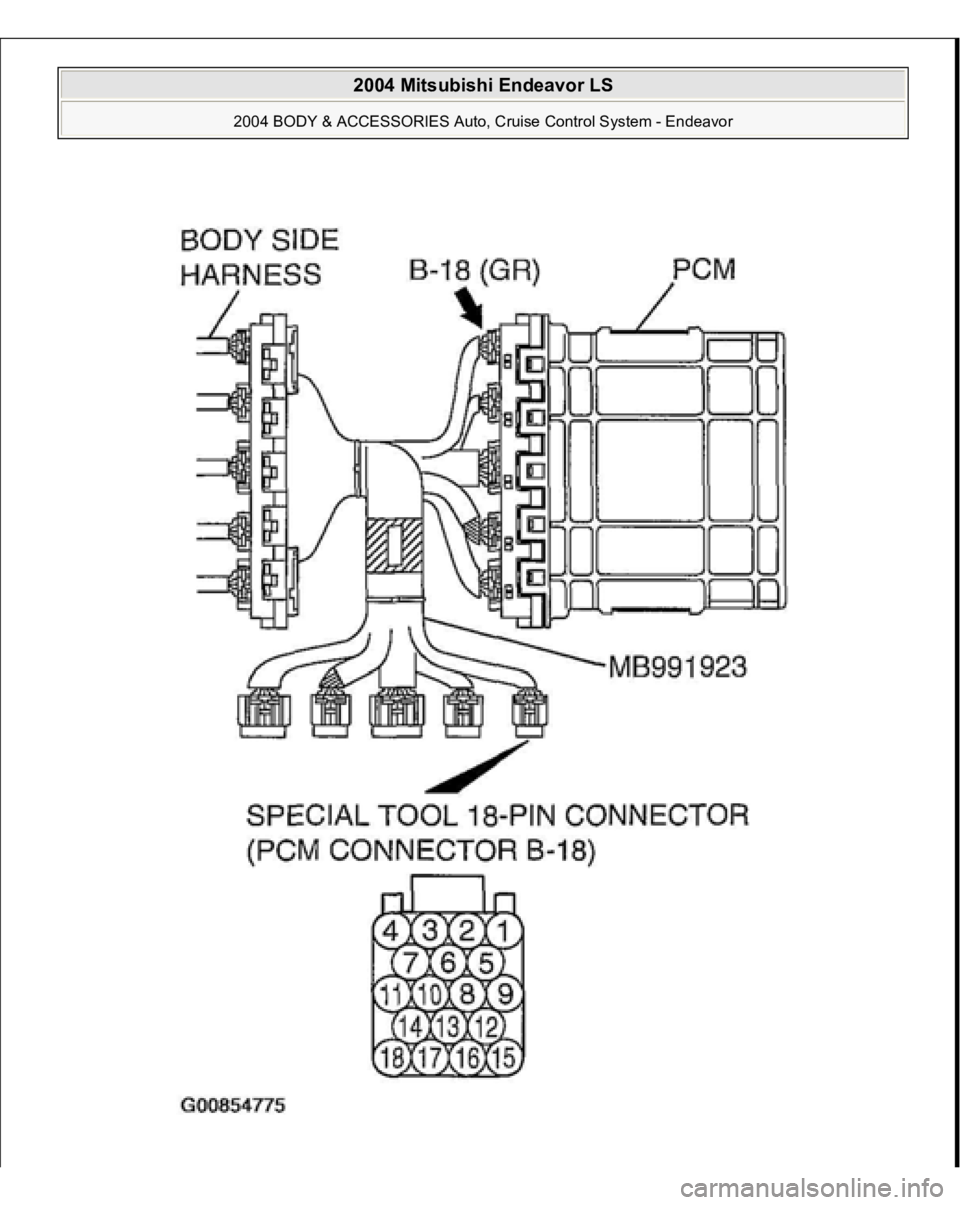

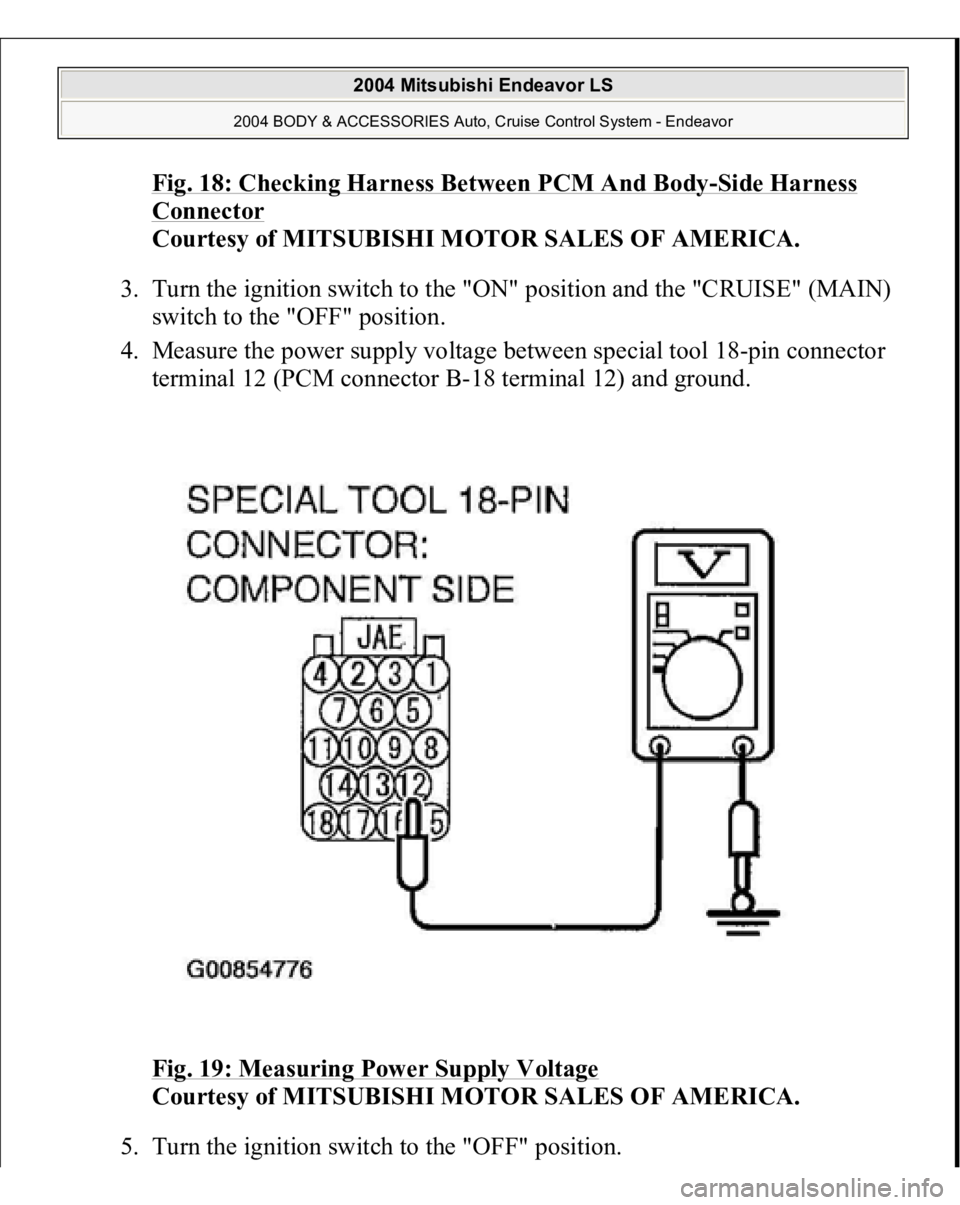

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 18: Checking Harness Between PCM And Body -Side Harness Connector Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 3. Turn the ignition switch to the "ON" position and the "CRUISE&#

Page 843 of 3870

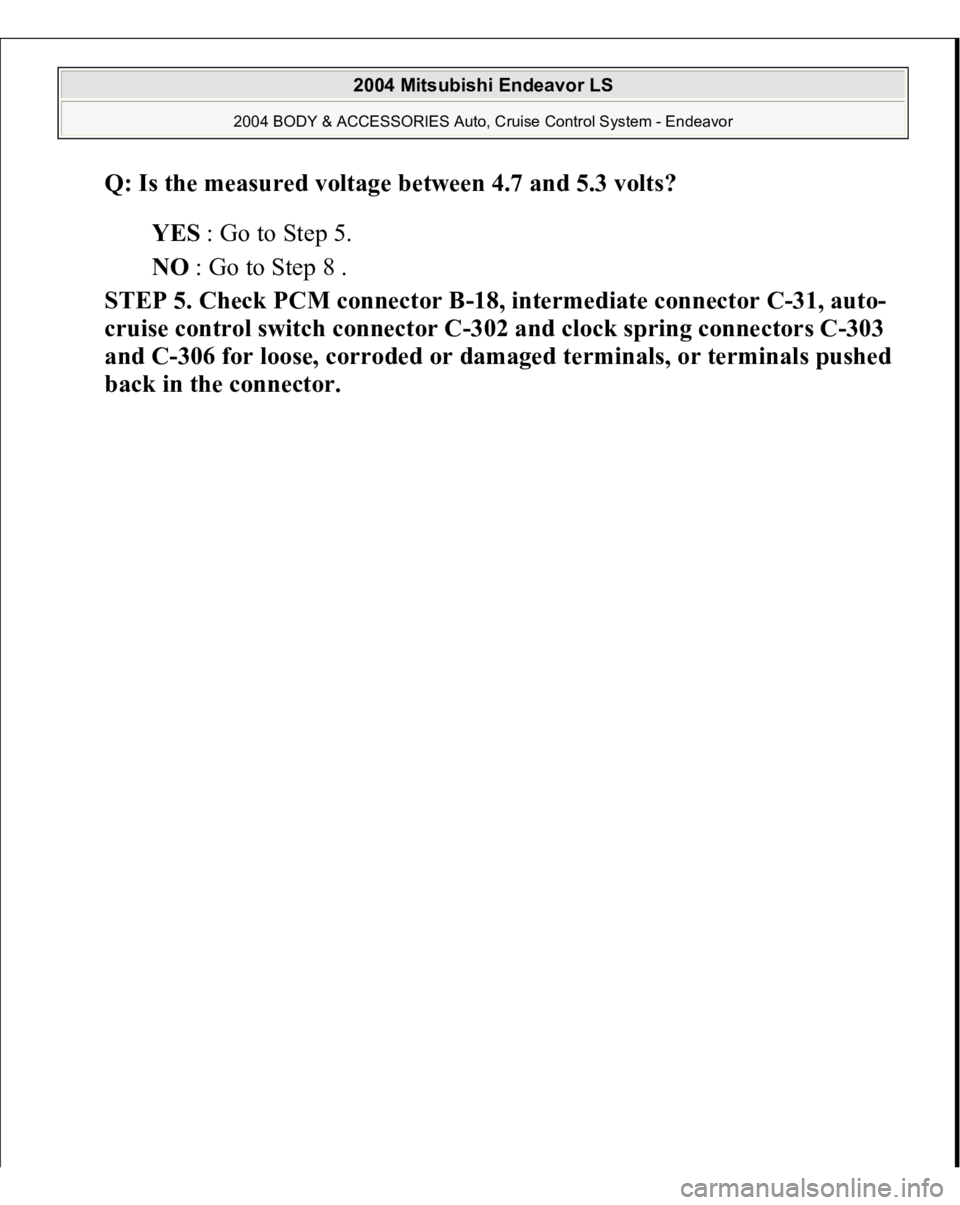

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Q: Is the measured voltage between 4.7 and 5.3 volts? YES : Go to Step 5. NO : Go to Step 8 . STEP 5. Check PCM connector B-18, intermediate connector C-31, auto- cruise control switch connector

Page 844 of 3870

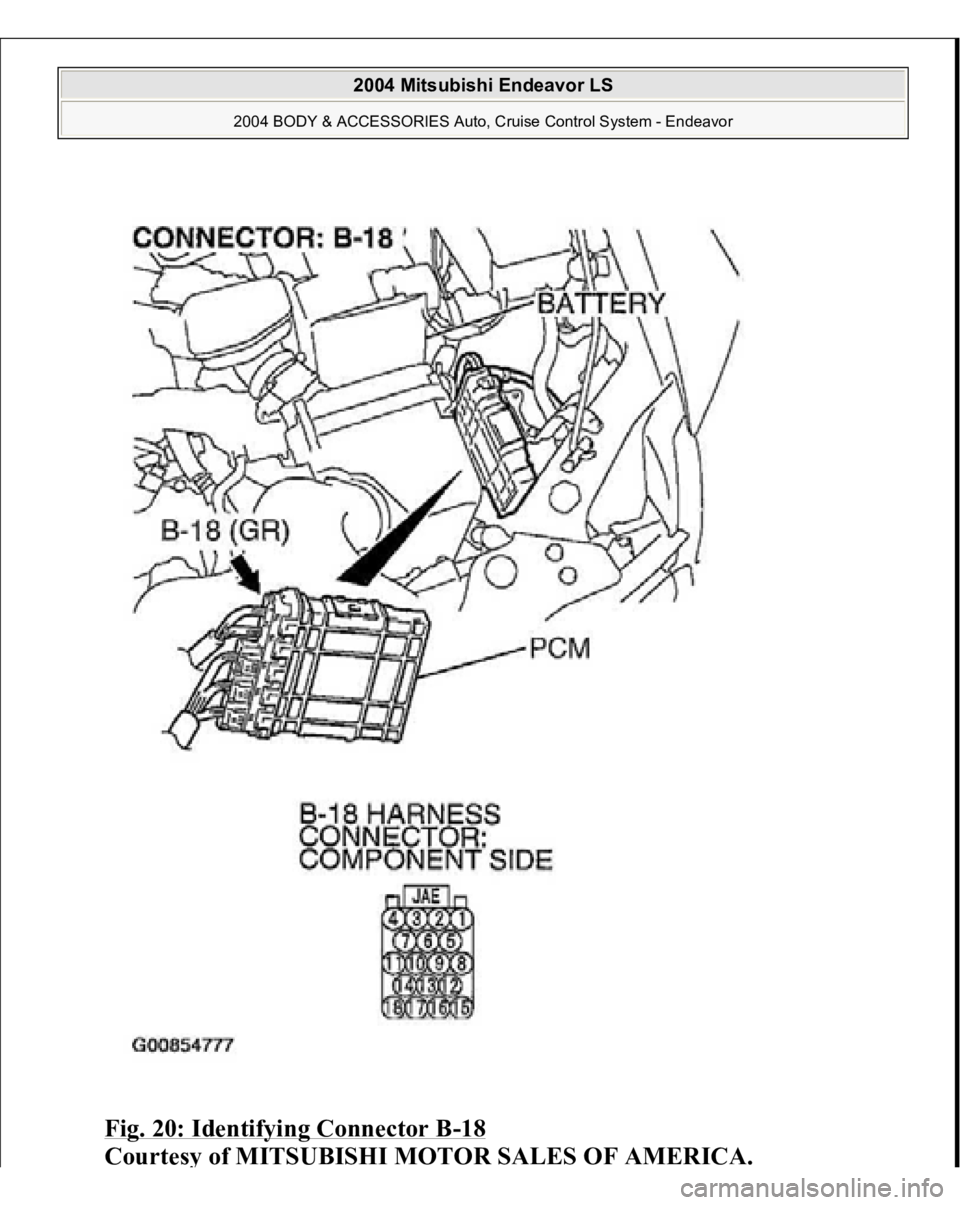

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 20: Identifying Connector B -18 Courtes y of MITSUBISHI MOTOR SALES OF AMERICA . 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

Page 845 of 3870

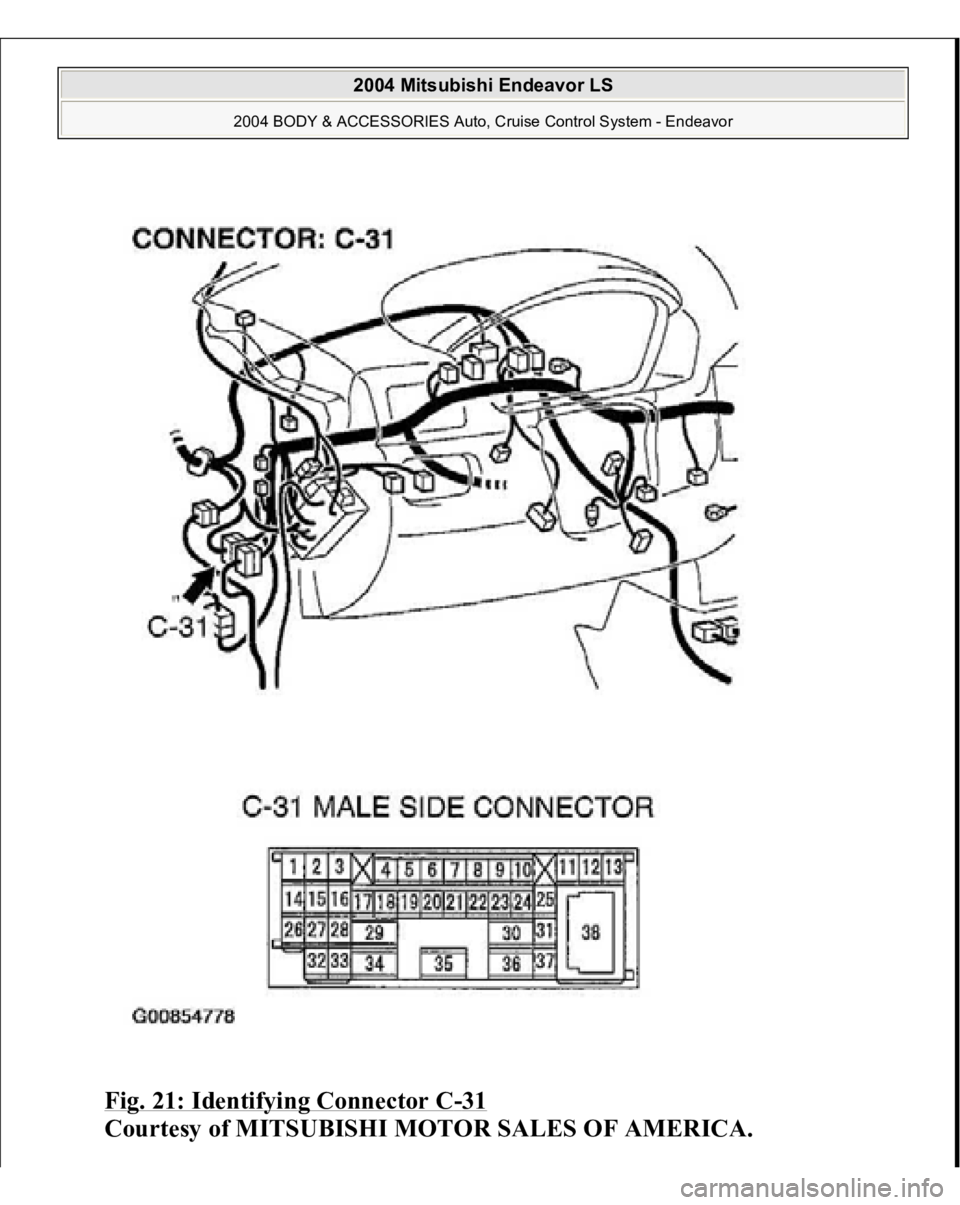

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 21: Identifying Connector C -31 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

Page 846 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

Page 847 of 3870

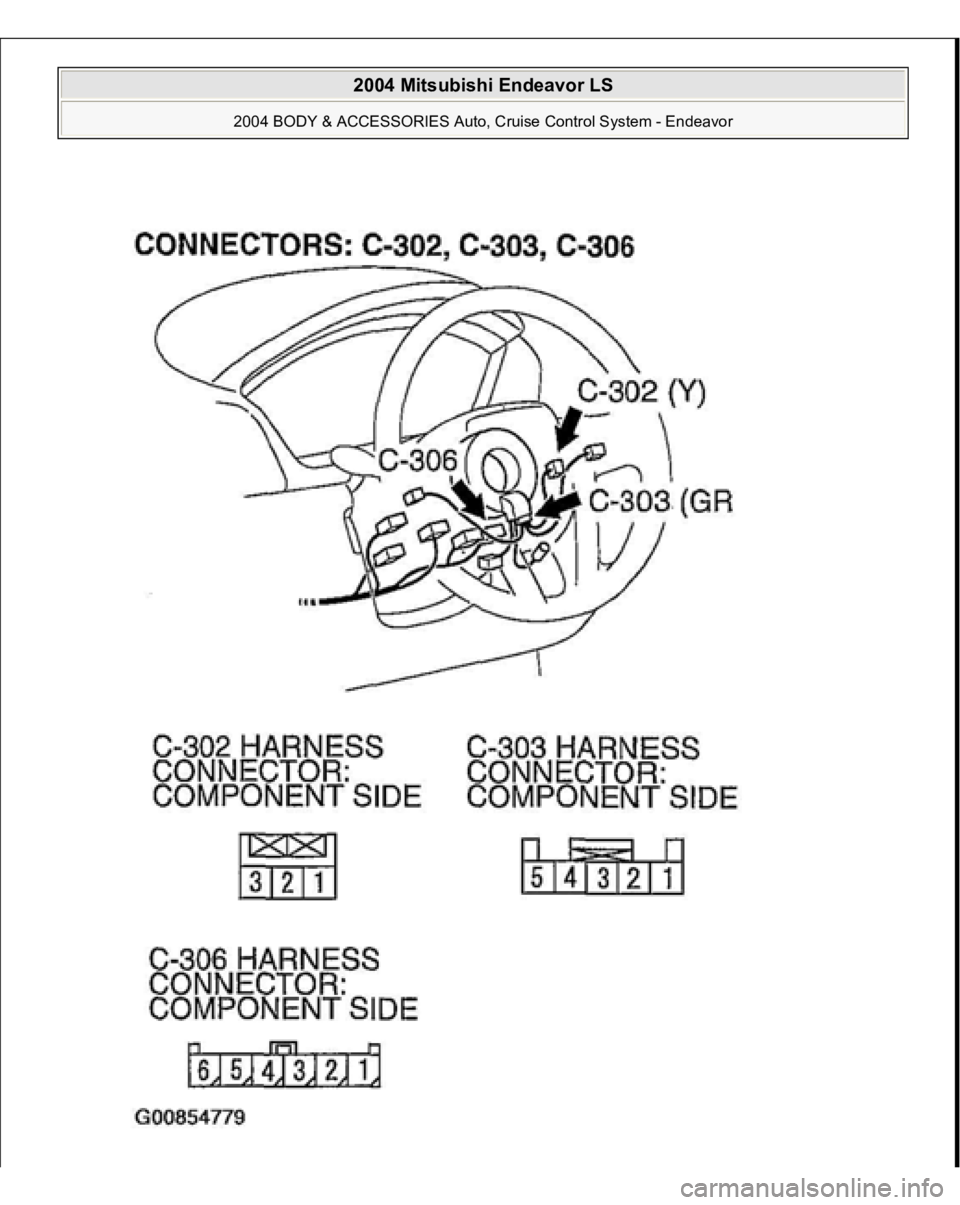

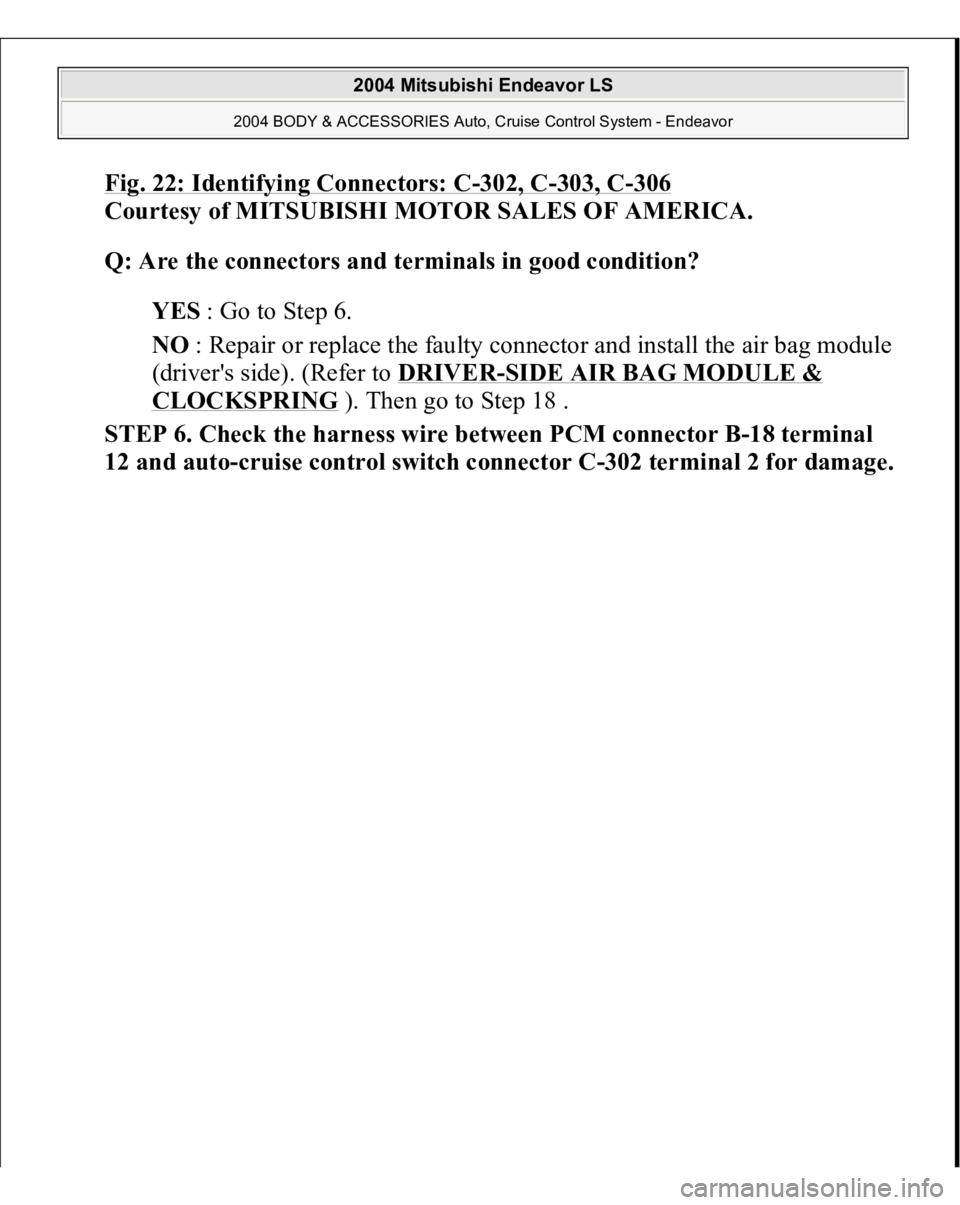

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 22: Identifying Connectors: C -302, C -303, C -306 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Are the connectors and terminals in good condition? YES : Go to Step 6. NO : Repair or r

Page 848 of 3870

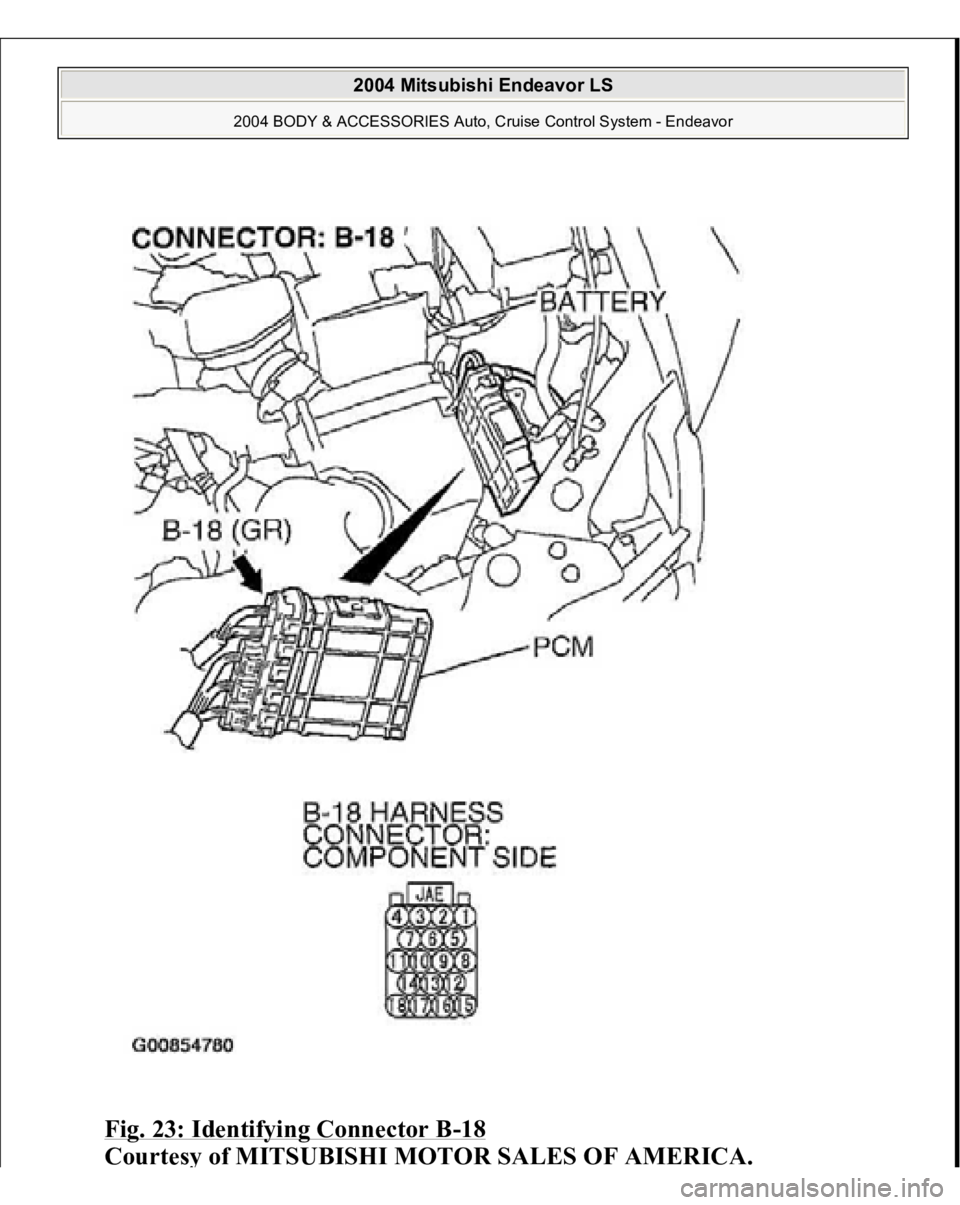

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 23: Identifying Connector B -18 Courtes y of MITSUBISHI MOTOR SALES OF AMERICA . 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor
