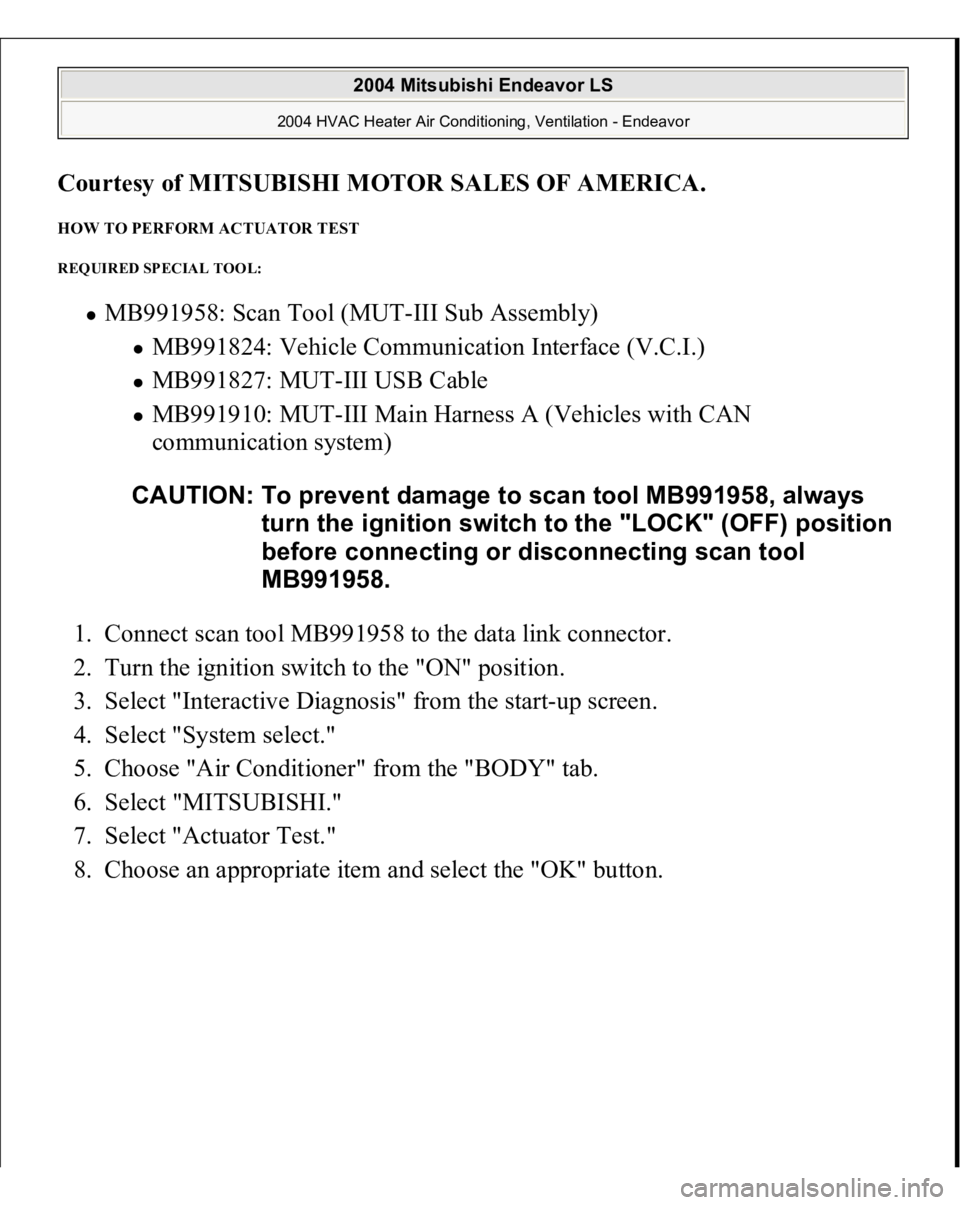

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . HOW TO PERFORM ACTUATOR TEST REQUIRED SPECIAL TOOL: MB991958: Scan Tool (MUT-III Sub Assembly) MB991824: Vehicle Communication Interface (V.C.I.) MB

Page 2010 of 3870

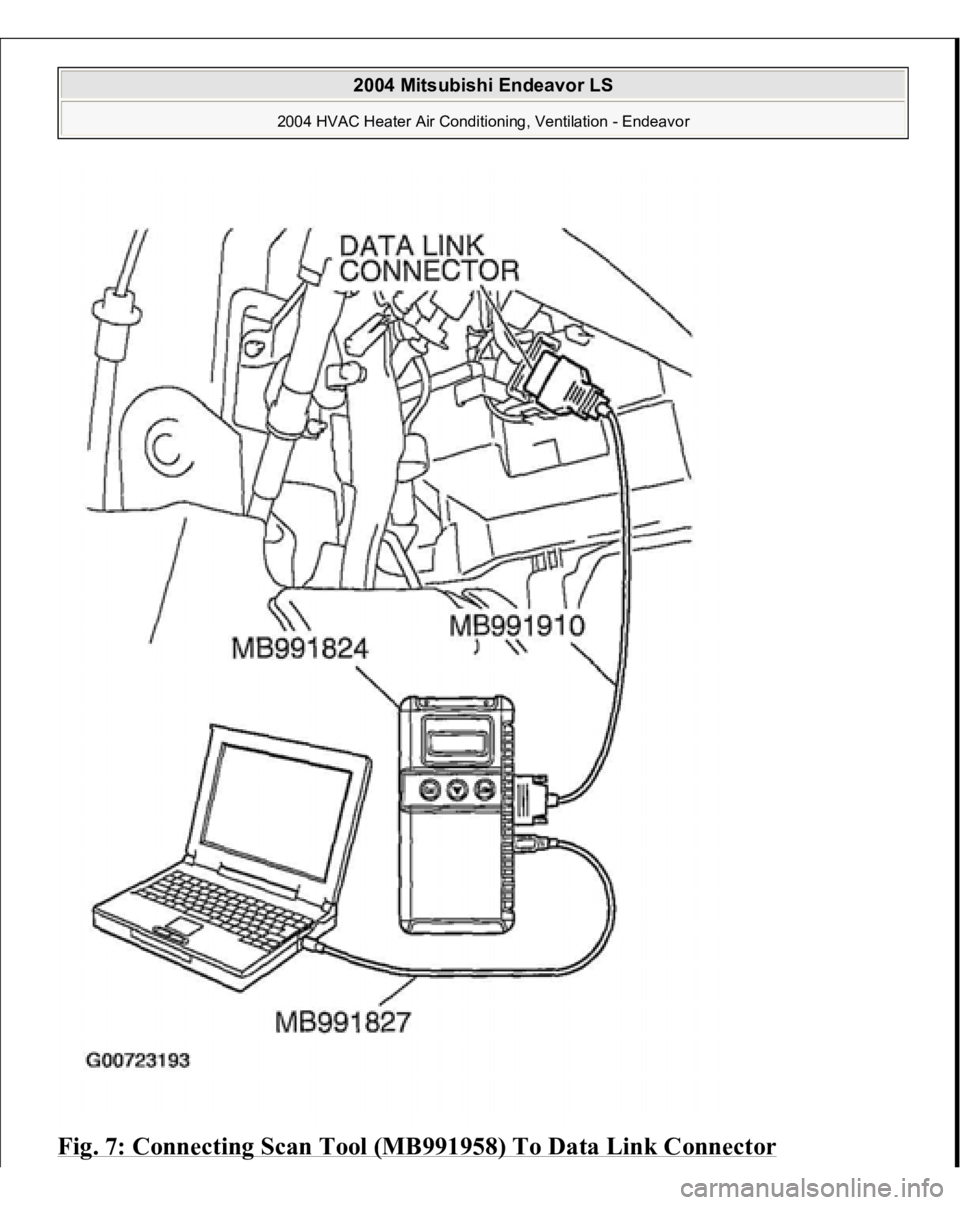

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 7: Connecting Scan Tool (MB991958) To Data Link Connector 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Page 2011 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . HOW TO DIAGNOSE THE CAN BUS LINES REQUIRED SPECIAL TOOL: MB991958: Scan Tool (MUT-III Sub Assembly) MB991824: Vehicle Communication Interface (V.C.I.

Page 2012 of 3870

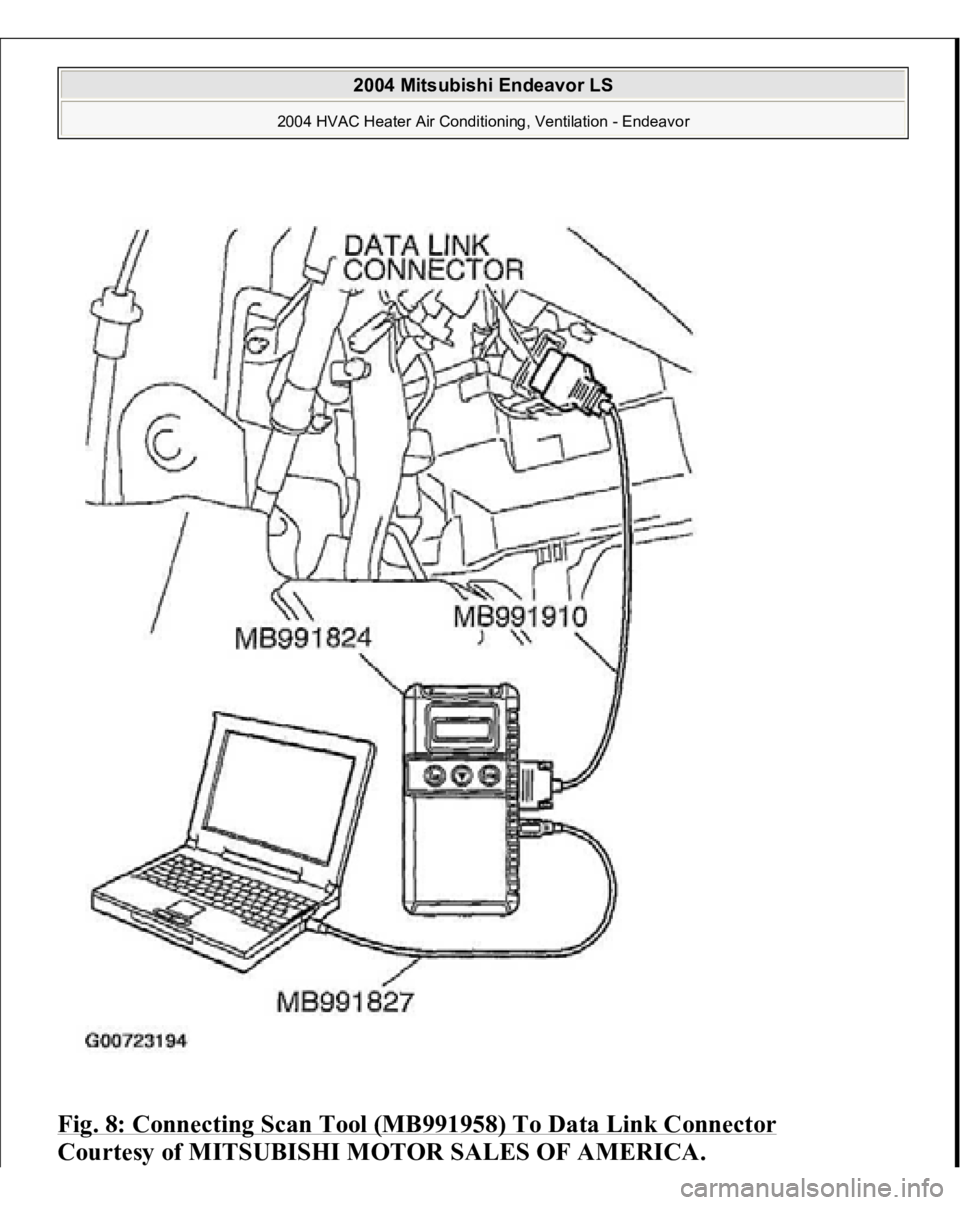

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 8: Connecting Scan Tool (MB991958) To Data Link Connector Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Page 2013 of 3870

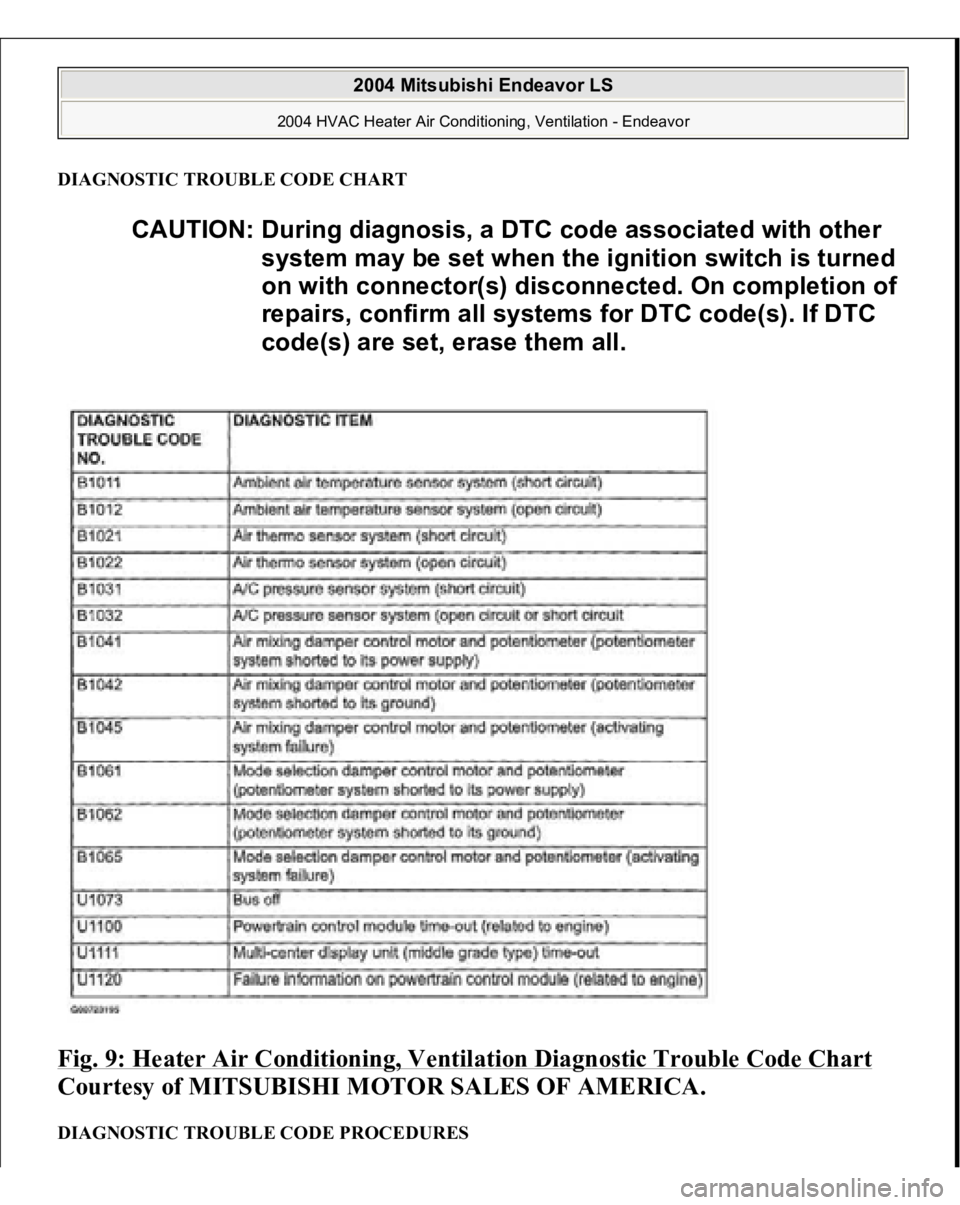

MITSUBISHI ENDEAVOR 2004 Service Repair Manual DIAGNOSTIC TROUBLE CODE CHARTFig. 9: Heater Air Conditioning, Ventilation Diagnostic Trouble Code Chart Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. DIAGNOSTIC TROUBLE CODE PROCEDURES CAUTION:

Page 2014 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual DTC B1011, B1012: AMBIENT AIR TEMPERATURE SENSOR SYSTEM CAUTION: If DTC B1011 or B1012 has been set, multi-display related DTC U1130 is also set. After B1011 or B1012 has been diagnosed, don't

Page 2015 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 10: View Of Ambient Temperature Sensor Circuit With Connectors Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Ende

Page 2016 of 3870

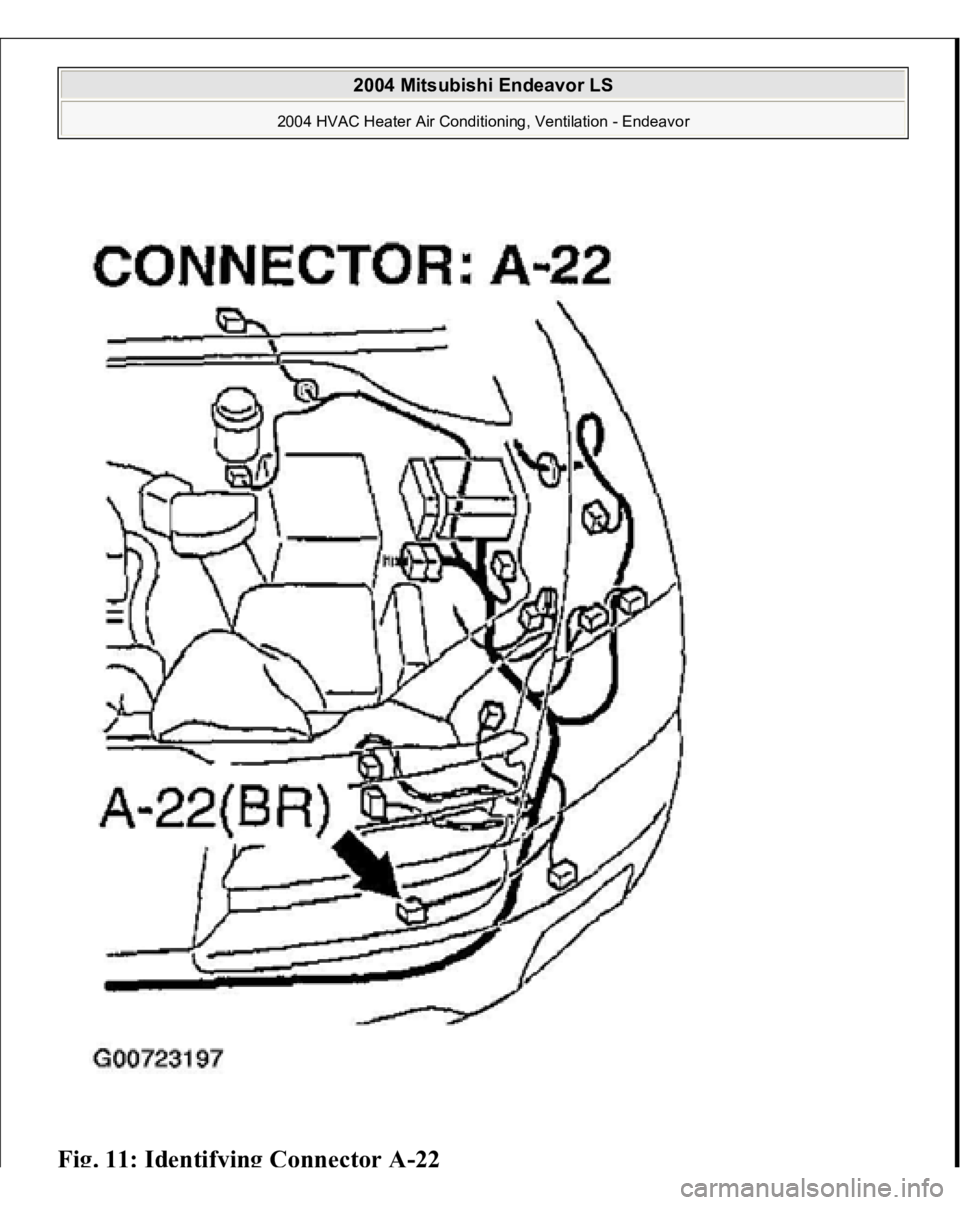

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 11: Identifying Connector A -22 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeavor
