Page 2209 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 140: Measuring Voltage Between Terminal 1 And Ground Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. The measured value should be approximately 12 volts (battery positive voltage). Q: Is th

Page 2210 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 1. Disconnect A/C compressor connector B-16X and measure the voltage at the relay box side. 2. Turn the ignition switch to the "ON" position. Fig. 141: Locating Connector B -16X Courtesy

Page 2211 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Q: Is the measured voltage approx. 12 volts? YES: Go to Step 11 . NO: Go to Step 10. Fig. 142: Measuring Voltage Between Terminal 2 And Ground Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Page 2212 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 143: Locating Connector B -16X Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Is the wiring harness between A/C compressor clutch relay connector B-16X (terminal 2) and the ignition switc

Page 2213 of 3870

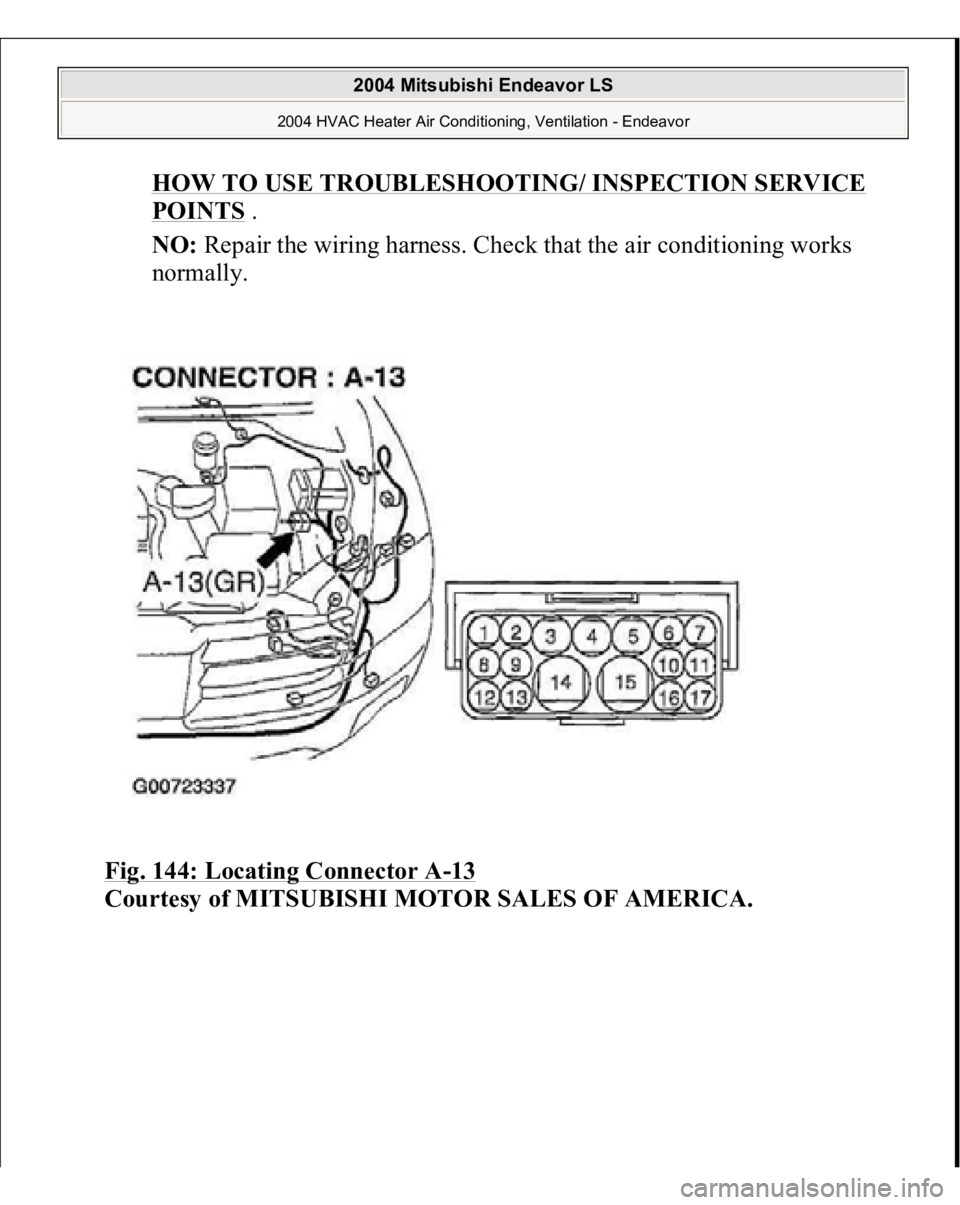

MITSUBISHI ENDEAVOR 2004 Service Repair Manual HOW TO USE TROUBLESHOOTING/ INSPECTION SERVICE POINTS . NO: Repair the wiring harness. Check that the air conditioning works normally. Fig. 144: Locating Connector A -13 Courtesy of MITSUBISHI

Page 2214 of 3870

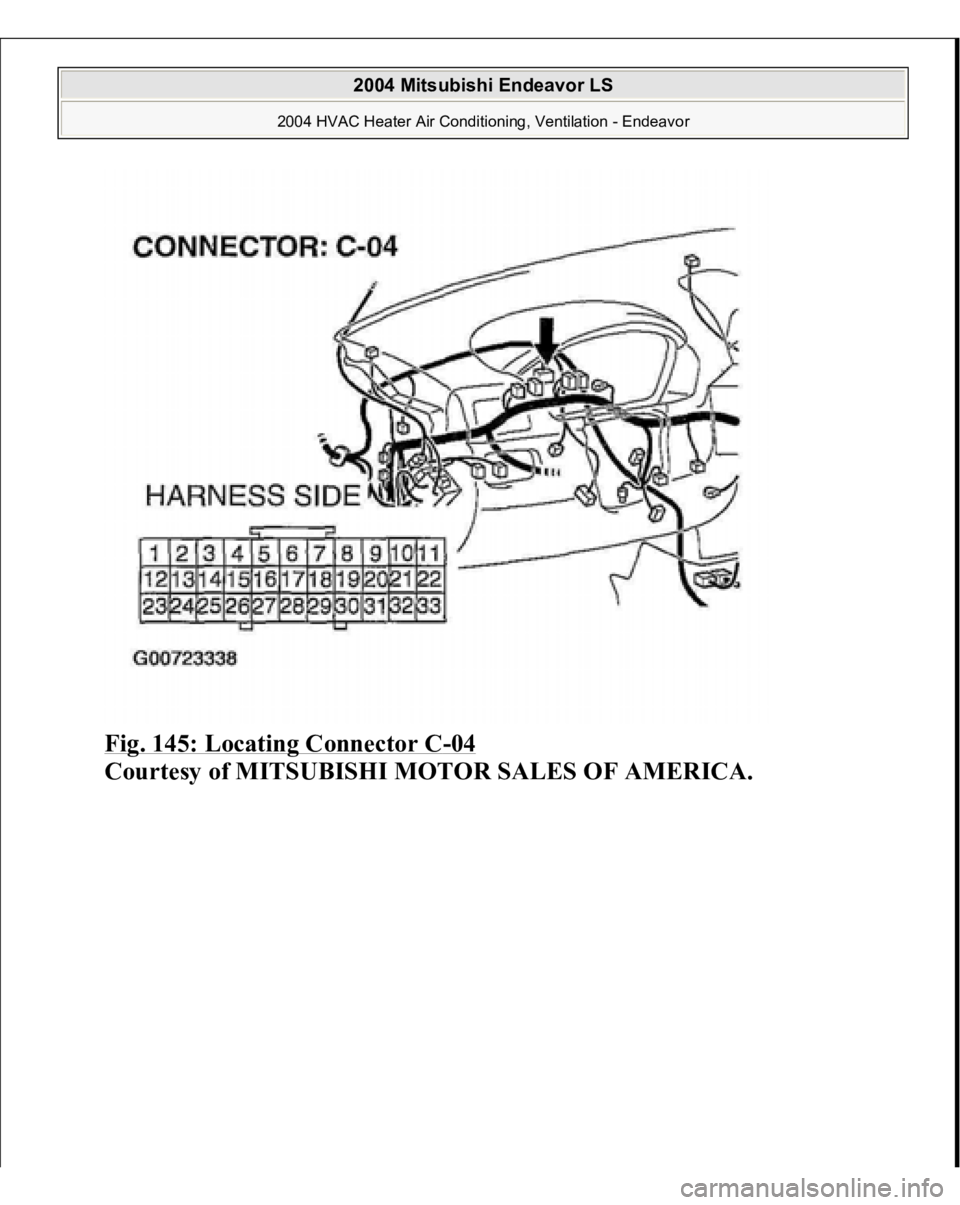

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 145: Locating Connector C -04 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Page 2215 of 3870

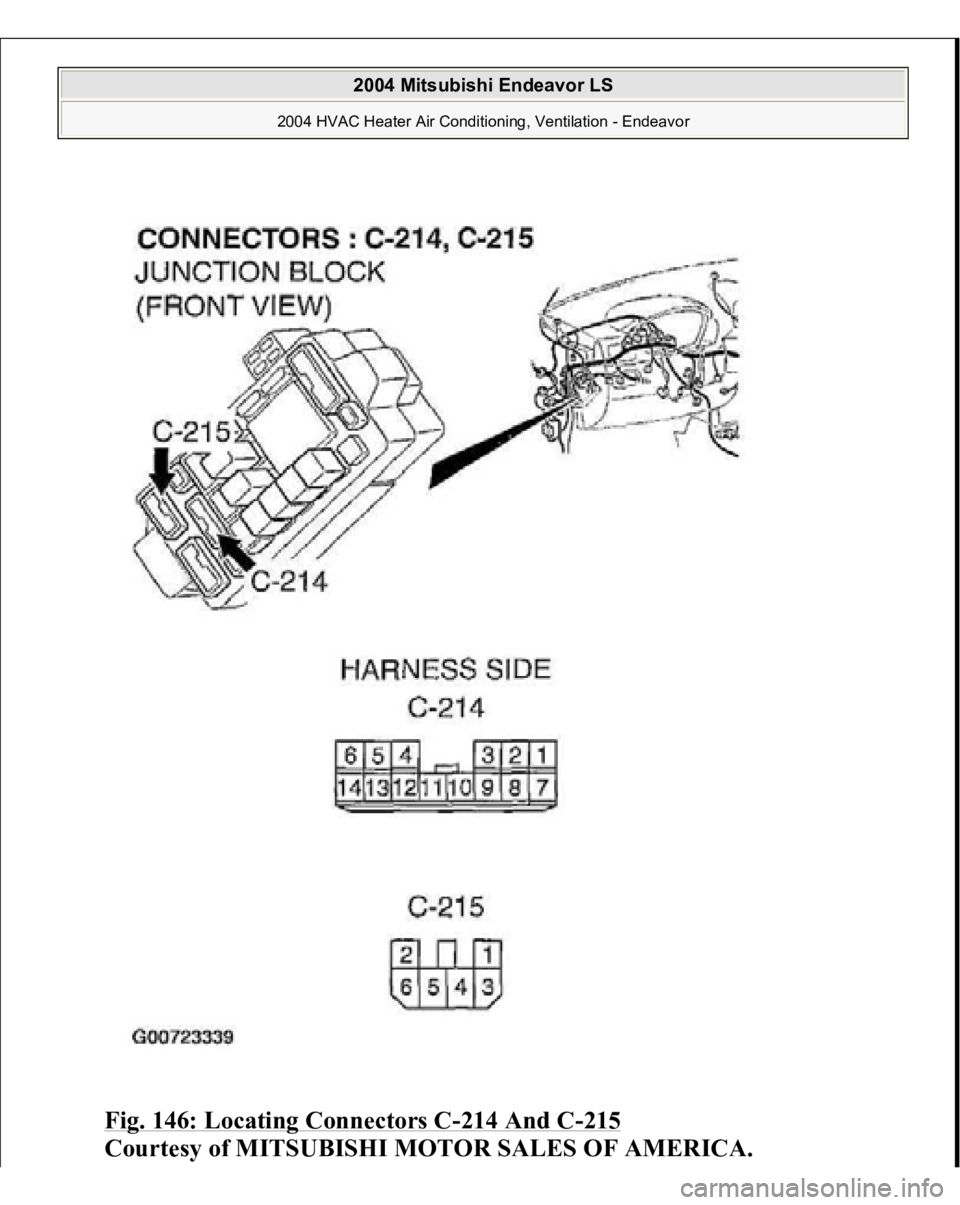

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 146: Locating Connectors C -214 And C -215 Courtes y of MITSUBISHI MOTOR SALES OF AMERICA . 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Page 2216 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual STEP 11. Measure the voltage at A/C compressor clutch relay connector B-16X. 1. Disconnect A/C compressor clutch relay connector B-16X and measure the voltage at the wiring harness side. Fig. 147
