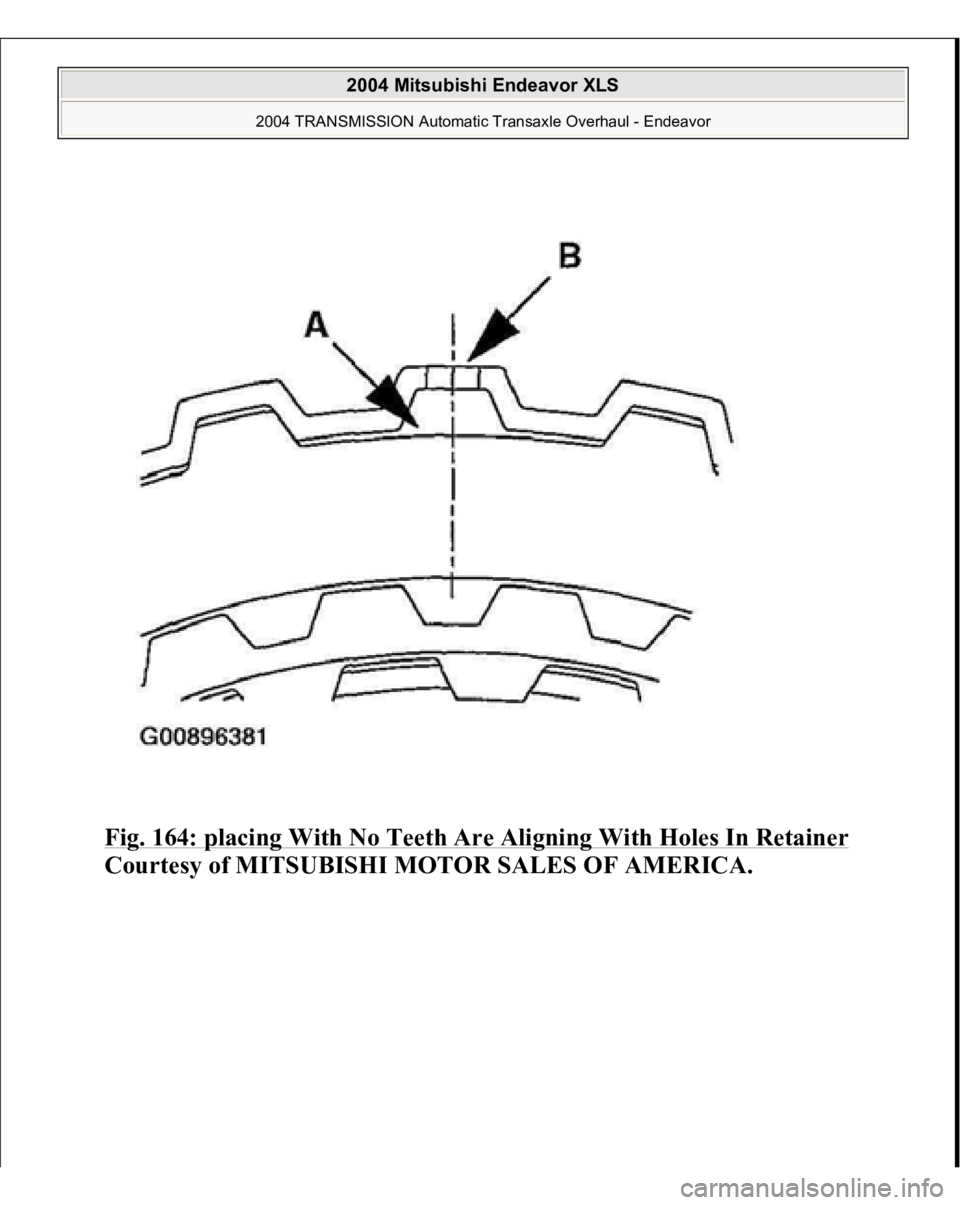

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 164: placing With No Teeth Are Aligning With Holes In Retainer Courtes y of MITSUBISHI MOTOR SALES OF AMERICA . 2004 Mitsubishi Endeavor XLS 2004 TRANSMISSION Automatic Transaxle Overhaul -

Page 618 of 3870

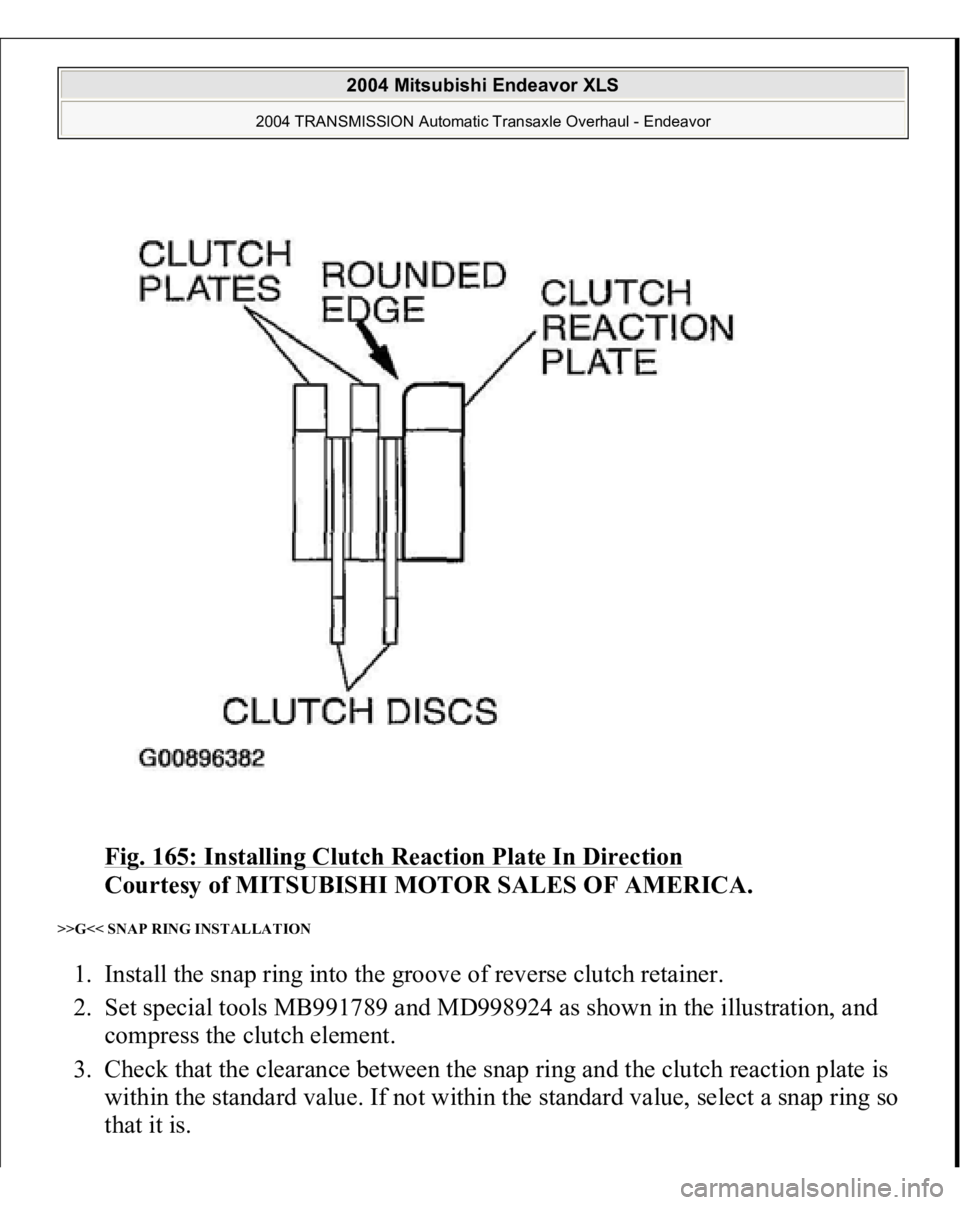

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 165: Installing Clutch Reaction Plate In Direction Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. >>G<< SNAP RING INSTALLATION 1. Install the snap ring into the groove of reverse clutch retain

Page 619 of 3870

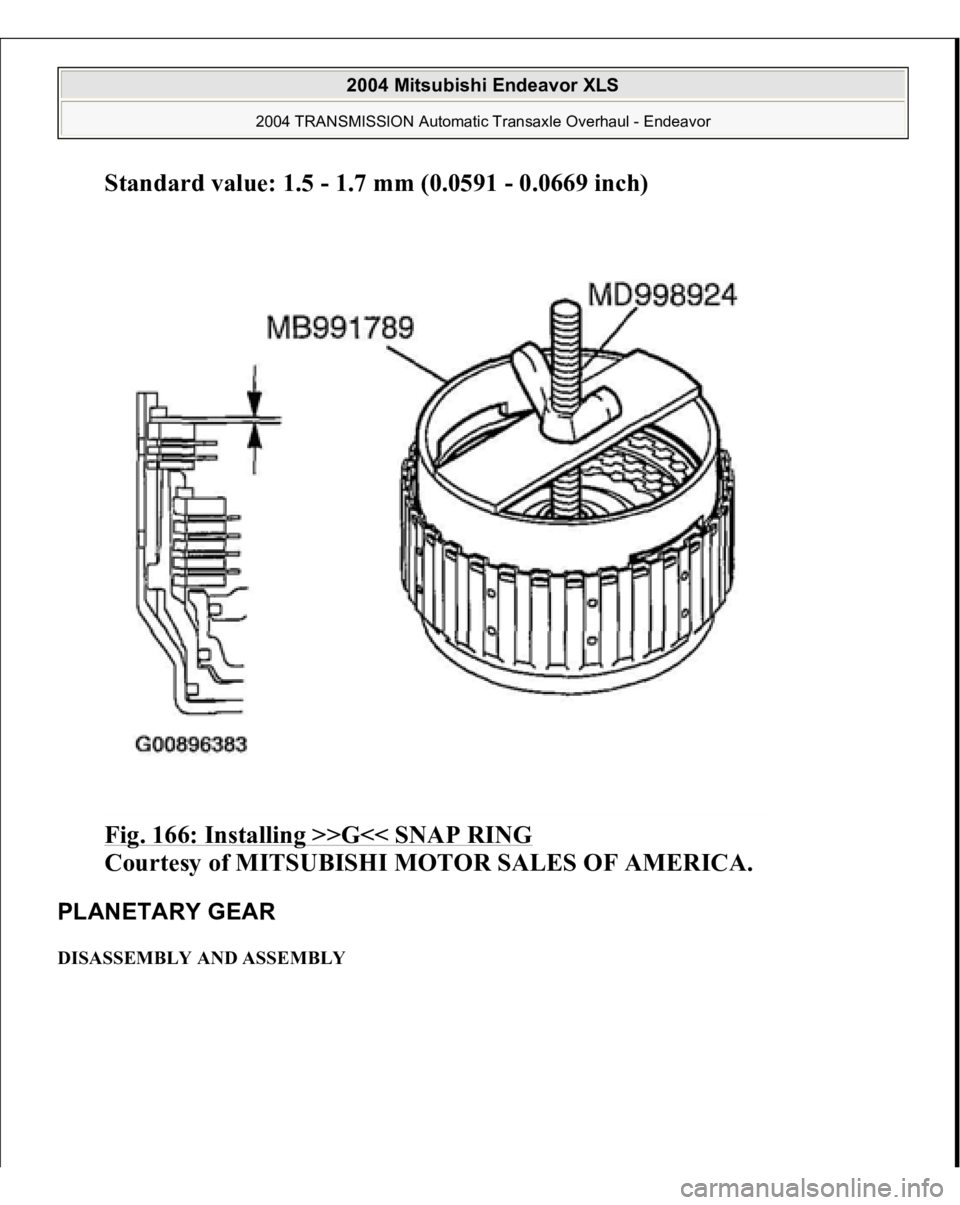

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Standard value: 1.5 - 1.7 mm (0.0591 - 0.0669 inch) Fig. 166: Installing >>G<< SNAP RING Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. PLANETARY GEAR DISASSEMBLY AND ASSEMBLY 2004 Mitsubishi E

Page 620 of 3870

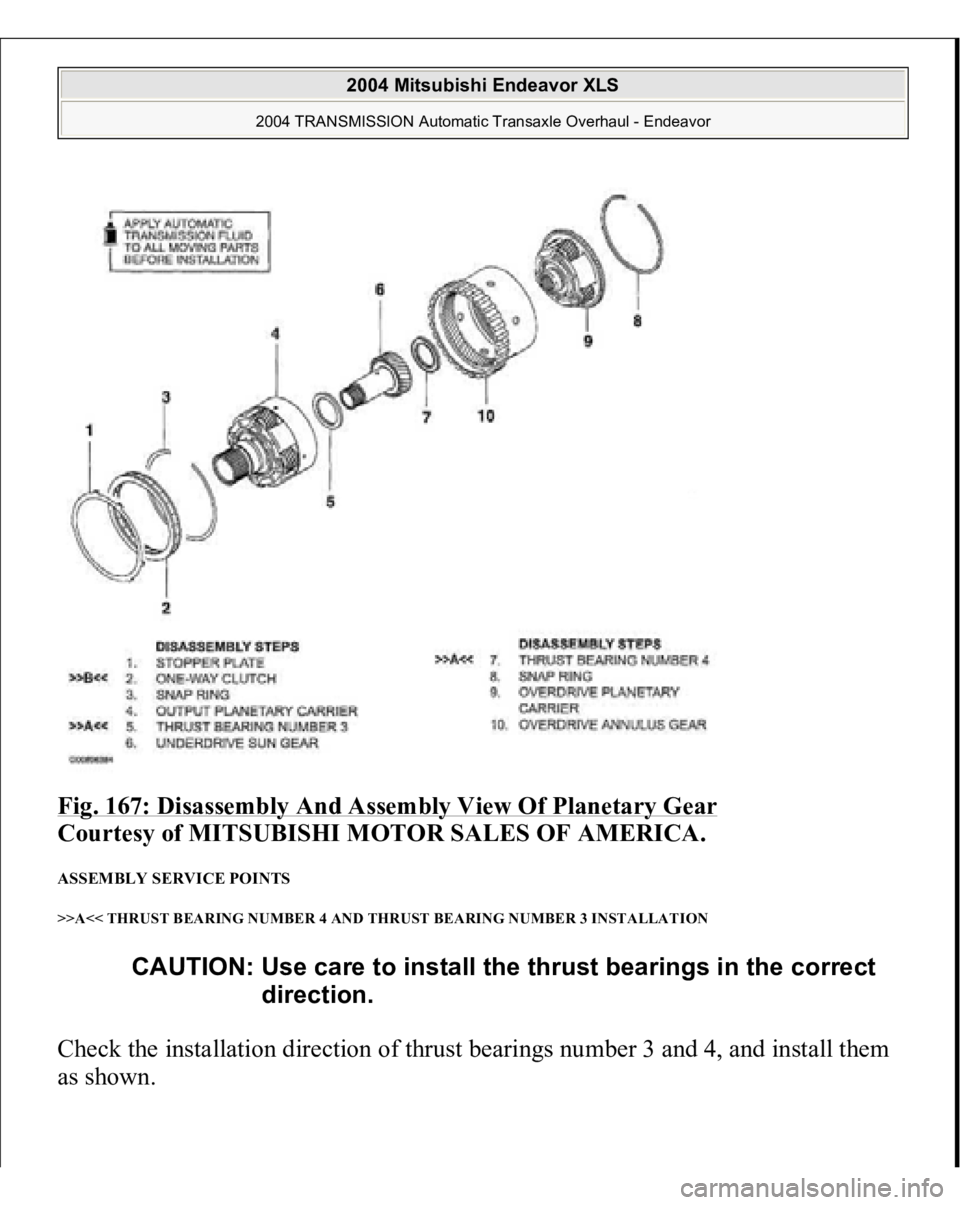

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 167: Disassembly And Assembly View Of Planetary Gear Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. ASSEMBLY SERVICE POINTS >>A<< THRUST BEARING NUMBER 4 AND THRUST BEARING NUMBER 3 INSTALLATI

Page 621 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 168: Checking Installation Direction Of Thrust Bearings Number 3 And 4 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. >>B<< ONE-WAY CLUTCH INSTALLATION Insert the one-way clutch into the overd

Page 622 of 3870

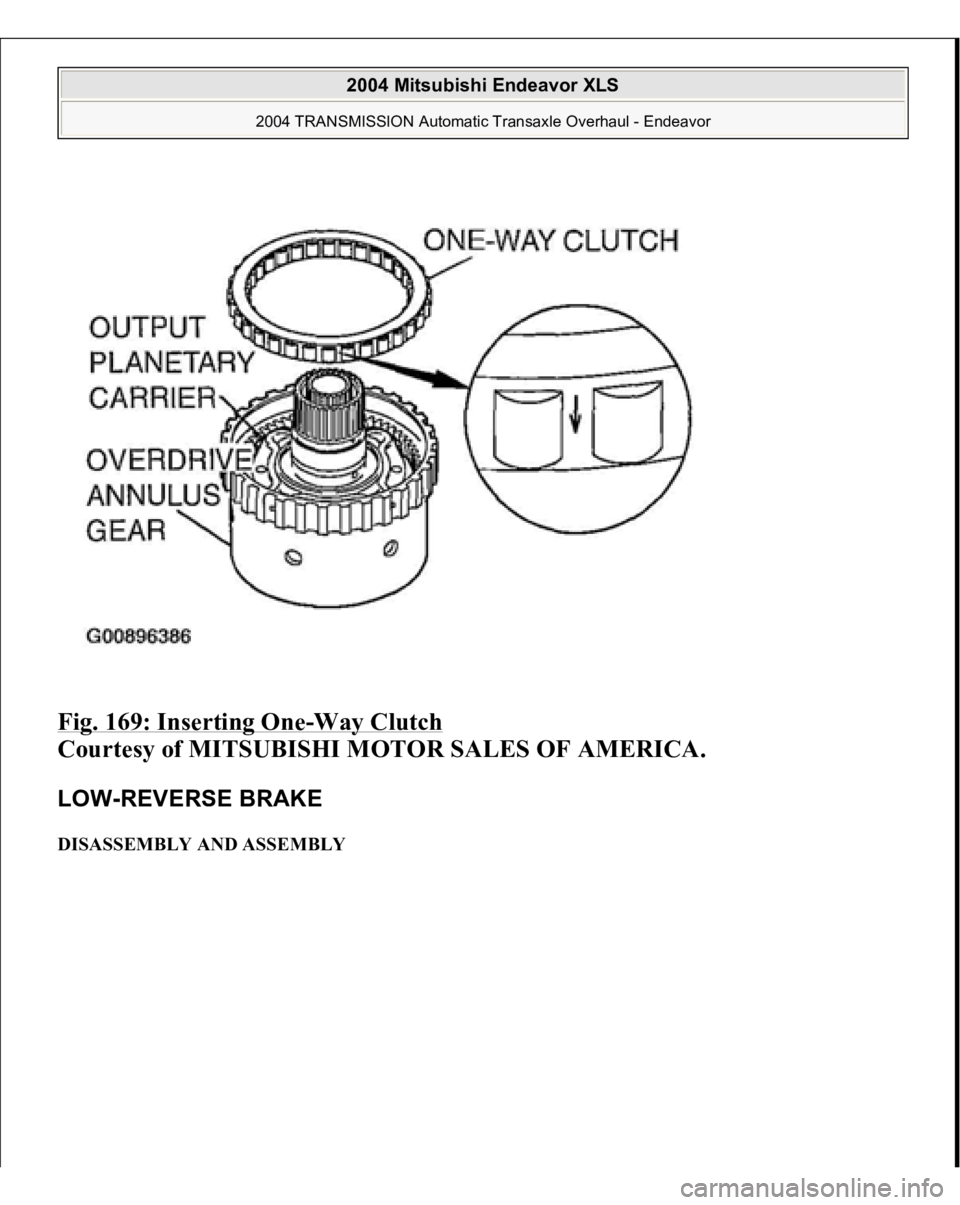

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 169: Inserting One -Way Clutch Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. LOW-REVERSE BRAKE DISASSEMBLY AND ASSEMBLY 2004 Mitsubishi Endeavor XLS 2004 TRANSMISSION Automatic Transaxle O

Page 623 of 3870

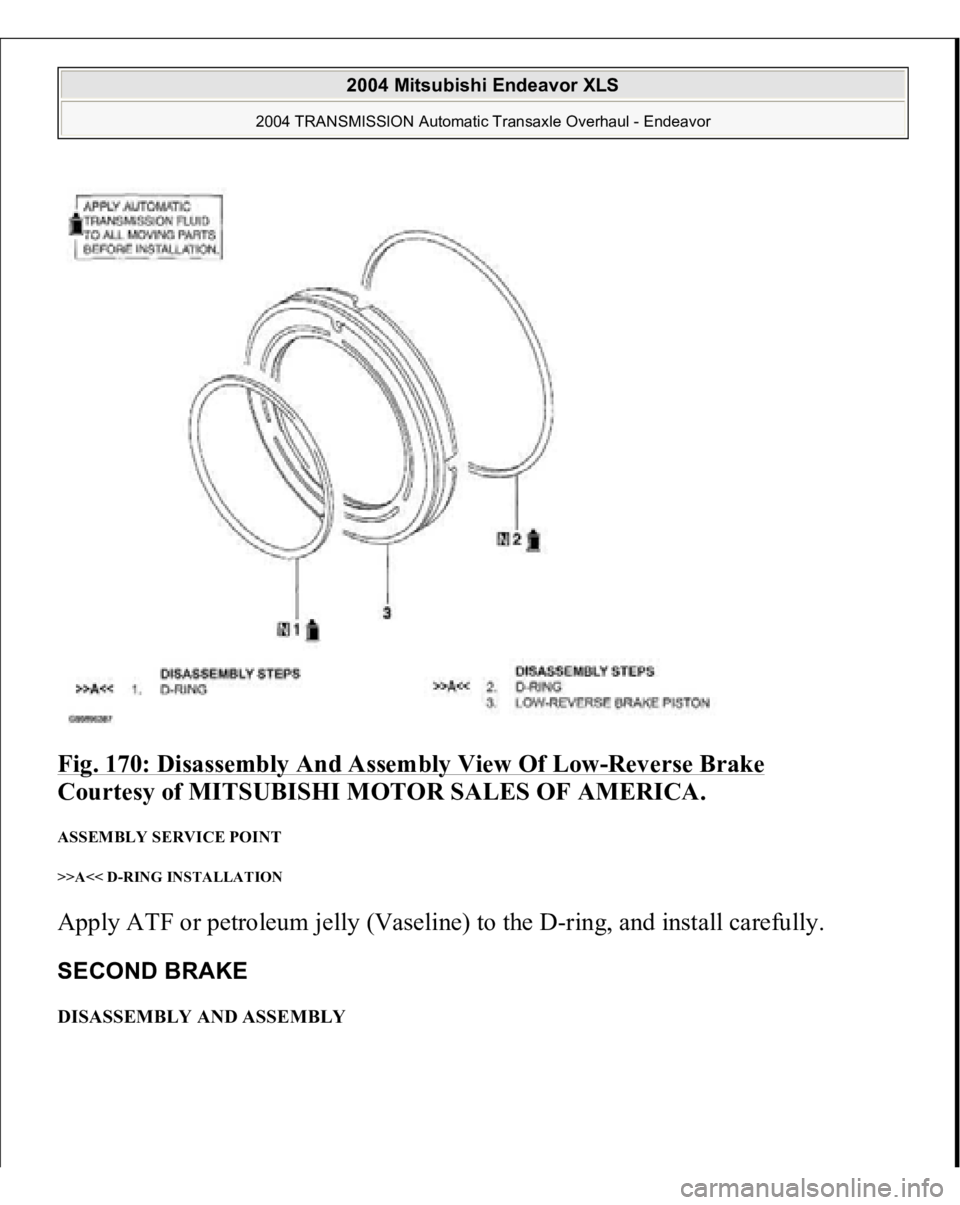

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 170: Disassembly And Assembly View Of Low -Reverse Brake Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. ASSEMBLY SERVICE POINT >>A<< D-RING INSTALLATION Apply ATF or petroleum jelly (Vaseline)

Page 624 of 3870

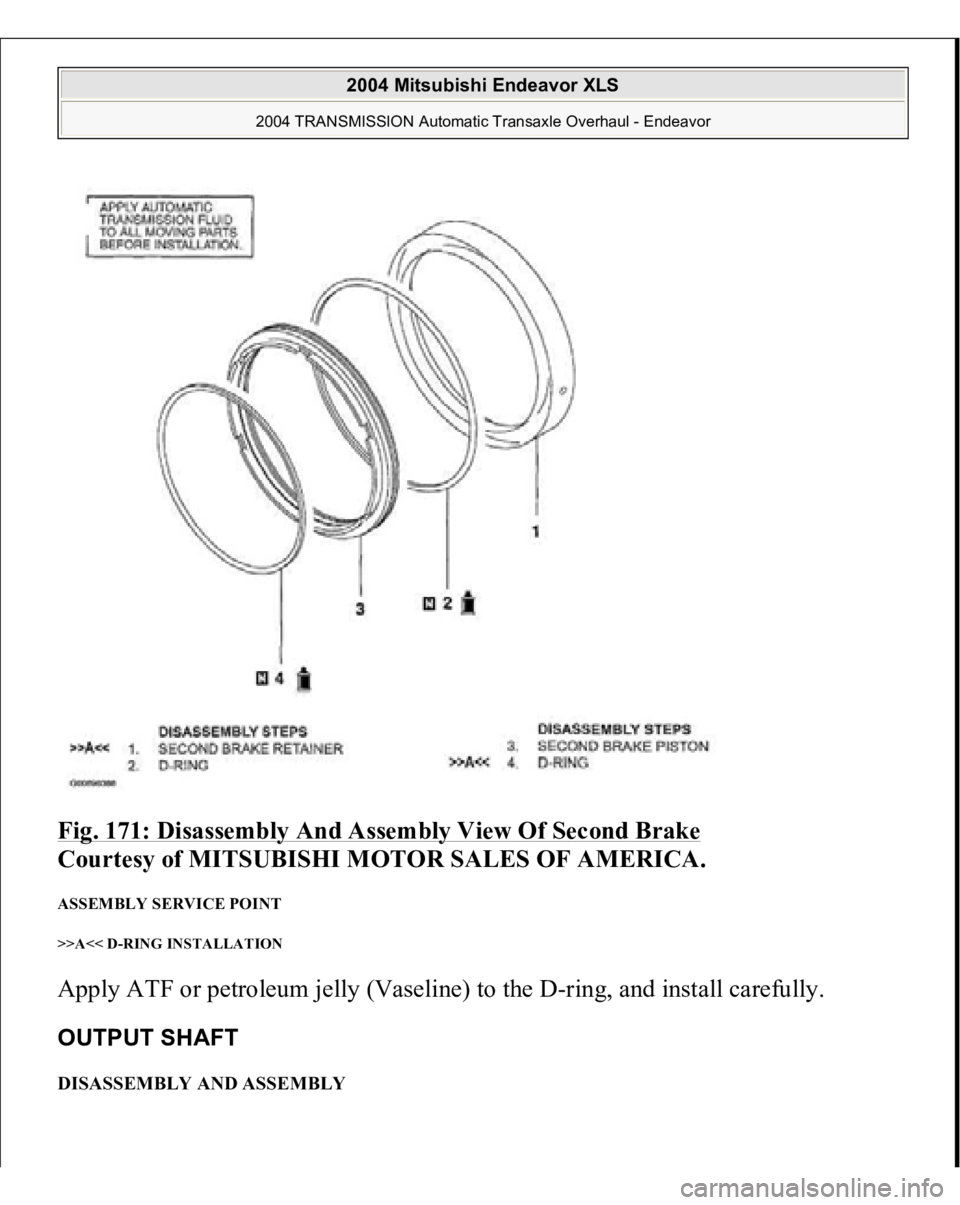

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 171: Disassembly And Assembly View Of Second Brake Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. ASSEMBLY SERVICE POINT >>A<< D-RING INSTALLATION Apply ATF or petroleum jelly (Vaseline) to th
