Page 2873 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual shown in the figure. 2004 Mitsubishi Endeavor LS 2004 STEERING Power Steering - Endeavor

Page 2874 of 3870

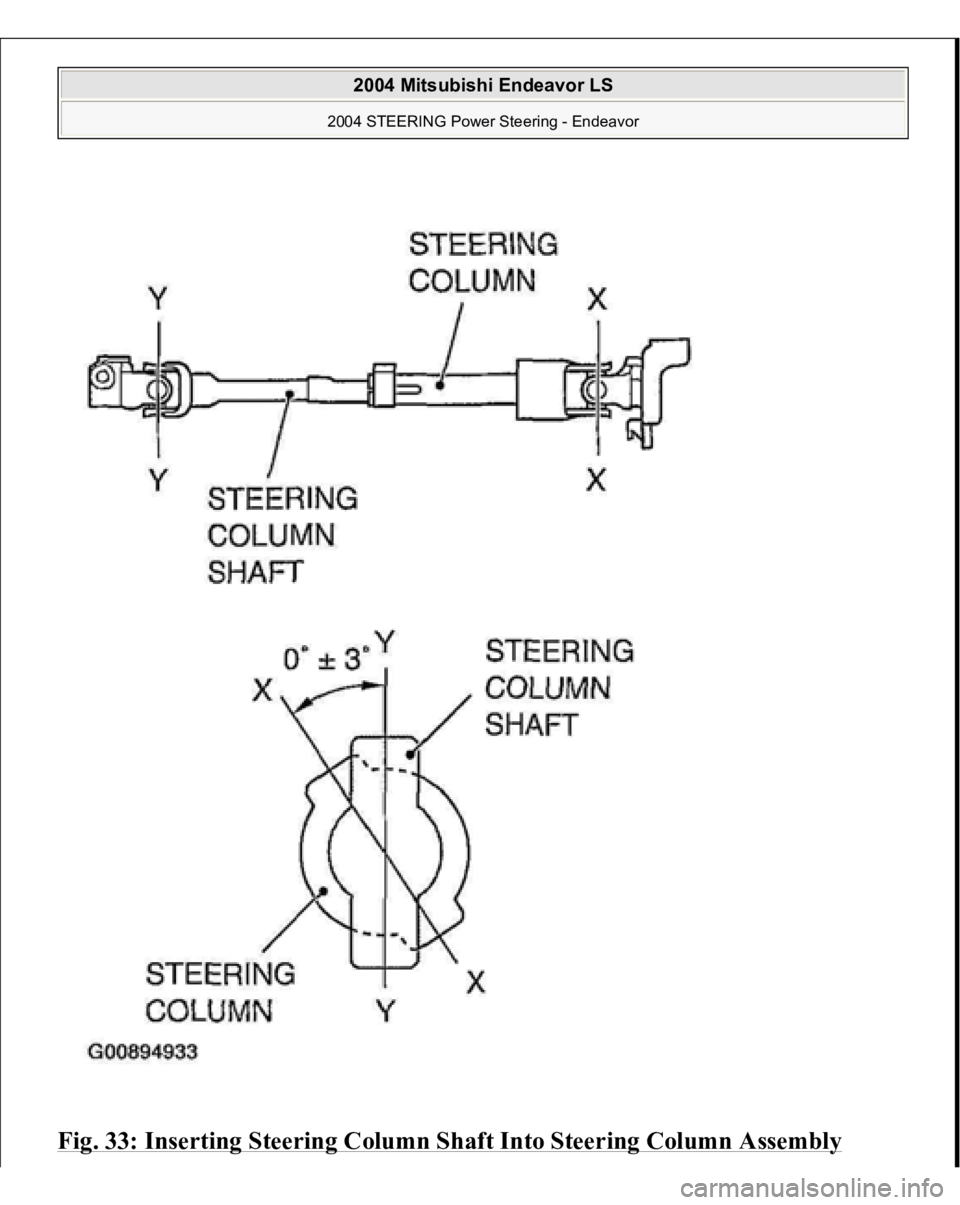

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 33: Inserting Steering Column Shaft Into Steering Column Assembly 2004 Mitsubishi Endeavor LS 2004 STEERING Power Steering - Endeavor

Page 2875 of 3870

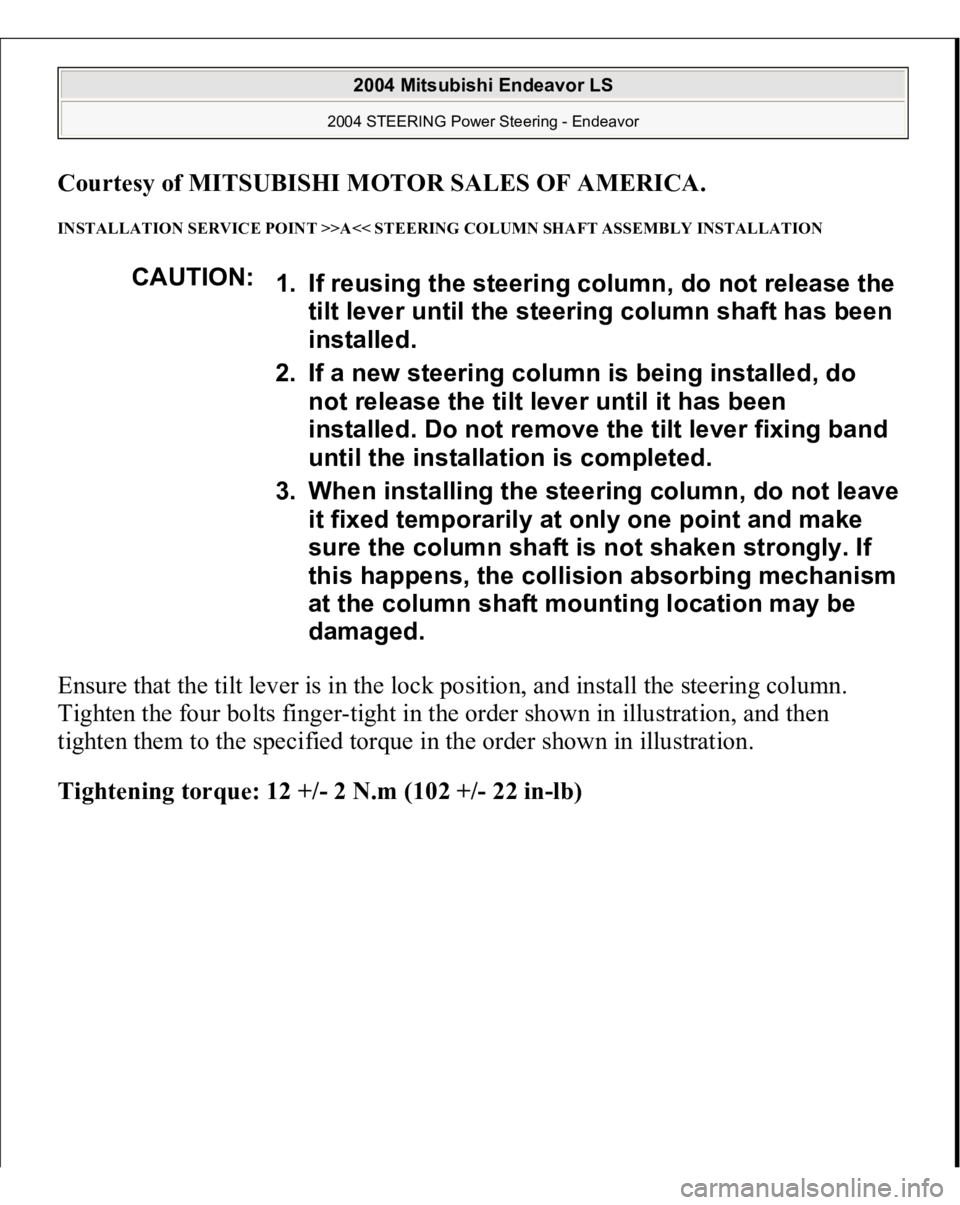

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . INSTALLATION SERVICE POINT >>A<< STEERING COLUMN SHAFT ASSEMBLY INSTALLATION Ensure that the tilt lever is in the lock position, and install the steeri

Page 2876 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 34: Checking Tilt Lever Position Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. INSTALLATION SERVICE POINT >>B<< STEERING WHEEL SENSOR < VEHICLES WITH ASC>, CLOCK SPRING AND COLUMN SWITCH ASS

Page 2877 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual < Mating Mark Alignment > 1. Turn the clock spring clockwise fully. Then turn it back approximately 3- 3/4 turns counterclockwise to align the mating marks. 2. Turn the front wheels to the straigh

Page 2878 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual < Mating Mark Alignment > 1. Turn the steering wheel sensor clockwise fully. Then turn it back approximately 2-3/4 turns counterclockwise to align the mating marks. 2. Align the mating marks on t

Page 2879 of 3870

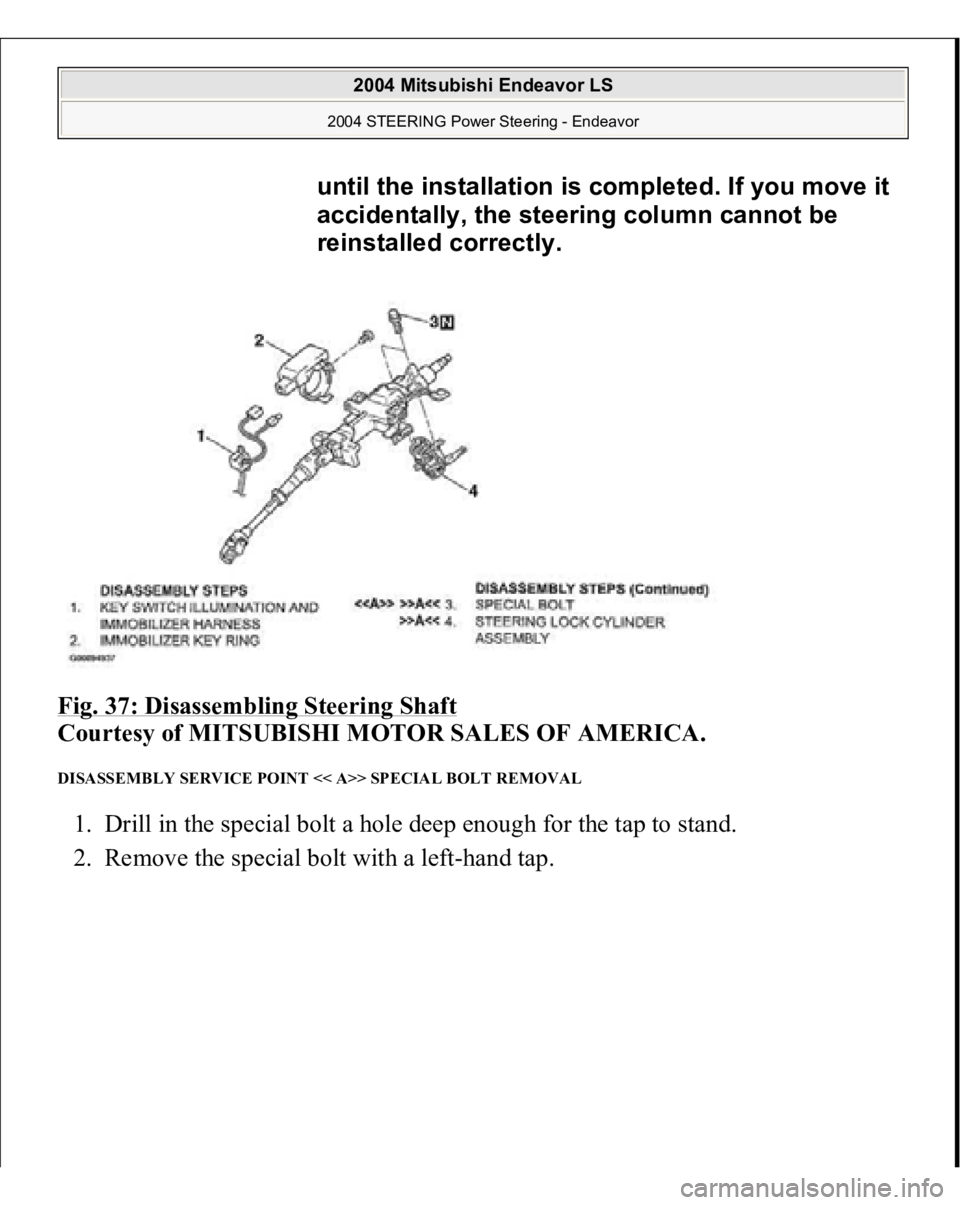

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 37: Disassembling Steering Shaft Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. DISASSEMBLY SERVICE POINT << A>> SPECIAL BOLT REMOVAL 1. Drill in the special bolt a hole deep enough for the ta

Page 2880 of 3870

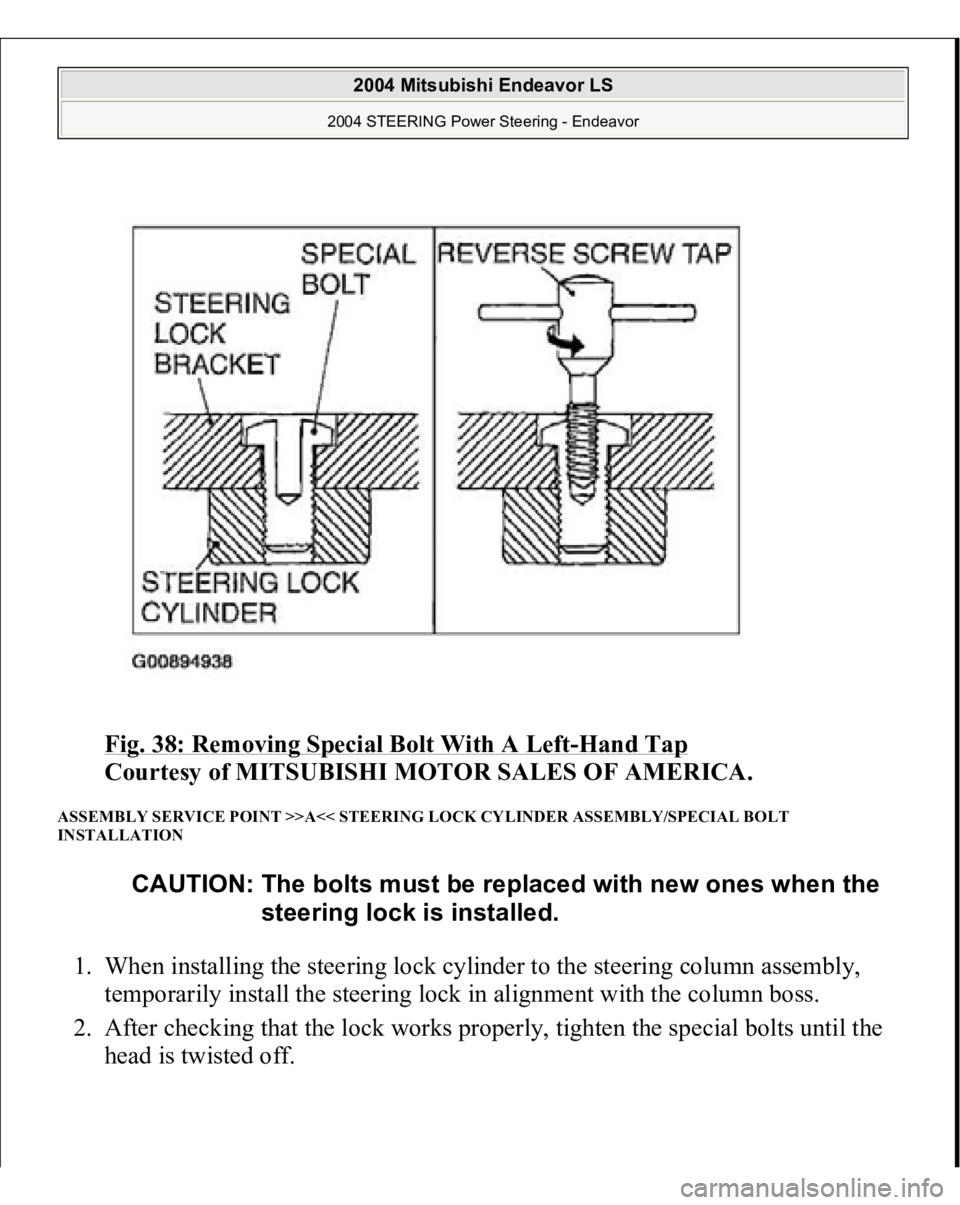

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 38: Removing Special Bolt With A Left -Hand Tap Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. ASSEMBLY SERVICE POINT >>A<< STEERING LOCK CYLINDER ASSEMBLY/SPECIAL BOLT INSTALLATION 1. When i
