Page 473 of 3870

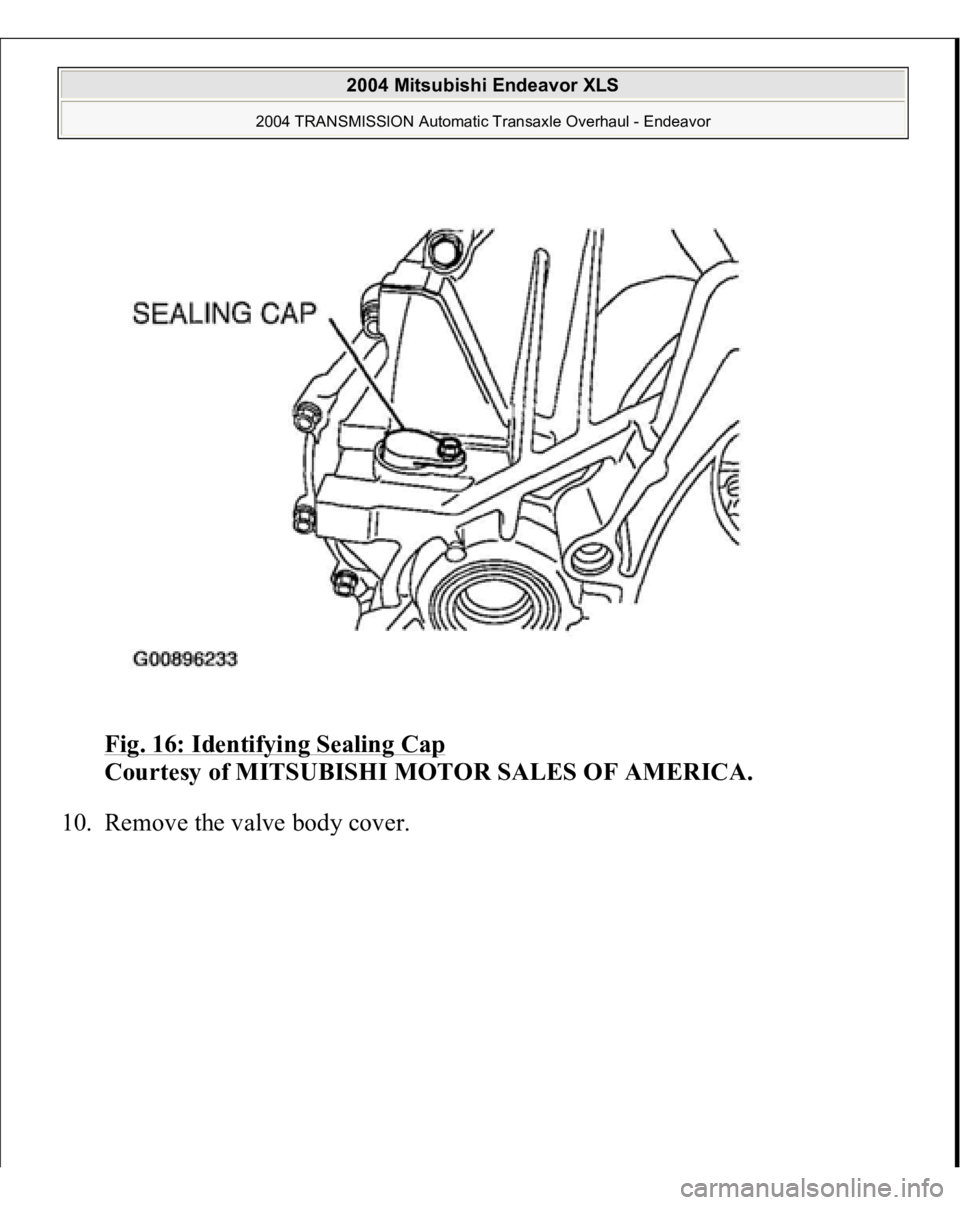

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 16: Identifying Sealing Cap Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 10. Remove the valve bod y cover. 2004 Mitsubishi Endeavor XLS 2004 TRANSMISSION Automatic Transaxle Overhaul - E

Page 474 of 3870

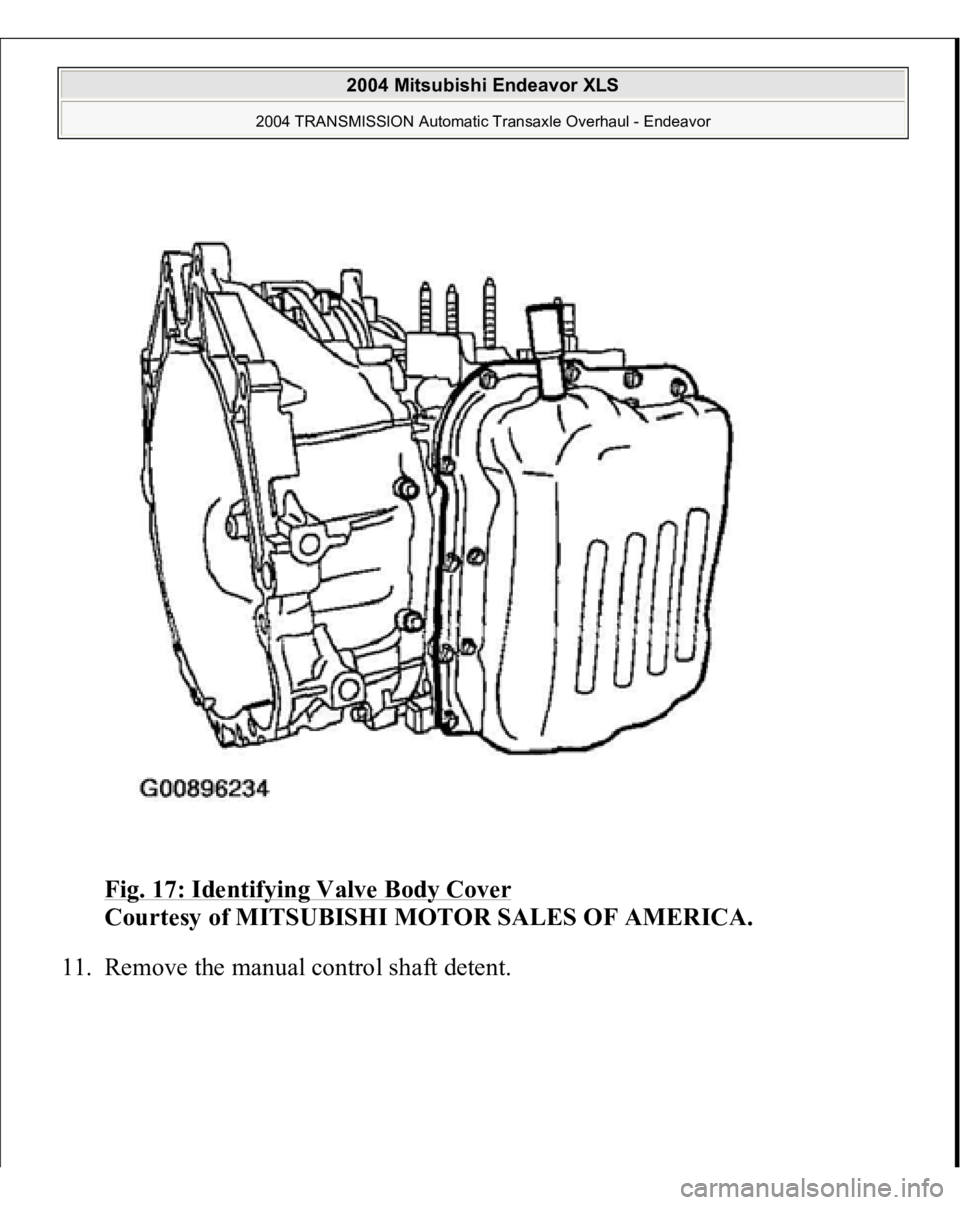

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 17: Identifying Valve Body Cover Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 11. Remove the manual control shaft detent. 2004 Mitsubishi Endeavor XLS 2004 TRANSMISSION Automatic Transax

Page 475 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 18: Identifying Manual Control Shaft Detent Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 12. Disconnect the solenoid valve harness from the valve by undoing the fluid tem perature sensor an

Page 476 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 19: Identifying Solenoid Valve Harness From Valve Body Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 13. Remove the valve bod y mountin g blots (twent y seven places ). CAUTION: Make sure t

Page 477 of 3870

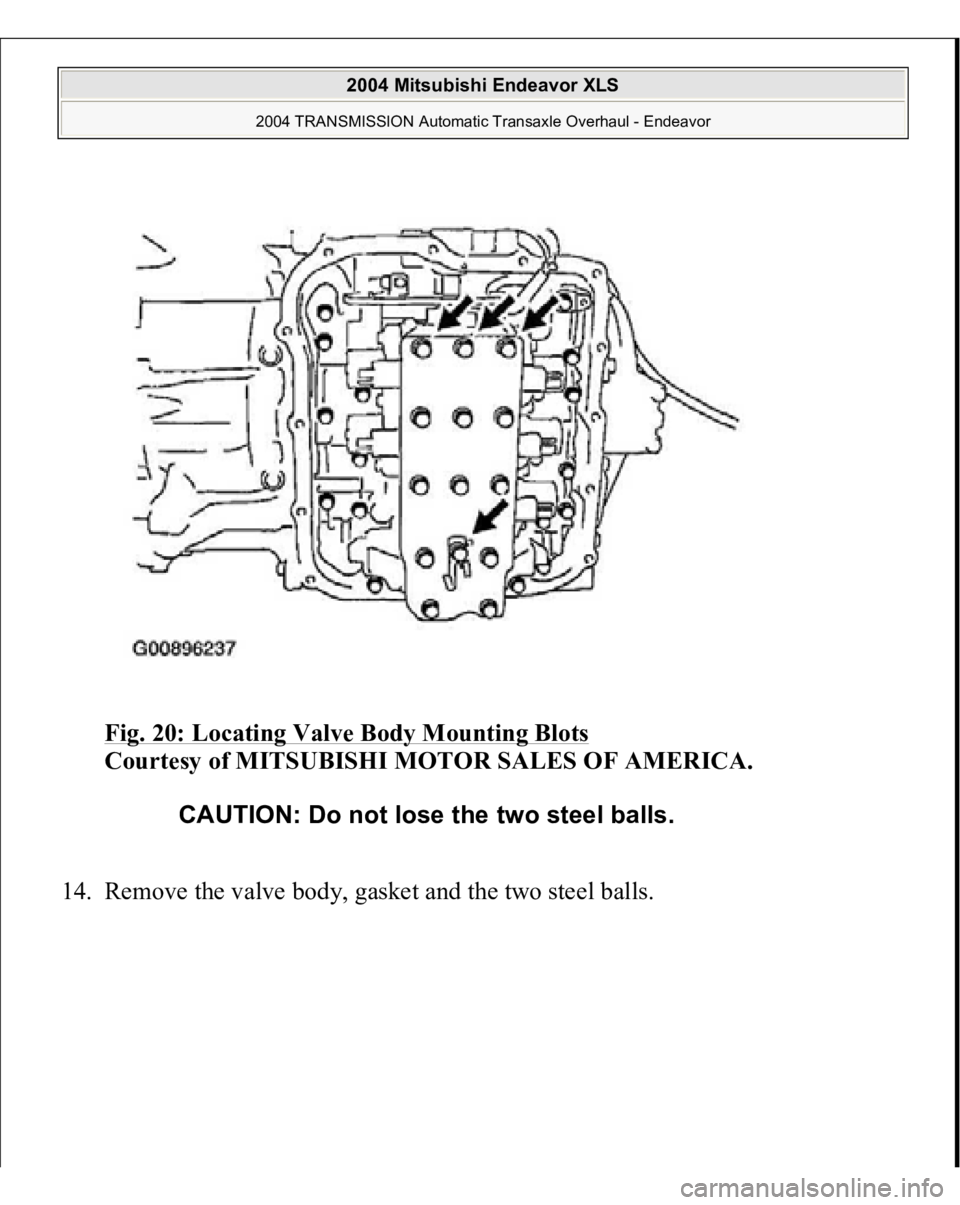

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 20: Locating Valve Body Mounting Blots Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 14. Remove the valve bod y, gasket and the two steel balls. CAUTION: Do not lose the two steel balls. 2

Page 478 of 3870

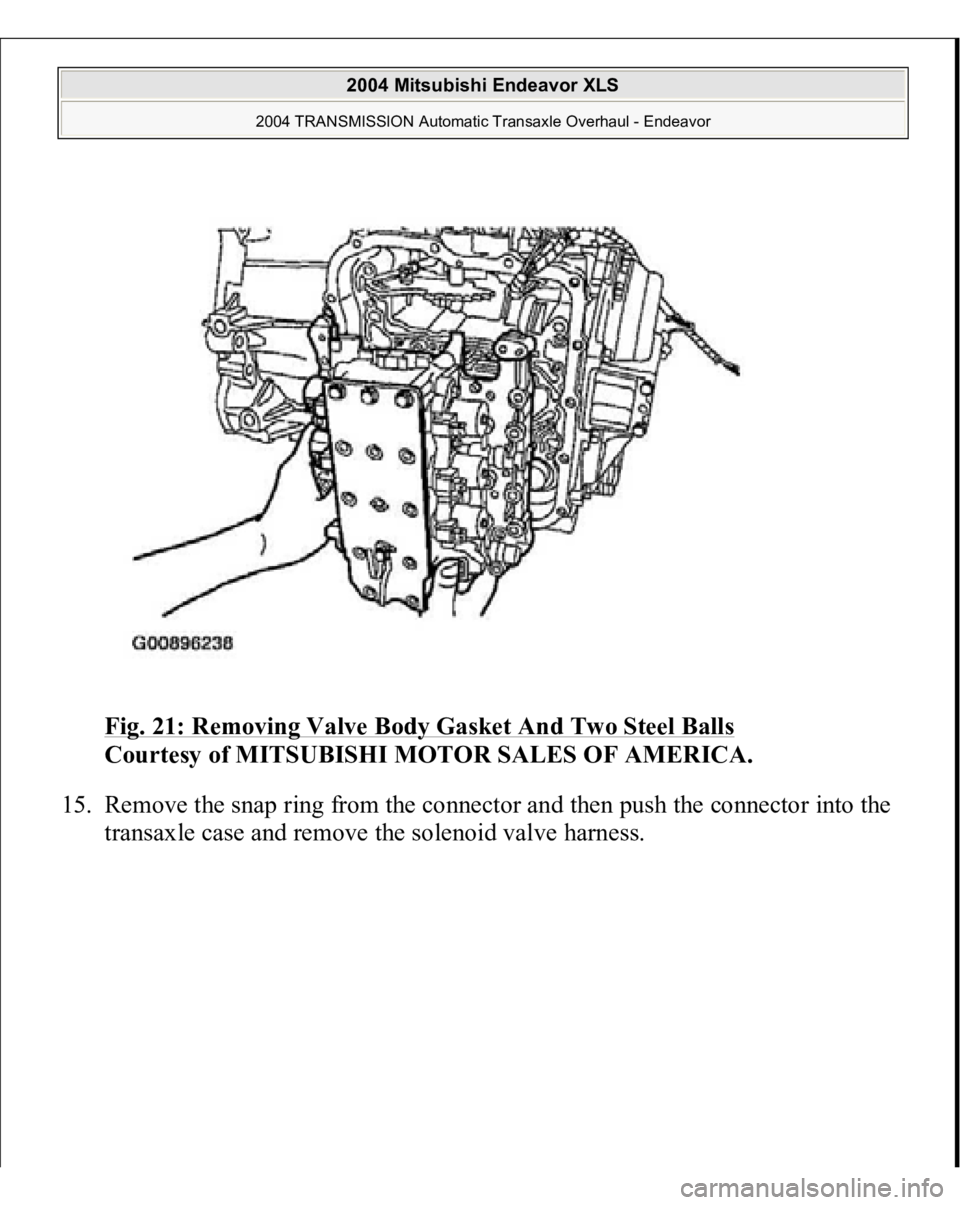

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 21: Removing Valve Body Gasket And Two Steel Balls Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 15. Remove the snap ring from the connector and then push the connector into the transaxle ca

Page 479 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 22: Identifying Snap Ring From Connector Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 16. Remove the strainer and the second brake retainer oil seal. 2004 Mitsubishi Endeavor XLS 2004 TR

Page 480 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 23: Identifying Strainer And Second Brake Retainer Oil Seal Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 17. Remove each accumulator piston and spring 2004 Mitsubishi Endeavor XLS 2004 T
