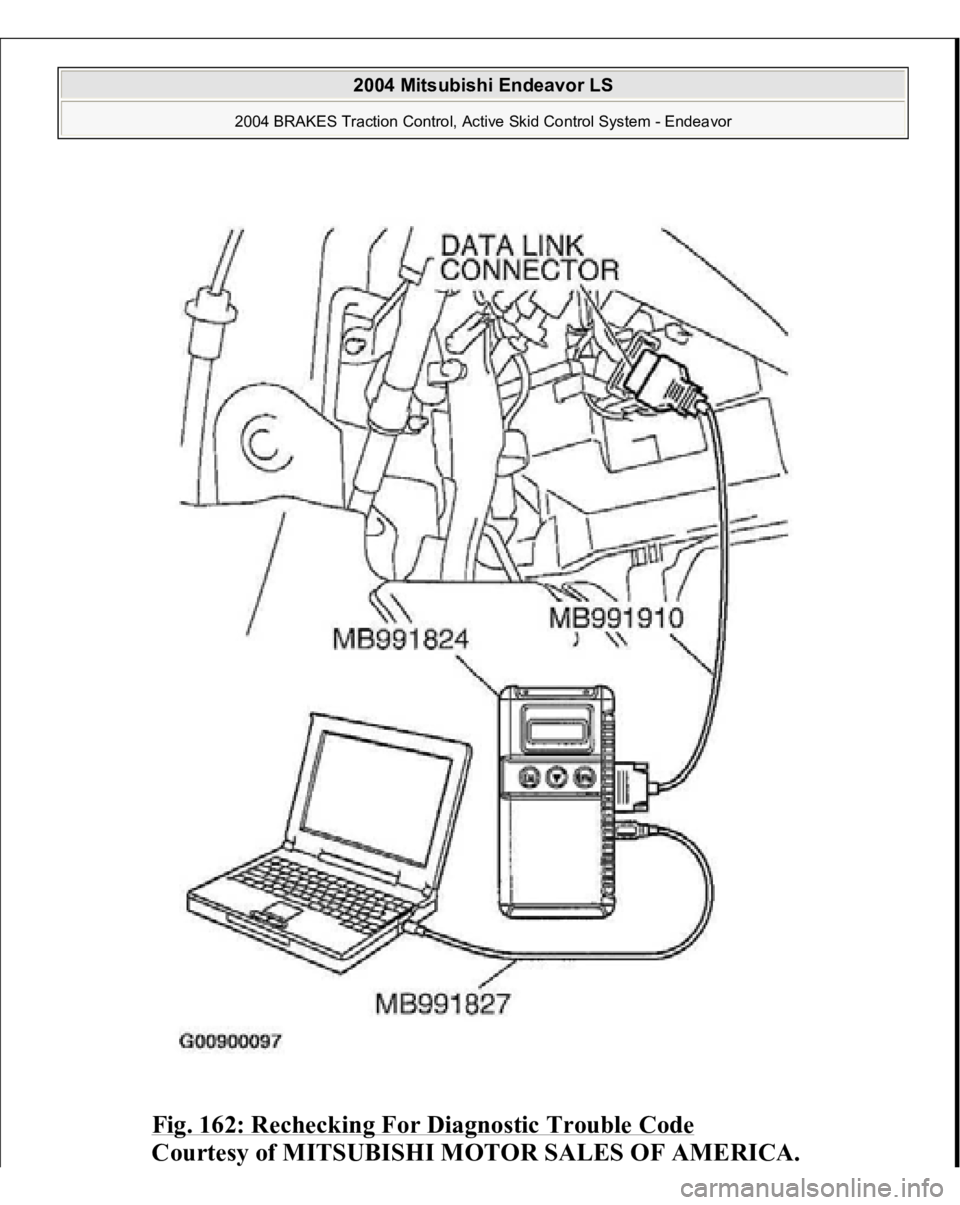

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 162: Rechecking For Diagnostic Trouble Code Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Page 3370 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 6. Turn the ignition switch to the "LOCK" (OFF) position. Q: Is DTC C1395 set? YES: Perform air-bleeding (Refer to HYDRAULIC UNIT ). NO: The procedure is complete. DTC C1505: STEERING

Page 3371 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . Fig. 164: Identifying Connectors A -32, B -18, C -31, C -101, C -102, C -211, C -215, C-312 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. CAUTION:

Page 3372 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual CIRCUIT OPERATION The TCL/ASC-ECU and the steering wheel sensor are connected each other via a CAN bus line, and the sensor sends the steering wheel angle and angular velocity information to the EC

Page 3373 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Required Special Tools: MB991958: Scan Tool (MUT-III Sub Assembly) MB991824: Vehicle Communication Interface (V.C.I.) MB991827: MUT-III USB Cable MB991910: MUT-III Main Harness A STEP 1. Using

Page 3374 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 165: Connecting Scan Tool Mb991958 To Data Link Connector 2004 Mitsubishi Endeavor LS 2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Page 3375 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . 2. Turn the ignition switch to the "ON" position. 3. Diagnose the CAN bus line. 4. Turn the ignition switch to the "LOCK" (OFF) pos

Page 3376 of 3870

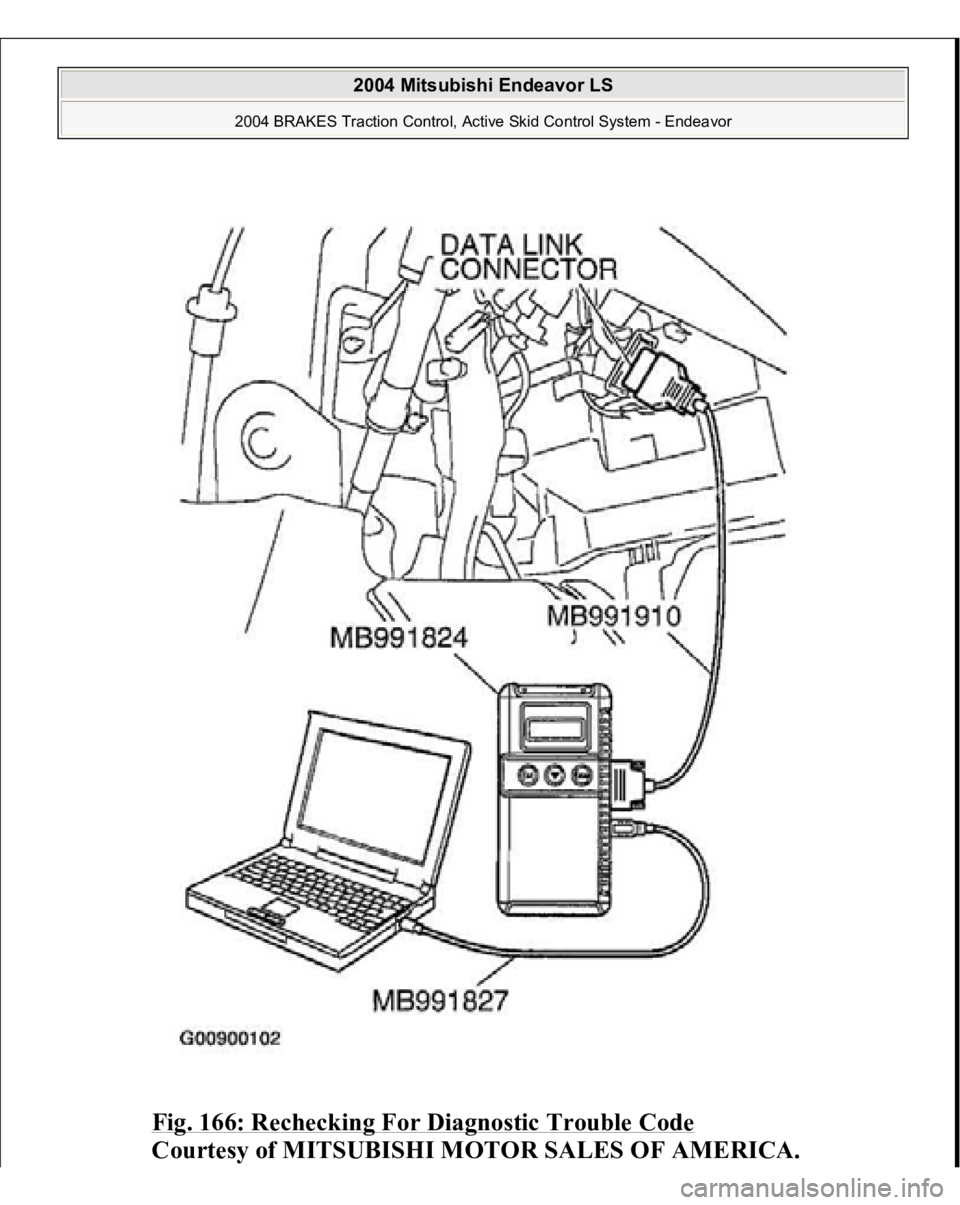

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 166: Rechecking For Diagnostic Trouble Code Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BRAKES Traction Control, Active Skid Control System - Endeavor
