MITSUBISHI ENDEAVOR 2004 Service Repair Manual 6. If the brake drag force exceeds the standard value, disassemble and clean the piston. Check for corrosion or worn piston seal, and check the sliding condition of the lock pin and guide pin. Fig.

Page 778 of 3870

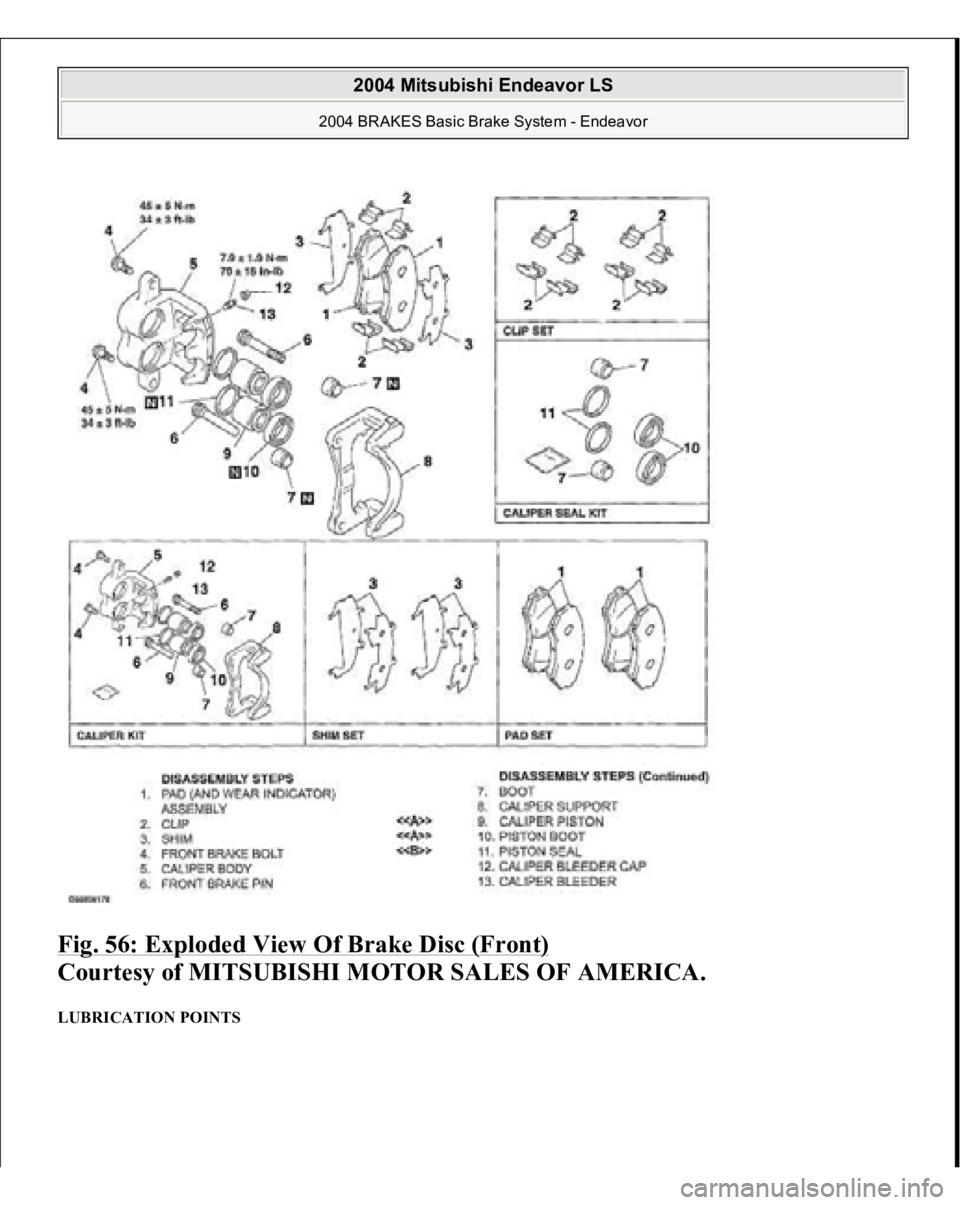

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 56: Exploded View Of Brake Disc (Front) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. LUBRICATION POINTS 2004 Mitsubishi Endeavor LS 2004 BRAKES Basic Brake System - Endeavor

Page 779 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 57: Identifying Lubrication Points Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. DISASSEMBLY SERVICE POINTS << A>> CALIPER PISTON/PISTON BOOT REMOVAL CAUTION: When disassembling the front di

Page 780 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Blow compressed air slowly from the connecting portion of the brake hose to pull out the piston and the piston boots.handle of a plastic hammer and adjust the height of the two pistons while pumpi

Page 781 of 3870

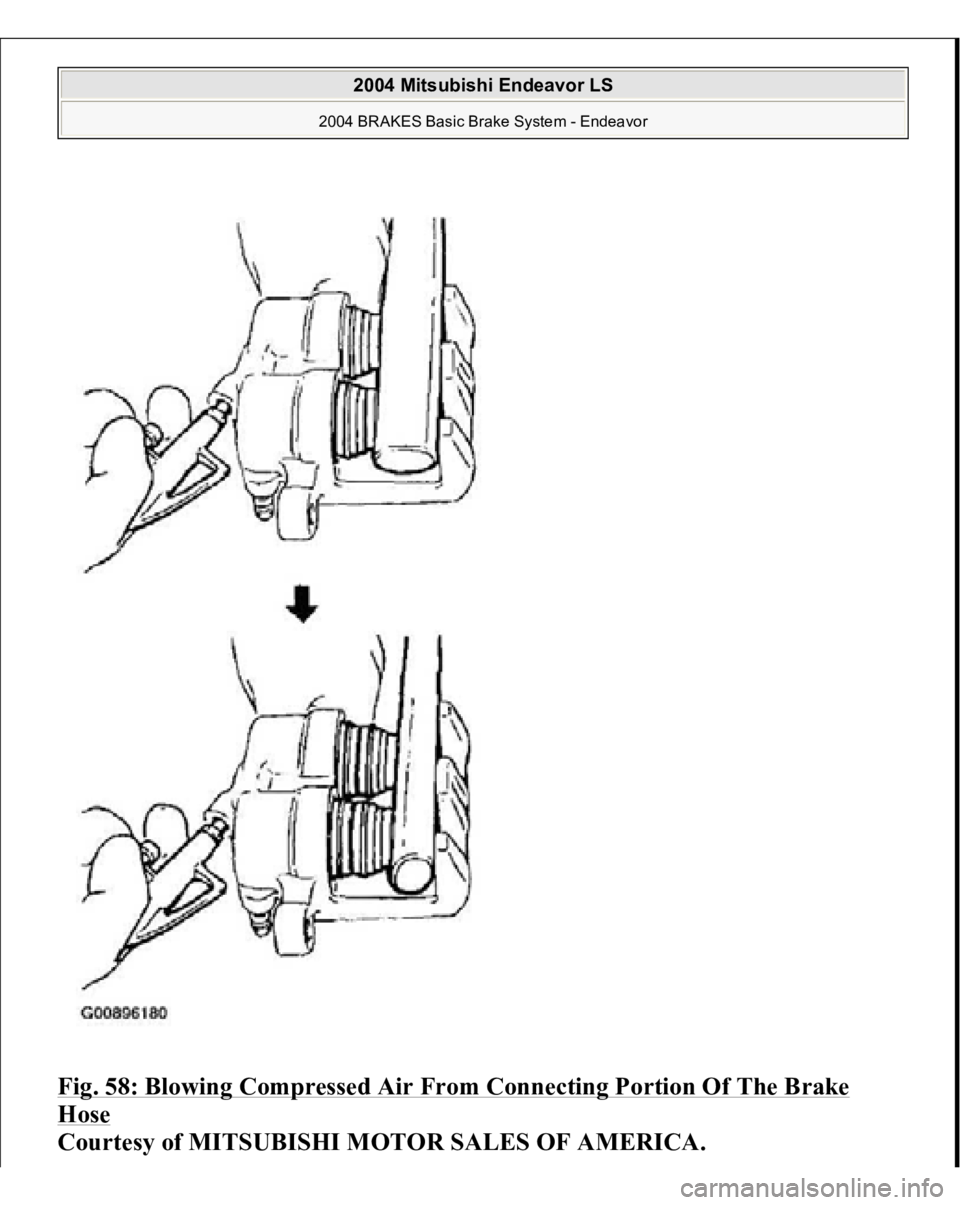

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 58: Blowing Compressed Air From Connecting Portion Of The Brake Hose Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BRAKES Basic Brake System - Endeavor

Page 782 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual << B>> PISTON SEAL REMOVAL 1. Remove the piston seal with your finger tip. 2. Clean the piston surface and inner cylinder with alcohol brake fluid DOT 3 or DOT 4. Fig. 59: Cleaning Piston Surface

Page 783 of 3870

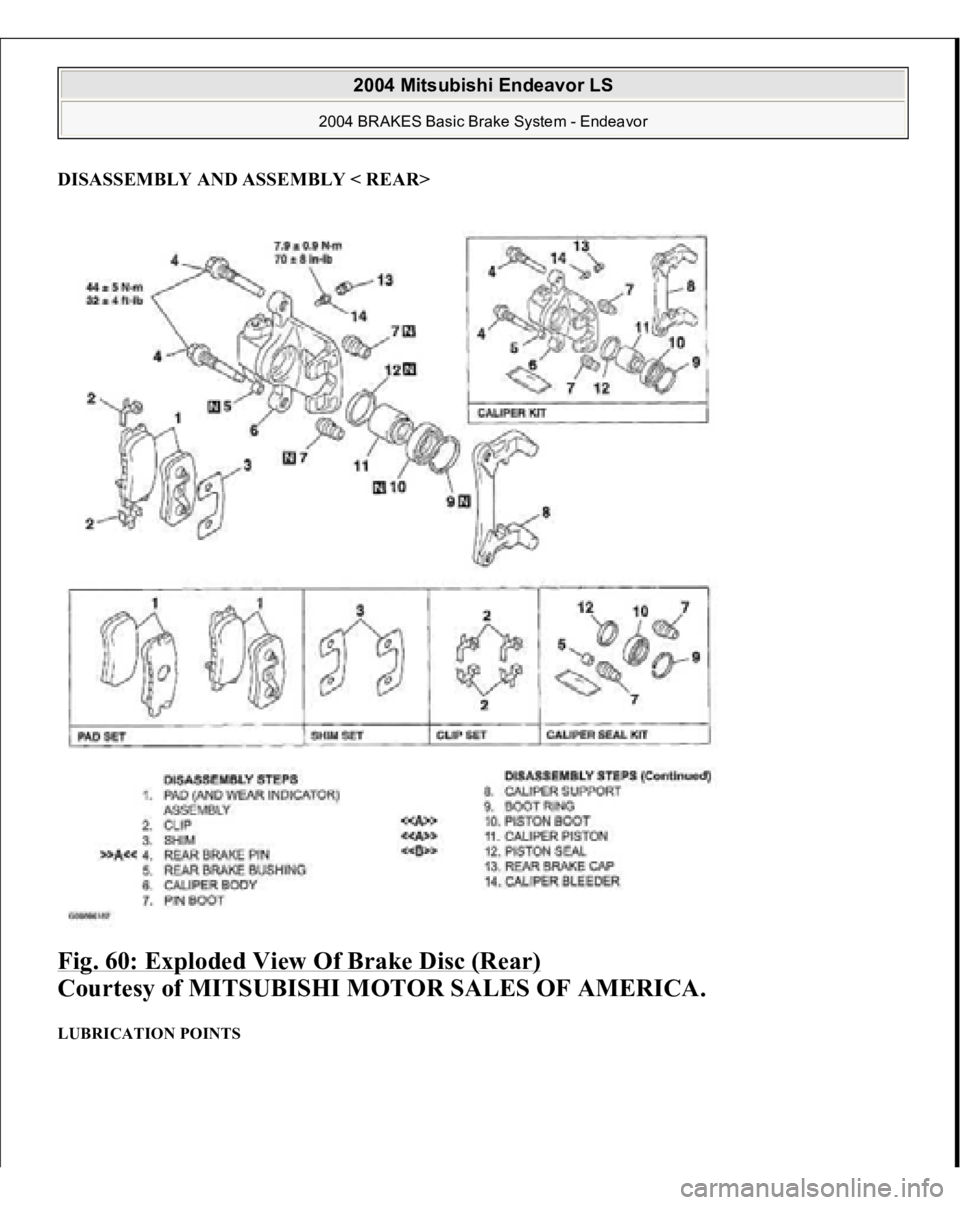

MITSUBISHI ENDEAVOR 2004 Service Repair Manual DISASSEMBLY AND ASSEMBLY < REAR>Fig. 60: Exploded View Of Brake Disc (Rear) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. LUBRICATION POINTS 2004 Mitsubishi Endeavor LS 2004 BRAKES Basic Brake

Page 784 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 61: Identifying Lubrication Points Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. DISASSEMBLY SERVICE POINTS << A>> PISTON BOOT/CALIPER PISTON REMOVAL CAUTION: When disassembling the disc bra
