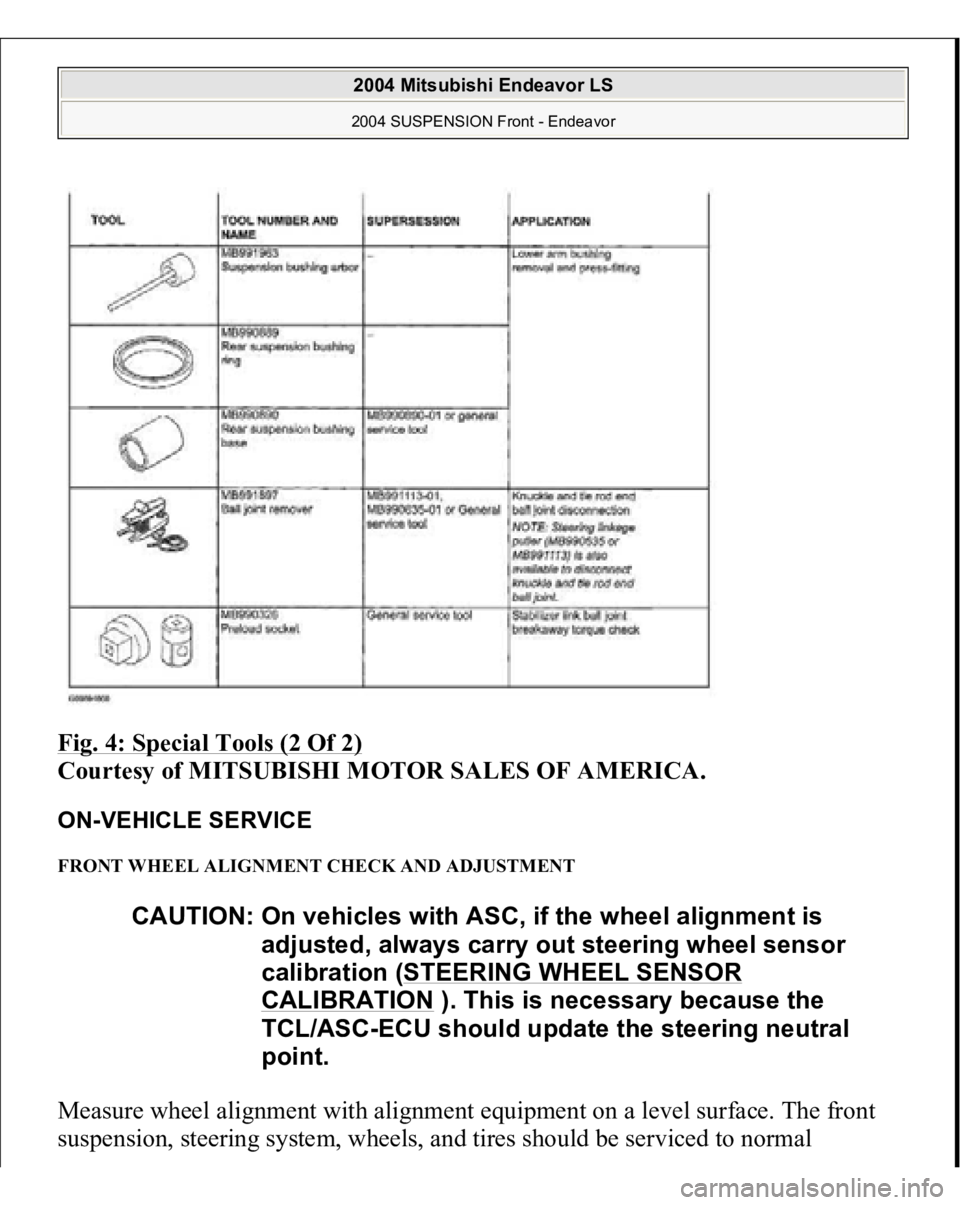

MITSUBISHI ENDEAVOR 2004  Service Repair Manual Fig. 4: Special Tools (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
ON-VEHICLE SERVICE FRONT WHEEL ALIGNMENT CHECK AND ADJUSTMENT Measure wheel alignment with alignment equipment on a lev

Page 1946 of 3870

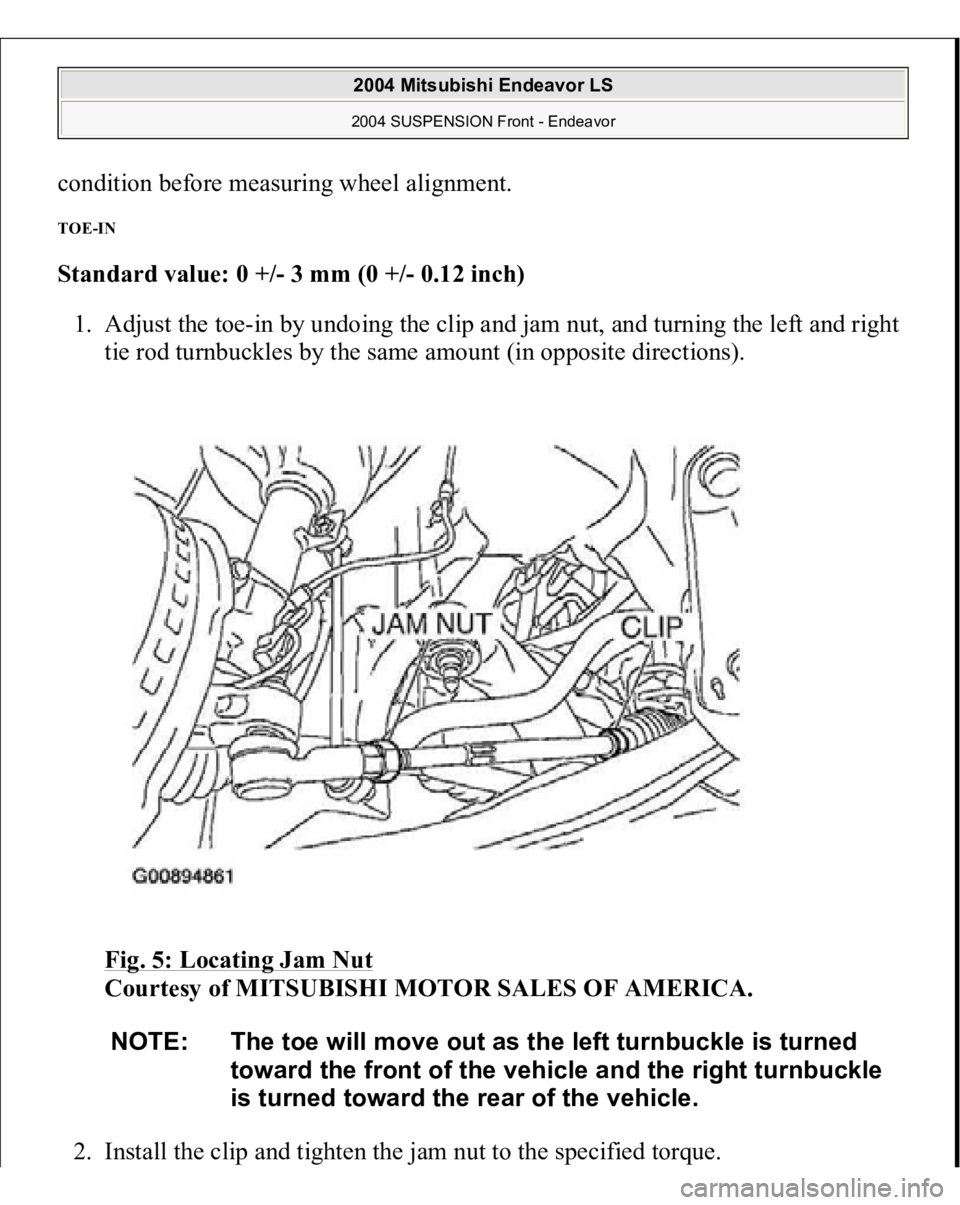

MITSUBISHI ENDEAVOR 2004  Service Repair Manual condition before measuring wheel alignment. TOE-IN Standard value: 0 +/- 3 mm (0 +/- 0.12 inch)
1. Adjust the toe-in by undoing the clip and jam nut, and turning the left and right
tie rod turnbuck

Page 1947 of 3870

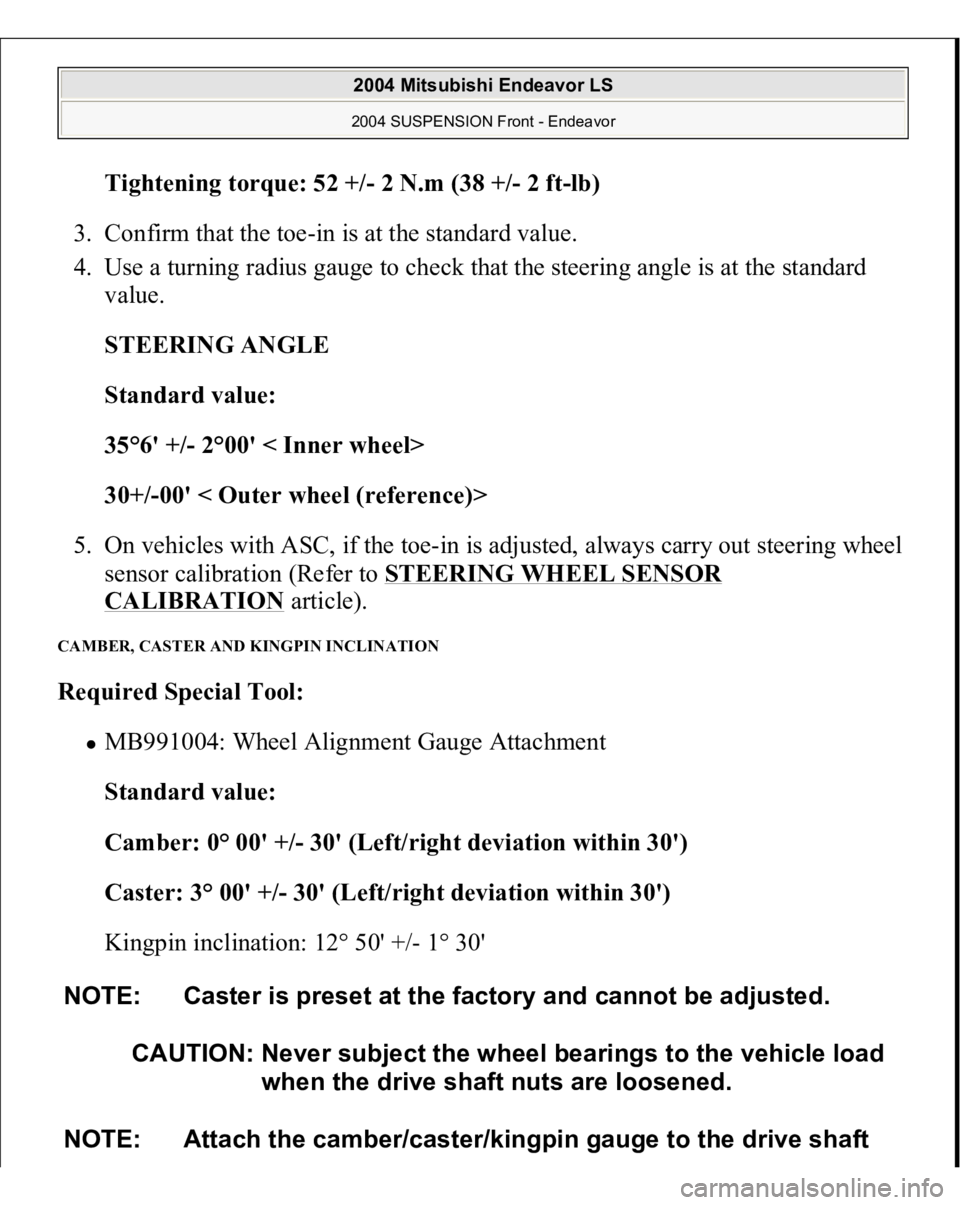

MITSUBISHI ENDEAVOR 2004  Service Repair Manual Tightening torque: 52 +/- 2 N.m (38 +
/-2 f
t-lb)
3. Confirm that the toe-in is at the standard value.
4. Use a turning radius gauge to check that the steering angle is at the standard
value.
ST

Page 1948 of 3870

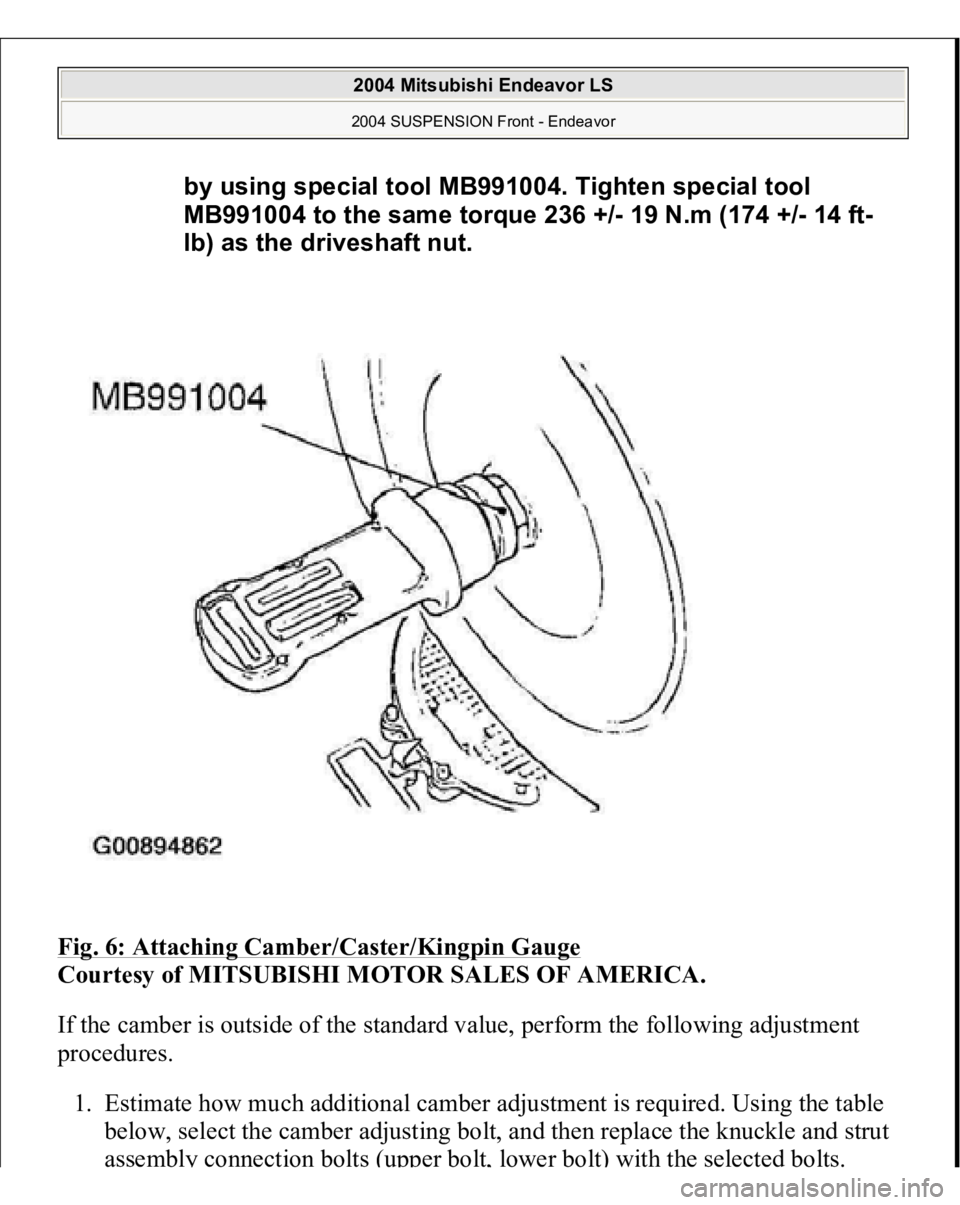

MITSUBISHI ENDEAVOR 2004  Service Repair Manual Fig. 6: Attaching Camber/Caster/Kingpin Gauge

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
If the camber is outside of the standard value, perform the following adjustment
procedures.
1. Estima

Page 1949 of 3870

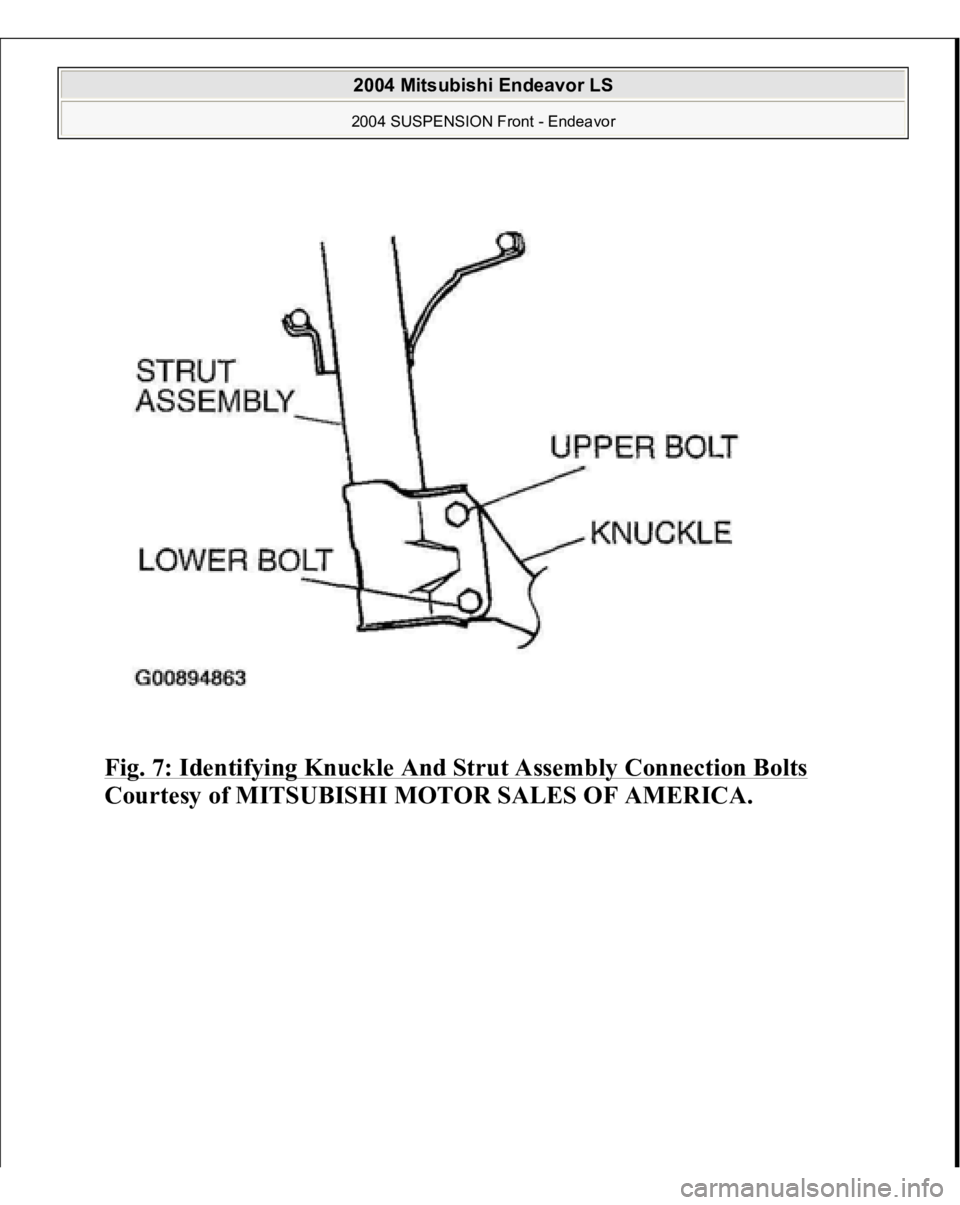

MITSUBISHI ENDEAVOR 2004  Service Repair Manual Fig. 7: Identifying Knuckle And Strut Assembly Connection Bolts

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS 2004 SUSPENSION Front - Endeavor

Page 1950 of 3870

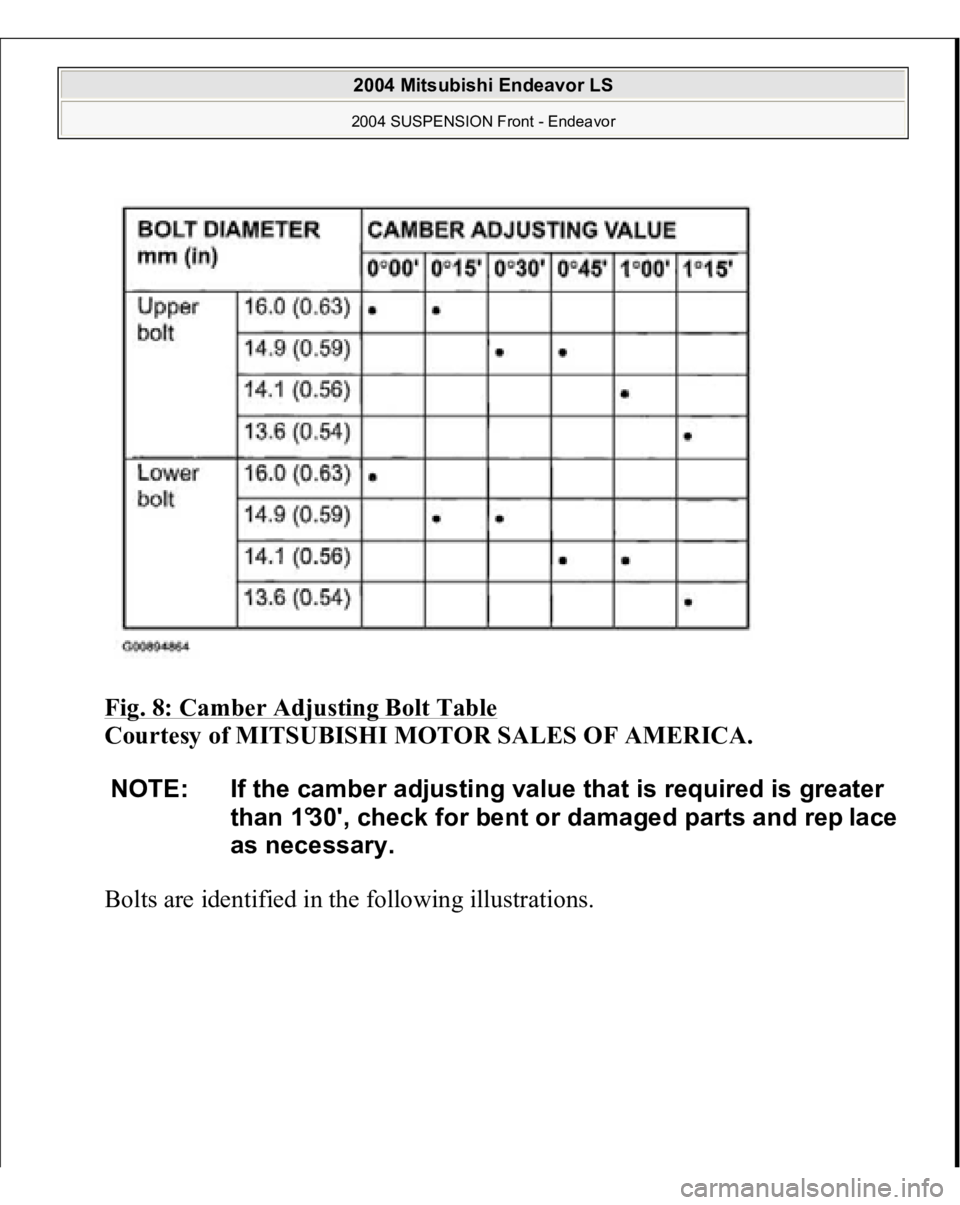

MITSUBISHI ENDEAVOR 2004  Service Repair Manual Fig. 8: Camber Adjusting Bolt Table

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Bolts are identified in the followin
g illustrations.
NOTE: If the camber adjusting value that is required is gre

Page 1951 of 3870

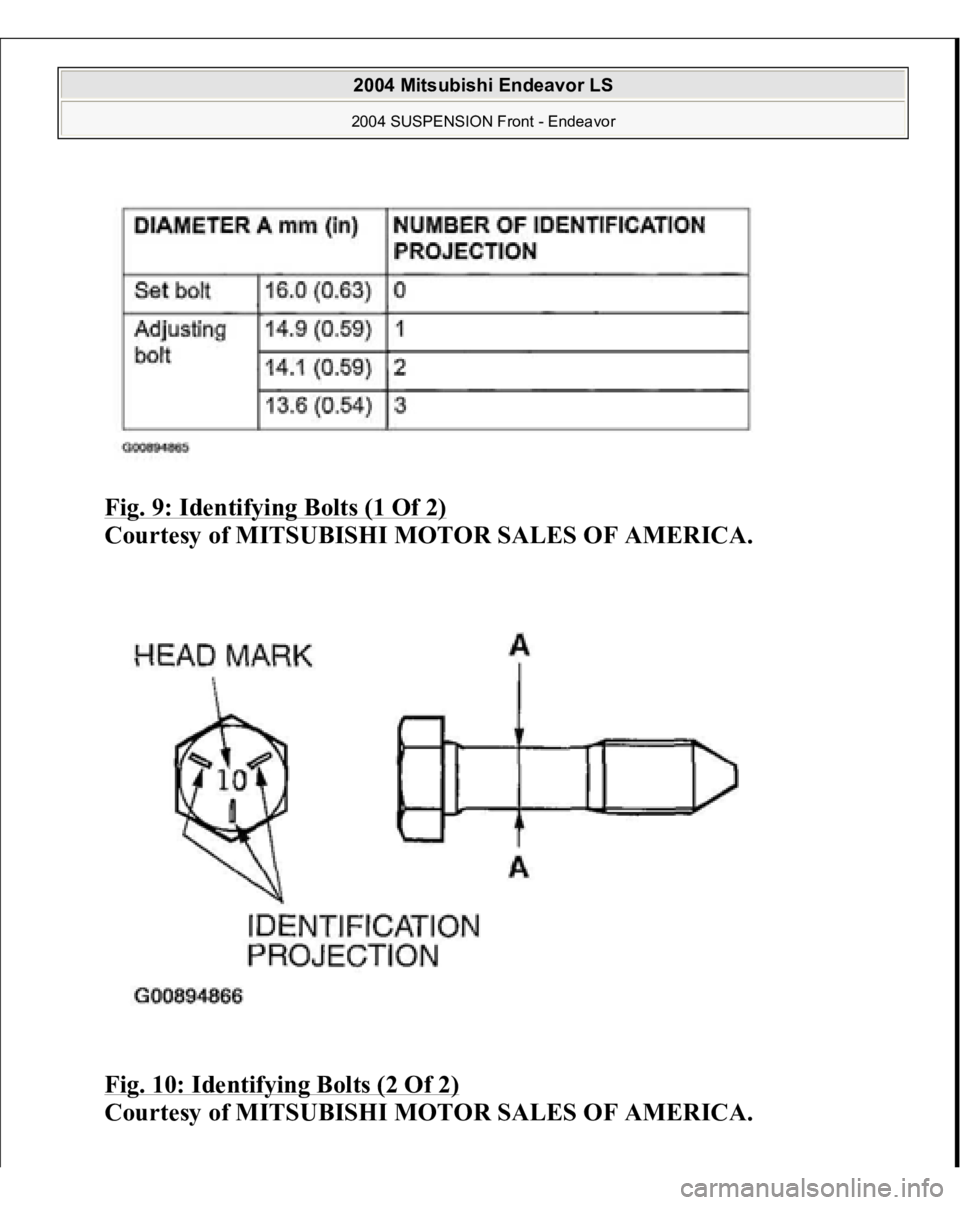

MITSUBISHI ENDEAVOR 2004  Service Repair Manual Fig. 9: Identifying Bolts (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig. 10: Identifying Bolts (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS

Page 1952 of 3870

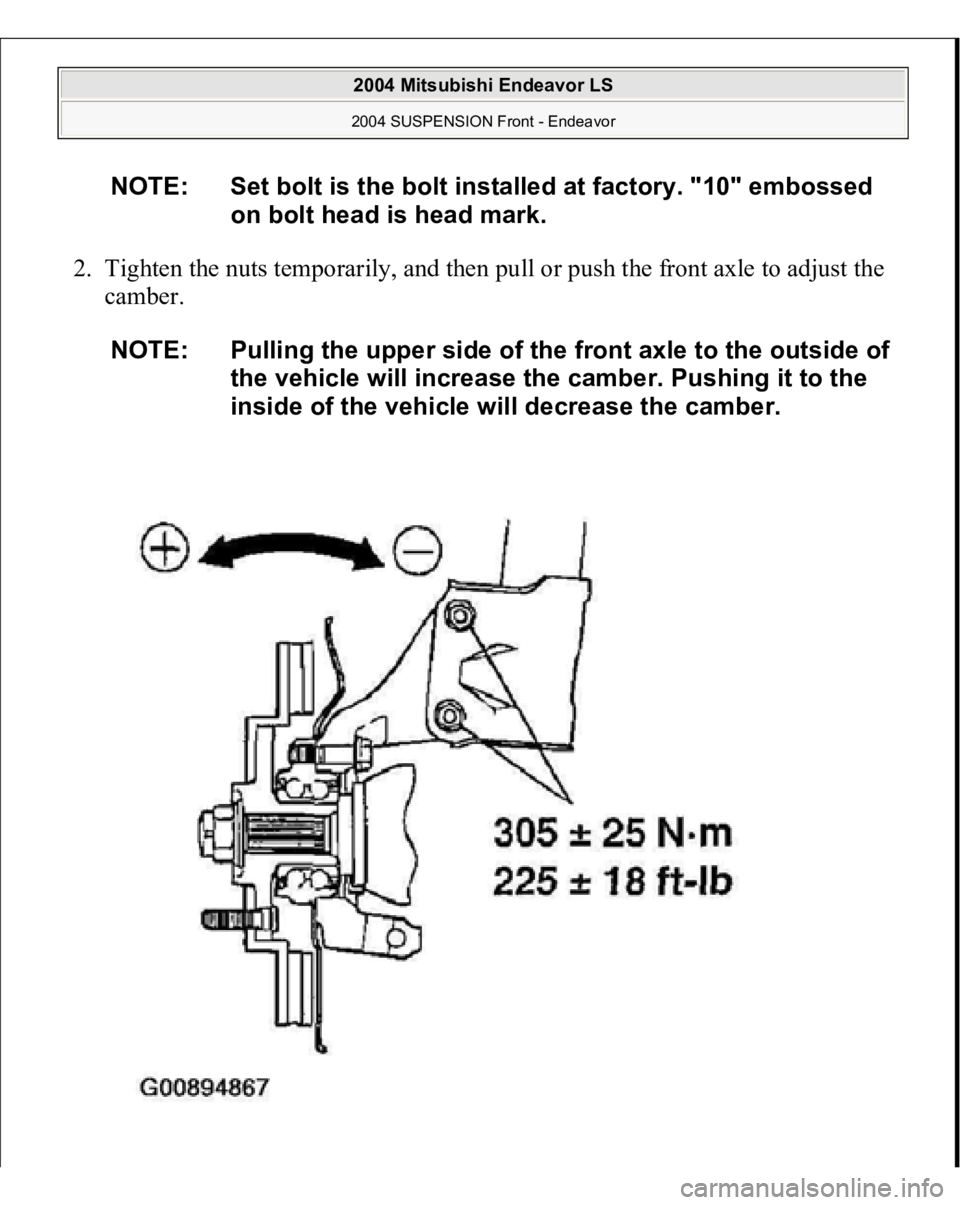

MITSUBISHI ENDEAVOR 2004  Service Repair Manual 2. Tighten the nuts temporarily, and then pull or push the front axle to adjust the
camber.
NOTE: Set bolt is the bolt installed at factory. "10" embossed
on bolt head is head mark.
NOTE: P
