MITSUBISHI ENDEAVOR 2004 Service Repair Manual NO: Go to Step 8 . INSPECTION PROCEDURE 4: THE REMOTE CONTROL DOES NOT FUNCTION DIAGNOSTIC PROCEDURE STEP 1. Confirm the remote control battery. Confirm that the remote control battery is normal.

Page 1842 of 3870

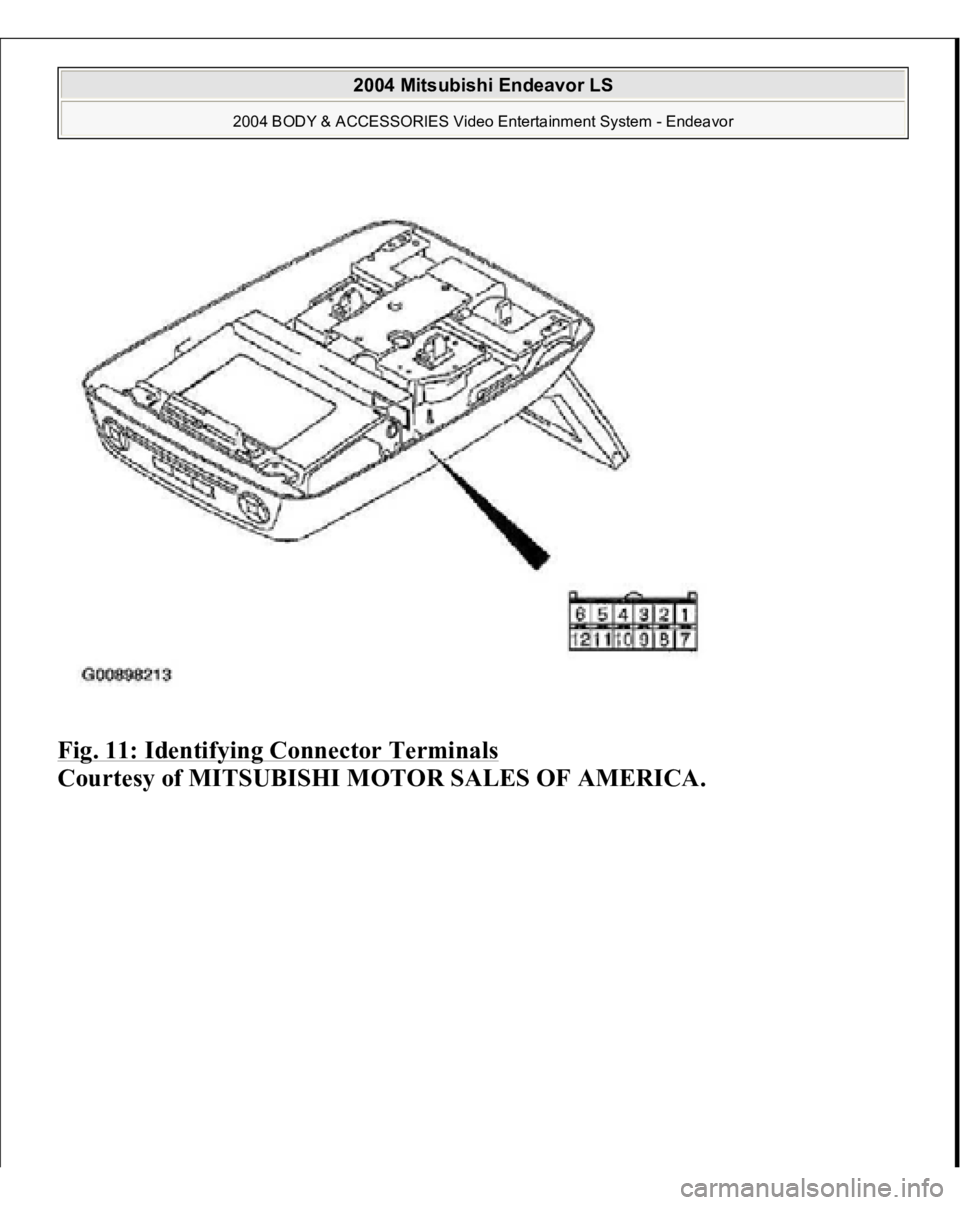

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 11: Identifying Connector Terminals Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Video Entertainment System - Endeavor

Page 1843 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 12: Main Unit Terminal Voltage Rear Display Unit Chart (Overhead Type) (1 Of 2) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Fig. 13: Main Unit Terminal Voltage Rear Display Unit Chart (Over

Page 1844 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 14: Removing & Installing Rear Display Unit (Overhead Type) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. REMOVAL SERVICE POINT << A >>REAR DISPLAY UNIT (OVERHEAD TYPE) ASSEMBLY REMOVAL 200

Page 1845 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 15: Removing Rear Display Unit (Overhead Type) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Insert the special tool between the rear display unit assembly (overhead type) and the headlining

Page 1846 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2004 BODY & ACCESSORIES Floor Console Assembly - Endeavor FLOOR CONSOLE ASSEMBLY REMOVAL AND INSTALLATION Fig. 1: Removal/Installation Of Floor Console Courtesy of MITSUBISHI MOTOR SALES OF AMERIC

Page 1847 of 3870

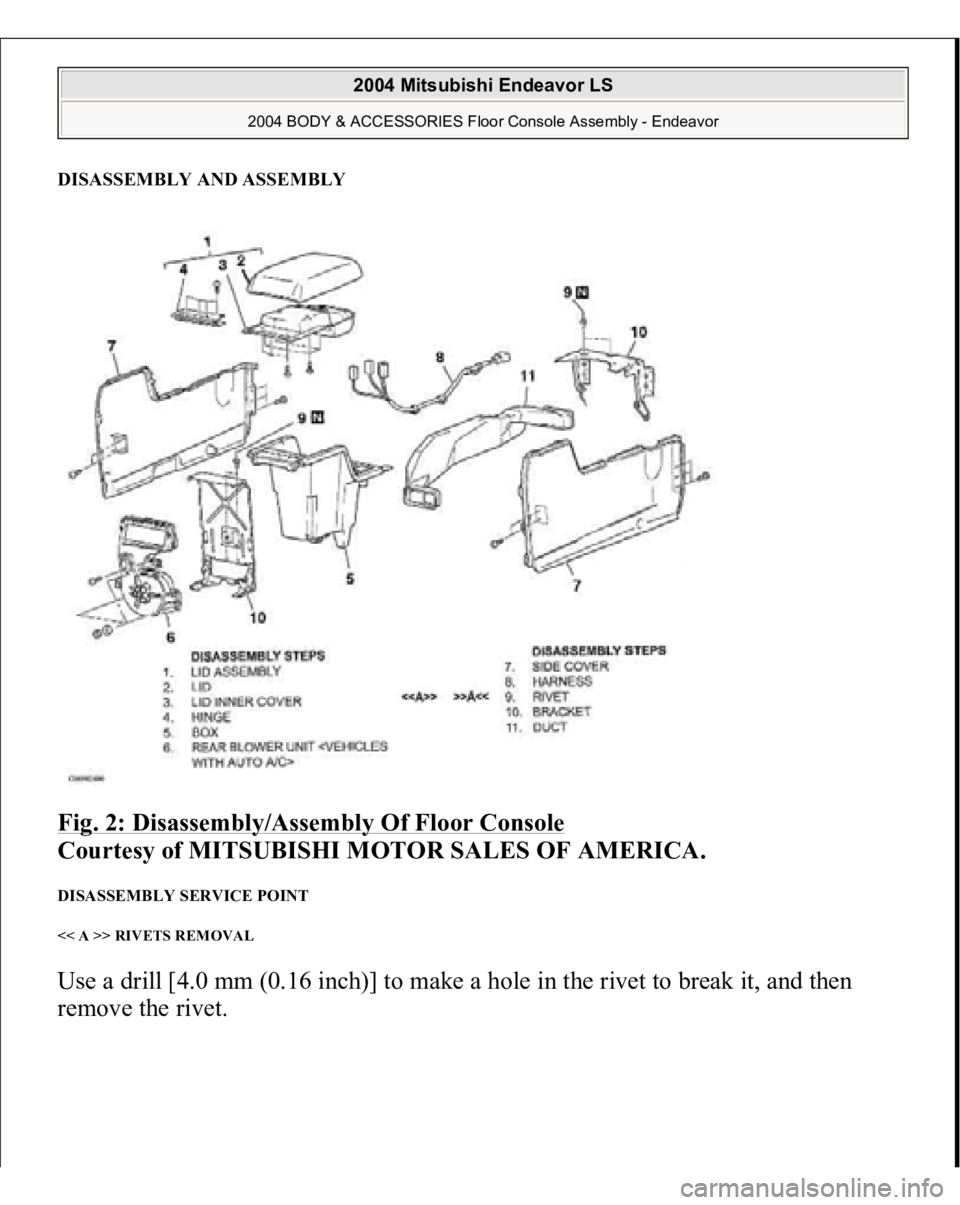

MITSUBISHI ENDEAVOR 2004 Service Repair Manual DISASSEMBLY AND ASSEMBLYFig. 2: Disassembly/Assembly Of Floor Console Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. DISASSEMBLY SERVICE POINT << A >> RIVETS REMOVAL Use a drill [4.0 mm (0.16 inch)

Page 1848 of 3870

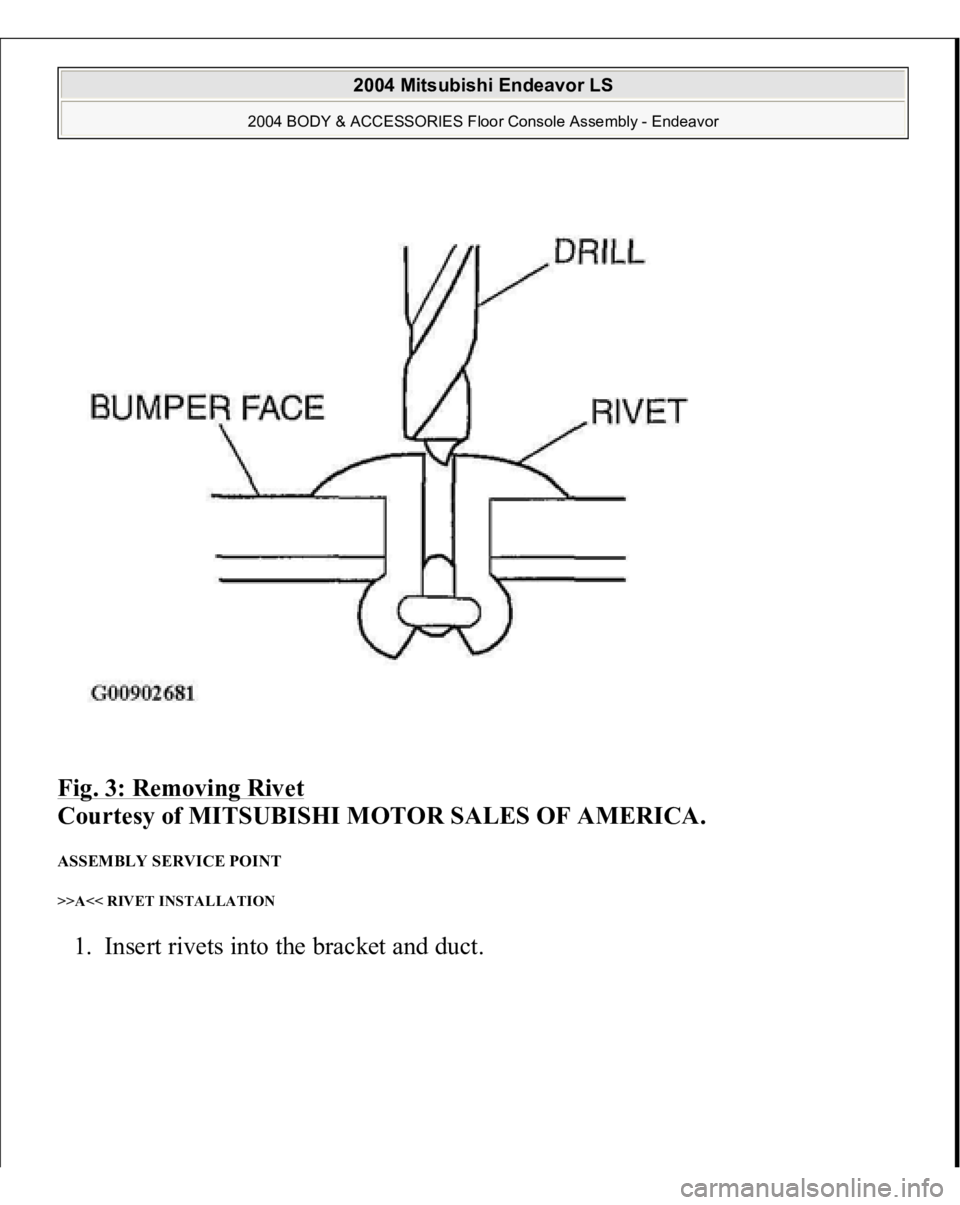

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 3: Removing Rivet Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. ASSEMBLY SERVICE POINT >>A<< RIVET INSTALLATION 1. Insert rivets into the bracket and duct. 2004 Mitsubishi Endeavor LS 2004
