Page 3217 of 3870

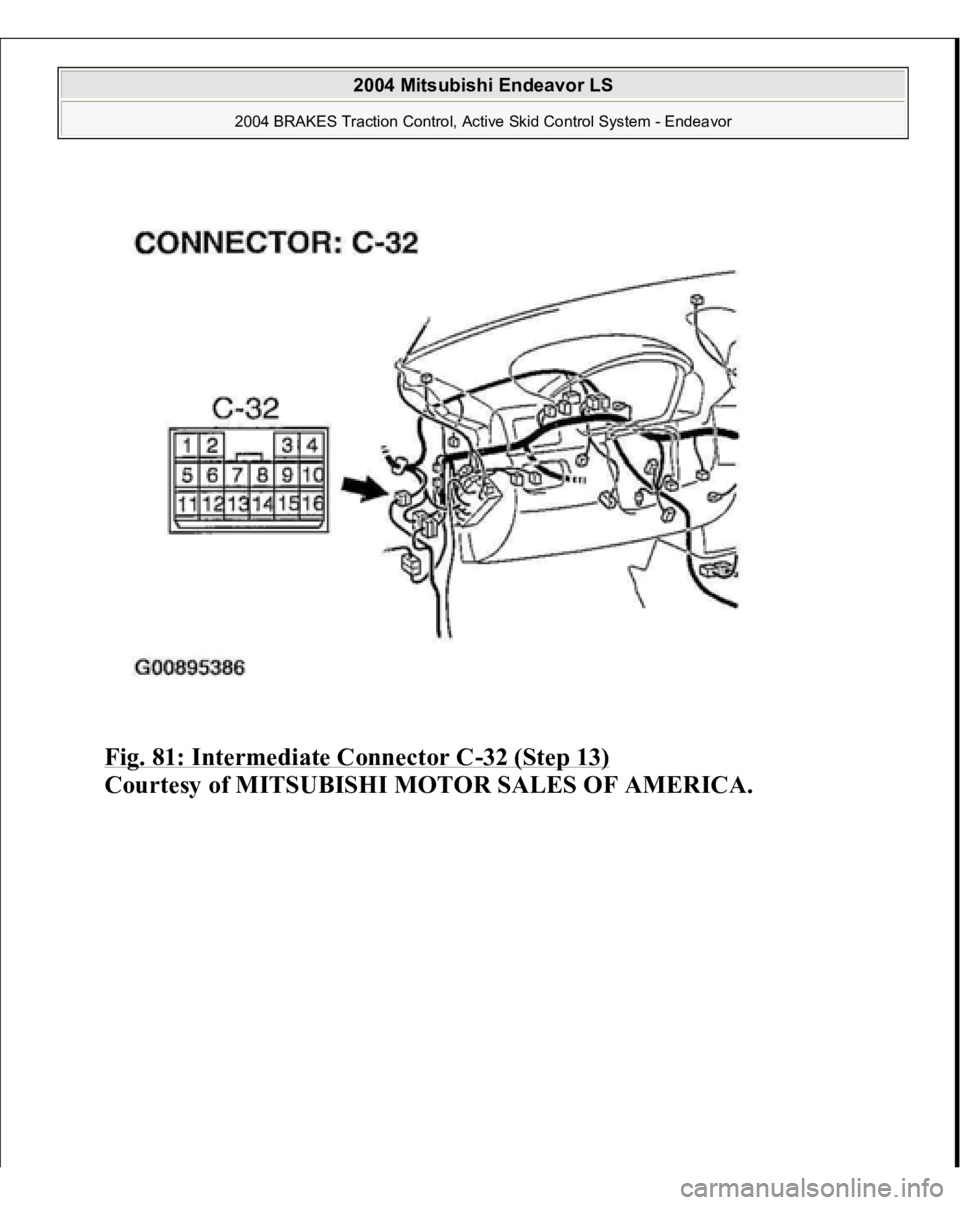

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 81: Intermediate Connector C -32 (Step 13) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Page 3218 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 82: Checking ABS Sensor Connector D -10 (Step 13) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Are TCL/ASC-ECU connector A-32, intermediate connector C-32 and ABS sensor < rear: RH > con

Page 3219 of 3870

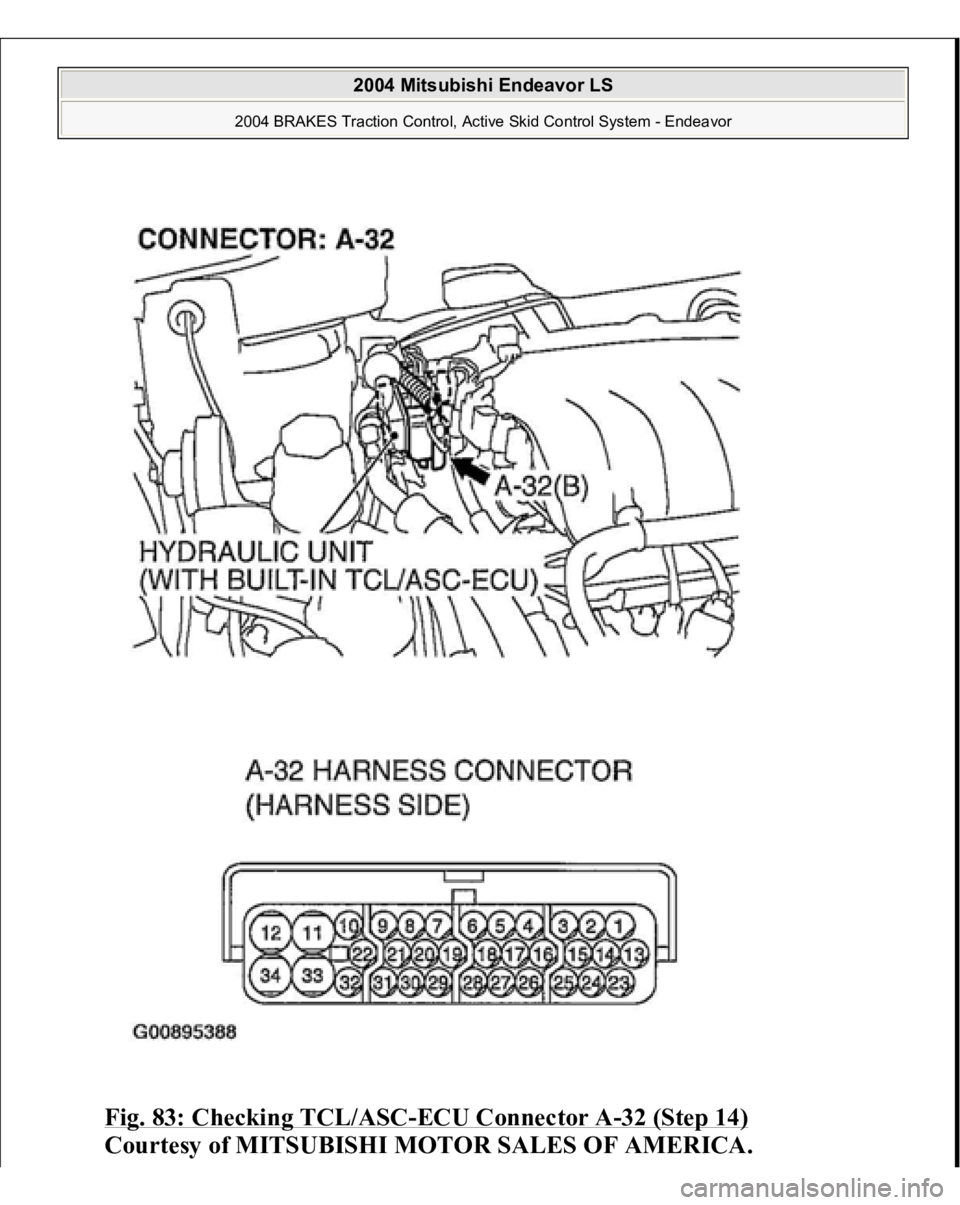

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 83: Checking TCL/ASC -ECU Connector A -32 (Step 14) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BRAKES Traction Control, Active Skid Control System - Ende

Page 3220 of 3870

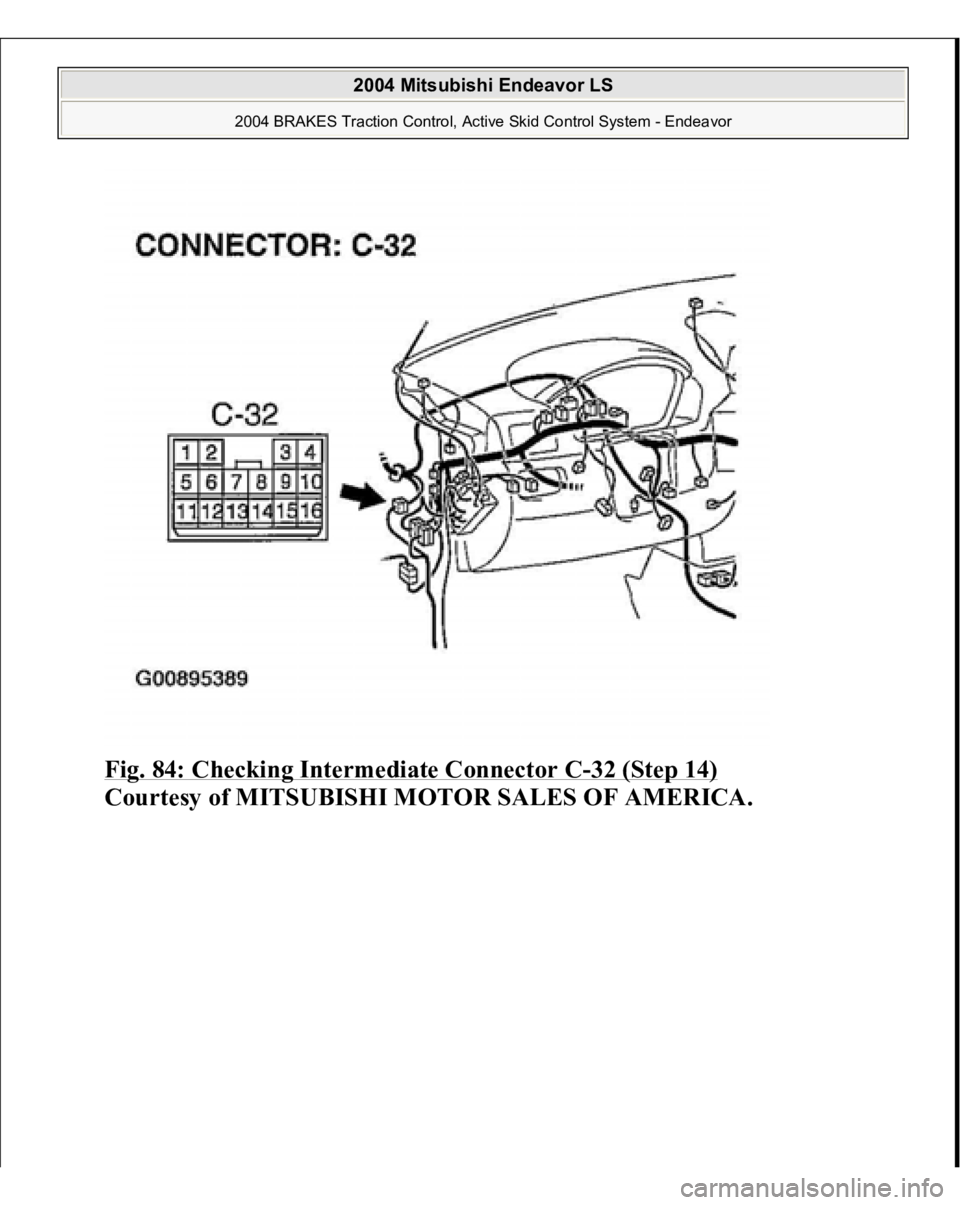

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 84: Checking Intermediate Connector C -32 (Step 14) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BRAKES Traction Control, Active Skid Control System - Ende

Page 3221 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 85: Checking ABS Sensor Connector D -15 (Step 14) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Are TCL/ASC-ECU connector A-32, intermediate connector C-32 and ABS sensor < rear: LH > con

Page 3222 of 3870

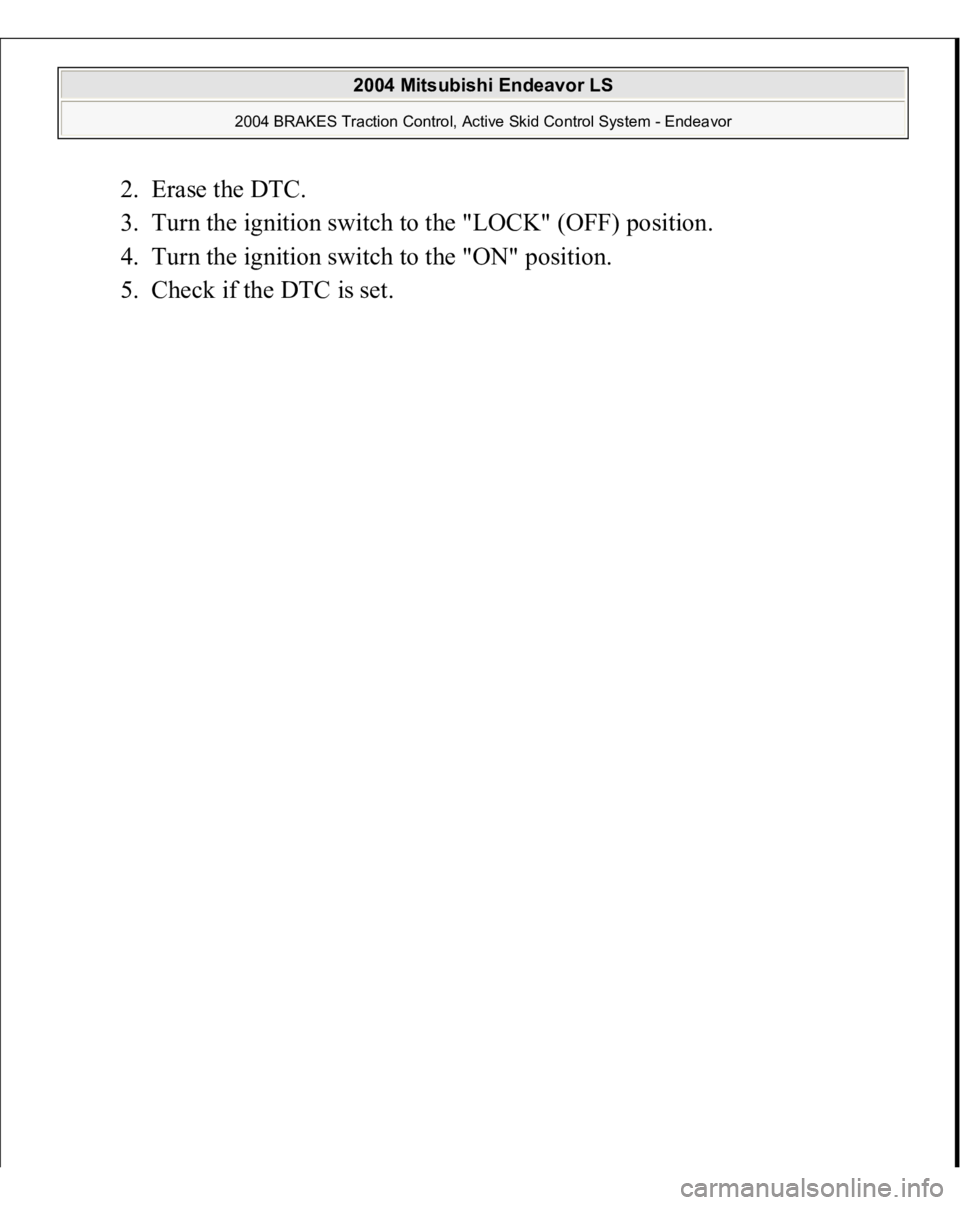

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2. Erase the DTC. 3. Turn the ignition switch to the "LOCK" (OFF) position. 4. Turn the ignition switch to the "ON" position. 5. Check if the DTC is set. 2004 Mitsubishi Endea

Page 3223 of 3870

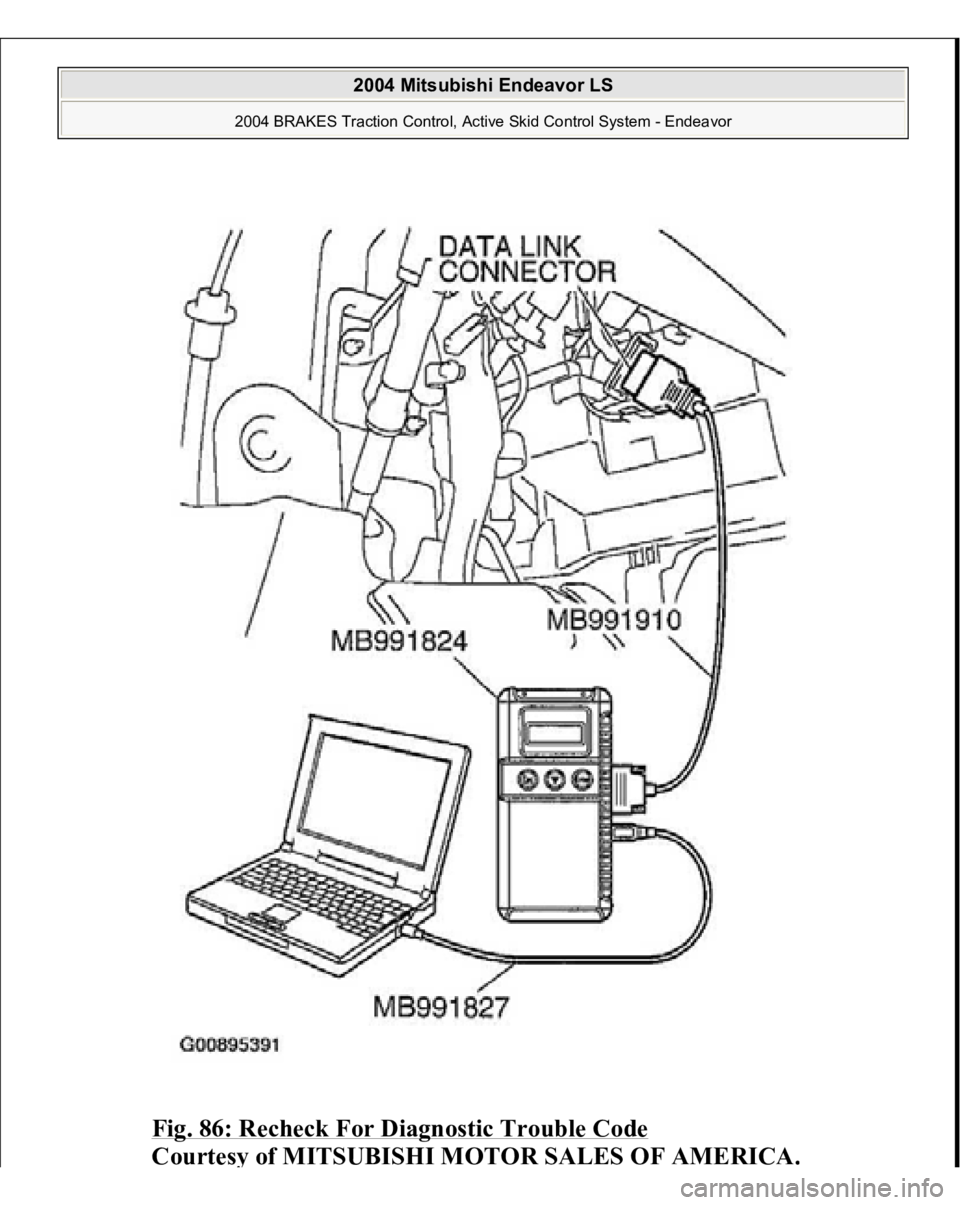

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 86: Recheck For Diagnostic Trouble Code Courtes y of MITSUBISHI MOTOR SALES OF AMERICA . 2004 Mitsubishi Endeavor LS 2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Page 3224 of 3870

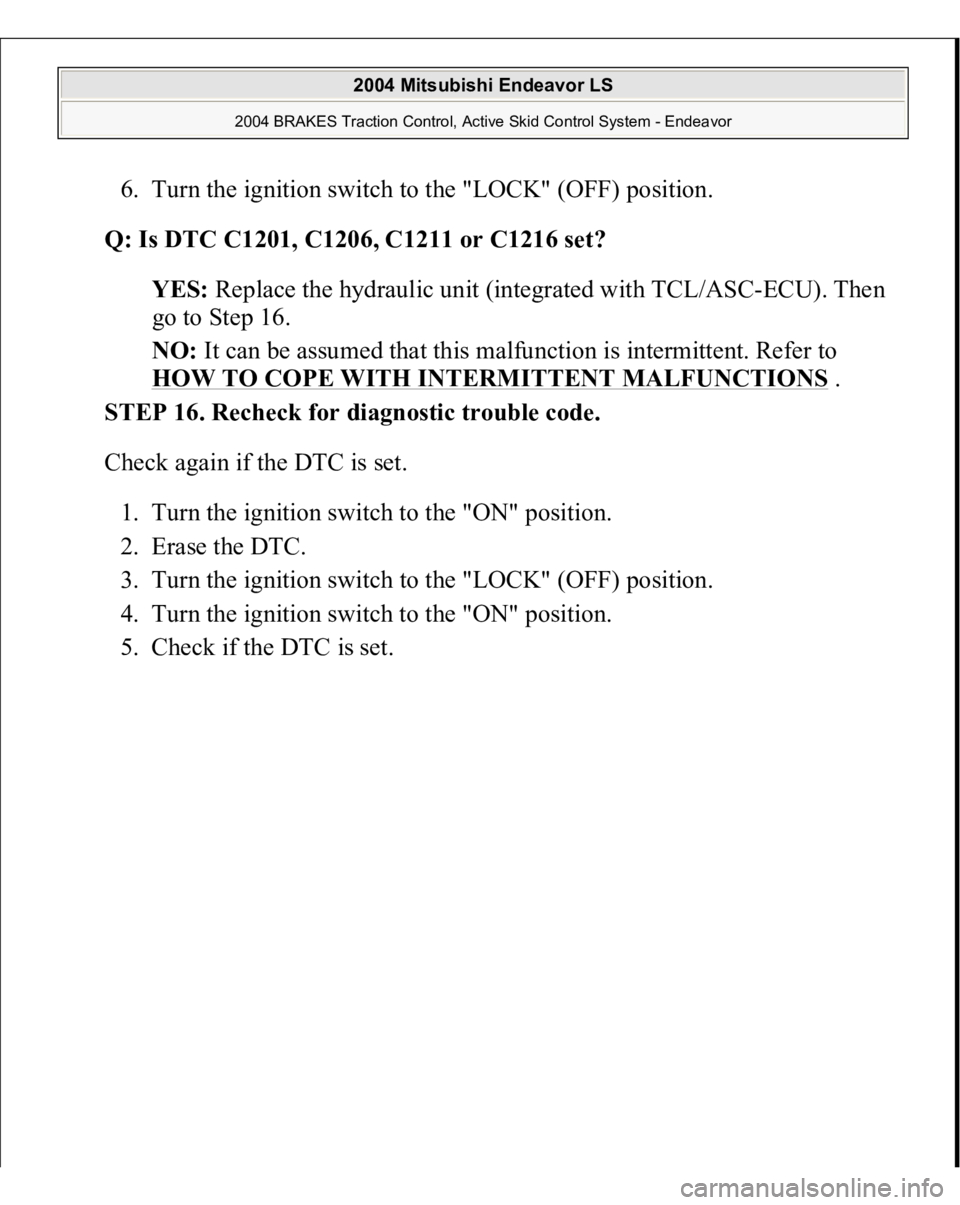

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 6. Turn the ignition switch to the "LOCK" (OFF) position. Q: Is DTC C1201, C1206, C1211 or C1216 set? YES: Replace the hydraulic unit (integrated with TCL/ASC-ECU). Then go to Step 16.
