Page 953 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2. Turn the ignition switch to the "ON" position. 3. Set scan tool MB991958 to data reading mode for auto-cruise control system. Item 07, Transmission Range Switch. When selector lever is

Page 954 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual TROUBLESHOOTING HINTS (The most likel y causes for this case: ) Malfunction of the output shaft speed sensor. Malfunction of the throttle body. Malfunction of the PCM. DIAGNOSIS REQUIRED SPECIAL T

Page 955 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 91: Connecting Scan Tool To Data Link Connector Courtes y of MITSUBISHI MOTOR SALES OF AMERICA . 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

Page 956 of 3870

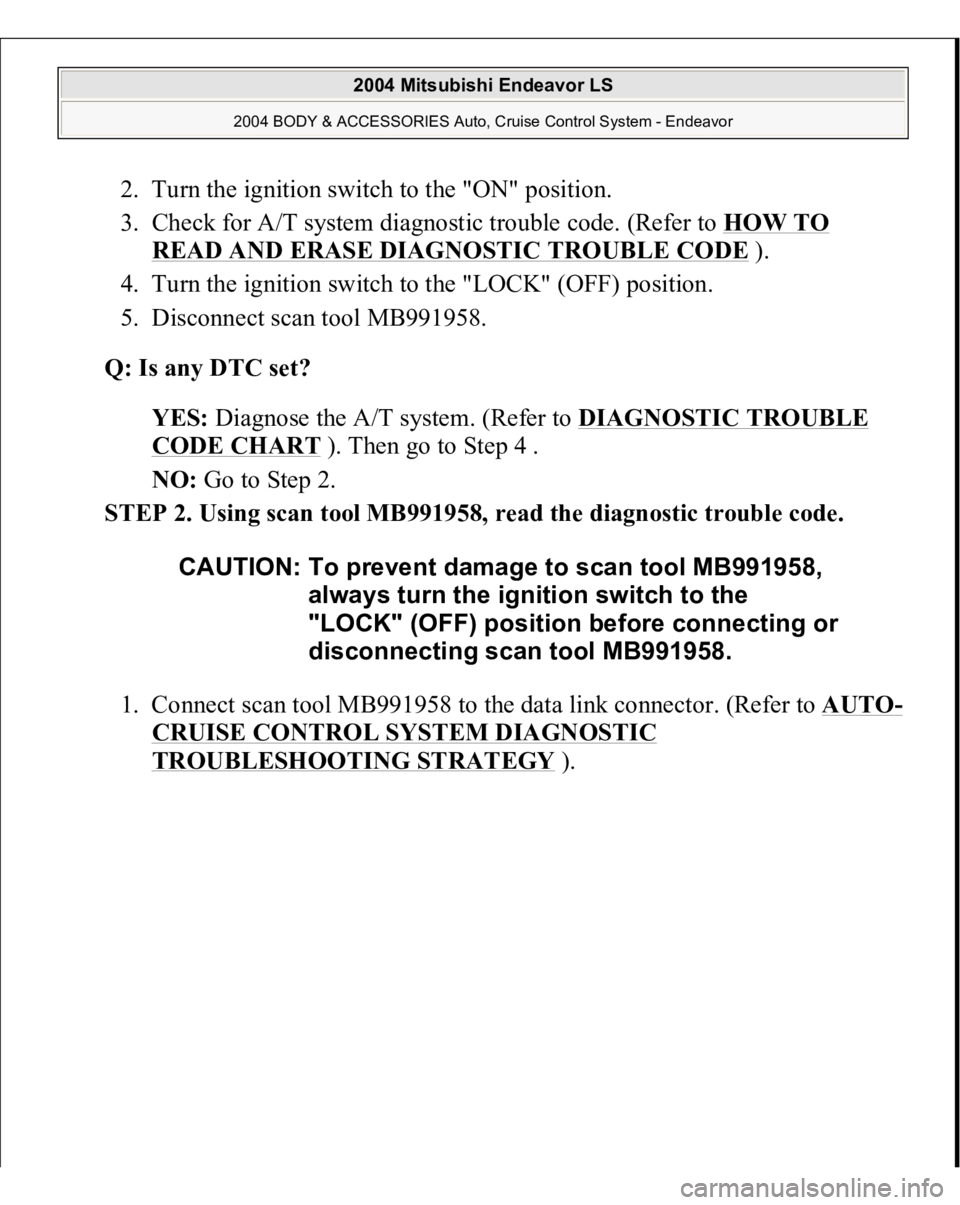

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2. Turn the ignition switch to the "ON" position. 3. Check for A/T system diagnostic trouble code. (Refer to HOW TO READ AND ERASE DIAGNOSTIC TROUBLE CODE ). 4. Turn the ignition switch

Page 957 of 3870

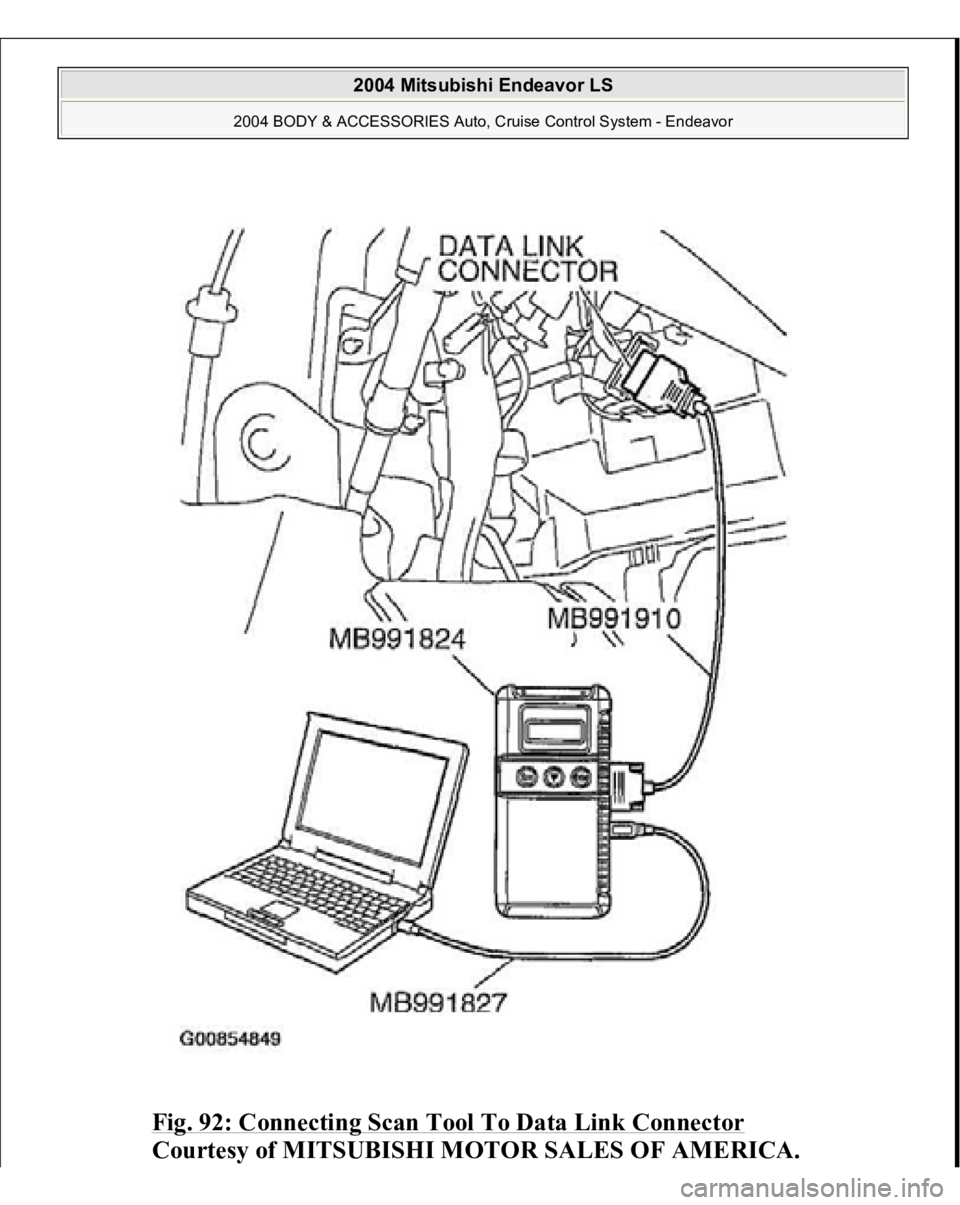

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 92: Connecting Scan Tool To Data Link Connector Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

Page 958 of 3870

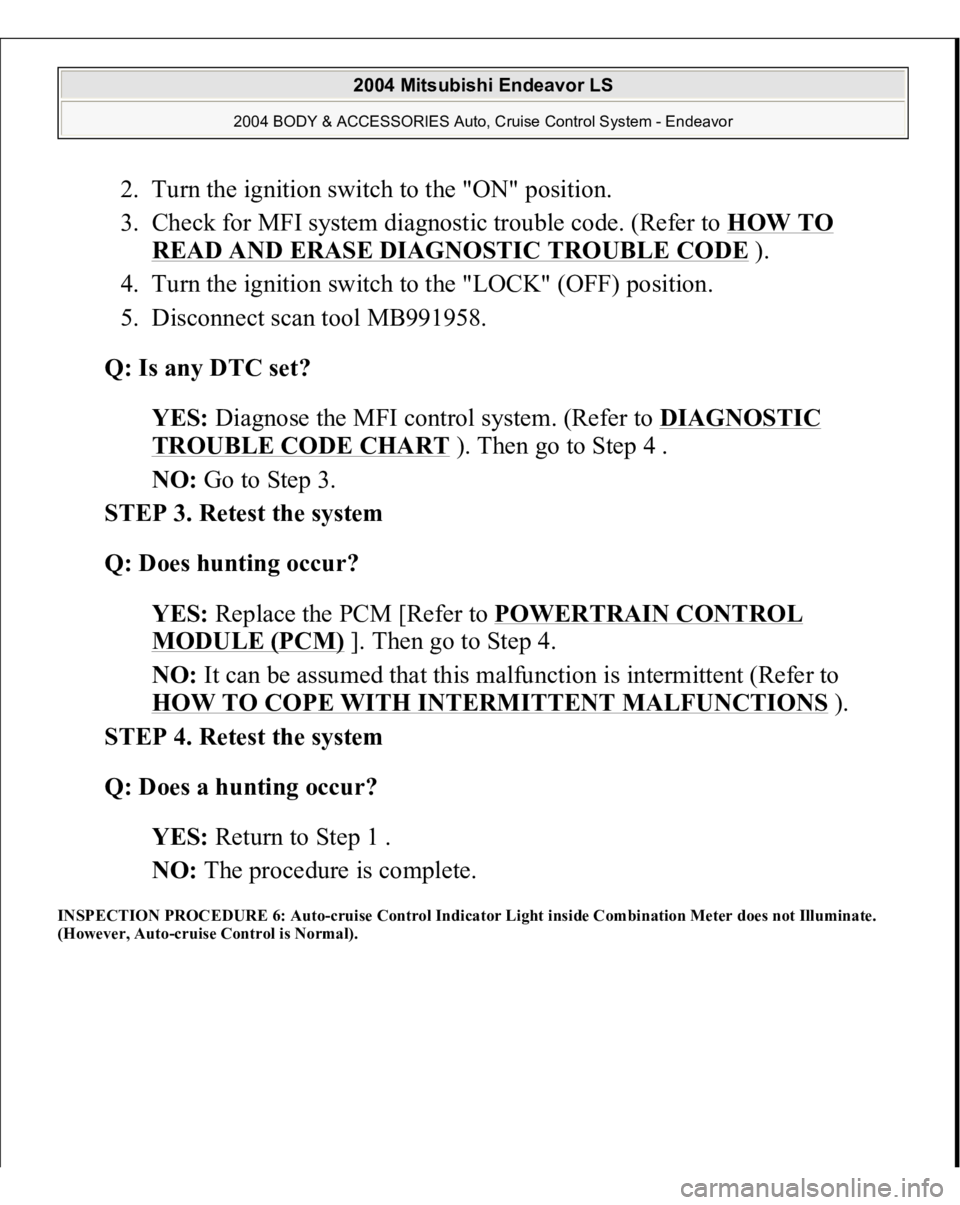

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2. Turn the ignition switch to the "ON" position. 3. Check for MFI system diagnostic trouble code. (Refer to HOW TO READ AND ERASE DIAGNOSTIC TROUBLE CODE ). 4. Turn the ignition switch

Page 959 of 3870

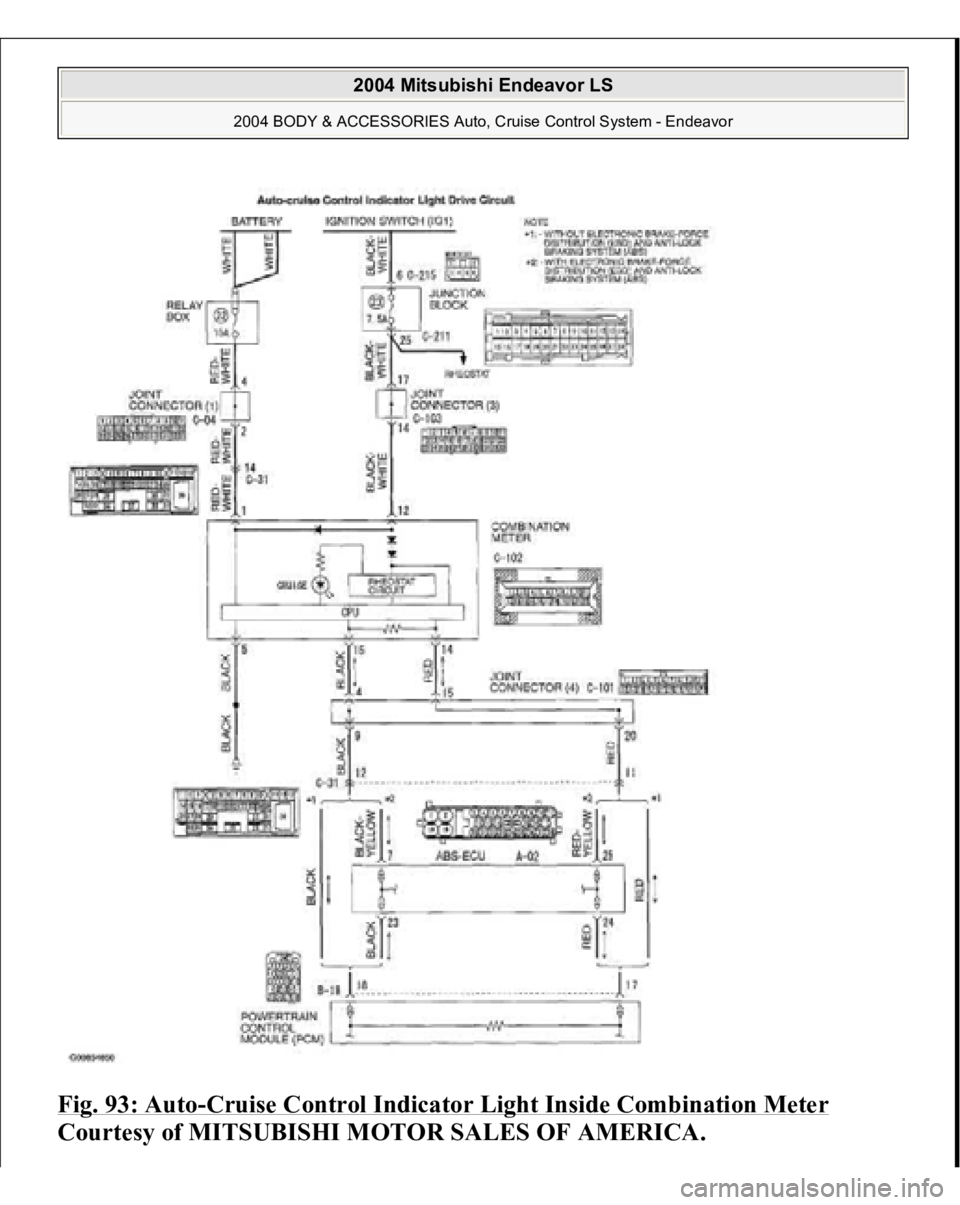

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 93: Auto -Cruise Control Indicator Light Inside Combination Meter Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Auto, Cruise Control Syst

Page 960 of 3870

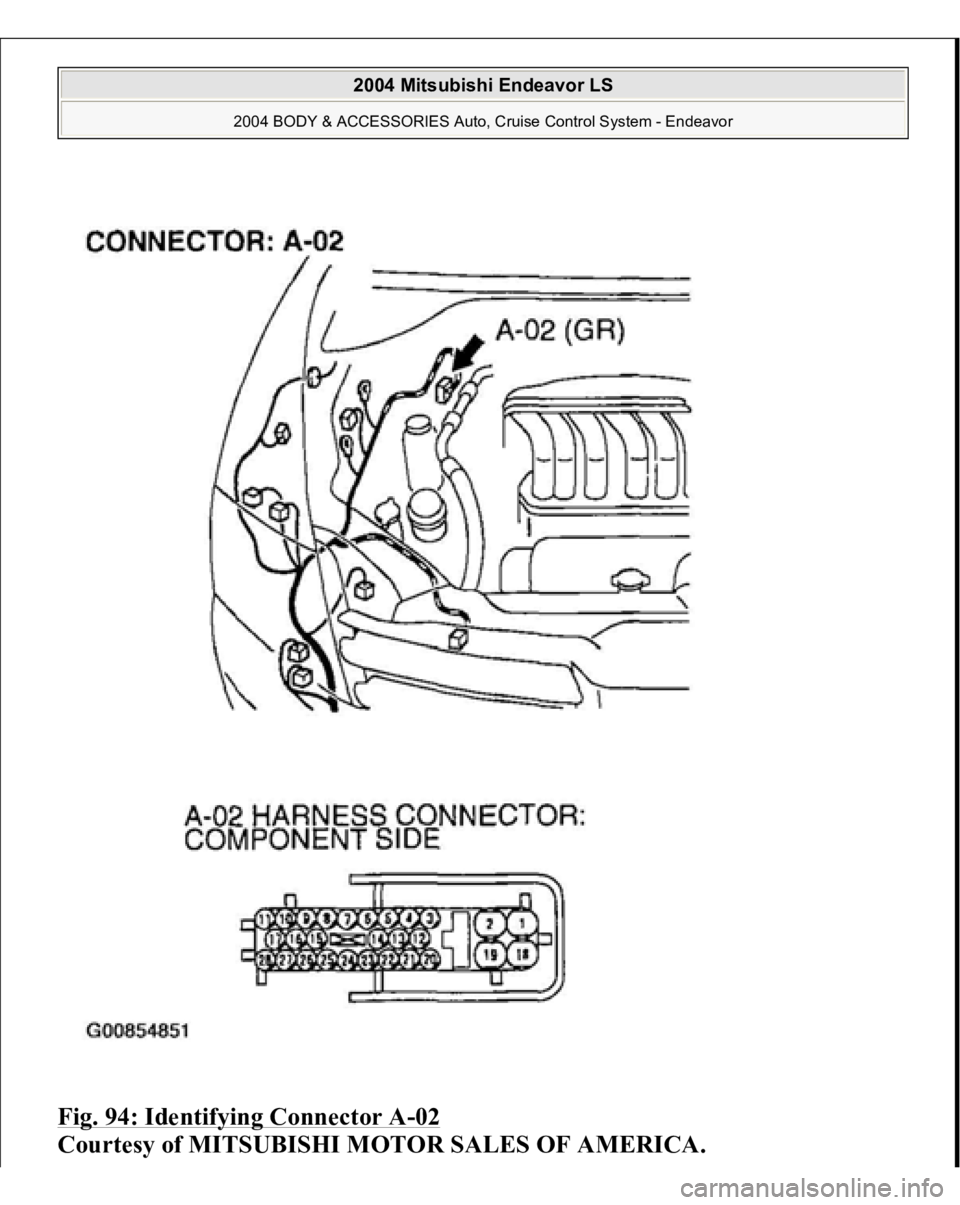

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 94: Identifying Connector A -02 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor
