Page 2825 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 5: Checking Fluid Level (Shrill Noise) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. STEP 2. Check for seizure in the oil pump. Q: Is there seizure? YES: Replace the part. Then go to Step

Page 2826 of 3870

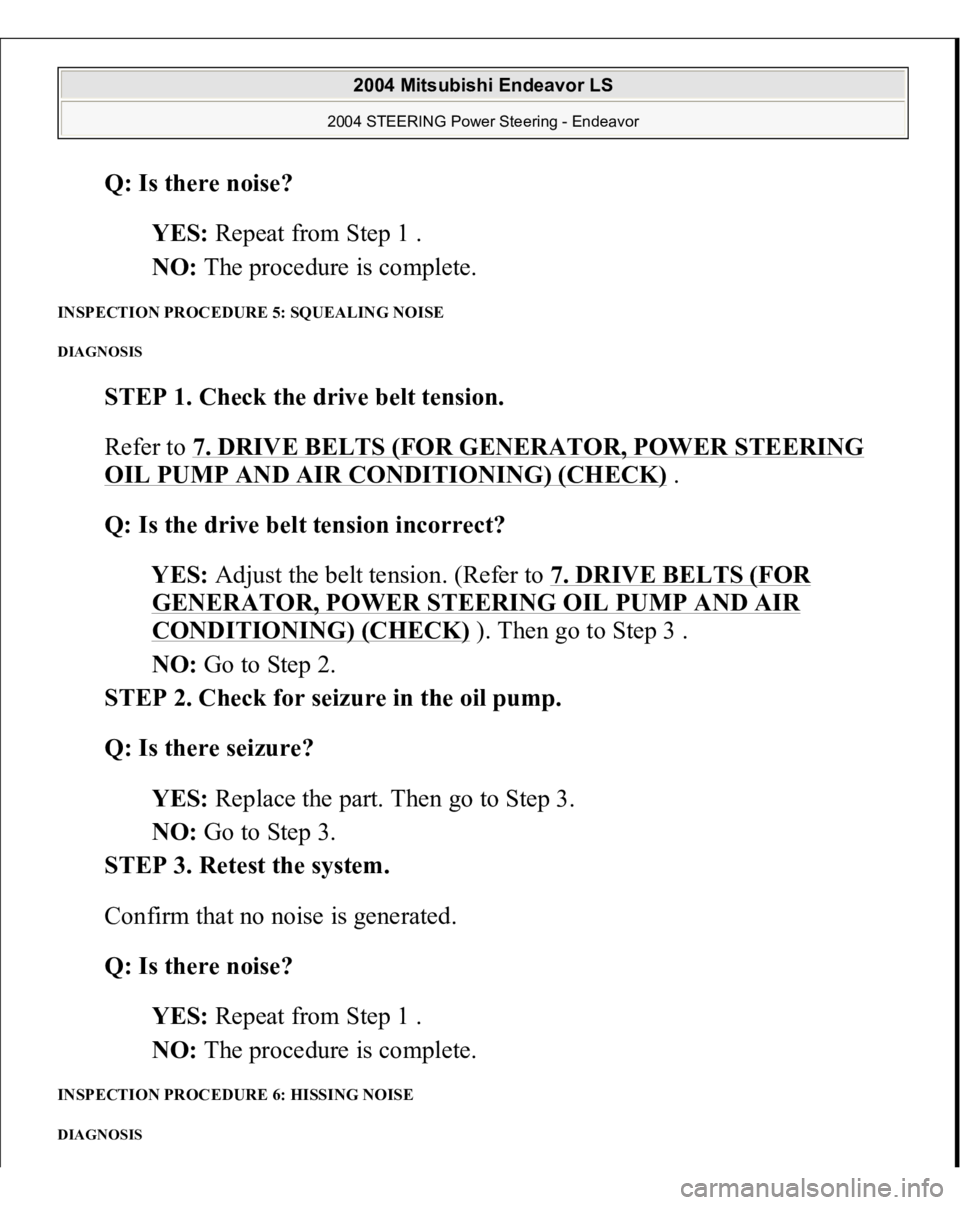

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Q: Is there noise? YES: Repeat from Step 1 . NO: The procedure is complete. INSPECTION PROCEDURE 5: SQUEALING NOISE DIAGNOSIS STEP 1. Check the drive belt tension. Refer to 7. DRIVE BELTS (FOR

Page 2827 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual STEP 1. Check the fluid level. 1. Park the vehicle on a flat, level surface, and then start the engine. 2. Turn the steering wheel several times to raise the temperature of the fluid to approximat

Page 2828 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 6: Checking Fluid Level (Hissing Noise) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. STEP 2. Check each hose for crushing or twisting. Q: Is any hose crushed or twisted? YES: Repair or re

Page 2829 of 3870

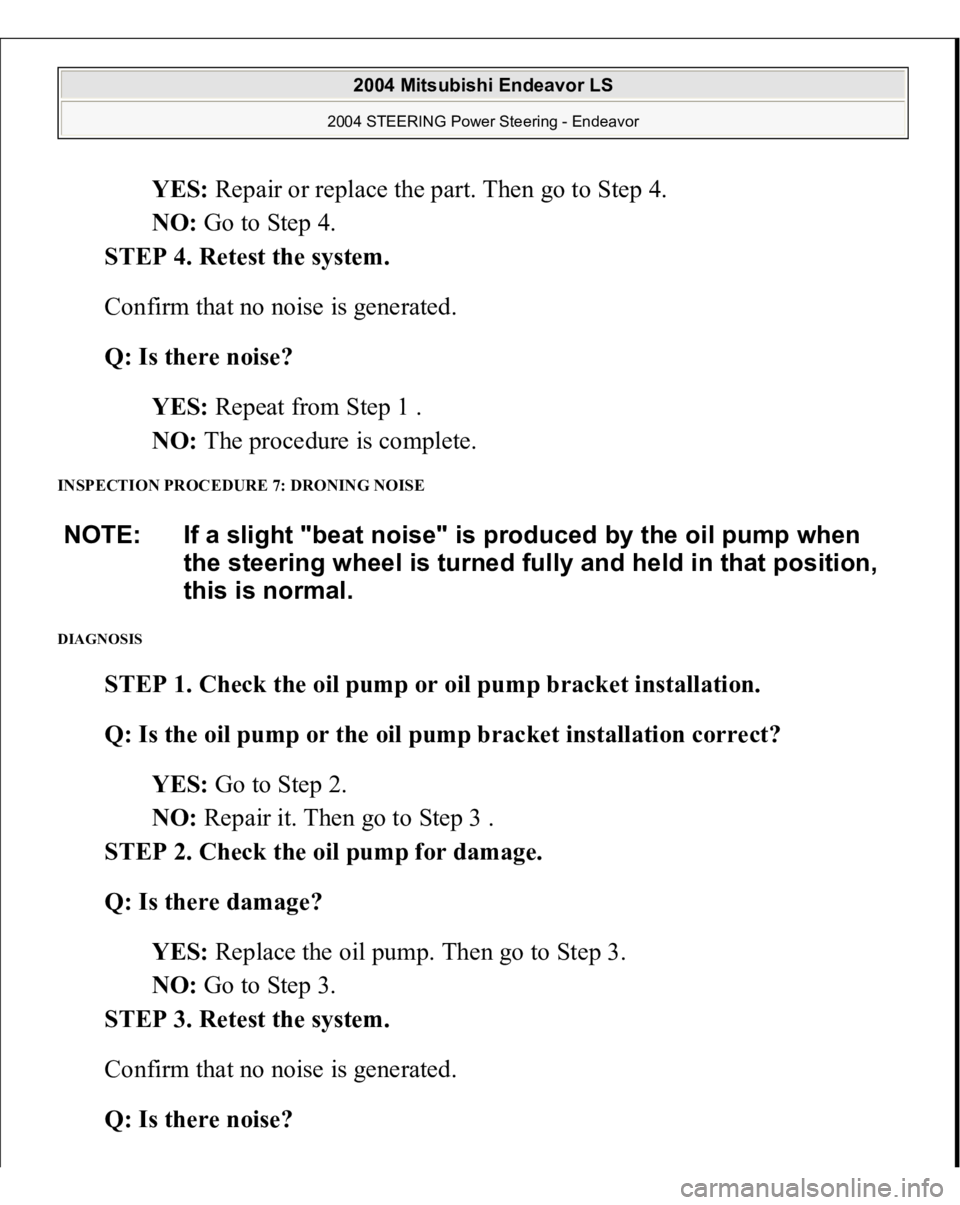

MITSUBISHI ENDEAVOR 2004 Service Repair Manual YES: Repair or replace the part. Then go to Step 4. NO: Go to Step 4. STEP 4. Retest the system. Confirm that no noise is generated. Q: Is there noise? YES: Repeat from Step 1 . NO: The proc

Page 2830 of 3870

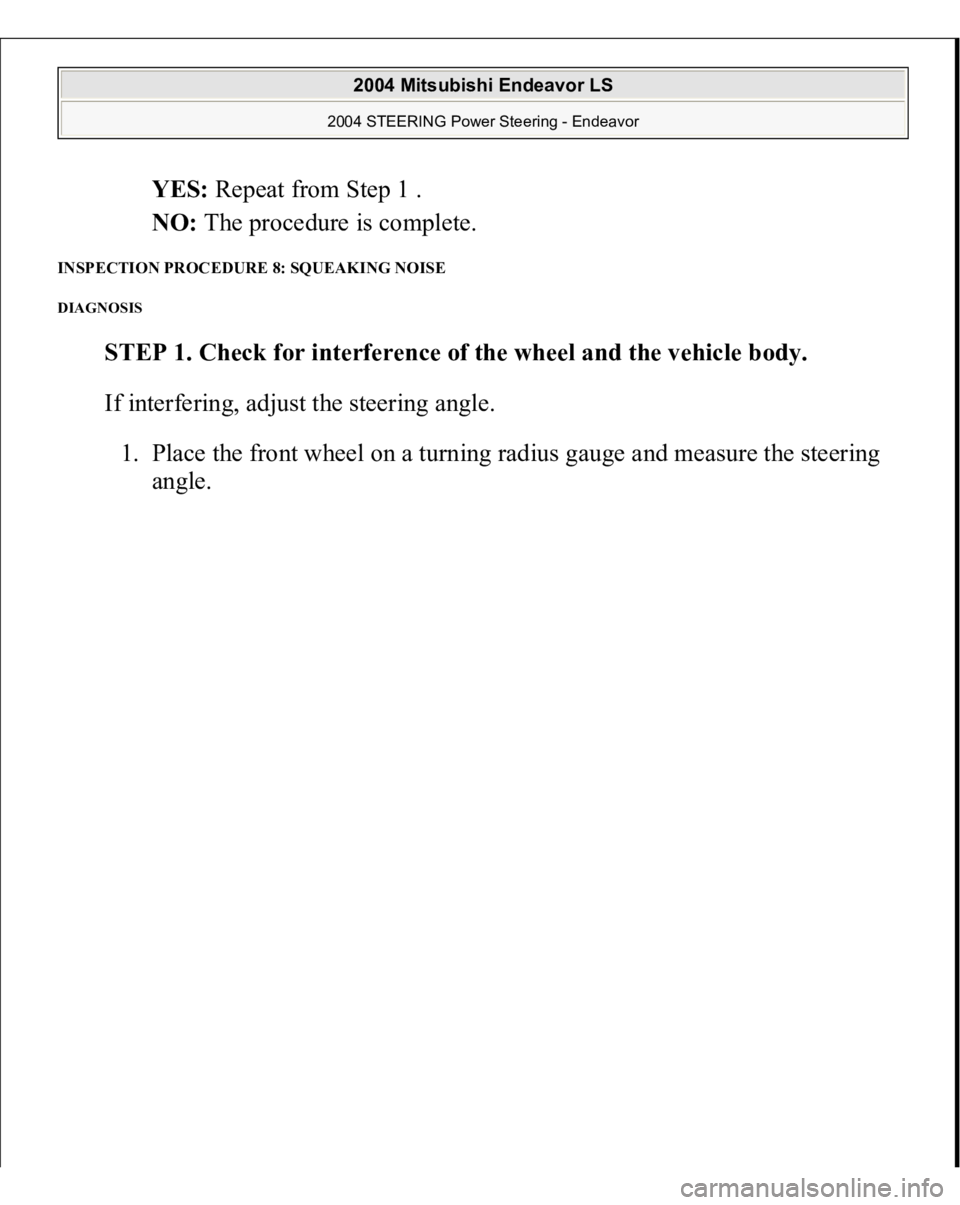

MITSUBISHI ENDEAVOR 2004 Service Repair Manual YES: Repeat from Step 1 . NO: The procedure is complete. INSPECTION PROCEDURE 8: SQUEAKING NOISE DIAGNOSIS STEP 1. Check for interference of the wheel and the vehicle body. If interfering, adjus

Page 2831 of 3870

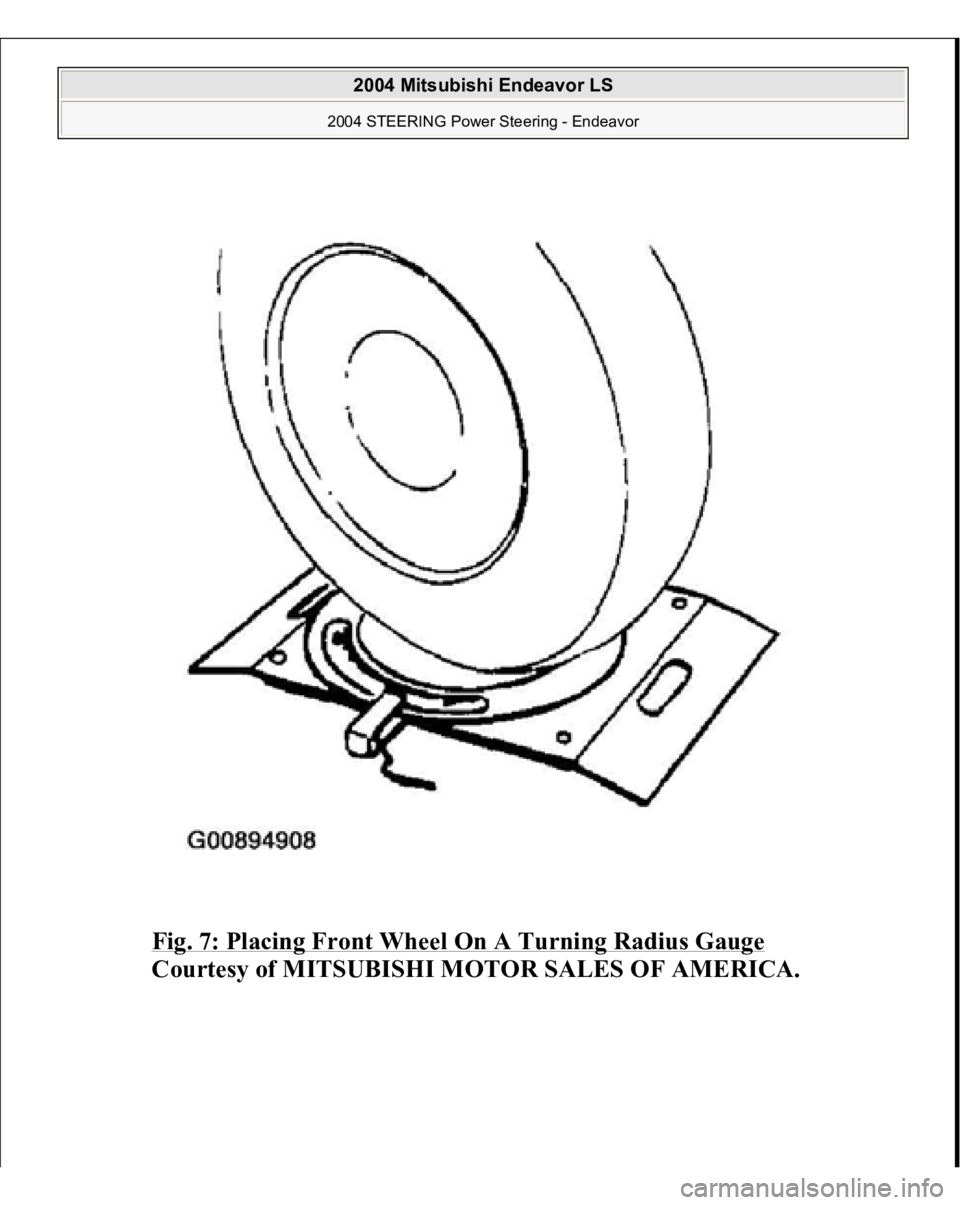

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 7: Placing Front Wheel On A Turning Radius Gauge Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 STEERING Power Steering - Endeavor

Page 2832 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 8: Steering Angle Standard Value Chart Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2. If the steering angle is not within the standard value, adjust the toe. Standard value: 0 +/- 3 mm (0
