Page 2865 of 3870

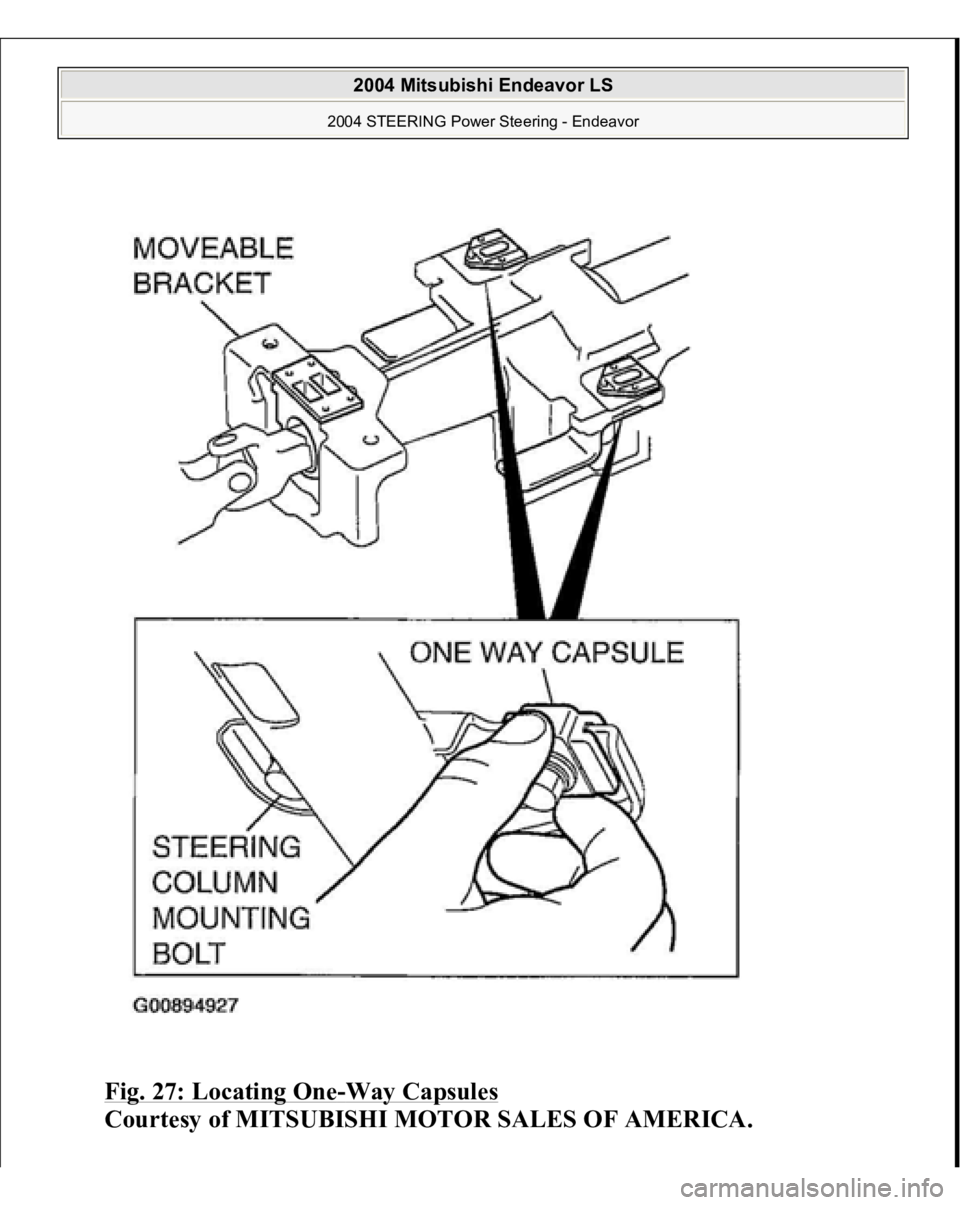

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 27: Locating One -Way Capsules Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 STEERING Power Steering - Endeavor

Page 2866 of 3870

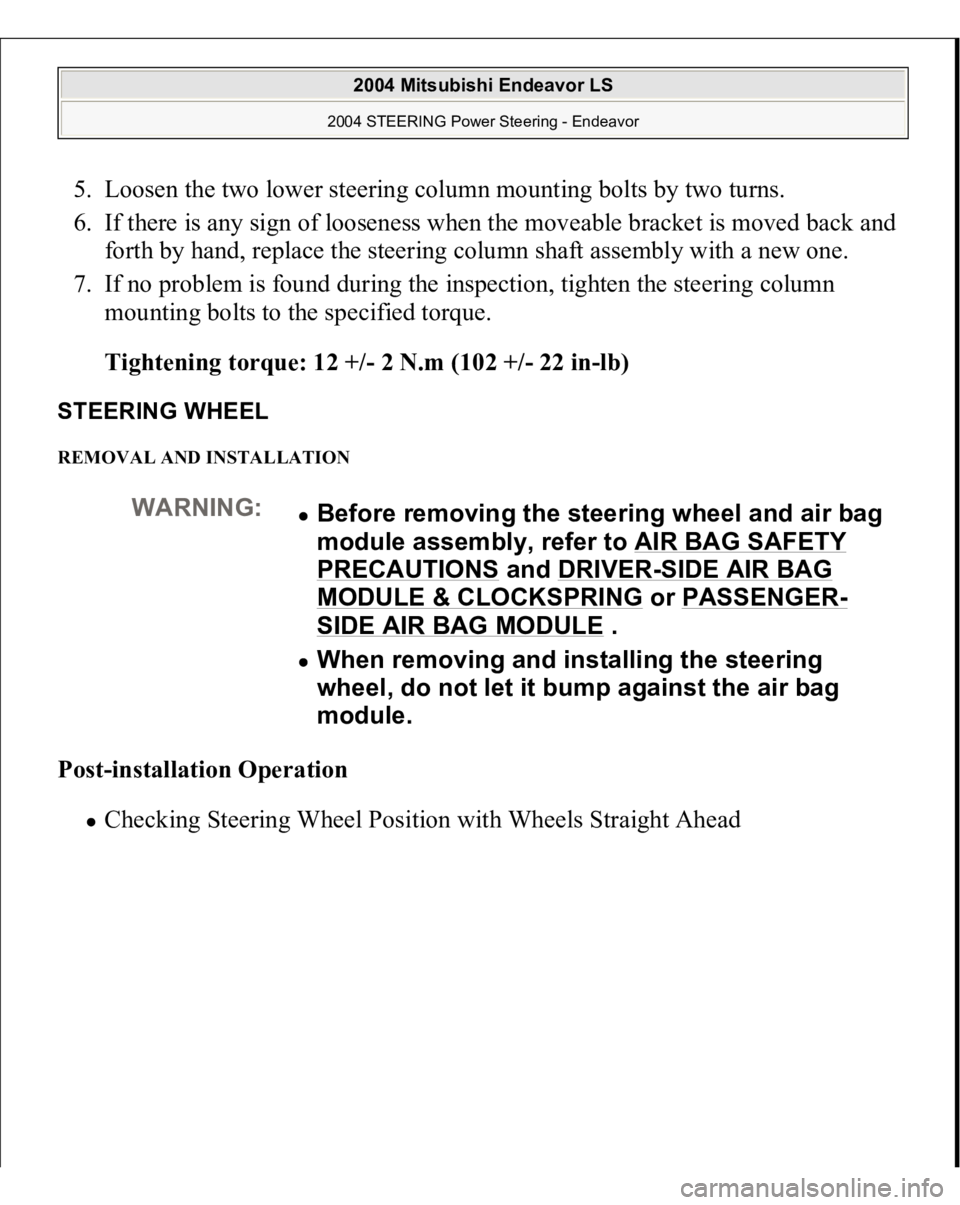

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 5. Loosen the two lower steering column mounting bolts by two turns. 6. If there is any sign of looseness when the moveable bracket is moved back and forth by hand, replace the steering column shaf

Page 2867 of 3870

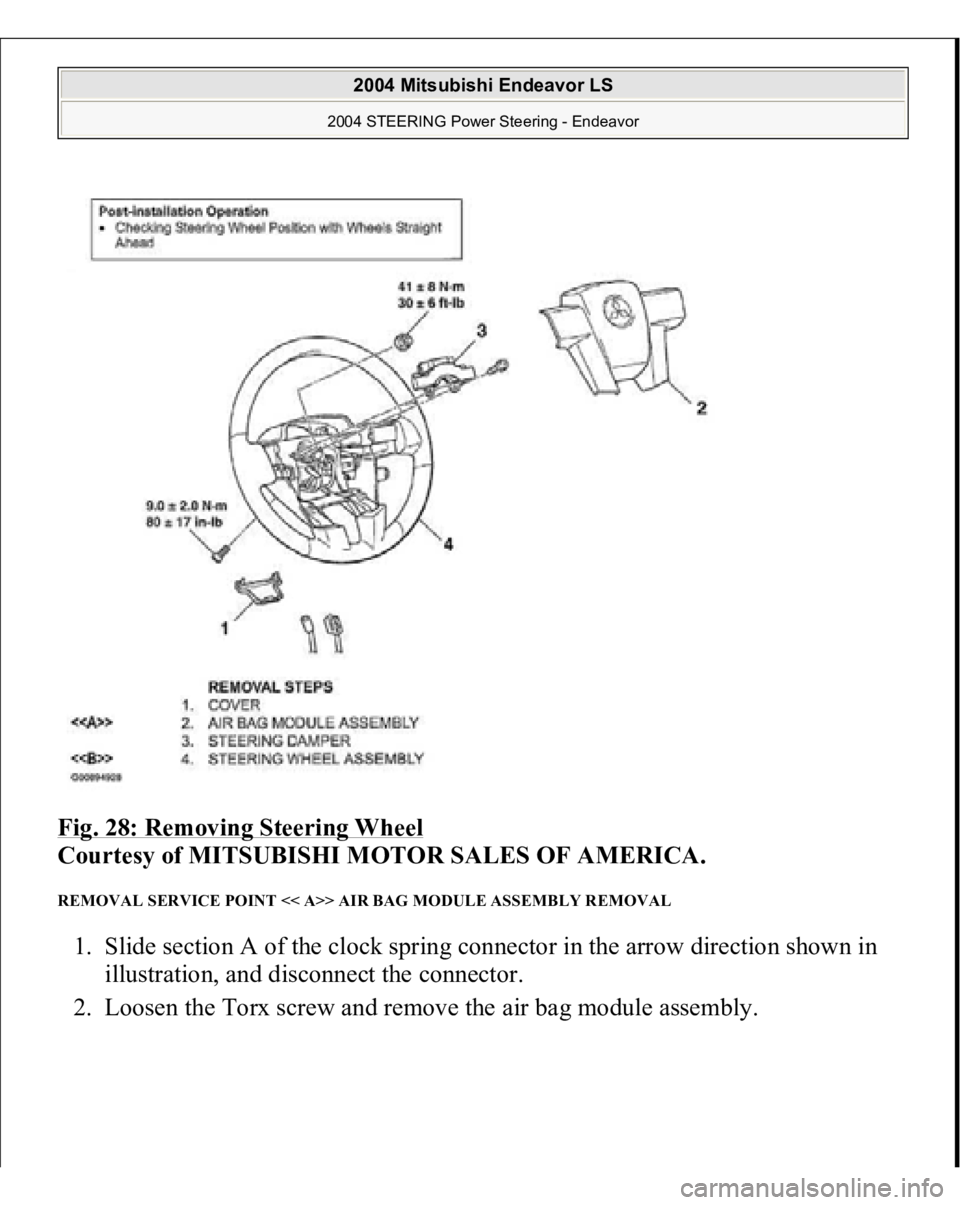

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 28: Removing Steering Wheel Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. REMOVAL SERVICE POINT << A>> AIR BAG MODULE ASSEMBLY REMOVAL 1. Slide section A of the clock spring connector in the

Page 2868 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 29: Sliding Section A Of Clock Spring Connector In Direction Of Arrow Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. REMOVAL SERVICE POINT << B>>STEERING WHEEL ASSEMBLY REMOVAL Use s pecial to

Page 2869 of 3870

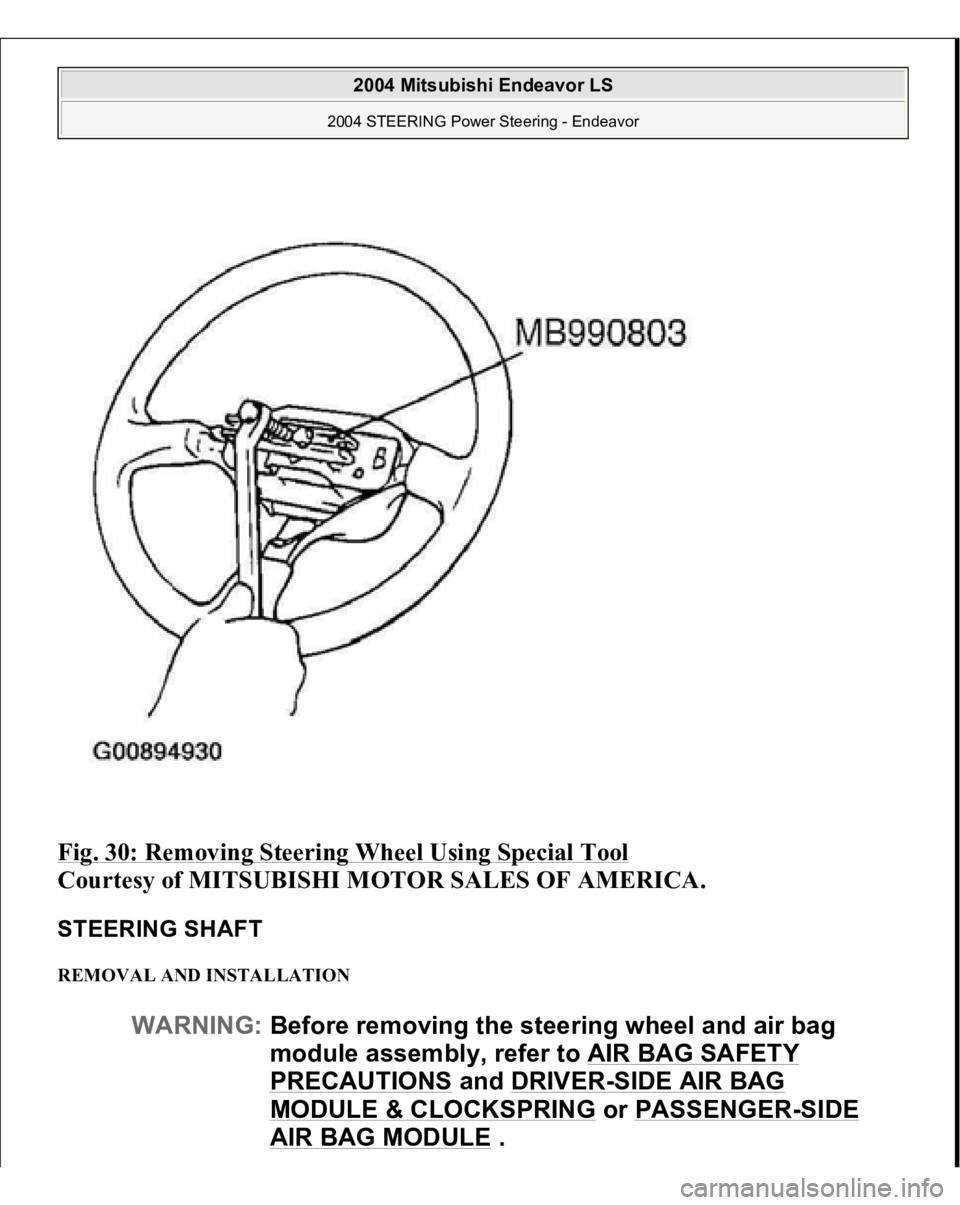

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 30: Removing Steering Wheel Using Special Tool Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. STEERING SHAFT REMOVAL AND INSTALLATION WARNING:Before removing the steering wheel and air bag m

Page 2870 of 3870

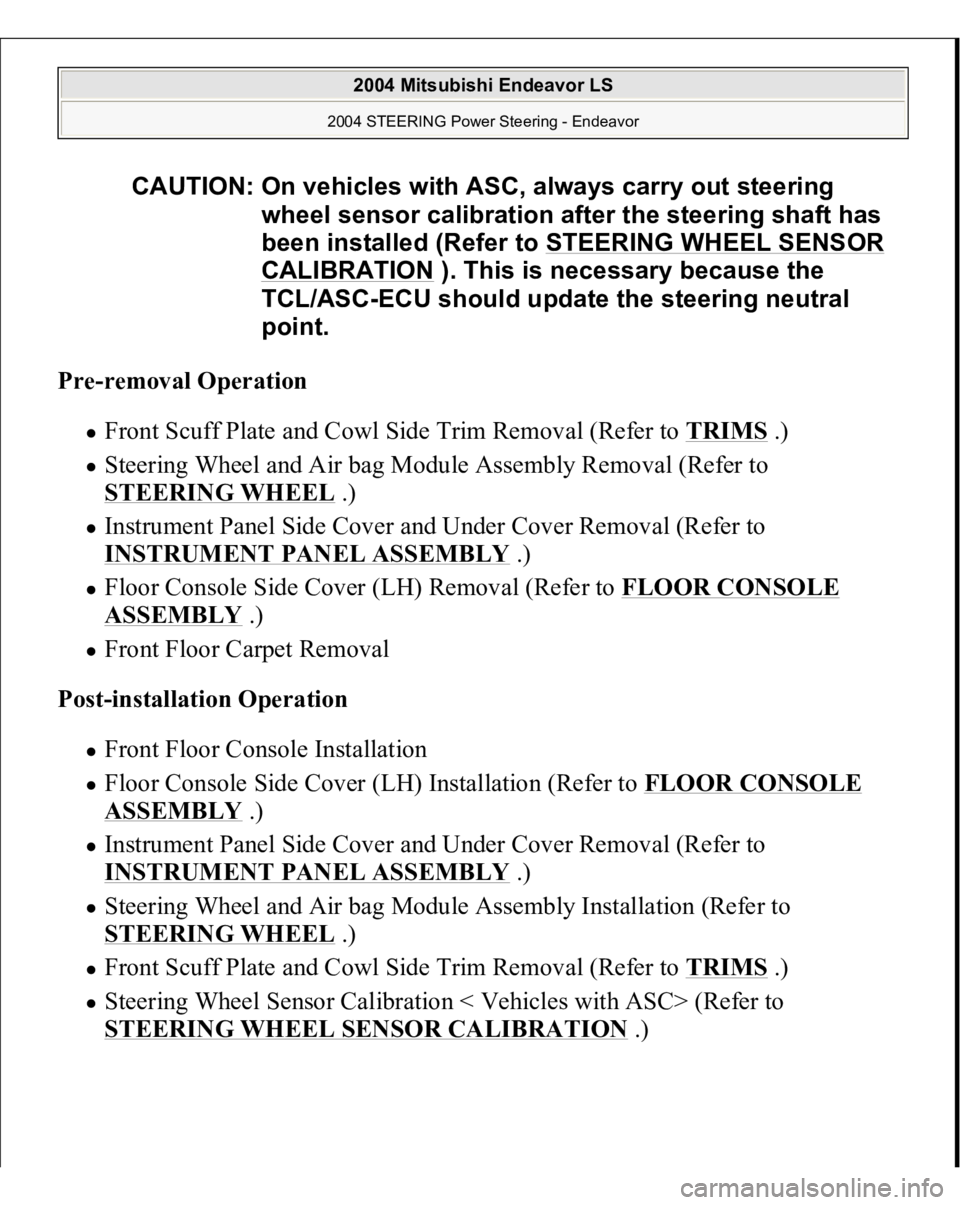

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Pre-removal Operation Front Scuff Plate and Cowl Side Trim Removal (Refer to TRIMS .) Steering Wheel and Air bag Module Assembly Removal (Refer to STEERING WHEEL .) Instrument Panel Side Cove

Page 2871 of 3870

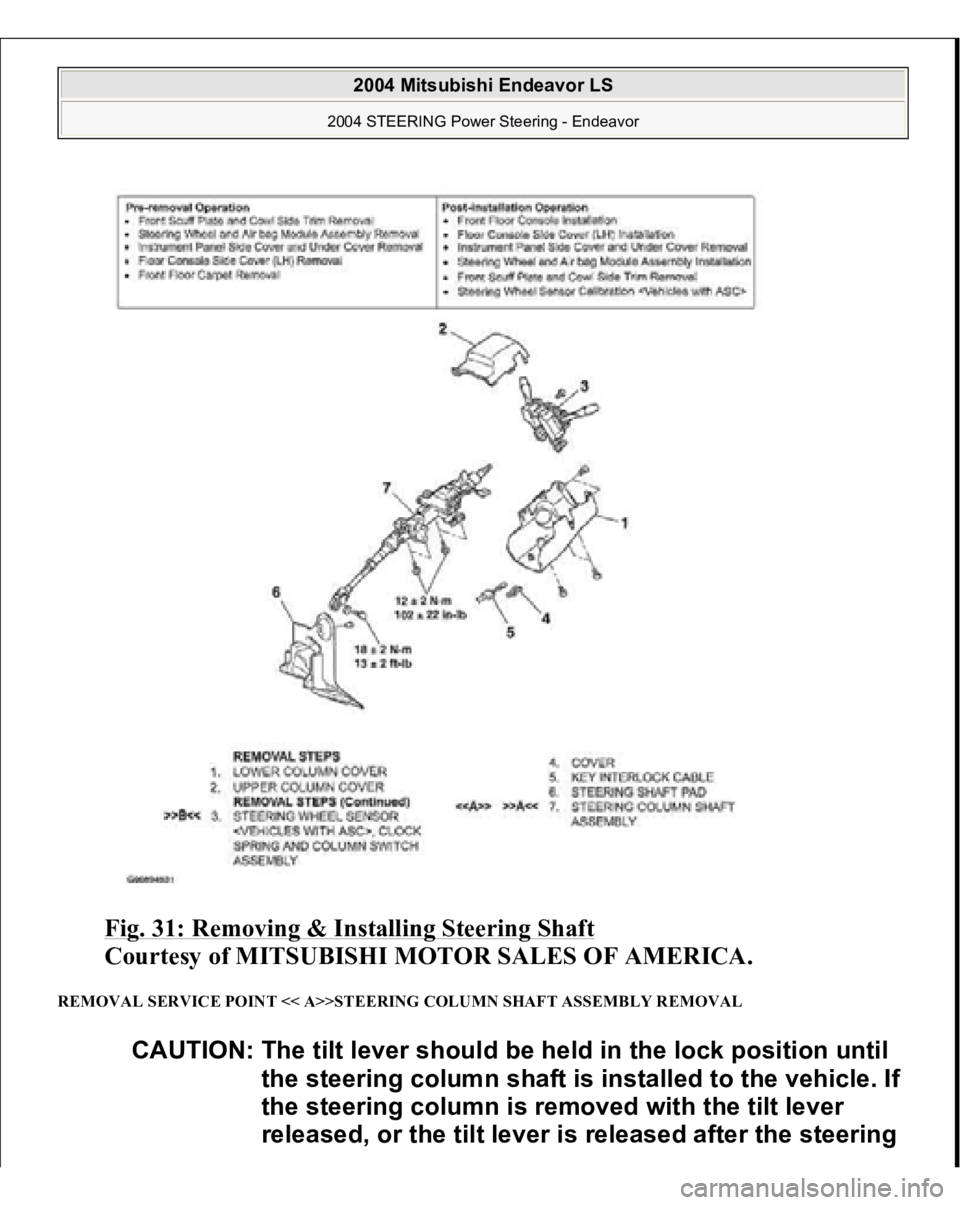

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 31: Removing & Installing Steering Shaft Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. REMOVAL SERVICE POINT << A>>STEERING COLUMN SHAFT ASSEMBLY REMOVAL CAUTION: The tilt lever should be he

Page 2872 of 3870

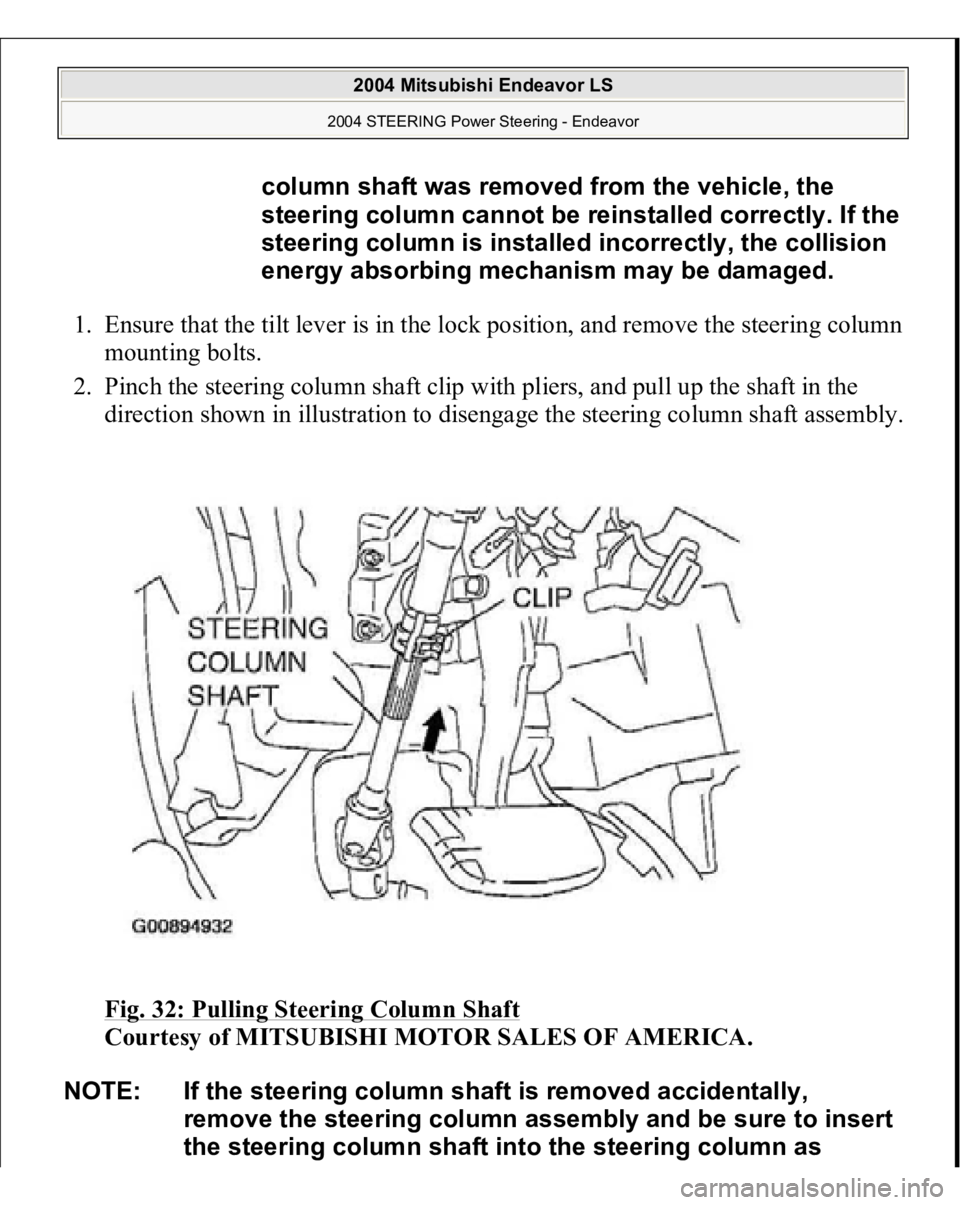

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 1. Ensure that the tilt lever is in the lock position, and remove the steering column mounting bolts. 2. Pinch the steering column shaft clip with pliers, and pull up the shaft in the direction sh
