Page 1905 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 10. Fill the inside of the boot with the specified amount of the specified grease. Specified grease: Repair kit grease Amount to use: < FWD>: 165 +/- 10 g (5.8 +/- 0.3 ounces) Amount to use: < AW

Page 1906 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual special tool MB991561 so that it is at the standard value. Standard value (W): 2.9 mm (0.11 inch) 13. Position the BJ boot band (large) so that there is even clearance at either end (D and E). Fi

Page 1907 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Standard value (F): 2.4 - 2.8 mm (0.10 - 0.11 inch) < If the crimping amount is larger than 2.8 mm (0.11 inch)> Readjust the value of (W) in step 12 according to the following formula, and then r

Page 1908 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 53: Identifying Crimping Amount Of Boot Band Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 16. Check that the boot band is not sticking out past the place where it has been installed. If the

Page 1909 of 3870

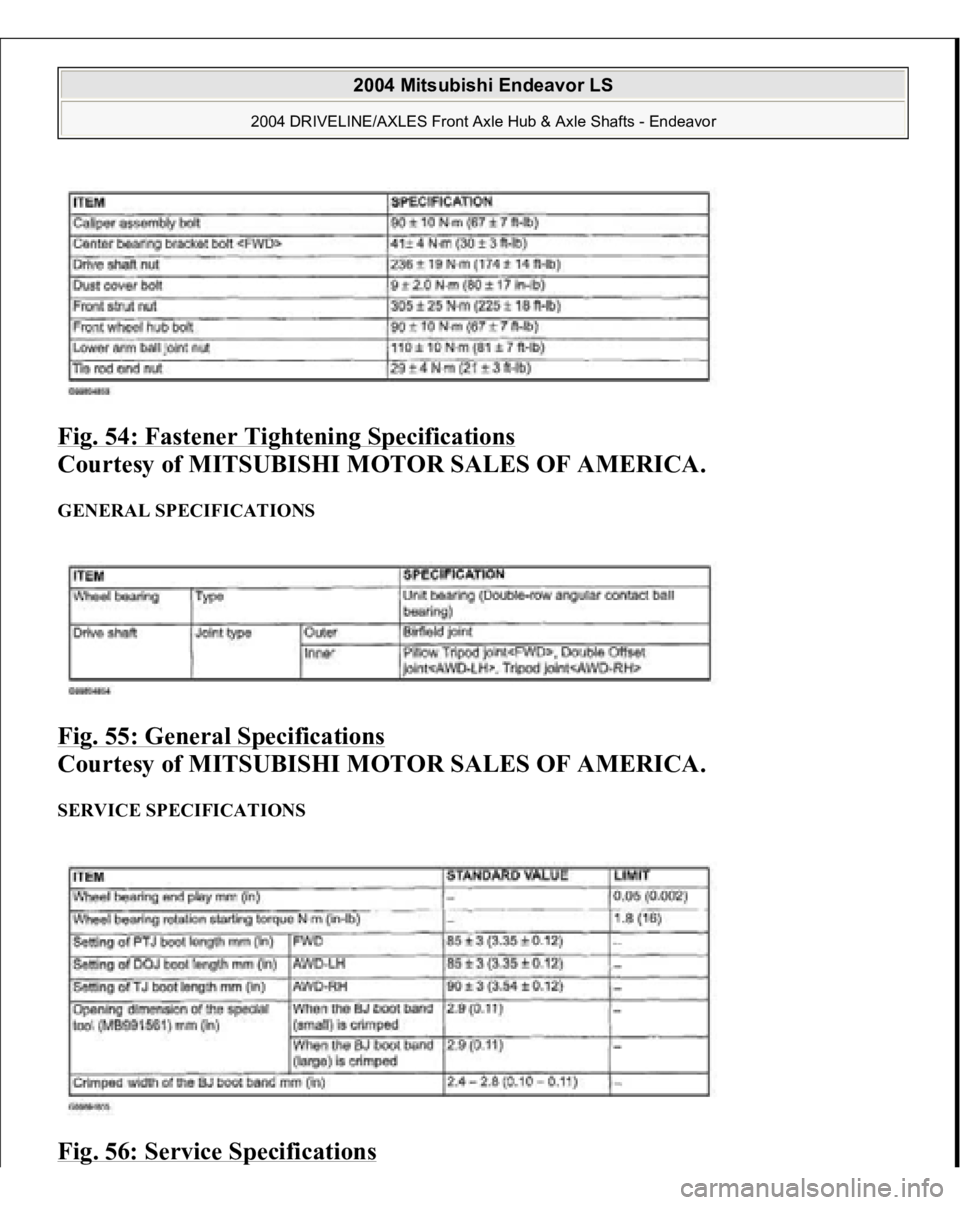

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 54: Fastener Tightening Specifications Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. GENERAL SPECIFICATIONS Fig. 55: General Specifications Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. S

Page 1910 of 3870

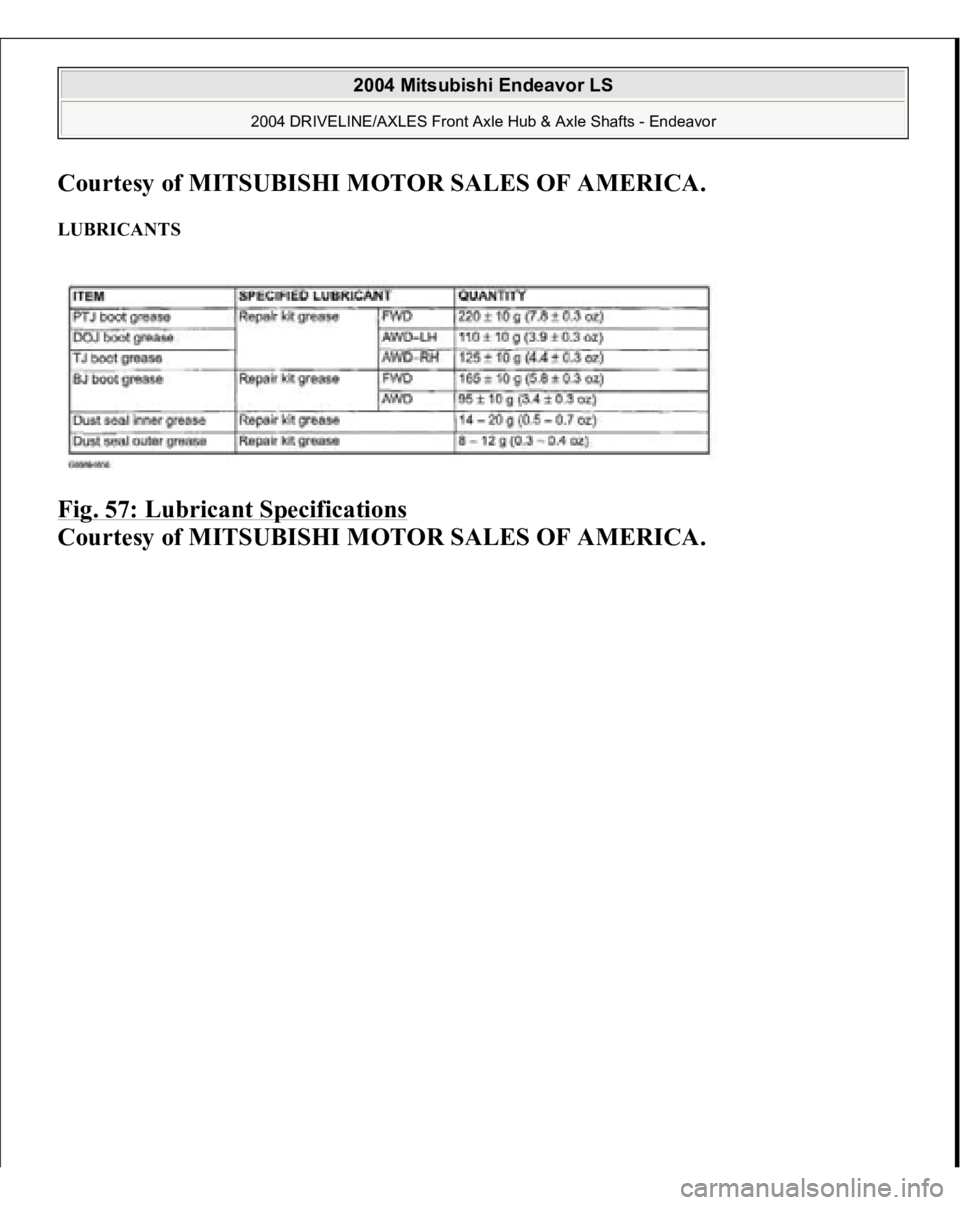

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . LUBRICANTS Fig. 57: Lubricant Specifications Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 DRIVELINE/AXLES Front

Page 1911 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2004 DRIVE AXLES Axle Shafts - Front - Endeavor DESCRIPTION The axle shafts consist Birfield Joint (BJ)-Pillow Tripod Joint (PTJ), Birfield Joint (BJ)-Double Offset Joint (DOJ), and Birfield Joint

Page 1912 of 3870

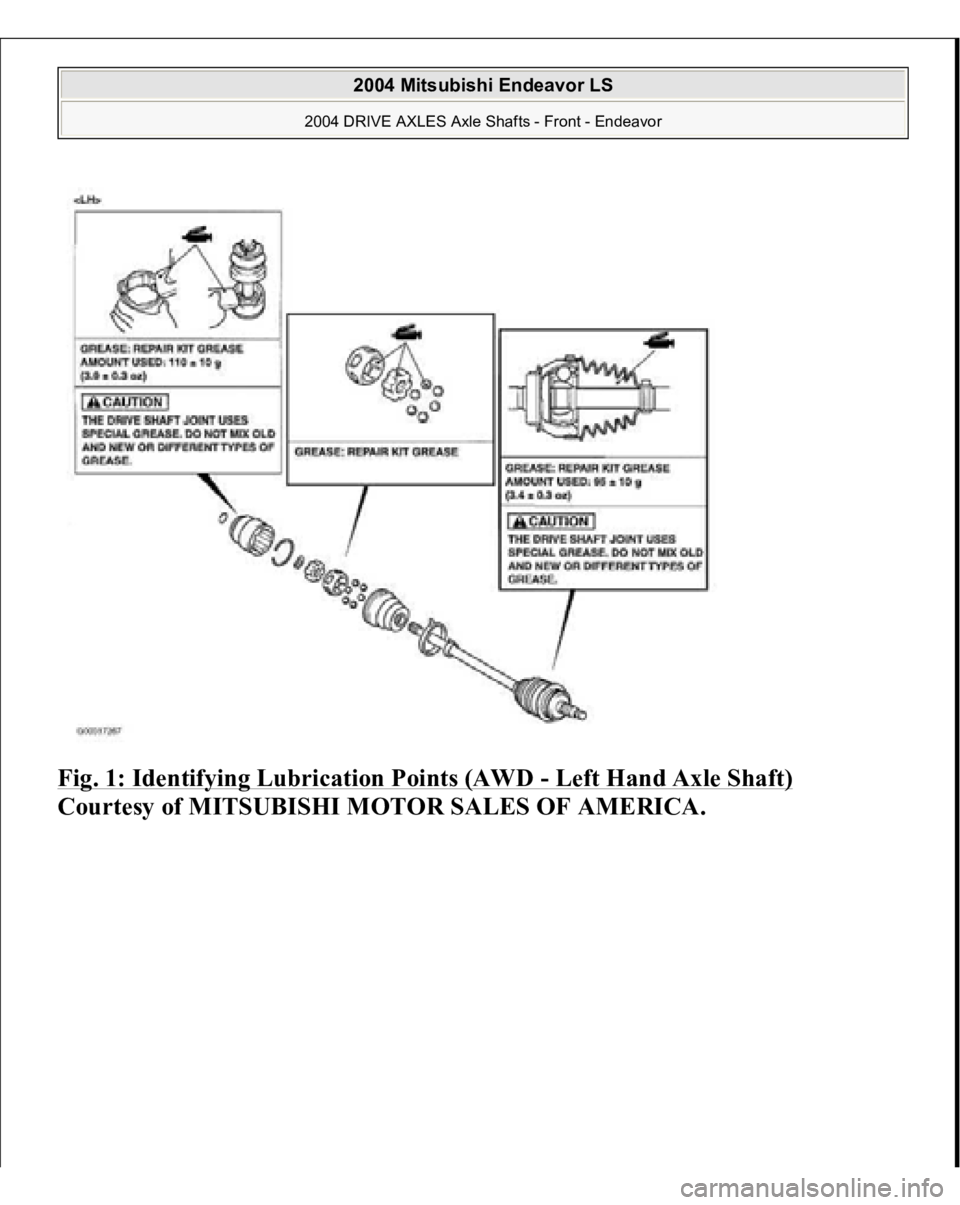

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 1: Identifying Lubrication Points (AWD - Left Hand Axle Shaft) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 DRIVE AXLES Axle Shafts - Front - Endeavor
