Page 993 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual CENTRAL DOOR LOCKING SYSTEM DIAGNOSIS The central door locking system is controlled by the simplified wiring system (SWS). Refer to SYMPTOM CHART . POWER WINDOW DIAGNOSIS The power window is contro

Page 994 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual SYMPTOM PROCEDURES INSPECTION PROCEDURE 1: Water Leak Through Door Window Glass DIAGNOSIS STEP 1. Check the window Check the glass runchannel. Q: Is the window glass runchannel in good condition?

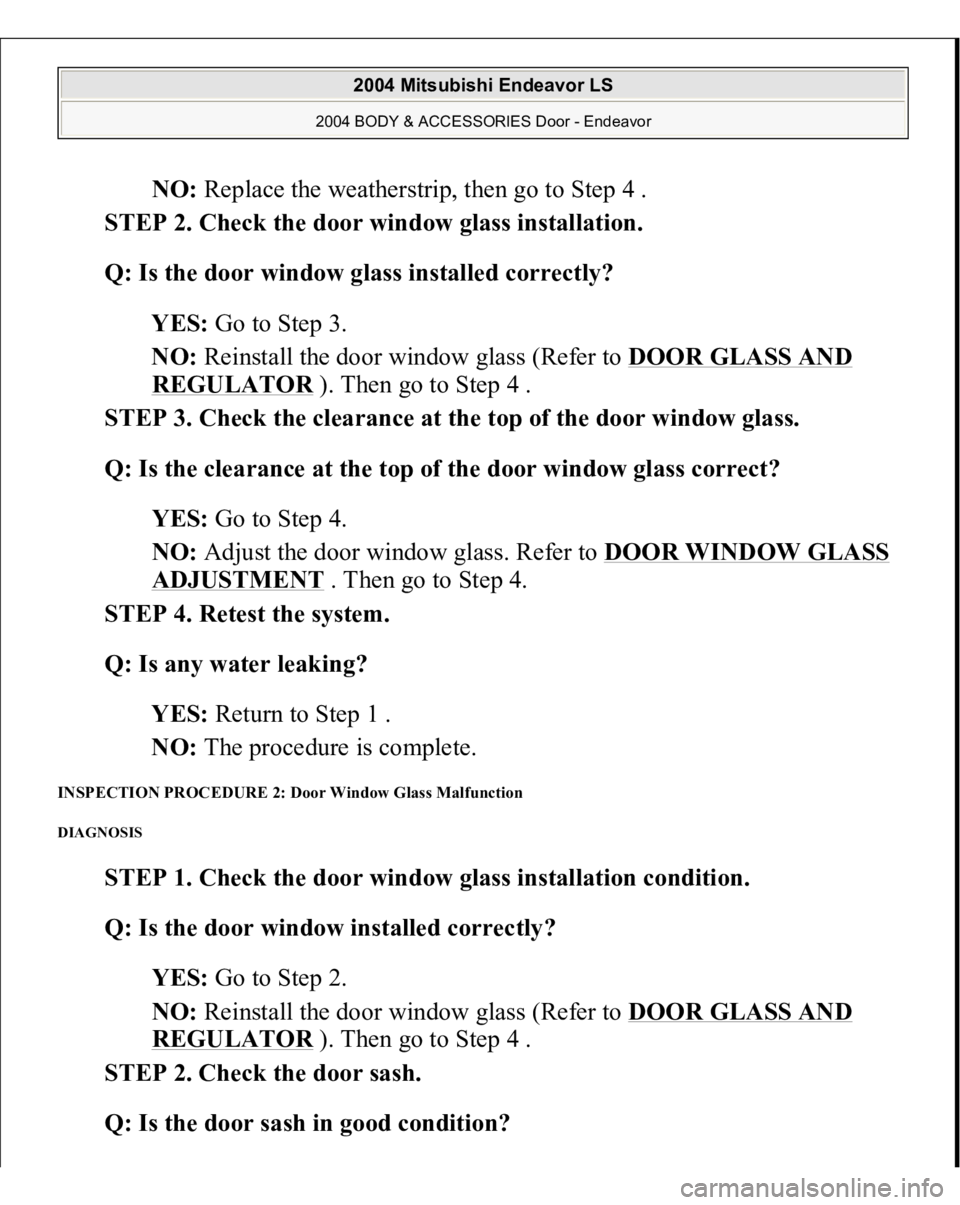

Page 995 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual NO: Replace the weatherstrip, then go to Step 4 . STEP 2. Check the door window glass installation. Q: Is the door window glass installed correctly? YES: Go to Step 3. NO: Reinstall the door wi

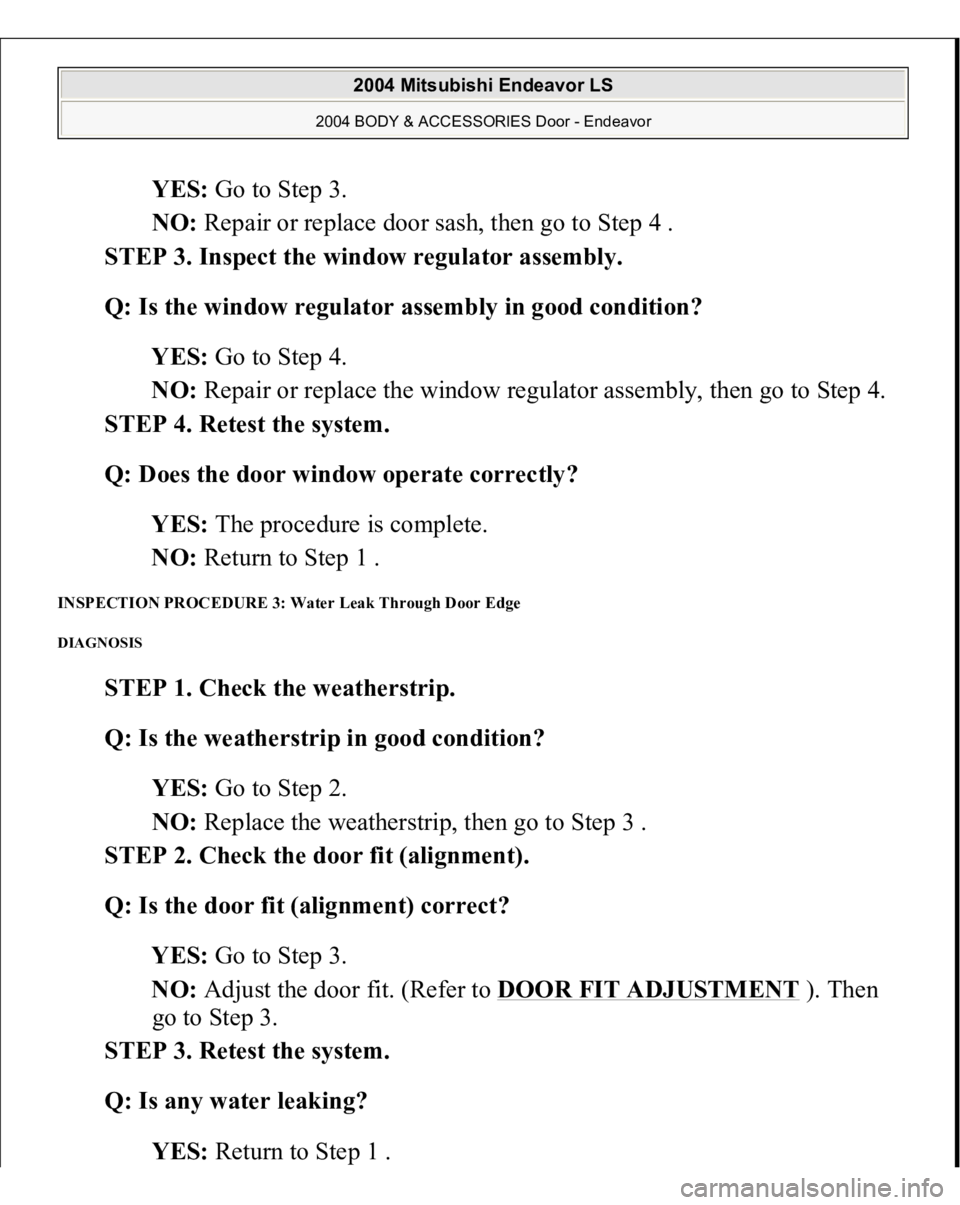

Page 996 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual YES: Go to Step 3. NO: Repair or replace door sash, then go to Step 4 . STEP 3. Inspect the window regulator assembly. Q: Is the window regulator assembly in good condition? YES: Go to Step 4.

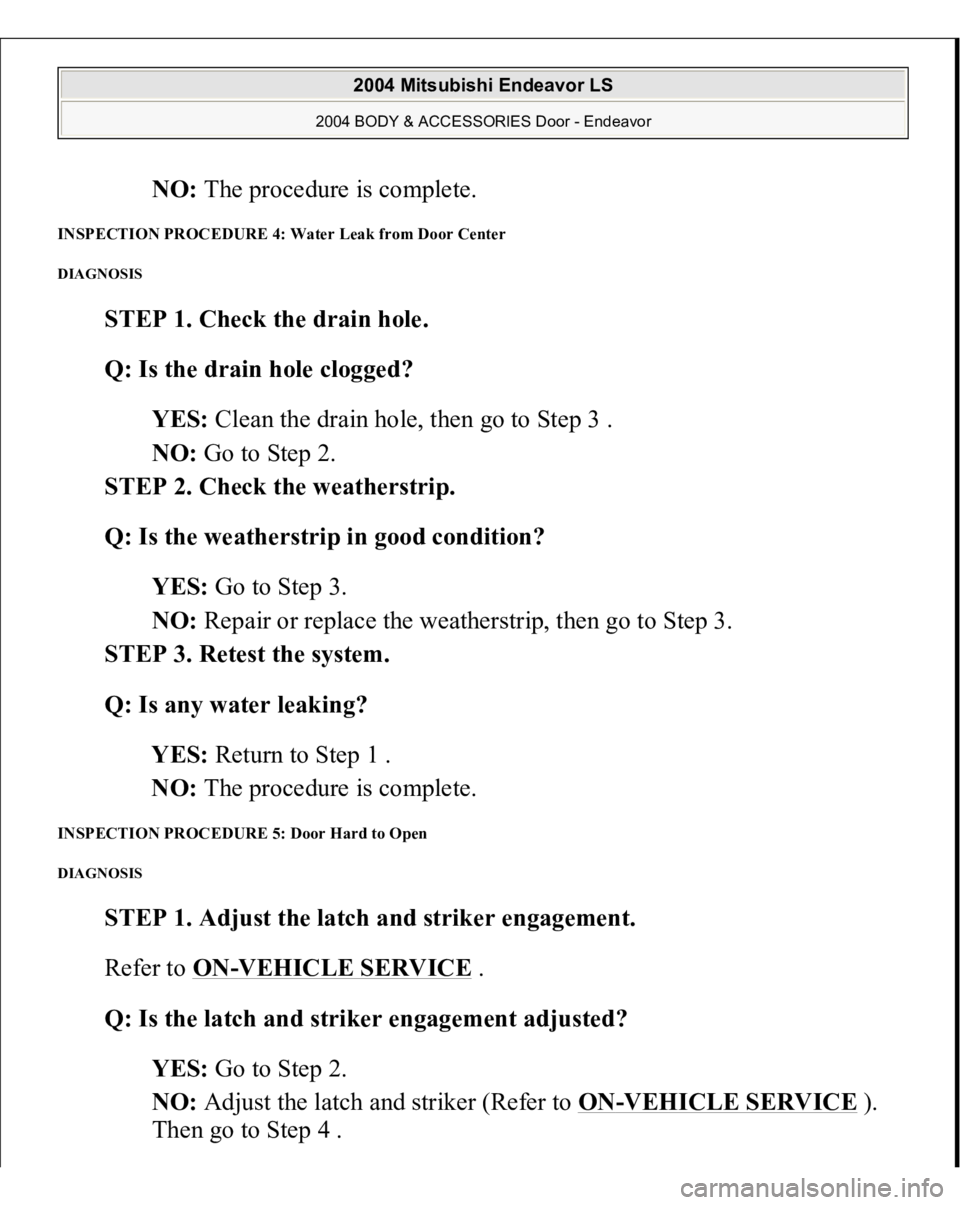

Page 997 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual NO: The procedure is complete. INSPECTION PROCEDURE 4: Water Leak from Door Center DIAGNOSIS STEP 1. Check the drain hole. Q: Is the drain hole clogged? YES: Clean the drain hole, then go to Ste

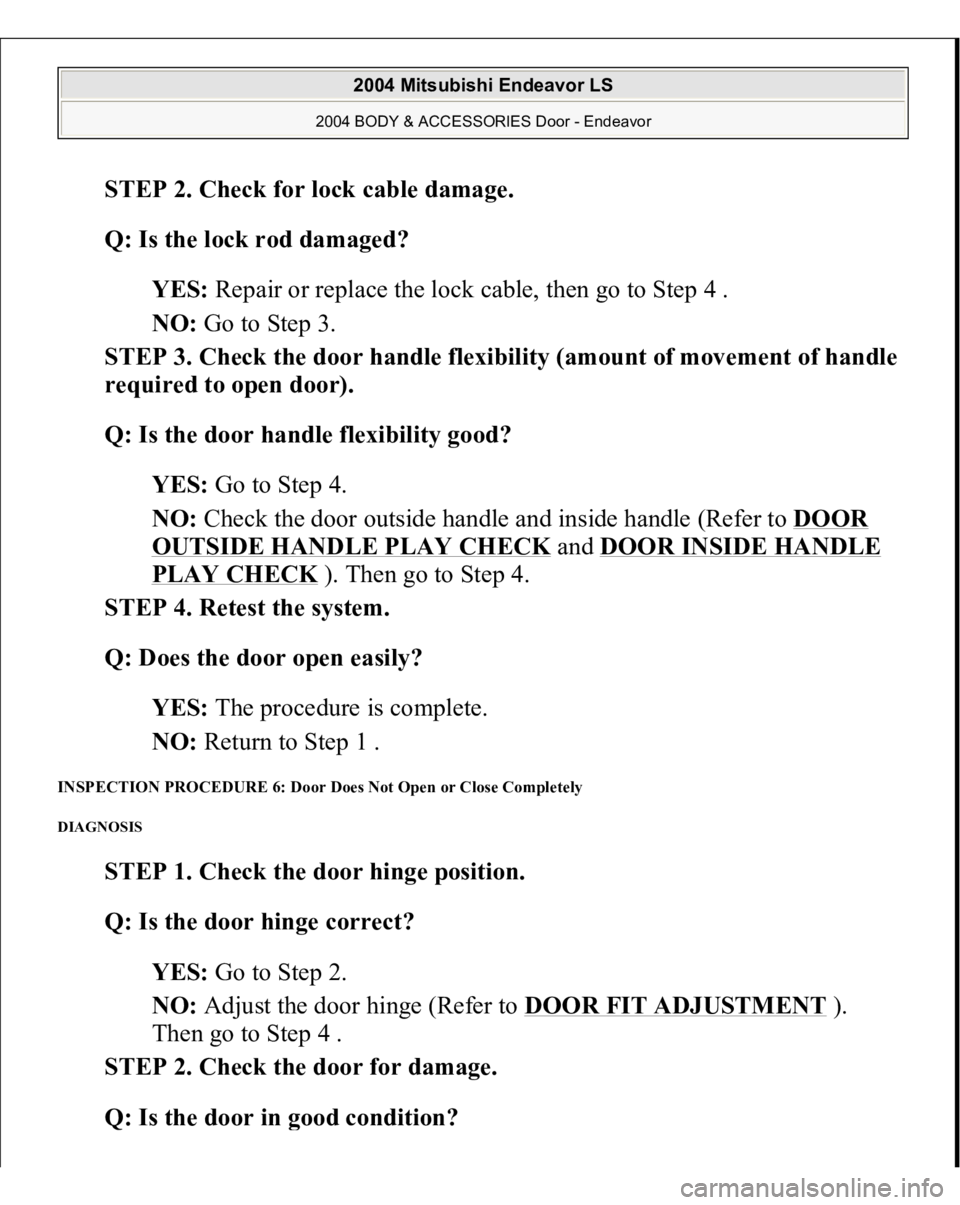

Page 998 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual STEP 2. Check for lock cable damage. Q: Is the lock rod damaged? YES: Repair or replace the lock cable, then go to Step 4 . NO: Go to Step 3. STEP 3. Check the door handle flexibility (amount o

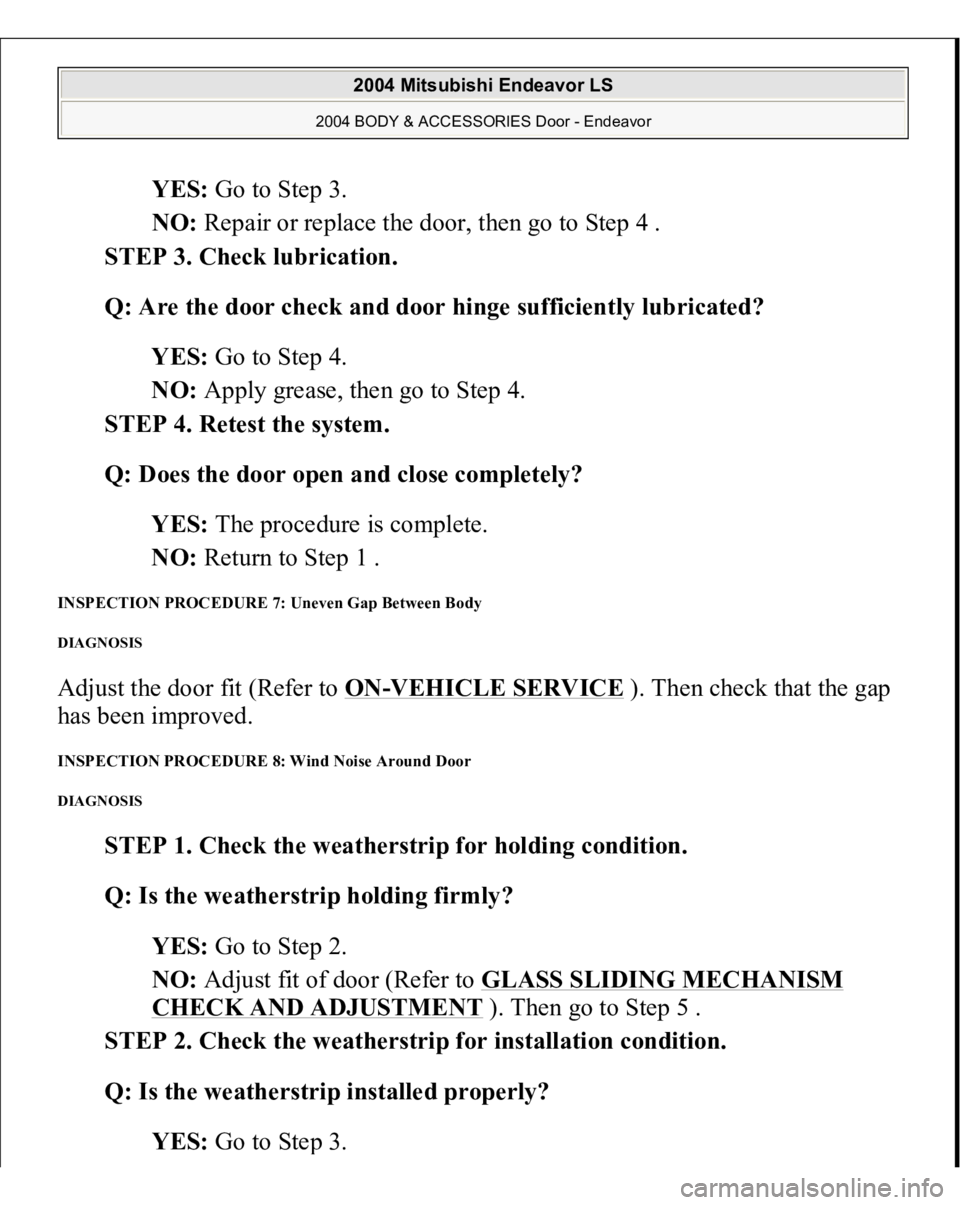

Page 999 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual YES: Go to Step 3. NO: Repair or replace the door, then go to Step 4 . STEP 3. Check lubrication. Q: Are the door check and door hinge sufficiently lubricated? YES: Go to Step 4. NO: Apply gr

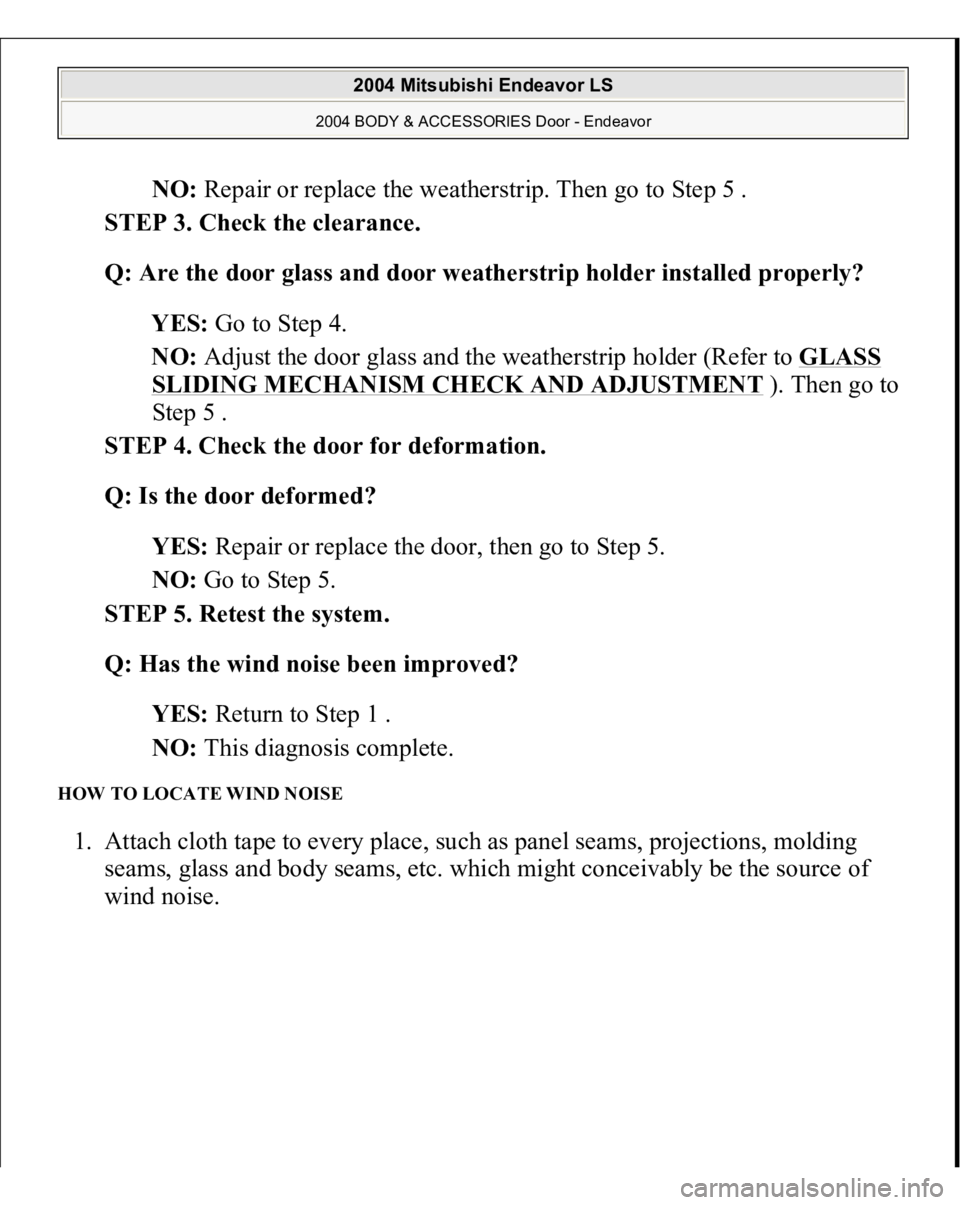

Page 1000 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual NO: Repair or replace the weatherstrip. Then go to Step 5 . STEP 3. Check the clearance. Q: Are the door glass and door weatherstrip holder installed properly? YES: Go to Step 4. NO: Adjust the
