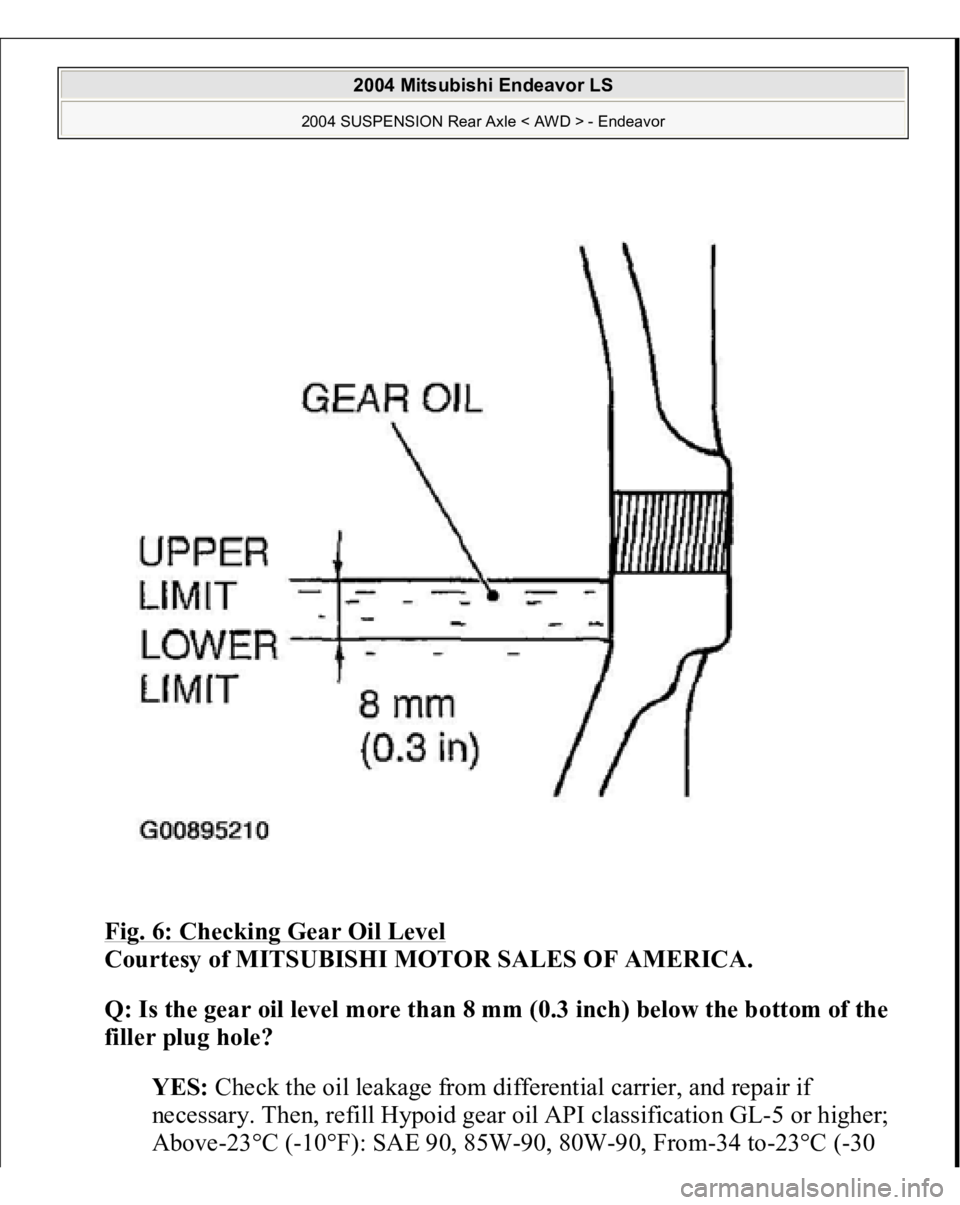

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 6: Checking Gear Oil Level Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Is the gear oil level more than 8 mm (0.3 inch) below the bottom of the filler plug hole? YES: Check the oil lea

Page 2938 of 3870

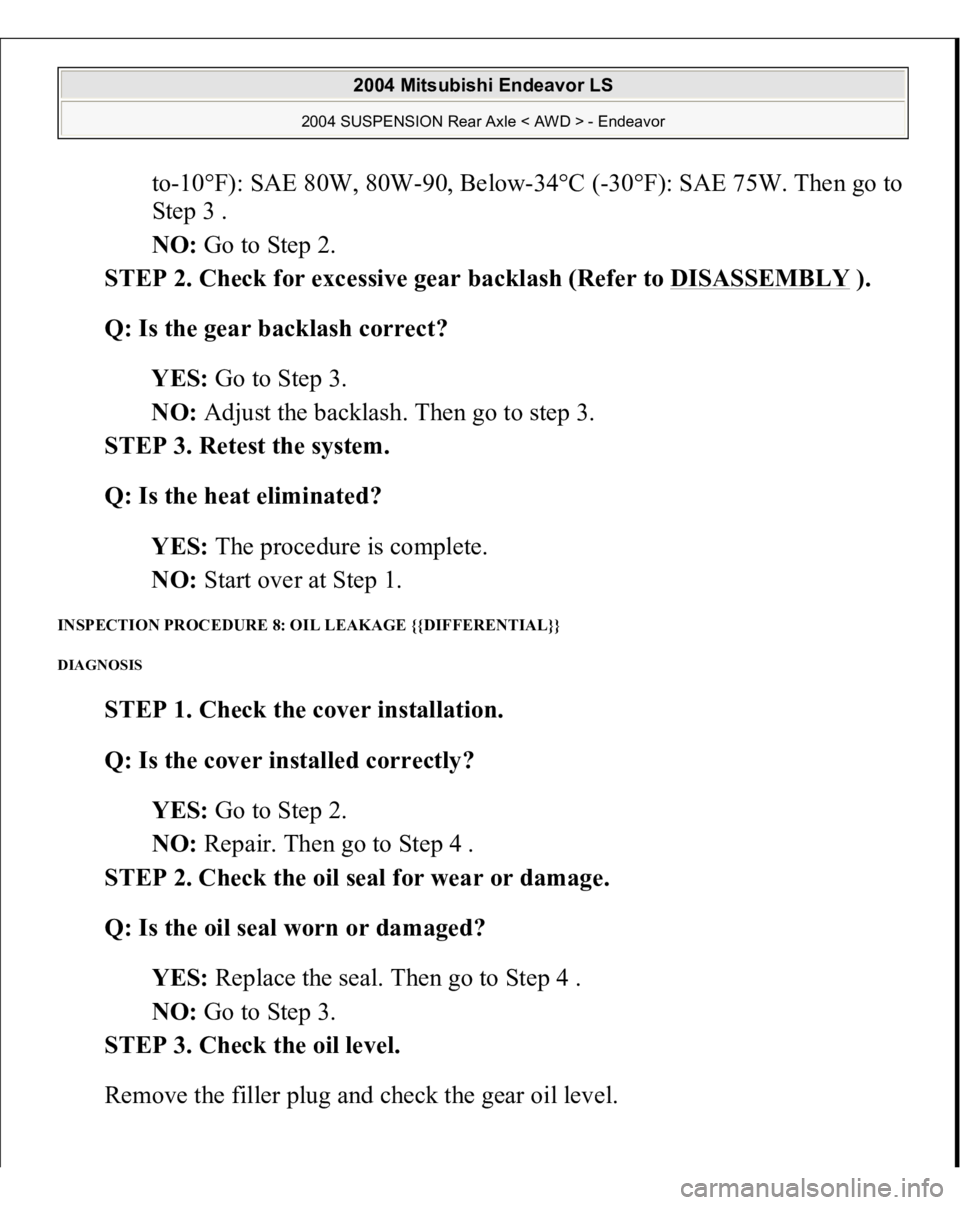

MITSUBISHI ENDEAVOR 2004 Service Repair Manual to-10°F): SAE 80W, 80W-90, Below-34°C (-30°F): SAE 75W. Then go to Step 3 . NO: Go to Step 2. STEP 2. Check for excessive gear backlash (Refer to DISASSEMBLY ). Q: Is the gear backlash corre

Page 2939 of 3870

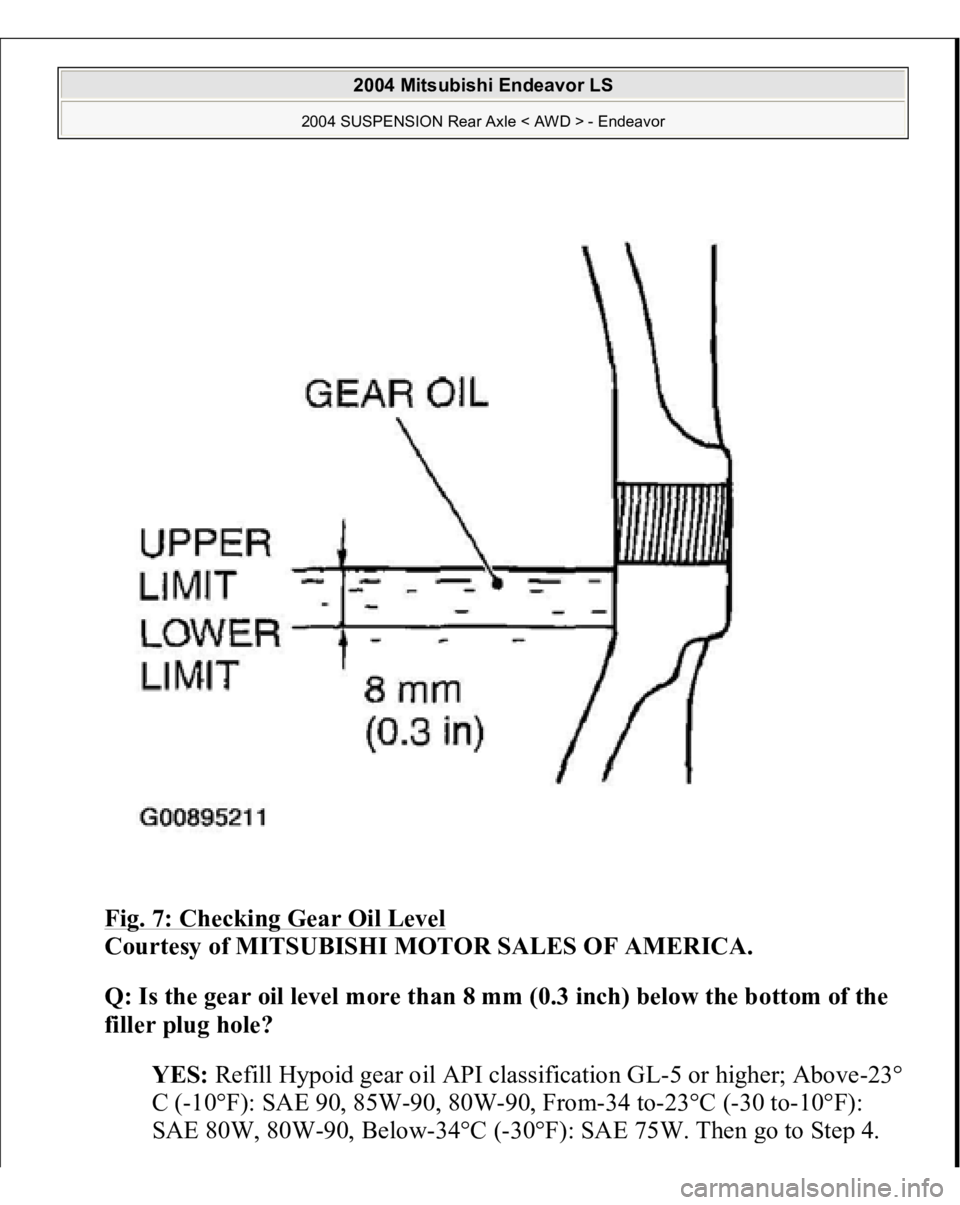

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 7: Checking Gear Oil Level Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Is the gear oil level more than 8 mm (0.3 inch) below the bottom of the filler plug hole? YES: Refill Hypoid gea

Page 2940 of 3870

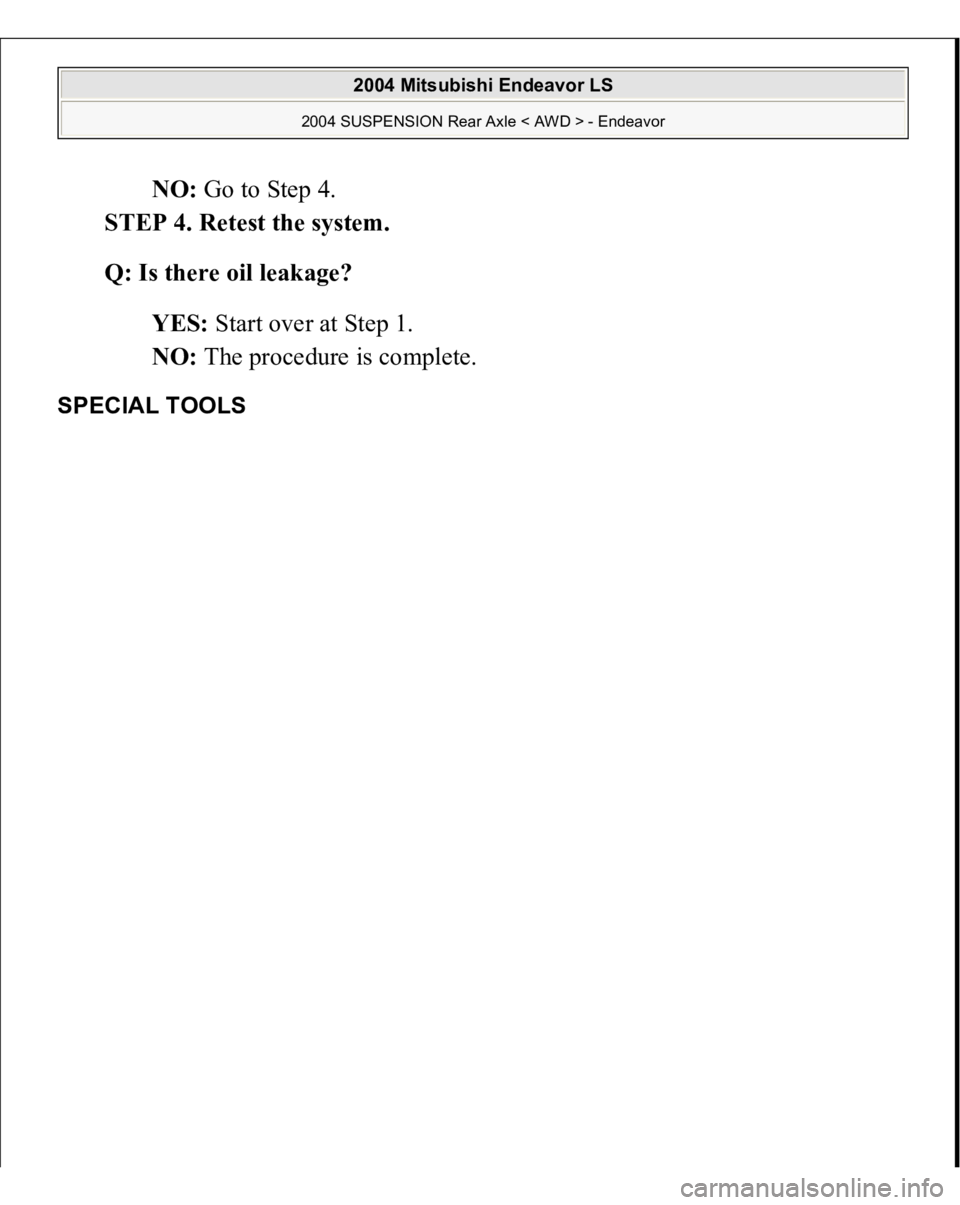

MITSUBISHI ENDEAVOR 2004 Service Repair Manual NO: Go to Step 4. STEP 4. Retest the system. Q: Is there oil leakage? YES: Start over at Step 1. NO: The procedure is complete. SPECIAL TOOLS 2004 Mitsubishi Endeavor LS 2004 SUSPENSION Re

Page 2941 of 3870

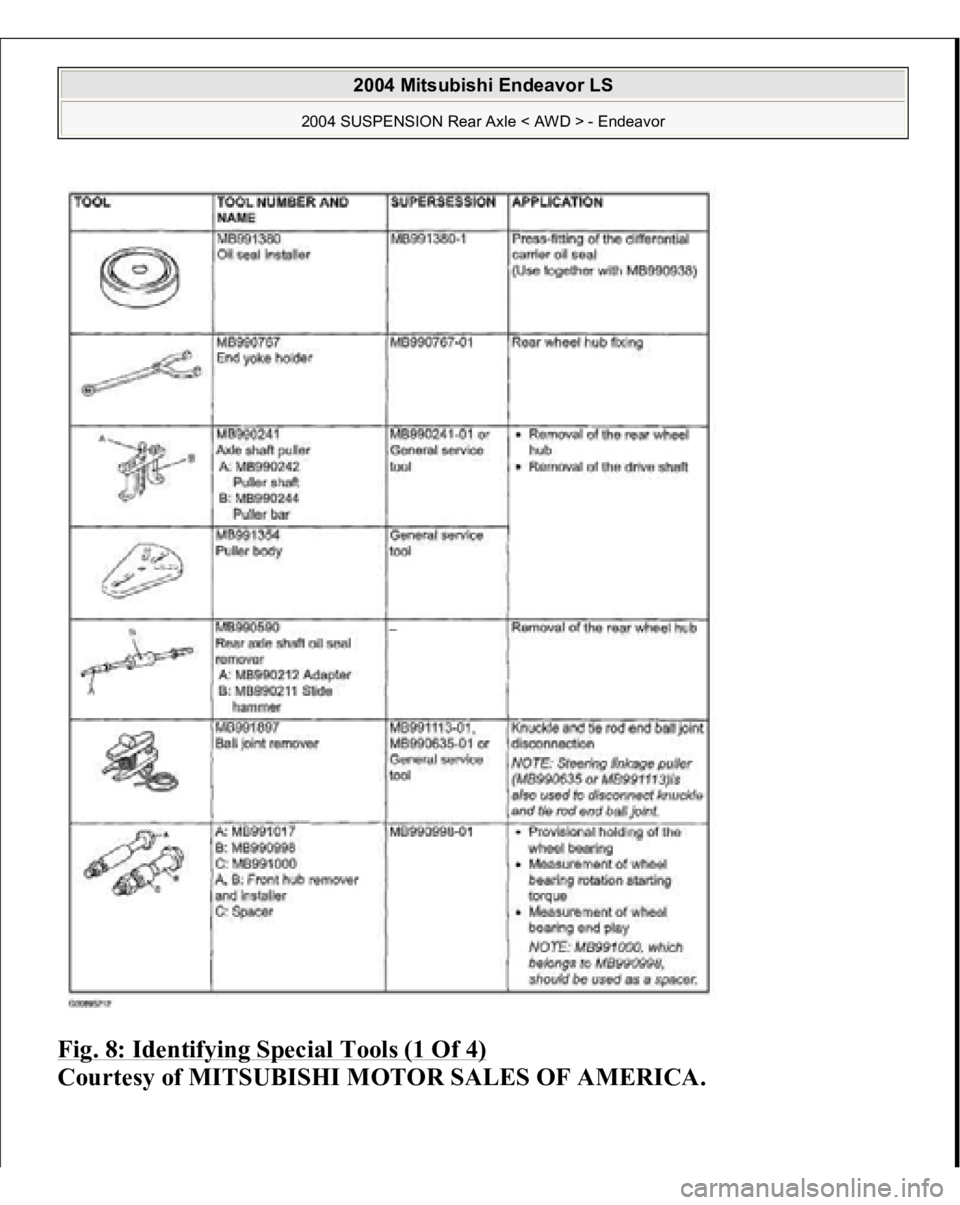

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 8: Identifying Special Tools (1 Of 4) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 SUSPENSION Rear Axle < AWD > - Endeavor

Page 2942 of 3870

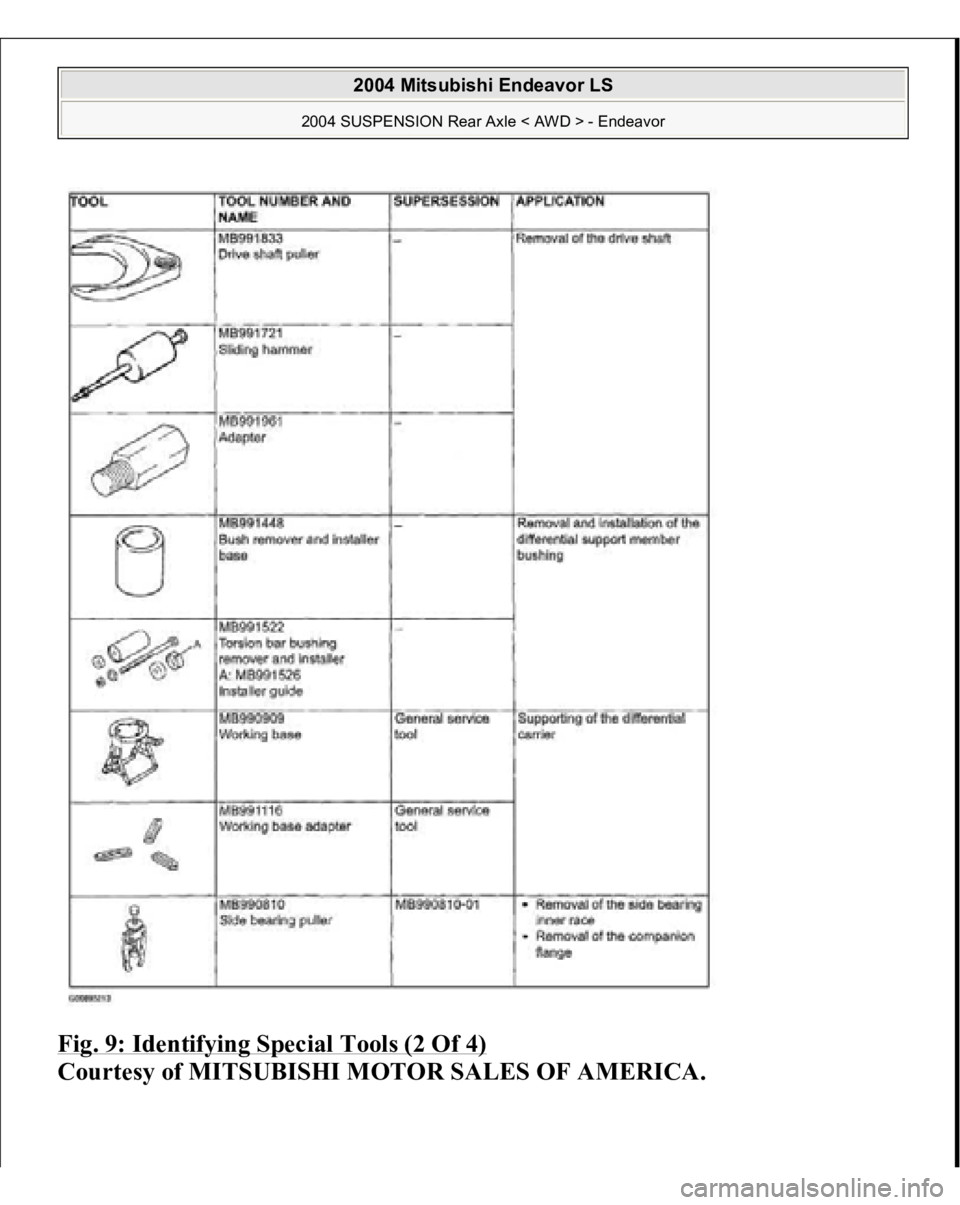

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 9: Identifying Special Tools (2 Of 4) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 SUSPENSION Rear Axle < AWD > - Endeavor

Page 2943 of 3870

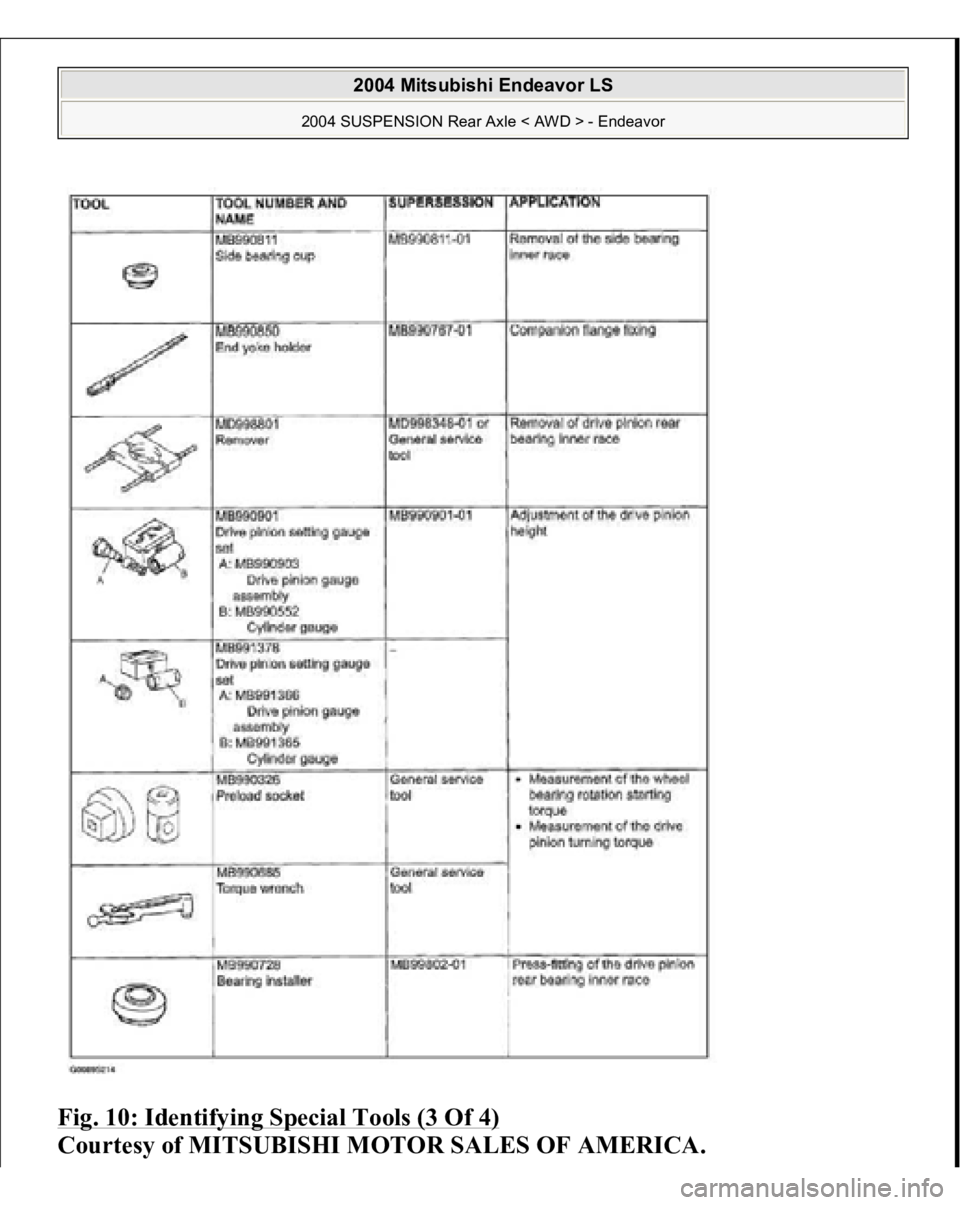

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 10: Identifying Special Tools (3 Of 4) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 SUSPENSION Rear Axle < AWD > - Endeavor

Page 2944 of 3870

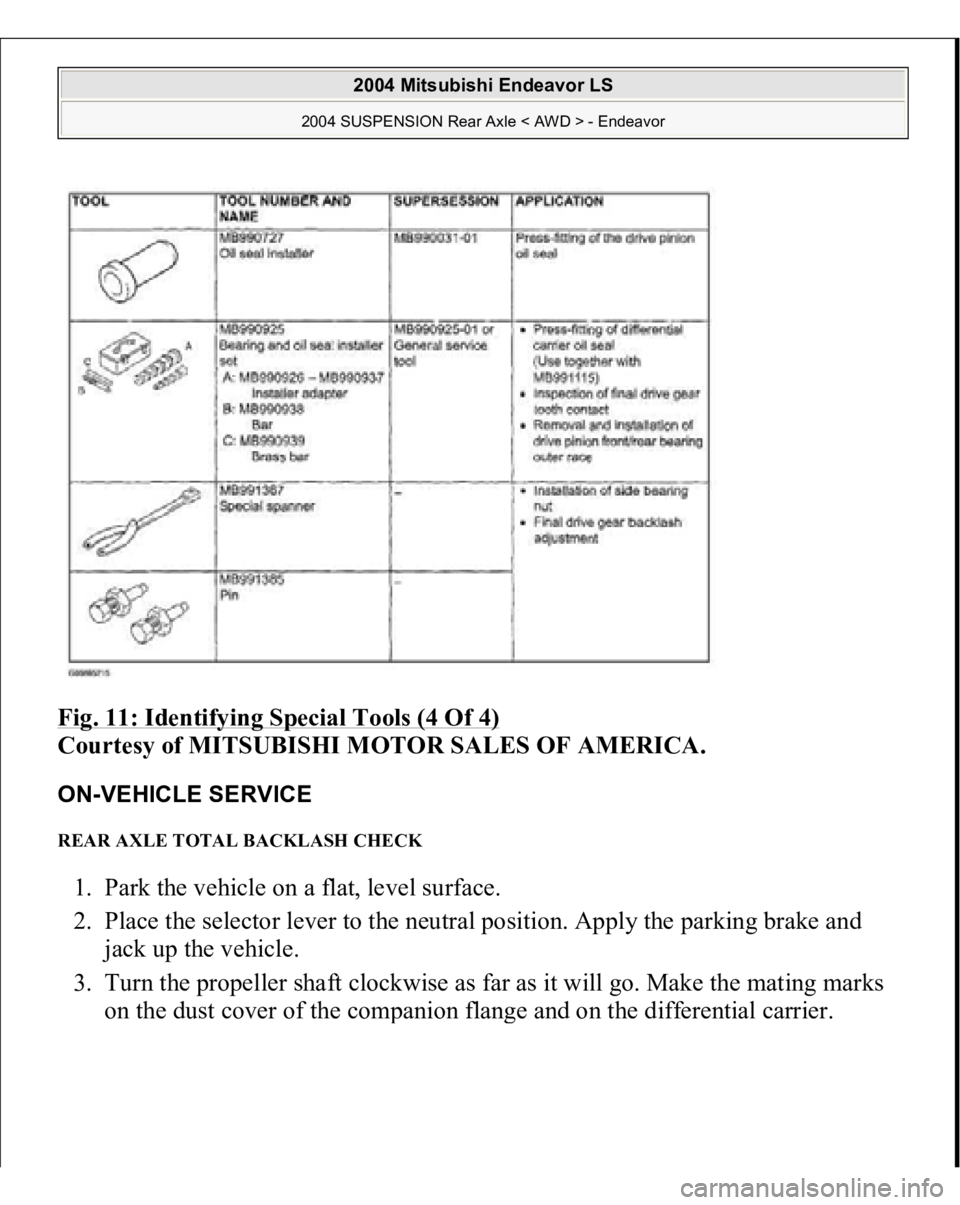

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 11: Identifying Special Tools (4 Of 4) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. ON-VEHICLE SERVICE REAR AXLE TOTAL BACKLASH CHECK 1. Park the vehicle on a flat, level surface. 2. Place
