Page 2353 of 3870

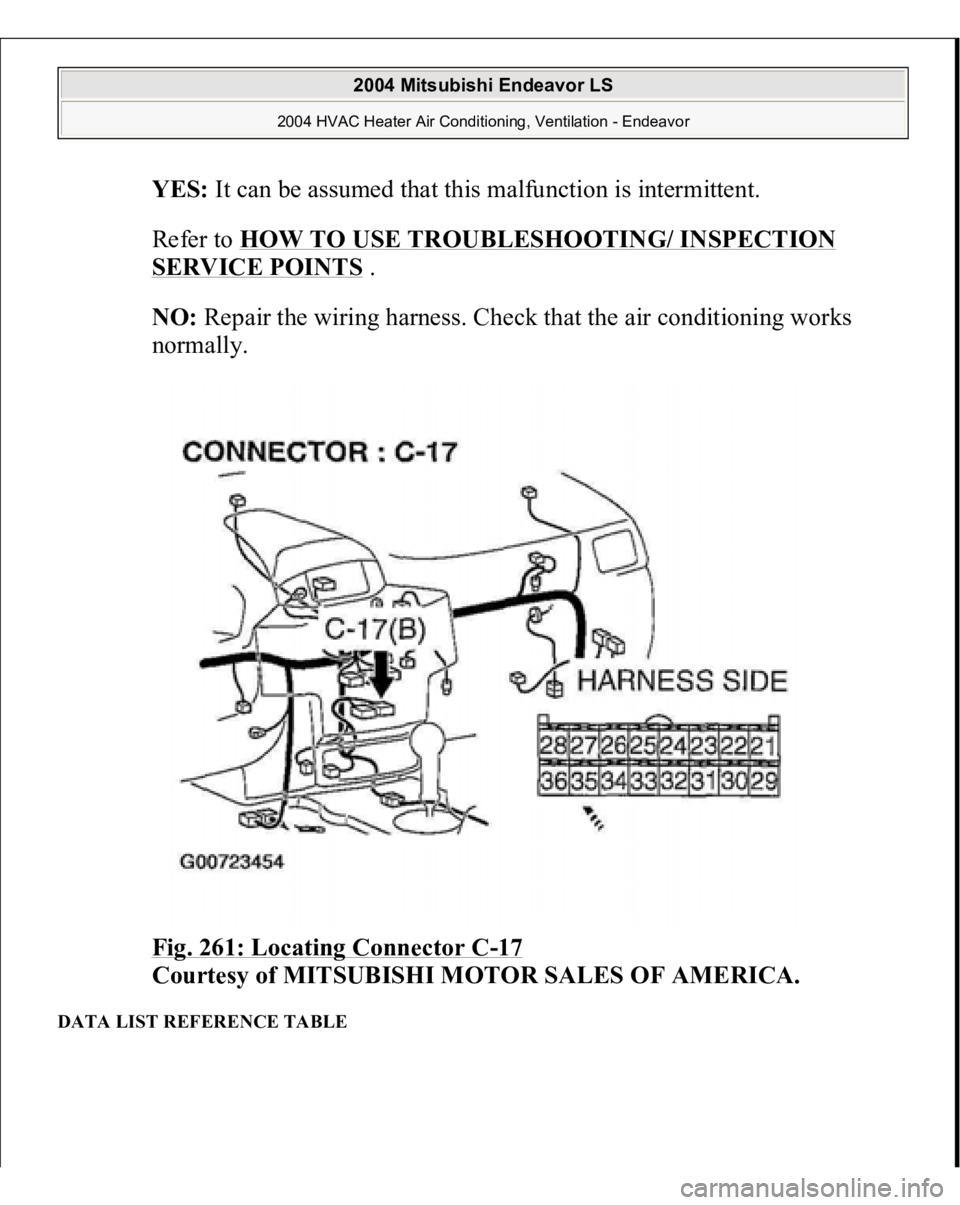

MITSUBISHI ENDEAVOR 2004 Service Repair Manual YES: It can be assumed that this malfunction is intermittent. Refer to HOW TO USE TROUBLESHOOTING/ INSPECTION SERVICE POINTS . NO: Repair the wiring harness. Check that the air conditioning wo

Page 2354 of 3870

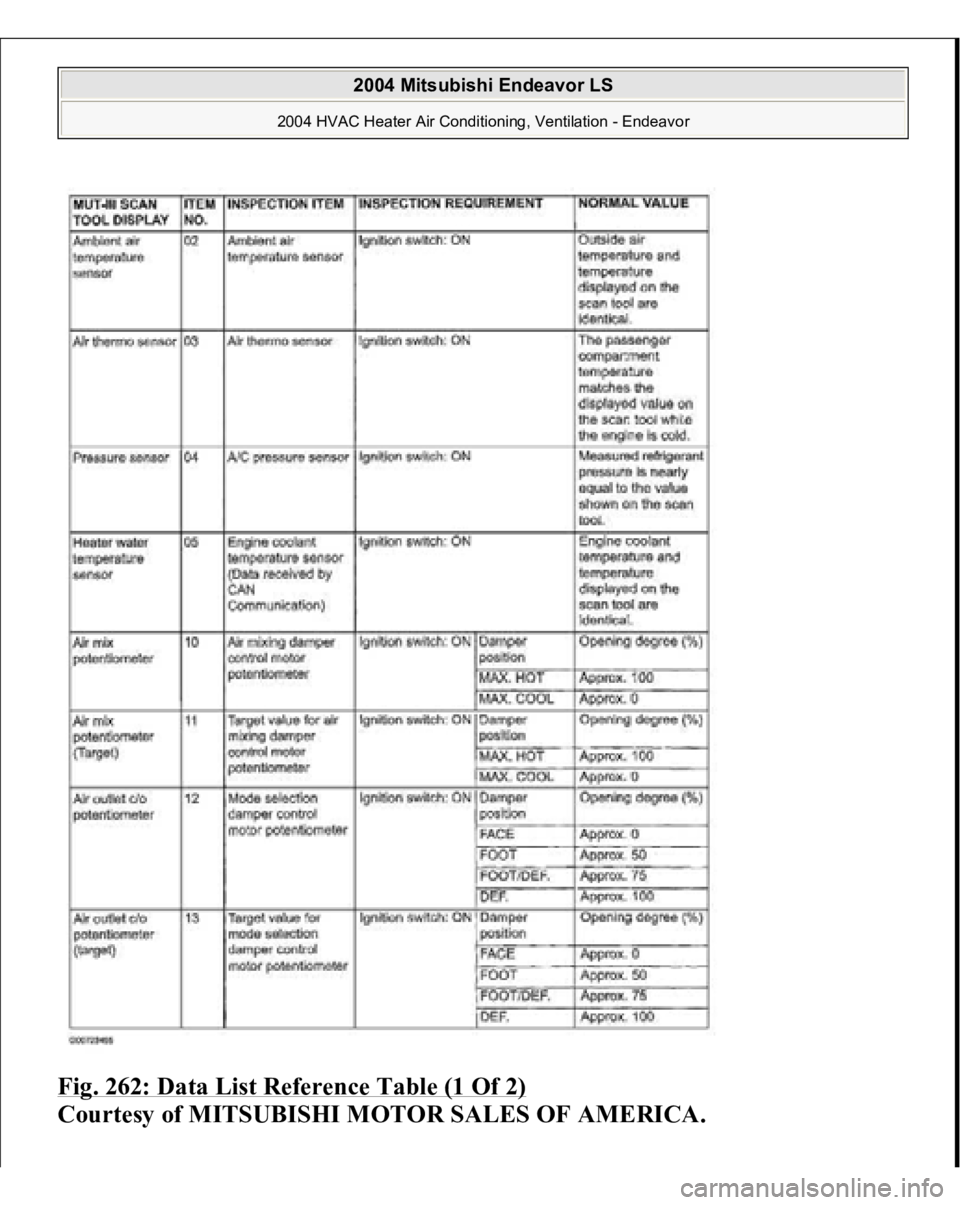

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 262: Data List Reference Table (1 Of 2) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Page 2355 of 3870

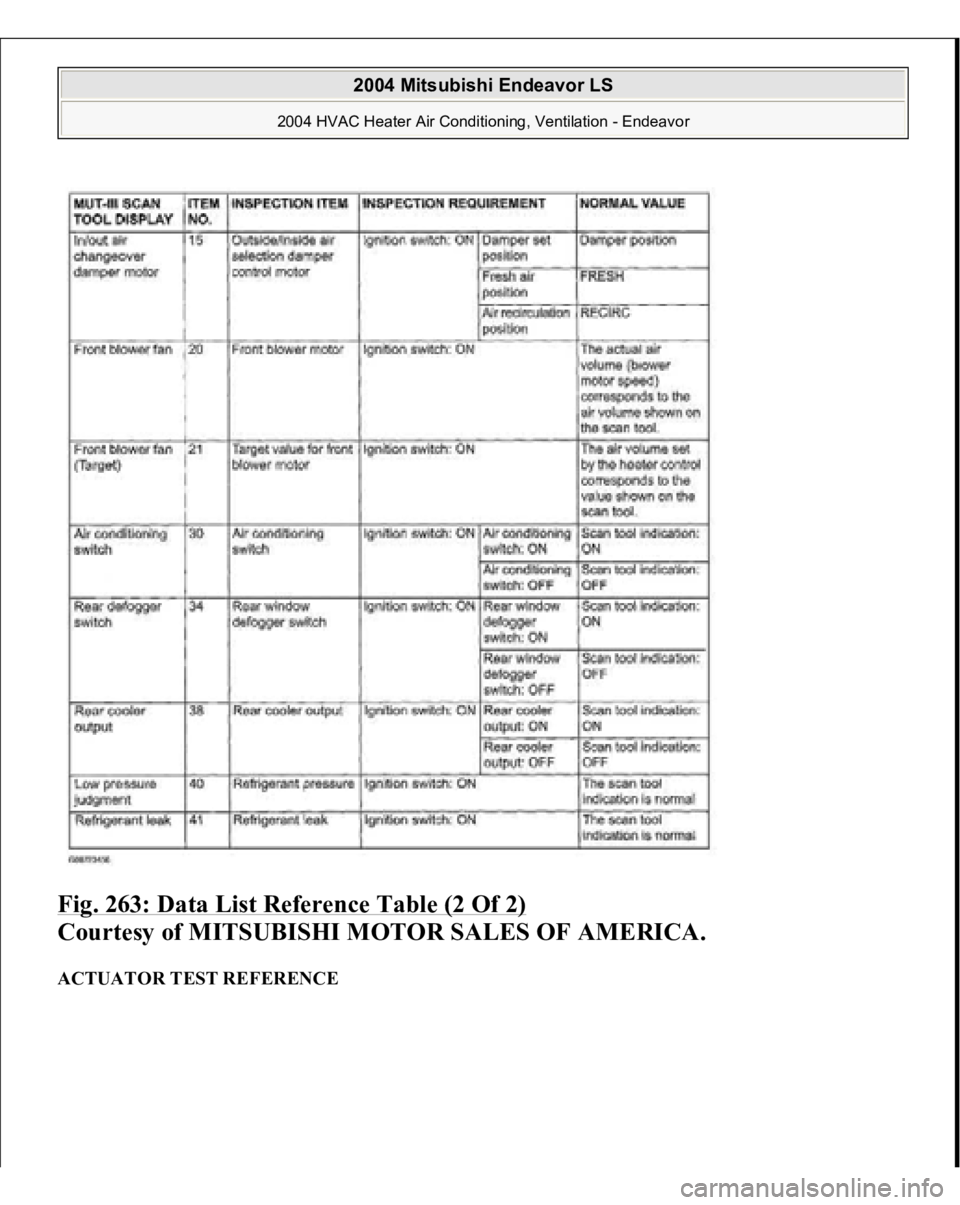

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 263: Data List Reference Table (2 Of 2) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. ACTUATOR TEST REFERENCE 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation -

Page 2356 of 3870

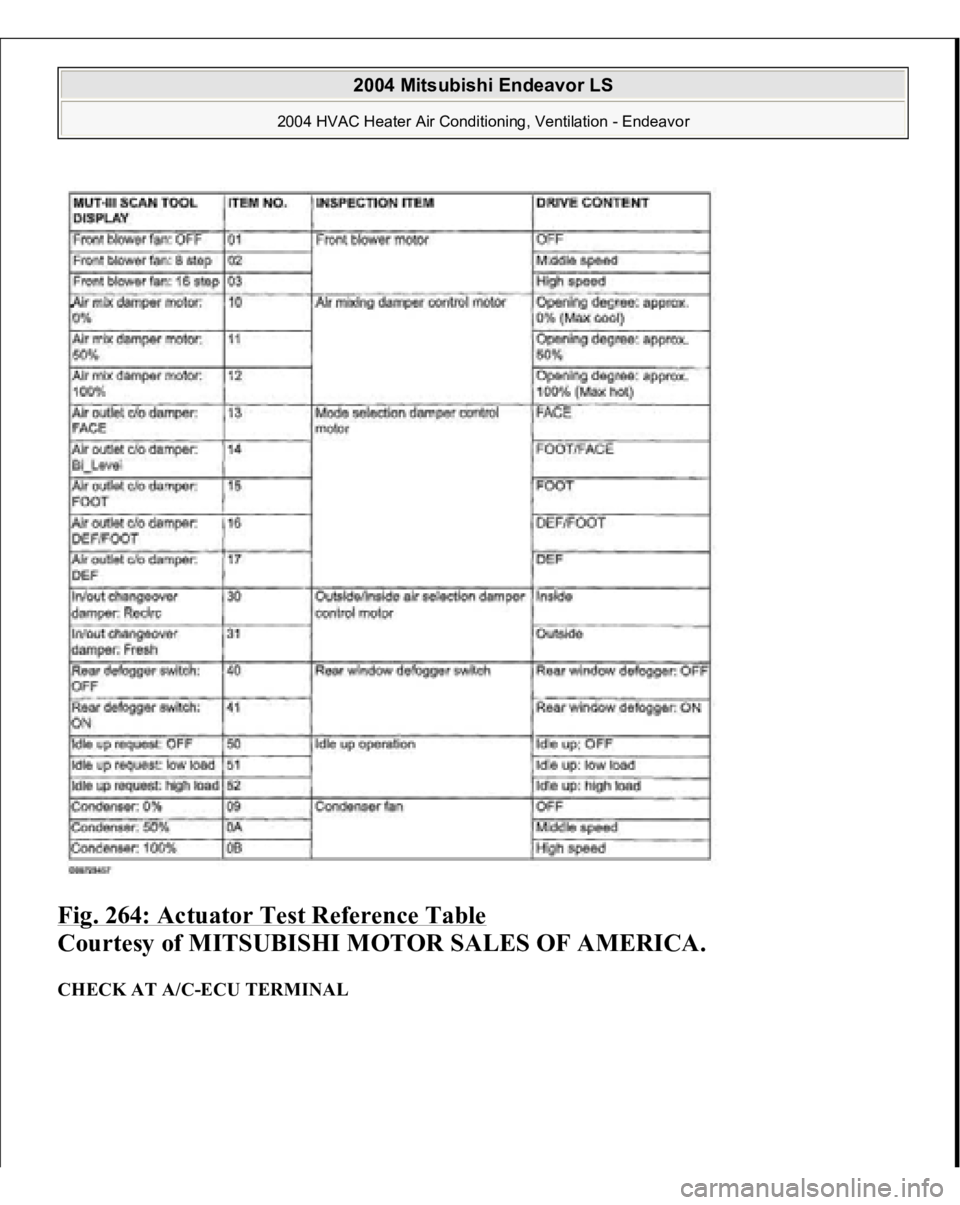

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 264: Actuator Test Reference Table Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. CHECK AT A/C-ECU TERMINAL 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - End

Page 2357 of 3870

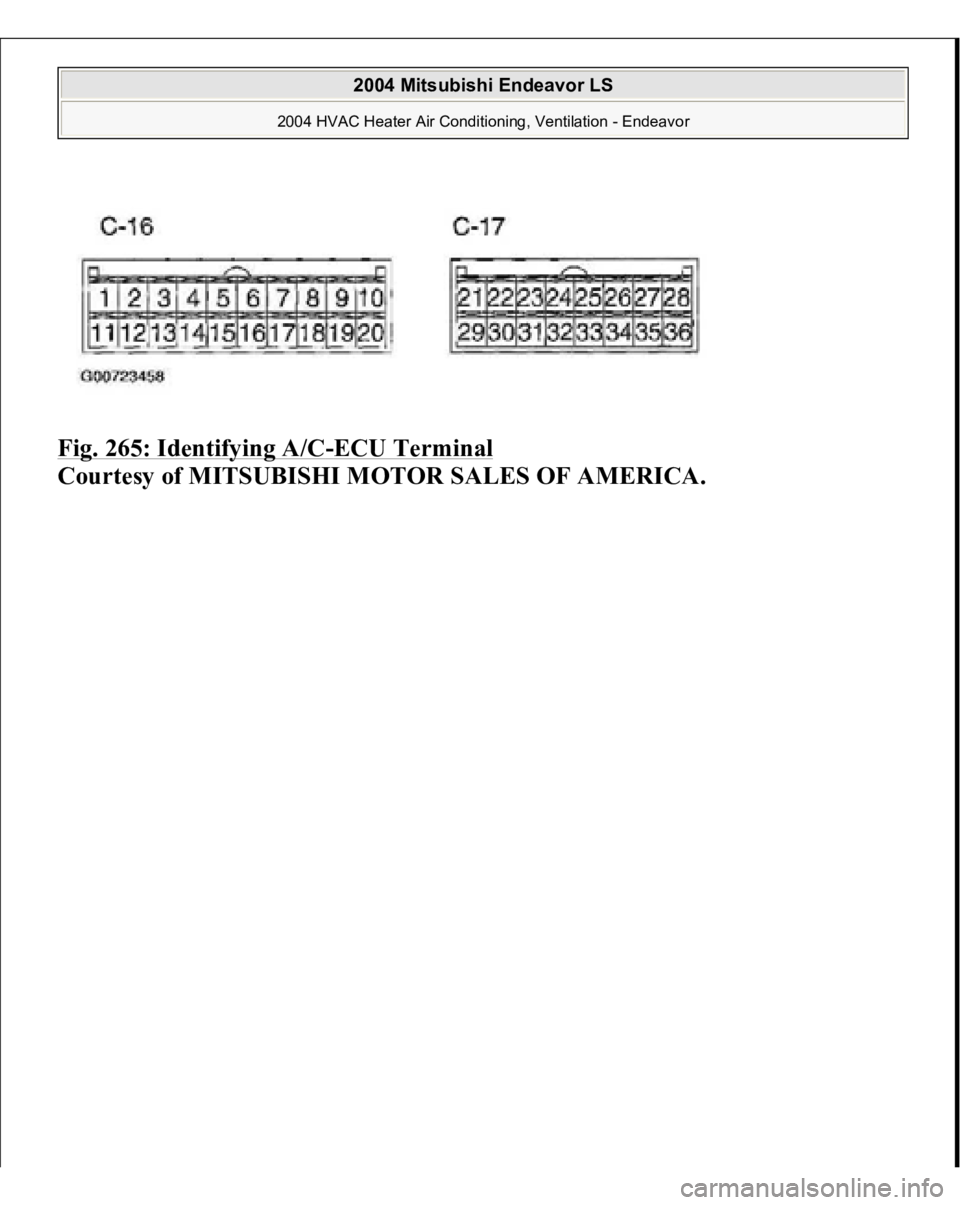

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 265: Identifying A/C -ECU Terminal Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Page 2358 of 3870

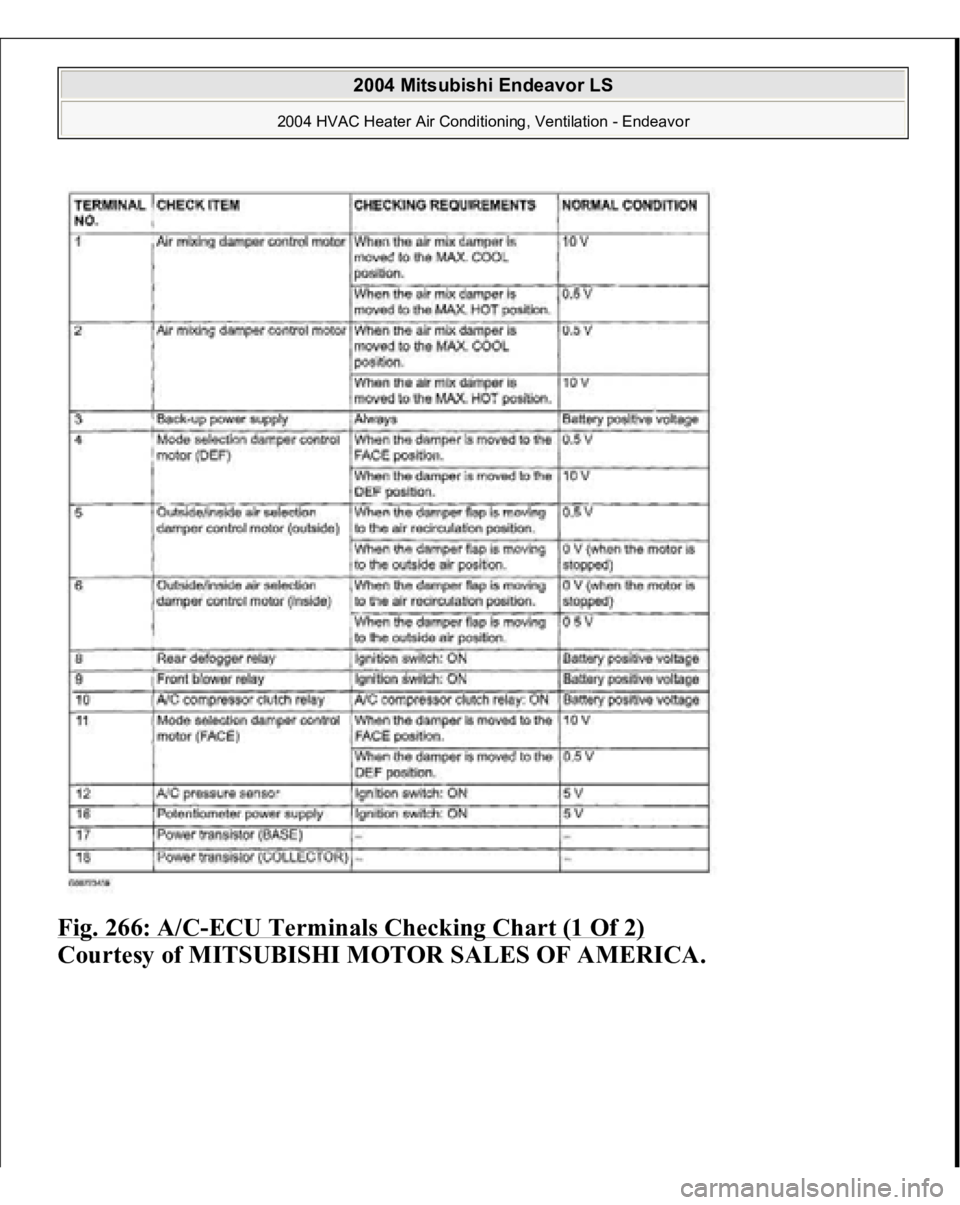

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 266: A/C -ECU Terminals Checking Chart (1 Of 2) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Page 2359 of 3870

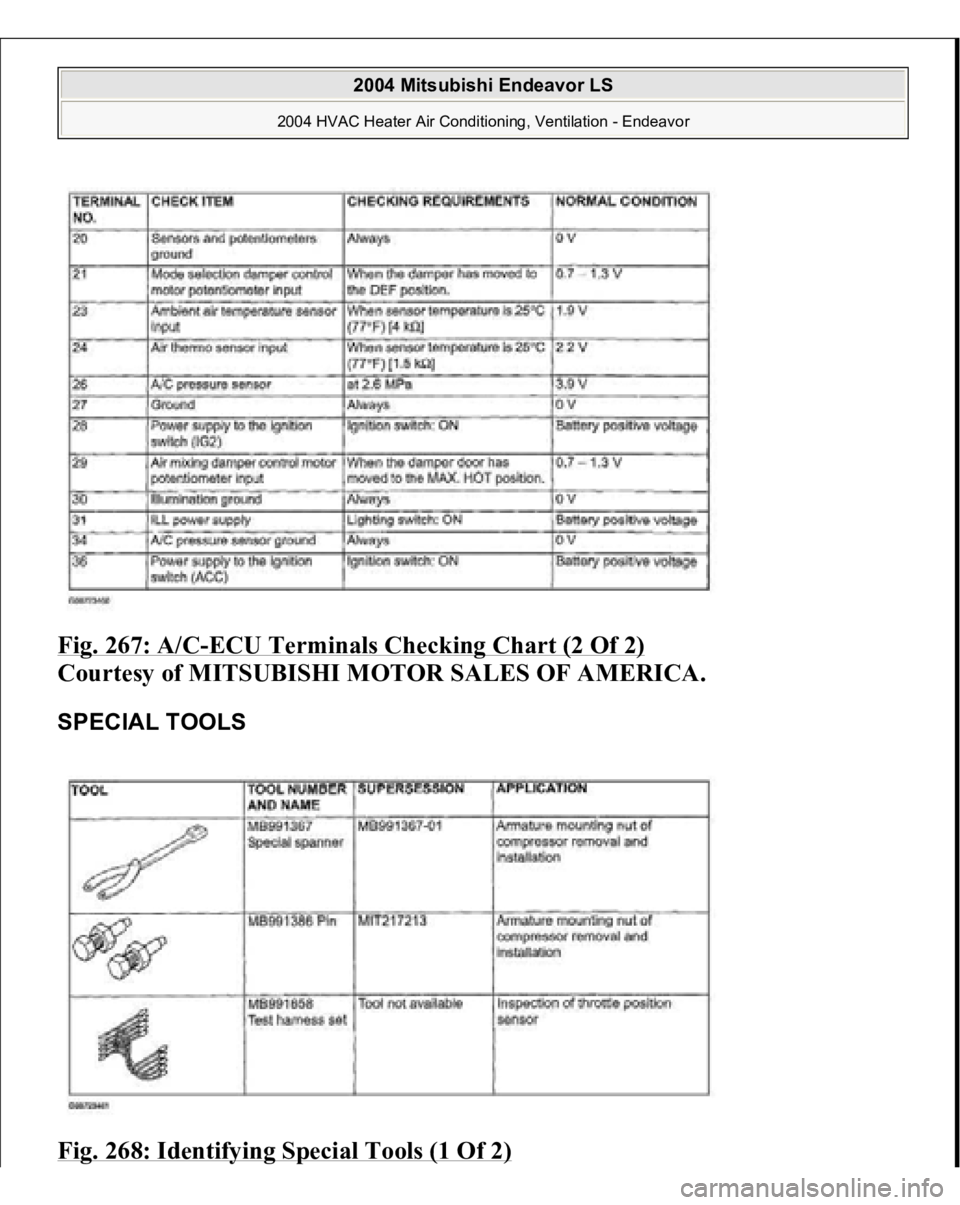

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 267: A/C -ECU Terminals Checking Chart (2 Of 2) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. SPECIAL TOOLS Fig. 268: Identifying Special Tools (1 Of 2) 2004 Mitsubishi Endeavor LS 2004 HV

Page 2360 of 3870

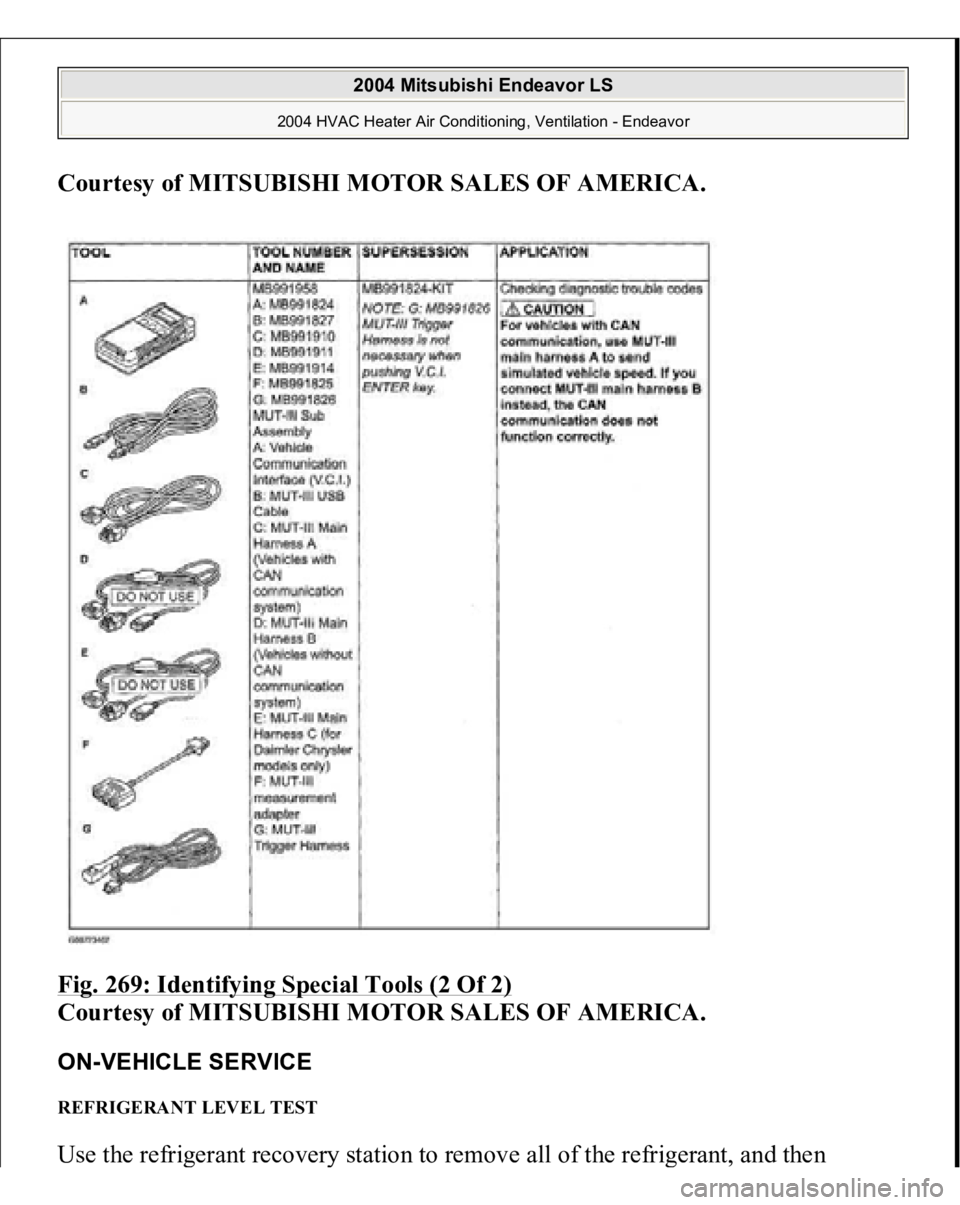

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . Fig. 269: Identifying Special Tools (2 Of 2) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. ON-VEHICLE SERVICE REFRIGERANT LEVEL TEST Use the refri
