Page 1505 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Apply approximately 98 N (22 lb) of force to the middle of the drive belt between the pulleys (at the place indicated by the arrow) and check that the amount of deflection in within the standard val

Page 1506 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 10: Checking Belt Deflection Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. GENERATOR DRIVE BELT TENSION ADJUSTMENT 2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine - Endeavor

Page 1507 of 3870

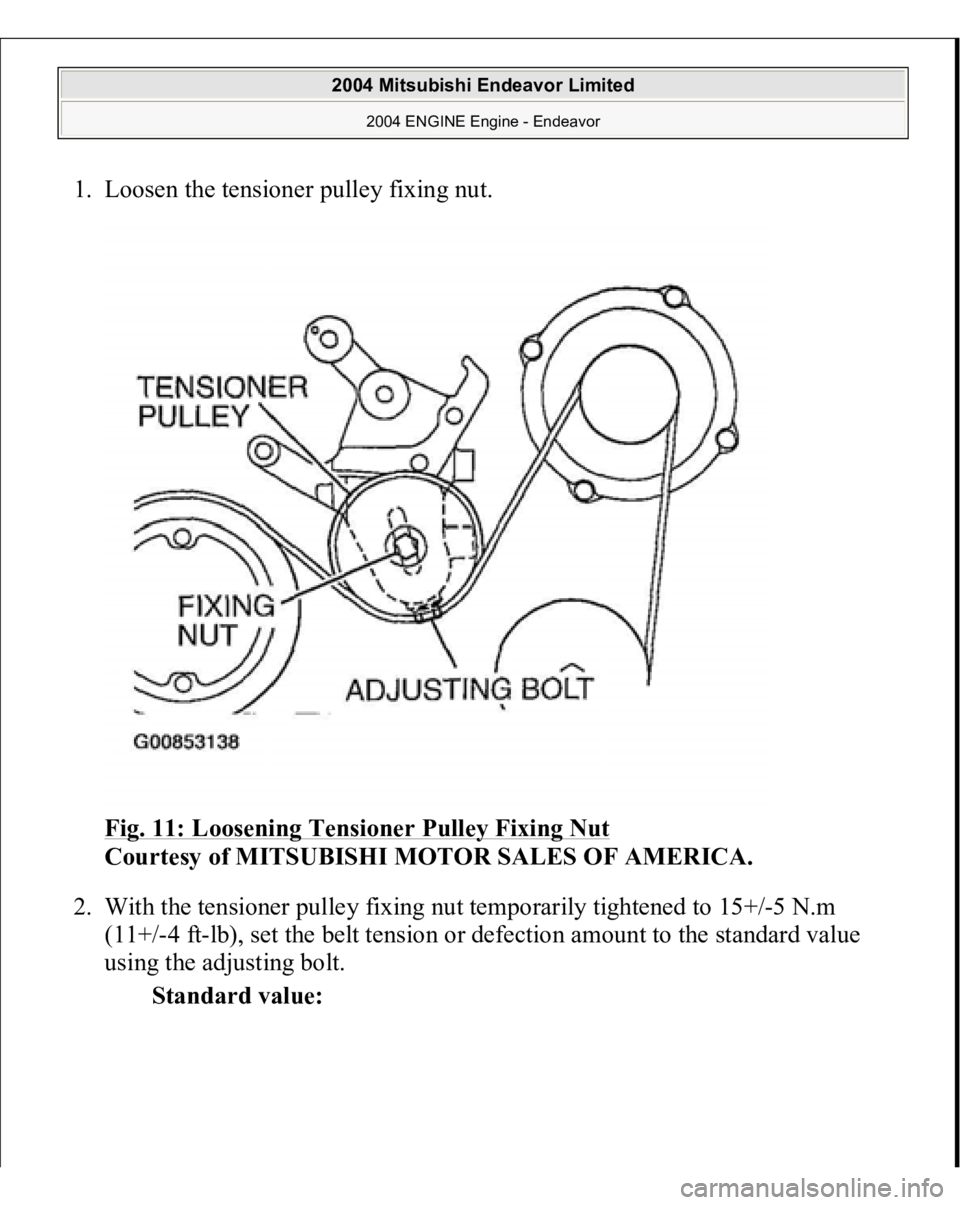

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 1. Loosen the tensioner pulley fixing nut. Fig. 11: Loosening Tensioner Pulley Fixing Nut Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2. With the tensioner pulley fixing nut temporarily tighte

Page 1508 of 3870

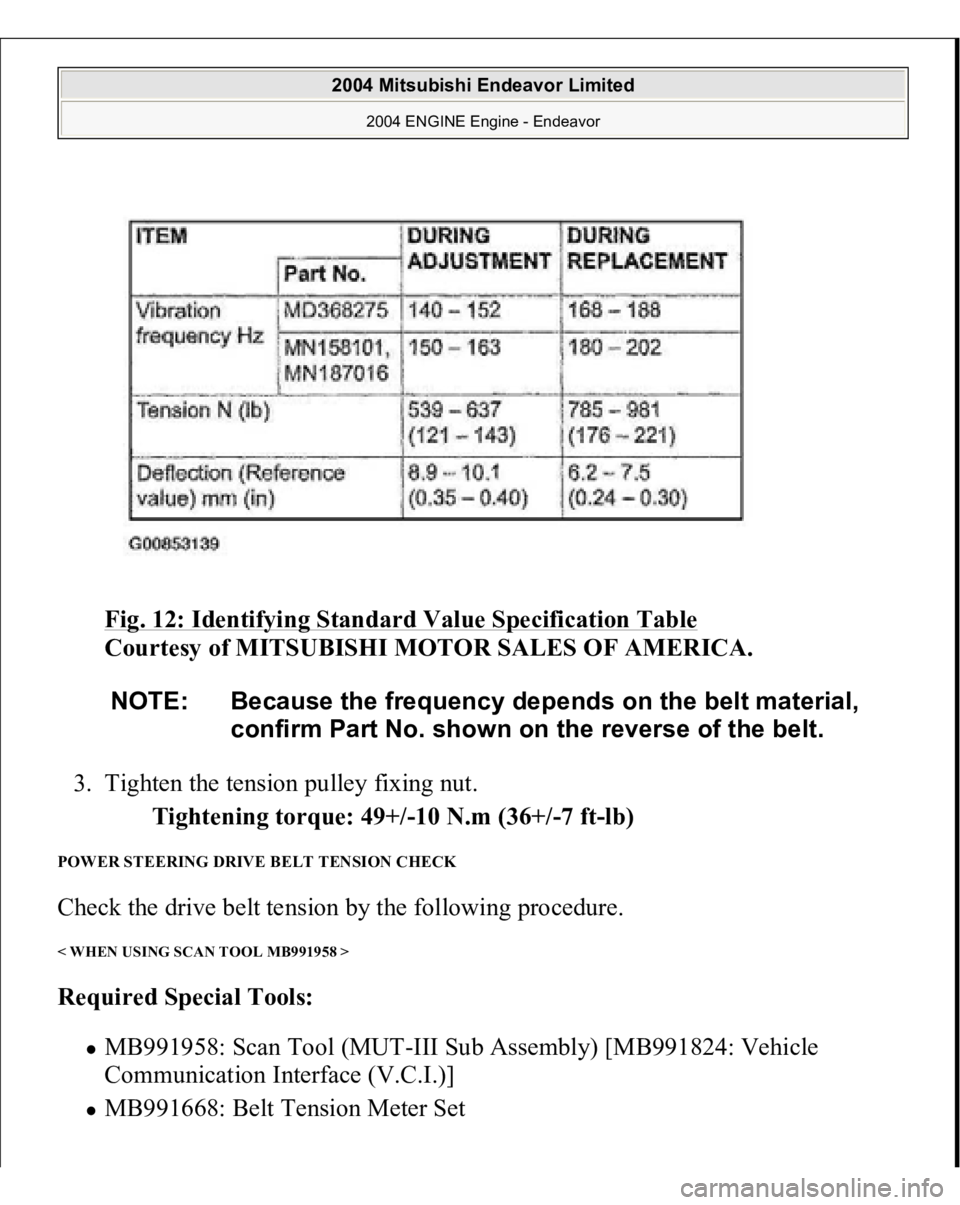

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 12: Identifying Standard Value Specification Table Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 3. Tighten the tension pulley fixing nut. Tightening torque: 49+/-10 N.m (36+/-7 ft-lb) POW

Page 1509 of 3870

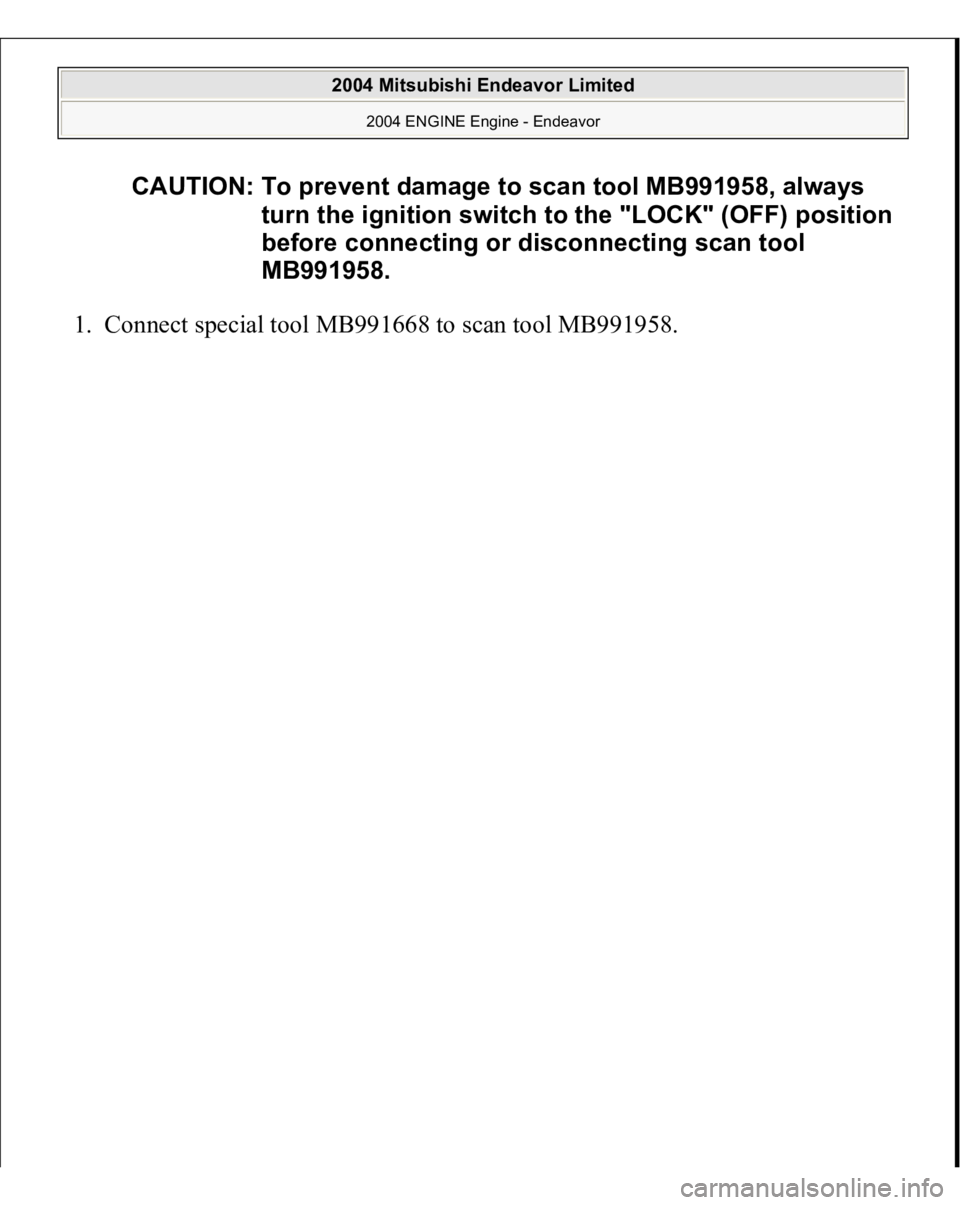

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 1. Connect special tool MB991668 to scan tool MB991958. CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or d

Page 1510 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine - Endeavor

Page 1511 of 3870

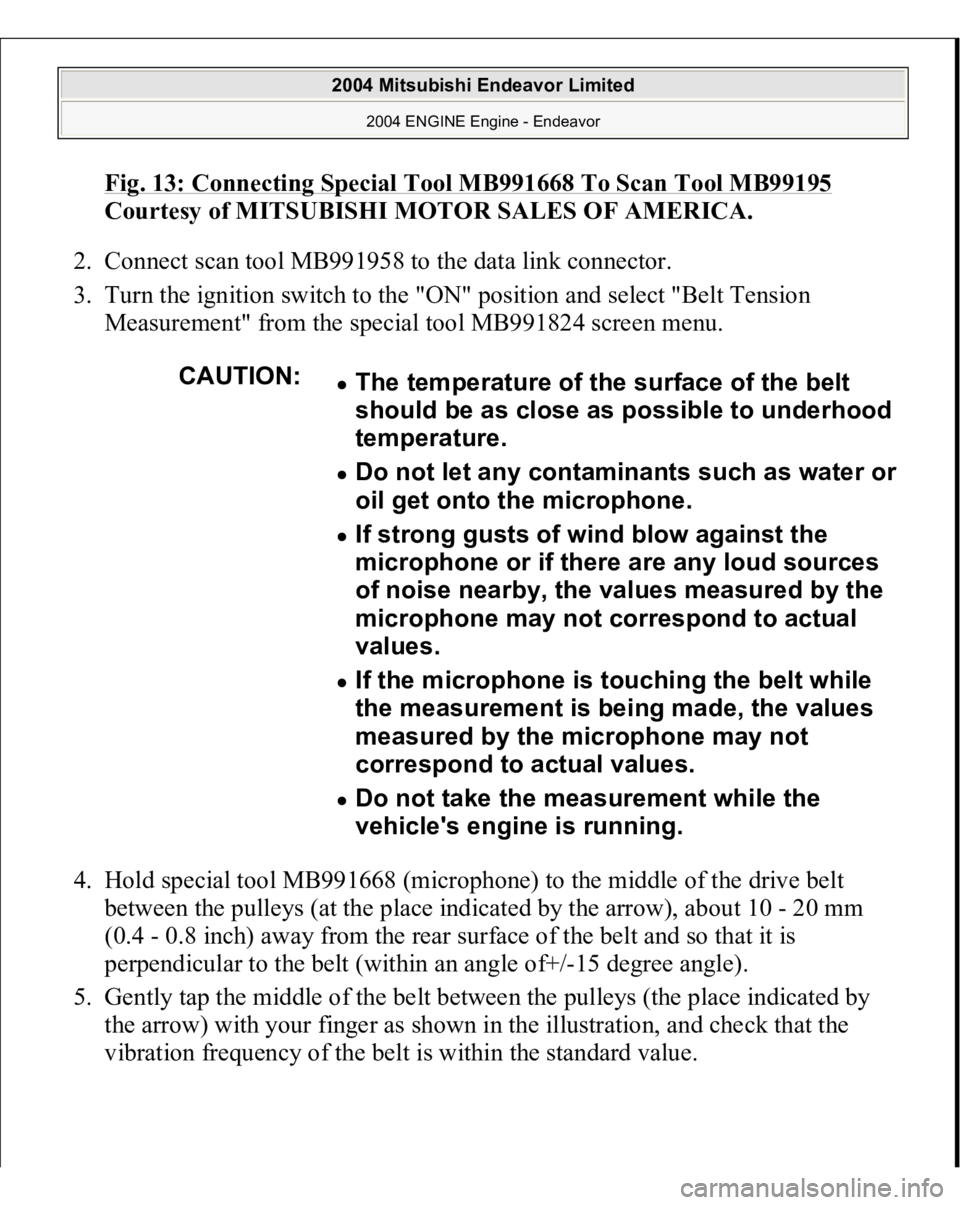

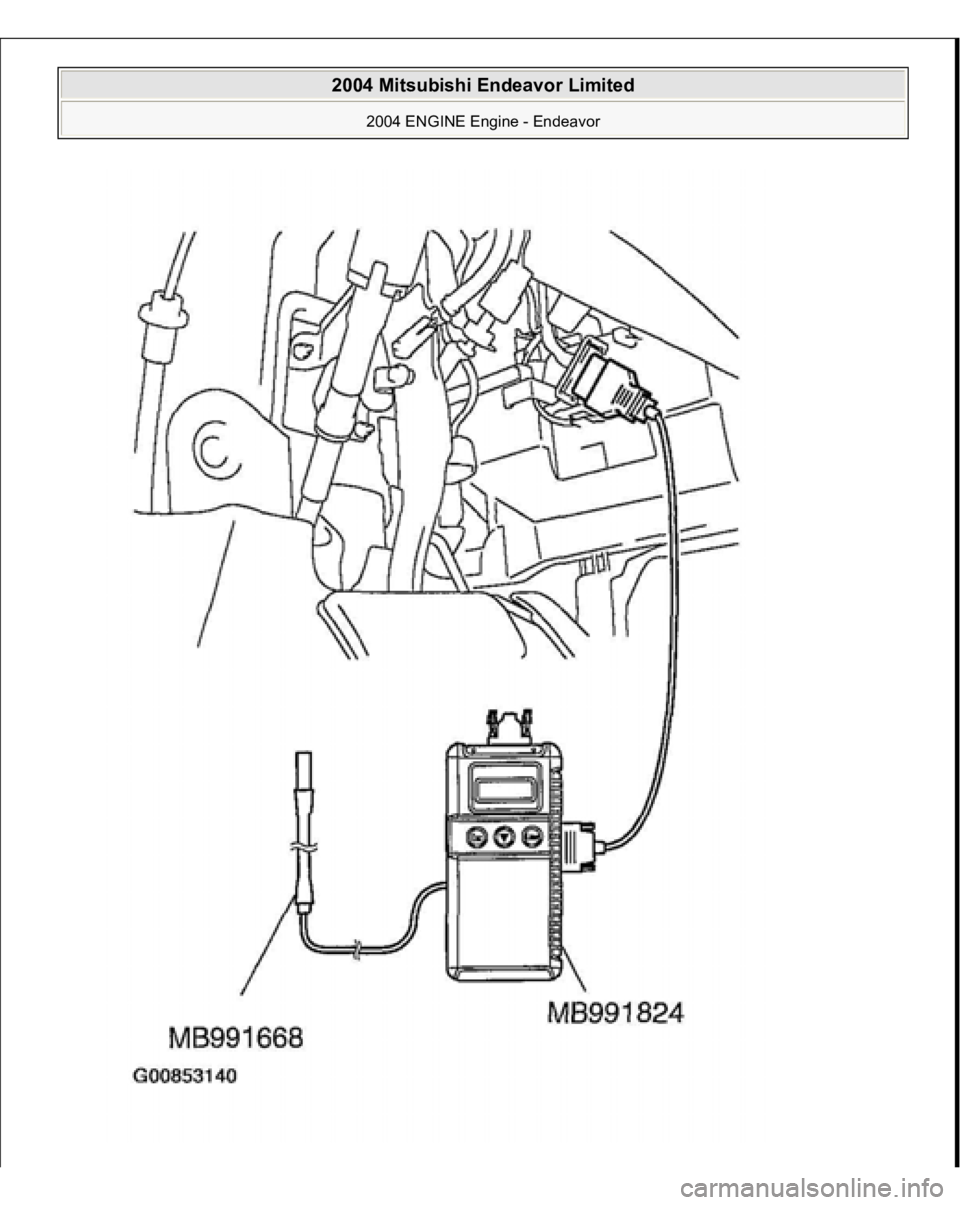

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 13: Connecting Special Tool MB991668 To Scan Tool MB99195 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2. Connect scan tool MB991958 to the data link connector. 3. Turn the ignition switch

Page 1512 of 3870

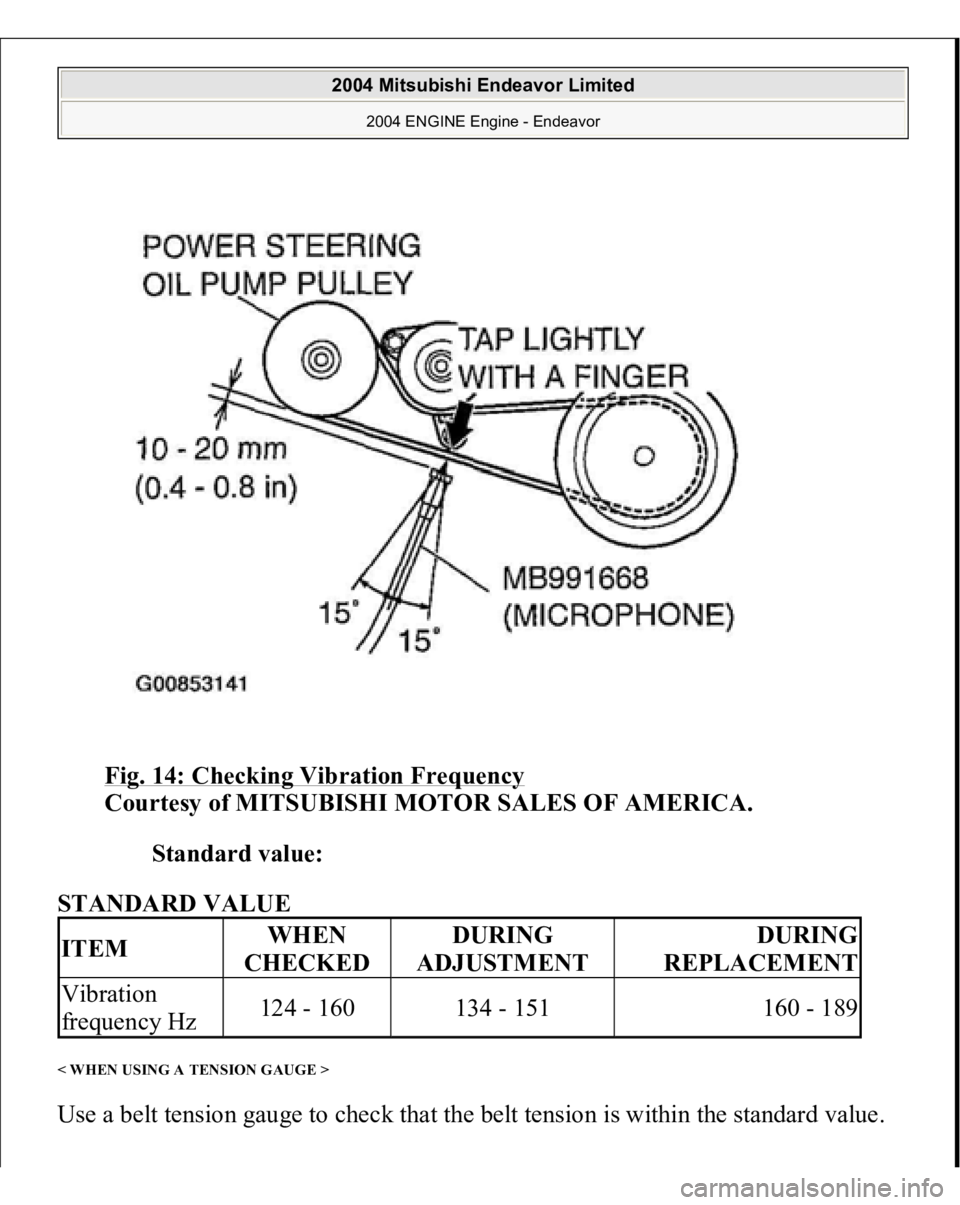

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 14: Checking Vibration Frequency Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Standard value: STANDARD VALUE < WHEN USING A TENSION GAUGE > Use a belt tension gauge to check that the bel
