Page 1385 of 3870

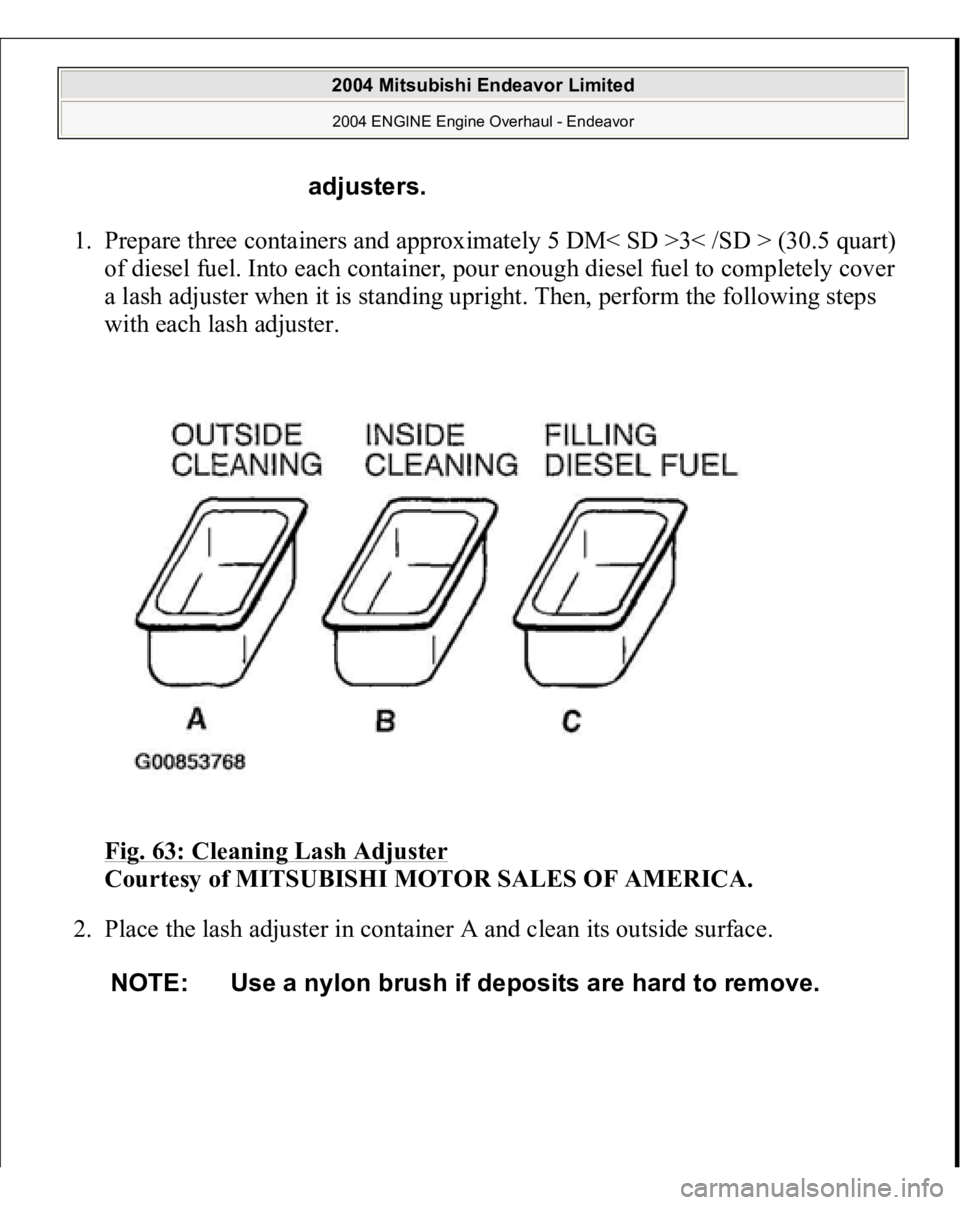

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 1. Prepare three containers and approximately 5 DM< SD >3< /SD > (30.5 quart) of diesel fuel. Into each container, pour enough diesel fuel to completely cover a lash adjuster when it is standing upr

Page 1386 of 3870

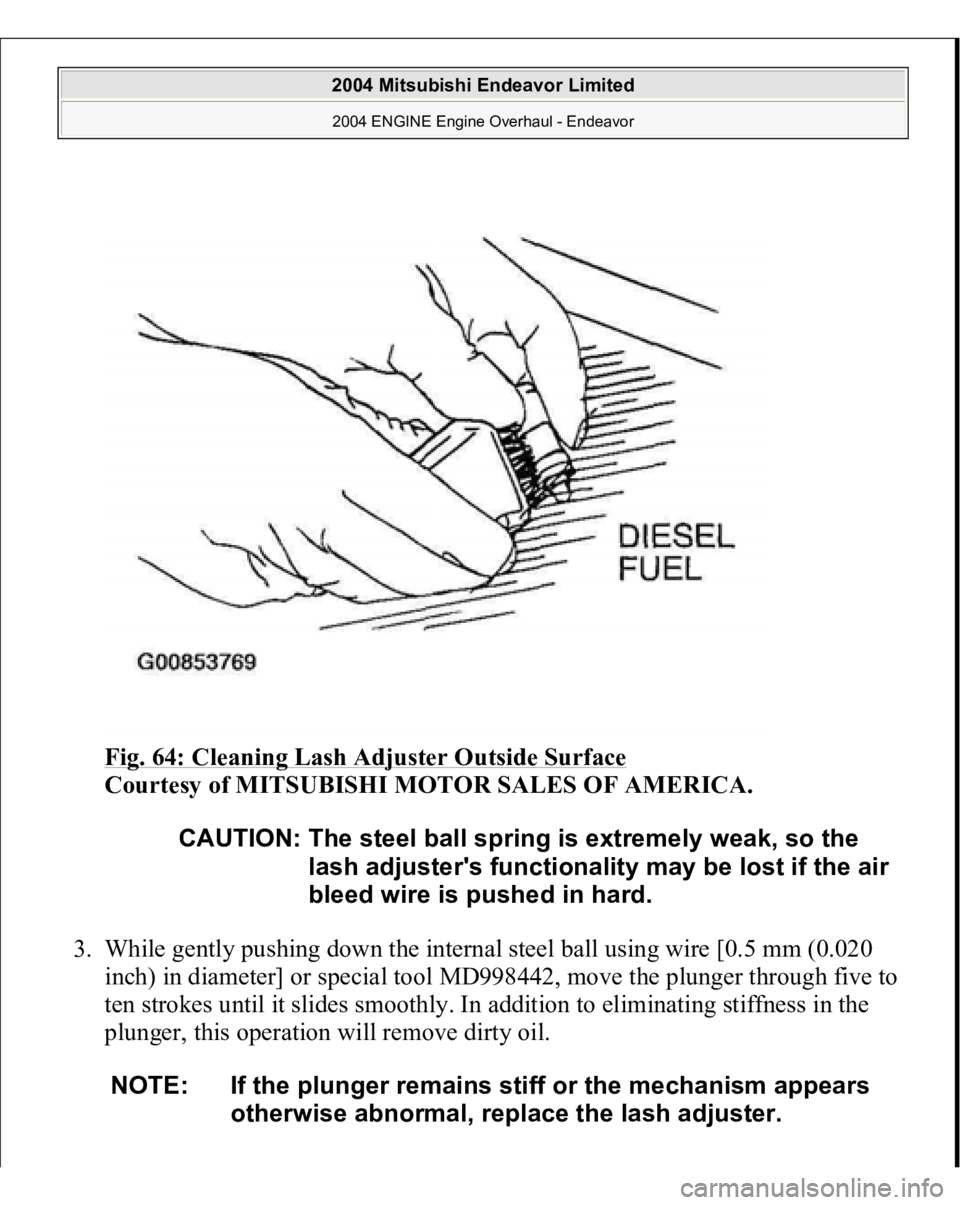

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 64: Cleaning Lash Adjuster Outside Surface Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 3. While gently pushing down the internal steel ball using wire [0.5 mm (0.020 inch) in diameter] or

Page 1387 of 3870

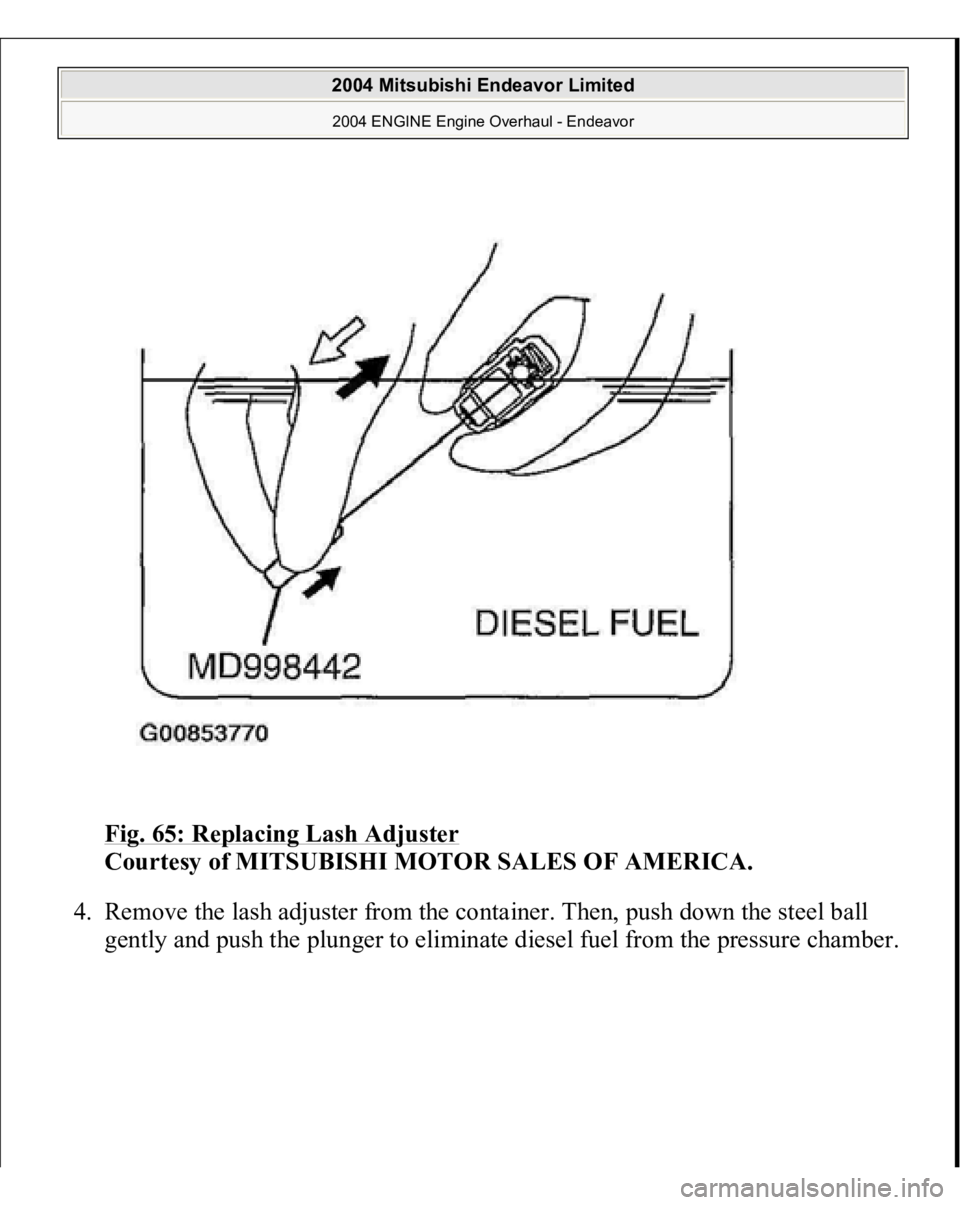

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 65: Replacing Lash Adjuster Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 4. Remove the lash adjuster from the container. Then, push down the steel ball gentl y and push the plun ger to el

Page 1388 of 3870

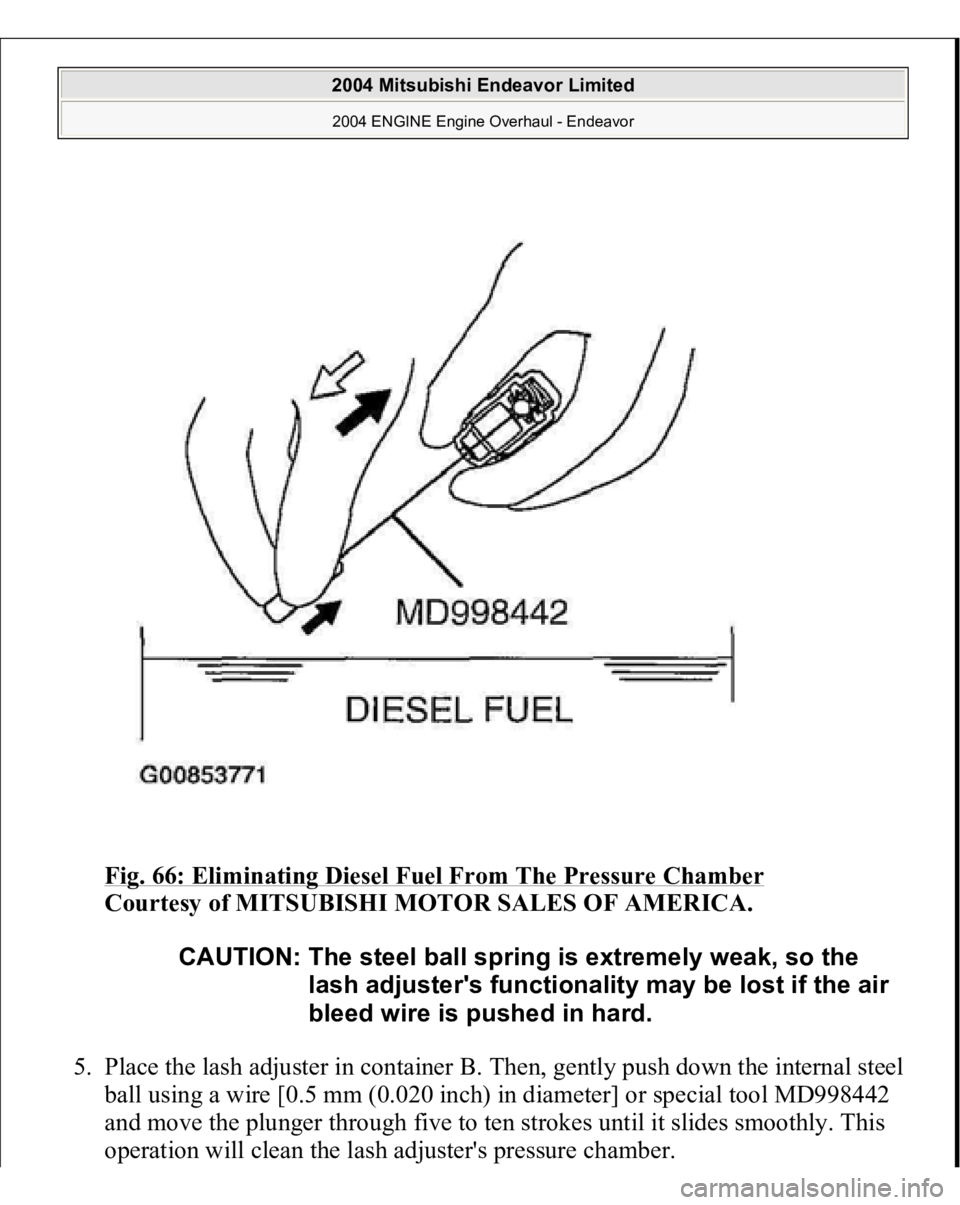

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 66: Eliminating Diesel Fuel From The Pressure Chamber Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 5. Place the lash adjuster in container B. Then, gently push down the internal steel ball

Page 1389 of 3870

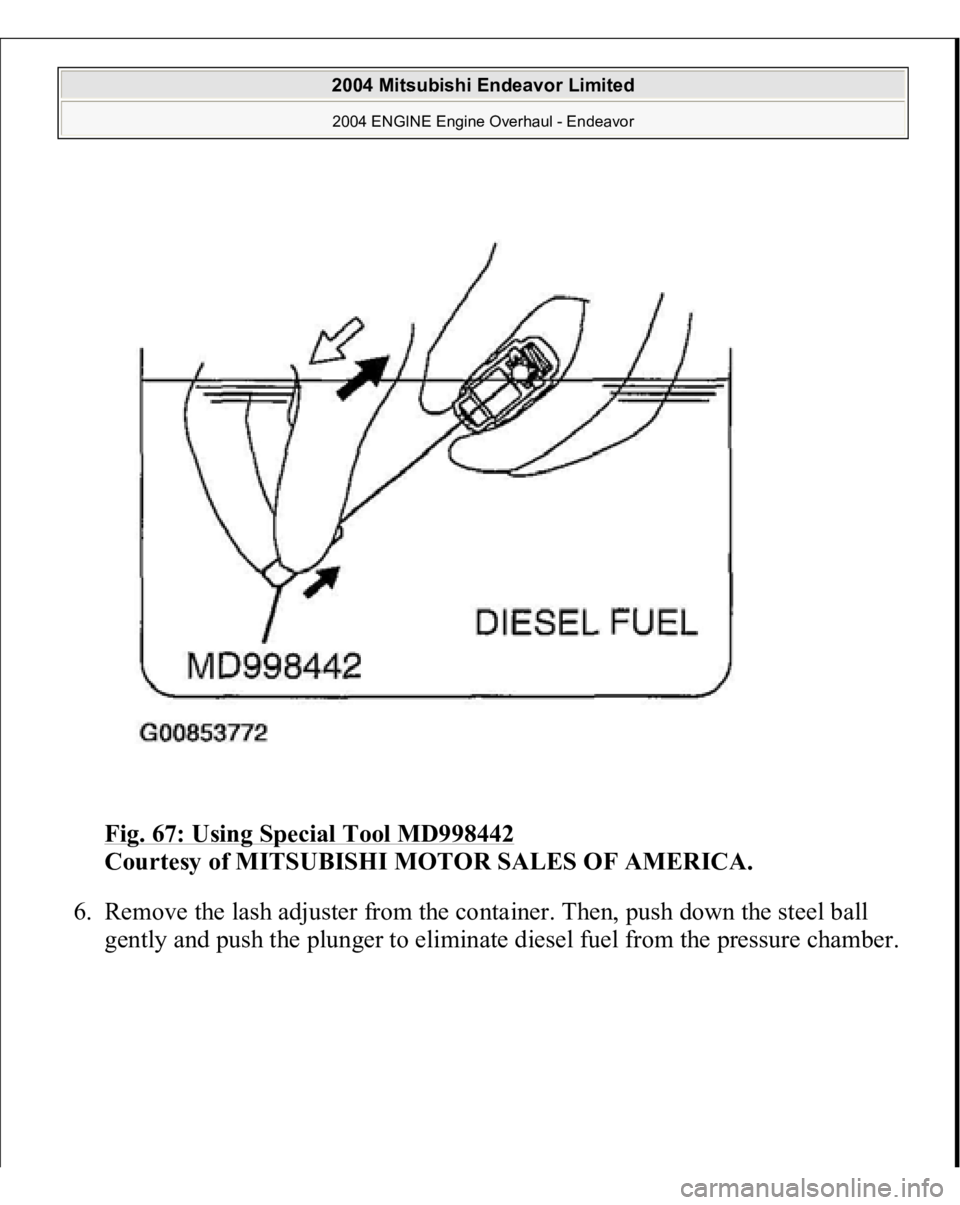

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 67: Using Special Tool MD998442 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 6. Remove the lash adjuster from the container. Then, push down the steel ball gentl y and push the plun ger t

Page 1390 of 3870

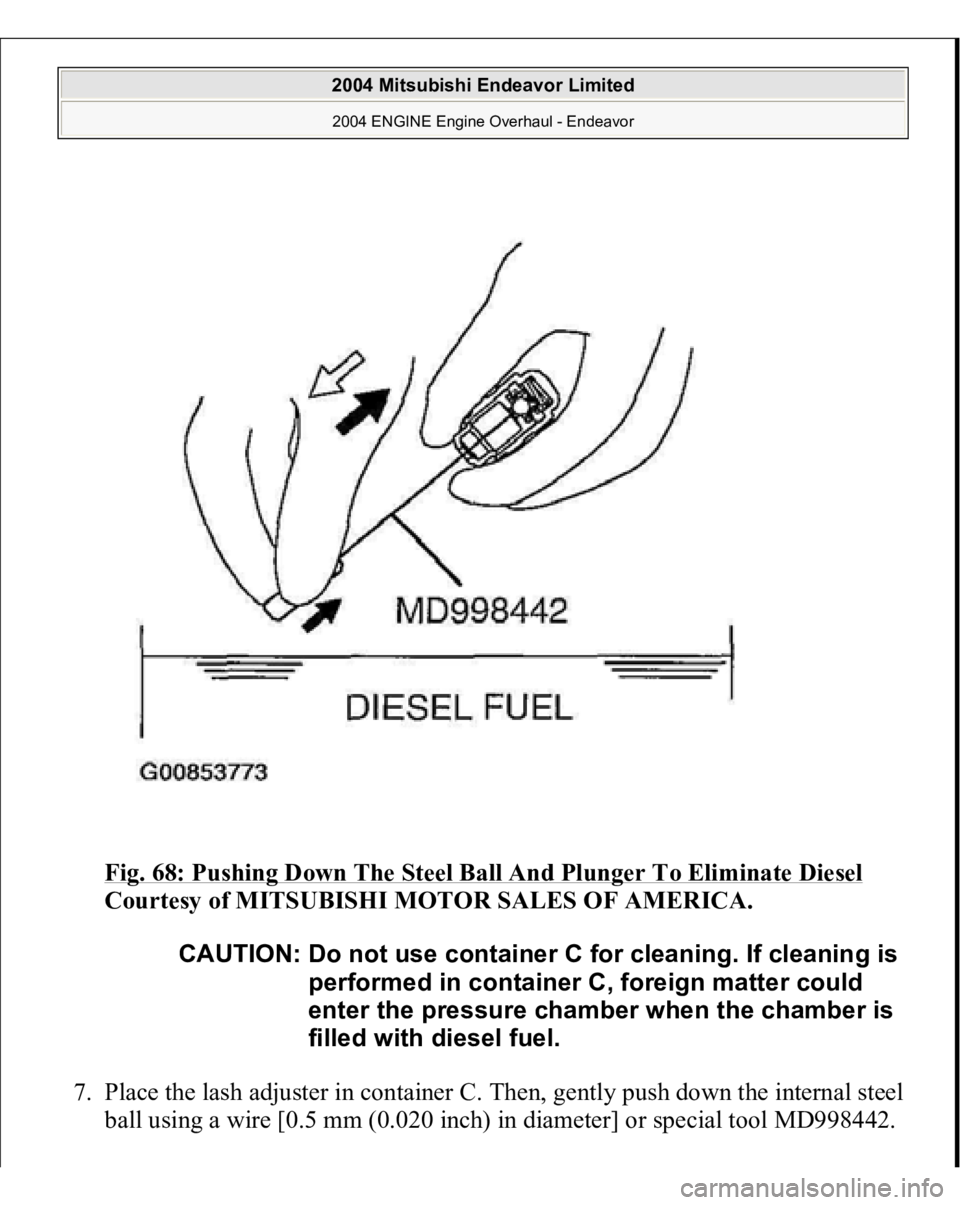

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 68: Pushing Down The Steel Ball And Plunger To Eliminate Diesel Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 7. Place the lash adjuster in container C. Then, gently push down the internal st

Page 1391 of 3870

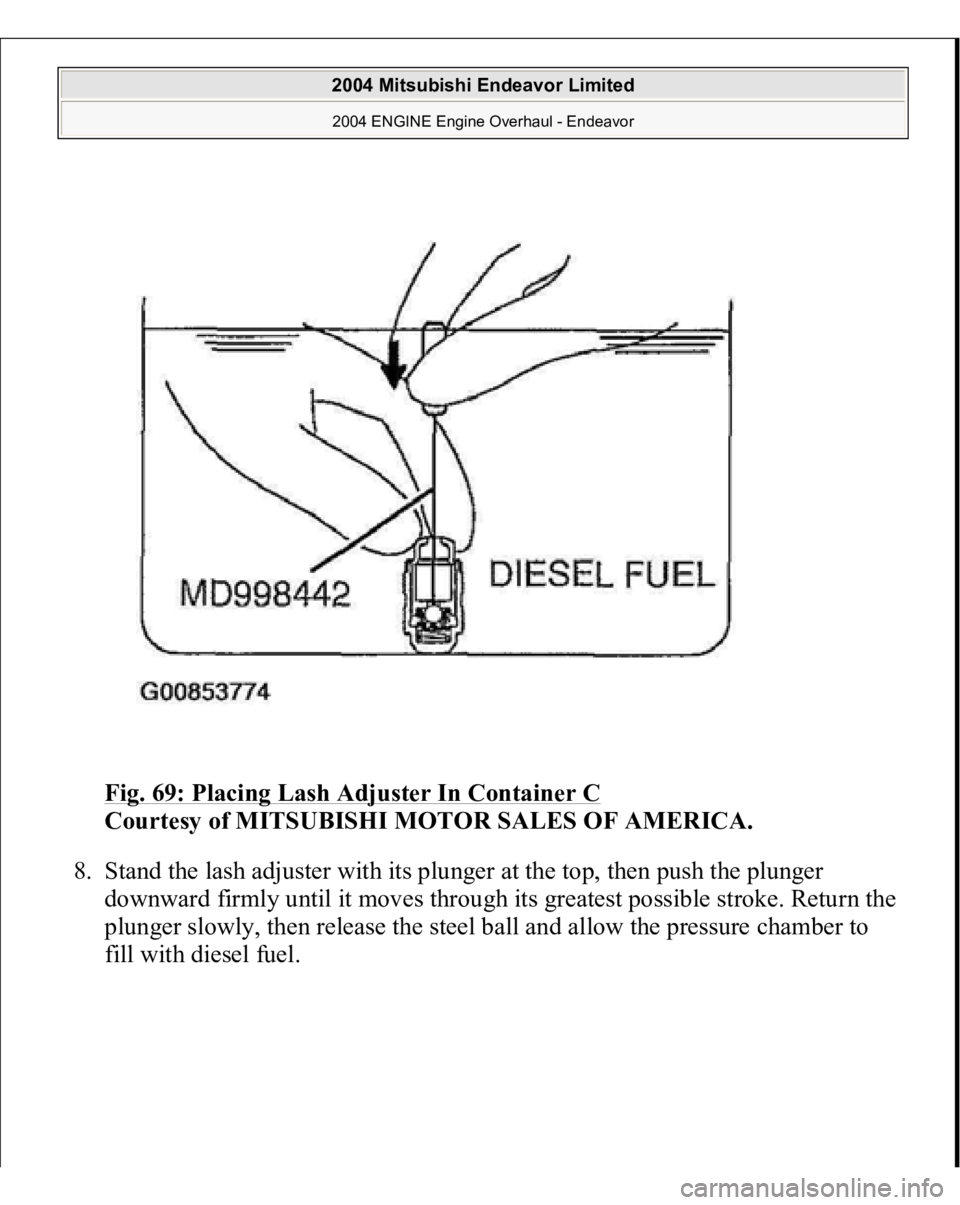

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 69: Placing Lash Adjuster In Container C Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 8. Stand the lash adjuster with its plunger at the top, then push the plunger downward firmly until it

Page 1392 of 3870

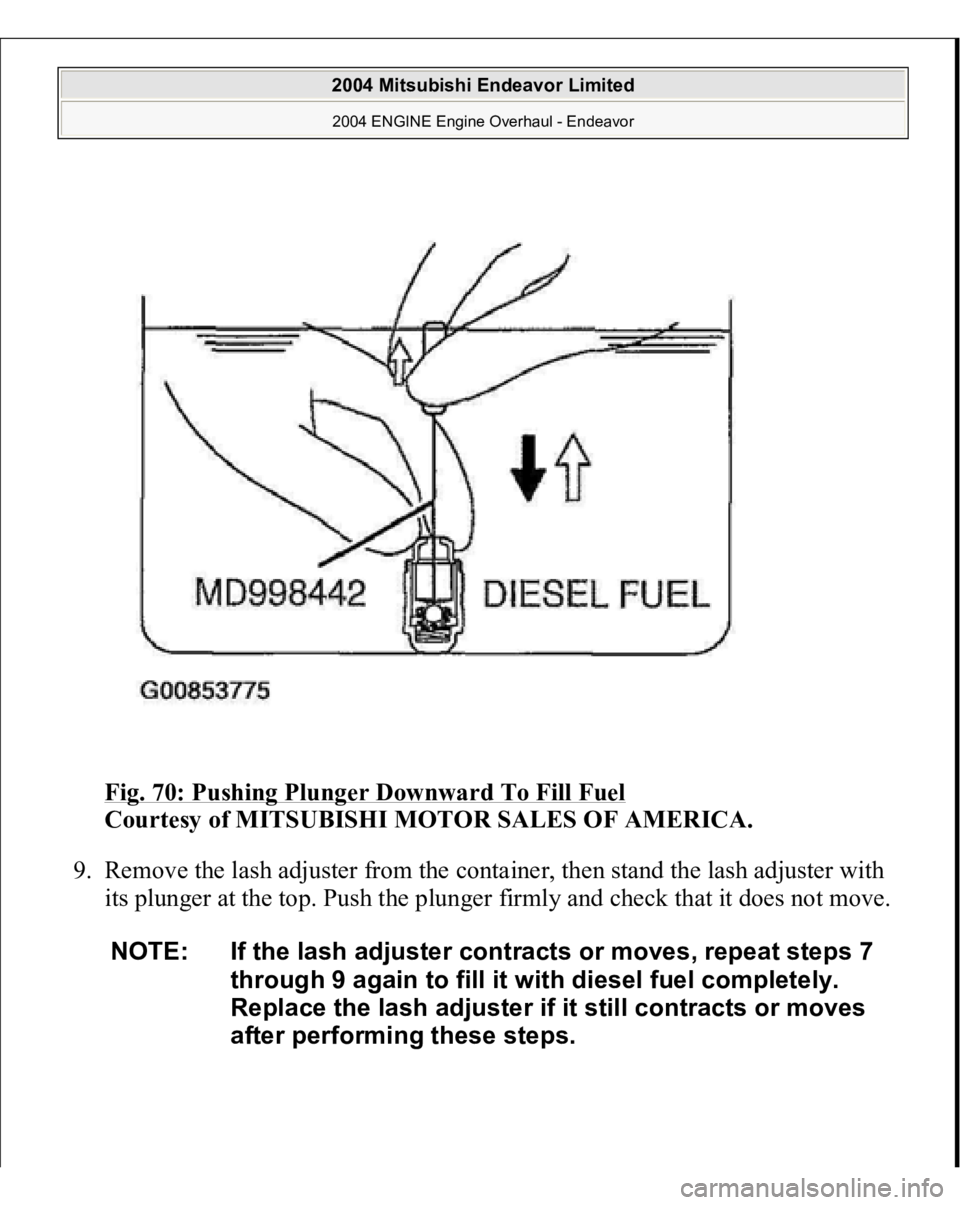

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 70: Pushing Plunger Downward To Fill Fuel Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 9. Remove the lash adjuster from the container, then stand the lash adjuster with its plunger at the t
