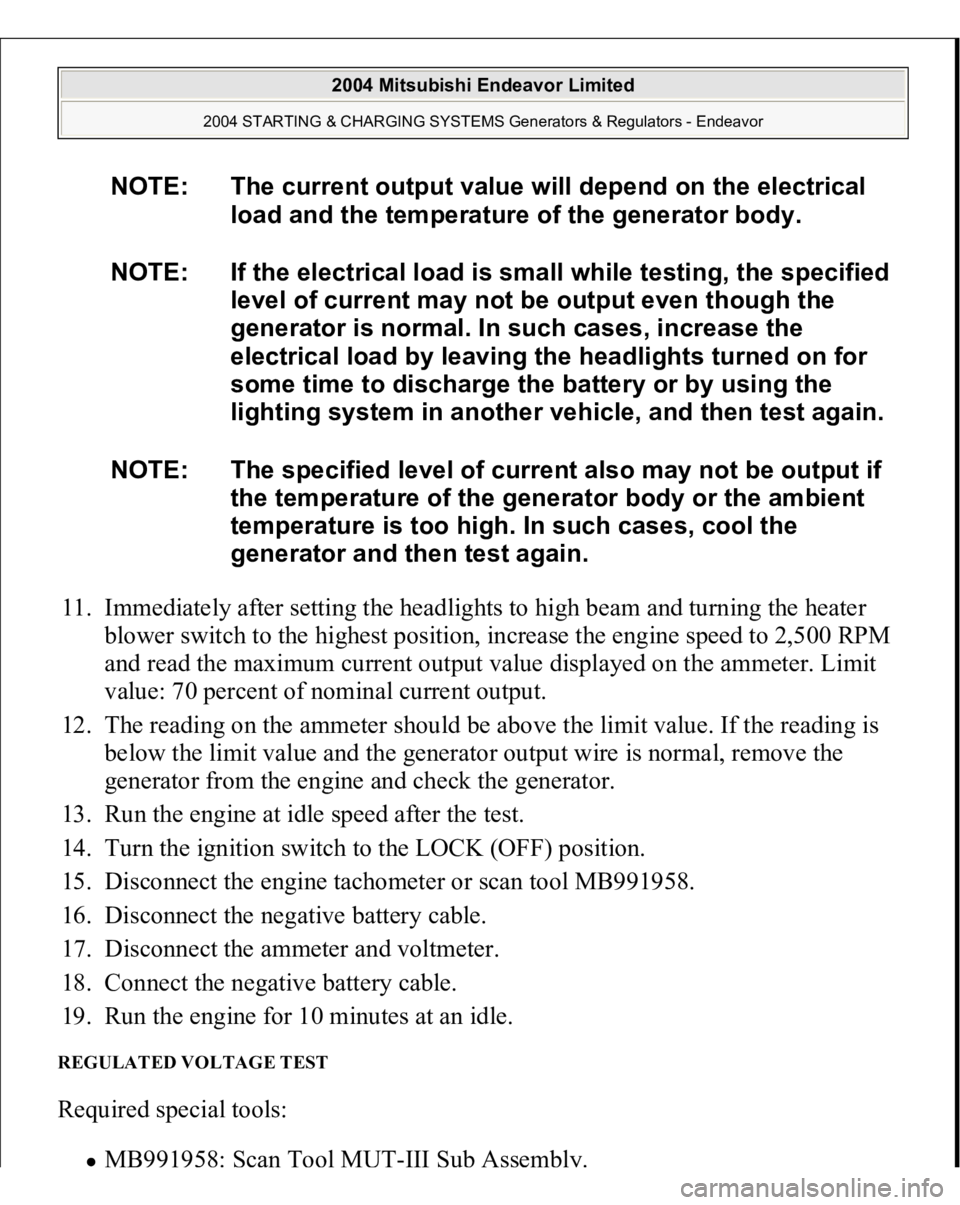

11. Immediately after setting the headlights to high beam and turning the heater
blower switch to the highest position, increase the engine speed to 2,500 RPM
and read the maximum current output value displayed on the ammeter. Limit
value: 70 percent of nominal current output.
12. The reading on the ammeter should be above the limit value. If the reading is
below the limit value and the generator output wire is normal, remove the
generator from the engine and check the generator.
13. Run the engine at idle speed after the test.
14. Turn the ignition switch to the LOCK (OFF) position.
15. Disconnect the engine tachometer or scan tool MB991958.
16. Disconnect the negative battery cable.
17. Disconnect the ammeter and voltmeter.
18. Connect the negative battery cable.
19. Run the engine for 10 minutes at an idle. REGULATED VOLTAGE TEST Required special tools:
MB991958: Scan Tool MUT
-III Sub Assembly.
NOTE: The current output value will depend on the electrical
load and the temperature of the generator body.
NOTE: If the electrical load is small while testing, the specified
level of current may not be output even though the
generator is normal. In such cases, increase the
electrical load by leaving the headlights turned on for
some time to discharge the battery or by using the
lighting system in another vehicle, and then test again.
NOTE: The specified level of current also may not be output if
the temperature of the generator body or the ambient
temperature is too high. In such cases, cool the
generator and then test again.

2004 Mitsubishi Endeavor Limited
2004 STARTING & CHARGING SYSTEMS Generators & Regulators - Endeavor

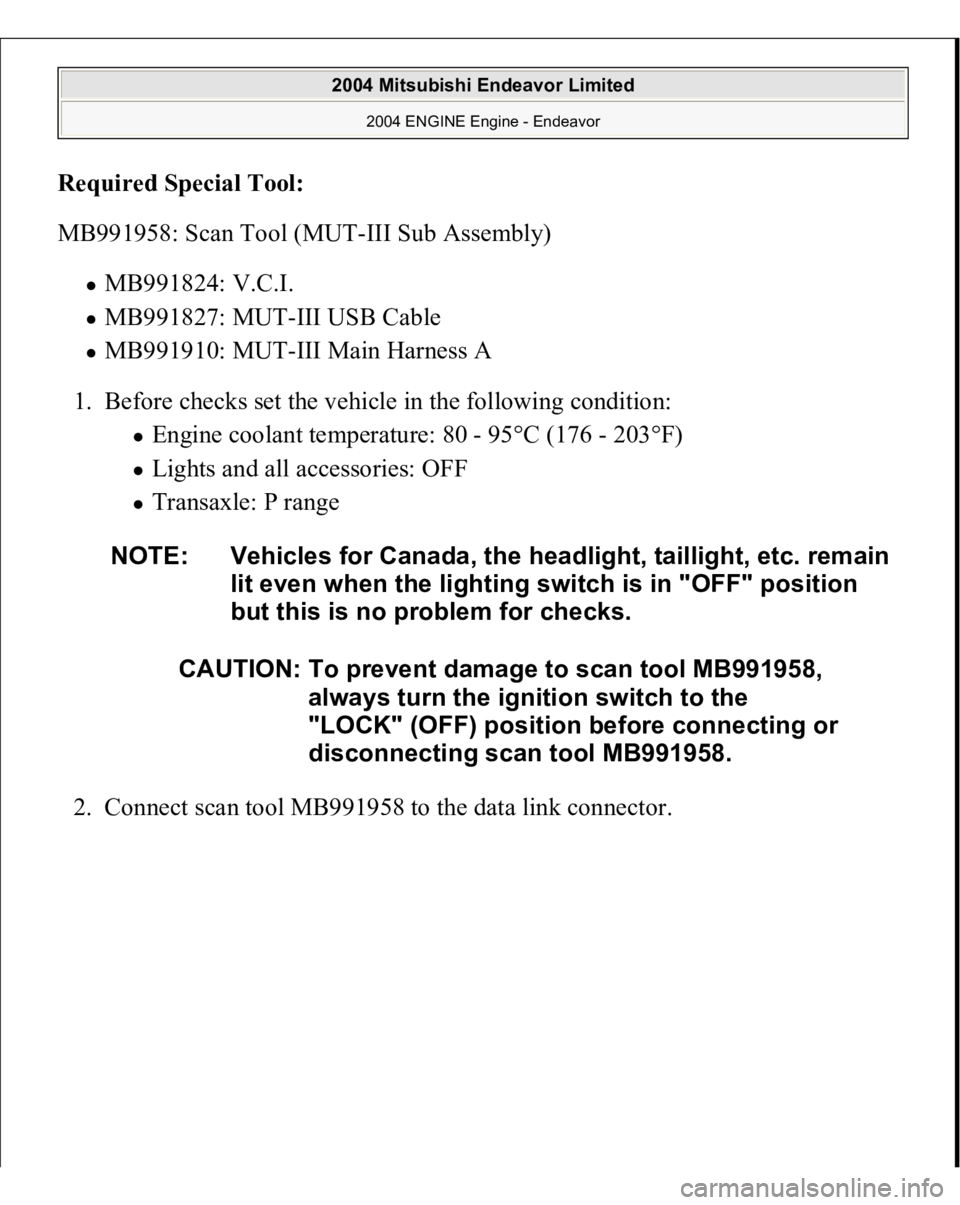

Required Special Tool
:
MB991958: Scan Tool (MUT-III Sub Assembly)
MB991824: V.C.I. MB991827: MUT-III USB Cable MB991910: MUT-III Main Harness A
1. Before checks set the vehicle in the following condition:
Engine coolant temperature: 80 - 95°C (176 - 203°F) Lights and all accessories: OFF Transaxle: P range
2. Connect scan tool MB991958 to the data link connec
tor.
NOTE: Vehicles for Canada, the headlight, taillight, etc. remain
lit even when the lighting switch is in "OFF" position
but this is no problem for checks.
CAUTION: To prevent damage to scan tool MB991958,
always turn the ignition switch to the
"LOCK" (OFF) position before connecting or
disconnecting scan tool MB991958.

2004 Mitsubishi Endeavor Limited
2004 ENGINE Engine - Endeavor

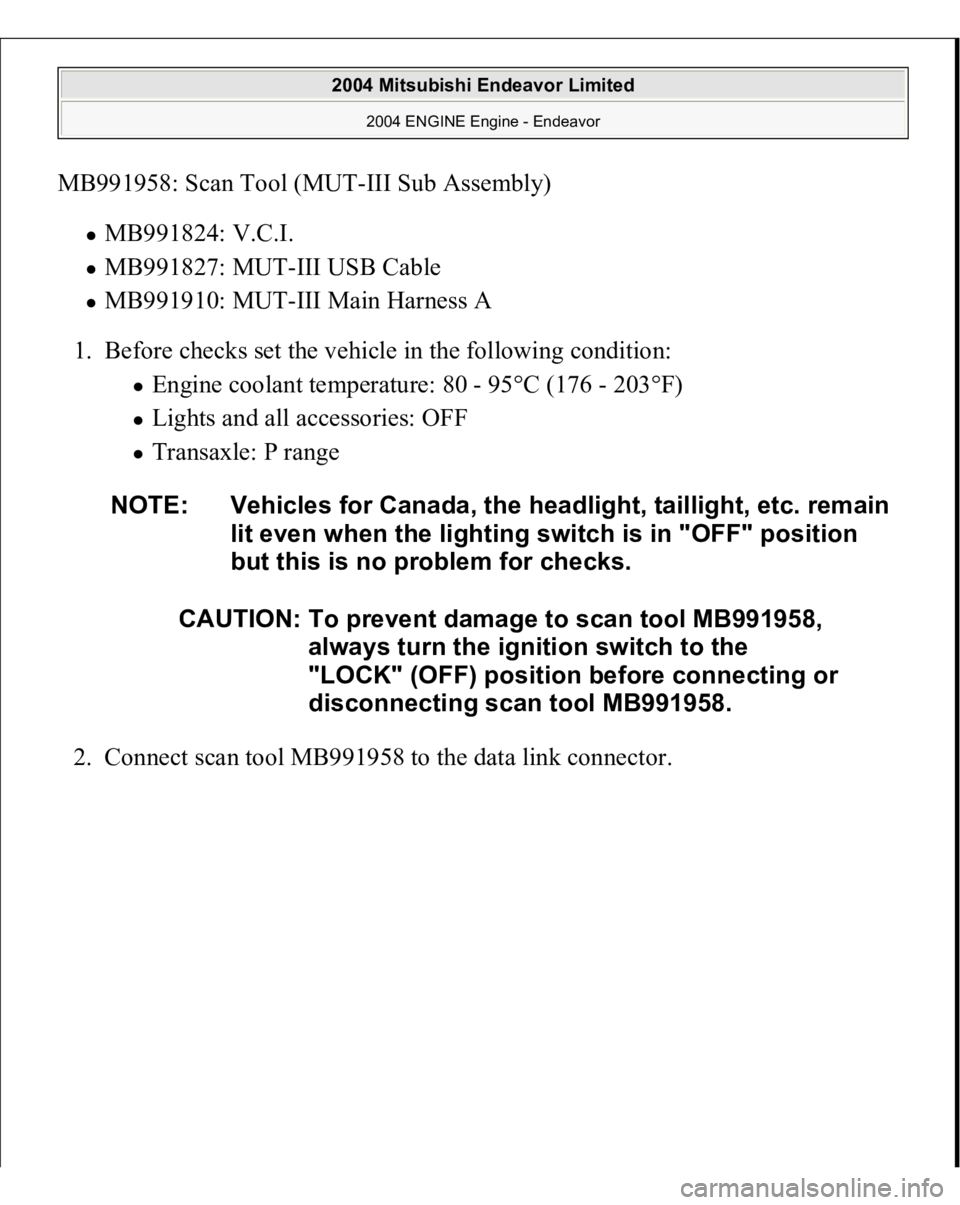

MB991958: Scan Tool (MUT-III Sub Assembly)
MB991824: V.C.I. MB991827: MUT-III USB Cable MB991910: MUT-III Main Harness A
1. Before checks set the vehicle in the following condition:
Engine coolant temperature: 80 - 95°C (176 - 203°F) Lights and all accessories: OFF Transaxle: P range
2. Connect scan tool MB991958 to the data link connec
tor.
NOTE: Vehicles for Canada, the headlight, taillight, etc. remain
lit even when the lighting switch is in "OFF" position
but this is no problem for checks.
CAUTION: To prevent damage to scan tool MB991958,
always turn the ignition switch to the
"LOCK" (OFF) position before connecting or
disconnecting scan tool MB991958.

2004 Mitsubishi Endeavor Limited
2004 ENGINE Engine - Endeavor

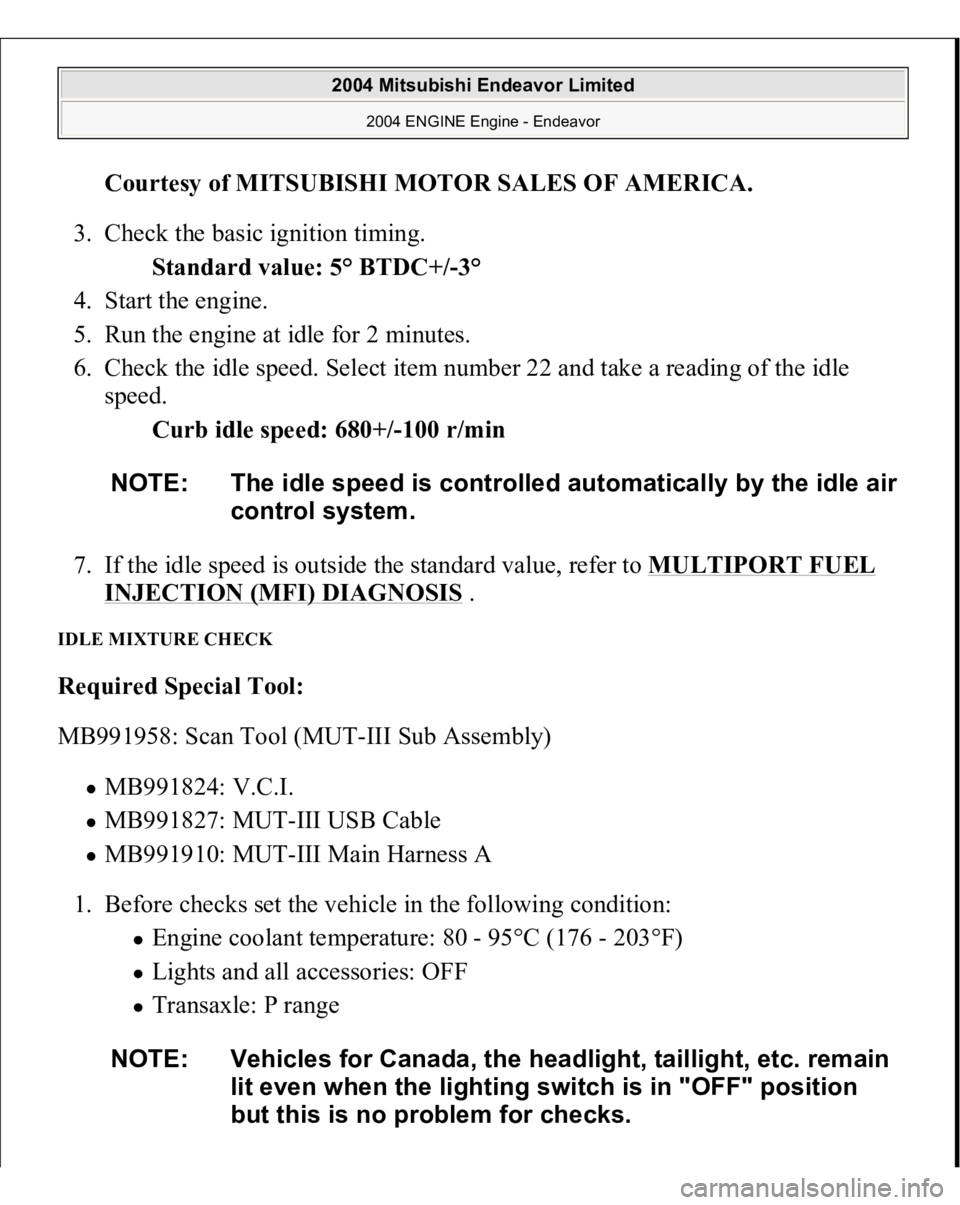

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.
3. Check the basic ignition timing.
Standard value: 5° BTDC+/-3°
4. Start the engine.
5. Run the engine at idle for 2 minutes.
6. Check the idle speed. Select item number 22 and take a reading of the idle
speed.
Curb idle speed: 680+/-100 r/min
7. If the idle speed is outside the standard value, refer to MULTIPORT FUEL
INJECTION (MFI) DIAGNOSIS
.
IDLE MIXTURE CHECK Required Special Tool:
MB991958: Scan Tool (MUT-III Sub Assembly)
MB991824: V.C.I. MB991827: MUT-III USB Cable MB991910: MUT-III Main Harness A
1. Before checks set the vehicle in the following condition:
Engine coolant temperature: 80 - 95°C (176 - 203°F) Lights and all accessories: OFF Transaxle: P range
NOTE: The idle speed is controlled automaticall
y by the idle air
control system.
NOTE: Vehicles for Canada, the headlight, taillight, etc. remain
lit even when the lighting switch is in "OFF" position
but this is no problem for checks.

2004 Mitsubishi Endeavor Limited
2004 ENGINE Engine - Endeavor

MB991958: Scan Tool (MUT-III Sub Assembly)
MB991824: V.C.I. MB991827: MUT-III USB Cable MB991910: MUT-III Main Harness A
1. Before checks set the vehicle in the following condition:
Engine coolant temperature: 80 - 95°C (176 - 203°F) Lights and all accessories: OFF Transaxle: P range
2. Remove all of the ignition coils and spark plugs.
3. Disconnect the crankshaft position sensor connector.
NOTE: Vehicles for Canada, the headlight, taillight, etc. remain
lit even when the lighting switch is in "OFF" position
but this is no problem for checks.
NOTE: Doing this will prevent the engine control module from
carrying out ignition and fuel injection.

2004 Mitsubishi Endeavor Limited
2004 ENGINE Engine - Endeavor
