2004 MITSUBISHI ENDEAVOR traction control

2004 BRAKES
Traction Control, Active Skid Control System - Endeavor
GENERAL INFORMATION Traction Control/Active Skid Control System (TCL/ASC) is available for AWD
models as optional equipment.
The Traction Control/Active Skid Control System is a combination system of
active skid control system and traction control system. The active skid control
system avoids a dangerous vehicle attitude by limiting the engine output and
braking a set of wheels (front left and right rear, or right front and left rear)
according to driving conditions. The traction control system prevents wheel
spinning at vehicle start. Fail-safe function ensures safety is maintained Diagnostic function provides improved serviceability To shorten the lines and enhance data transmission reliability, communication
with other ECU is
performed over a CAN
(Controller Area Network
).

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor


2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Fig. 1: Construction Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Fig. 2: Traction Control, Active Skid Control Function Outline

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
SYSTEM CHECK SOUND When starting the engine, a thudding sound can sometimes be heard coming from
the engine compartment. This is a normal sound during the TCL/ASC self-check. TCL/ASC OPERATION SOUNDS AND SENSATIONS During normal operation, the TCL/ASC makes several sounds that may seem
unusual at first:
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

A whining sound is caused by the TCL/ASC hydraulic unit motor. When pressure is applied to the brake pedal, the pulsation of the pedal causes a
scraping sound. When the brakes are applied firmly, the TCL/ASC operates, rapidly applying
and releasing the brakes many times per second. This repeated application and
release of braking forces can cause the suspension to make a thumping sound
and the tires to squeak.
SENSOR G AND YAW RATE SENSOR This sensor is mounted under the center console, and detects lateral acceleration,
longitudinal acceleration and steering angular velocity of the vehicle.
Fig. 3: Identifying G And Yaw Rate Sensor
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.
STEERING WHEEL SENSOR
This sensor is mounted behind the column switch, and detects the steering
wheel position. The steering wheel sensor has a self-diagnosis function and a memory
function. If the diagnosis function finds a trouble, it sends a DTC code to the
TCL/ASC-ECU. Then the ECU will illuminate the TCL/ASC indicator light.
Fig. 4: Identifying Steering Wheel Sensor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
TRACTION CONTROL OFF SWITCH
NOTE: For the details of the DTC codes, refer to DIAGNOSTIC
TROUBLE CODE CHART
.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

This switch is mounted on the left side of the instrument panel, and turns on and off
the system.
Fig. 5: Identifying Traction Control Off Switch

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
TRACTION CONTROL OFF SWITCH POSITION AND THEIR RESPECTIVE CONTROL Fig. 6: Traction Control Off Switch Position And Respective Control Specifications

Courtes
y of MITSUBISHI MOTOR SALES OF AMERICA
.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

ACTUATOR HYDRAULIC UNIT The hydraulic unit includes a cut valve, suction valve and pressure switch for the
active skid control additionally, compared with the conventional hydraulic unit for
the ABS control. TRACTION CONTROL/ACTIVE SKID CONTROL SYSTEM OPERATION INDICATOR LIGHT AND TRACTION
CONTROL SYSTEM OFF INDICATOR LIGHT The Traction control/Active skid control system operation indicator light and
Traction control system OFF indicator light illuminate or flash under the conditions
below to inform the driver. TRACTION CONTROL/ACTIVE SKID CONTROL SYSTEM INDICATOR LIGHT
When the active skid control is active, the light flashes. When the traction control is active, the light flashes. When sensors related to traction control and active skid control are not
initialized, the li
ght flashes at a fre
quenc
y of once
per second.
NOTE:
The Traction control will activate when the system has
not been disabled by the traction control OFF switch,
and the vehicle speed has reached 4 - 9 mph (6 - 14
km/h). The traction control will deactivate when the front wheel
speed (both wheels) have decreased to 1 - 4 mph (2 - 6
km/h) for one second or more (four seconds or more if
the system is controlling the engine output). The Active skid control will be activated when the
vehicle speed exceeds 12 mph (20 km/h). The Active skid control will deactivate when the vehicle
speed has decreased to 9 mph (15 km/h) or lower.
NOTE: For the internal hydraulic circuit of the hydraulic unit, refer
to ACTIVE SKID CONTROL SYSTEM OPERATION
.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

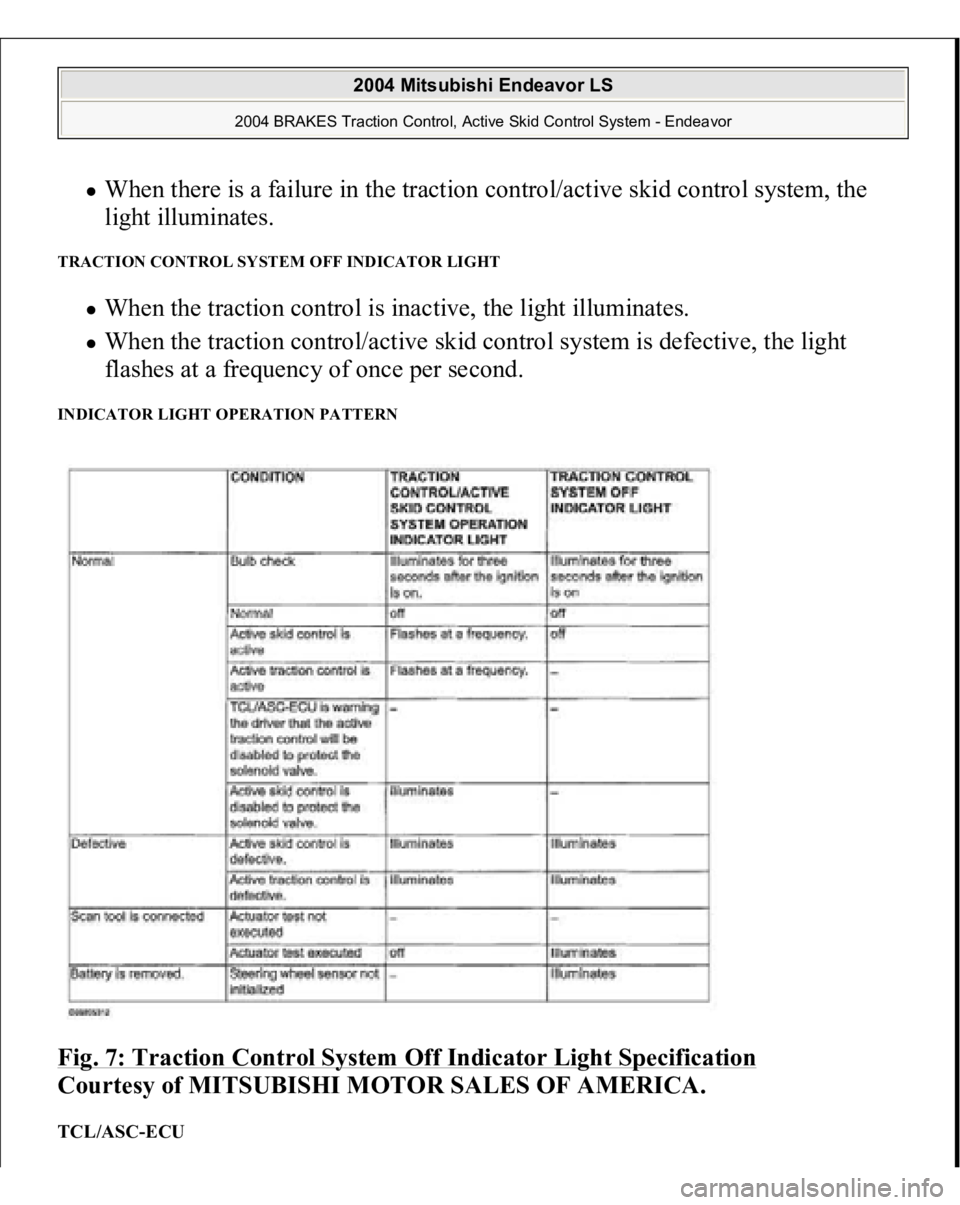

When there is a failure in the traction control/active skid control system, the
light illuminates.
TRACTION CONTROL SYSTEM OFF INDICATOR LIGHT
When the traction control is inactive, the light illuminates. When the traction control/active skid control system is defective, the light
flashes at a frequency of once per second.
INDICATOR LIGHT OPERATION PATTERN Fig. 7: Traction Control System Off Indicator Light Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
TCL/ASC-ECU
