Page 2497 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 61: Identifying Standard Value Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Is the measured value at the standard value? YES: Go to Step 3. NO: Replace the resistor. The rear blow

Page 2498 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual condition? YES: Go to Step 4. NO: Repair or replace the connector. Refer to HARNESS CONNECTOR INSPECTION . The rear blower motor should operate normally. Fig. 62: Identifying Connector C

Page 2499 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 63: Locating Connector C -19 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2. Follow the table below to check the floor console rear A/C switch assembl y for continuit y. 2004 Mitsubishi

Page 2500 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 64: Identifying Floor Console Rear A/C Switch Assembly Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. FLOOR CONSOLE REAR A/C SWITCH ASSEMBLY CONTINUITY CHART Q: Is the blower switch contin

Page 2501 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual The rear blower motor should operate normally. NO: Go to Step 5. STEP 5. Check the wiring harness between resistor connector C-21 (terminal 1, 3 and 6) and floor console rear A/C switch assembl y

Page 2502 of 3870

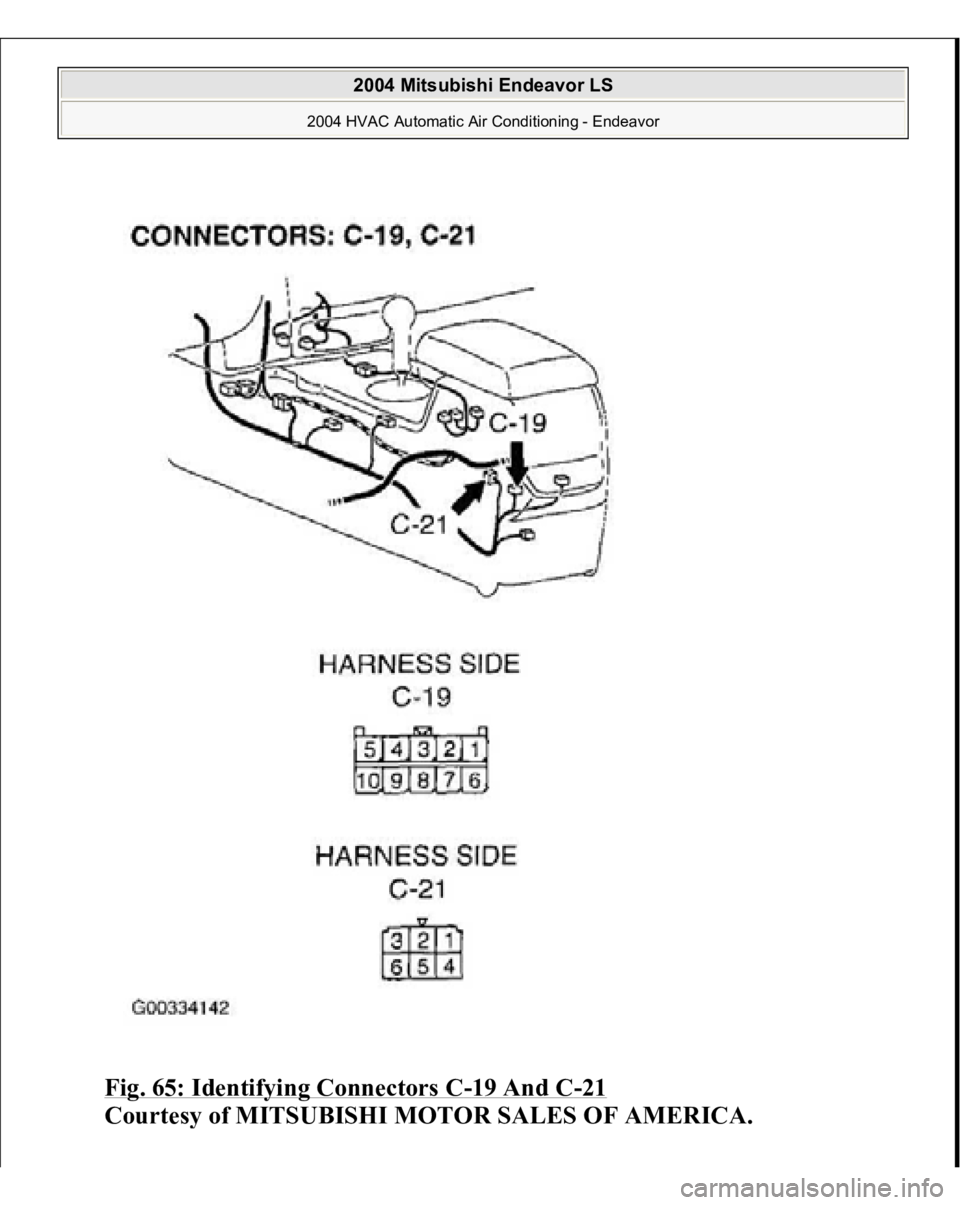

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 65: Identifying Connectors C -19 And C -21 Courtes y of MITSUBISHI MOTOR SALES OF AMERICA . 2004 Mitsubishi Endeavor LS 2004 HVAC Automatic Air Conditioning - Endeavor

Page 2503 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual YES: It can be assumed that this malfunction is intermittent. Refer to HOW TO USE TROUBLESHOOTING/INSPECTION SERVICE POINTS . NO: Repair the wiring harness. The rear blower motor should operat

Page 2504 of 3870

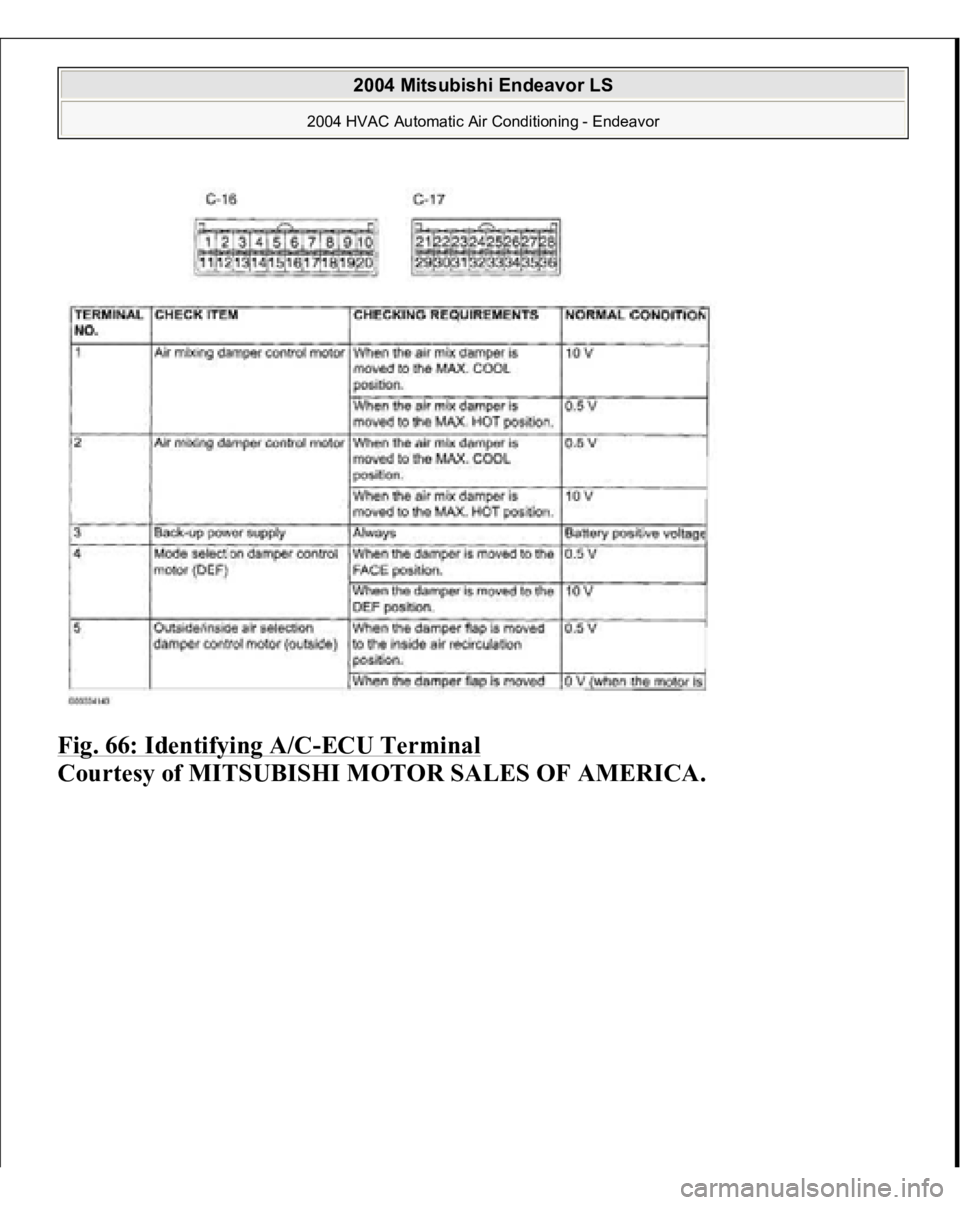

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 66: Identifying A/C -ECU Terminal Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 HVAC Automatic Air Conditioning - Endeavor
