Page 3185 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 62: Checking Intermediate Connector C -32 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Page 3186 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 63: Checking ABS Sensor Connector D -15 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Are TCL/ASC-ECU connector A-32, intermediate connector C-32 and ABS sensor < rear: LH > connector D-15

Page 3187 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 64: Checking Harness Wires TCL/ASC -ECU Connector A -32 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BRAKES Traction Control, Active Skid Control System - E

Page 3188 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 65: Checking ABS Sensor Connector D -15 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Is the harness wire between TCL/ASC-ECU connector A-32 (terminal 6, 7) and ABS sensor < rear: LH > con

Page 3189 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual When DTC code C1210 is set: Rear right ABS sensor When DTC code C1215 is set: Rear left ABS sensor Q: Is the ABS sensor damaged? YES: Replace the ABS sensor. Then go to Step 17. NO: It can be a

Page 3190 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 66: Rechecking For Diagnostic Trouble Code 2004 Mitsubishi Endeavor LS 2004 BRAKES Traction Control, Active Skid Control System - Endeavor

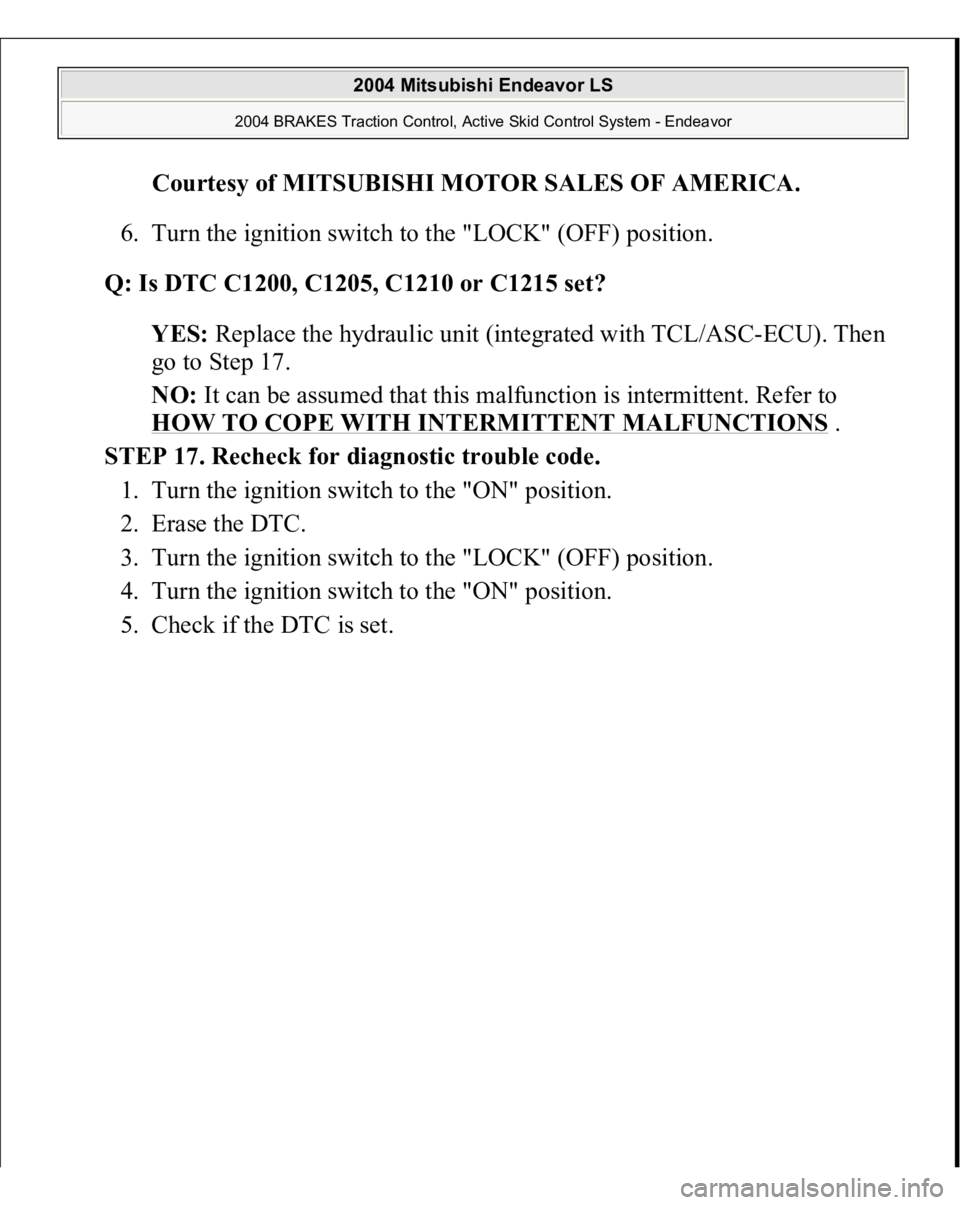

Page 3191 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . 6. Turn the ignition switch to the "LOCK" (OFF) position. Q: Is DTC C1200, C1205, C1210 or C1215 set? YES: Replace the hydraulic unit (inte

Page 3192 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 67: Rechecking For Diagnostic Trouble Code 2004 Mitsubishi Endeavor LS 2004 BRAKES Traction Control, Active Skid Control System - Endeavor
