Page 2433 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 7: View Of Temperature Sensor Circuit Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 HVAC Automatic Air Conditioning - Endeavor

Page 2434 of 3870

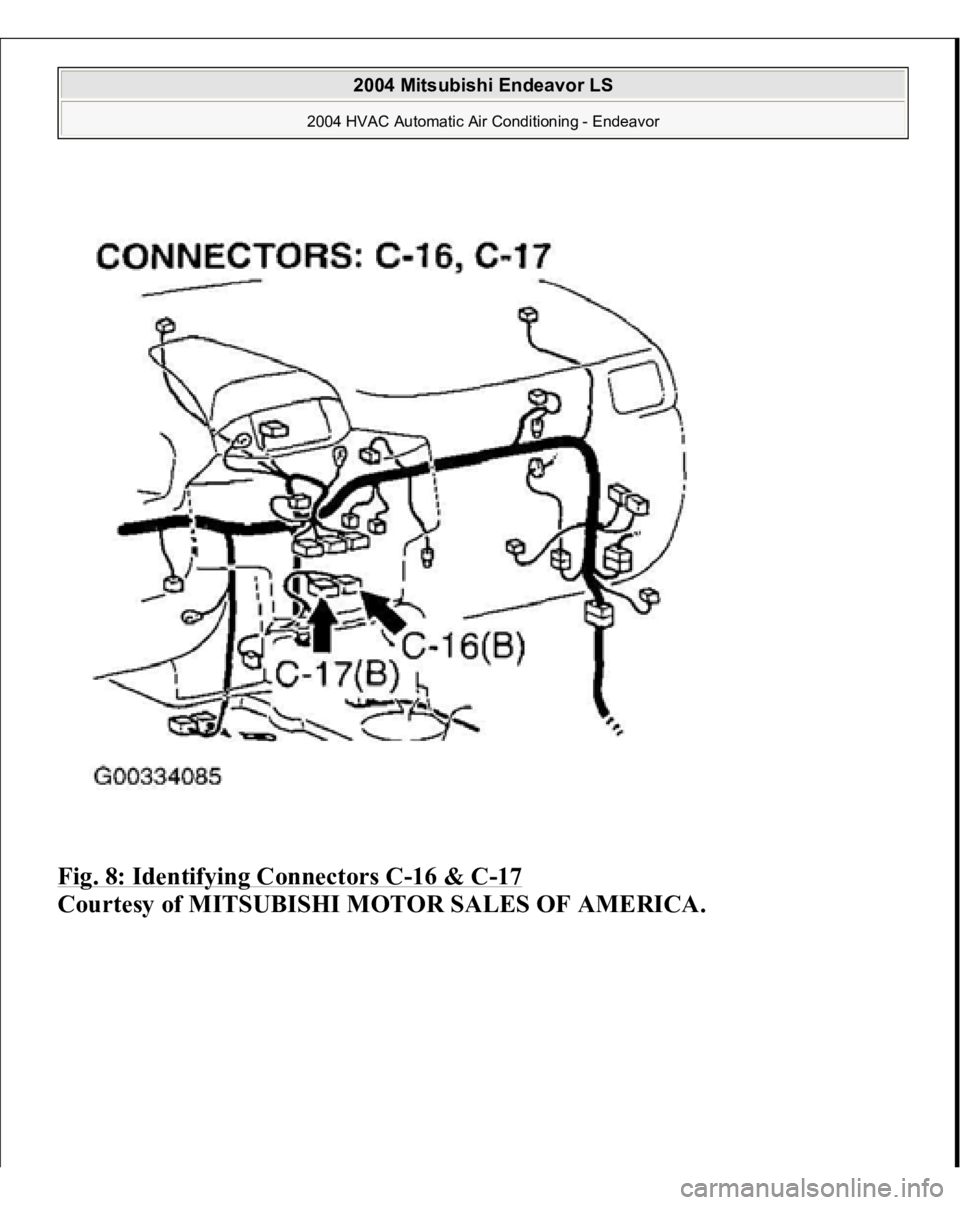

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 8: Identifying Connectors C -16 & C -17 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 HVAC Automatic Air Conditioning - Endeavor

Page 2435 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 9: Identifying Connectors C -104 And C -120 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. DTC SET CONDITION DTC B1001 is set if there is a short circuit in the interior temperature sensor

Page 2436 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual If DTC B1001 or B1002 is stored as a past trouble, carry out diagnosis with particular emphasis on wiring and connector(s) between the A/C-ECU and the interior air temperature sensor. If the connect

Page 2437 of 3870

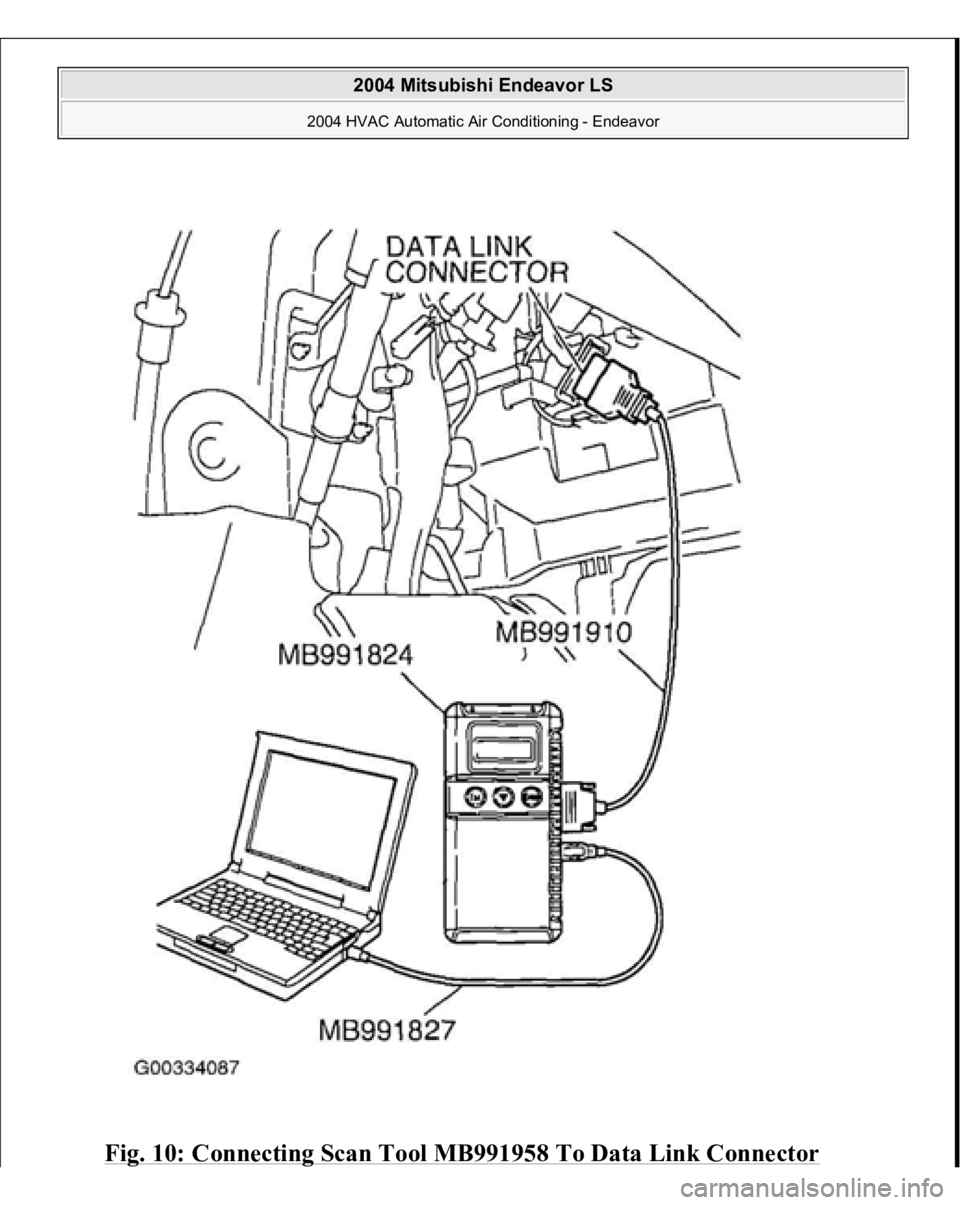

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 10: Connecting Scan Tool MB991958 To Data Link Connector 2004 Mitsubishi Endeavor LS 2004 HVAC Automatic Air Conditioning - Endeavor

Page 2438 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . Q: Is the check result satisfactory? YES: Go to Step 2. NO: Repair the CAN bus lines (Refer to CAN COMMUNICATION SIGNAL TABLE ). Then go to S

Page 2439 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual the scan tool. 4. Turn the ignition switch to the "LOCK" (OFF) position. NOTE: When this DTC is set and the system is fail-safe status, the value of service data displays 20 °C. 2004 Mi

Page 2440 of 3870

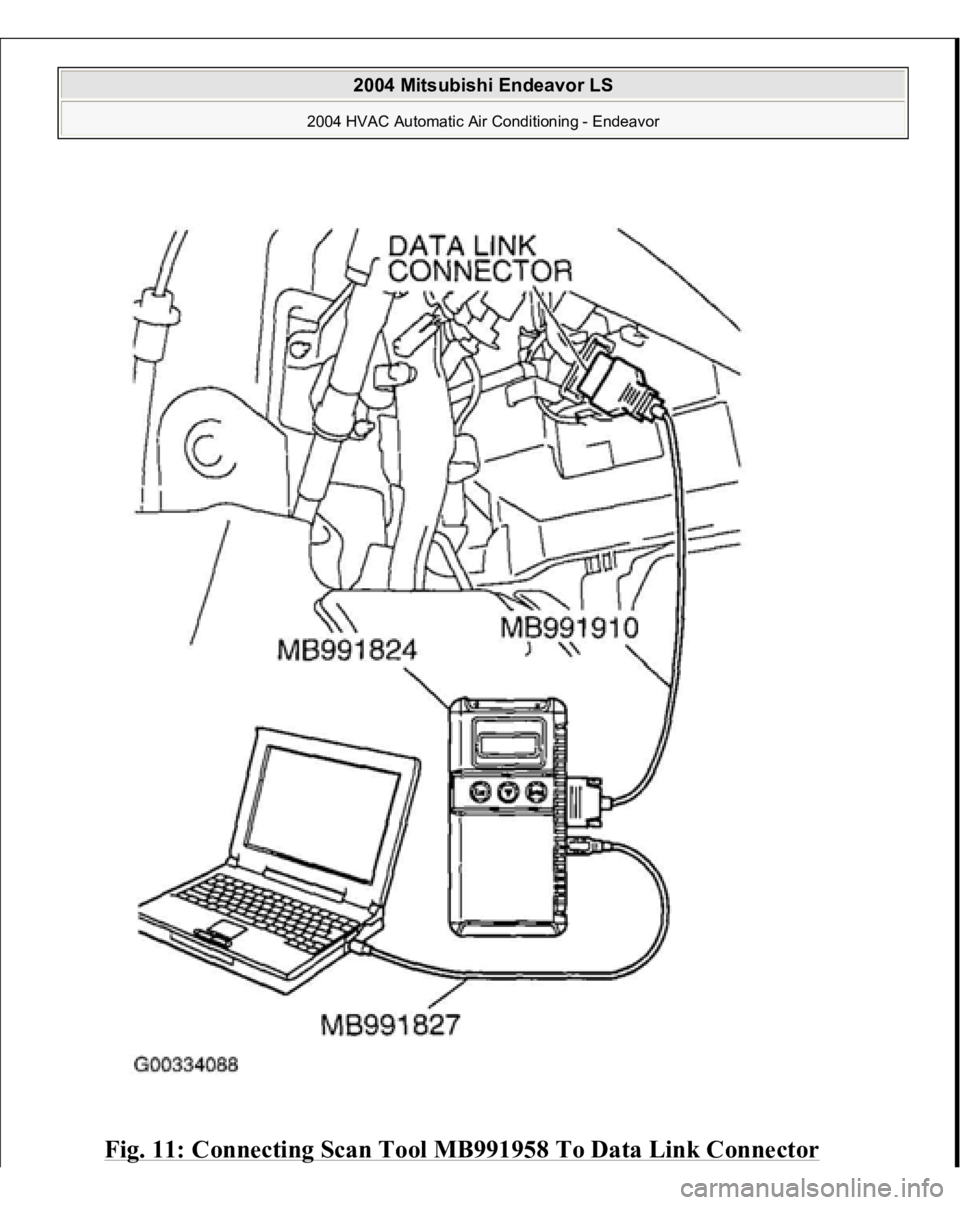

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 11: Connecting Scan Tool MB991958 To Data Link Connector 2004 Mitsubishi Endeavor LS 2004 HVAC Automatic Air Conditioning - Endeavor
