Page 2449 of 3870

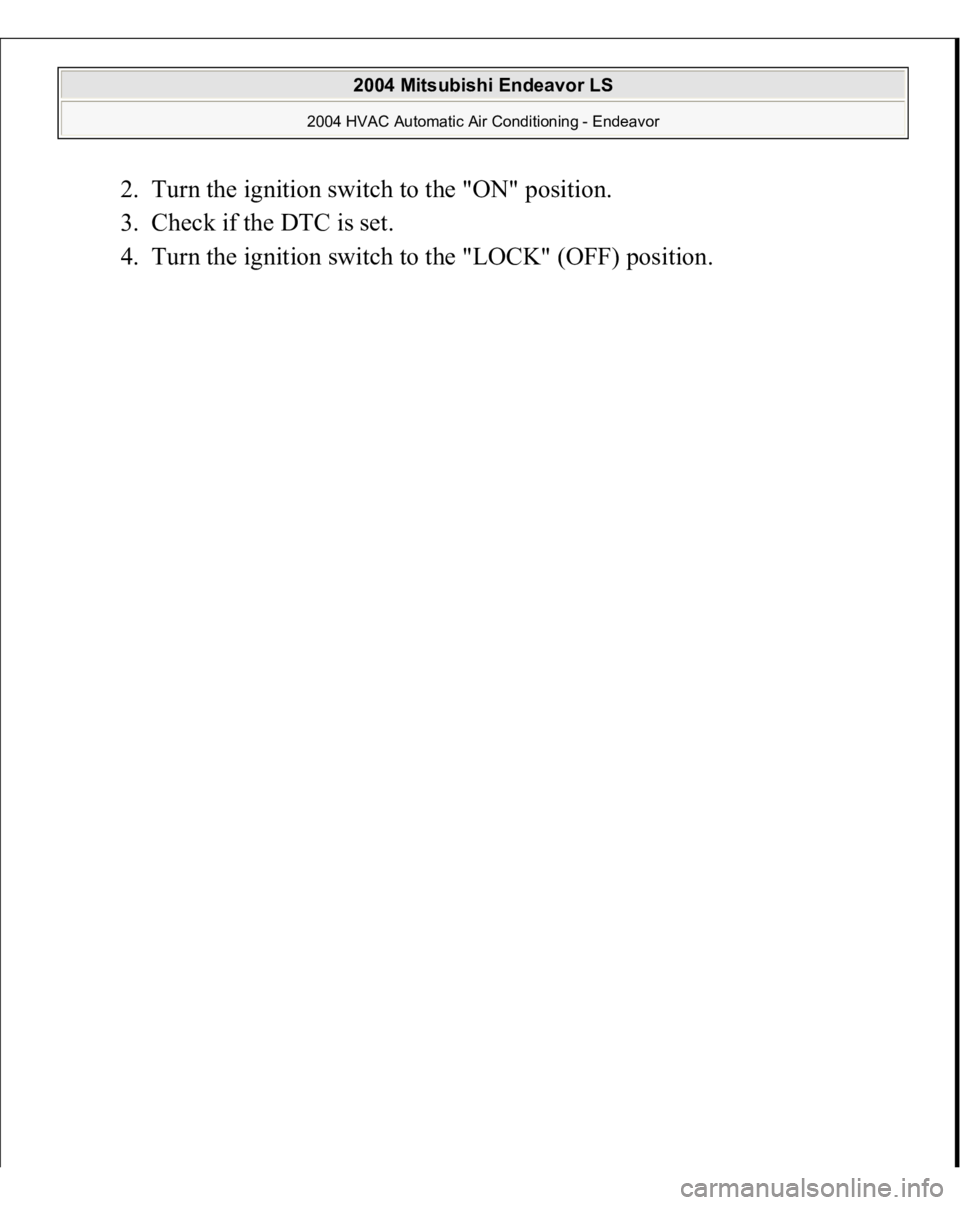

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2. Turn the ignition switch to the "ON" position. 3. Check if the DTC is set. 4. Turn the ignition switch to the "LOCK" (OFF) position. 2004 Mitsubishi Endeavor LS 2004 HVAC Au

Page 2450 of 3870

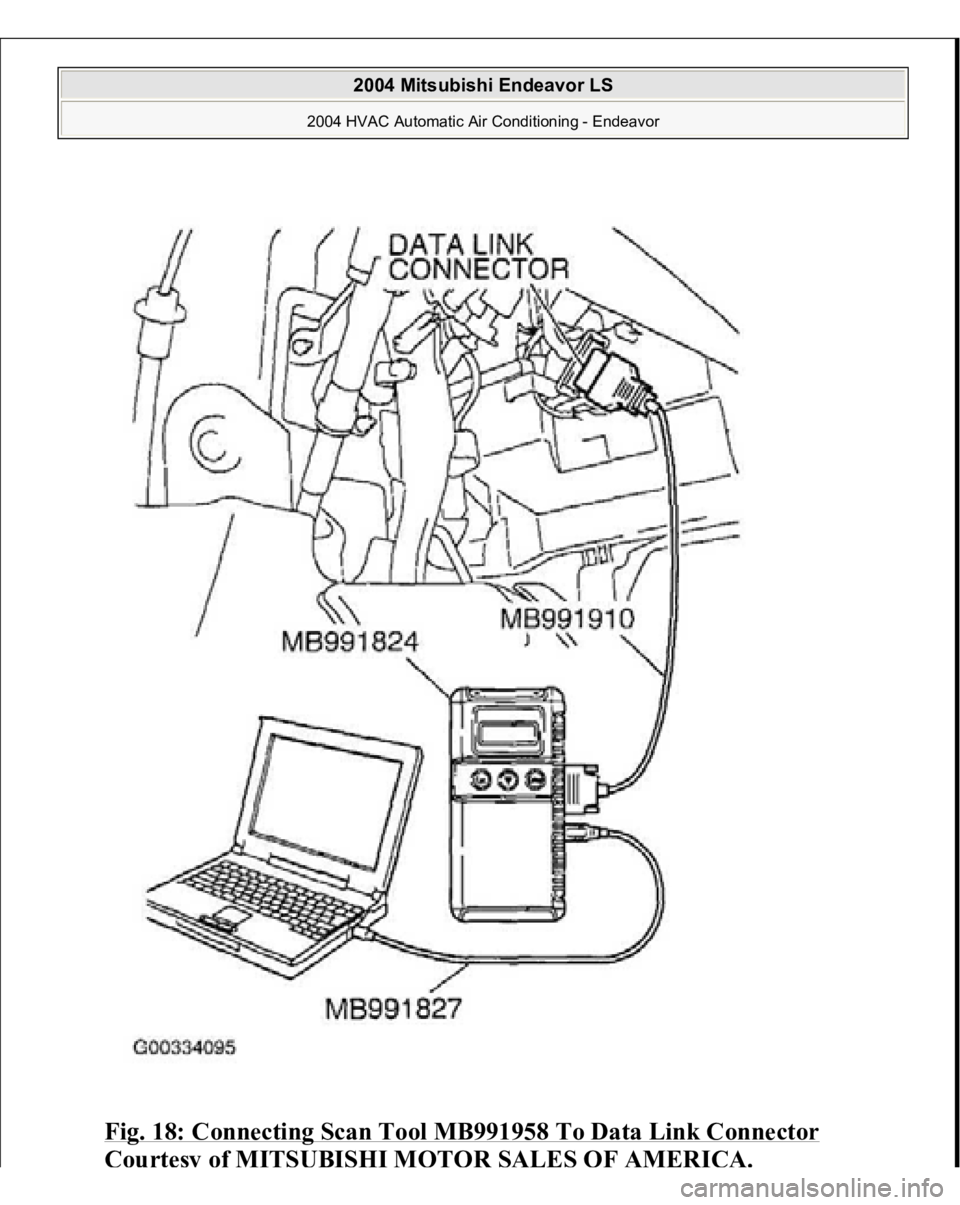

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 18: Connecting Scan Tool MB991958 To Data Link Connector Cou rtesy of MIT SU BI SHI M OTOR SALE S OF AMERI CA. 2004 Mitsubishi Endeavor LS 2004 HVAC Automatic Air Conditioning - Endeavor

Page 2451 of 3870

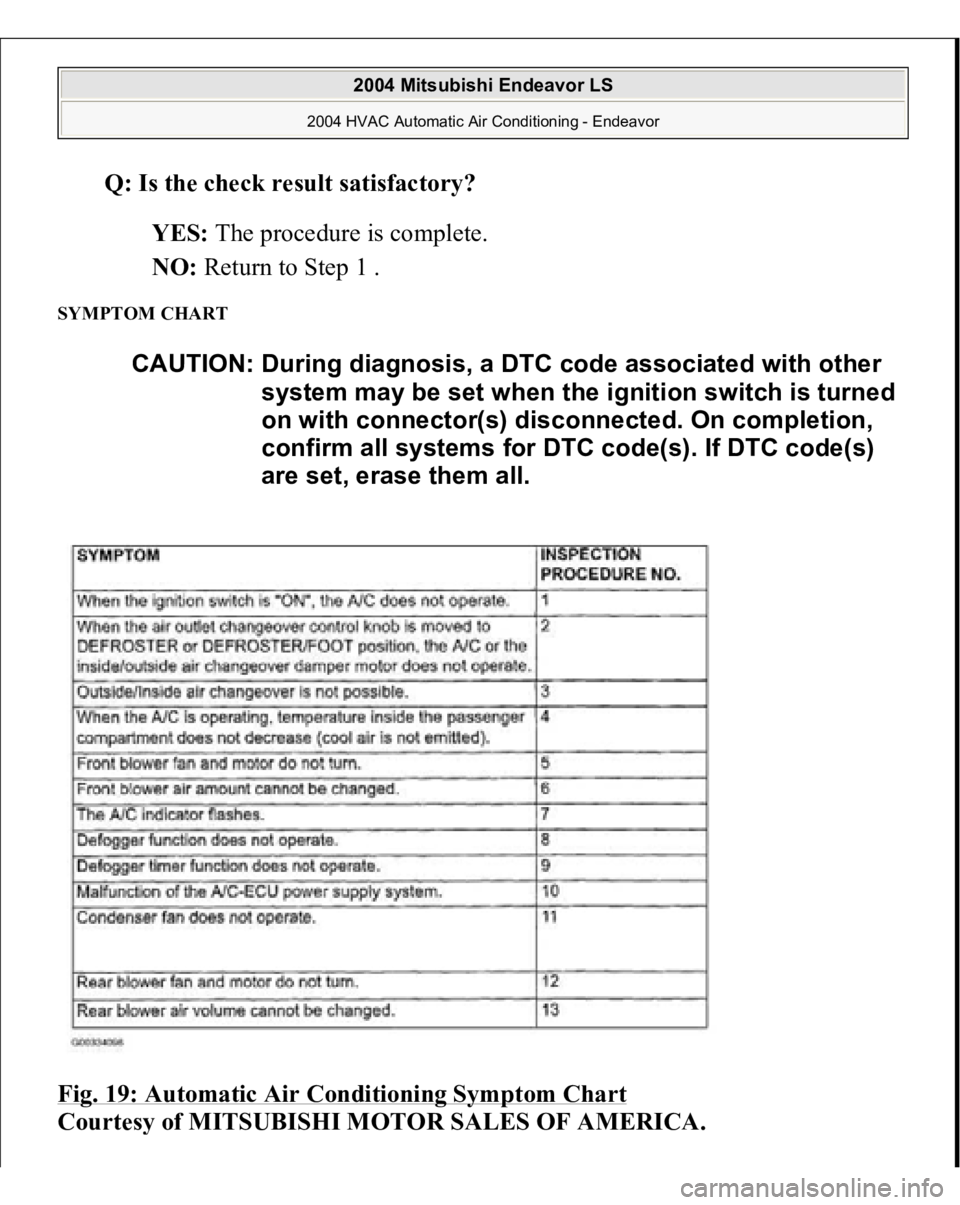

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Q: Is the check result satisfactory? YES: The procedure is complete. NO: Return to Step 1 . SYMPTOM CHART Fig. 19: Automatic Air Conditioning Symptom Chart Courtes y of MITSUBISHI MOTOR SAL

Page 2452 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual SYMPTOM PROCEDURES INSPECTION PROCEDURE 12: REAR BLOWER FAN AND MOTOR DO NOT TURN NOTE: For test procedures for inspection procedures 1 through 10, refer to SYMPTOM PROCEDURES . For test procedure f

Page 2453 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2004 Mitsubishi Endeavor LS 2004 HVAC Automatic Air Conditioning - Endeavor

Page 2454 of 3870

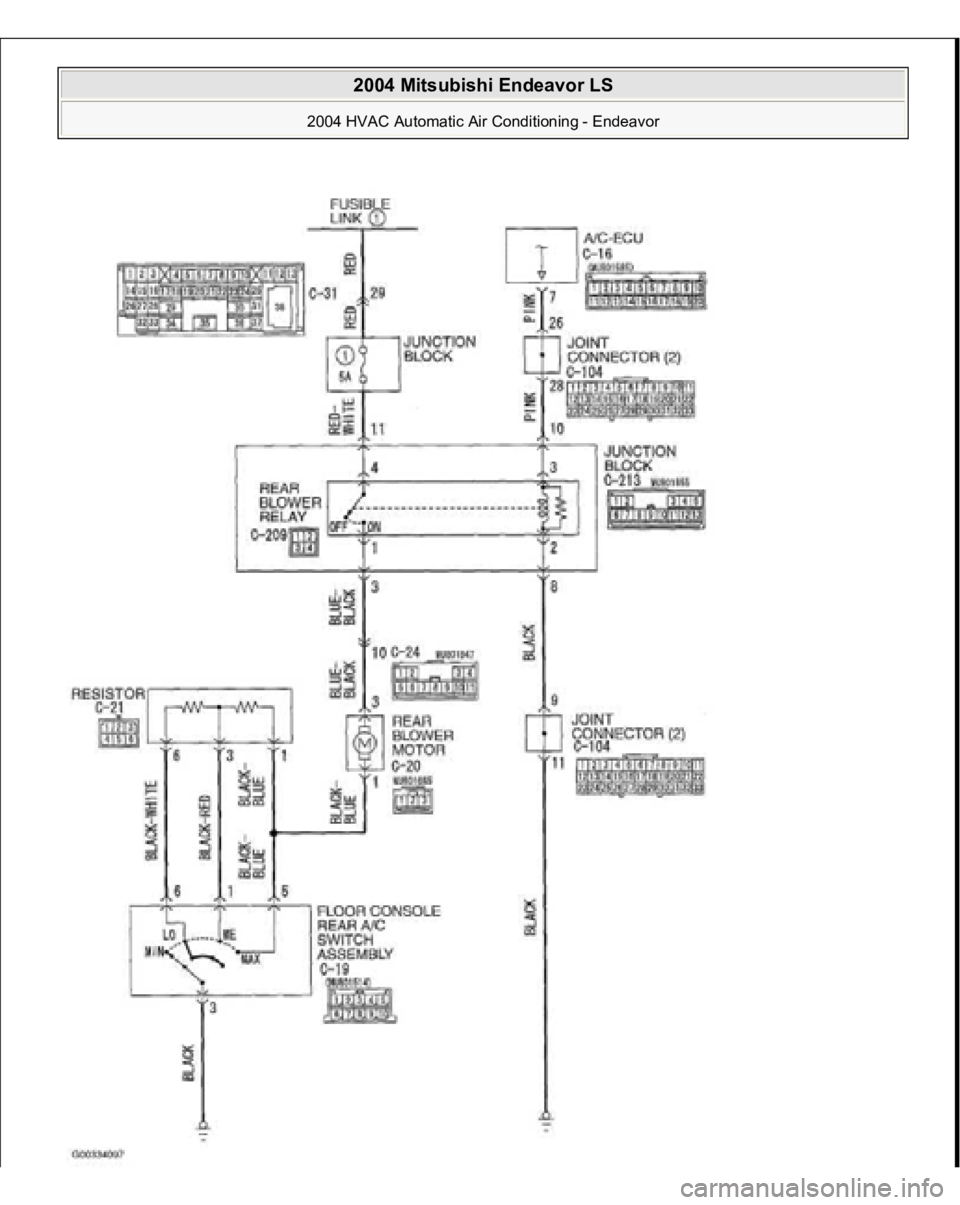

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 20: Rear Blower Fan Circuit Diagra m Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Fig. 21: Identifying Fusible Link Courtes y of MITSUBISHI MOTOR SALES OF AMERICA . 2004 Mitsubishi Endea

Page 2455 of 3870

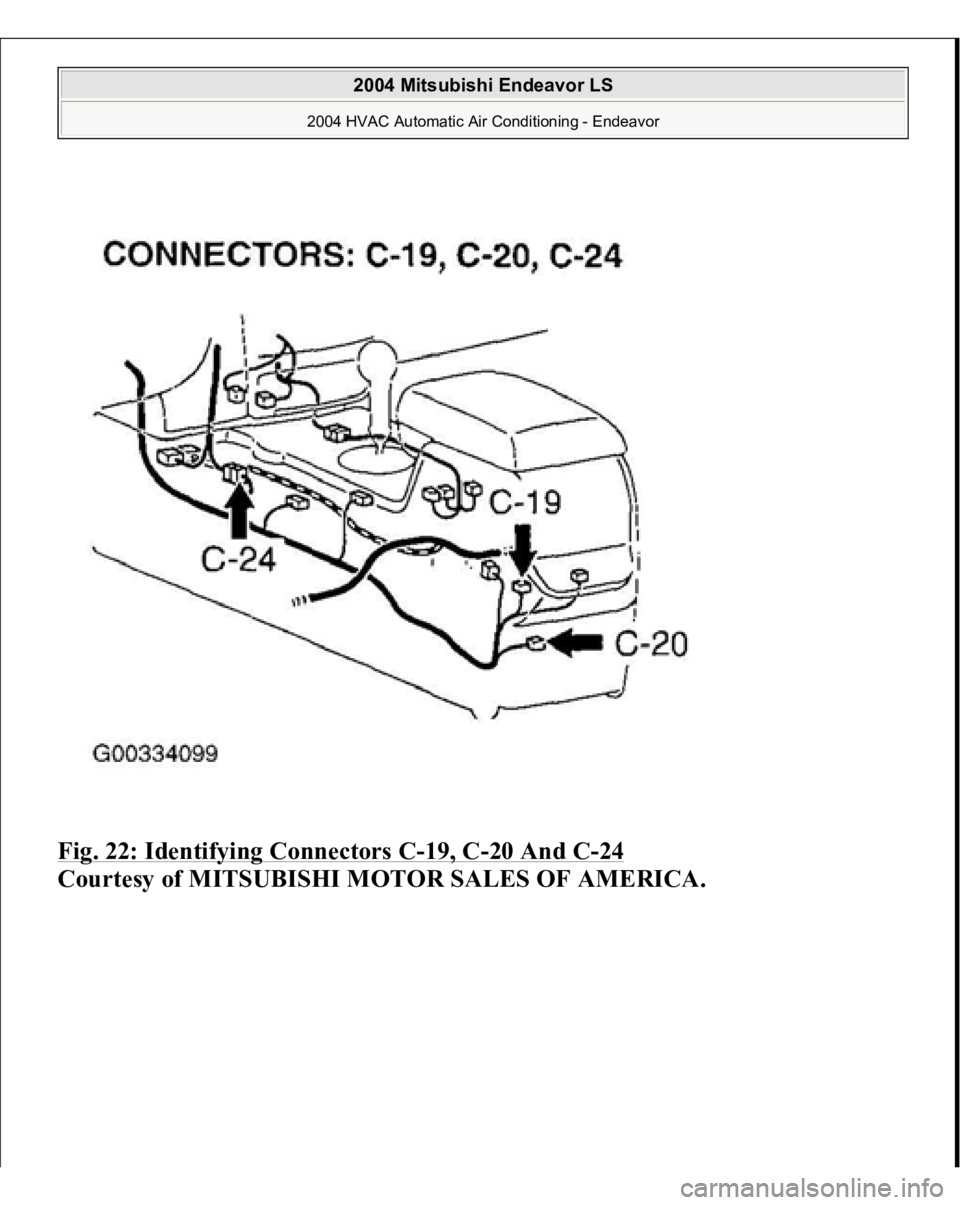

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 22: Identifying Connectors C -19, C -20 And C -24 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 HVAC Automatic Air Conditioning - Endeavor

Page 2456 of 3870

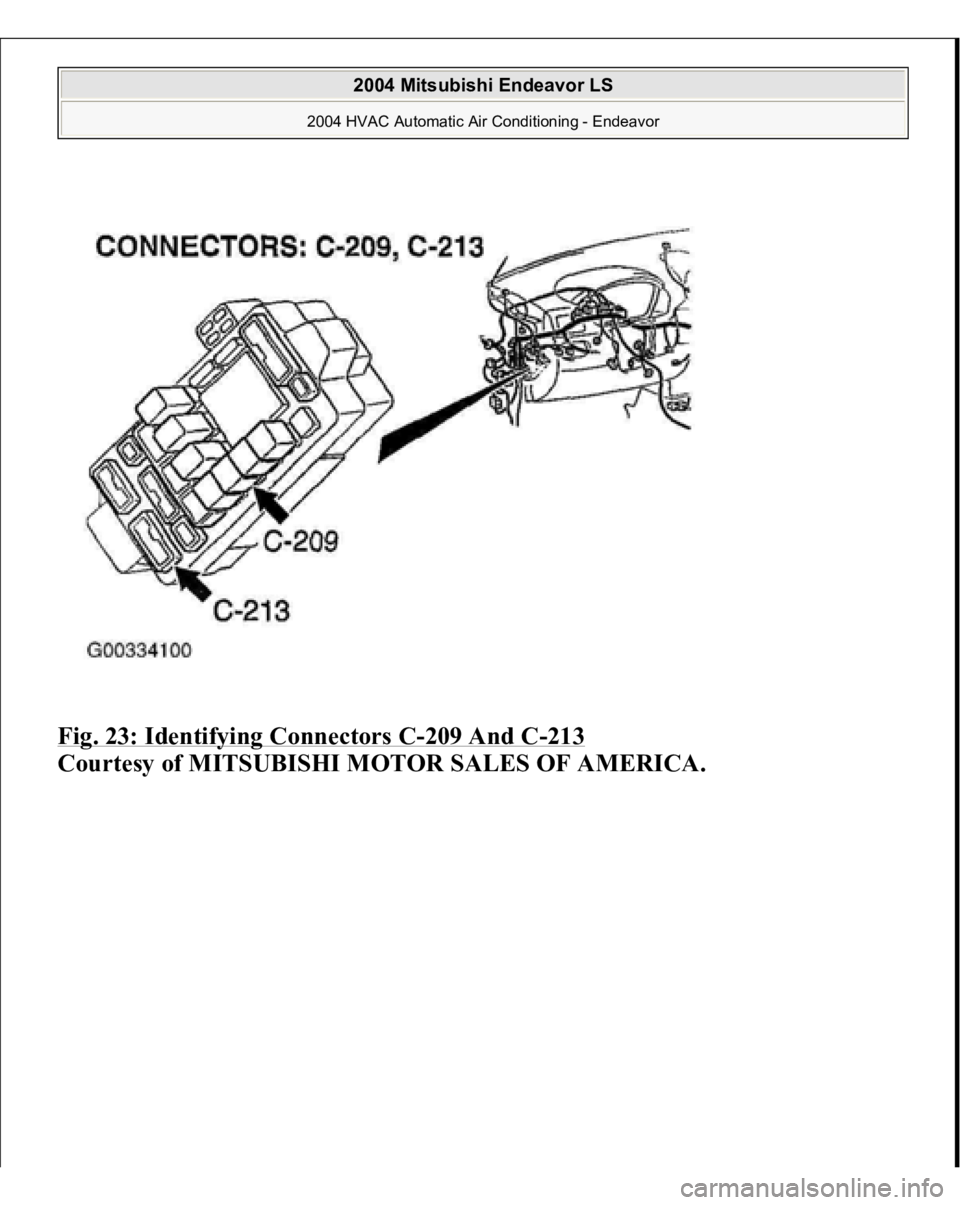

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 23: Identifying Connectors C -209 And C -213 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 HVAC Automatic Air Conditioning - Endeavor
