Page 2241 of 3870

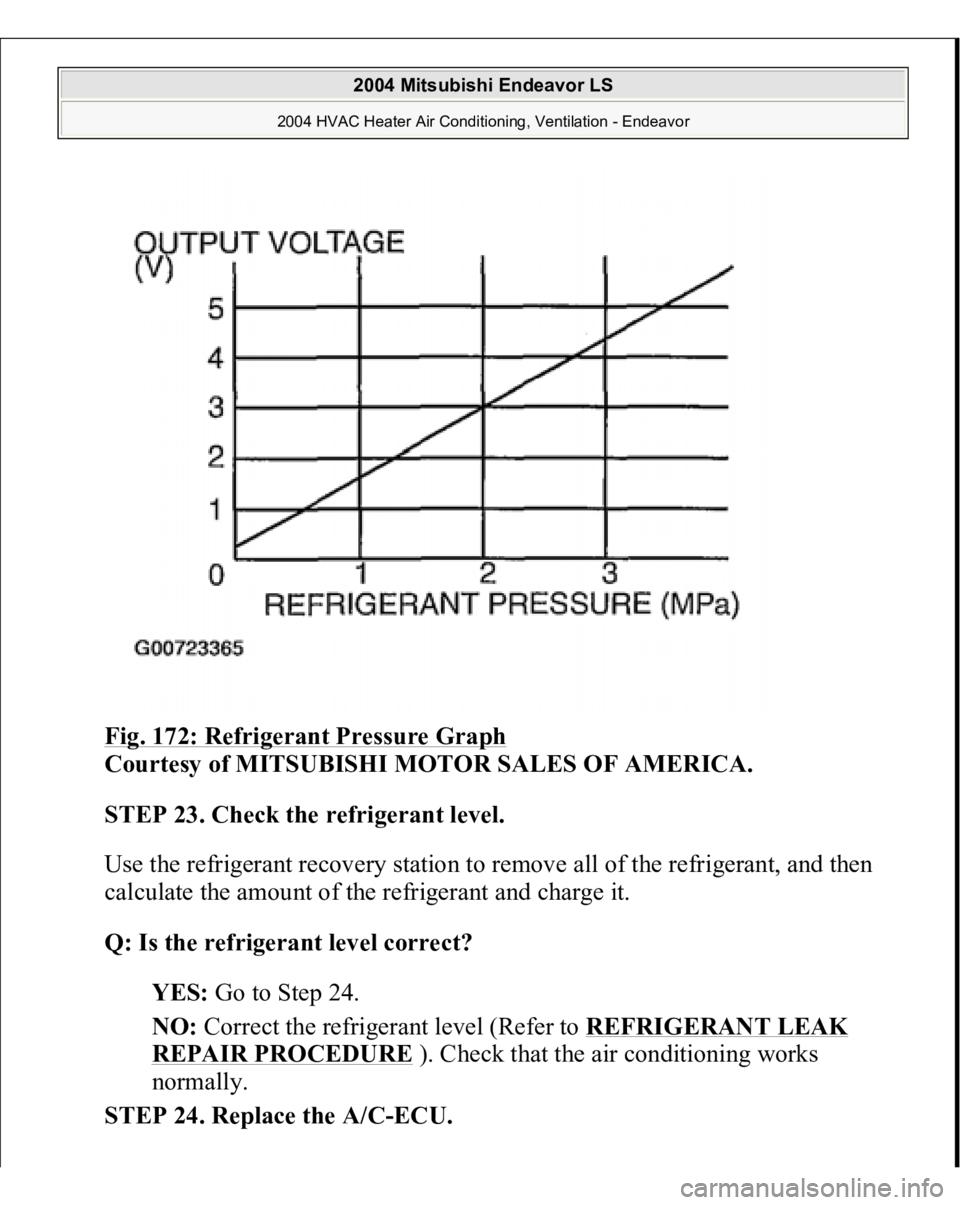

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 172: Refrigerant Pressure Graph Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. STEP 23. Check the refrigerant level. Use the refrigerant recovery station to remove all of the refrigerant, a

Page 2242 of 3870

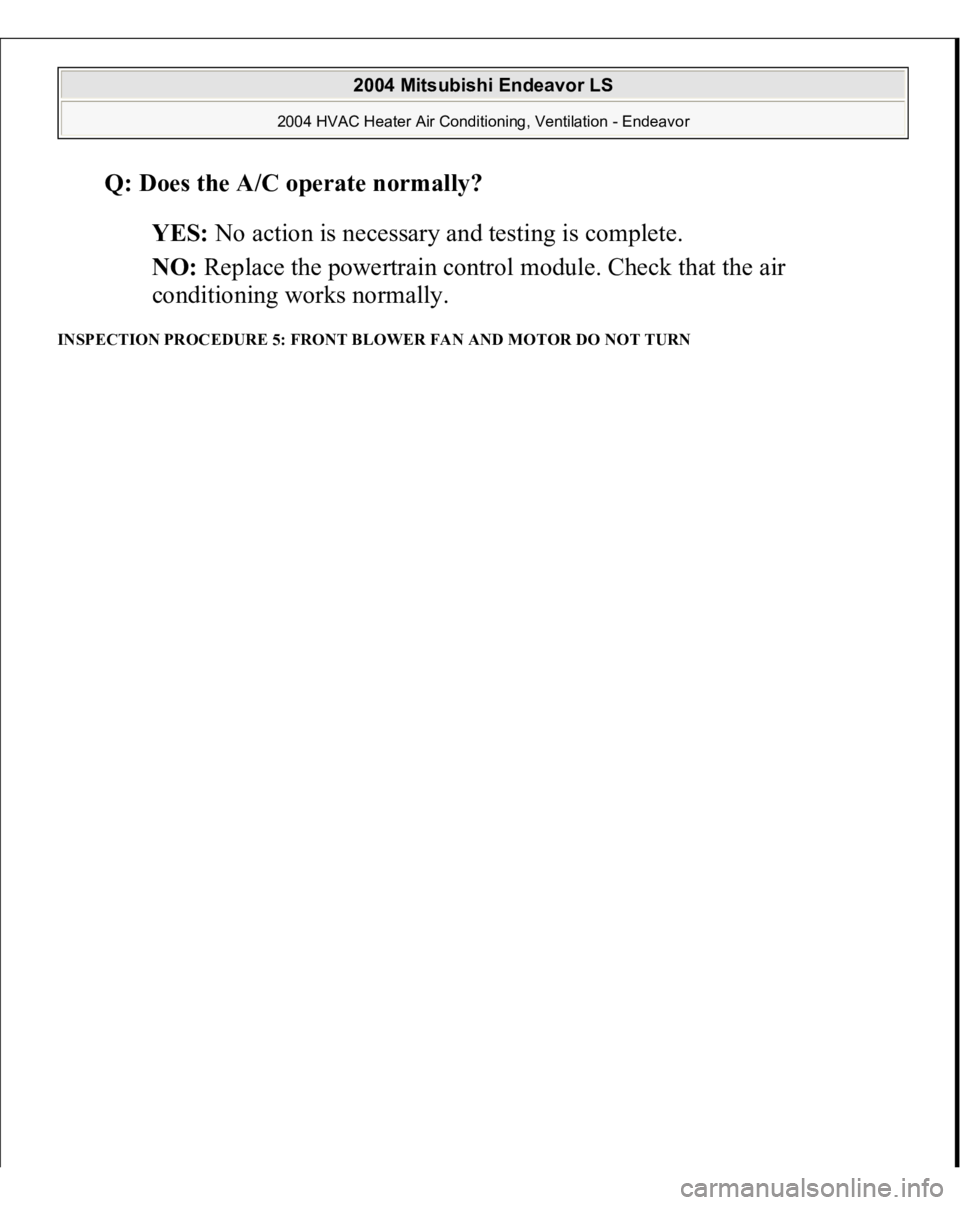

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Q: Does the A/C operate normally? YES: No action is necessary and testing is complete. NO: Replace the powertrain control module. Check that the air conditioning works normally. INSPECTION P

Page 2243 of 3870

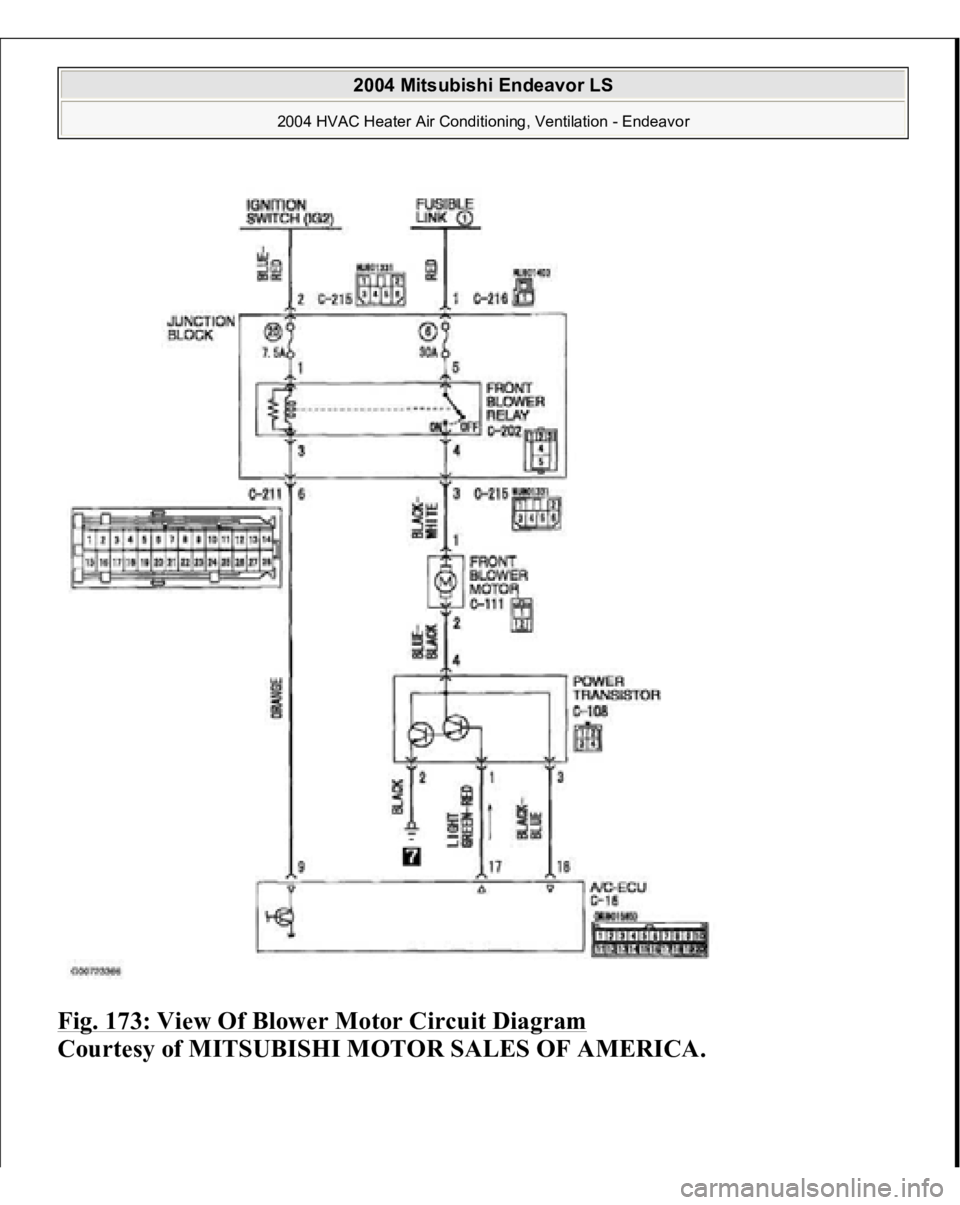

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 173: View Of Blower Motor Circuit Diagram Courtes y of MITSUBISHI MOTOR SALES OF AMERICA . 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Page 2244 of 3870

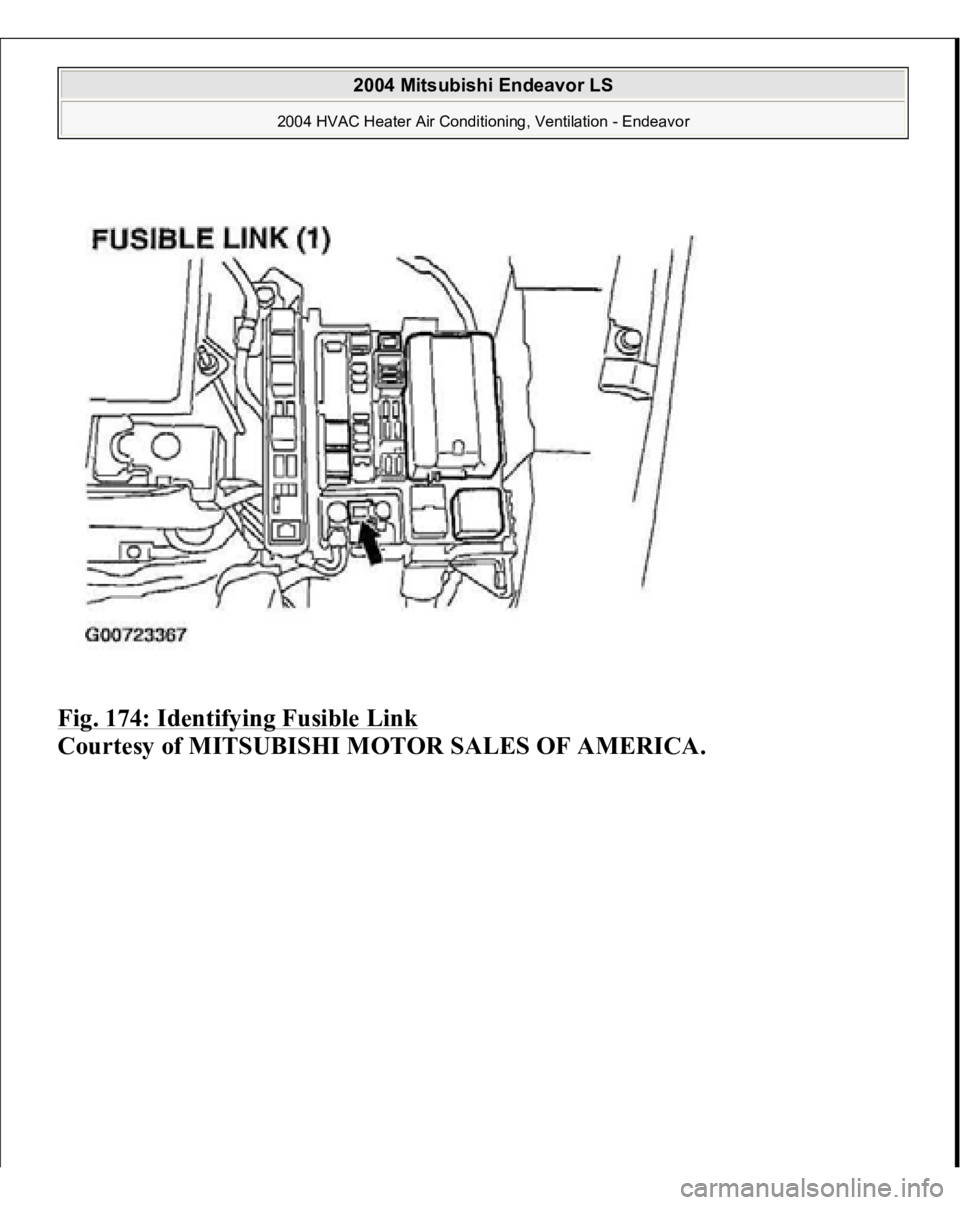

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 174: Identifying Fusible Link Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Page 2245 of 3870

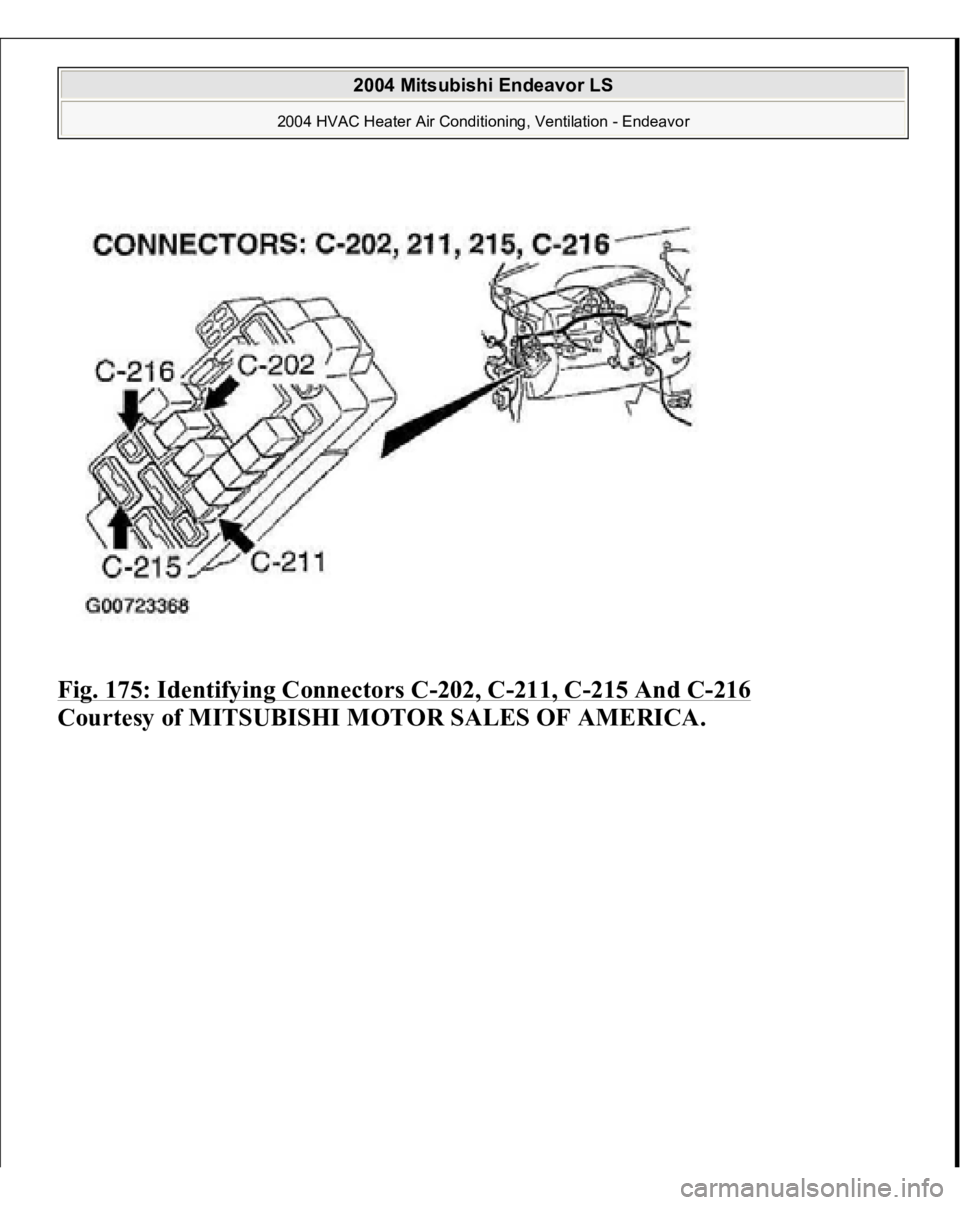

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 175: Identifying Connectors C -202, C -211, C -215 And C -216 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endea

Page 2246 of 3870

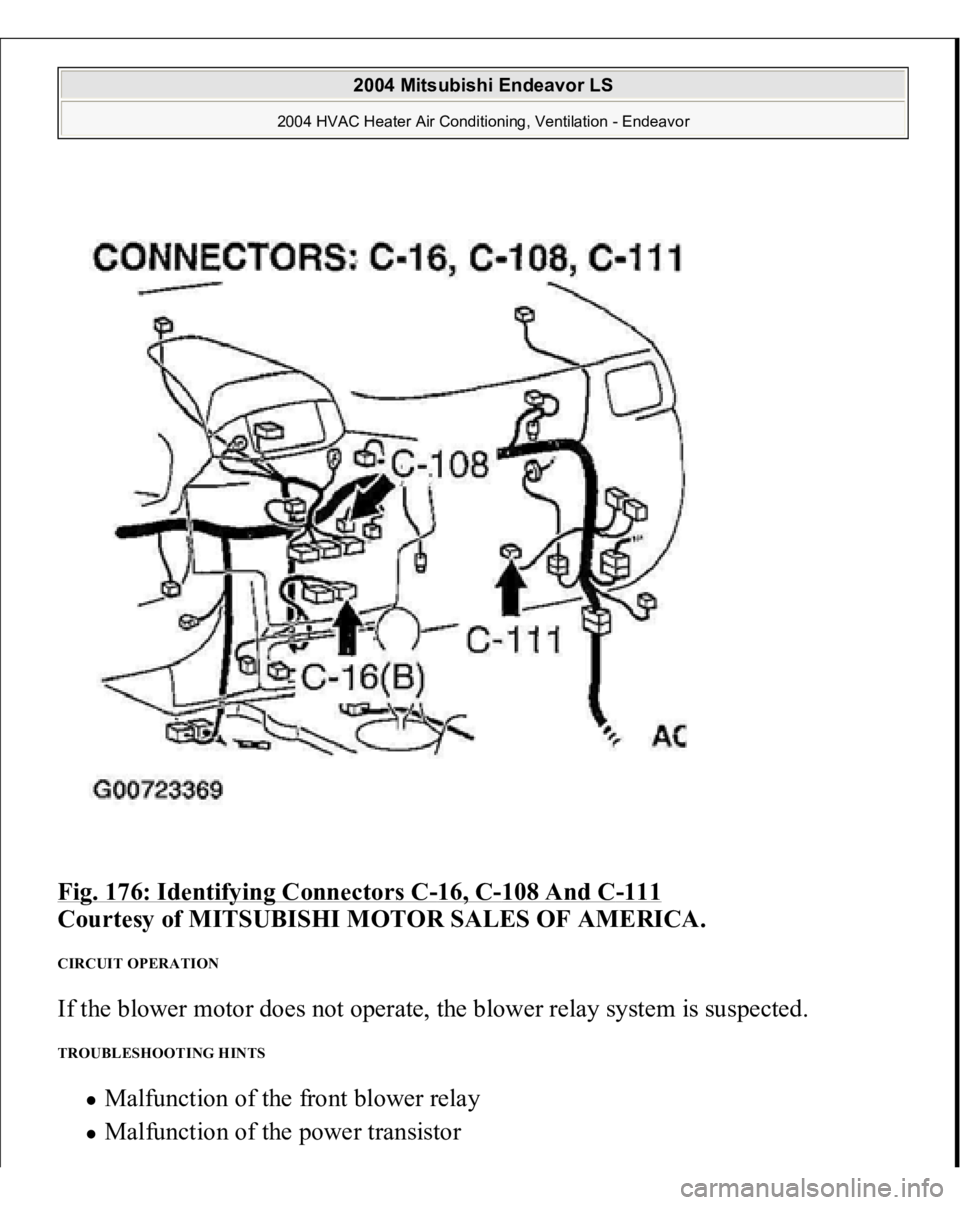

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 176: Identifying Connectors C -16, C -108 And C -111 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. CIRCUIT OPERATION If the blower motor does not operate, the blower relay system is suspecte

Page 2247 of 3870

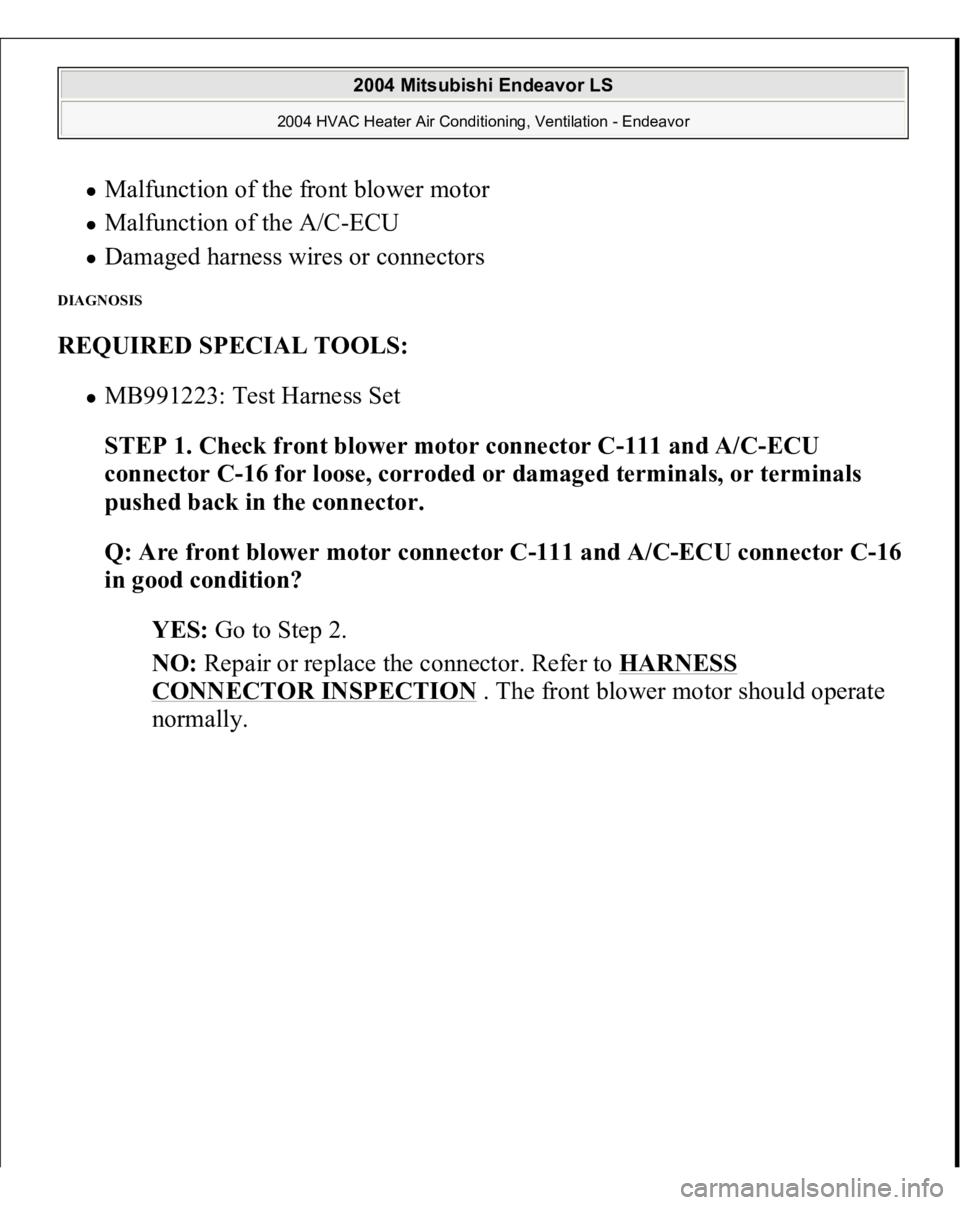

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Malfunction of the front blower motor Malfunction of the A/C-ECU Damaged harness wires or connectors DIAGNOSIS REQUIRED SPECIAL TOOLS: MB991223: Test Harness Set STEP 1. Check front blower mot

Page 2248 of 3870

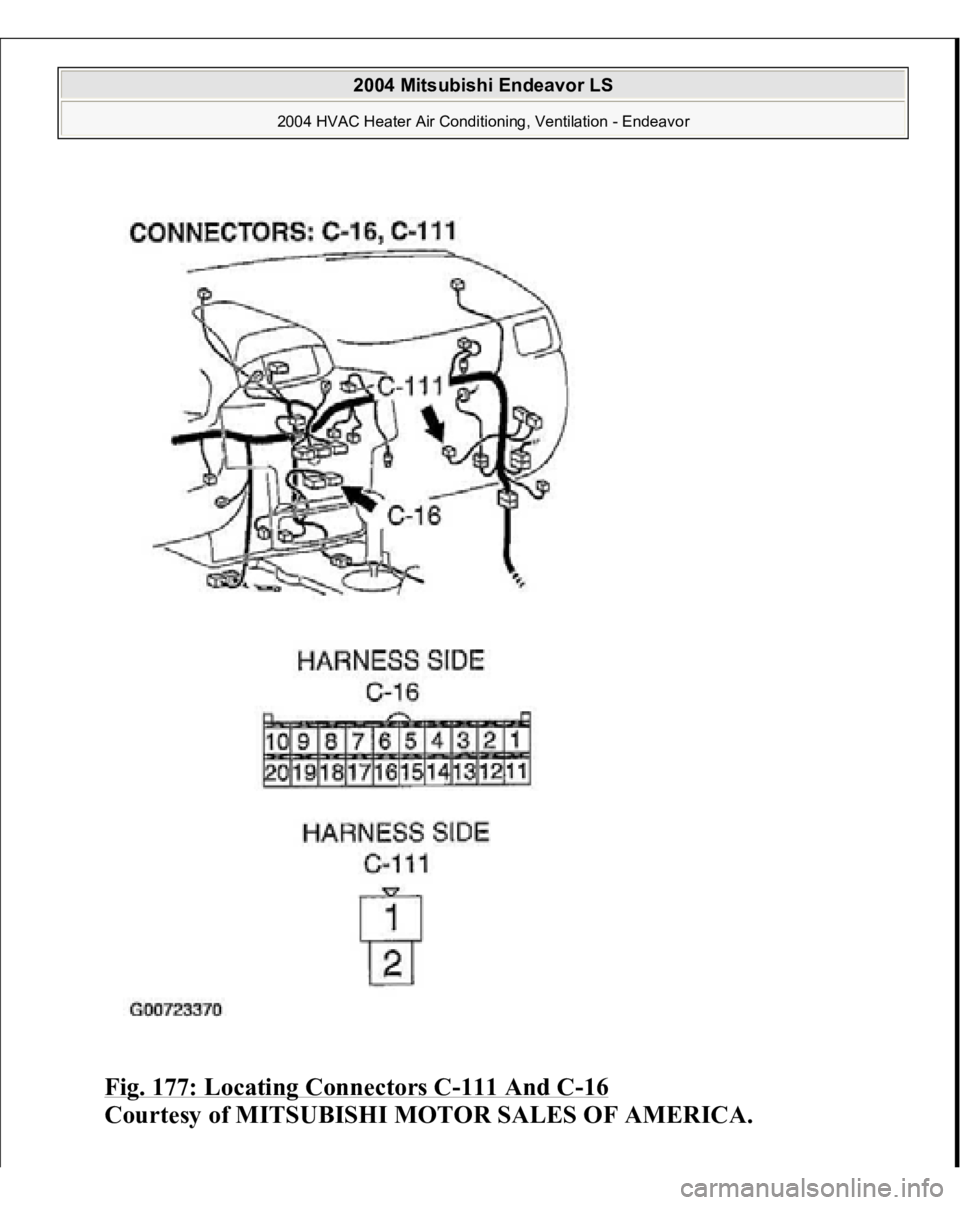

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 177: Locating Connectors C -111 And C -16 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeavor
