Page 1289 of 3870

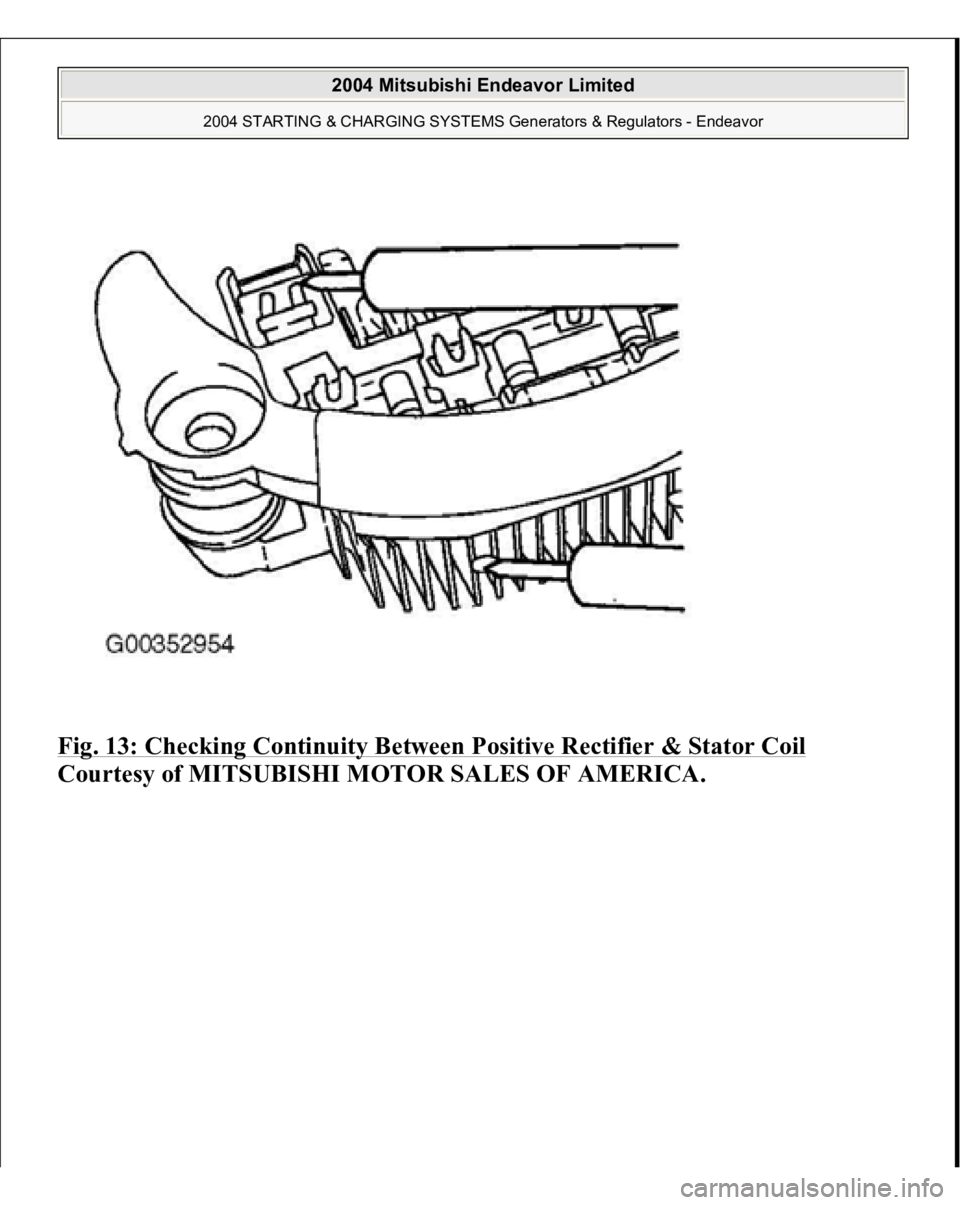

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 13: Checking Continuity Between Positive Rectifier & Stator Coil Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor Limited 2004 STARTING & CHARGING SYSTEMS Generators &

Page 1290 of 3870

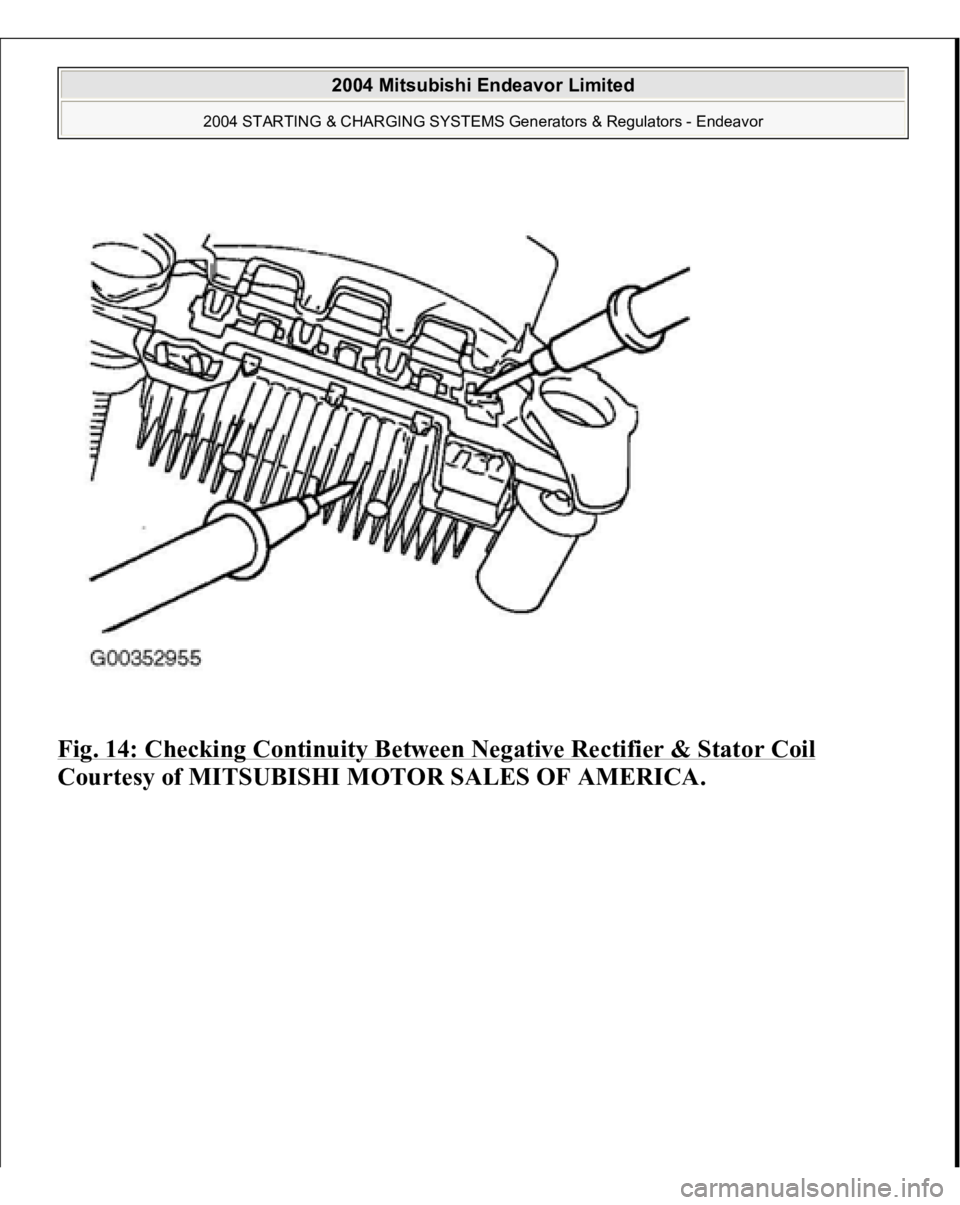

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 14: Checking Continuity Between Negative Rectifier & Stator Coil Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor Limited 2004 STARTING & CHARGING SYSTEMS Generators &

Page 1291 of 3870

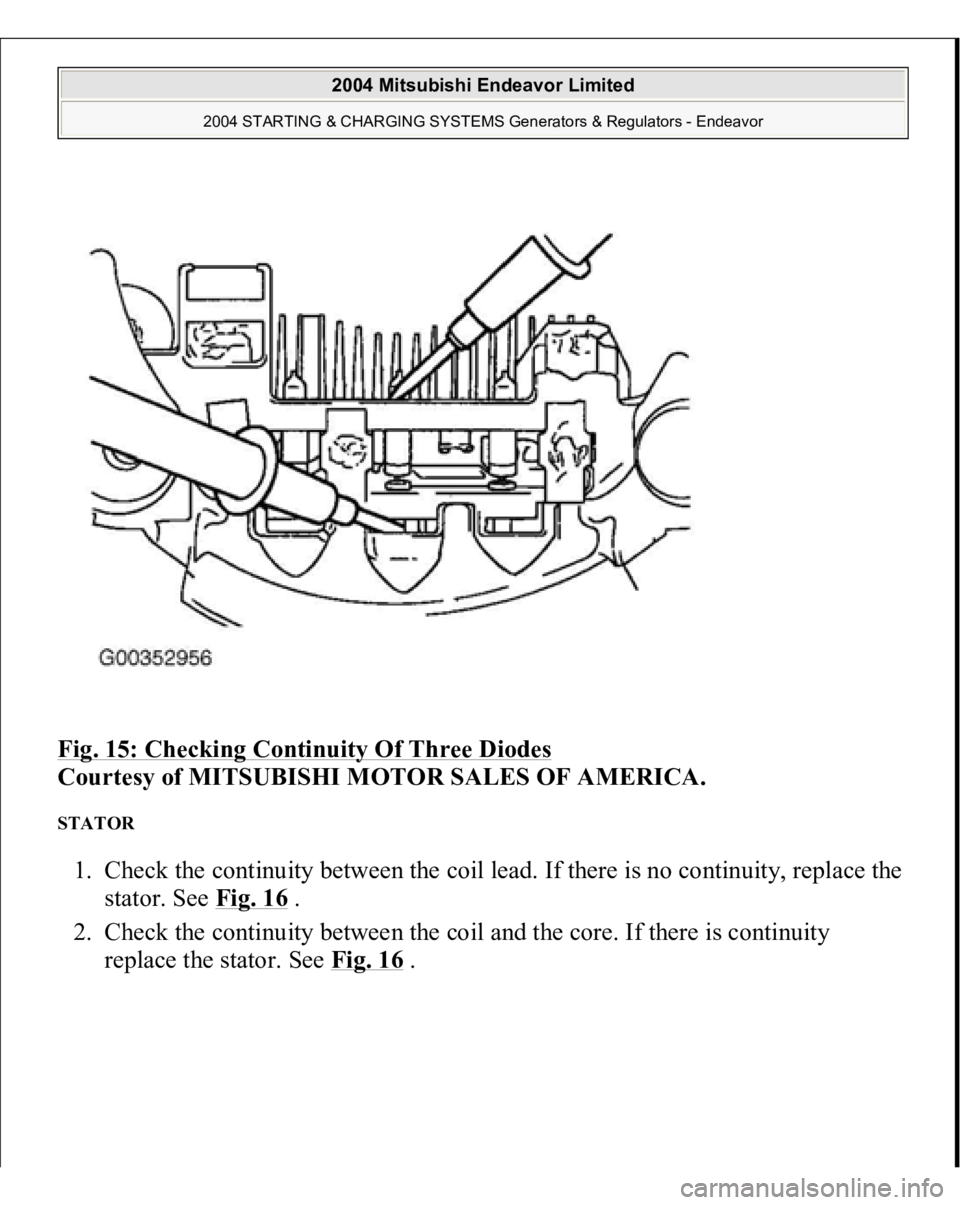

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 15: Checking Continuity Of Three Diodes Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. STATOR 1. Check the continuity between the coil lead. If there is no continuity, replace the stator. See

Page 1292 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2004 Mitsubishi Endeavor Limited 2004 STARTING & CHARGING SYSTEMS Generators & Regulators - Endeavor

Page 1293 of 3870

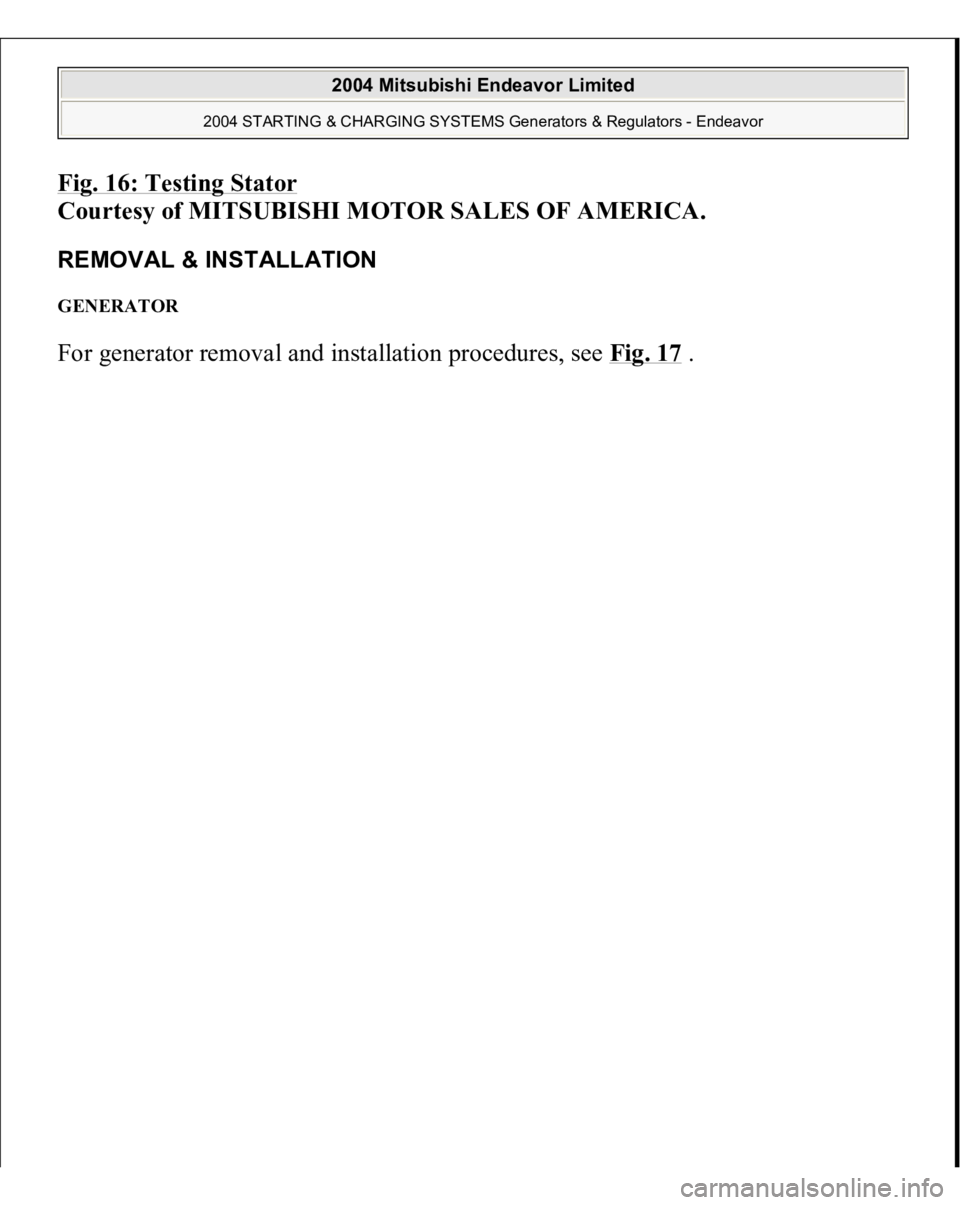

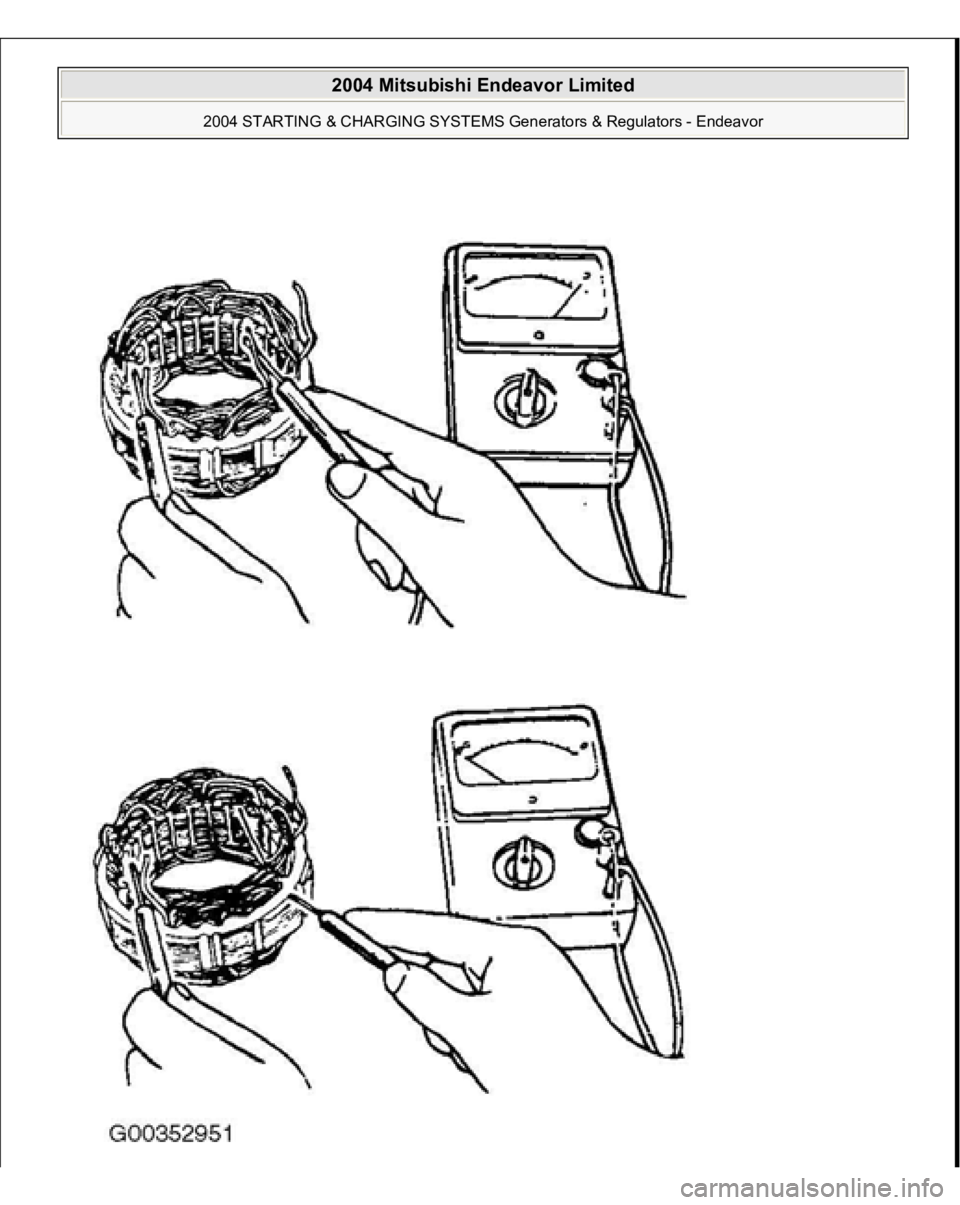

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 16: Testing Stator Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. REMOVAL & INSTALLATION GENERATOR For generator removal and installation procedures, see Fig. 17 . 2004 Mitsubishi Endeavor

Page 1294 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 17: Removing & Installing Generator Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Removal Service Points NOTE: Place the removed A/C compressor where it will not be a hindrance when removing

Page 1295 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual A) A/C Compressor Assembly Removal - Remove the compressor from the compressor bracket with the hose still attached. B) Generator Removal - Move the A/C compressor to one side, and then remove the

Page 1296 of 3870

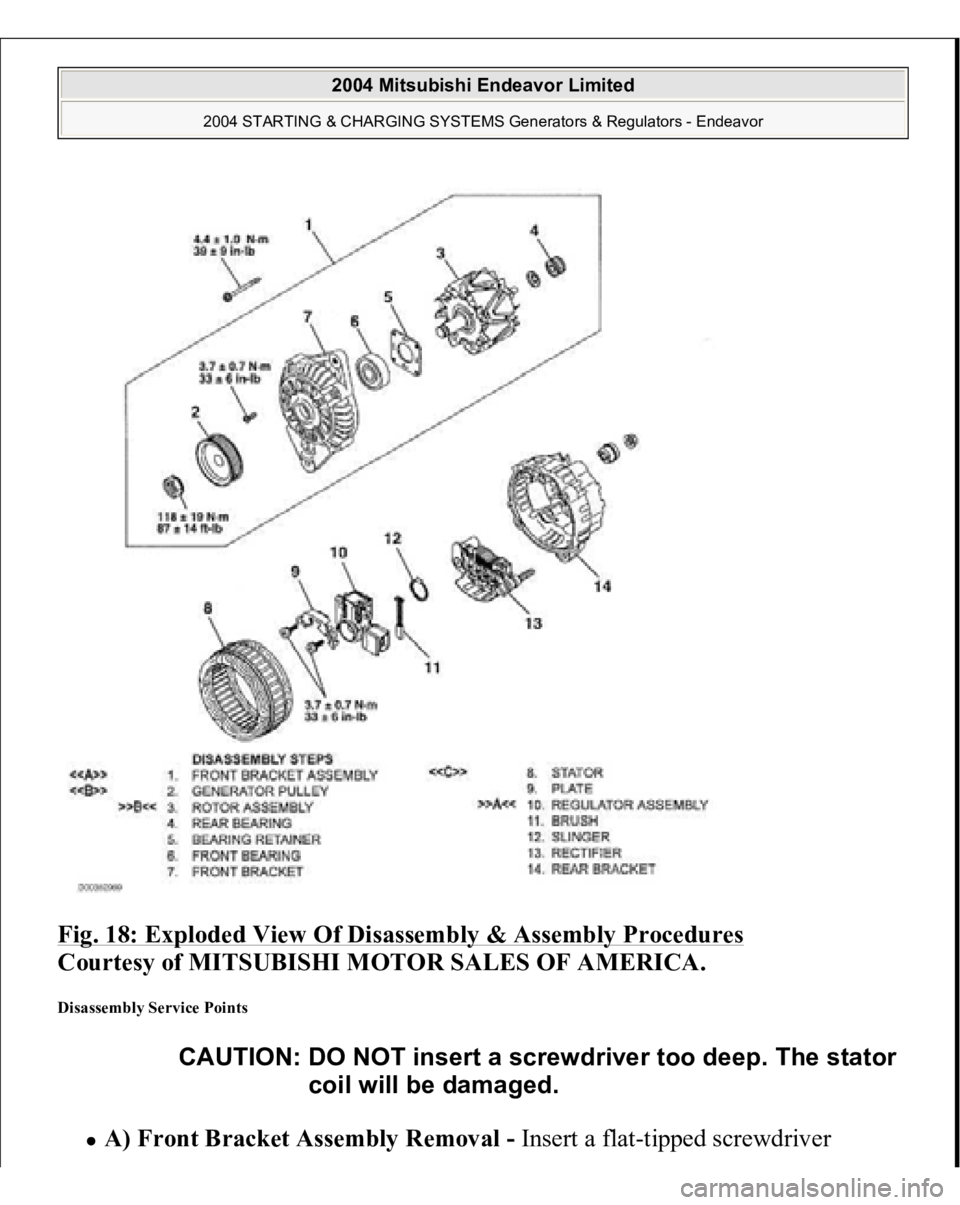

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 18: Exploded View Of Disassembly & Assembly Procedures Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Disassembly Service Points A) Front Bracket Assembly Removal -Insert a fla t-tipped screw
