Page 2361 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual calculate the amount of the refrigerant and charge it. A/C COMPRESSOR CLUTCH TEST 1. Disconnect the air conditioning compressor clutch connector to the air conditioning compressor clutch. 2. Connec

Page 2362 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Required Special Tools: MB991658: Test Harness 1. Assemble a gauge manifold on the high pressure service valve. 2. Disconnect the A/C pressure sensor connector and connect special tool MB99165

Page 2363 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 272: Connecting Special Tool (MB991658) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 4. At this time, check to see that the voltage of A/C pressure sensor terminal No.2 reflects the specif

Page 2364 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 273: Voltage Of A/C Pressure Sensor Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. COMPRESSOR DRIVE BELT ADJUSTMENT Refer to 7. DRIVE BELTS (FOR GENERATOR, POWER STEERING OIL PUMP AND AIR C

Page 2365 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual DISCHARGING SYSTEM Use the refrigerant recovery unit to discharge refrigerant gas from the system. REFILLING OF OIL IN THE A/C SYSTEM Too little oil will provide inadequate compressor lubrication and

Page 2366 of 3870

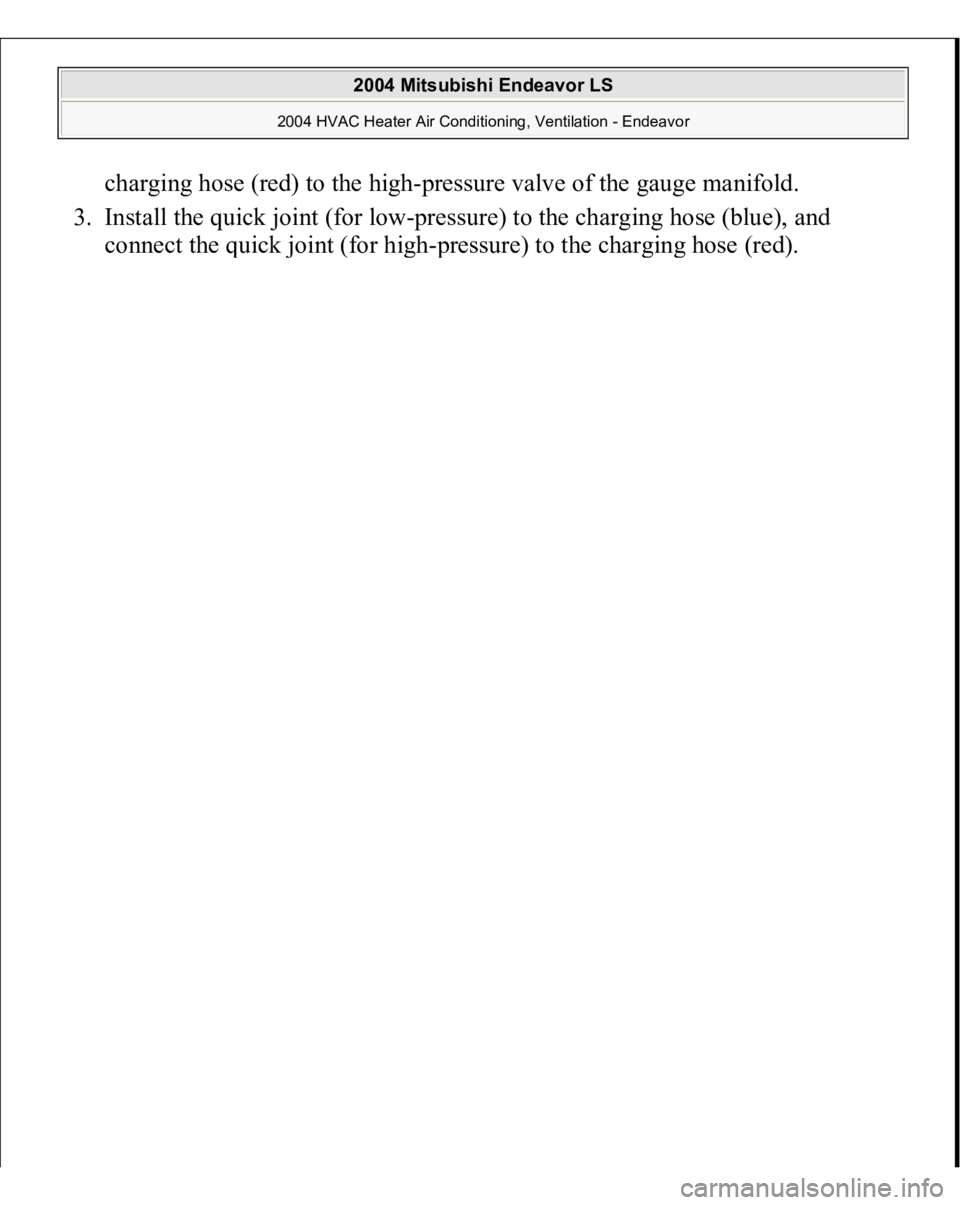

MITSUBISHI ENDEAVOR 2004 Service Repair Manual charging hose (red) to the high-pressure valve of the gauge manifold. 3. Install the quick joint (for low-pressure) to the charging hose (blue), and connect the quick joint (for hi gh-pressure )

Page 2367 of 3870

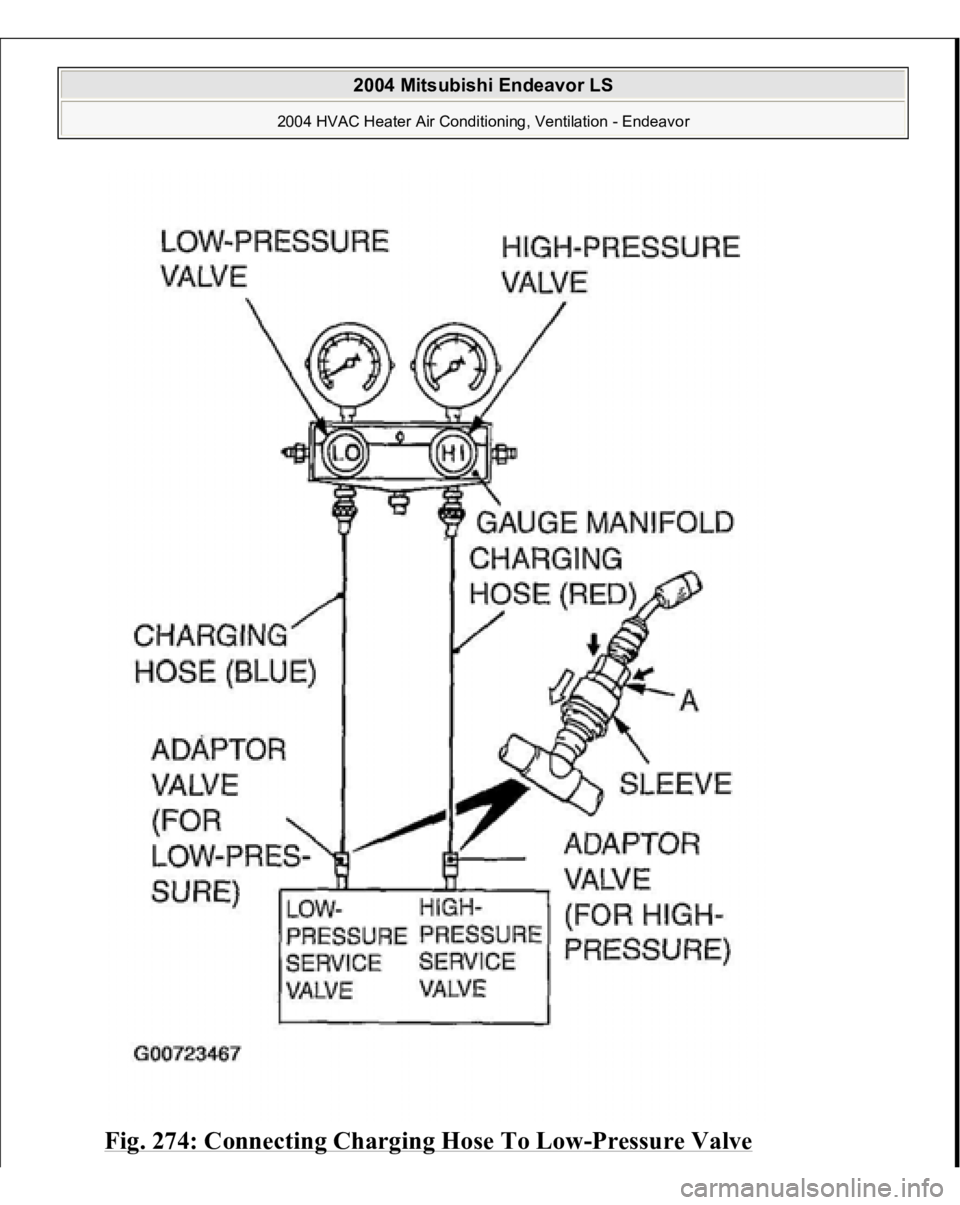

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 274: Connectin g Char ging Hose To Lo w-Pressure Valve 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Page 2368 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . 4. Connect the quick joint (for low-pressure) to the low-pressure service valve and connect the quick joint (for high-pressure) to the high-pressure s
