Page 1849 of 3870
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Floor Console Assembly - Endeavor
Page 1850 of 3870

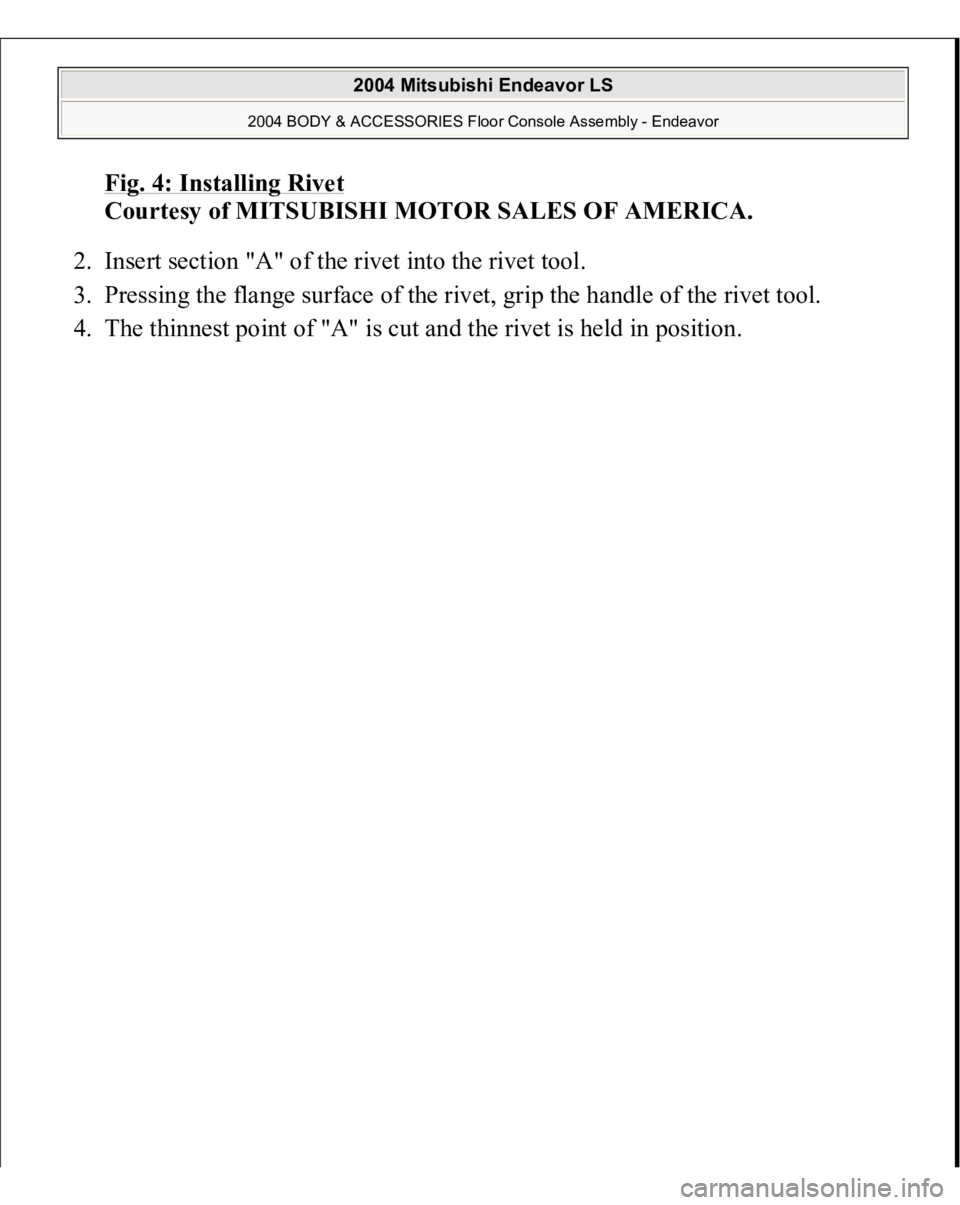

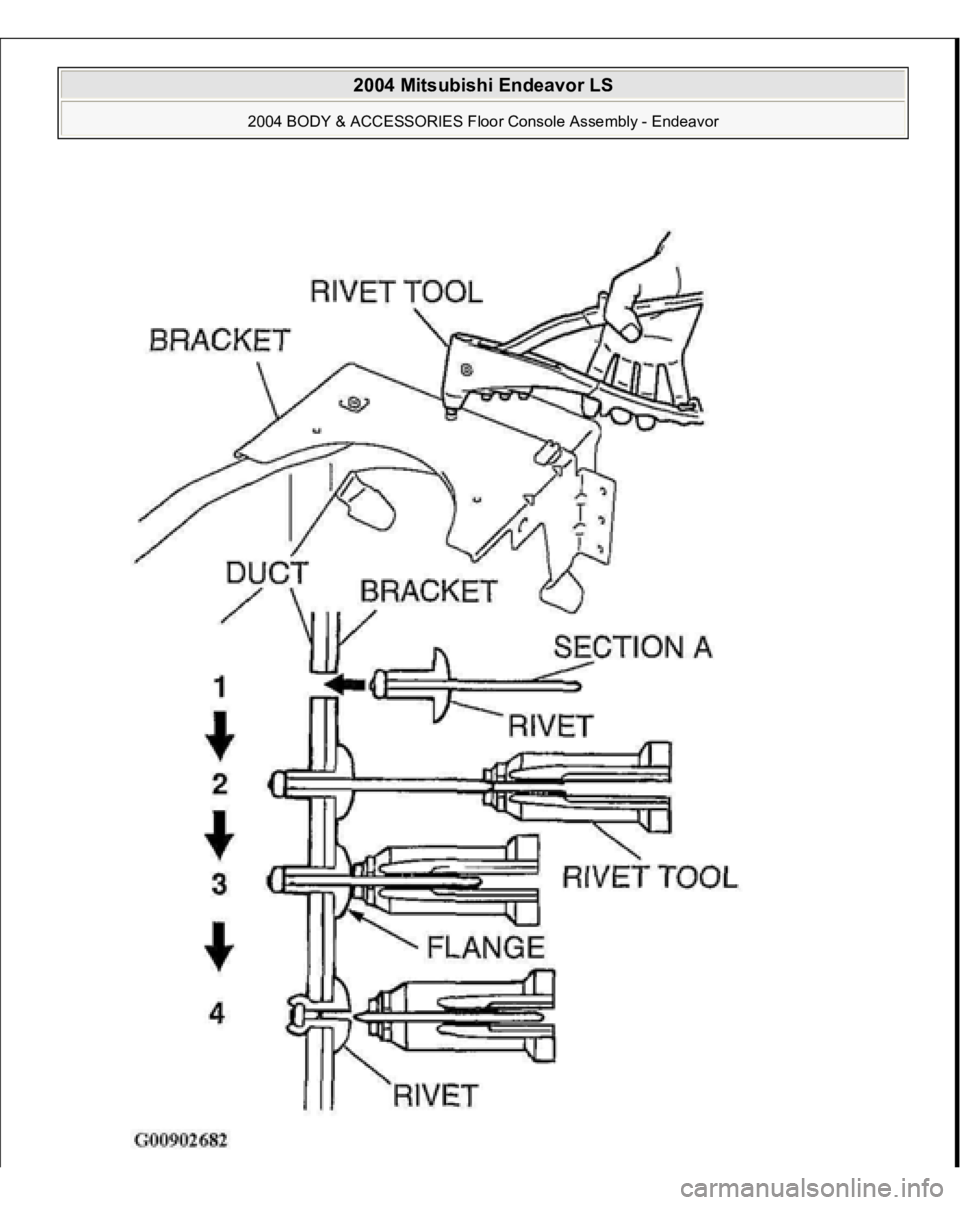

Fig. 4: Installing Rive
t
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Insert section "A" of the rivet into the rivet tool.
3. Pressing the flange surface of the rivet, grip the handle of the rivet tool.
4. The thinnest
point of "A" is cut and the rivet is held in
position.
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Floor Console Assembly - Endeavor
Page 1851 of 3870
2004 DRIVELINE/AXLES
Front Axle Hub & Axle Shafts - Endeavor
FRONT AXLE HUB ASSEMBLY REMOVAL AND INSTALLATION
CAUTION:
For vehicles with ABS, do not strike the ABS
rotors installed to the BJ outer race of drive shaft
against other parts when removing or installing
the drive shaft. Otherwise the ABS rotors will be
damaged. For vehicles with ABS, be careful not to strike the
pole piece at the tip of the front ABS sensor with
tools during servicing work.
2004 Mitsubishi Endeavor LS
2004 DRIVELINE/AXLES Front Axle Hub & Axle Shafts - Endeavor
2004 Mitsubishi Endeavor LS
2004 DRIVELINE/AXLES Front Axle Hub & Axle Shafts - Endeavor
Page 1852 of 3870

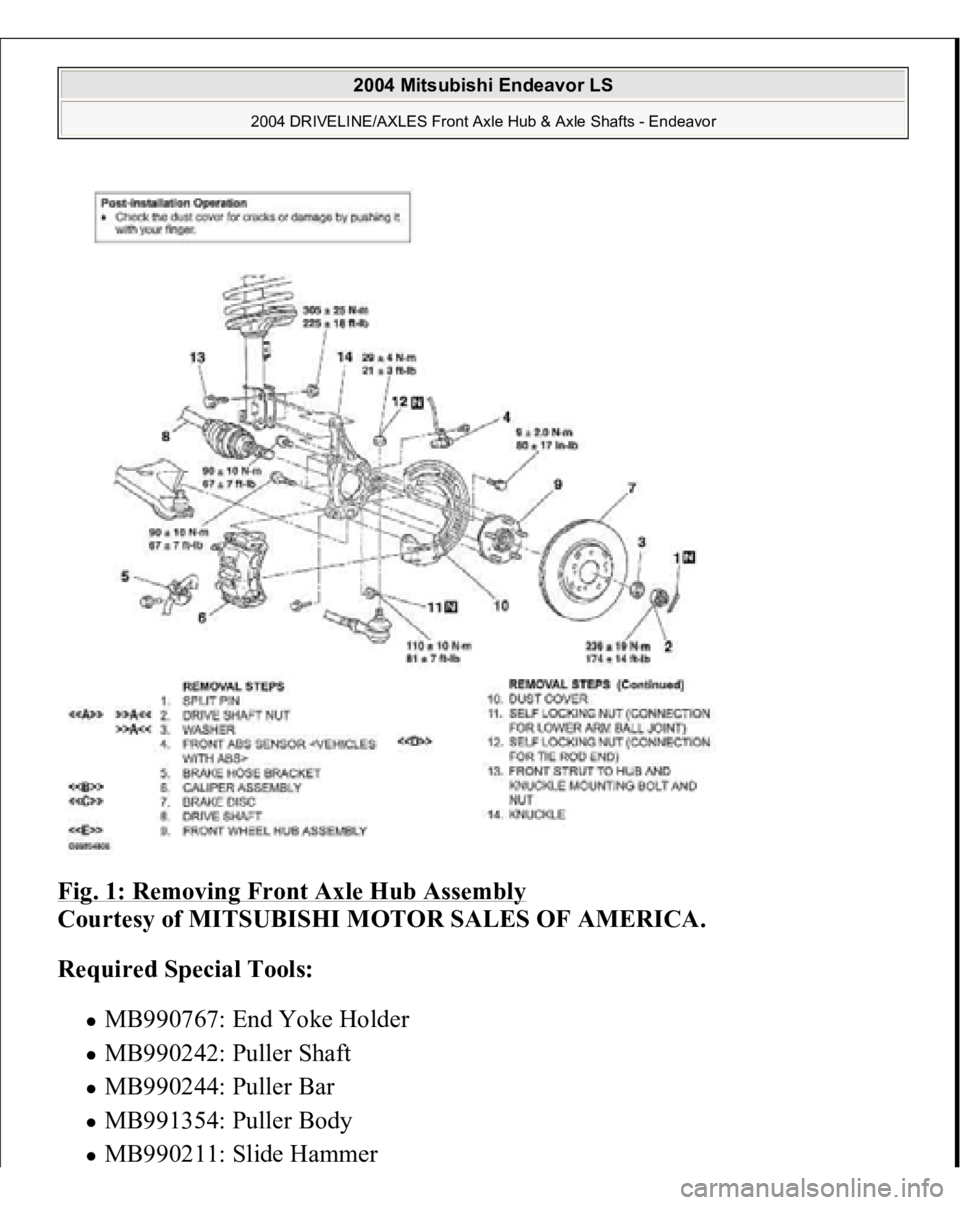

Fig. 1: Removing Front Axle Hub Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Required Special Tools:
MB990767: End Yoke Holder MB990242: Puller Shaft MB990244: Puller Bar MB991354: Puller Body MB990211: Slide Hammer
2004 Mitsubishi Endeavor LS
2004 DRIVELINE/AXLES Front Axle Hub & Axle Shafts - Endeavor
Page 1853 of 3870
MB991897: Ball Joint Remover

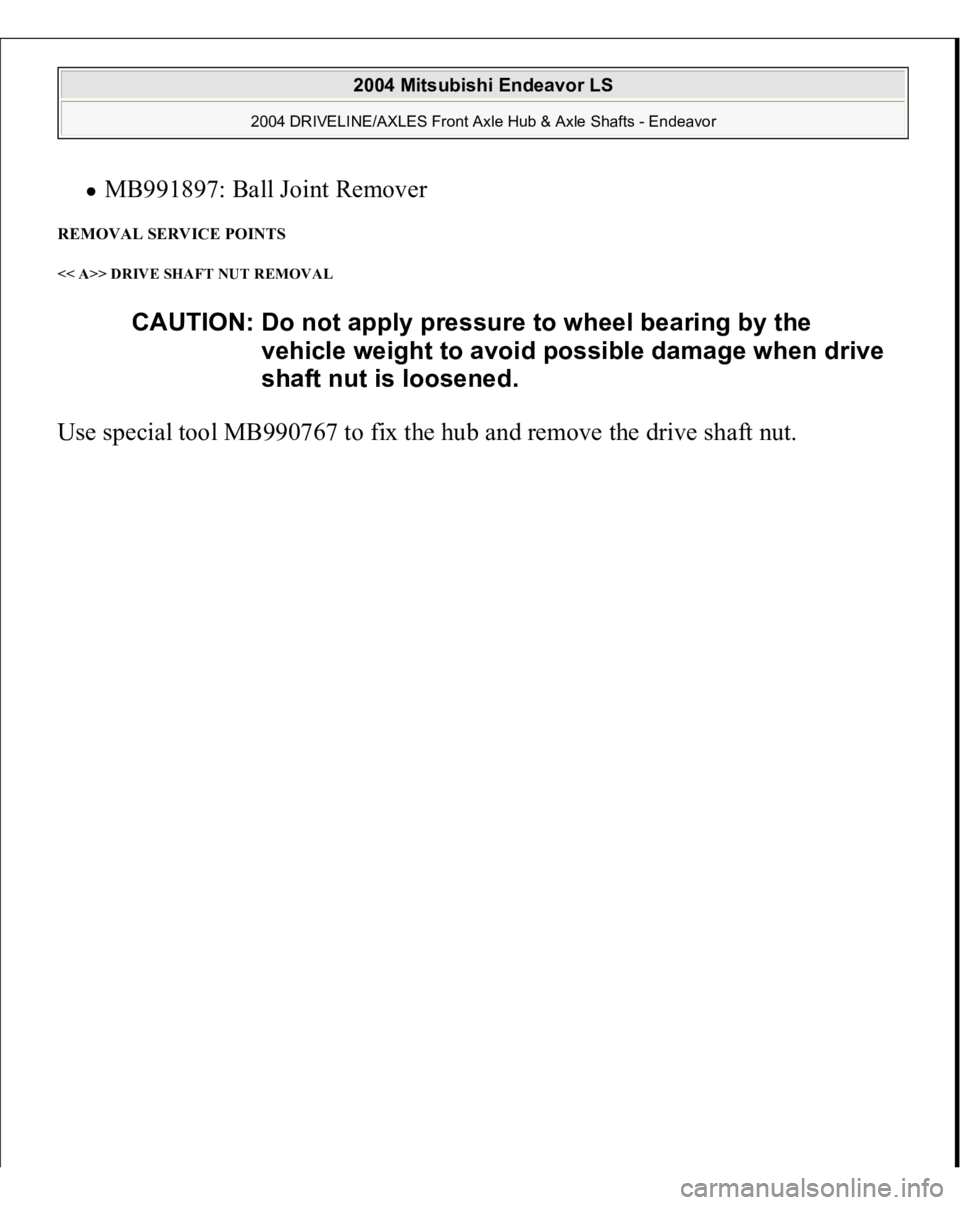

REMOVAL SERVICE POINTS << A>> DRIVE SHAFT NUT REMOVAL Use special tool MB990767 to fix the hub and remove the drive shaft nut.
CAUTION: Do not apply pressure to wheel bearing by the
vehicle weight to avoid possible damage when drive
shaft nut is loosened.
2004 Mitsubishi Endeavor LS
2004 DRIVELINE/AXLES Front Axle Hub & Axle Shafts - Endeavor
Page 1854 of 3870

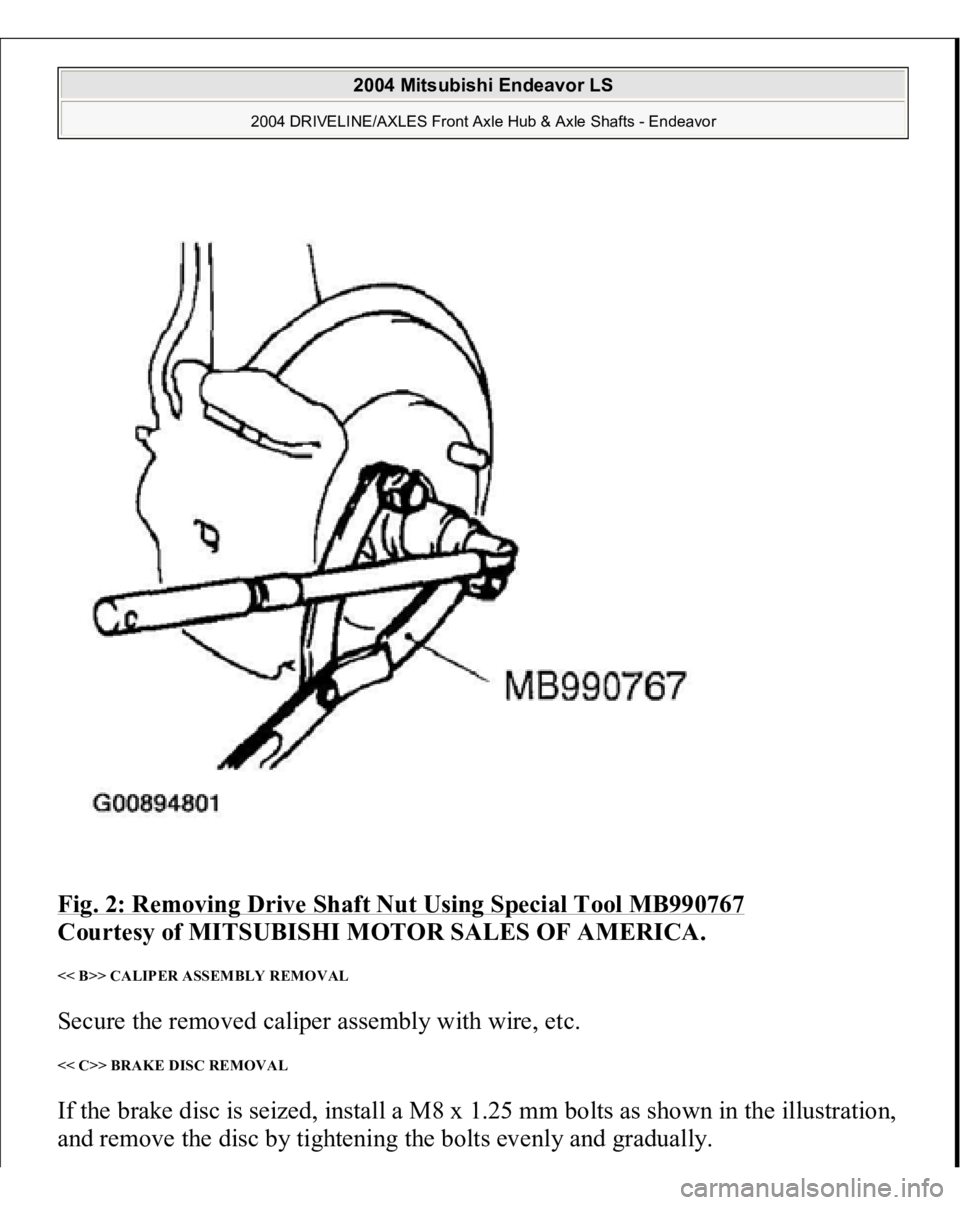

Fig. 2: Removing Drive Shaft Nut Using Special Tool MB990767
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
<< B>> CALIPER ASSEMBLY REMOVAL Secure the removed caliper assembly with wire, etc. << C>> BRAKE DISC REMOVAL If the brake disc is seized, install a M8 x 1.25 mm bolts as shown in the illustration,
and remove the disc b
y tightenin
g the bolts evenl
y and
graduall
y.
2004 Mitsubishi Endeavor LS
2004 DRIVELINE/AXLES Front Axle Hub & Axle Shafts - Endeavor
Page 1855 of 3870

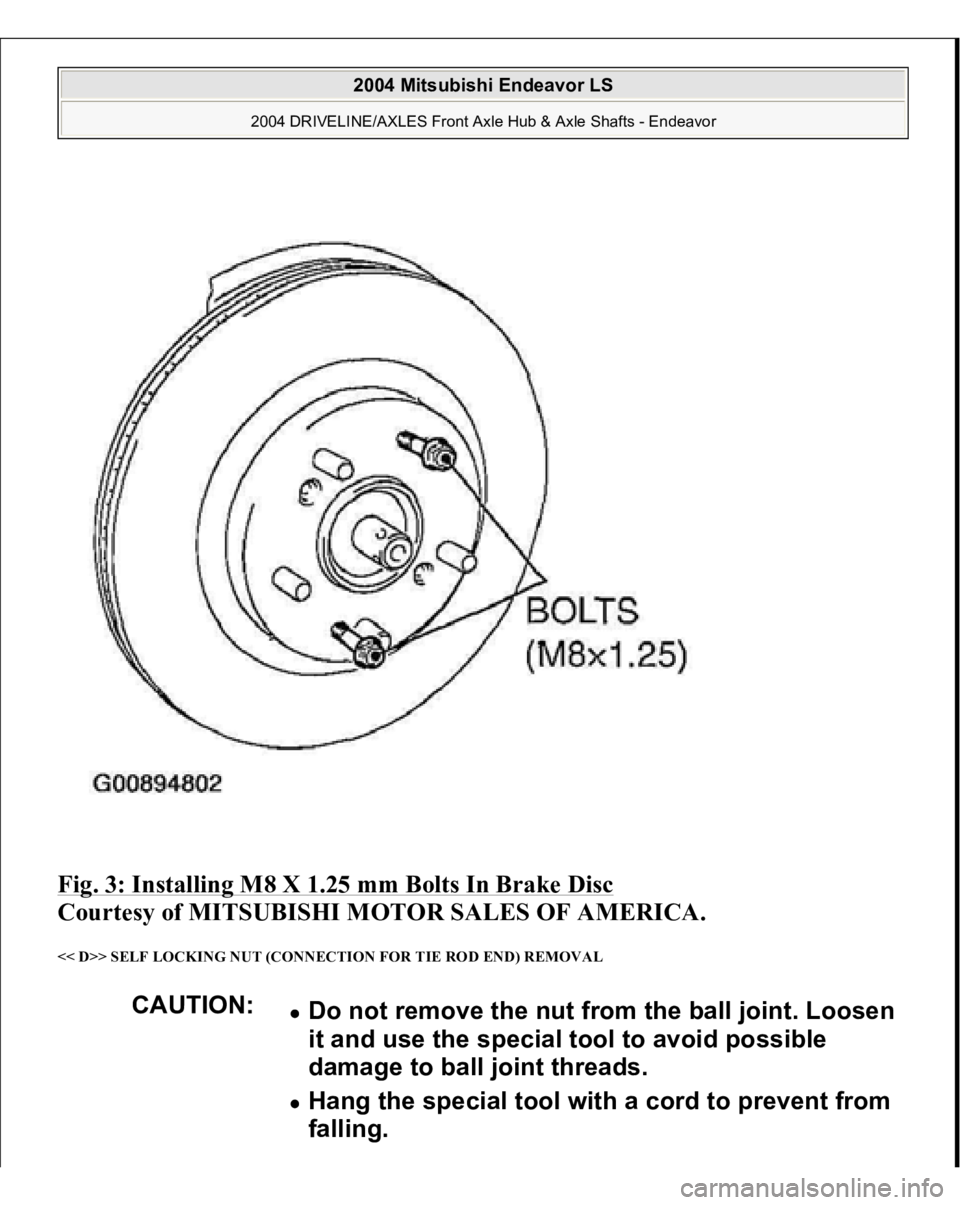

Fig. 3: Installing M8 X 1.25 mm Bolts In Brake Disc
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
<< D>> SELF LOCKING NUT (CONNECTION FOR TIE ROD END) REMOVAL
CAUTION:
Do not remove the nut from the ball joint. Loosen
it and use the special tool to avoid possible
damage to ball joint threads. Hang the special tool with a cord to prevent from
falling.
2004 Mitsubishi Endeavor LS
2004 DRIVELINE/AXLES Front Axle Hub & Axle Shafts - Endeavor
Page 1856 of 3870

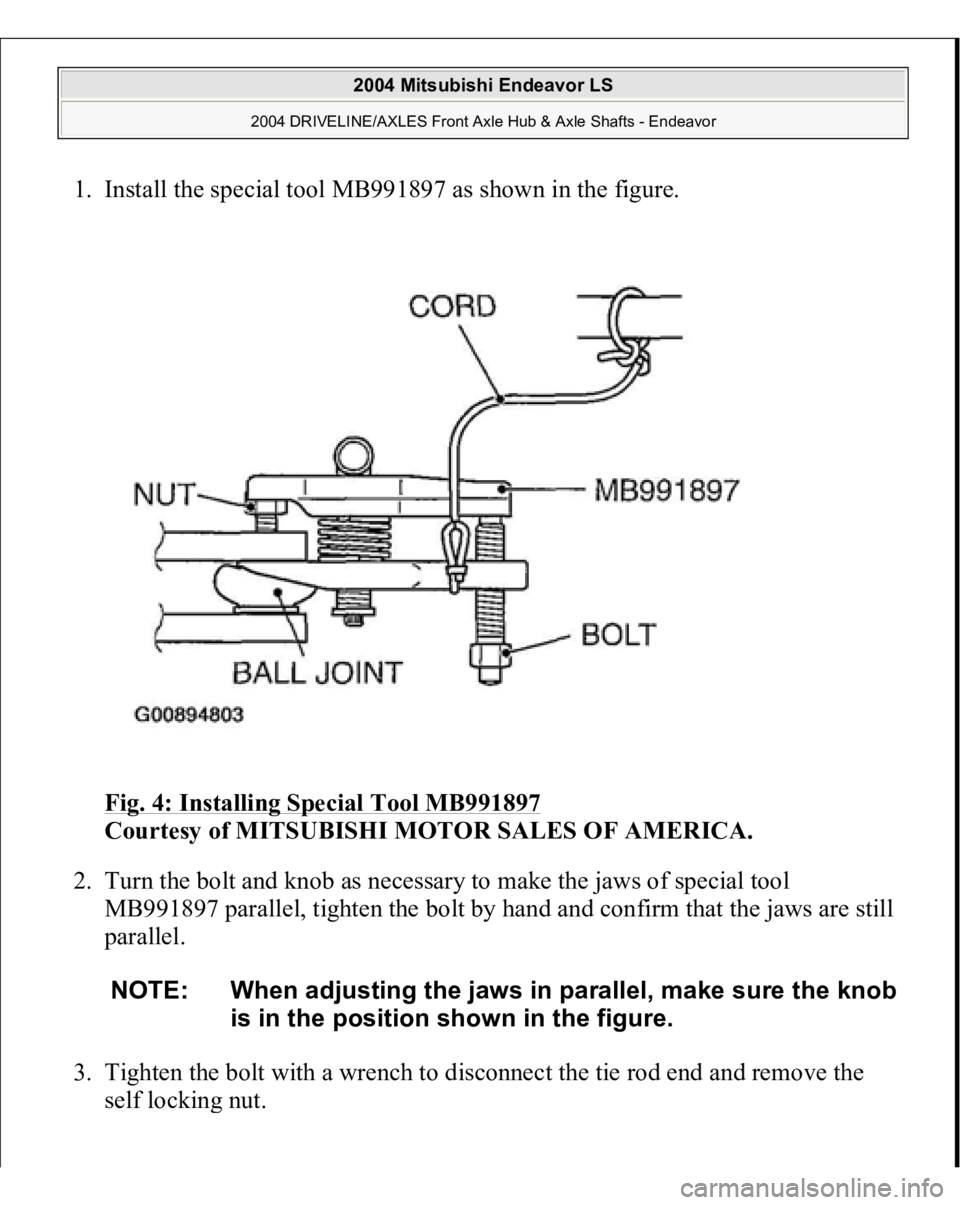

1. Install the special tool MB991897 as shown in the figure.
Fig. 4: Installing Special Tool MB991897
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Turn the bolt and knob as necessary to make the jaws of special tool
MB991897 parallel, tighten the bolt by hand and confirm that the jaws are still
parallel.
3. Tighten the bolt with a wrench to disconnect the tie rod end and remove the
self lockin
g nut.
NOTE: When adjusting the jaws in parallel, make sure the knob
is in the position shown in the figure.
2004 Mitsubishi Endeavor LS
2004 DRIVELINE/AXLES Front Axle Hub & Axle Shafts - Endeavor
