Page 105 of 3870

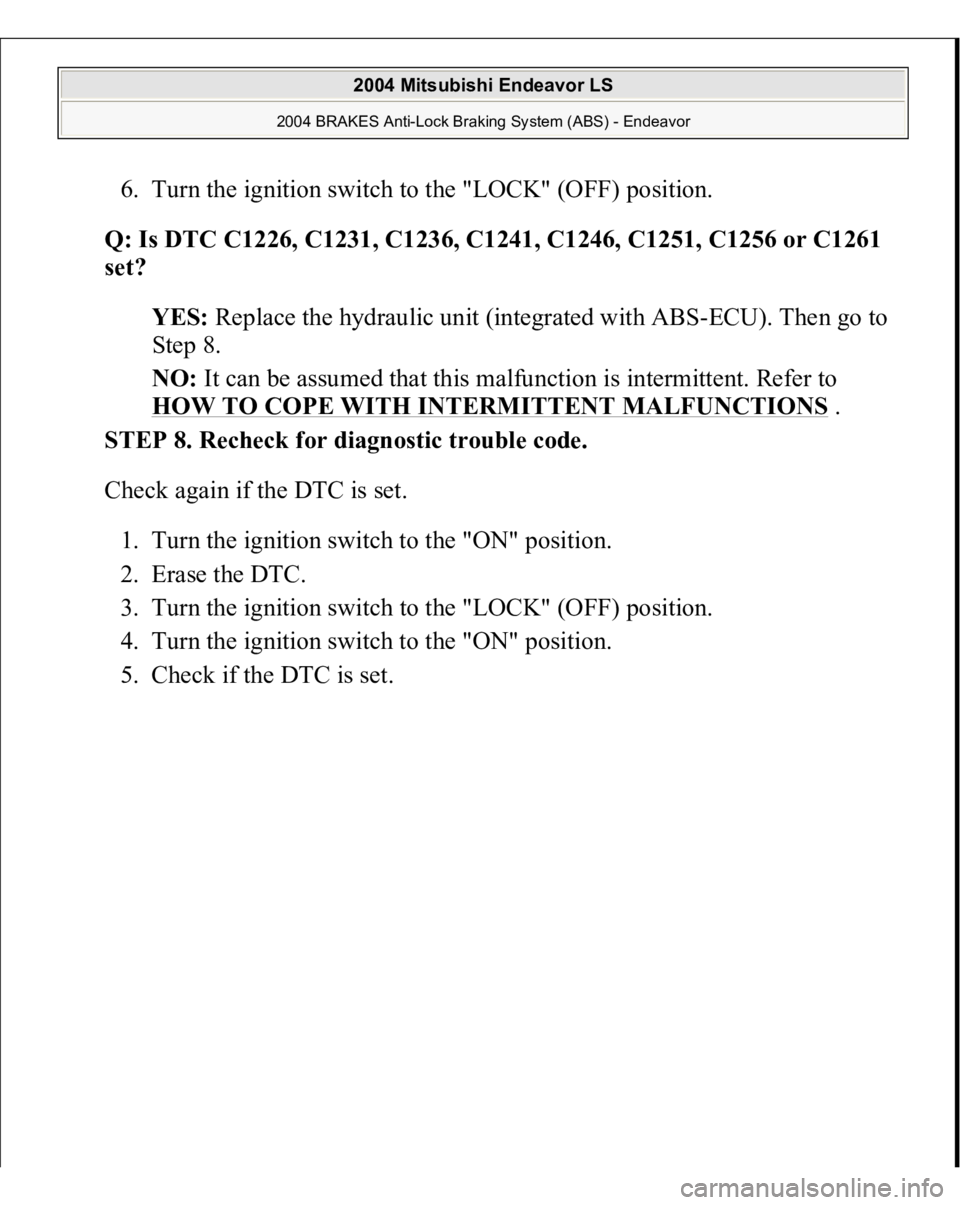

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 6. Turn the ignition switch to the "LOCK" (OFF) position. Q: Is DTC C1226, C1231, C1236, C1241, C1246, C1251, C1256 or C1261 set? YES: Replace the hydraulic unit (integrated with ABS-ECU)

Page 106 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 65: Rechecking For Diagnostic Trouble Code 2004 Mitsubishi Endeavor LS 2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor

Page 107 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . 6. Turn the ignition switch to the "LOCK" (OFF) position. Q: Is DTC C1226, C1231, C1236, C1241, C1246, C1251, C1256 or C1261 set? YES: Go

Page 108 of 3870

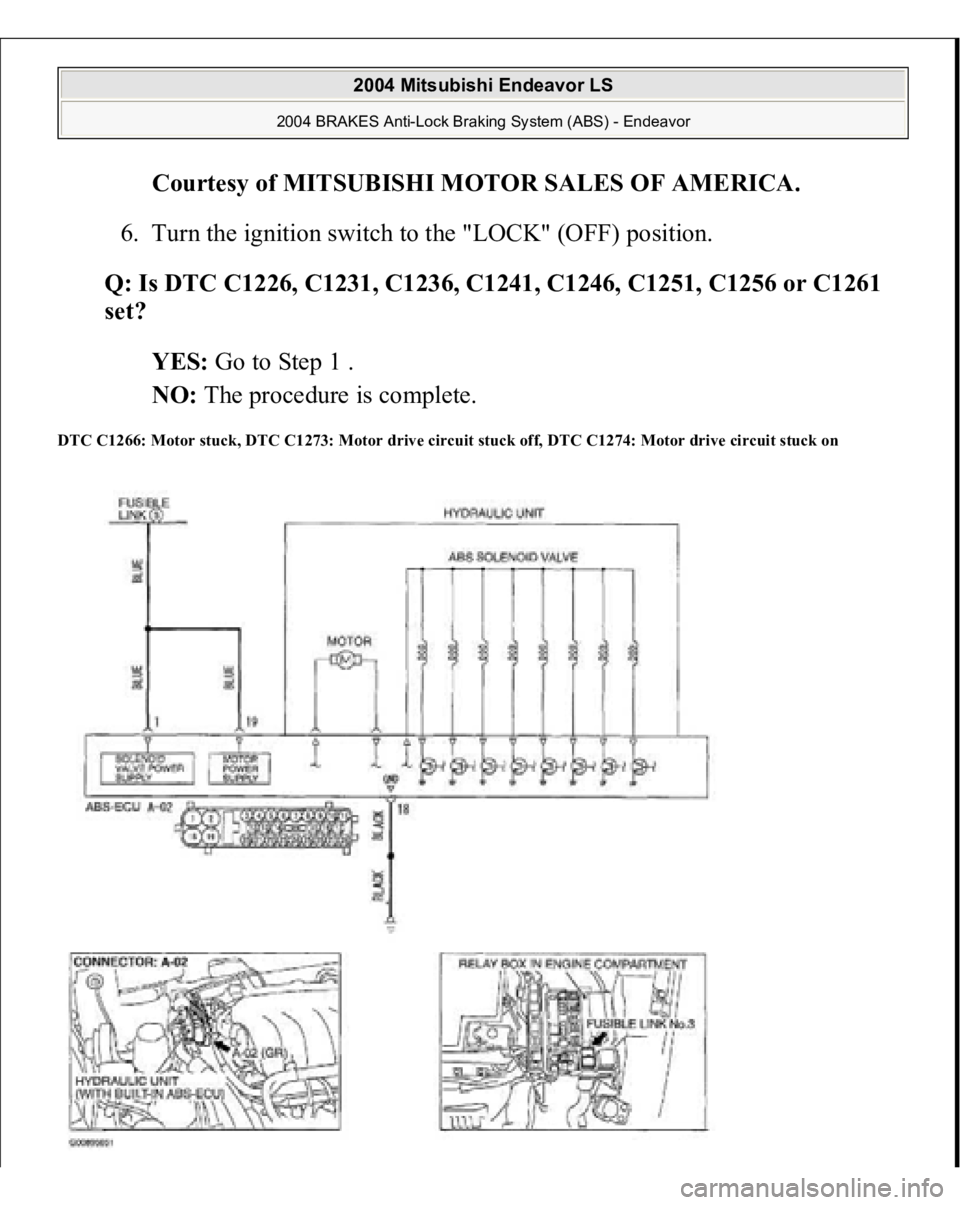

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 66: Solenoid Valve And Moter Power Supply Circuit Diagram & Connector Identification Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. CIRCUIT OPERATION The ABS-ECU contains the power supply cir

Page 109 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual TROUBLESHOOTING HINTS (THE MOST LIKELY CAUSES FOR THESE DTCS ARE TO SET ARE:) Current trouble Damaged wiring harness or connector Malfunction of the hydraulic unit (integrated with ABS-ECU) PAST T

Page 110 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 67: Connecting Scan Tool MB991958 To Data Link Connector Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor

Page 111 of 3870

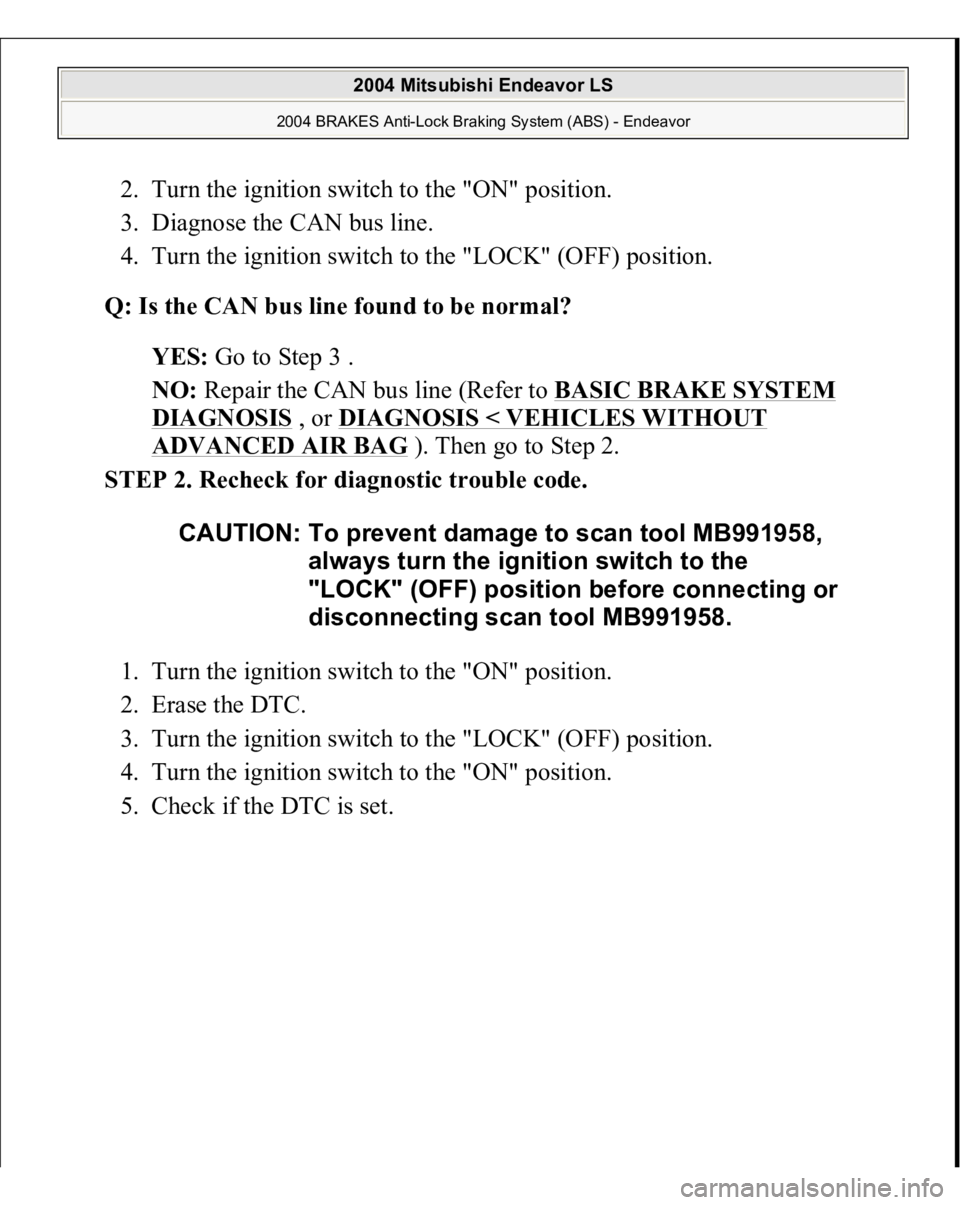

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2. Turn the ignition switch to the "ON" position. 3. Diagnose the CAN bus line. 4. Turn the ignition switch to the "LOCK" (OFF) position. Q: Is the CAN bus line found to be norma

Page 112 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 68: Rechecking For Diagnostic Trouble Code Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor
