Page 129 of 3870

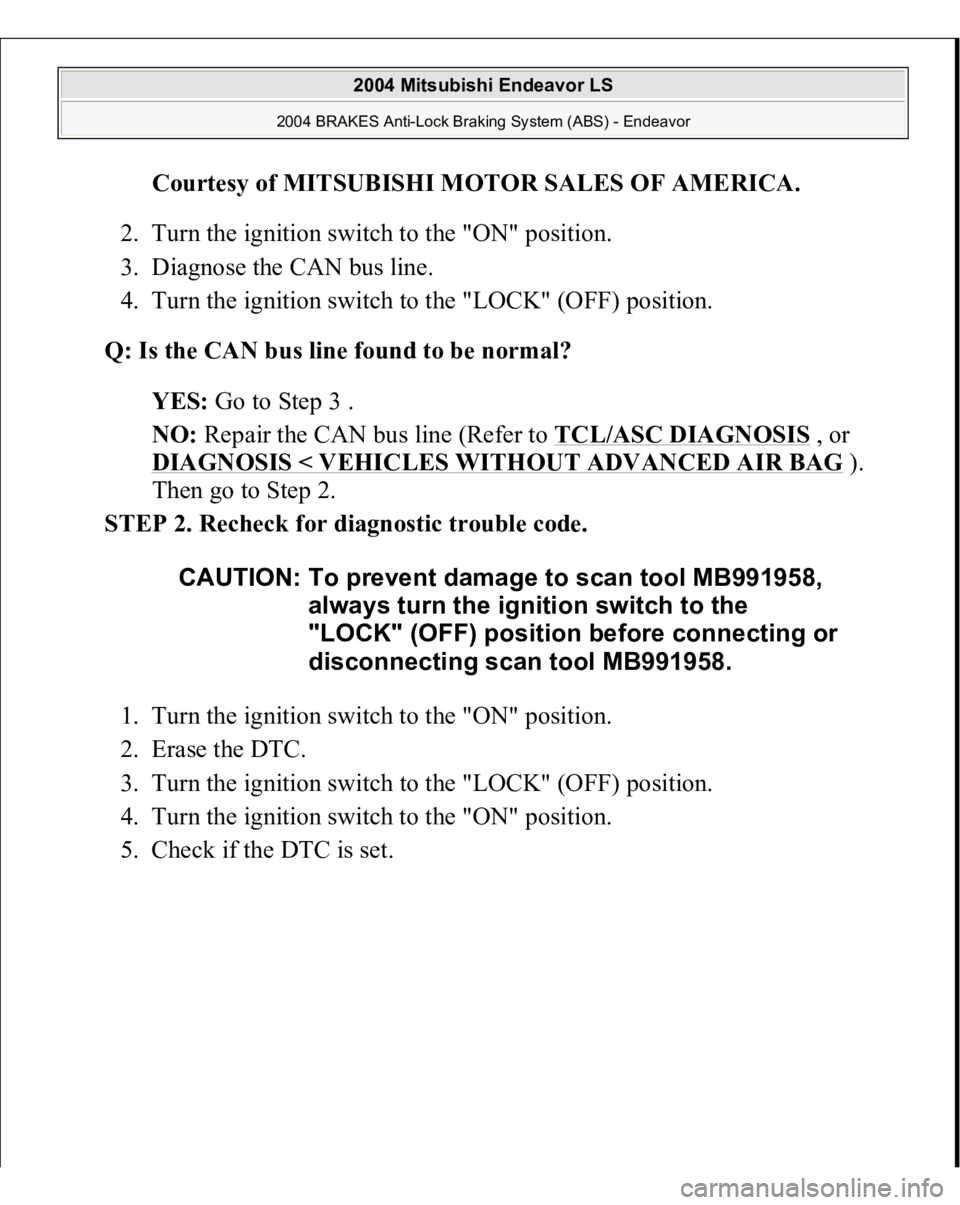

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . 2. Turn the ignition switch to the "ON" position. 3. Diagnose the CAN bus line. 4. Turn the ignition switch to the "LOCK" (OFF) pos

Page 130 of 3870

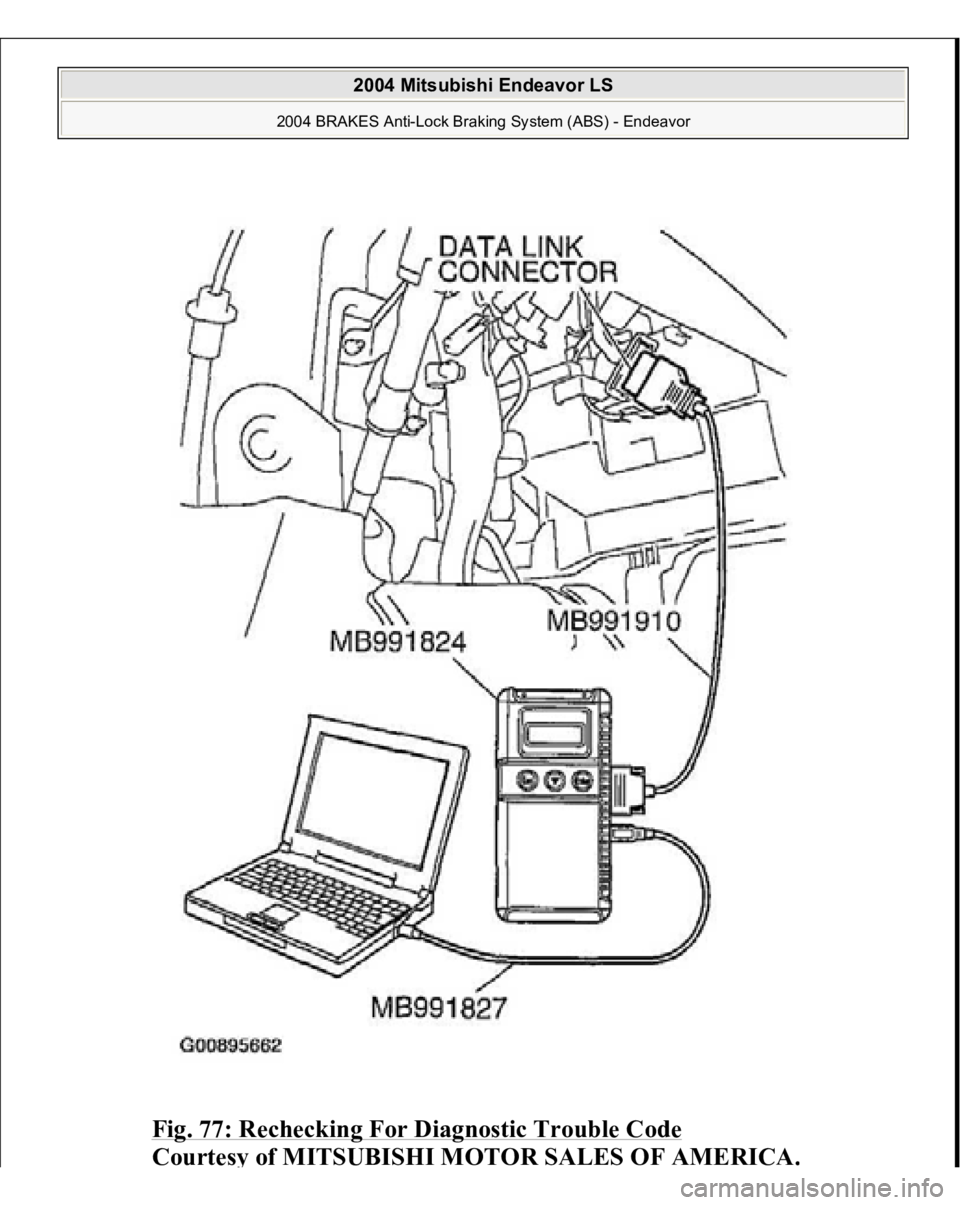

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 77: Rechecking For Diagnostic Trouble Code Courtes y of MITSUBISHI MOTOR SALES OF AMERICA . 2004 Mitsubishi Endeavor LS 2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor

Page 131 of 3870

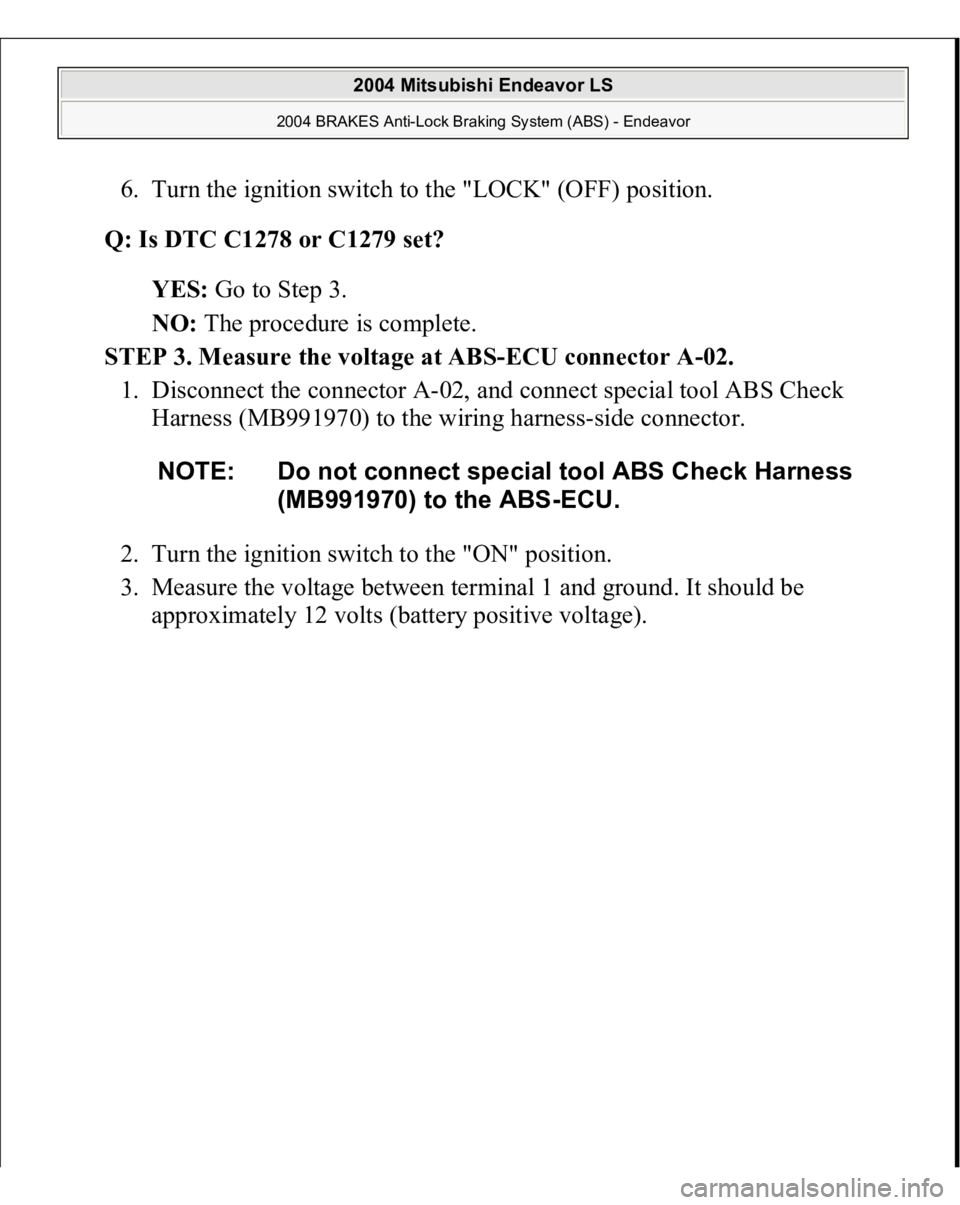

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 6. Turn the ignition switch to the "LOCK" (OFF) position. Q: Is DTC C1278 or C1279 set? YES: Go to Step 3. NO: The procedure is complete. STEP 3. Measure the voltage at ABS-ECU connect

Page 132 of 3870

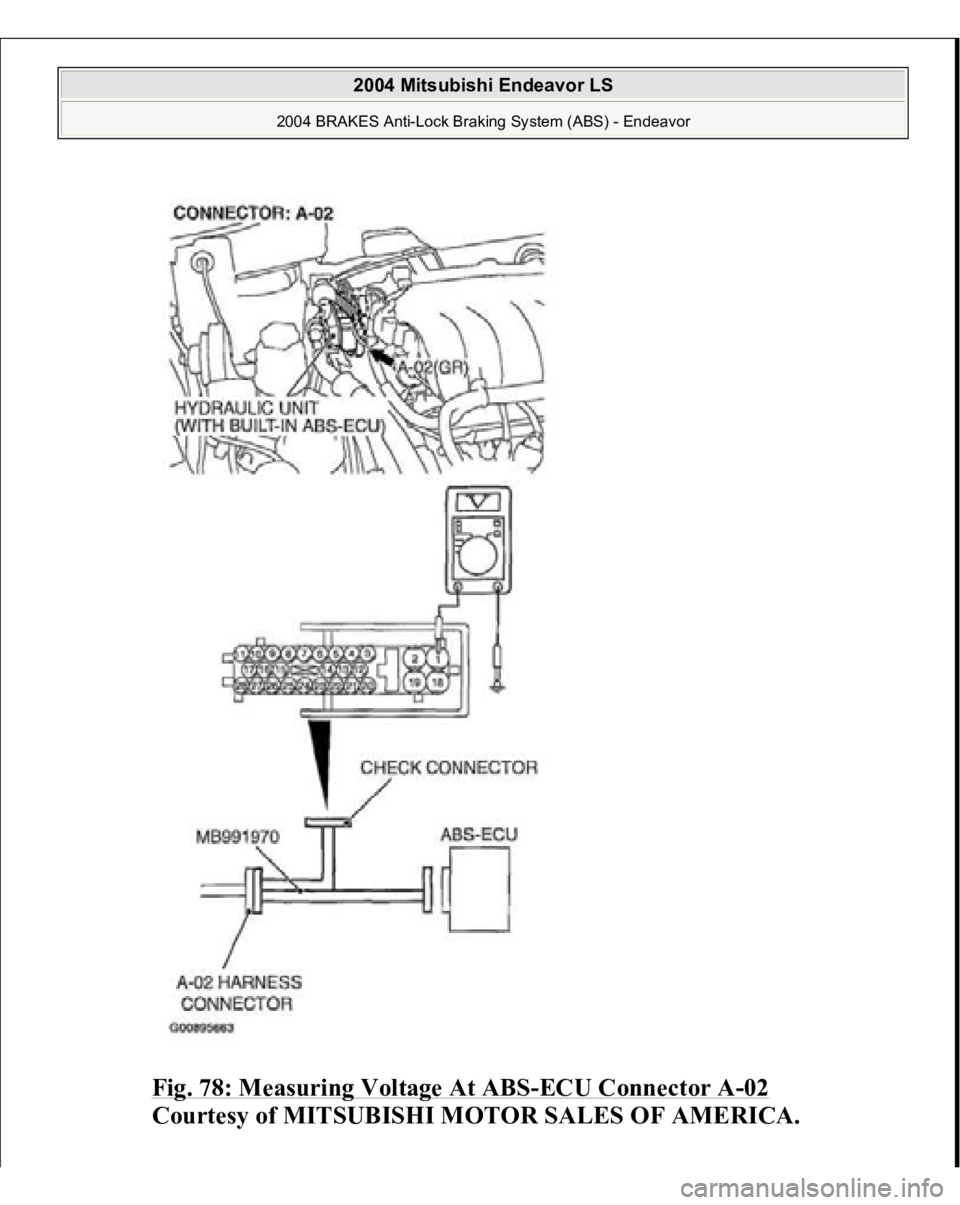

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 78: Measuring Voltage At ABS -ECU Connector A -02 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor

Page 133 of 3870

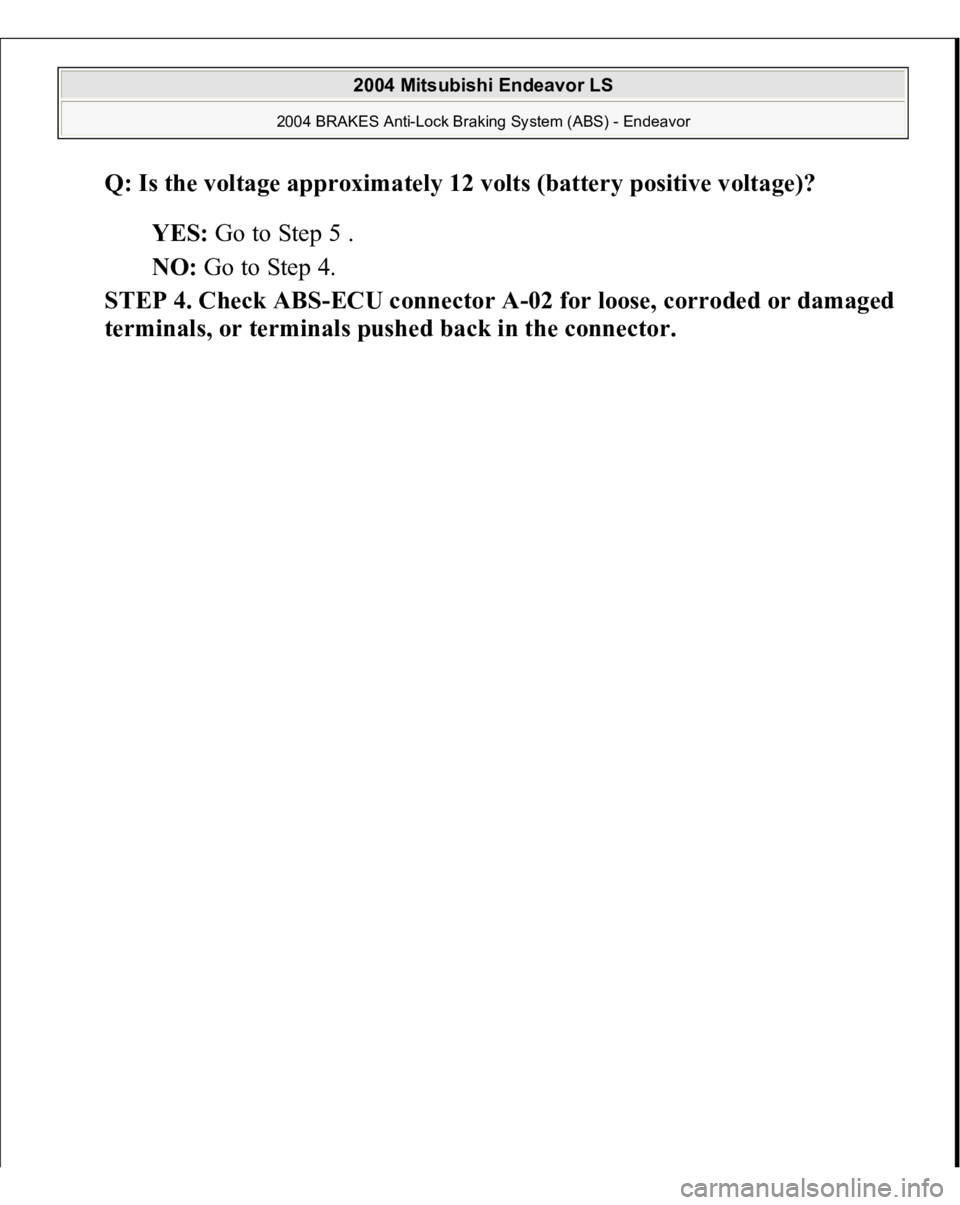

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Q: Is the voltage approximately 12 volts (battery positive voltage)? YES: Go to Step 5 . NO: Go to Step 4. STEP 4. Check ABS-ECU connector A-02 for loose, corroded or damaged terminals, or term

Page 134 of 3870

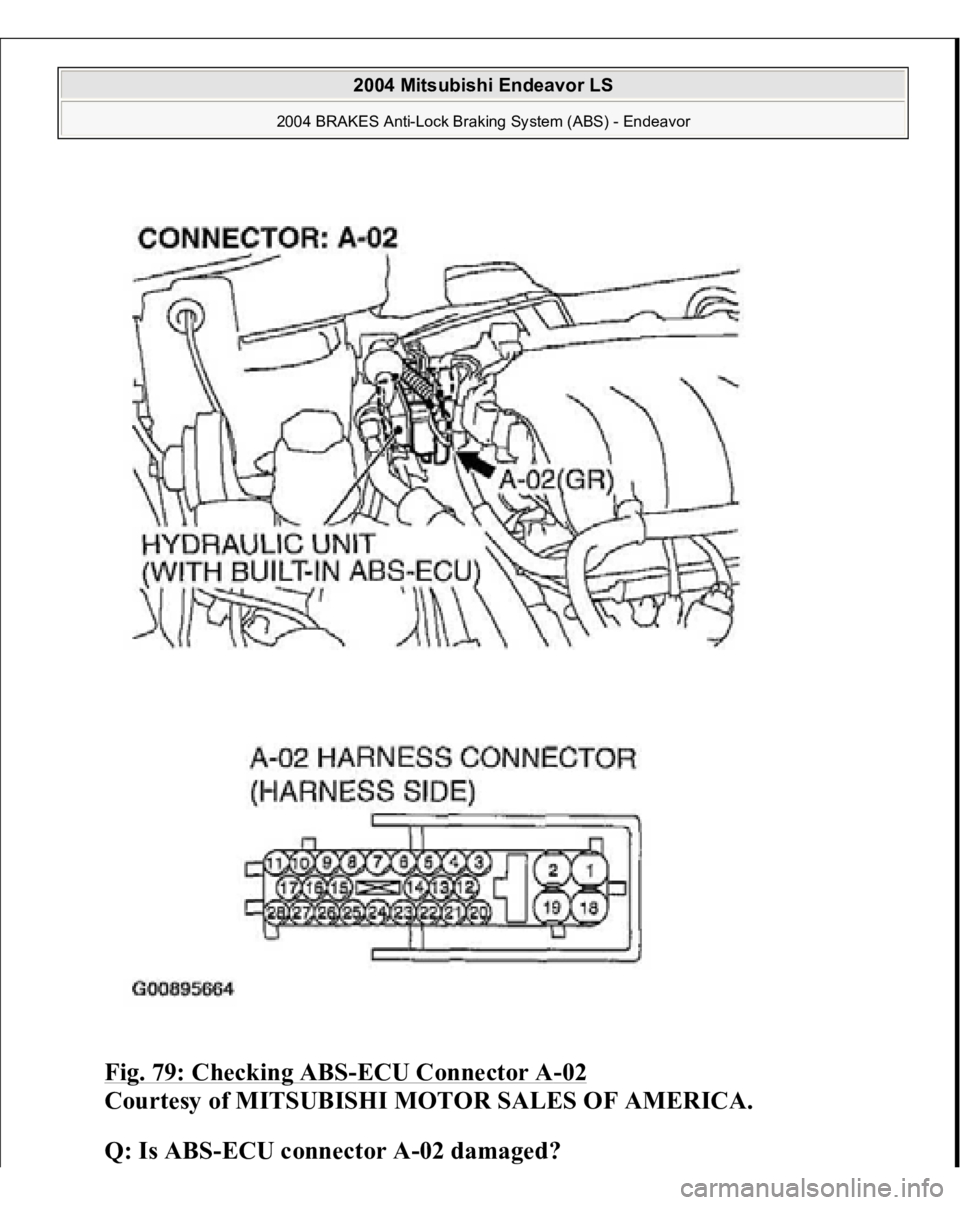

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 79: Checking ABS -ECU Connector A -02 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Is ABS-ECU connector A-02 damaged? 2004 Mitsubishi Endeavor LS 2004 BRAKES Anti-Lock Braking System

Page 135 of 3870

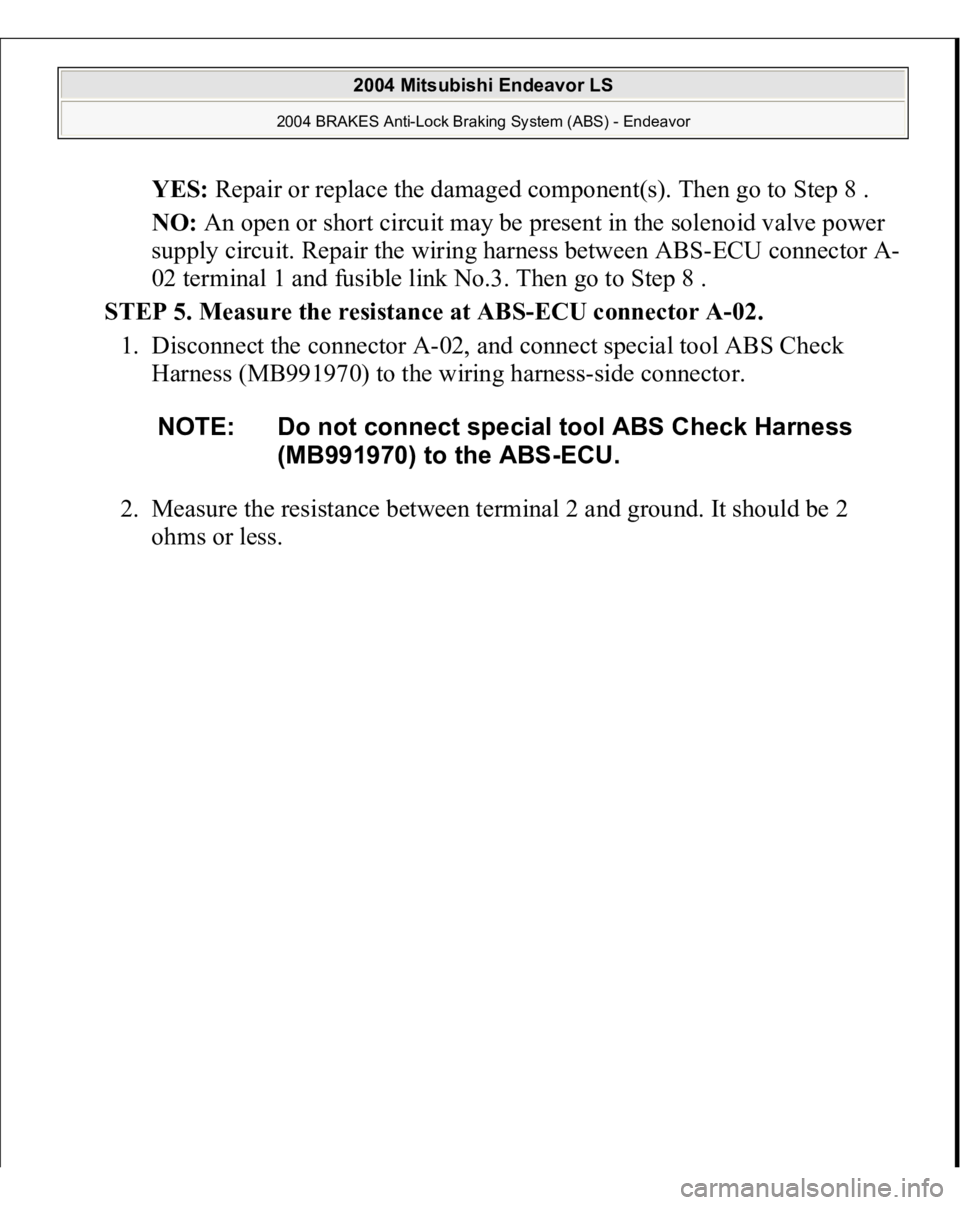

MITSUBISHI ENDEAVOR 2004 Service Repair Manual YES: Repair or replace the damaged component(s). Then go to Step 8 . NO: An open or short circuit may be present in the solenoid valve power supply circuit. Repair the wiring harness between ABS-EC

Page 136 of 3870

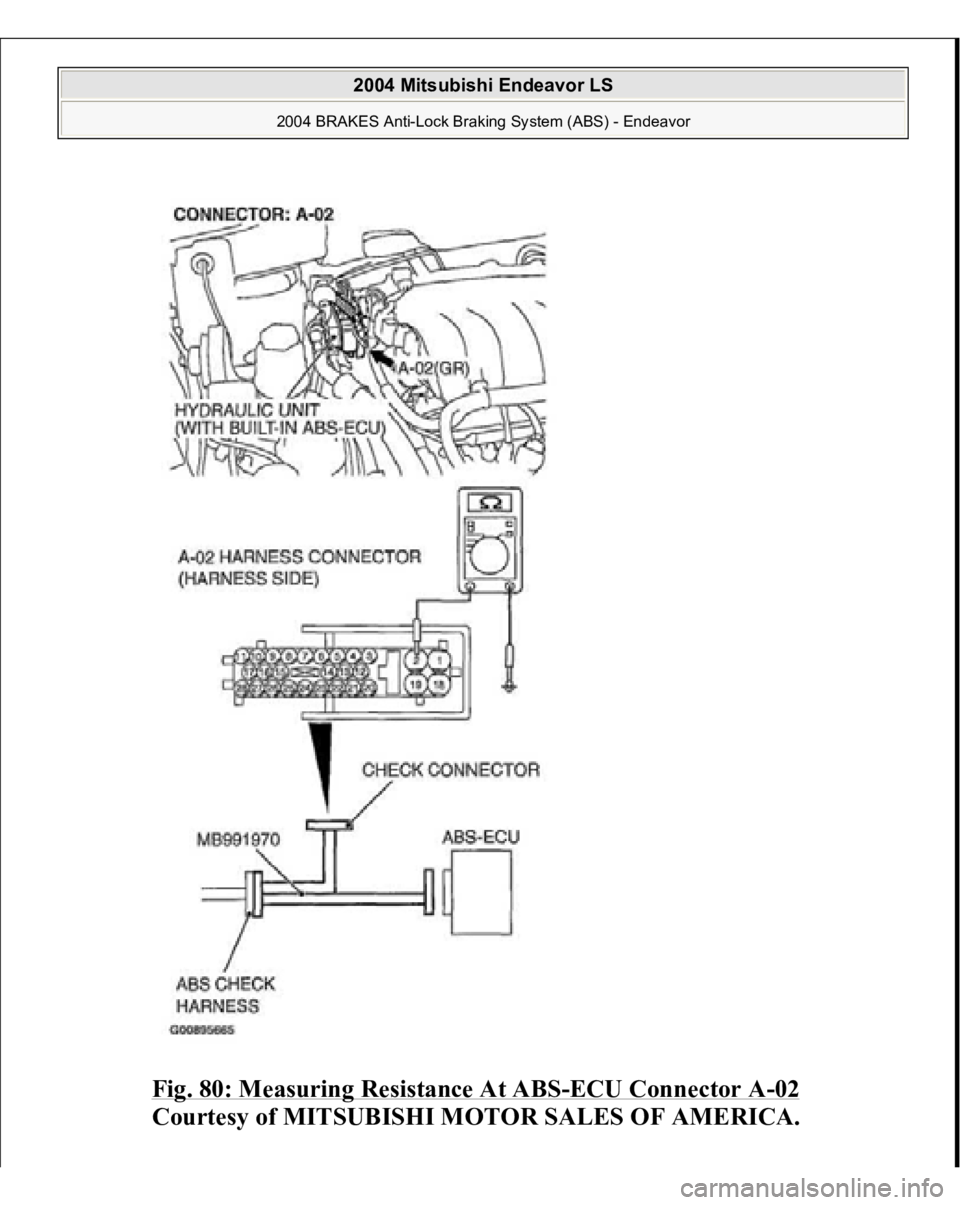

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 80: Measuring Resistance At ABS -ECU Connector A -02 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor
