Page 217 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 126: Identifying Connectors: C -214, C -215 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. CIRCUIT OPERATION The ABS-ECU is energized by the ignition switch (IG2) through multi-purpose fuse

Page 218 of 3870

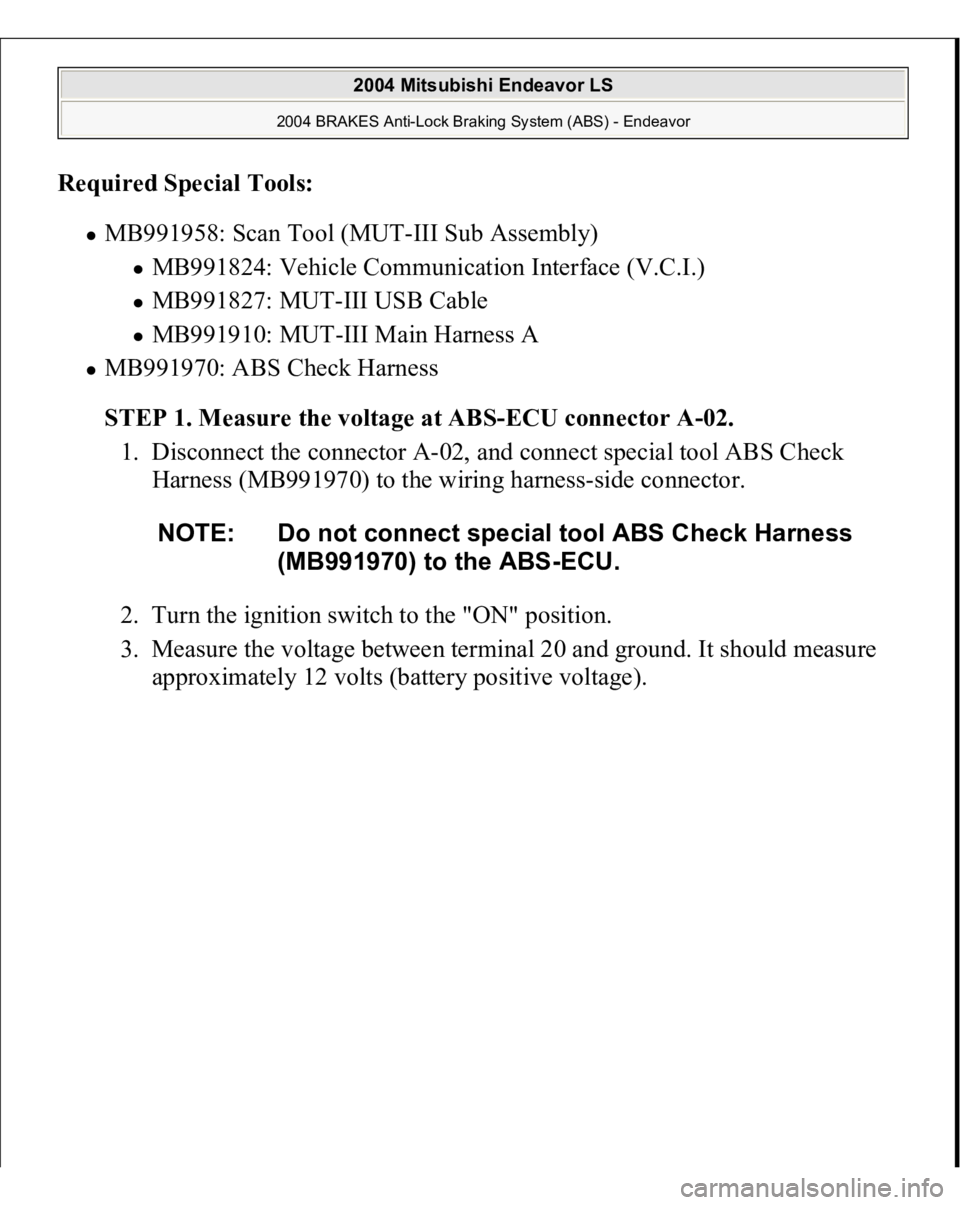

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Required Special Tools: MB991958: Scan Tool (MUT-III Sub Assembly) MB991824: Vehicle Communication Interface (V.C.I.) MB991827: MUT-III USB Cable MB991910: MUT-III Main Harness A MB991970: ABS

Page 219 of 3870

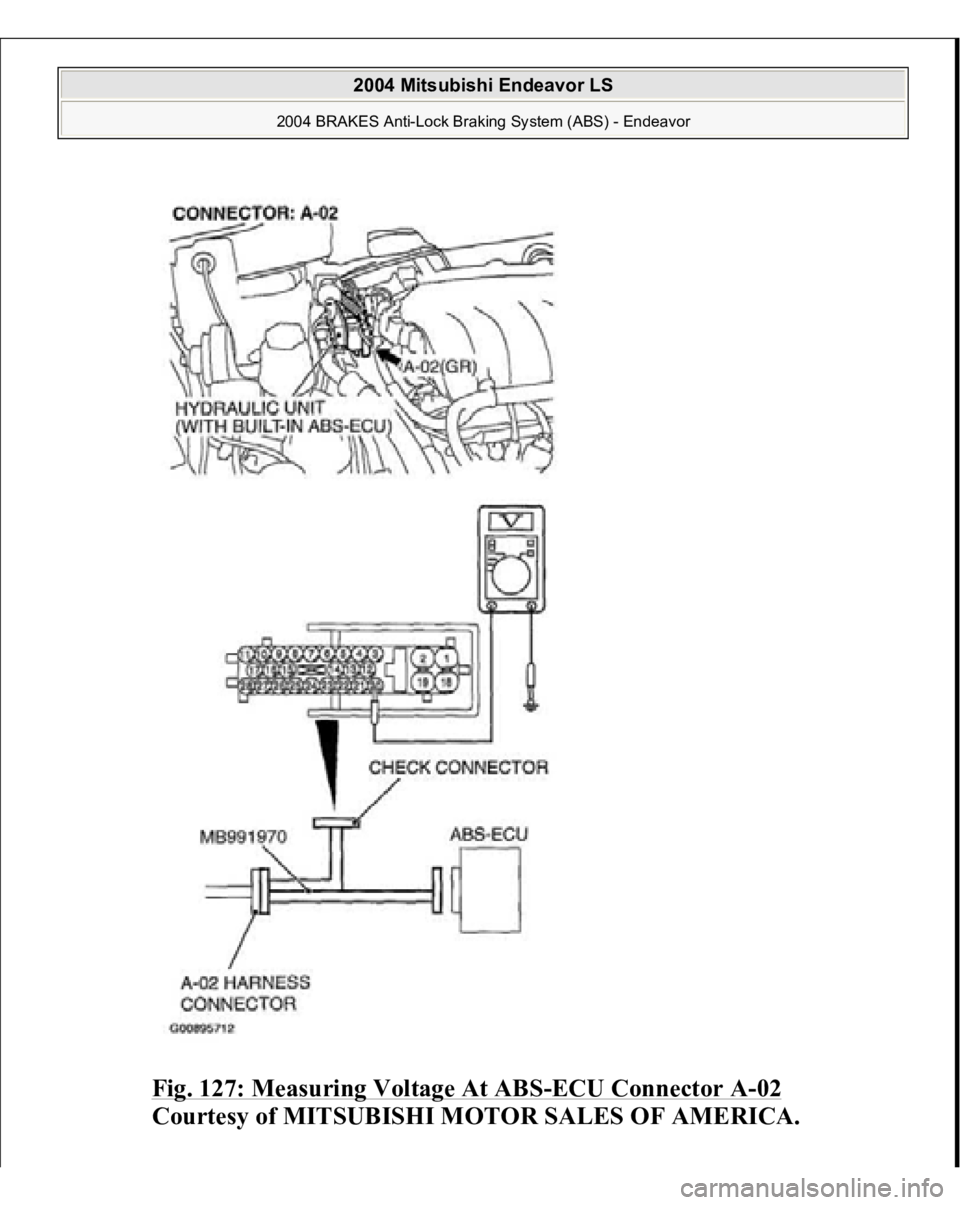

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 127: Measuring Voltage At ABS -ECU Connector A -02 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor

Page 220 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Q: Is battery positive voltage (approximately 12 volts) present? YES: Go to Step 3 . NO: Go to Step 2. STEP 2. Check the following connectors. AB S-ECU connector A-02 2004 Mitsubishi Endeavo

Page 221 of 3870

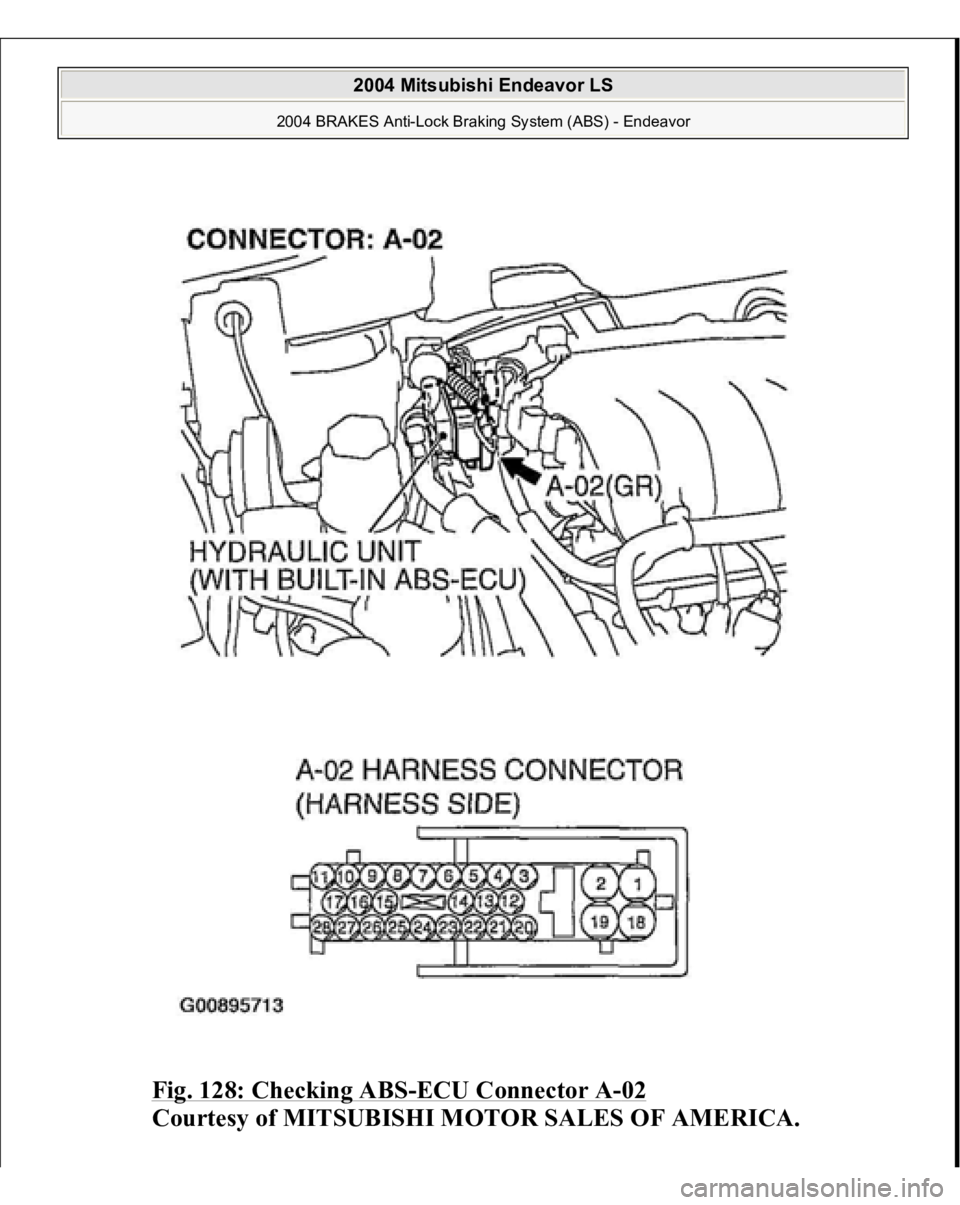

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 128: Checking ABS -ECU Connector A -02 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor

Page 222 of 3870

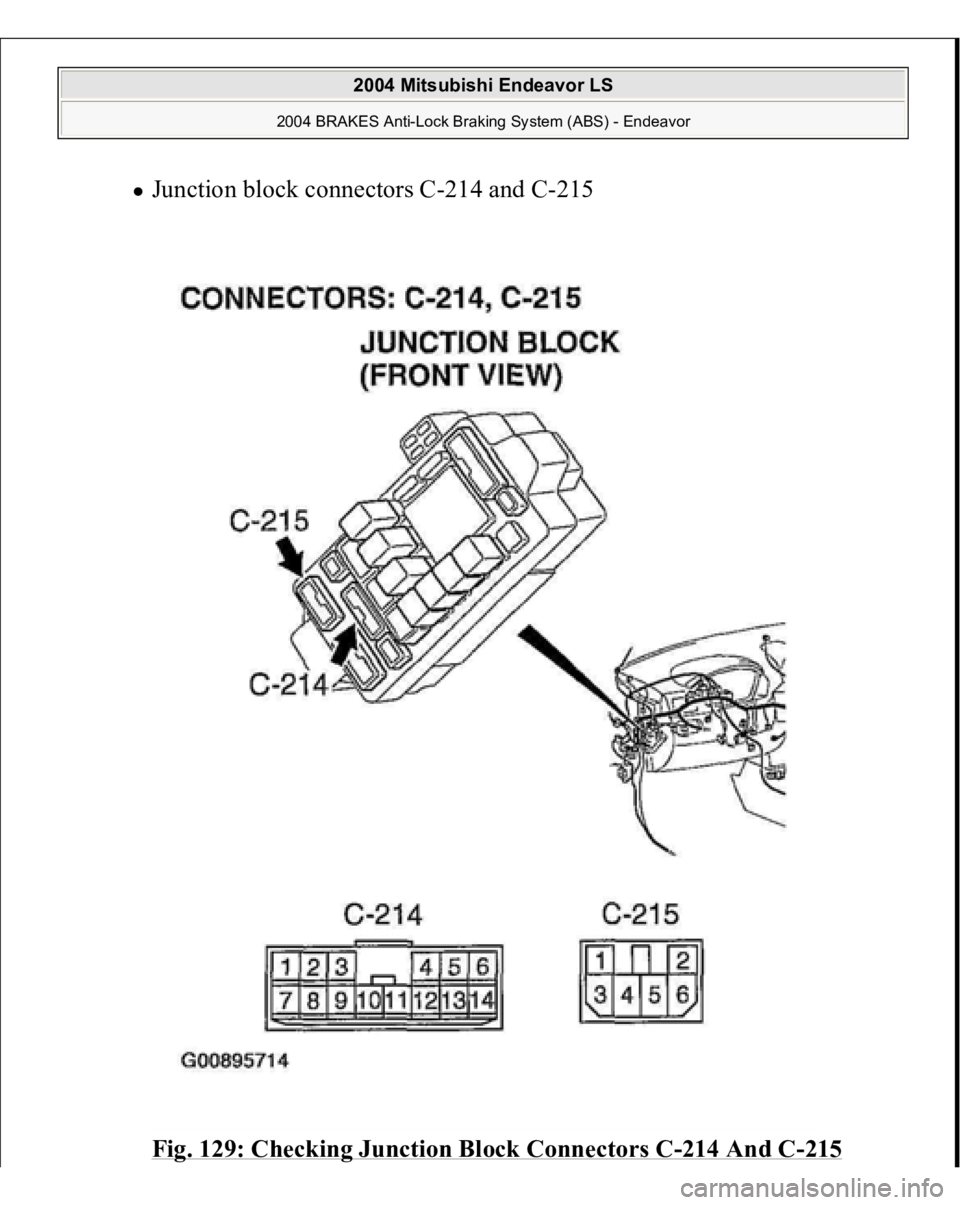

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Junction block connectors C-214 and C-215 Fig. 129: Checking Junction Block Connectors C -214 And C -215 2004 Mitsubishi Endeavor LS 2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor

Page 223 of 3870

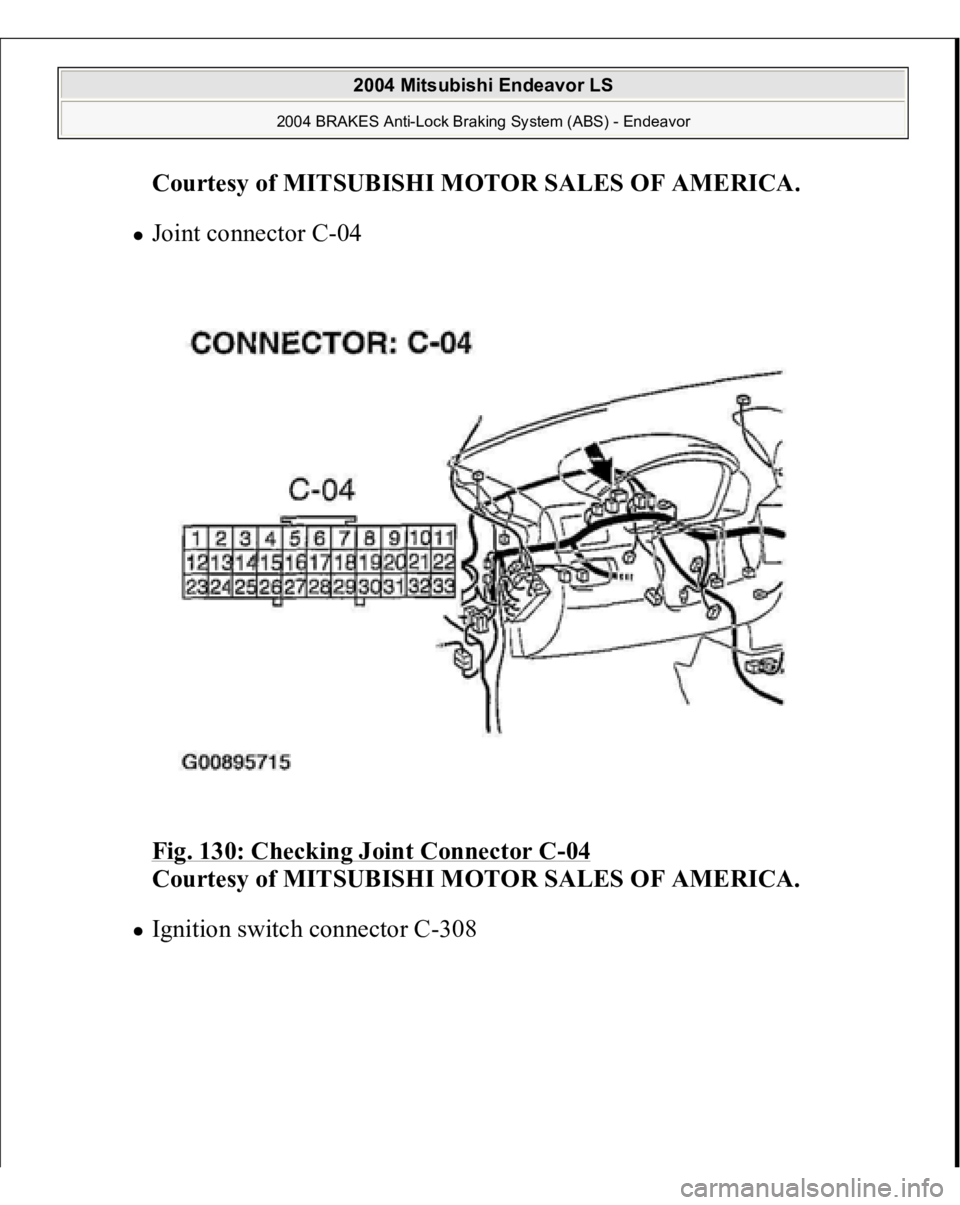

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . Joint connector C-04 Fig. 130: Checking Joint Connector C -04 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Ignition switch connector C-308 2004

Page 224 of 3870

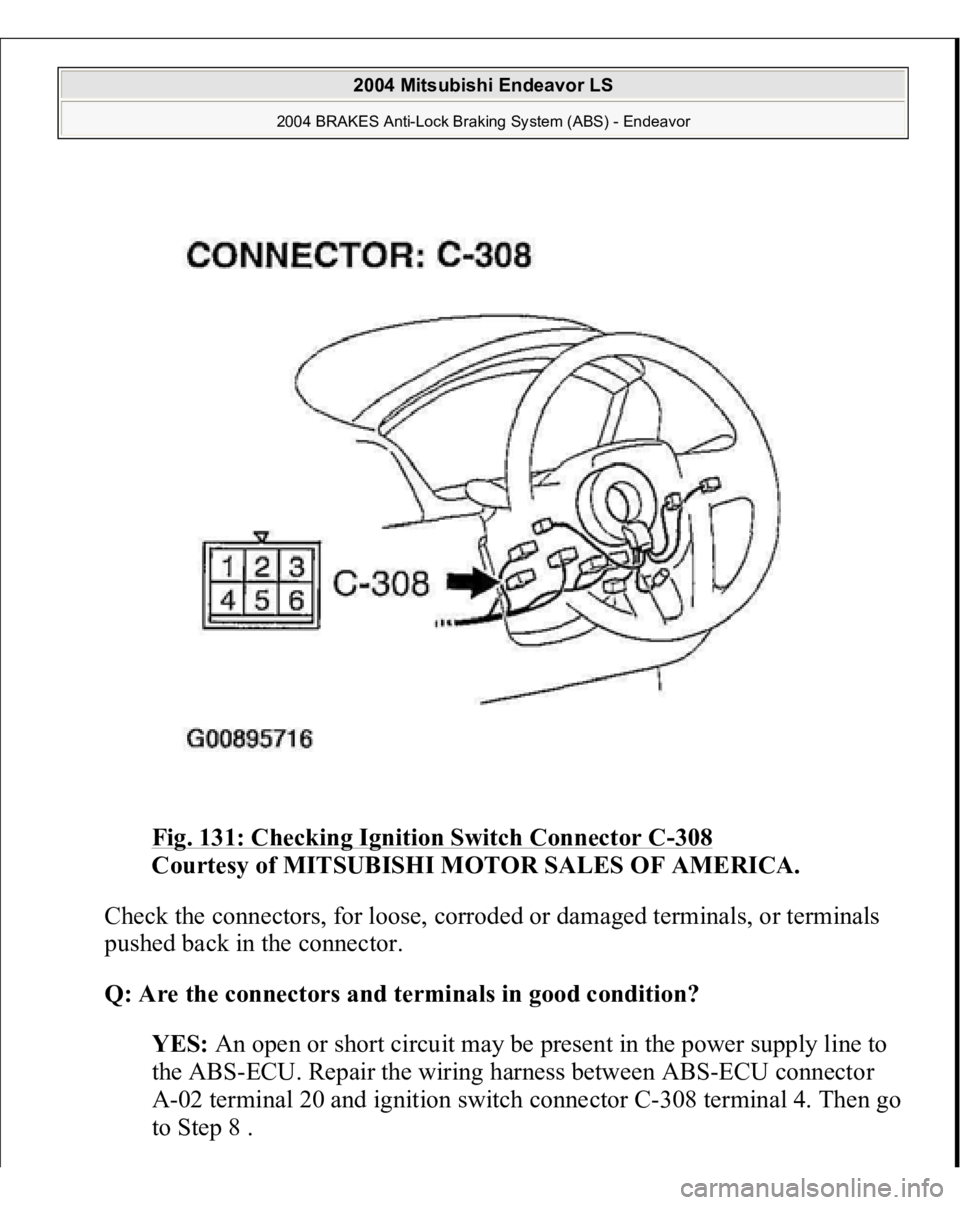

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 131: Checking Ignition Switch Connector C -308 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Check the connectors, for loose, corroded or damaged terminals, or terminals pushed back in the c
